1.9 Set Up EMS Properties

This topic describes the process of setting EMS Properties.

  1. Set the EMS properties in the Scheduler EMS Properties screen.
    The following screen is displayed.

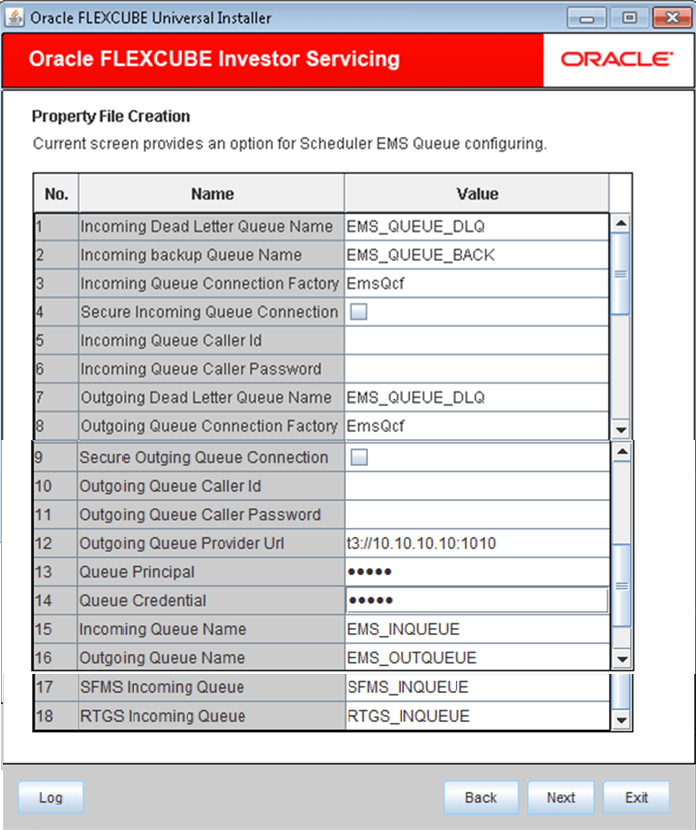

    Figure 1-41 EMS Properties


    Description of Figure 1-41 follows
    Description of "Figure 1-41 EMS Properties"

  2. On Scheduler EMS Properties screen, enter the following details.
    Refer to the table for Scheduler EMS Properties.

    Table 1-15 Scheduler EMS Properties

    Field Description
    Incoming Dead Letter Queue Name

    Set EMS_QUEUE_DLQ as the incoming dead letter queue name.

    Incoming Backup Queue Name

    Set EMS_QUEUE_BACK as the incoming backup queue name.

    Incoming Connection Factory

    Specify the name of the incoming connection factory to which EMS listens. You need to create this connection factory at the application server.

    For details on connection factory creation, follow the steps described for creation of notify connection factories.
    Secure Incoming Queue Connection

    Check this box to indicate that it is a secured queue connection.
    Incoming Queue Caller ID

    Specify the caller ID for the secured queue connection.
    Incoming Queue Caller Password

    Specify the caller password for the secured queue connection.
    Outgoing Dead Letter Queue Name

    Set EMS_QUEUE_DLQ as outgoing dead letter queue name.

    Outgoing Connection Factory

    Specify the name of the outgoing connection factory to which EMS listens. You need to create this connection factory at the application server.

    For details on connection factory creation, follow the steps described for creation of notify connection factories.
    Secure Outgoing Queue Connection

    Check this box to indicate that it is a secured outgoing queue connection.
    Outgoing Queue Caller ID

    Specify the caller ID for the secured queue connection.
    Outgoing Queue Caller Password

    Specify the caller Password for the secured queue connection.
    Outgoing Queue Provider URL

    In case EMS OUT MDB is to be configured to queue, you need to specify the URL for outgoing provider based on the application server. By default, the Installer displays the outgoing queue provider URL for Oracle WebLogic.

    This value is application server dependent.

    The details of Outgoing Queue Provider URL to be used for different application servers are given below:
    • Application Server: Oracle WebLogic
    • EMS Out Initial Context Factory:

      t3://<ip_adress>:port

      E.g.: t3://10.10.10.10:1010

      Here, 10.10.10.10 represents the local host and 1010 to the target server default port (AdminServer/ManagedServer).
    Queue Principal

    You need to specify the EMS out queue principal if EMS OUT MDB has to be configured to queue. This is the user name for the Application server in which the queue is configured.

    Queue Credential

    If EMS OUT MDB has to be configured to queue, you need to specify the EMS out queue credential. This is the password for the above user name created for application server in which the queue configured.

    Incoming Queue Name Specify the name of the incoming queue for which EMS is configured. By default, this is set as NOTIFY_QUEUE_DLQ.
    Outgoing Queue Name

    Specify the name of the outgoing queue for which EMS is configured. By default, this is set as NOTIFY_QUEUE_DLQ.

    SFMS Incoming Queue

    Specify the SFMS Incoming Queue.
    RTGS Incoming Queue

    Specify the RTGS incoming Queue.
  3. You are provided with an option for Scheduler EMS FTP/FTPS configuration.

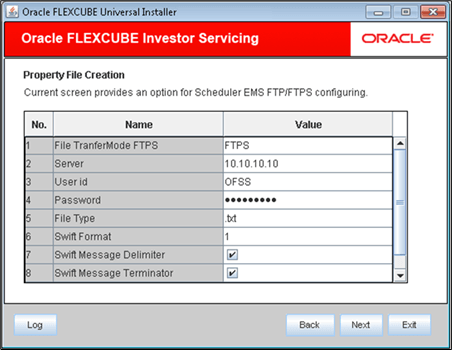

    Figure 1-42 Scheduler EMS FTP or FTPS Configuration


    Description of Figure 1-42 follows
    Description of "Figure 1-42 Scheduler EMS FTP or FTPS Configuration"

  4. On Scheduler EMS FTP/FTPS Configuration, enter the following details.
    Refer to the table for Scheduler EMS FTP/FTPS Configuration.

    Table 1-16 Scheduler EMS FTP/FTPS Configuration

    Field Description
    File Transfer Mode FTPS

    Specify the mode of transferring files to EMS.

    Choose one of the following:
    • FTPS (defaulted in Default Installation)
    • SFTP
    • HTTP
    Server

    Specify the server IP address for the selected file transfer mode.
    User ID

    Specify the user ID to access the server of the file transfer mode.
    Password

    Specify the password to for the above user ID.
    File Type

    Specify the type of file that is transferred. By default, the installer sets it as .txt.

    SWIFT Message Delimiter

    Specify the character which is used as the message delimiter.
    SWIFT Message Terminator

    Specify the character which is used as the message terminator.
    For Default Installation, the following screen is displayed.

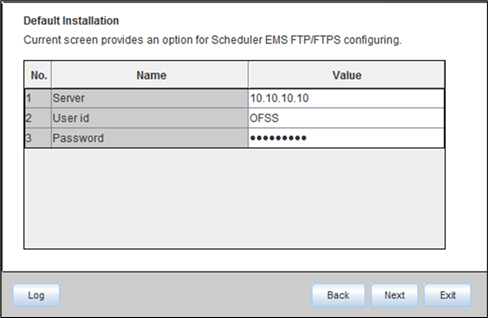

    Figure 1-43 Scheduler EMS FTP or FTPS Configuration for Default Installation


    Description of Figure 1-43 follows
    Description of "Figure 1-43 Scheduler EMS FTP or FTPS Configuration for Default Installation"

  5. On EMS Structured Financial Message System Configuration screen, enter the following details.
    Refer to the table for Scheduler EMS Structured Financial Message System Configuration.

    Table 1-17 EMS Structured Financial Message System Configuration

    Field Description
    Signature Block

    Check this box to enable signature block.
    Keystore File Name

    Specify the keystore file name.
    Keystore Alias Name

    Specify the keystore alias name.
    Keystore Password

    Specify the keystore password.

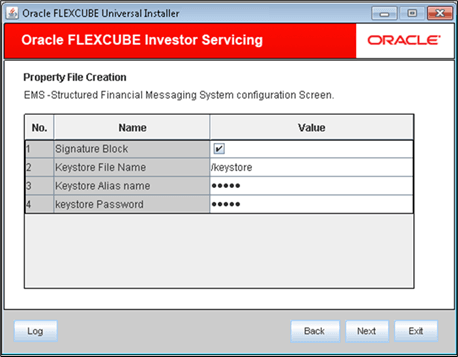

    Figure 1-44 EMS Structured Financial Messaging System


    Description of Figure 1-44 follows
    Description of "Figure 1-44 EMS Structured Financial Messaging System"

Parent topic: Create Property File
