2.63 Element Maintenance Summary

This topic provides the systematic instructions to perform the basic operations on the selected records.

Retrieve Element Maintenance record

1. On Home screen, type UTSENMNT in the text box, and click Next.
   The Element Maintenance Summary screen is displayed.

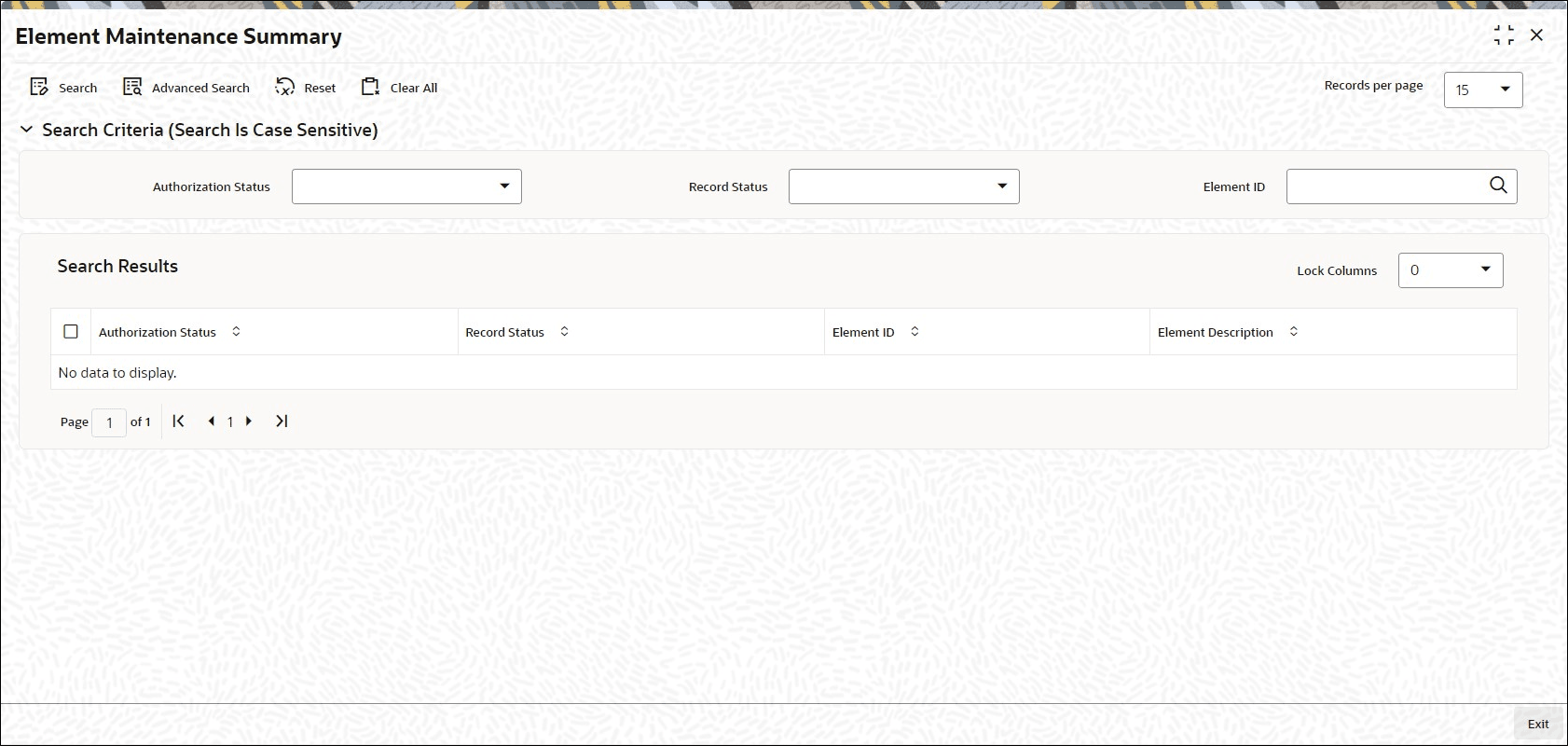

   Figure 2-73 Element Maintenance Summary





   Description of "Figure 2-73 Element Maintenance Summary"



2. On Element Maintenance Summary screen, specify any or all of the following details in the corresponding fields:
   • Authorization Status - If you choose the status, then the records matching the specified status are retrieved. If you do not choose any option, then all the records are retrieved.
   • Record status
   • Element ID
3. Click Search button to view the records.
   All the records with the specified details are retrieved and displayed in the lower portion of the screen.

   Note:

   You can also retrieve the individual record detail from the detail screen by querying in the following manner:

   • Press F7
   • Input any parameter in the screen
   • Press F8

• Edit Element Maintenance record
  This topic provides the systematic instructions to edit Element Maintenance record.
• View Element Maintenance record
  This topic provides the systematic instructions to view Element Maintenance record.
• Delete Element Maintenance record
  This topic provides the systematic instructions to delete Element Maintenance record.
• Authorize Element Maintenance record
  This topic provides the systematic instructions to authorize Element Maintenance record.
