3.15 Process Event User Mapping Detail

This topic provides the systematic instructions to map an EOD operator with an event.

The Oracle FLEXCUBE Investor Servicing provides the facility to map the users responsible for each event that can be raised during the End of Day (EOD) process. You can also capture the user’s telephone numbers.

1. On Home screen, type UTDEUMAP in the text box, and click Next.
   The Event User Mapping Detail screen is displayed.

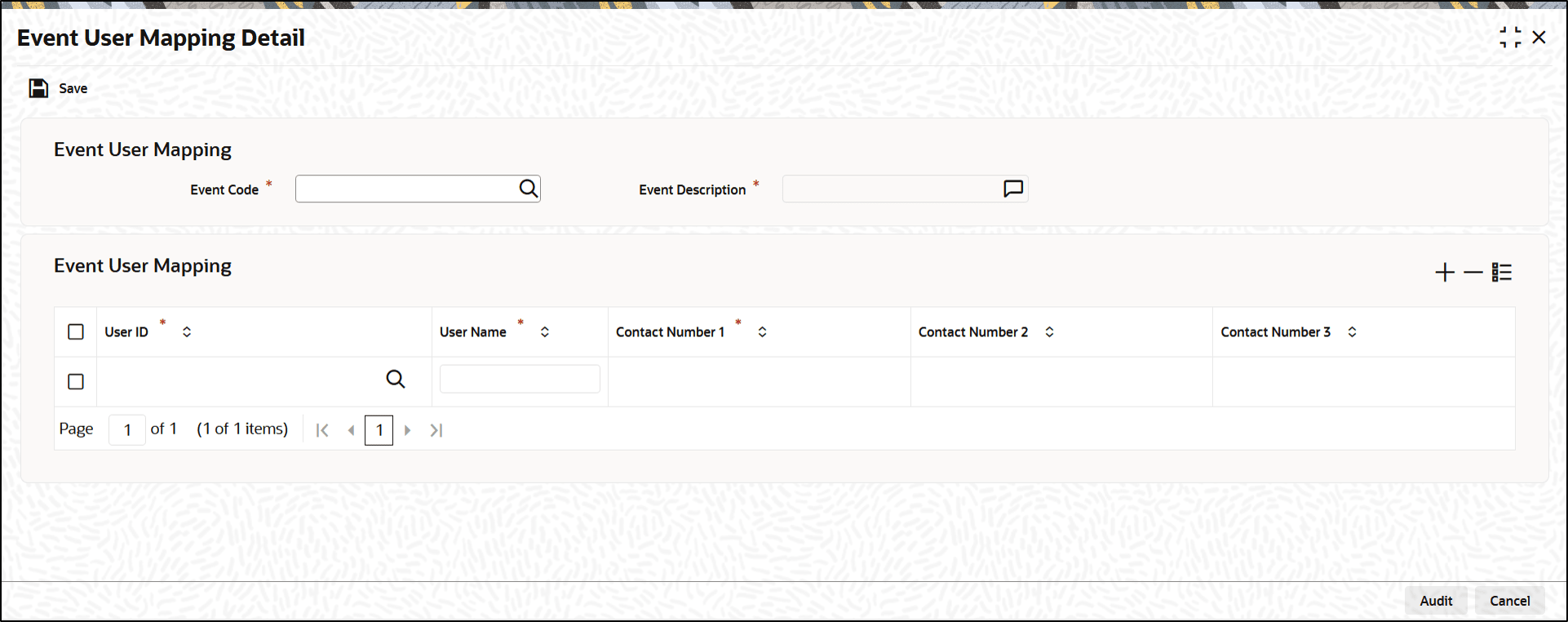

   Figure 3-15 Event User Mapping Detail





   Description of "Figure 3-15 Event User Mapping Detail"



2. On Event User Mapping Detail screen, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 3-13 Event User Mapping Detail - Field Description

   Field	Description
   Event Code	Alphanumeric; 20 Characters; Mandatory Select the event for which you wish to map a user from the drop-down list. The list contains all the valid event codes maintained in the system.
   Event Description	Display On selecting the event code, the system displays the description of the event code.
   Event User Mapping Section	The section displays the following fields.
   User ID	Alphanumeric; 320 Characters; Mandatory Select the User ID of the person who is to be mapped to the chosen event. The list contains all the valid users maintained in the system.
   User Name	Display The system displays the name of the user for the selected User ID.
   Contact Numbers 1 – 3	Alphanumeric; 16 Characters; Contact Number 1 is Mandatory Enter the contact telephone numbers of the user. You can enter up to three contact numbers.
