View the Metadata Sharing Information Across Applications

To select the required applications for which you want to view the Metadata sharing information and view it, follow these steps:
  1. Click the View Applications Drawer icon to open the Applications drawer.

    Figure 3-8 View the Applications Drawer


    This illustration displays the OFSAA applications. User can select the required applications and click Apply to view the objects specific to the selected application in the list of objects pane.

  2. Select the required applications for which to display the objects, and click Apply. The objects specific to the selected application is displayed in the list of objects pane.
    For example, if you select Basel Regulatory Capital Basic and Enterprise Modeling, objects specific to the two applications is displayed:

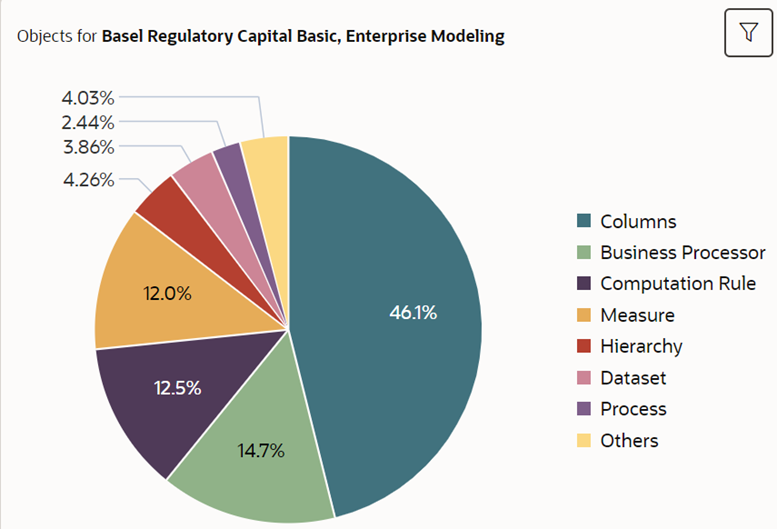

    Figure 3-9 Example of Metadata for Selected Applications


    This illustration displays the metadata objects for the selected applications in a pie chart.
