Run

In the Process Flow window, click the Run icon in Widget from the toolbar and Drag and drop it onto the canvas. Double-click the widget to display the Activity window.

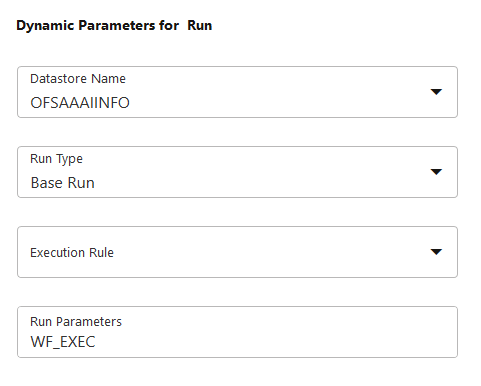

Figure 8-4 Dynamic Parameters for RUN


This image displays the Dynamic Parameters for RUN.

Table 8-3 Dynamic Parameters for RUN Description

Field Name Description
Datastore Name Select the required datastore from the drop-down list.
Run Type Select Base Run or Simulation Run based on the type of the Run you want to execute, from the drop-down list.
Execution Rule Select the Run you want to execute from the drop-down list.
Run Parameters

Enter the Data Fields you want to pass as parameters for the selected Data Mapping definition. Use comma-separated values if you want to enter more than one Data Field.

For information on creating Data Fields, see the Data Fields section.
