Generating a DataSet Report

You can generate a dataset report that enables you to easily view the attribute names in the dataset, the SQL code of the dataset, and the name of any parent datasets. In addition, this report provides scenario information related to the dataset, such as scenario names and any associated thresholds. An example report displays.

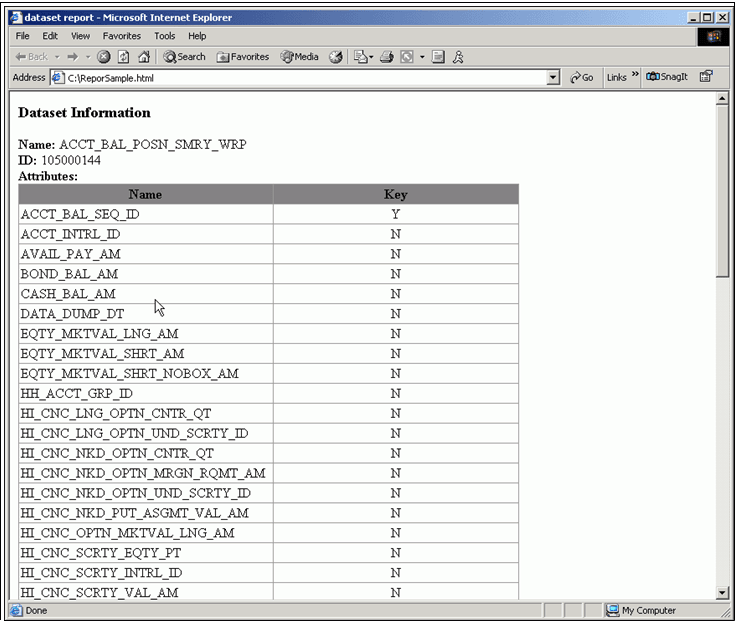

Figure 5-14 DataSet Report Sample

The system generates the dataset report into an HTML format that you can then open and print for use.

To generate a dataset report, follow these steps:

1. From the DataSet menu of the Dataset Editor, select Generate DataSet Report. The DataSet Report dialog box displays.
2. Click the Look In field drop-down arrow to view the available directories.
3. Click the Up arrow icon to change the folder location within the selected directory to locate your file.
4. Type the file name in the File Name field.
5. Click Open.

   When naming the file, you must save the file with an HTML extension (for example, dataset_report.html).

6. Click Report.

   The system saves your report to the selected directory.
