29.4.2.2.1 One Parent to One Reporting Line Code mapping with or without Debit Credit Indicator

To map one parent GL Code to one Reporting Line Code, use the Mapper Maintenance utility. In this utility, select one parent GL Code, select one member in the Debit Credit Indicator hierarchy with the value Debit or Credit or Missing, and select one member in the Reporting Line Code hierarchy. As a result, during the T2T process, the corresponding data from the Stage GL Data table, for the selected parent GL Codes and their descendants, are aggregated and then loaded into the Fact Management Reporting table.

Note:

In the T2T process, in the Stage GL Data table, the aggregation of parent GL Codes and their descendants take place in all the Measure columns that are associated with the Primary Keys. The conditions for the Debit Credit Indicator column values in the Stage GL Data table are:
  • The value must be M, when you map GL Code to the Missing (MSG) member. If nothing is mapped, the system automatically sets value to M.
  • The value must be D, when you map GL Code to the Debit member.
  • The value must be C, when you map GL Code to the Credit member.

To perform One Parent to One Reporting Line Code mapping with or without Debit Credit Indicator, follow these steps:

  1. In the Mapper Maintenance page, in the Member combinations section, click Add.
  2. The Add Mappings page is displayed. For illustration, select one parent member of the General Ledger Code for Mgmt Reporting hierarchy, GL-3000-23 – Fixed Assets_140 and its child member GL-3000-24 – Intangible Assets_141, and the member of the Debit Credit Indicator for Mgmt Reporting hierarchy C - Credit to map to the member of the Reporting Line Code for Mgmt Reporting hierarchy 1003 – Share Premium related to T2 Instruments with the member of the GL Rollup Signage for Mgmt Reporting hierarchy N - Negative Multiplier.

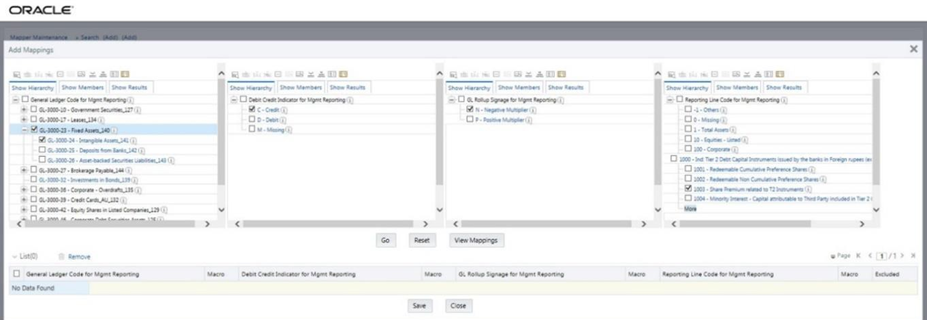

    Figure 29-14 Add Mappings page for the one parent to one Reporting Line Code mapping at parent and child hierarchy level


    This illustration shows the Add Mappings page for the one parent to one Reporting Line Code mapping at parent and child hierarchy level. Select the required codes.

  3. To map the members, click Go. The list of mapped members appear at the bottom. To save the mappings, click Save.

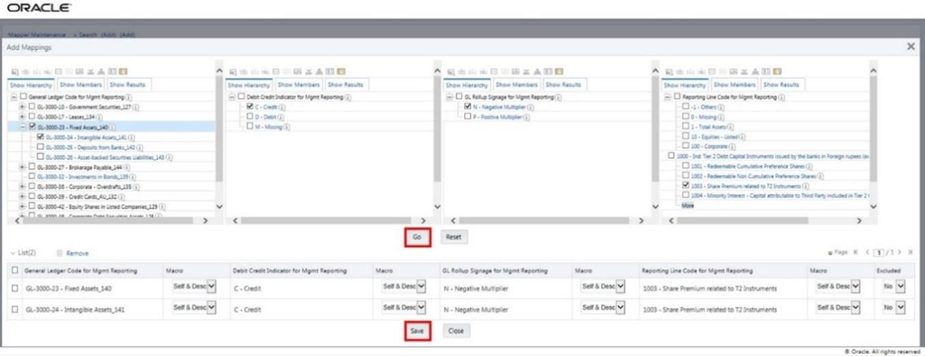

    Figure 29-15 Map the members and save the mappings


    This illustration shows mapping the members and saving the mappings. Click Go to proceed with the mapping. Then click Save to save the mappings.

  4. An acknowledgement message is displayed. To confirm saving the mappings, click Yes.
  5. The mapped member combinations are listed in the Mapper Maintenance page.

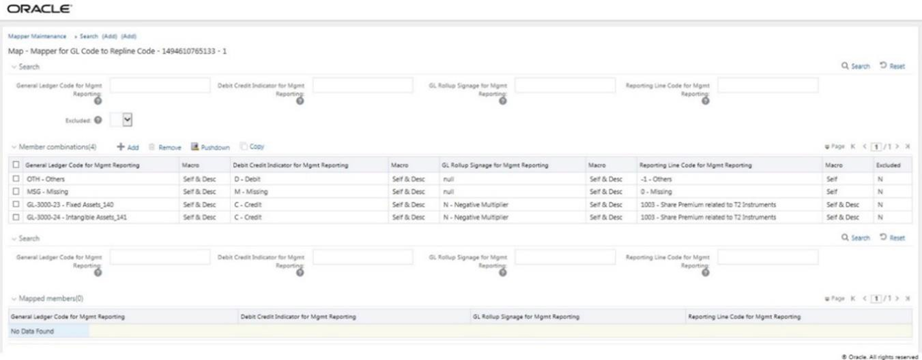

    Figure 29-16 Added mappings listed in the Mapper Maintenance page


    This illustration shows the added mappings listed in the Mapper Maintenance page.
