6.5.4 Execute the Schema Creator Utility when Installing the Subsequent Applications Pack

You can execute the Schema Creator Utility either in the Online or Offline modes.

To execute the Schema Creator Utility while creating the schemas for a subsequent application pack, follow these steps:

1. Edit the OFS_PAM_PACK/schema_creator/conf/OFS_PAM_SCHEMA_IN.xml file in a text editor. See the OFS_PAM_SCHEMA_IN.xml file for values you must modify in the XML file.
2. Execute the utility.

   For Example: ./osc.sh -s

   Figure 6-7 Schema Creator Utility









   Note:

   You must use the same config schema user name as the previous application pack.
3. The utility identifies the application packs that are already installed on the current OFSAA setup and displays the following on the console:
   • Atomic schema of the existing application pack
   • Information Domain Name of the existing pack
   • List of installed application packs
4. Select the Atomic User on which you want to install the application pack.

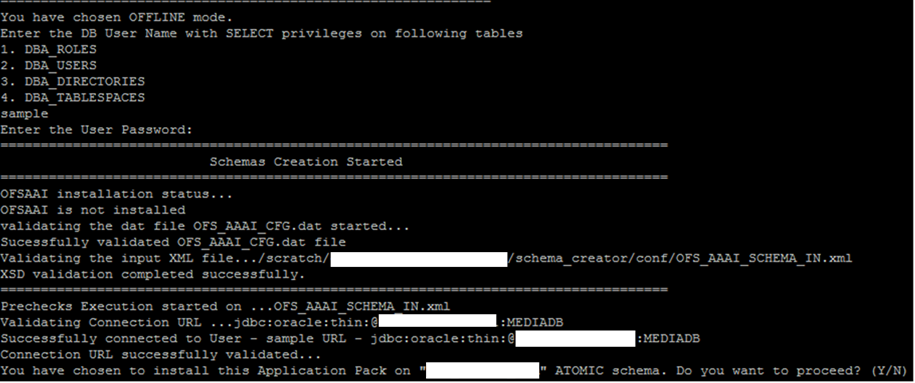

   Figure 6-8 Select the Atomic User









On successful execution of the Schema Creator Utility, the console displays the following status message: Success. Please proceed with the installation.

Note:

1. See the log file in the OFS_PAM_PACK/schema_creator/logs directory for the execution status.
2. See the sysdba_output_scripts.log file for execution status if executed in offline mode. This log will be empty if there are no errors in the execution.
3. If there are any errors, contact My Oracle Support.
