Freestanding Customer Facing Display

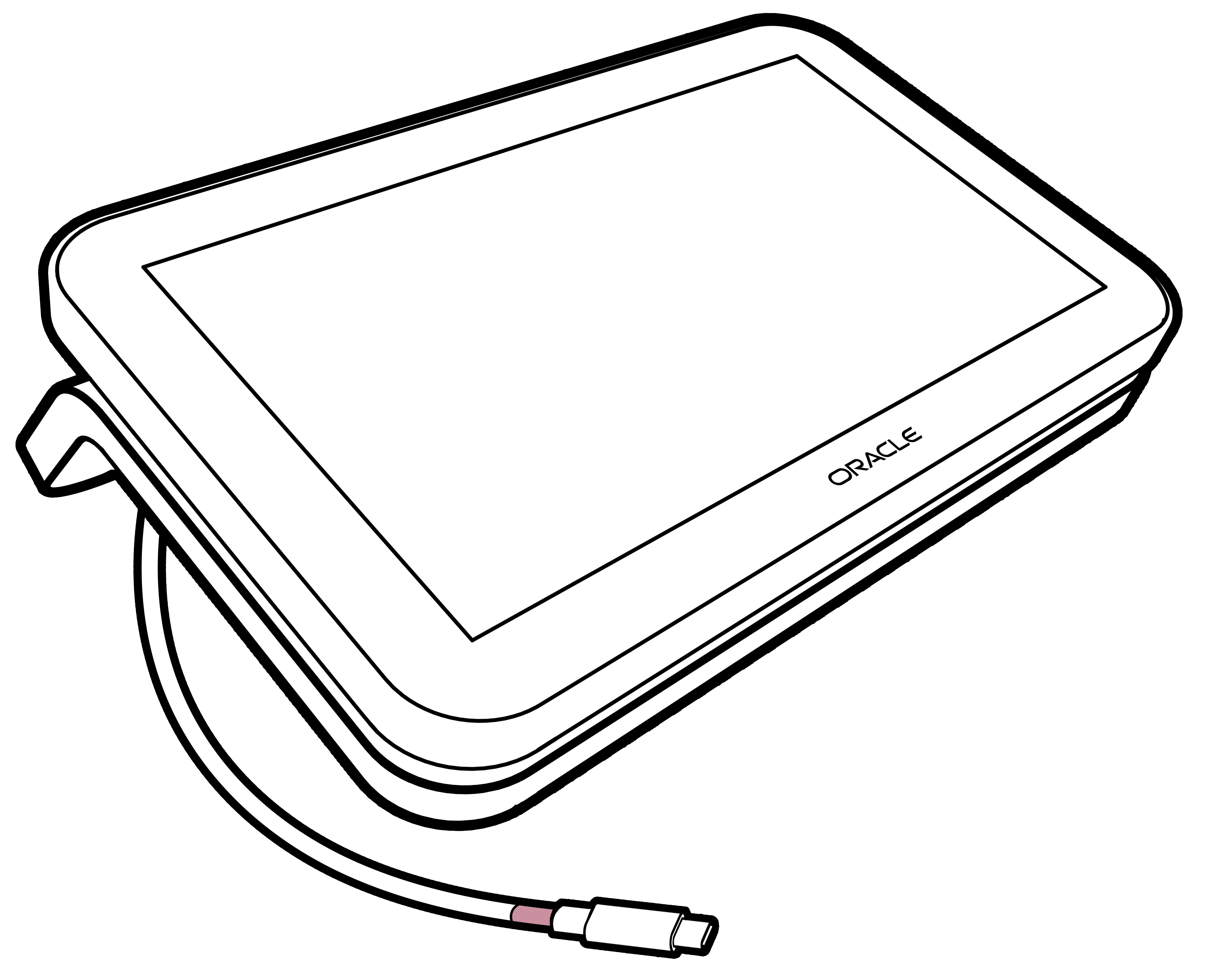

Figure 5-5 Freestanding Customer Facing Display


This figure shows the Freestanding Customer Facing Display.

  1. Connect the Freestanding Customer Facing Display cable to the Workstation 820 USB(CFD) port.

  2. If you are adding a Freestanding Customer Facing Display to an existing Workstation 8 Series configuration with a Peripheral Expansion Module, connect the cable to the Peripheral Expansion Module USB(CFD) port.
