Installing the Modular Magnetic Stripe Reader (MSR) for Oracle MICROS Workstation 8 Series

Note:

Before installing the Modular MSR for Oracle MICROS Workstation 8 Series you must install patch EHW0.P2.240510 or later or be on a Workstation 8 image version later than 240510.
Oracle Workstation 8 with Vertical Stand or Vertical Stand with Tilt

  1. Slide the Modular MSR captive screws to the center position.

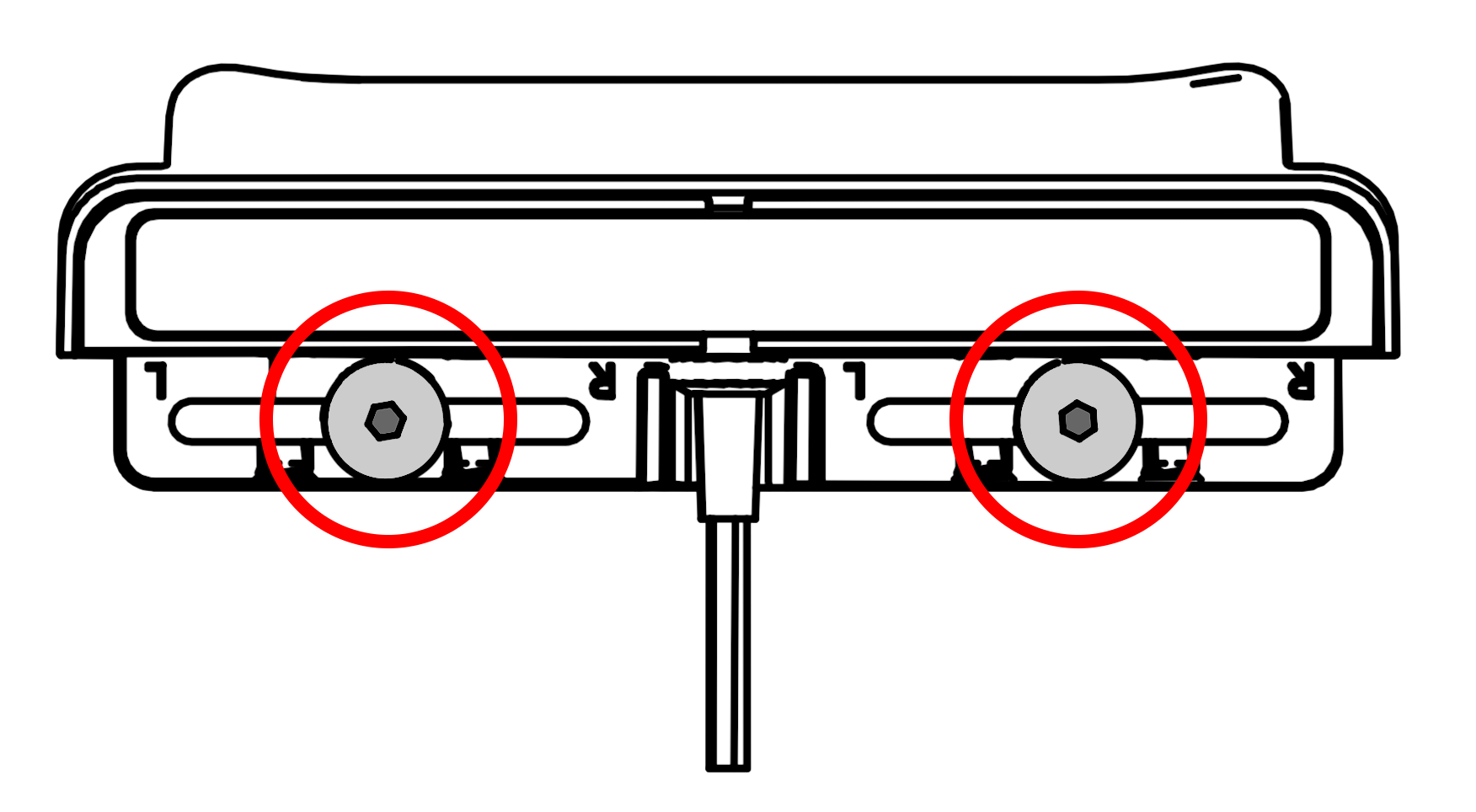

    Figure 5-7 Modular MSR Captive Screws in the Center Position


    This figure shows the two captive screws on the Modular MSR in the center position.

  2. Position the Modular MSR on an available accessory mounting point along the edges of the Vertical Stand base. Each accessory mounting point has two holes for attaching devices.

    The most common installation location for the Modular MSR is on the right side of the stand base.

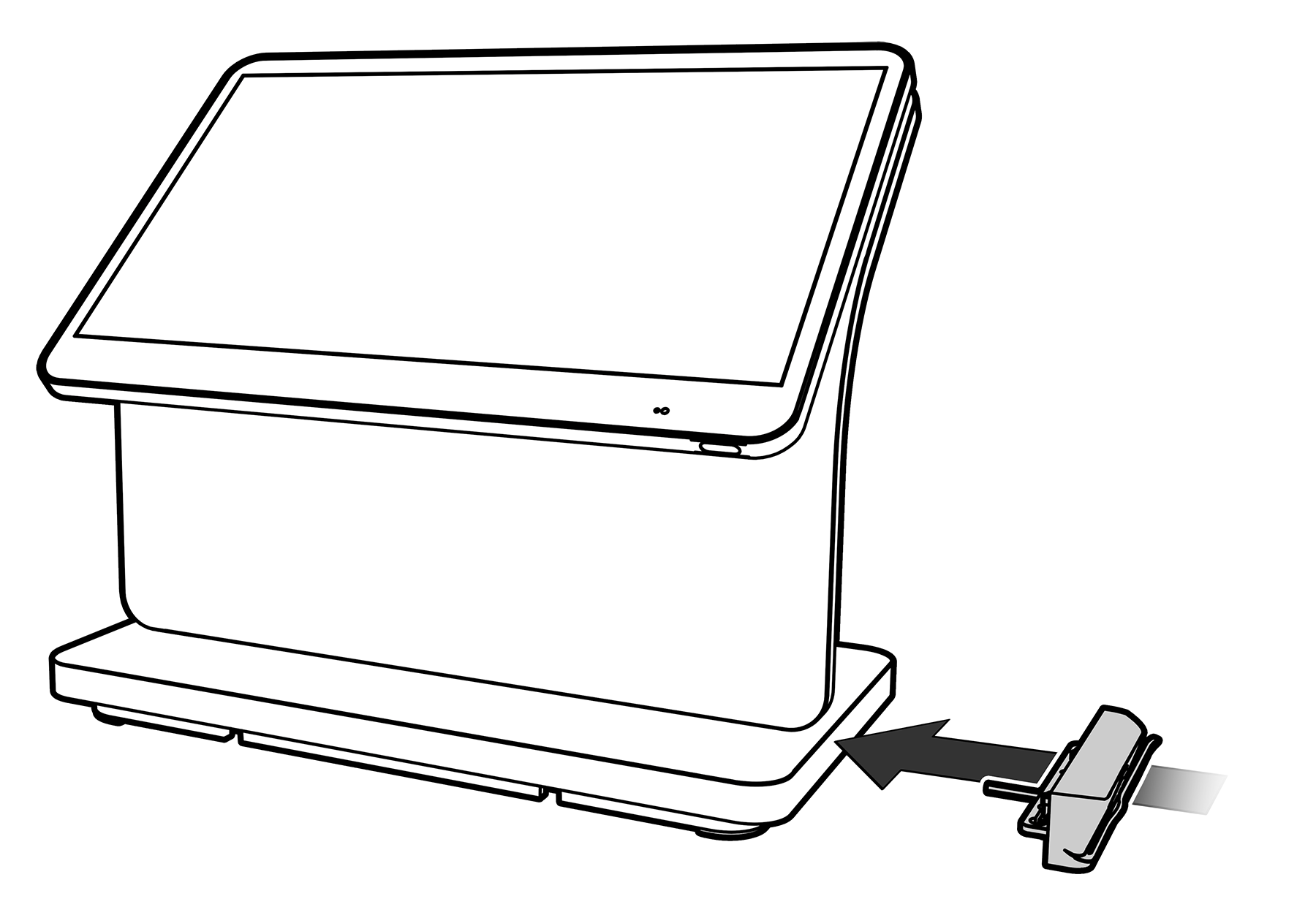

    Figure 5-8 Positioning the Modular MSR


    This figure shows the Modular MSR positioned on the right side of the Vertical Stand base.

  3. Align the captive screws with the two accessory mounting point screw holes, and then secure the Modular MSR to the Vertical Stand base using an Oracle 2.5mm hex key.

  4. Route the Modular MSR cable through the cable guides in the stand base, and then connect it to an available USB port on the Oracle Peripheral Expansion Module.

    Figure 5-9 Installing the Modular MSR


    This figure shows the underside of the Workstation 8 Series Vertical Stand. The Modular MSR captive screws are being installed and the cable is plugged into a USB port on the Oracle Peripheral Expansion Module.

Workstation 8 with Low Profile Stand

  1. Position the Modular MSR on an available accessory mounting point along the left or right edge of the Low Profile Stand. Each accessory mounting point has two holes for attaching devices.

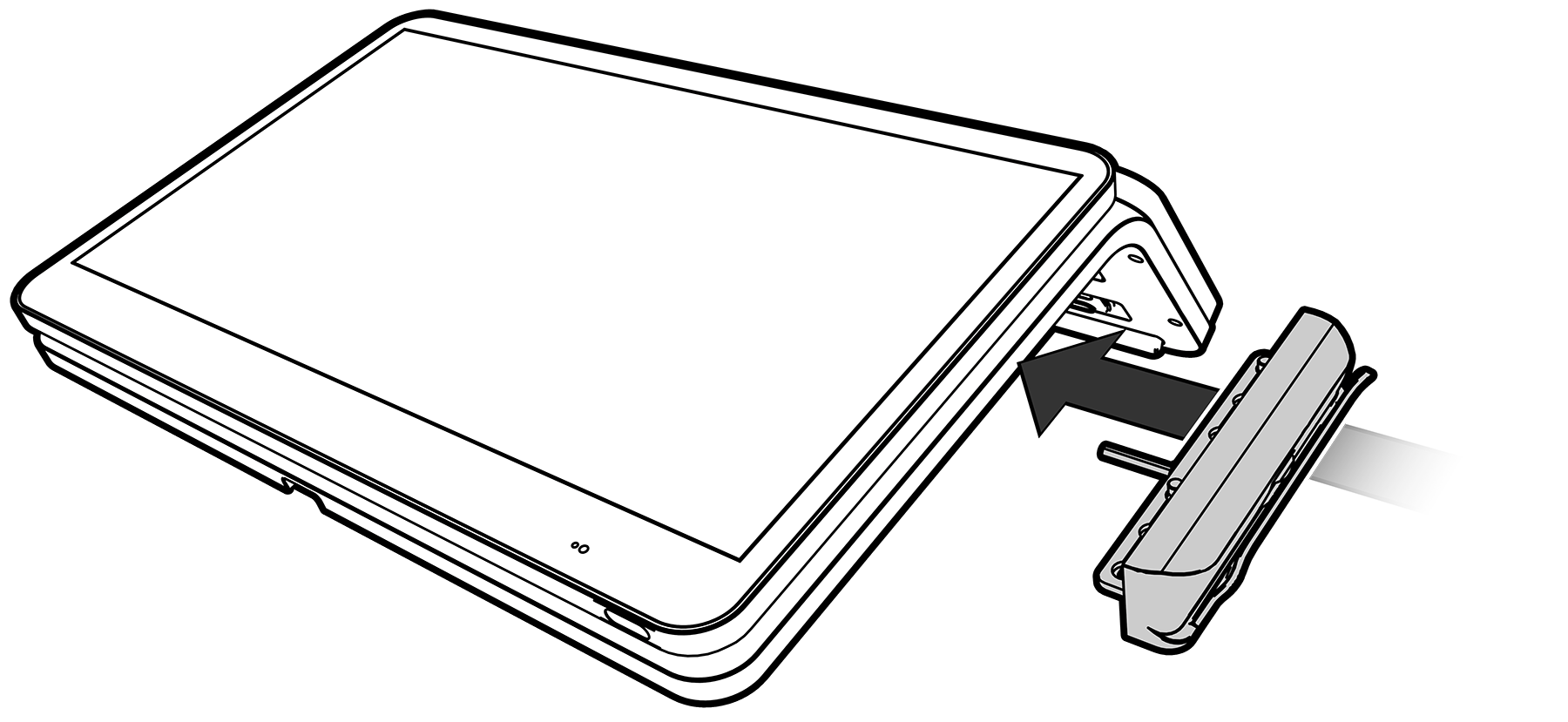

    Figure 5-10 Positioning the Modular MSR


    This figure shows the Modular MSR positioned on the right side of the Low Profile Stand.

  2. Align the captive screws with the two accessory mounting point screw holes. Depending on the installation location, you may need to slide the captive screws to a different position to match the screw holes.

  3. Use an Oracle 2.5mm hex key to secure the Modular MSR to the Low Profile Stand.

  4. Route the Modular MSR cable through the stand cable guides, and then connect it to an available USB port on the Oracle Peripheral Expansion Module.

    Figure 5-11 Installing the Modular MSR


    This figure shows the underside of the Workstation 8 Series Low Profile Stand. The Modular MSR captive screws are installed and the cable is plugged into a USB port on the Oracle Peripheral Expansion Module.

Note:

  • No Simphony configuration required.
