POS Keyboard

POS Keyboards can replace the standard alpha-numeric and numeric keyboards on all workstation types with a modern looking version that is consistent across all workstations’ operating systems.

If multiple keyboards are configured, operators can rotate through them to select the one suitable for their task.

The POS keyboard includes shift and special character layouts and is available in light and dark themes.

Where to access POS Keyboard: Enterprise, Zone, Property, or Revenue Center | Setup | POS Keyboard

Role Access: POS Keyboard

Role Privileges: View, Edit, Add Override

Views: Form view

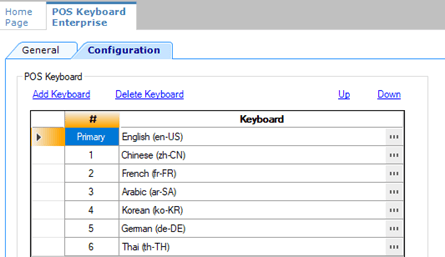

Figure 5-9 POS Keyboard Module — Configuration Tab

Table 5-19 POS Keyboard Configuration Tab

Field	Description	Data Type
Add Keyboard	Adds record to Keyboard grid.	Button
Delete Keyboard	Deletes selected record from Keyboard grid.	Button
Up	Moves selected record up by one record.	Button
Down	Moves selected record down by one record.	Button
#	Order number of record. Primary indicates the default keyboard displayed to the operator. The operator can rotate through all configured keyboards in the order indicated. If no record is configured, the legacy keyboard configuration is used.	Primary and Integer
Keyboard	Select the Keyboard layout for the selected record. Select None to skip this record in the rotation. If None is selected for the Primary record, the legacy keyboard configuration is used.	List Choice

A Database Download is required on the Simphony workstations for the changes to take effect.
