2 Epson TM-P80II Plus Features

• Small form factor 80mm (3”) thermal receipt printer

• USB-IDN connectivity with the USB-C cable

• Single cable connectivity for fixed workstations

• Unicode (UTF-16) Agfa multilingual fonts and Epson native Kanji multilingual fonts preinstalled on the printer (firmware version 1.02B or above is required)

• IP54 compliant water and dust resistance

• Belt clip for improved portability in a mobile environment

• Approximately 34 hours battery runtime with Bluetooth

• Optional wall/countertop mount

Oracle Part Numbers and Descriptions

• Oracle Marketing Part Number: 7607103 Description: Epson Mobilink TM-P80II Plus thermal receipt printer with 3-inch paper width, Bluetooth and USB-C connectivity, USB-C cable, battery, and belt clip.

• Oracle Marketing Part Number: 7607106 Description: Mounting bracket for Epson Mobilink TM-P80II Plus thermal receipt printer.

• Oracle Marketing Part Number: 7622619 Description: USB cable with down angle connector for Epson Mobilink TM-P80II Plus thermal receipt printer with mounting bracket: 2.4 feet.

What’s in the Printer Box

Each printer box contains the following items:

• TM-P80II Plus printer

• Battery

• Sample roll paper

• 3 foot USB-C straight angle cable (Type-C to Type-C)

• Belt clip

• Epson Setup Guide

Before Use

Refer to the Epson TM-P80II User’s Manual to get acquainted with the part names and functions of the printer. The manual describes basic setup, paper installation, and printer cleaning. For details about the functions and operating procedures of this product and other Epson related software, refer to the Technical Reference Guide.

Printer Specifications

Table 2-1 Technical Specifications for the Epson TM-P80II Plus

Feature		Description
Printing Method		Thermal line printing
Max Print Speed		100 mm/s (3.94 in./s) (when not using the anti-curl function
Roll paper	Paper Width	80 mm paper: 79.5 mm ± 0.5 mm (3.13" ± 0.02")
	External Diameter	Maximum 51 mm (2.01")
	Core Outside Diameter	At least 18 mm (0.71")
	Core Inside Diameter	At least 12 mm (0.47")
	Paper Thickness	5 μm at maximum, 50 μm at minimum
Oracle Supported Interfaces		IDN over USB	Bluetooth
		USB-C	Bluetooth 5.0 Dual Mode
Battery (OT-BY80II)		Rated voltage: 7.2 VDC Capacity: Typ. 1950 mAh, Min. 1850 mAh Number of charge/discharge cycles): 500 cycles
USB Charging		Minimum Output 5.0 V/0.5A Maximum Output 5.0V/8.0A
Wireless Charging		3 to 6 hours (depending on the specifications of your wireless charger)
Operating Temperature on Battery & USB Adapter		Temperature: -15 to 50˚C (5 to 122˚F) (Print quality is not guaranteed)
Battery Operating Temperature		Discharge: -20 to 55˚C (-4 to 131˚F) Charging: 0 to 40˚C (32 to 104˚F)
Humidity		Operating: 10 to 90% RH Storage: 10 to 90% RH, except for paper
Overall dimensions		Approximately 105 x 153.4 x 66.9 mm (4.13 x 6.04 x 2.63 in.) Dimensions with belt clip removed.
Weight (mass)		Approximately 511g (1.13 lb) Excluding the belt clip and paper
MTBF		120,000 Hours

Epson TM-P80II Plus Basic Features

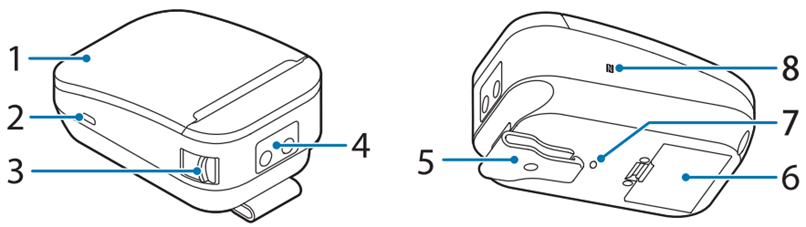

Figure 2-1 Epson TM-P80II Plus Basic Features

1. Roll paper cover

2. USB-C connector

3. Cover open lever

4. Operation panel

5. Belt clip

6. Battery

7. Wireless charging position

8. NFC tag

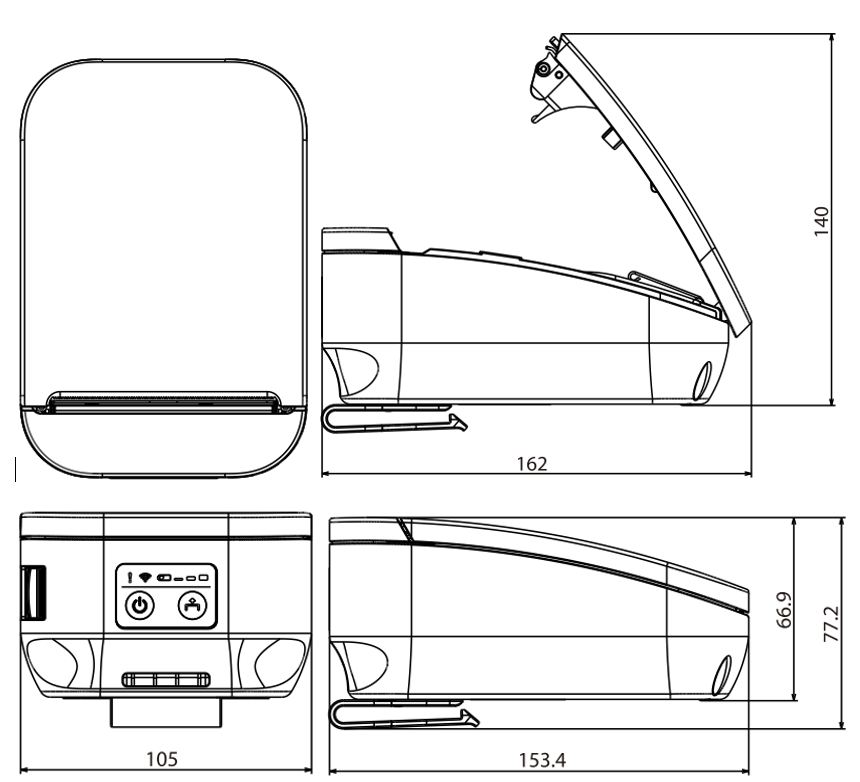

Printer Dimensions (Units:mm)

Figure 2-2 Epson TM-P80II Dimensions
