Creating a unit definition

To create a unit definition:

  1. Do either of the following:
    • Select File > New > Unit.
    • In the Trial Objects window, right-click the Units node. From the pop-up menu, choose Add Unit.

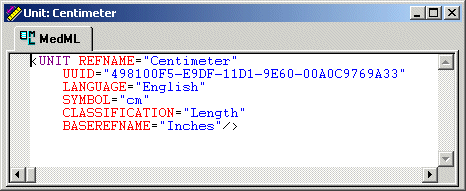

    The Unit window opens in the Trial Design workspace. This window consists of the MedML tab, which displays the MedML tags that define the unit.

  2. Create a conversion rule to convert the entered value to the base value. For examples, see Example of conversion rule for Inches unit and Example of conversion rule for Centimeter unit.
  3. In the Properties window, enter values for the properties described in the following table:

    Property

    Description

    RefName

    RefName of the component. When you specify the RefName, the hierarchical representation of the component in the Trial Objects window is updated.

    REQUIRED..

    UUID

    String that uniquely identifies the component across all databases, trials, and machines.

    Note that the InForm Architect application automatically capitalizes UUID strings that contain lower-case characters.

    OPTIONAL. Note that the unit definitions that are installed with the Base trial include predefined UUID properties. These UUIDs are not currently used. They are provided for possible future use and are listed for reference in UUIDs.

    Symbol

    Label used to represent the unit on the screen.

    OPTIONAL.

    Classification

    Type of measurement represented by the unit.

    REQUIRED.. The following classifications have been predefined:

    • Length
    • Weight
    • Temperature
    • Pressure
    • Volume
    • Area
    • Time
    • Frequency

    Base Unit Name

    RefName of the unit definition used as the basis for conversion.

    REQUIRED..

    Convert To Base Rule

    RefName of a VBScript conversion rule used to convert the entered value to the base value.

    OPTIONAL.

    Convert From Base Rule

    RefName of a VBScript conversion rule used to convert to this unit from the unit specified in the Convert To Base Rule.

    Not currently used.

    Design Note

    Free-form text, with a maximum of 255 characters, containing any information you want to capture about the design of the component. This information is for documentation only.

    OPTIONAL.

Note: Once created, units cannot be deleted.
