Creating an Oracle Clinical mapping definition

To create an Oracle Clinical mapping:

  1. Do one of the following:
    • Select Trial > Create Data Mappings > Oracle Clinical.
    • In the Trial toolbar, click the Data Mappings button. . In the Data Mappings Type dialog box, select Oracle Clinical and click OK.
    • In the Trial Objects window, right-click the Data Mappings node and select Create Oracle Clinical from the pop-up menu.

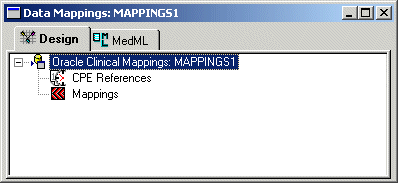

    The InForm Architect application generates an Oracle Clinical mapping and opens the Data Mappings window. The Oracle Clinical mapping tree consists of a CPE Reference node and a Mappings node for individual control mappings.

  2. Select the Oracle Clinical Mappings node and edit the mapping property values in the Properties window.

The following table describes the properties of an Oracle Clinical mapping definition:

Property

Description

RefName

RefName of the component.

REQUIRED.

For rules about the use of RefNames, see RefNames

Type

ORACLIN.

READ ONLY.

Active

Active or Inactive, indicating whether the Oracle Clinical mapping definition is accessible with the InForm Architect application. The default is Active.

To disable an Oracle Clinical mapping definition, set the value to Inactive and install the definition by saving it with the Install MedML When Saving option enabled or by using the MedML Installer utility. The Oracle Clinical definition becomes inaccessible with the InForm Architect application.

OPTIONAL.

Design Note

Free-form text, with a maximum of 255 characters, containing any information you want to capture about the design of the component. This information is for documentation only.

OPTIONAL.

Design Note text is not transferred to the target tables.
