Defining the date of a CPE Reference

A CPE Reference mapping includes the specification of the date and, optionally, the time of the Clinically Planned Event. You can define the CPE date by specifying a control that contains the visit date or by entering an explicit date.

Note: If you choose to define the CPE Reference date by specifying a datetime control that holds the visit date, the control must be defined with all date subcomponents (Month, Day, and Year) required.

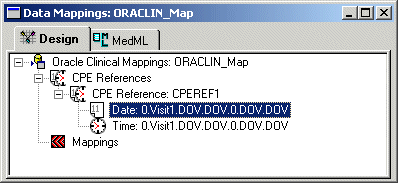

To define a CPE Reference date, right-click the Date node in the Data Mappings window. Select a command in the popup menu based on whether how you want to define the date:

To specify a datetime control in the InForm application trial:
1. Select InForm Path.

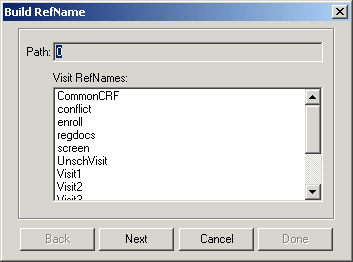

  The Build RefName dialog box appears.
1. For each component of the RefName path, select the component from the list in the dialog box.
2. Click Next, or, to backtrack to a previous component, click Back.
  The InForm Architect application builds the path from your selections and displays it in the Path field at the top of the dialog box.
3. When the RefName path is complete, click Done.
  The InForm Architect application inserts the path into the component definition you are creating.

To enter an explicit date:
1. Select Specify.
  The CPE Reference Date dialog box appears.
1. Click the pulldown list and use the popup calendar to select the date you want.
2. Click OK.
  The InForm Architect application updates the Data Mappings window with the date you selected.
