Defining the time of a CPE Reference

A CPE Reference mapping includes the specification of the date and, optionally, the time of the Clinically Planned Event. You can define the CPE time by specifying a control that contains the visit time or by entering an explicit time.

Note: If you choose to define the CPE Reference time by specifying a datetime control that holds the visit time, the control must be defined with the Hour and Minute subcomponents required.

To define a CPE Reference time, right-click the Time node. Select a command in the popup menu based on whether how you want to define the date:

To specify a datetime control in the InForm application trial:
1. Select InForm Path.
  The Build RefName dialog box appears.
2. For each component of the RefName path, select the component from the list in the dialog box.
3. Click Next, or, to backtrack to a previous component, click Back.
  The InForm Architect application builds the path from your selections and displays it in the Path field at the top of the dialog box.
4. When the RefName path is complete, click Done.
  The InForm Architect application inserts the path into the component definition you are creating.

To enter an explicit time:
1. Select Specify.
  The CPE Reference Time dialog box opens.
1. Click the hours, minutes, seconds, or AM/PM portion of the time and enter or scroll to the time you want.
2. Click OK.

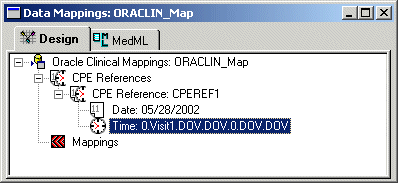

  The InForm Architect application updates the Data Mappings window with the time you selected.
To specify that the CPE Reference mapping is defined by date but not time, select None.
