Using the Form window to define an individual control mapping

To create a control mapping definition:

  1. Open the Form window containing the control you want to map and expand the tree so that the control is visible.
  2. Right-click the control and choose Add Data Mapping from the pop-up menu.

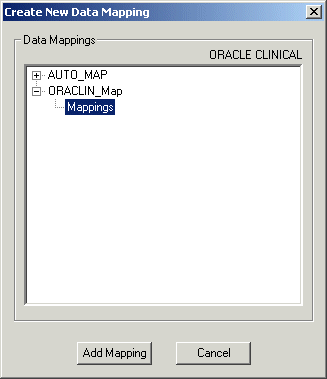

    The Create New Data Mapping dialog box appears.

  3. Expand the Oracle Clinical mapping definition node where you want to create the control mapping and select the Mappings node.
  4. Click Add Mapping.

    The InForm Architect application generates a definition for the control path.

  5. Select the control path and edit its mapping properties in the Properties window as described in Displaying RefName paths for all controls.

You can also quickly generate a definition by dragging the control from the Form window onto the Data Mappings window.

Note: The InForm Architect application only allows you to drag and drop controls for which you can legitimately create mappings. You cannot drag and drop a simple control or a group control.

To drag a control from the Form window to the Data Mappings window:

  1. Open the Form window containing the control you want to map and expand the tree so that the control is visible.
  2. Open the Data Mappings window and expand the definition so that the table in which you want to create the column definition is visible.
  3. Drag the control from the Form window and drop it onto the table in the Data Mappings window.
  4. Select the control path and edit its mapping properties in the Properties window as described in Displaying RefName paths for all controls.
