1 Getting Started

The Mustering module is an add-on to Oracle Hospitality Cruise Shipboard Property Management System that simplifies crew access and tracks movements of passenger and crew. It is ideal for managing crowd activity in an emergency drill or actual emergency, ensuring efficient handling of such situations. The module provides accurate head counts and real time status updates for passenger, crew and visitor status.

Launching the Application

To launch the application on an Android device:

  1. Turn on Near Field Communication (NFC) in the device settings.

  2. Open your browser. See Oracle Software Web Browser Support Policy for more information.

  3. Enter the URL for the application.

  4. A notification Add to Home Screen appears. Tap the button to add.

  5. Enable Allow NFC from the browser settings to allow system to access NFC reader. You can change this setting in Google Chrome. Go to Google Chrome browser, Settings, Site Settings, NFC devices.

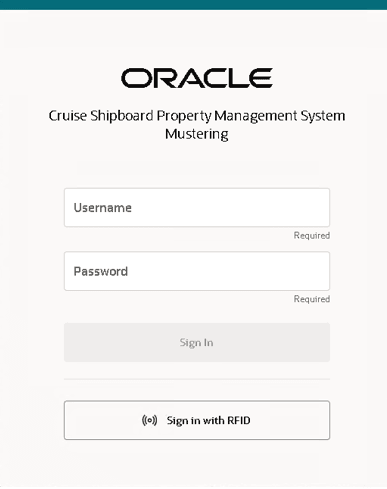

Figure 1-1 Login Page


This figure shows the Login Page
To launch the application on a MICROS device:

  1. Open your browser, and enter the URL for the application. See Oracle Software Web Browser Support Policy

  2. MICROS tablet works with a keyboard wedge, hence you need to ensure the settings is configured to automatically read RFID.

The below parameters are configurable in OHC Administration module, Administration, System Setup, Database Parameters, System and is used in online mode only.

Max Logins: maximum logins attempt before account is locked.

Lockout Minutes: number of minutes the lockout expires for retry.

Account Lockout Duration: number of minutes before it resets the maximum login attempt count.

Log in to the Application (Credential Login)

  1. On the application page, enter your user name and password.

    Note:

    The user name and password is case-sensitive
  2. If you sign in with an incorrect user name, password or both, you will receive an error ‘Invalid login, Please try again’, and the field color changes to red before locking the account.

    Note:

    The number of failed attempts and lock duration is managed by the value set in Max Login and Lockout Minutes parameter.
  3. Upon successful login, the user name and profile picture is shown at the top right of the page, and navigates to the Register page.
  4. To log out from the application, select the arrow down icon on the page and then the Sign Out button when shown, before navigating to the login page.
  5. For user account that does not have permission to the application, a Permission is required to view this application shall prompt.
  6. When a full data download from the server to the device is in progress, you may experience slowness during registering/unregistering a profile in an Online mode.

Log in to the Application (Contactless Login)

The application allows you to login with your RFID card and below are the supported RFID card type.

MIFARE Classic 1K

MIFARE DESFire Card

MIFARE PLUS EV1

MIFARE Ultralight-C

MIFARE Ultralight EV1

  1. On the login page, clicking the Sign In with RFID button and the Allow button on the NFC confirmation prompt would enable NFC on the device.

  2. If you have selected Allow NFC previously, the Start sign in with RFID button is greyed out, indicating that you can log in by tapping the RFID card.

  3. To sign in with RFID card, you must first login successfully with your credential login at least. On the application page, enter your username and password and click the Sign In button.

    Note:

    The username and password are case-sensitive.

  4. To log in with RFID card, place the card on the NFC scanning of your device.

  5. Upon successful login, your user name and profile picture is shown at the top right of the page, and it brings you to the first page, for example, Register page.

  6. When logging with a valid RFID card and system returns ‘Something went wrong Error 403 – Please try again. If problem persists, contact your system administrator.’, this would mean you need to log in using your credential.

  7. When the system detects the login using an invalid RFID, an error ‘Something went wrong Error 4xx – Please try again. If problem persists, contact your system administrator.’ shall prompt. It will lock the access after a few unsuccessful attempts.

    Note:

    The number of failed attempts and lock out duration is managed by the value set in System, Max Login and Lockout Minutes parameter.

  8. Once the RFID login is disabled after the maximum login attempts, you can still proceed to log in using your credential. If the authentication is successful, you can then perform RFID login without waiting for lockout minutes to reset.

  9. If you select to block the NFC at the confirmation box, a notification ‘NFC device is blocked’ shall prompt.

  10. If the device does not support RFID scanning, a notification ‘RFID not supported’ shall prompt.

  11. If your account does not have a permission to the application, an error page ‘Permission is required to view this application’ shall prompt.

Session Timeout

To secure the device from unauthorized access, the application will:

  • Time out when there is no synchronization process running in the background and screen is left idle for 45 minutes, before prompting a 30 second countdown screen and expiring the session.

  • If the user does not perform any action within the countdown period, system will log out the user automatically and redirects to the Login screen.

  • If the Sign Out button is clicked, it signs out and redirects to the Login screen.

  • If the Continue button is clicked, it remained signed in at the last visited screen.

Resumed Network Connection

In an offline Safety mode, a message banner appears when the device detects the network connection has resumed, allowing you to take action to remain in an offline mode or sign out and sign in to reconnect.

Figure 1-2 Network Banner


This figure shows the Network Banner

  • Tapping Sign In button at the Login Page will automatically sign you out and navigate to the Login page. The safety mode becomes Online when you re-login successfully. However, if the connection drops after tapping the Sign In button, it will remain logged in as Offline mode.

  • The application remains in an offline mode:

    • If no further action is taken

    • When you tap the X icon of the banner message, this will hide the banner and re-appear when you navigate to other page.

User Security Access

To access the Register to Unregister page, user must have the access granted to this function. See Cruise Property Management User Guide, Role Manager section for assignment of user access by user groups.

  • For login user granted with Register Profile access only, user cannot access the Unregister page but able to see Register and Synchronization from the menu.

  • For login user granted with Unregister Profile access only, user cannot access the Register page, and able to see the Unregister and Synchronization from the menu.

  • For login user not granted with both the Register Profile and Unregister Profile access, the user cannot access Mustering application, and will be redirected to the permission page.
