4 Setting Up SPMS .NET Web Server

After successfully setting up the SPMS Secure Server, you can proceed to install the SPMS Web Server. The SPMS Secure Server and SPMS Web Server are the ASP.NET web services. As they are all ASP.NET web services, they can be installed on the same IIS web server machine. As suggested in section Recommendation for the Installed SPMS Environment, you can opt to install the SPMS Secure Server in the same machine as the SPMS Web Server, or you can also install them separately in different machines.

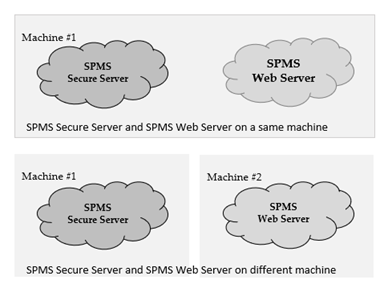

Figure 4-1 SPMS Secure Server and Web Server Options


This figure shows the setup option for SPMS Secure Server and Web Server in the same machine or different machine.

Prerequisites

  1. Microsoft IIS is installed on the target machine.

  2. Microsoft .NET Framework 2.0, 3.5 and 4.8 features are enabled on the target machine.

  3. Oracle 19c Database client with ODAC is installed on the target machine. See topic Oracle Database Client and ODAC Installation.

  4. SPMS Package is downloaded and available on the target machine. See topic SPMS Package File for download instructions.

  5. SPMS Application Client installed. See topic Setting Up SPMS Desktop Application Clients.
