Data Loads and Initial Batch Processing

Data Requirements

Preparing data for one or more modules of the Retail Analytics Platform can consume a significant amount of project time, so it is crucial to identify the minimum data requirements for the platform first, followed by additional requirements that are specific to your implementation plan. Data requirements that are called out for the platform are typically shared across all modules, meaning you only need to provide the inputs once to leverage them everywhere. This is the case for foundational data elements, such as your product and location hierarchies. Foundation data must be provided for any module of the platform to be implemented. Foundation data is provided using different sources depending on your current software landscape, including the on-premise Oracle Retail Merchandising System (RMS) or 3rd-party applications.

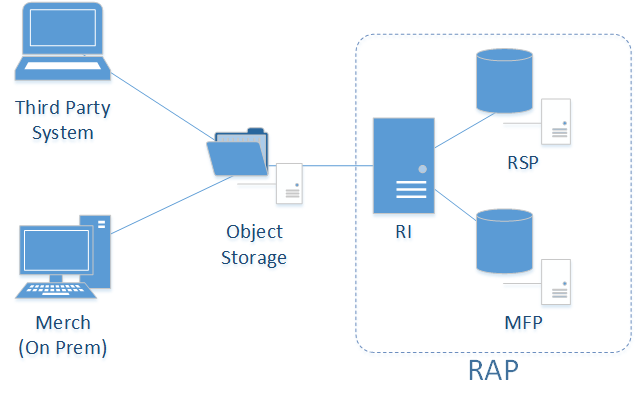

Figure 3-1 Inbound Foundation Data Flows

Application-specific data requirements are in addition to the shared foundation data, and may only be used by one particular module of the platform. These application data requirements may have different formats and data structures from the core platform-level dataset, so pay close attention to those additional interface specifications. References and links are provided later in this chapter to guide you to the relevant materials for application-specific inputs and data files.

If you are using RMS as your primary data source, then you may not need to produce some or all of these foundation files, as they will be created by other Oracle Retail processes for you. However, it is often the case that historical data requires a different set of foundation files from your future post-implementation needs. If you are loading manually-generated history files, or you are not using an Oracle Retail data source for foundation data, then review the rest of this section for details.

Platform Data Requirements

There is a subset of core platform data files that can be created and loaded once and then used across some or all application modules. These files use a specific format as detailed below.

Note:

Every application on the Retail Analytics Platform has additional data needs beyond this foundation data. But this common set of files can be used to initialize the system before moving on to those specific requirements

The first table defines the minimum dimensional data. A dimension is a collection of descriptive elements, attributes, or hierarchical structures that provide context to your business data. Dimensions tell the platform what your business looks like and how it operates. This is not the entire list of possible dimension files, just the main ones needed to use the platform. Refer to Legacy Foundation File Reference for a complete list of available platform foundation files, along with a cross-reference to the legacy interfaces they most closely align with. A complete interface specification document is also available in My Oracle Support to assist you in planning your application-specific interface needs.

Table 3-1 Common Foundation Dimensions

Dimension	Filename(s)	Usage
Product	PRODUCT.csv	The product foundation data includes the items you sell, their core merchandise attributes, and their hierarchical structure in your source systems.
Organization	ORGANIZATION.csv	The organization foundation data includes all of your business entities involved in the movement or sale of merchandise. This includes stores, warehouses, partner/finisher locations, web stores, and virtual warehouses. It also includes your organizational hierarchy and core location attributes.
Calendar	CALENDAR.csv	The calendar foundation data defines your business (or fiscal) calendar. This is the calendar that you operate in when making critical business decisions, reporting on financial results, and planning for the future. The most common calendar used by all modules of the platform is a 4-5-4 fiscal calendar.
Exchange Rates	EXCH_RATE.csv	Exchange rates define the conversion of monetary values from the currency they are recorded in to your primary operating currency. Most data is provided to the platform in the local currency of the data source, and it is converted to your primary currency during the load process.
Product Attributes	ATTR.csv PROD_ATTR.csv	Product attributes describe the physical and operational characteristics of your merchandise and are a critical piece of information for many Science modules, such as Demand Transference and Size Profile Optimization. They are not required as an initial input to start data loads but will eventually be needed for most applications to function.
System Parameters	RA_SRC_CURR_PARAM_G.dat	Parameters file that supports certain batch processes, such as the ability to load multiple ZIP files and run batches in sequence. Include this file with nightly RI batch uploads to specify the current business date, which enables the system to run multiple batches in sequence without customer input. Required once you begin nightly or weekly batch uploads.

The other set of foundation files are referred to as facts. Fact data covers all of the actual events, transactions, and activities occurring throughout the day in your business. Each module in the platform has specific fact data needs, but the most common ones are listed below. At a minimum, you should expect to provide Sales, Inventory, and Receipts data for use in most platform modules. The intersection of all data (meaning which dimensional values are used) is at a common level of item/location/date. Additional identifiers may be needed on some files; for example, the sales data should be at the transaction level, the inventory file has a clearance indicator, and the adjustments file has type codes and reason codes.

Table 3-2 Common Foundation Facts

Dimension	Filename(s)	Usage
Sales	SALES.csv	Transaction-level records for customer sales (wholesale data provided separately). Used across all modules.
Inventory	INVENTORY.csv	Physical inventory levels for owned merchandise as well as consignment and concession items. Used across all modules.
Receipts	RECEIPT.csv	Inventory receipts into any location, including purchase order and transfer receipts. Used by Insights, Planning, and the Science modules to identify the movement of inventory into a location and to track first/last receipt date attributes.
Adjustments	ADJUSTMENT.csv	Inventory adjustments made at a location, including shrink, wastage, theft, stock counts, and other reasons. Used by Insights and Planning modules.
Purchase Orders	ORDER_HEAD.csv ORDER_DETAIL.csv	The purchase order data for all orders placed with suppliers. Held at a level of order number, supplier, item, location, and date. Separate files are needed for the order attributes and order quantities/amounts. Used by Insights and Planning modules.
Markdowns	MARKDOWN.csv	The currency amount above or below the listed price of an item when that item's price is modified for any reason (planned markdown, POS discount, promotional sale, and so on). Used By Insights and Planning modules.
Transfers	TRANSFER.csv	The movement of inventory between two locations (both physical and virtual). Used By Insights and Planning modules.
Returns to Vendor	RTV.csv	The return of owned inventory to a supplier or vendor. Used by Insights and Planning modules.
Prices	PRICE.csv	The current selling retail value of an item at a location. Used by Insights and Science modules.
Costs	COST.csv	The base unit cost and derived net costs of an item at a location. Used by Insights and Science modules.
Wholesale/Franchise	SALES_WF.csv	Sales and markdown data from wholesale and franchise operations. Used by all modules.
Deal Income	DEAL_INCOME.csv	Income associated with deals made with suppliers and vendors. Used by Insights and Planning modules.

Details on which application modules make use of specific files (or columns within a file) can be found in the Interfaces Guide on My Oracle Support. Make sure you have a full understanding of the data needs for each application you are implementing before moving on to later steps in the process. If it is your first time creating these files, read Data File Generation, for important information about key file structures and business rules that must be followed for each foundation file.

File Upload Samples

When you first upload foundation data into the platform, you will likely provide a small subset of the overall set of files required by your applications. The following examples show a possible series of initial file uploads to help you verify that you are providing the correct sets of data. All dimension files in initialization and history loads must be full snapshots of data; never send partial or incremental files.

Example #1: Calendar Initialization

When you first configure the system you must upload and process the CALENDAR.csv file. You will generate the file following the specifications, and also provide a context (ctx) file, as described in Data File Generation.

File to upload: RIHIST_RMS_DATA.zip

Zip file contents:

CALENDAR.csv
CALENDAR.csv.ctx (or W_MCAL_PERIOD_DTS.dat.ctx on legacy architecture)

Example #2: Product and Location Setup

You have finalized the calendar and want to initialize your core product and organization dimensions. You must provide the PRODUCT.csv and ORGANIZATION.csv files along with their context files, as described in Data File Generation.

File to upload: RIHIST_RMS_DATA.zip

Zip file contents:

PRODUCT.csv
PRODUCT.csv.ctx (or W_PRODUCT_DTS.dat.ctx on legacy architecture)
ORGANIZATION.csv
ORGANIZATION.csv.ctx (or W_INT_ORG_DTS.dat.ctx on legacy architecture)

Example #3: Full dimension load

You have a set of dimension files you want to process using the initial dimension load ad hoc processes in POM.

File to upload: RIHIST_RMS_DATA.zip

Zip file contents:

PRODUCT.csv
PRODUCT.csv.ctx (or W_PRODUCT_DTS.dat.ctx on legacy architecture)
ORGANIZATION.csv
ORGANIZATION.csv.ctx (or W_INT_ORG_DTS.dat.ctx on legacy architecture)
ATTR.csv
ATTR.csv.ctx (or W_ATTR_DTS.dat.ctx on legacy architecture)
PROD_ATTR.csv
PROD_ATTR.csv.ctx (or W_PRODUCT_ATTR_DTS.dat.ctx on legacy architecture)
EXCH_RATE.csv
EXCH_RATE.csv.ctx (or W_EXCH_RATE_DTS.dat.ctx on legacy architecture)

Example #4: Sales Data Load

You have finished the dimensions and you are ready to start processing sales history files.

File to upload: RIHIST_RMS_DATA.zip

Zip file contents:

SALES.csv
SALES.csv.ctx (or W_RTL_SLS_TRX_IT_LC_DY_FTS.dat.ctx on legacy architecture)

Example #5: Multi-File Fact Data Load

Once you are confident in your data file format and contents, you may send multiple files as separate ZIP uploads for sequential loading in the same run. This process uses a numerical sequence on the end of the ZIP file name. You should still include the base ZIP file to start the process.

Files to upload: RIHIST_RMS_DATA.zip, RIHIST_RMS_DATA.zip.1, RIHIST_RMS_DATA.zip.2, RIHIST_RMS_DATA.zip.3

Zip file contents (in each uploaded zip):

SALES.csv
SALES.csv.ctx (or W_RTL_SLS_TRX_IT_LC_DY_FTS.dat.ctx on legacy architecture) – The CTX is only required in the first ZIP file, but it’s best to always include it so you can refer to it later in archived files, if needed.

Uploading ZIP Packages

When providing data to the platform, push the compressed files into Object Storage using a ZIP file format. Review the Object Storage section for details on how to interact with Object Storage. The ZIP file you use will depend on the data you are attempting to load. The standard ZIP packages include:

Table 3-3 Platform ZIP File Usage

Filenames	Frequency	Notes
RIHIST_RMS_DATA.zip	Ad Hoc	Used for: Historical files, such as sales and inventory history for the last 1-2 years. Loading initial dimensions, such as calendar, merchandise, and location hierarchies prior to history loads. Initial seeding loads.
RIHIST_RMS_DATA.zip.1 RIHIST_RMS_DATA.zip.2 … RIHIST_RMS_DATA.zip.N	Ad Hoc	Multiple zip uploads are supported for sending historical fact data which should be loaded sequentially. Append a sequence number on the ZIP files starting from 1 and increasing to N, where N is the number of files you are loading.
RAP_DATA.zip RI_RMS_DATA.zip RI_CE_DATA.zip RI_MFP_DATA.zip RI_EXT_DATA.zip	Daily	Can be used for daily ongoing loads into Retail Insights, and for any daily data going to downstream applications through RI’s nightly batch. Different files can be used for different source systems.
ORASE_WEEKLY_ADHOC.zip	Ad Hoc	Used for loading RSP files with ad hoc processes.
ORASE_WEEKLY.zip	Weekly	Used for weekly batch files sent directly to RSP.
ORASE_INTRADAY.zip	Intraday	Used for intraday batch files sent directly to RSP.

Other supported file packages, such as output files and optional input files, are detailed in each module’s implementation guides. Except for Planning-specific integrations and customizations (which support additional integration paths and formats), it is expected that all files will be communicated to the platform using one of the filenames above.

Important

Important:

Once you begin loading historical data with RIHIST_RMS_DATA.zip uploads, do not keep re-processing the same dimension file for the same business date. Also, do not run the ad hoc process for a dimension without a file present, as you are then effectively closing out all data and telling the system you no longer have any active products or locations for that date. After successfully loading a dimension and moving on to other files, it is recommended to disable the related POM jobs from your process until you need it again.

Preparing to Load Data

Implementations can follow this general outline for the data load process:

Initialize the business and system calendars and perform table partitioning, which prepares the database for loading fact data.
Begin staging dimension files, but do NOT load them all the way through to the target tables. For the first few runs, it is best to leverage APEX or DV to validate your data in the staging tables and ensure it is correct and complete before loading it the rest of the way through.
Load verified dimension data into the target tables, and perform additional checks on the data from DV/APEX or using RI reports.
If implementing any Science or Planning module, load the dimension data to those systems now. Data might work fine within RI but have issues only visible after processing in those systems. Don’t start loading history data if your dimensions are not working with all target applications.
Load the first set of history files (for example, one month of sales or inventory) the rest of the way. Again pause at the staging layer, validate the data with SQL queries, and then proceed to load it into RI.
If implementing any Science or Planning module, stop here and load the history data to those systems as well. Validate that the history data in those systems is complete and accurate per your business requirements.
Continue loading history data into RAP until you are finished with all data. You can stop at any time to move some of the data into downstream modules for validation purposes.
After history loads are complete, all positional tables, such as Inventory Position, need to be seeded with a full snapshot of source data before they can be loaded using regular nightly batches. This seeding process is used to create a starting position in the database which can be incremented by daily delta extracts.
When all history and seeding loads are completed and downstream systems are also populated with that data, nightly batches can be started.

Before you begin this process, it is best to prepare your working environment by identifying the tools and connections needed for all your Oracle cloud services that will allow you to interact with the platform, as detailed in Implementation Tools and Data File Generation.

Prerequisites for loading files and running POM processes include:

Prerequisite	Tool / Process
Upload ZIPs to Object Store	File Transfer Service (FTS) scripts
Invoke adhoc jobs to unpack and load the data	Postman (or similar REST API tool)
Monitor job progress after invoking POM commands	POM UI (Batch Monitoring tab)
Monitoring data loads	APEX / DV (direct SQL queries)

Users must also have the necessary permissions in Oracle Identity Cloud Services (IDCS) or Oracle Cloud Infrastructure Identity and Access Management (OCI IAM) to perform all the implementation tasks. Before you begin, ensure that your user has at least the following groups (or their _PREPROD equivalent):

Access Needed	Groups Needed
Batch Job Execution	BATCH_ADMINISTRATOR_JOB PROCESS_SERVICE_ADMIN_JOB
Database Monitoring	DVContentAuthor (DV) DATA_SCIENCE_ADMINISTRATOR_JOB (APEX)
Retail Home	RETAIL_HOME_ADMIN PLATFORM_SERVICES_ADMINISTRATOR
RI and RSP Configurations	ADMINISTRATOR_JOB
MFP Configurations	MFP_ADMIN
RDF Configurations	RDF_ADMIN

Calendar and Partition Setup

This is the first step that must be performed in all new environments, including projects that will not be implementing RI, but only RSP or MFP. Before beginning this step, ensure your configurations are complete per the initial configuration sections in the prior chapter. Your START_DT and END_DT variables must be set correctly for your calendar range (START_DT must be earlier than the first date in your calendar file) and the C_MODULE_ARTIFACT table must have all of the required tables enabled for partitioning. C_MODULE_EXACT_TABLE must be configured if you need PLAN partitions for planning data loads.

If this is the first time running any batch programs through POM, then there are some important, one-time updates that are necessary before you begin this process:

Ensure that the POM program for SETUP_CTX_FILE_JOB is enabled in the Administration tab in both Nightly and Standalone schedules for all processes where it occurs.
Restart your POM schedules from the Monitoring tab and execute the SETUP_CTX_FILE_PROCESS_ADHOC process to verify it is successful.
If you encounter an error when running this job, open a Service Request (SR) with Oracle Support, as a configuration step may be missing in your environment.

Note:

These steps cannot be skipped and the error while running this job cannot be ignored. If this process is not able to run successfully, then your CTX files will be ignored during data loads. Once these processes are successful, continue on to the steps below.

Upload the calendar file CALENDAR.csv (and associated context file) through Object Storage or SFTP (packaged using the RIHIST_RMS_DATA.zip file).

Execute the HIST_ZIP_FILE_LOAD_ADHOC process. Example Postman message body:

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"HIST_ZIP_FILE_LOAD_ADHOC"
}

Verify that the two jobs in the ZIP file load process completed successfully using the POM Monitoring screen. Download logs for the tasks as needed for review.
Execute the CALENDAR_STG_CSV_LOAD_ADHOC process. Verify the data from your file was loaded to the target tables W_MCAL_PERIOD_DTS and W_MCAL_PERIOD_DS using APEX. Refer to Sample Validation SQLs for sample queries you can use for this.
Execute the CALENDAR_LOAD_ADHOC process. This transforms the data and moves it into all internal RI tables.
Validate all jobs in the calendar process are successful in POM. Validate that the tables W_MCAL_PERIOD_D and W_MCAL_DAY_D are populated with a full range of calendar dates based on your uploaded file. Do not begin the partitioning process until you are confident the calendar data is correctly loaded, as invalid calendar data can result in incorrect partitions.

If you need to reload the same file multiple times due to errors, you must Restart the Schedule in POM and then run the ad hoc process C_LOAD_DATES_CLEANUP_ADHOC before repeating these steps. This will remove any load statuses from the prior run and give you a clean start on the next execution. When you are finished loading data, move on to the partitioning process below.

Begin the partitioning process using the Postman message below. There are two date parameters provided for this command:
1. The 1st date value specifies the first day of partitioning. It must be before the first actual day of data being loaded, but you should not create excessive partitions for years of data you won’t be using, as it can impact performance of the system.
2. The 2nd date (ETL business date) specifies the target business date, which is typically the day the system should be at after loading all history data and starting daily batches. It is okay to guess some date in the future for this value, but note that the partition process automatically extends 4 months past your specified date.
```
{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"CREATE_PARTITION_ADHOC",
"requestParameters":"jobParams.CREATE_PARTITION_PRESETUP_
JOB=2018-12-30,jobParams.ETL_BUSINESS_DATE_JOB=2021-02-06"
}
```

You can monitor the process while it’s running by querying the RI_LOG_MSG table from APEX or DV. This table captures the detailed partitioning steps being performed by the script in real time (whereas POM logs are only refreshed at the end of execution). If the process fails in POM after exactly 4 hours, this is just a POM process timeout and it may still be running in the background so you can check for new inserts to the RI_LOG_MSG table.

The partitioning process will take some time (~5 hours per 100k partitions) to complete if you are loading multiple years of history, as this may require 100,000+ partitions to be created across the data model. This process must be completed successfully before continuing with the data load process. Contact Oracle Support if there are any questions or concerns. Partitioning can be performed after some data has been loaded; however, it will take significantly longer to execute, as it has to move all of the loaded data into the proper partitions.

You can also estimate the number of partitions needed based on the details below:

RAP needs to partition around 120 week-level tables if all functional areas are enabled, so take the number of weeks in your history time window multiplied by this number of tables.
RAP needs to partition around 160 day-level tables if all functional areas are enabled, so take the number of days in your history time window multiplied by this number of tables.

For a 3-year history window, this results in: 120*52*3 + 160*365*3 = 193,920 partitions. If you wish to confirm your final counts before proceeding to the next dataload steps, you can execute these queries from APEX:

select count(*) cnt from dba_tab_partitions where table_owner = 'RADM01' and table_name like 'W_RTL_%'
select table_name, count (*) cnt from dba_tab_partitions where table_owner = 'RADM01' and table_name like 'W_RTL_%' group by table_name

The queries should return a count roughly equal to your expected totals (it will not be exact, as the data model will add/remove tables over time and some tables come with pre-built partitions or default MAXVALUE partitions).

Loading Data from Files

When history and initial seed data comes from flat files, use the following tasks to upload them into RAP:

Table 3-4 Flat File Load Overview

Activity	Description
Initialize Dimensions	Initialize dimensional data (products, locations, and so on) to provide a starting point for historical records to join with. Separate initial load processes are provided for this task.
Load History Data	Run history loads in one or multiple cycles depending on the data volume, starting from the earliest date in history and loading forward to today.
Reloading Dimensions	Reload dimensional data as needed throughout the process to maintain correct key values for all fact data. Dimensional files can be provided in the same package with history files and ad hoc processes run in sequence when loading.
Seed Positional Facts	Seed initial values for positional facts using full snapshots of all active item/locations in the source system. This must be loaded for the date prior to the start of nightly batches to avoid gaps in ongoing data.
Run Nightly Batches	Nightly batches must be started from the business date after the initial seeding was performed.

Completing these steps will load all of your data into the Retail Insights data model, which is required for all implementations. From there, proceed with moving data downstream to other applications as needed, such as Science modules and Merchandise Financial Planning.

Note:

All steps are provided sequentially, but can be executed in parallel. For example, you may load dimensions into RI, then on to RSP and Planning applications before loading any historical fact data. While historical fact data is loaded, other activities can occur in Planning such as the domain build and configuration updates.

Initialize Dimensions

Loading Dimensions into RI

You cannot load any fact data into the platform until the related dimensions have been processed and verified. The processes in this section are provided to initialize the core dimensions needed to begin fact data loads and verify file formats and data completeness. Some dimensions which are not used in history loads are not part of the initialization process, as they are expected to come in the nightly batches at a later time.

For the complete list of dimension files and their file specifications, refer to the Retail Insights Interfaces Guide on My Oracle Support. The steps below assume you have enabled or disabled the appropriate dimension loaders in POM per your requirements. The process flow examples also assume CSV file usage, different programs are available for legacy DAT files. The RI and Science Operations Guide provides a list of all the job and process flows used by foundation data files, so you can identify the jobs required for your files and disable unused programs in POM.

Provide your dimension files and context files through Object Storage (packaged using the RIHIST_RMS_DATA.zip file). All files should be included in a single zip file upload.
Execute the HIST_ZIP_FILE_LOAD_ADHOC process.

Execute the LOAD_CURRENT_BUSINESS_DATE_ADHOC process to set the load date to one day before the start of your history load timeframe. Sample Postman message body:

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"LOAD_CURRENT_BUSINESS_DATE_ADHOC",
"requestParameters":"jobParams.ETL_BUSINESS_DATE_JOB=2017-12-31"
}

Execute the LOAD_DIM_INITIAL_CSV_ADHOC process, which imports the files to pre-staging tables with no transformations applied. These table names end in DTS or FTS, and you can query them using APEX at this point. Refer to Sample Validation SQLs for sample queries you can use for this.
Execute the LOAD_EXT_DIM_INITIAL_SI_ADHOC processes to stage data into the core data model, applying transformations as needed to format the data. This moves the data to various tables ending in DS or DS_TL. Validate your data before proceeding. Refer to Sample Validation SQLs for sample queries you can use for this.
Execute the LOAD_DIM_INITIAL_ADHOC process to load your dimension data from the staging tables. The ETL date on the command should be the same one used in the prior steps.
```
{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"LOAD_DIM_INITIAL_ADHOC",
"requestParameters":"jobParams.ETL_BUSINESS_DATE_JOB=2017-12-31"
}
```

If any jobs fail during this load process, you may need to alter one or more dimension data files, re-send them in a new zip file upload, and re-execute the programs. Only after all core dimension files have been loaded (such as PRODUCT, ORGANIZATION, and EXCH_RATE) can you proceed to history loads for fact data.

If you need to reload the same file multiple times due to errors, you must Restart the Schedule in POM and then run the ad hoc process C_LOAD_DATES_CLEANUP_ADHOC before repeating these steps. This will remove any load statuses from the prior run and give you a clean start on the next execution.

Note:

You must not reload the same foundation dimension file on the same business date if it was already imported successfully. Certain file changes, like moving items or locations into different hierarchy levels, can only happen once per business date. Change the ETL business date parameter before reloading a dimension file which might have hierarchy changes in it.

As a best practice, you should disable all POM jobs in the LOAD_DIM_INITIAL_ADHOC process except the ones you are providing new files for. For example, if you are loading the PRODUCT, ORGANIZATION, and EXCH_RATE files as your dimension data for RSP, then you could just execute the set of jobs for those files and disable the others. Refer to the RI and Science Operations Guide for a list of the POM jobs involved in loading each foundation file, if you wish to disable jobs you do not plan to use to streamline the load process.

Loading Dimensions to Other Applications

Once you have successfully loaded dimension data, you may choose to pause the dataload process and push the dimensions to the Science Platform or Merchandise Financial Planning (if applicable). This allows for parallel data validation and domain build activities to occur while you continue loading data. Review sections Sending Data to Science and Sending Data to Planning for details on the POM jobs you may execute for this.

The main benefits of this order of execution are:

Validating the hierarchy structure from the Science interface provides an early view for the customer to see some application screens with their data.
Planning apps can perform the domain build activity without waiting for history file loads to complete, and can start to do other planning implementation activities in parallel to the history loads.
Data can be made available for custom development or validations in Innovation Workbench.

Load History Data

Historical fact data is a core foundational element to all solutions in the Retail Analytics Platform. As such, this phase of the implementation can take the longest amount of time during the project, depending on the volumes of data, the source of the data, and the amount of transformation and validation that needs to be completed before and after loading it into the platform.

Before loading any large history files such as sales and inventory, update the multi-threading parameter (LOC_NUM_OF_THREAD) in the C_ODI_PARAM table for these processes. In general, a good starting value for multi-threading is 8 threads, after which time you can monitor the job performance of each thread and add or remove threads as needed. Thread-level runtimes can be found on the C_LOAD_DATES table, which is viewable from APEX or the Tactical & Control Center.

The scenario names below are most often used in the history load processes and should have multi-threading values checked/adjusted in C_ODI_PARAM.

Note:

All related jobs MUST use the same thread value, or data could be missed. For example, all INVPOSITION scenarios must use the same value.

SIL_RETAIL_SALESTRANSACTIONFACT
SIL_RETAILINVPOSITIONFACT
SIL_RETAILINVRECEIPTSFACT
PLP_RETAILINVPOSITIONITLCGMHAGGREGATE
PLP_RETAILINVPOSITIONITLCWKAGGREGATE
PLP_RETAILINVPOSITIONSCLCDYCURRRECLASSAGGREGATE
PLP_RETAILINVPOSITIONSCLCDYWKCURRRECLASSAGGREGATE
PLP_RETAILSALESITLCDYTEMPLOAD

It is also important to know where in the RAP database you can look to find what data has been processed, what data may have been rejected or dropped due to issues, and how far along in the overall load process you are. The following tables provide critical pieces of information throughout the history load process.

Table 3-5 Inbound Load Status Tables

Table	Usage
C_HIST_LOAD_STATUS	Tracks the progress of historical ad hoc load programs for inventory and pricing facts. This table will tell you which Retail Insights tables are being populated with historical data, the most recent status of the job executions, and the most recently completed period of historical data for each table. Use APEX or Data Visualizer to query this table after historical data load runs to ensure the programs are completing successfully and processing the expected historical time periods.
C_LOAD_DATES	Check for detailed statuses of historical load jobs. This is the only place that tracks this information at the individual ETL thread level. For example, it is possible for an historical load using 8 threads to successfully complete 7 threads but fail on one thread due to data issues. The job itself may just return as Failed in POM, so knowing which thread failed will help identify the records that may need correcting and which thread should be reprocessed.
W_ETL_REJECTED_RECORDS	Summary table capturing rejected fact record counts that do not get processed into their target tables in Retail Insights. Use this to identify other tables with specific rejected data to analyze. Does not apply to dimensions, which do not have rejected record support at this time.
E$_W_RTL_SLS_TRX_IT_LC_DY_TMP	Example of a rejected record detail table for Sales Transactions. All rejected record tables start with the `E$_` prefix. These tables are created at the moment the first rejection occurs for a load program. `W_ETL_REJECTED_RECORDS` will tell you which tables contain rejected data for a load.

When loading data from flat files for the first time, it is common to have bad records that cannot be processed by the RAP load procedures, such as when the identifiers on the record are not present in the associated dimension tables. The foundation data loads leverage rejected record tables to capture all such data so you can see what was dropped by specific data load and needs to be corrected and reloaded. These tables do not exist until rejected records occur during program execution. Periodically monitor these tables for rejected data which may require reloading.

Sales History Load

RI supports the loading of sales transaction history using actual transaction data or daily/weekly sales totals. If loading data at an aggregate level, all key columns (such as the transaction ID) are still required to have some value. The sales data may be provided for a range of dates in a single file. The data should be loaded sequentially from the earliest week to the latest week but, unlike inventory position, you may have gaps or out-of-order loads, because the data is not stored positionally. Refer to Data File Generation for more details on the file requirements.

If you are not loading sales history for Retail Insights specifically, then there are many aggregation programs that can be disabled in the POM standalone process. These programs populate additional tables used only in BI reporting. The following list of jobs can be disabled if you are not using RI (effectively all aggregate “A” tables and jobs except for the item/location/week level can be turned off):

W_RTL_SLS_IT_LC_DY_A_JOB
W_RTL_SLS_IT_LC_GMH_A_JOB
W_RTL_SLS_SC_LC_DY_A_JOB
W_RTL_SLS_SC_LC_WK_A_JOB
W_RTL_SLS_CL_LC_DY_A_JOB
W_RTL_SLS_CL_LC_WK_A_JOB
W_RTL_SLS_DP_LC_DY_A_JOB
W_RTL_SLS_DP_LC_WK_A_JOB
W_RTL_SLS_IT_DY_TMP_JOB
W_RTL_SLS_IT_DY_A_JOB
W_RTL_SLS_IT_WK_A_JOB
W_RTL_SLS_SC_DY_A_JOB
W_RTL_SLS_SC_WK_A_JOB
W_RTL_SLS_LC_DY_TMP_JOB
W_RTL_SLS_LC_DY_A_JOB
W_RTL_SLS_LC_WK_A_JOB
W_RTL_SLS_IT_LC_DY_SN_TMP_JOB
W_RTL_SLS_IT_LC_DY_SN_A_JOB
W_RTL_SLS_IT_LC_WK_SN_A_JOB
W_RTL_SLS_IT_DY_SN_A_JOB
W_RTL_SLS_IT_WK_SN_A_JOB
W_RTL_SLS_SC_LC_DY_CUR_TMP_JOB
W_RTL_SLS_SC_LC_DY_CUR_A_JOB
W_RTL_SLS_SC_LC_WK_CUR_A_JOB
W_RTL_SLS_CL_LC_DY_CUR_A_JOB
W_RTL_SLS_DP_LC_DY_CUR_A_JOB
W_RTL_SLS_CL_LC_WK_CUR_A_JOB
W_RTL_SLS_DP_LC_WK_CUR_A_JOB
W_RTL_SLS_SC_DY_CUR_A_JOB
W_RTL_SLS_CL_DY_CUR_A_JOB
W_RTL_SLS_DP_DY_CUR_A_JOB
W_RTL_SLS_SC_WK_CUR_A_JOB
W_RTL_SLS_CL_WK_CUR_A_JOB
W_RTL_SLS_DP_WK_CUR_A_JOB
W_RTL_SLSPR_PC_IT_LC_DY_A_JOB
W_RTL_SLSPR_PP_IT_LC_DY_A_JOB
W_RTL_SLSPR_PE_IT_LC_DY_A_JOB
W_RTL_SLSPR_PP_CUST_LC_DY_A_JOB
W_RTL_SLSPR_PC_CS_IT_LC_DY_A_JOB
W_RTL_SLSPR_PC_HH_WK_A_JOB

After confirming the list of enabled sales jobs, perform the following steps:

Create the file SALES.csv containing one or more days of sales data along with a CTX file defining the columns which are populated.
Upload the history files to Object Storage using the RIHIST_RMS_DATA.zip file.
Execute the HIST_ZIP_FILE_LOAD_ADHOC process.
Execute the HIST_STG_CSV_SALES_LOAD_ADHOC process to stage the data in the database. Validate your data before proceeding. Refer to Sample Validation SQLs for sample queries you can use for this.
Execute the HIST_SALES_LOAD_ADHOC batch processes to load the data. If no data is available for certain dimensions used by sales, then the load process can seed the dimension from the history file automatically. Enable seeding for all of the dimensions according to the initial configuration guidelines; providing the data in other files is optional.

Note:
Several supplemental dimensions are involved in this load process, which may or may not be provided depending on the data requirements. For example, sales history data has promotion identifiers, which would require data on the promotion dimension.

Sample Postman message bodies:
```
{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"HIST_STG_CSV_SALES_LOAD_ADHOC"
}

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"HIST_SALES_LOAD_ADHOC"
}
```

This process can be repeated as many times as needed to load all history files for the sales transaction data. If you are sending data to multiple RAP applications, do not wait until all data files are processed to start using those applications. Instead, load a month or two of data files and process them into all apps to verify the flows before continuing.

Note:

Data cannot be reloaded for the same records multiple times, as sales data is treated as additive in Retail Insights. If data needs correction, you must post only the delta records (for example, send -5 to reduce a value by 5 units). Create a Service Request with Oracle Support for assistance with clearing out incorrect or unwanted data in your environment.

Inventory Position History Load

RI supports the loading of inventory position history using full, end-of-week snapshots. These weekly snapshots may be provided one week at a time or as multiple weeks in a single file. The data must be loaded sequentially from the earliest week to the latest week with no gaps or out-of-order periods. For example, you cannot start with the most recent inventory file and go backward; you must start from the first week of history. Refer to Data File Generation for more details on the file requirements.

A variety of C_ODI_PARAM settings are available to disable inventory features that are not required for your implementation. All of the following parameters can be changed to a value of N during the history load and enabled later for daily batches, as it will greatly improve the load times:

RI_INVAGE_REQ_IND – Disables calculation of first/last receipt dates and inventory age measures. Receipt date calculation is used in RI and also Offer Optimization (as a method of determining entry/exit dates for items). It is also used for Forecasting for the Short Lifecycle (SLC) methods.
RA_CLR_LEVEL – Disables the mapping of clearance event IDs to clearance inventory updates. Used only in RI reporting.
RI_PRES_STOCK_IND – Disables use of replenishment data for presentation stock to calculate inventory availability measures. Used only in RI reporting.
RI_BOH_SEEDING_IND – Disables the creation of initial beginning-on-hand records so analytics has a non-null starting value in the first week. Used only in RI reporting.
RI_MOVE_TO_CLR_IND – Disables calculation of move-to-clearance inventory measures when an item/location goes into or out of clearance status. Used only in RI reporting.
RI_MULTI_CURRENCY_IND – Disables recalculation of primary currency amounts if you are only using a single currency. Should be enabled for multi-currency, or disabled otherwise.

The following steps describe the process for loading inventory history:

If you need inventory to keep track of First/Last Receipt Dates for use in Offer Optimization or Forecasting (SLC) then you must first load a RECEIPT.csv file for the same historical period as your inventory file (because it is used in forecasting that may make it required for your Inventory Optimization loads as well, if you plan to use SLC forecasting). You must also set RI_INVAGE_REQ_IND to Y. Receipts are loaded using the process HIST_CSV_INVRECEIPTS_LOAD_ADHOC. Receipts may be provided at day or week level depending on your history needs.
Create the file INVENTORY.csv containing one or more weeks of inventory snapshots in chronological order along with your CTX file to define the columns that are populated. The DAY_DT value on every record must be an end-of-week date (Saturday by default). The only exception to this is the final week of history, which may be the middle of the week, as long as you perform initial seeding loads on the last day of that week.
Upload the history file and its context file to Object Storage using the RIHIST_RMS_DATA.zip file.
Update column HIST_LOAD_LAST_DATE on the table C_HIST_LOAD_STATUS to be the date matching the last day of your overall history load (will be later than the dates in the current file). This can be done from the Control & Tactical Center.
Execute the HIST_ZIP_FILE_LOAD_ADHOC process.
Execute the HIST_STG_CSV_INV_LOAD_ADHOC process to stage your data into the database. Validate your data before proceeding. Refer to Sample Validation SQLs for sample queries you can use for this.
Execute the HIST_INV_LOAD_ADHOC batch process to load the file data. The process loops over the file one week at a time until all weeks are loaded. It updates the C_HIST_LOAD_STATUS table with the progress, which you can monitor from APEX or DV. Sample Postman message bodies:
```
{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"HIST_STG_CSV_INV_LOAD_ADHOC"
}

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"HIST_INV_LOAD_ADHOC"
}
```

This process can be repeated as many times as needed to load all history files for the inventory position. Remember that inventory cannot be loaded out of order, and you cannot go back in time to reload files after you have processed them. If you load a set of inventory files and then find issues during validation, erase the tables in the database and restart the load with corrected files.

If your inventory history has invalid data, you may get rejected records and the batch process will fail with a message that rejects exist in the data. If this occurs, you cannot proceed until you resolve your input data, because rejections on positional data MUST be resolved for one date before moving onto the next. If you move onto the next date without reprocessing any rejected data, that data is lost and cannot be loaded at a later time without starting over. When this occurs:

The inventory history load will automatically populate the table W_RTL_REJECT_DIMENSION_TMP with a list of invalid dimensions it has identified. If you are running any other jobs besides the history load, you can also run the process W_RTL_REJECT_DIMENSION_TMP_ADHOC to populate that table manually. You have the choice to fix the data and reload new files or proceed with the current file
After reviewing the rejected records, run REJECT_DATA_CLEANUP_ADHOC, which will erase the E$ table and move all rejected dimensions into a skip list. The list is loaded to the table C_DISCARD_DIMM. Skipped identifiers will be ignored for the current file load, and then reset for the start of the next run.
If you want to fix your files instead of continuing the current load, stop here and reload your dimensions and/or fact data following the normal process flows.
To reset the inventory load either for resuming the current run or starting over with a new file, update the C_HIST_LOAD_STATUS table for the current load to set the HIST_LOAD_STATUS back to INPROGRESS for two tables: the one it failed on, and W_RTL_INV_IT_LC_DY_HIST_TMP.
If you are resuming with the current file with the intent to skip all data in C_DISCARD_DIMM, restart the POM job now.

Log a Service Request with Oracle Support for assistance with any of the above steps if you are having difficulties with loading inventory history or dealing with rejected records.

Price History Load

Certain applications, such as Promotion and Markdown Optimization, require price history to perform their calculations. Price history is similar to inventory in that it is a positional, but it can be loaded in a more compressed manner due to the extremely high data volumes involved. The required approach for price history is as follows:

Update C_HIST_LOAD_STATUS for the PRICE records in the table, specifying the last date of history load, just as you did for inventory.
Create an initial, full snapshot of price data in PRICE.csv for the first day of history and load this file into the platform using the history processes in this section. All initial price records must come with a type code of 0.
Create additional PRICE files containing just price changes for a period of time (such as a month) with the appropriate price change type codes and effective day dates for those changes. Load each file one at a time using the history processes.
The history procedure will iterate over the provided files day by day, starting from the first day of history, up to the last historical load date specified in C_HIST_LOAD_STATUS for the pricing fact. For each date, the procedure checks the staging data for effective price change records and loads them, then moves on to the next date.

The process to perform price history loads is similar to the inventory load steps. It uses the PRICE.csv file and the HIST_CSV_PRICE_LOAD_ADHOC process (the price load only has one load process instead of two like sales/inventory). Just like inventory, you must load the data sequentially; you cannot back-post price changes to earlier dates than what you have already loaded. Refer to Data File Generation for complete details on how to build this file.

Other History Loads

While sales and inventory are the most common facts to load history for, you may also want to load history for other areas such as receipts and transfers. Separate ad hoc history load processes are available for the following fact areas:

HIST_CSV_ADJUSTMENTS_LOAD_ADHOC
HIST_CSV_INVRECEIPTS_LOAD_ADHOC
HIST_CSV_MARKDOWN_LOAD_ADHOC
HIST_CSV_INVRTV_LOAD_ADHOC
HIST_CSV_TRANSFER_LOAD_ADHOC
HIST_CSV_DEAL_INCOME_LOAD_ADHOC
HIST_CSV_ICMARGIN_LOAD_ADHOC
HIST_CSV_INVRECLASS_LOAD_ADHOC

All of these interfaces deal with transactional data (not positional) so you may use them at any time to load history files in each area.

Note:

These processes are intended to support history data for downstream applications such as Science and Planning, so the tables populated by each process by default should satisfy the data needs of those applications. Jobs not needed by those apps are not included in these processes.

Reloading Dimensions

It is common to reload dimensions at various points throughout the history load, or even in-sync with every history batch run. Ensure that your core dimensions, such as the product and location hierarchies, are up-to-date and aligned with the historical data being processed. To reload dimensions, you may follow the same process as described in the Initial Dimension Load steps, ensuring that the current business load date in the system is on or before the date in history when the dimensions will be required. For example, if you are loading history files in a monthly cadence, ensure that new product and location data required for the next month has been loaded no later than the first day of that month, so it is effective for all dates in the history data files. Do not reload dimensions for the same business date multiple times, advance the date to some point after the prior load each time you want to load new sets of changed dimension files.

It is also very important to understand that history load procedures are unable to handle reclassifications that have occurred in source systems when you are loading history files. For example, if you are using current dimension files from the source system to process historical data, and the customer has reclassified products so they are no longer correct for the historical time periods, then your next history load may place sales or inventory under the new classifications, not the ones that were relevant in history. For this reason, reclassifications should be avoided if at all possible during history load activities, unless you can maintain historical dimension snapshots that will accurately reflect historical data needs.

Seed Positional Facts

Once sales and inventory history have been processed, you will need to perform seeding of the positional facts you wish to use. Seeding a fact means to load a full snapshot of the data for all active item/locations, thus establishing a baseline position for every possible record before nightly batches start loading incremental updates to those values. Seeding of positional facts should only occur once history data is complete and daily batch processing is ready to begin.

Initial seed loads can take a long time to execute, as each file contains all possible item/location combinations that are active in the source systems. Plan for 2-3 days to execute these processes until you have performed them once and have a better estimate for the total time required. Seed loads should also be done for a week-ending date, so that you do not have a partial week of daily data in the system when you start daily batches.

If you did not previously disable the optional inventory features in C_ODI_PARAM (parameters RI_INVAGE_REQ_IND, RA_CLR_LEVEL, RI_PRES_STOCK_IND, RI_BOH_SEEDING_IND, RI_MOVE_TO_CLR_IND, and RI_MULTI_CURRENCY_IND) then you should review these settings now and set all parameters to “N” if the functionality is not required. Once this is done, follow the steps below to perform positional seeding:

Create the files containing your initial full snapshots of positional data. It may be one or more of the following:
- PRICE.csv
- COST.csv
- INVENTORY.csv
- ORDER_DETAIL.csv (ORDER_HEAD.csv should already be loaded using dimension process)
Upload the files to Object Storage using the RIHIST_RMS_DATA.zip file.

Execute the LOAD_CURRENT_BUSINESS_DATE_ADHOC process to set the load date to be the next week-ending date after the final date in your history load.

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"LOAD_CURRENT_BUSINESS_DATE_ADHOC",
"requestParameters":"jobParams.ETL_BUSINESS_DATE_JOB=2017-12-31"
}

Execute the ad hoc seeding batch processes depending on which files have been provided. Sample Postman messages:

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"SEED_CSV_W_RTL_PRICE_IT_LC_DY_F_PROCESS_ADHOC"
}

{
"cycleName": "Adhoc",
"flowName":"Adhoc",
"processName":"SEED_CSV_W_RTL_NCOST_IT_LC_DY_F_PROCESS_ADHOC"
}

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"SEED_CSV_W_RTL_BCOST_IT_LC_DY_F_PROCESS_ADHOC"
}

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"SEED_CSV_W_RTL_INV_IT_LC_DY_F_PROCESS_ADHOC"
}

{
"cycleName":"Adhoc",
"flowName":"Adhoc",
"processName":"SEED_CSV_W_RTL_PO_ONORD_IT_LC_DY_F_PROCESS_ADHOC"
}

Once all initial seeding is complete and data has been validated, you are ready to perform a regular batch run. Provide the data files expected for a full batch, such as RAP_DATA.zip or RI_RMS_DATA.zip for foundation data, RI_MFP_DATA.zip for planning data (for RI reporting and RSP forecasting), and any Science Platform files using the ORASE_WEEKLY.zip files. If you are sourcing daily data from RMS then you need to ensure that the RDE batch flow is configured to run nightly along with the RAP batch schedule. Batch dependencies between RDE and RI should be checked and enabled, if they are not already turned on.

From this point on, the nightly batch takes care of advancing the business date and loading all files, assuming that you want the first load of nightly data to occur the day after seeding. The following diagram summarizes a potential set of dates and activities using the history and seeding steps described in this chapter:

Note:

The sequential nature of this flow of events must be followed for positional facts (for example, inventory) but not for transactional facts (such as sales). Transactional data supports posting for dates other than what the current system date is, so you can choose to load sales history at any point in this process.

Run Nightly Batches

As soon as initial seeding is performed, prepare for starting nightly batch runs in full. Nightly batch schedules can be configured in parallel with the history load processes using a combination of the Customer Modules Management (in Retail Home) and the POM administration screens. It is not recommended to configure the nightly jobs manually in POM, as there are over 500 batch programs; choosing which to enable can be a time-intensive and error-prone activity. Customer Modules Management greatly simplifies this process and preserves dependencies and required process flows. Batch Orchestration describes the batch orchestration process and how you can configure batch schedules for nightly execution.

Once you move to nightly batches, you may also want to switch interfaces from Full to Incremental loading of data. Several RI interfaces, such as the Product dimension, can be loaded incrementally, sending only the changed records every day instead of a full snapshot. These options use the IS_INCREMENTAL flag in the C_ODI_PARAM table and can be accessed from the Control & Tactical Center. If you are unsure of which flags you want to change, refer to the Retail Insights Implementation Guide for detailed descriptions of all parameters.

As part of nightly batch uploads, ensure that the parameter file RA_SRC_CURR_PARAM_G.dat is included in each ZIP package, and that it is being automatically updated with the current business date for that set of files.

Sending Data to Science

All Science modules leverage a common batch infrastructure to initialize the core dataset, followed by ad hoc, application-specific programs to generate additional data as needed. Before loading any data into a Science module, it is necessary to complete initial dimension loads into RI and validate that core structures (calendar, products, locations) match what you expect to see. You may also perform some or all of the history loads before extracting any data to Science. Once you are comfortable with the data that has been loaded in, leverage the following jobs to move data into one or more Science applications.

Table 3-6 Extracts for Science

POM Process Name	Usage Details
INPUT_FILES_ADHOC_PROCESS	Receive inbound zip files intended for Science, archive and extract the files. This process looks for the `ORASE_WEEKLY_ADHOC.zip` file.
RSE_MASTER_ADHOC_PROCESS	Foundation data movement from RI to Science, including core hierarchies and dimensional data. Accepts many different parameters to run specific steps in the load process.
<app>_MASTER_ADHOC_PROCESS	Each Science module, such as SPO or IO, has a master job for extracting and loading data that is required for that application, in addition to the `RSE_MASTER` processes.

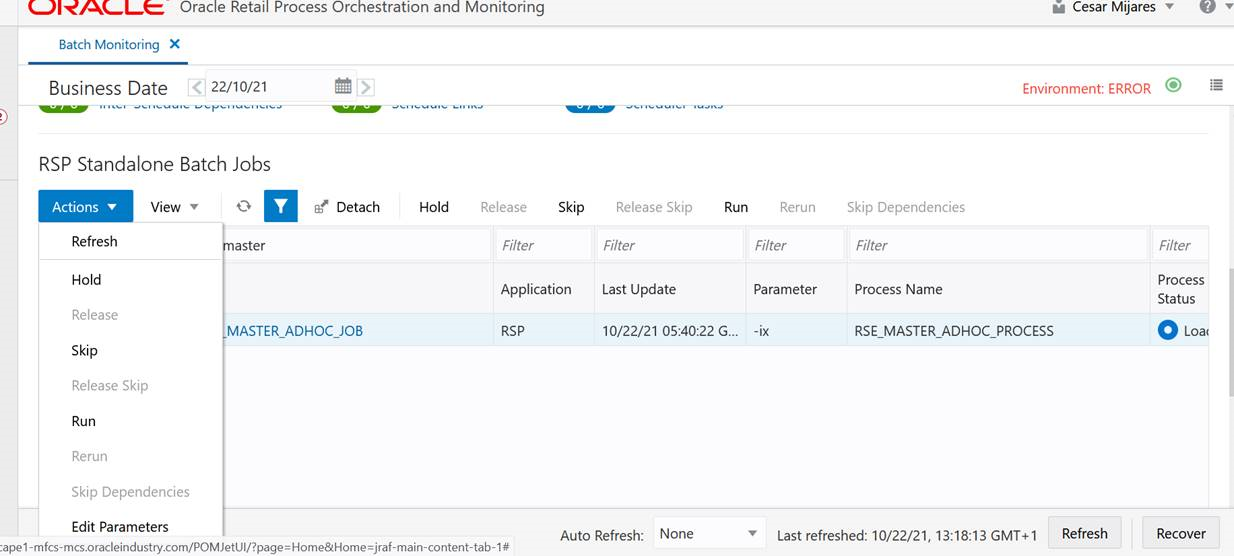

Because Science Platform ad hoc procedures have been exposed using only one job in POM, they are not triggered like RI procedures. Science programs accept a number of single-character codes representing different steps in the data loading process. These codes can be provided directly in POM by editing the Parameters of the job in the Batch Monitoring screen, then executing the job through the user interface.

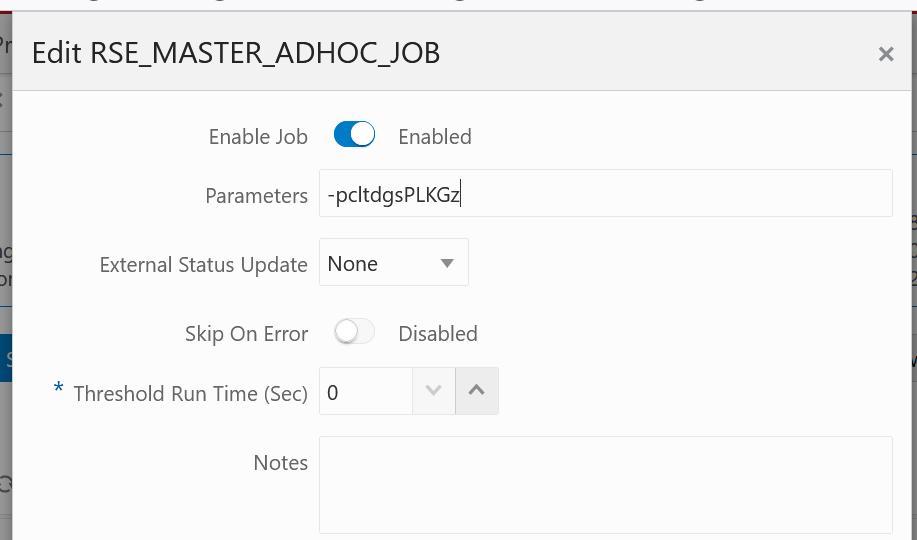

For example, this string of parameters will move all dimension data from RI to RSP:

Parameters for Moving Dimension Data from RI to RSP

Additional parameters are available when moving periods of historical data, such as inventory and sales:

Parameters for Moving Periods of Historical Data

A typical workflow for moving core foundation data into Science is:

Load the core foundation files (like Calendar, Product, and Organization) into RI.
Use the RSE_MASTER_ADHOC_PROCESS to move those same datasets to RSP, providing specific flag values to only run the needed steps.
Load some of your history files for Sales to validate the inputs.
Load the same range of sales to RSP using the sales load with optional from/to date parameters.
Repeat the previous two steps until all sales data is loaded into both RI and RSP.

Performing the process iteratively provides you early opportunities to find issues in the data before you’ve loaded everything, but it is not required. You can load all the data into RSP at one time.

Follow the same general flow for the other application-specific, ad hoc flows into the Science modules. For a complete list of parameters in each program, refer to the RI and Science Operations Guide.

Sending Data to Planning

If a Planning module is being implemented, then additional RI jobs should be executed as part of the initial and nightly batch runs. These jobs are available through ad hoc calls, and the nightly jobs are included in the RI nightly schedule. Review the list below for more details on the core Planning extracts available.

Table 3-7 Extracts for Planning

POM Job Name	Usage Details
W_PDS_PRODUCT_D_JOB	Exports a full snapshot of Product master data (for non-pack items only) and associated hierarchy levels.
W_PDS_ORGANIZATION_D_JOB	Exports a full snapshot of Location master data (for stores and warehouses only) and associated hierarchy levels.
W_PDS_CALENDAR_D_JOB	Exports a full snapshot of Calendar data at the day level and associated hierarchy levels. Note: While RI exports the entire calendar, PDS will only import 5 years around the `RPAS_TODAY` date (current year +/- 2 years).
W_PDS_EXCH_RATE_G_JOB	Exports a full snapshot of exchange rates.
W_PDS_PRODUCT_ATTR_D_JOB	Exports a full snapshot of item-attribute relationships. This is inclusive of both diffs and UDAs.
W_PDS_DIFF_D_JOB	Exports a full snapshot of Differentiators such as Color and Size.
W_PDS_DIFF_GRP_D_JOB	Exports a full snapshot of differentiator groups (most commonly size groups used by SPO and AP).
W_PDS_UDA_D_JOB	Exports a full snapshot of User-Defined Attributes.
W_PDS_BRAND_D_JOB	Exports a full snapshot of Brand data (regardless of whether they are currently linked to any items).
W_PDS_SUPPLIER_D_JOB	Exports a full snapshot of Supplier data (regardless of whether they are currently linked to any items).
W_PDS_DEALINC_IT_LC_WK_A_JOB	Incremental extract of deal income data (transaction codes 6 and 7 from RMFCS) posted in the current business week.
W_PDS_PO_ONORD_IT_LC_WK_A_JOB	Incremental extract of future on-order amounts for the current business week, based on the expected OTB date.
W_PDS_INV_IT_LC_WK_A_JOB	Incremental extract of inventory positions for the current business week. Inventory is always posted to the current week, there are no back-posted records.
W_PDS_SLS_IT_LC_WK_A_JOB	Incremental extract of sales transactions posted in the current business week (includes back-posted transactions to prior transaction dates).
W_PDS_INVTSF_IT_LC_WK_A_JOB	Incremental extract of inventory transfers posted in the current business week (transaction codes 30, 31, 32, 33, 37, 38 from RMFCS).
W_PDS_INVRC_IT_LC_WK_A_JOB	Incremental extract of inventory receipts posted in the current business week. Only includes purchase order receipts (transaction code 20 from RMFCS).
W_PDS_INVRTV_IT_LC_WK_A_JOB	Incremental extract of returns to vendor posted in the current business week (transaction code 24 from RMFCS).
W_PDS_INVADJ_IT_LC_WK_A_JOB	Incremental extract of inventory adjustments posted in the current business week (transaction codes 22 and 23 from RMFCS).
W_PDS_SLSWF_IT_LC_WK_A_JOB	Incremental extract of wholesale and franchise transactions posted in the current business week (transaction codes 82, 83, 84, 85, 86, 88 from RMFCS).
W_PDS_MKDN_IT_LC_WK_A_JOB	Incremental extract of markdowns posted in the current business week (transaction codes 11, 12, 13, 14, 15, 16, 17, 18 from RMFCS).
W_PDS_INV_IT_LC_WK_A_INITIAL_JOB	Initial history extract for inventory position data based on the timeframe established in C_SOURCE_CDC.

The PDS jobs are linked with several ad hoc processes in POM, providing you with the ability to extract specific datasets on-demand as you progress with history and initial data loads. The table below summarizes the ad hoc processes, which can be called using the standard methods such as cURL or Postman.

Table 3-8 RI Ad Hoc Processes for Planning

POM Process Name	Usage Details
LOAD_PDS_DIMENSION_PROCESS_ADHOC	Groups all of the dimension (D/G table) extracts for PDS into one process for ad hoc execution. Disable individual jobs in POM to run only some of them.
LOAD_PDS_FACT_PROCESS_ADHOC	Groups all of the fact (F/A table) extracts for PDS into one process for ad hoc execution. Disable individual jobs in POM to run only some of them.
LOAD_PDS_FACT_INITIAL_PROCESS_ADHOC	History extract process for inventory positions, run only to pull a full snapshot of inventory from RI for one or multiple weeks of data. You must set the start and end dates for extraction in the `C_SOURCE_CDC` table before running this process.
C_LOAD_DATES_CLEANUP_ADHOC	Purge the successful job records from C_LOAD_DATES, which is necessary when you are running the same jobs multiple times per business date.

All of the PDS fact jobs leverage the configuration table C_SOURCE_CDC to track the data that has been extracted. On the first run of any incremental process, the job will extract all available data in a single run. From that point forwards, the extract will incrementally load only the data which has been added or modified since the last extract. For the initial inventory job, it requires start/end dates to extract, so you must update C_SOURCE_CDC from the Tactical & Control Center. For all other jobs, the extract dates are written to the C_SOURCE_CDC alongside the extract table name after each execution and can be overwritten as needed when doing multiple loads or re-running the same time period. If you run the same process more than once, use C_LOAD_DATES_CLEANUP_ADHOC to reset the run statuses before the next run.

Table 3-9 Planning Integration Configuration Tables

Table	Usage
C_SOURCE_CDC	Configuration and tracking table that shows the interfaces supported for RI to Planning integration and the currently processed date ranges.
RAP_INTF_CONFIG	Configuration and tracking table for integration ETL programs between all RAP modules. Contains their most recent status, run ID, and data retention policy.
RAP_INTF_RUN_STATUS	RAP integration run history and statuses.
RAP_LOG_MSG	RAP integration logging table, specific contents will vary depending on the program and logging level.

After the planning data has been extracted from RI, the Planning systems use the same processes to extract both initial and incremental data for each interface. As long as RI has exported historical data for the current run, the regular interfaces scheduled to run using POM will pull the historical or incremental data specific to that interface into PDS.

Note:

Before loading dimension data into Planning, you must configure the value of RPAS_TODAY and do any other initial configurations as specified in the MFP, RDF, or RPAS CE Implementation Guides.

Generating Forecasts for MFP

Before you can complete an MFP implementation, you must set up and run forecasting within the Science platform. Review the steps below for the initial setup of Forecasting:

In Manage Forecast Configurations in the RSP UI, start by setting up a run type in the Setup train stop.
Click the + icon above the table and fill in the fields in the popup. For MFP forecasting, the forecast method should be selected as Automatic Exponential Smoothing.
Create a run type for each forecast measure/forecast intersection combination that is required for MFP.
Create test runs in the Test train stop once you are done setting up the run types:
1. Click a run type in the top table, then click on the + icon in the bottom table to create a run.
2. If necessary, change the configurations parameters for the estimation process and forecast process in their respective tabs in the Create Run popup.

  For example, if you want to test a run using Bayesian method, edit the Estimation Method parameter in the Estimation tab using the edit icon above the table.
3. After modifying and reviewing the configuration parameters, click the Submit button to start the run.
Once the run is complete, the status changes to Forecast Generation Complete.

Doing test runs is an optional step. In addition to that, you will need to modify and review the configurations of the run type, activate the run type, enable auto-approve and map the run type to the downstream application (in this case to MFP). In the Manage train stop, select a row, click Edit Configurations Parameters and edit the estimation and forecast parameters as needed. Once you are done, go to Review tab, click Validate, then close the tab.

Note:

If the run type is active, you will only be able to view the parameters. To edit the parameters, the run type must be inactive.

To activate the run type and enable the auto-approve, select a run type in the table and click the corresponding buttons above the table. Lastly, to map the run type to MFP, go to the Map train stop and click the + icon to create a new mapping.

When configuring forecasts for the MFP base implementation, the following list of forecast runs may be required, and you will want to configure and test each run type following the general workflow above. Additional runs can be added to satisfy your MFP implementation requirements.

Note:

The “Channel” level in MFP is often referred to as “Area” level in RI and RSP, so be sure to select the correct levels which align to your hierarchy.

MFP Plan	MFP Levels	Method	Data Source	Measure
MFP Merch Target	Department-Channel-Week	Auto ES	Store Sales	Regular and Promotion Gross Sales Amt
MFP Merch Target	Department-Channel-Week	Auto ES	Store Sales	Clearance Gross Sales Amt
MFP Merch Target	Department-Channel-Week	Auto ES	Store Sales	Regular and Promotion Gross Sales Unit
MFP Merch Target	Department-Channel-Week	Auto ES	Store Sales	Clearance Gross Sales Unit
MFP Merch Target	Department-Channel-Week	Auto ES	Store Sales	Total Returns Amount
MFP Merch Target	Department-Channel-Week	Auto ES	Store Sales	Total Returns Units
MFP Merch Plan	Subclass-Channel-Week	Auto ES	Store Sales	Regular and Promotion Gross Sales Amt
MFP Merch Plan	Subclass-Channel-Week	Auto ES	Store Sales	Clearance Gross Sales Amt
MFP Merch Plan	Subclass-Channel-Week	Auto ES	Store Sales	Regular and Promotion Gross Sales Unit
MFP Merch Plan	Subclass-Channel-Week	Auto ES	Store Sales	Clearance Gross Sales Unit
MFP Merch Plan	Subclass-Channel-Week	Auto ES	Store Sales	Total Returns Amount
MFP Merch Plan	Subclass-Channel-Week	Auto ES	Store Sales	Total Returns Units
MFP Location Target	Company-Location-Week	Auto ES	Store Sales	Total Gross Sales Amount
MFP Location Target	Company-Location-Week	Auto ES	Store Sales	Total Gross Sales Unit
MFP Location Target	Company-Location-Week	Auto ES	Store Sales	Total Returns Amount
MFP Location Target	Company-Location-Week	Auto ES	Store Sales	Total Returns Units
MFP Location Plan	Department-Location-Week	Auto ES	Store Sales	Total Gross Sales Amount
MFP Location Plan	Department-Location-Week	Auto ES	Store Sales	Total Gross Sales Unit
MFP Location Plan	Department-Location-Week	Auto ES	Store Sales	Total Returns Amount
MFP Location Plan	Department-Location-Week	Auto ES	Store Sales	Total Returns Units

Generating Forecasts for RDF

The same forecasting interface described in the previous section for MFP is also used to generate the base demand and initial forecasts for Retail Demand Forecasting (RDF). Demand and forecasts must be generated in RSP as part of your RDF implementation. The general workflow is the same, but the forecasting levels and methods used will vary depending on your RDF implementation needs. For example, your RDF forecasts may be at an item/location/week level of granularity instead of higher levels like MFP requires. You will also use other forecasting methods such as Causal-Short Life Cycle instead of the MFP default method (Auto ES).

RDF directly integrates the demand and forecast parameters between the Science Platform and PDS tables using the RAP data exchange layer (RDX) as needed. Outputs from the forecasting engine will be written to tables prefixed with RSE_FCST_*. Outputs from RDF back into the data exchange layer will be in tables prefixed with RDF_APPR_FCST_*. For more details on importing the forecasts to RDF after they are generated, refer to the RDF Implementation Guide.

Migrate Data Between Environments

The process of moving all your data from one cloud environment to another is referred to as a “lift-and-shift” process. It is common to perform all of the dataload activities in this chapter in one environment, then have the final dataset copied into another environment (instead of reloading it all from the beginning). This activity is performed by Oracle and can be requested using a Service Request. The lift-and-shift process can take several days to complete, depending on data volumes and how many other Oracle applications may be involved. It is expected that you will raise SRs to schedule the activity at least 2-3 weeks in advance of the target date.

When requesting the activity, you may specify if you need to migrate the entire database (both data and structures) or only the data. The first time doing this process must be a full migration of data and structures to synchronize the source and target environments. It is currently recommended to begin your implementation in the Production environment to avoid needing a lift-and-shift in order to go live. Around the time of your go-live date, you can request a lift-and-shift be done into your non-production environments to synchronize the data for future use.

Note:

The product versions between the source and target must be aligned. It is the project team’s responsibility to plan for appropriate upgrades and lift-and-shift activities such that this will be true.
