Replication Status

The Replication Status page shows ERROR status information related to the rpl_replication_data table.

1. From the Oracle Retail Xstore Office menu, select Support Tools - Replication Status, or click the Replication Status link in the Support Tools panel.

2. At the Replication Status page, the first 500 results are displayed automatically:

   • If the desired result is not listed, go to step 3 below to refine your search criteria.

   • If the desired result is listed, skip to step 5 below.

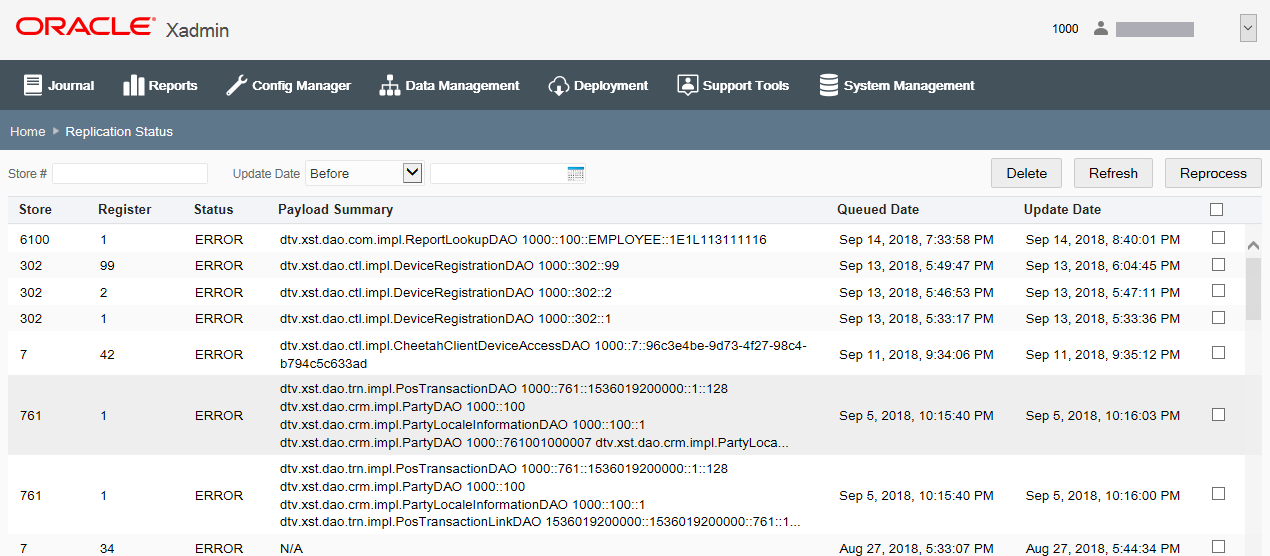

     Figure 10-26 Replication Status Page









3. To search for replication failures based store IDs and/or last update date, complete the following fields as needed:

   • Store # - Enter/select the store number.

     If specified, the application only accepts valid store number inputs. A validation error will display if the specified store number is invalid.

   • Update Date - From the drop-down list, select Before, After, or Equal to, then select or enter a date.

     The update date criterion will be ignored if the input is not valid. Future dates are considered invalid.

4. Click Refresh.

   The records in the data table are sorted by update date (the last modified date) by default. To reorder the list, click on a column header.

5. With a record displayed you have the following options:

   • Delete - Select the check box associated with the record (or records) and click the Delete button to delete the selected replication error. When prompted, click Yes to confirm you want to delete the record. Click OK to close the confirmation box.

   • Reprocess - Select the check box associated with the record (or records) and click the Reprocess button to reprocess the replication error record(s). When prompted, click Yes to confirm you want to reprocess the record(s). Click OK to close the confirmation box.

     Note:

     To select all records at once, click the check box in the table header.









   • View - Click a record to view the detail information about the selected record.

   Figure 10-27 Record Detail Window









   The following information is shown in the Record Detail window:

   • Reprocess Information - (Populated when applicable) This section shows the ID of the user who reprocessed the record, the last reprocess date and time, and the total number of reprocess attempts.

   • Payload - This section shows the entire contents of the replication data sent by an Oracle Retail Xstore Point-of-Service register.

   • Error Detail - This section shows the technical details (like a java stack trace) of the error.

     Note:

     See the Oracle Retail Xstore Suite Implementation and Security Guide for more information about replication.
