Send Oracle Cloud Infrastructure Logs to New Relic using Vector
Introduction
Oracle Cloud Infrastructure (OCI) generates various logs that need to be stored, analyzed, and monitored efficiently.
Vector is an open-source, high-performance observability pipeline that collects, transforms, and routes logs to various destinations, including New Relic. Vector acts as a log shipper, efficiently processing logs before forwarding them. It can be deployed as an agent-based solution on compute instances or used as a centralized aggregator to handle logs from multiple sources. Vector is an open-source tool developed by Datadog for collecting, transforming, and forwarding logs and other observability data. Think of it as a flexible pipeline that connects your logs from source to destination, making the flow efficient and customizable. For more information, see Vector.
New Relic brings your logs to life with real-time visibility and powerful context, helping teams troubleshoot faster and surface insights instantly. By unifying logs, metrics, and traces in one platform, you reduce noise and focus on what matters. With built-in SIEM capabilities, New Relic empowers security teams to detect, investigate, and respond to threats quickly—turning observability into a force multiplier for security operations. For more information, see New Relic.
This tutorial explains how to set up logs and connectors to send them from OCI Logging and OCI Streaming. It also includes Vector as a log shipper for reading data from OCI Streaming and sending them securely to New Relic.
The following image shows the architecture for how the logs will flow from OCI and New Relic.
Objectives
-
Set up a log forwarding pipeline from OCI Logging to OCI Streaming using OCI Connector Hub.
-
Install and configure Vector to securely consume from OCI Streaming.
-
Forward logs to New Relic using authenticated HTTPS with structured JSON.
This setup is lightweight, extensible, and secure, perfect for modern observability needs.
Prerequisites
-
A New Relic account with an API key for log ingestion.For more information, see New Relic API keys.
-
A Linux-based server with Vector installed and network connectivity to reach New Relic environment.
-
Auth token generated for the user in OCI.
-
Basic familiarity with OCI Logging and OCI Connector Hub.
Task 1: Configure OCI to Forward Logs to OCI Streaming
-
Enable logs in OCI Logging.
For this tutorial, we will use Audit logs. You can also enable service or custom logs based on your use case. For more information, see Logging Overview.
-

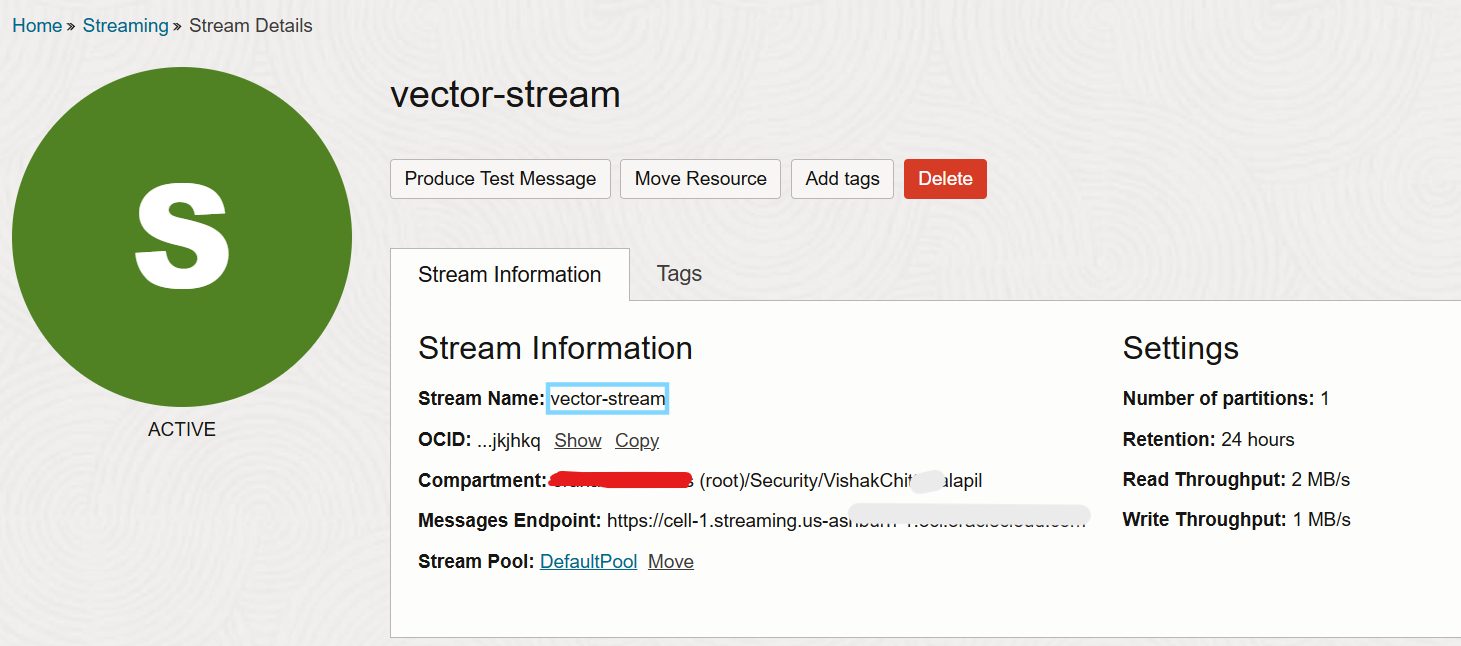

Create a stream.
-
To create a stream, see Creating a Stream.
-

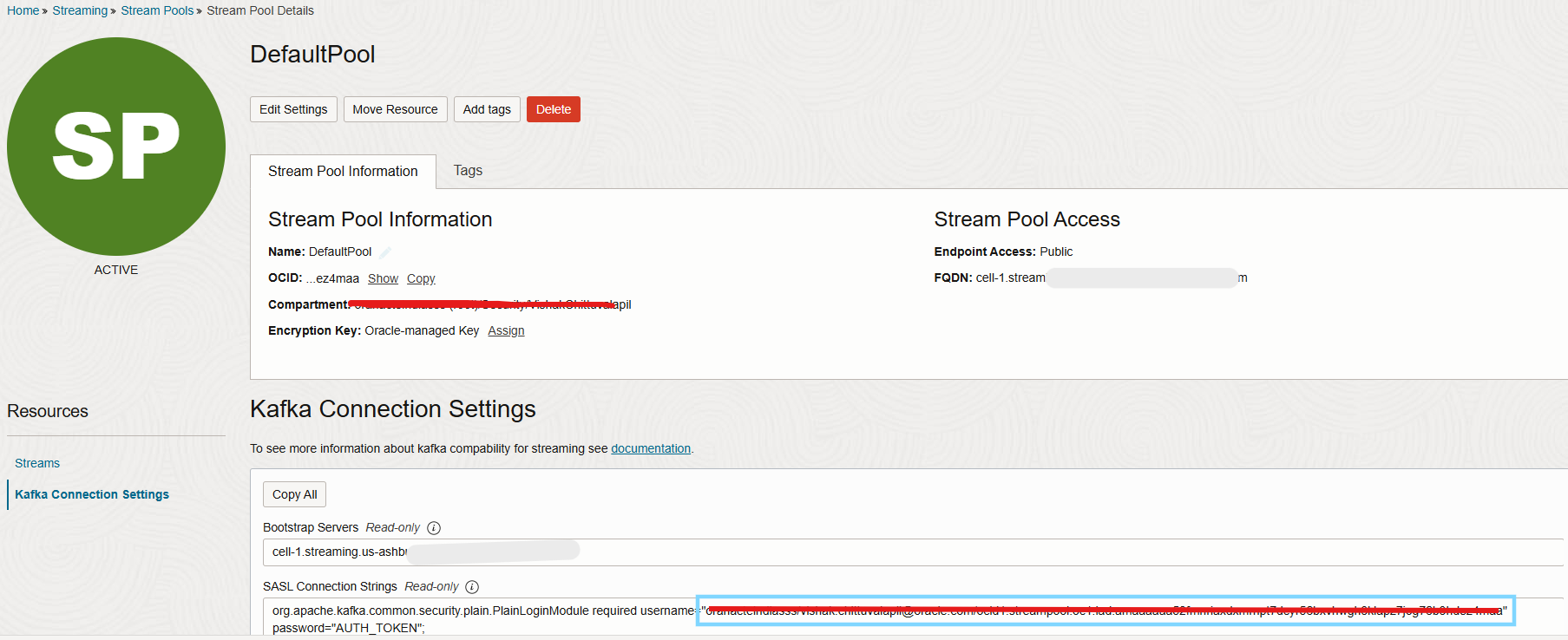

Note down the stream name, username from stream pool and generated auth token for the user. For more information, see auth token.
We will need all these in our vector configuration file.
-
-

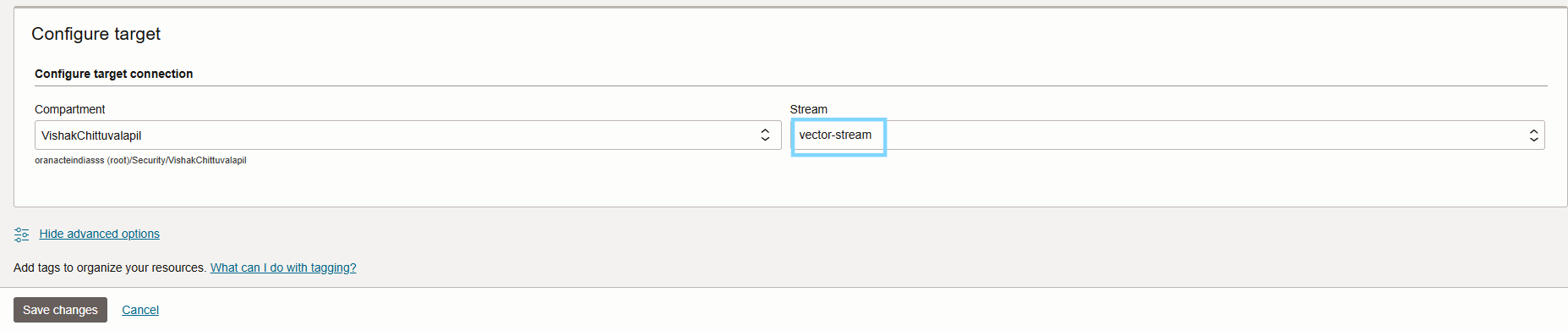

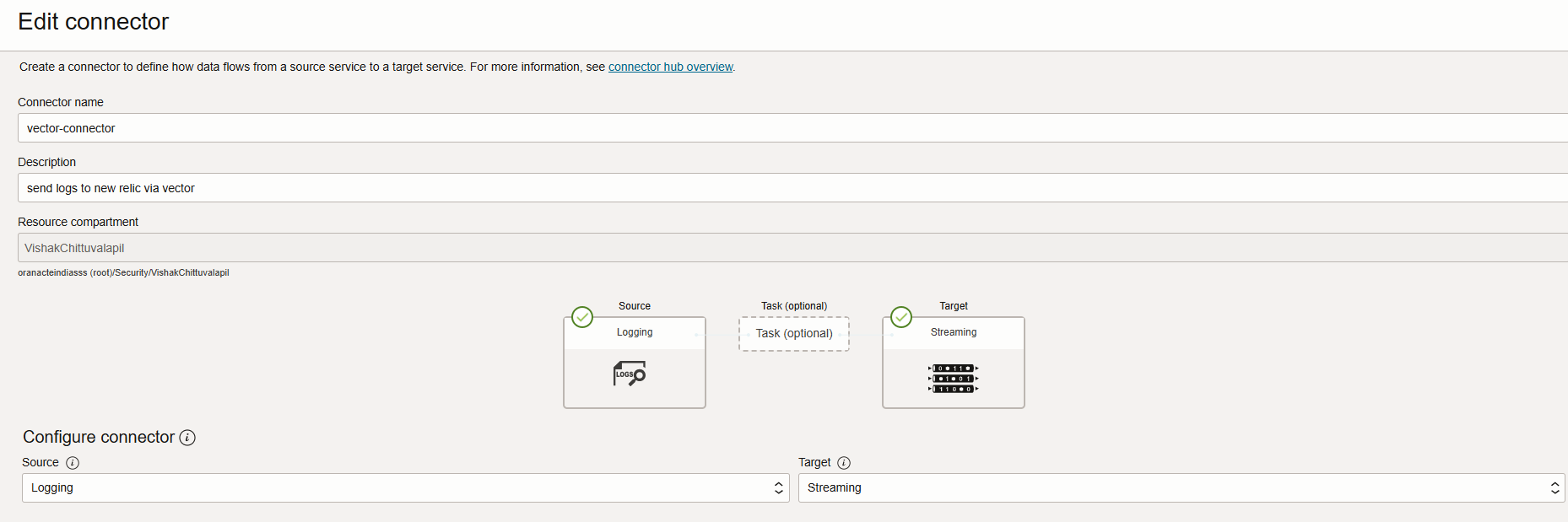

Create an OCI Connector Hub.
To create a connector hub, enter the following information.

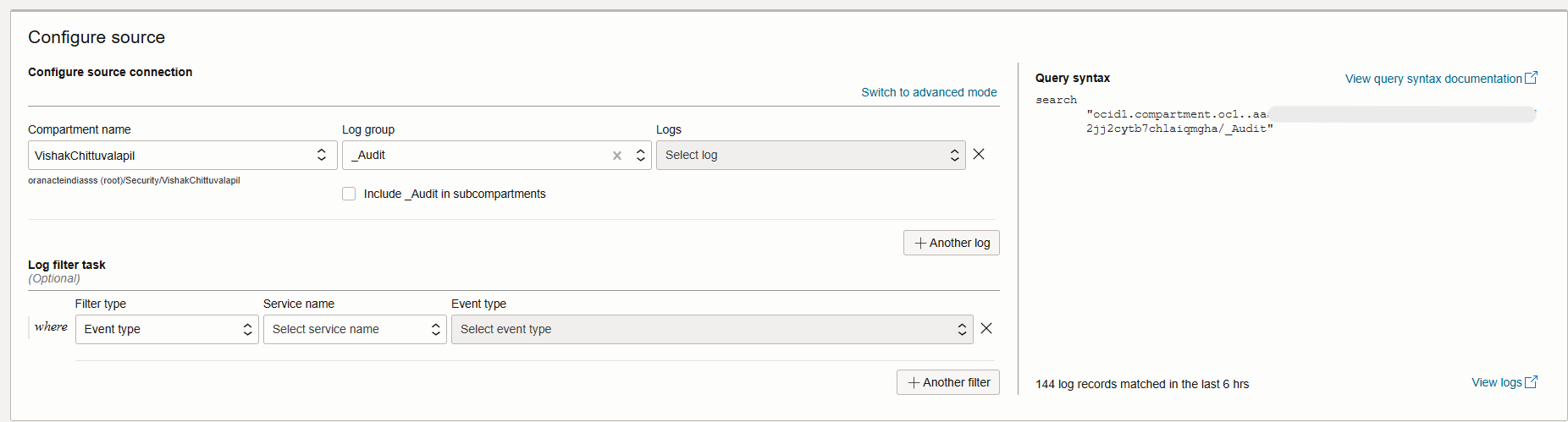

- Source: Select Logging.
- Destination: Select Streaming (select the stream created in step 2).
- Select Create policies automatically to generate required OCI IAM policies.
For more infromation, see Creating a Connector with a Logging Source.
Task 2: Install Vector
Download the latest Vector release from here: Vector v0.46.1 and install in any virtual machine. In this tutorial, we are using OCI Compute instance.
Run the following sample commands to download and install Vector.
wget https://github.com/vectordotdev/vector/releases/download/v0.45.0/vector-0.45.0-1.aarch64.rpm
sudo dnf install -y vector-0.45.0-1.aarch64.rpm
sudo systemctl start vector
sudo systemctl enable vector
Task 3: Configure Vector to Read Logs from OCI Streaming
Create and edit the Vector configuration file at /etc/vector/vector.yaml
.
sources:
oci_streaming:
type: kafka
bootstrap_servers: "cell-1.streaming.us-ashburn-1.oci.oraclecloud.com:9092" #your stream endpoint
topics: ["vector-stream"] #your stream name
group_id: "vector-log-processor"
sasl:
enabled: true
mechanism: "PLAIN"
username: "${STREAM_KAFKA_USERNAME}" #your stream username
password: "${STREAM_KAFKA_PASSWORD}" #your stream password
tls:
enabled: true
verify_certificate: false
ca_file: "/etc/vector/oci_ca_cert.pem"
sinks:
new_relic:
type: http
inputs: ["oci_streaming"]
uri: https://log-api.newrelic.com/log/v1 #your new relic api log ingestion endpoint
method: post
auth:
strategy: bearer
token: "${NEW_RELIC_API_KEY}" #your new relic license/api key
encoding:
codec: "json"
tls:
verify_certificate: true
compression: "gzip"
batch:
max_bytes: 1048576
Note: Modify the
stream endpoint
,stream name
,new relic api log ingestion endpoint
,NEW_RELIC_API_KEY
,STREAM_KAFKA_USERNAME
,STREAM_KAFKA_PASSWORD
based on your setup.
Key Sections:
- Sources: Vector reads logs from OCI Streaming using Kafka.
- Sinks: Logs are sent to New Relic over HTTPS with authentication. For more information, see Send your logging data with our Log API.
Task 4: Verify Logs in New Relic
After starting Vector, run the following command to check the logs.
sudo journalctl -u vector -f
You should see logs flowing into New Relic. Log in to your New Relic dashboard and navigate to Logs to confirm ingestion.
