Note:
- This tutorial requires access to Oracle Cloud. To sign up for a free account, see Get started with Oracle Cloud Infrastructure Free Tier.
- It uses example values for Oracle Cloud Infrastructure credentials, tenancy, and compartments. When completing your lab, substitute these values with ones specific to your cloud environment.
Use Cilium to Provide Networking Services in Oracle Cloud Infrastructure Container Engine for Kubernetes
Introduction
When we deploy a new Kubernetes cluster using Oracle Cloud Infrastructure Container Engine for Kubernetes (OKE), the default Container Network Interface (CNI) plugin installed is the OCI VCN-Native CNI plugin. With cloud native computing you are flexible to choose your method of providing network (security) services to your container platform by just choosing another CNI plugin. In this tutorial, we are going to deploy a new Kubernetes cluster using OKE with the Flannel CNI plugin and change this to Cilium CNI plugin. Cilium offers other network (security) features compared to the OCI VCN-Native CNI plugin and Flannel.
Objectives
- Deploy a new Kubernetes cluster on Oracle Cloud Infrastructure Container Engine for Kubernetes platform using the custom create method. During this deployment, we will select the Flannel CNI plugin then we will deploy the Cilium CNI plugin and remove the Flannel CNI plugin so that Cilium is the main CNI plugin for network (security) services for our cloud native applications and use the Cilium CNI plugin to deploy and test a NetworkPolicy and LoadBalancer service.
Task 1: Deploy a Kubernetes Cluster using OKE
For more information about the different OKE deployment models, see Example Network Resource Configurations.
The example OKE deployment models are:
-
Example 1: Cluster with Flannel CNI Plugin, Public Kubernetes API Endpoint, Private Worker Nodes, and Public Load Balancers.
-
Example 2: Cluster with Flannel CNI Plugin, Private Kubernetes API Endpoint, Private Worker Nodes, and Public Load Balancers.
-
Example 3: Cluster with OCI CNI Plugin, Public Kubernetes API Endpoint, Private Worker Nodes, and Public Load Balancers.
-
Example 4: Cluster with OCI CNI Plugin, Private Kubernetes API Endpoint, Private Worker Nodes, and Public Load Balancers.
For this tutorial, we will select Example 1 deployment model. We have already explained how to deploy Example 3 here: Create a New Kubernetes Cluster and Verify the Components.
-

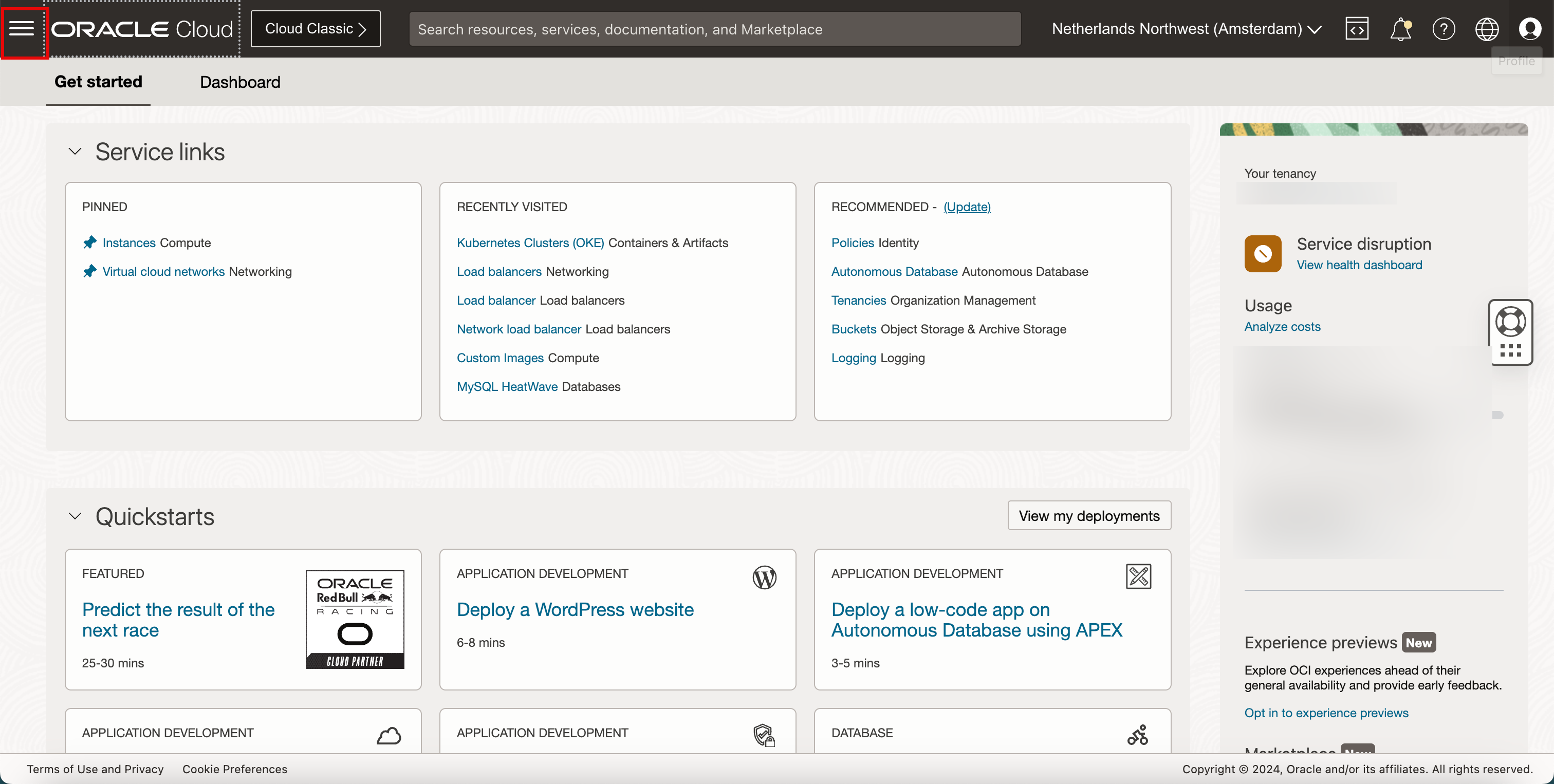

Click the hamburger menu.

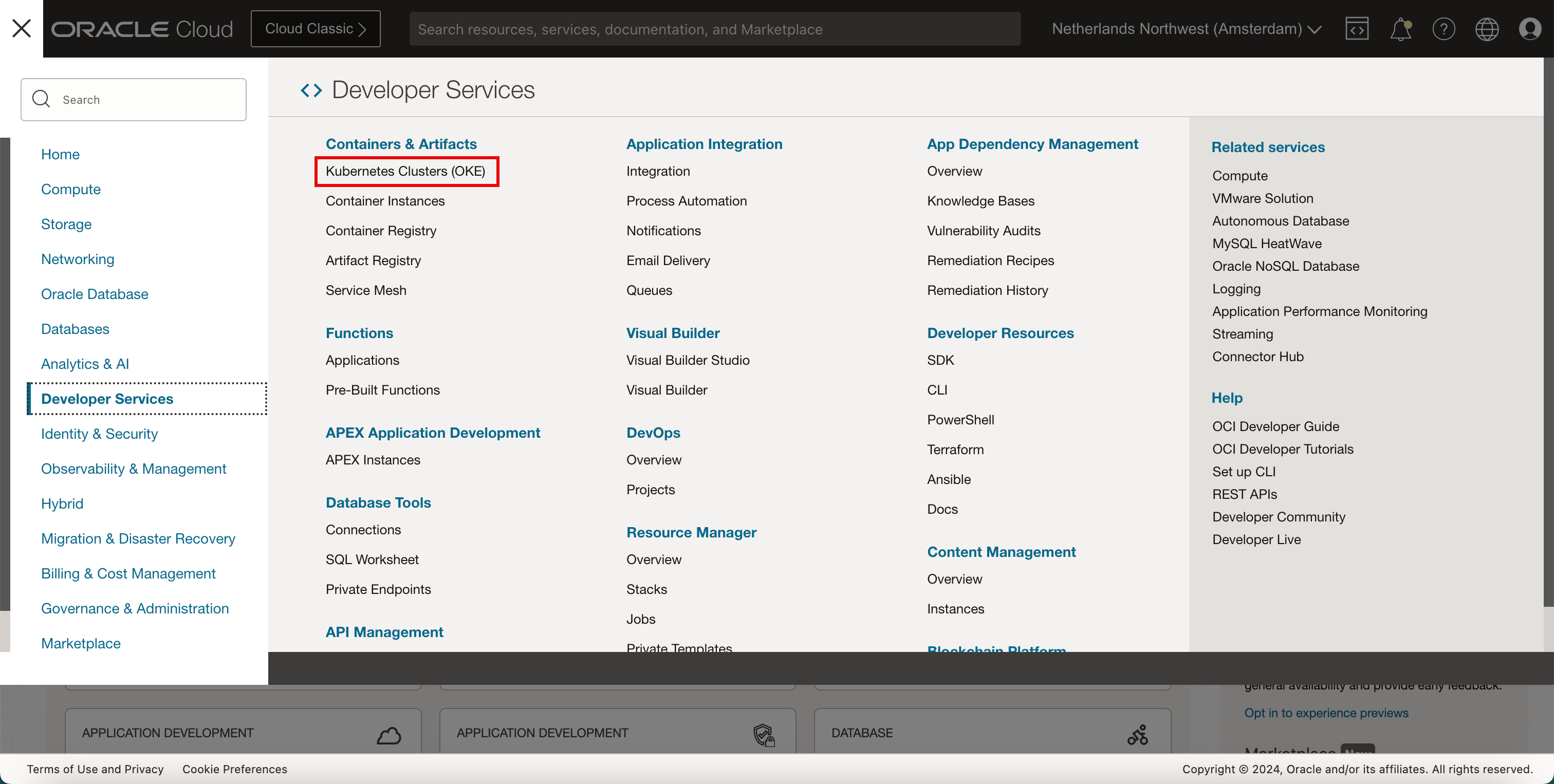

- Click Developer Services.
- Click Kubernetes Clusters (OKE).
-

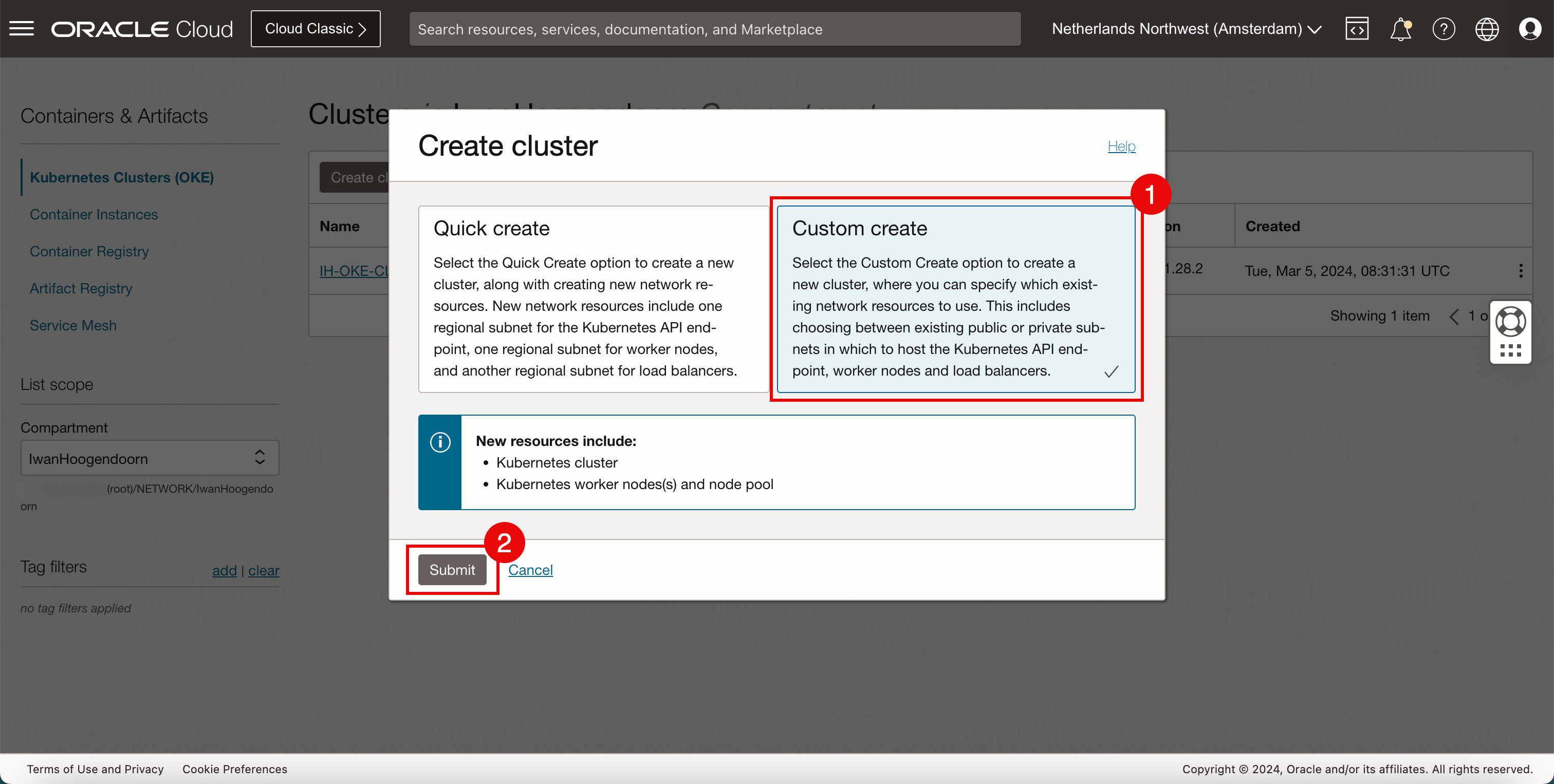

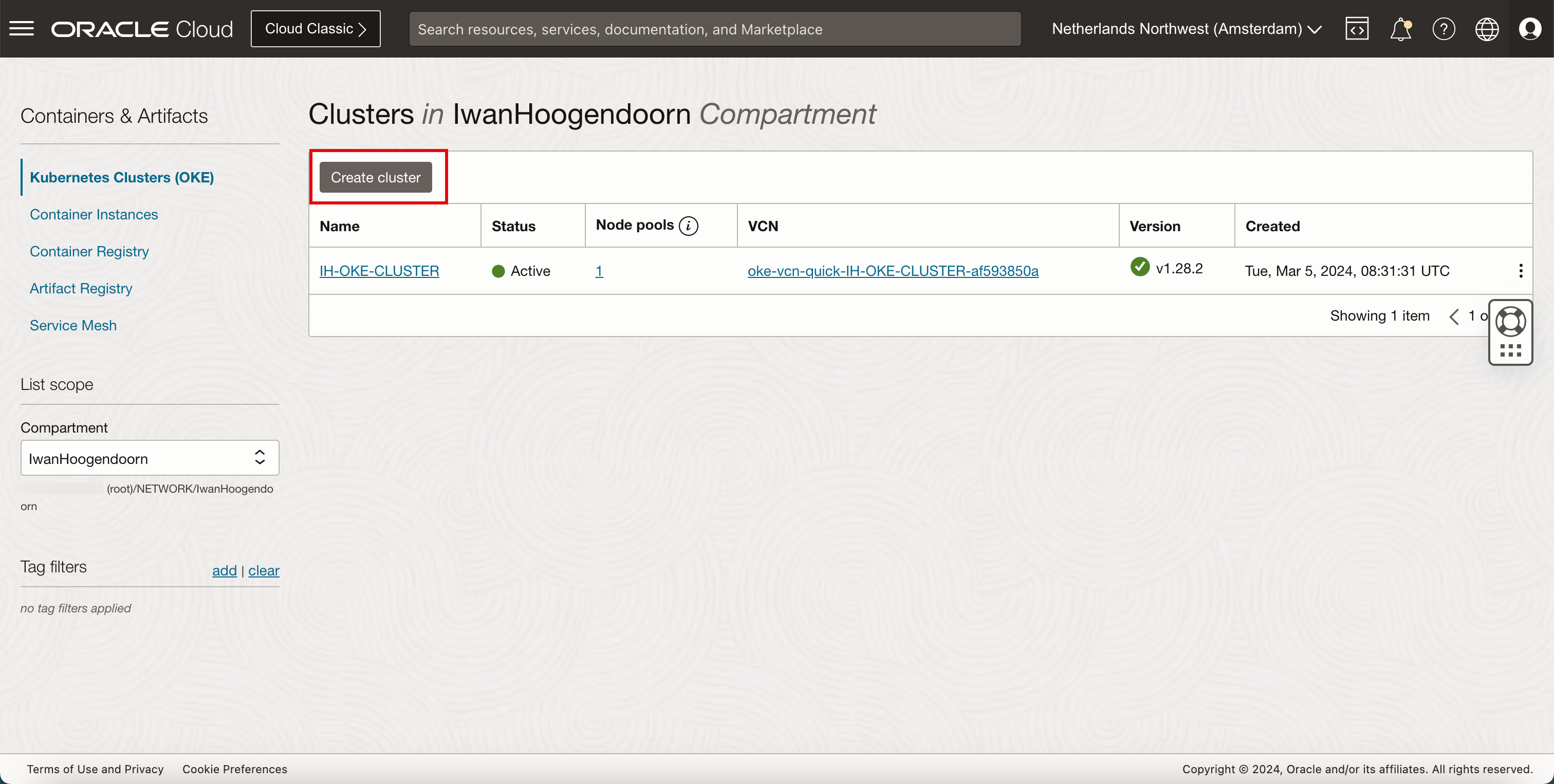

Click Create Cluster.
- Select Custom create.
- Click Submit.
-

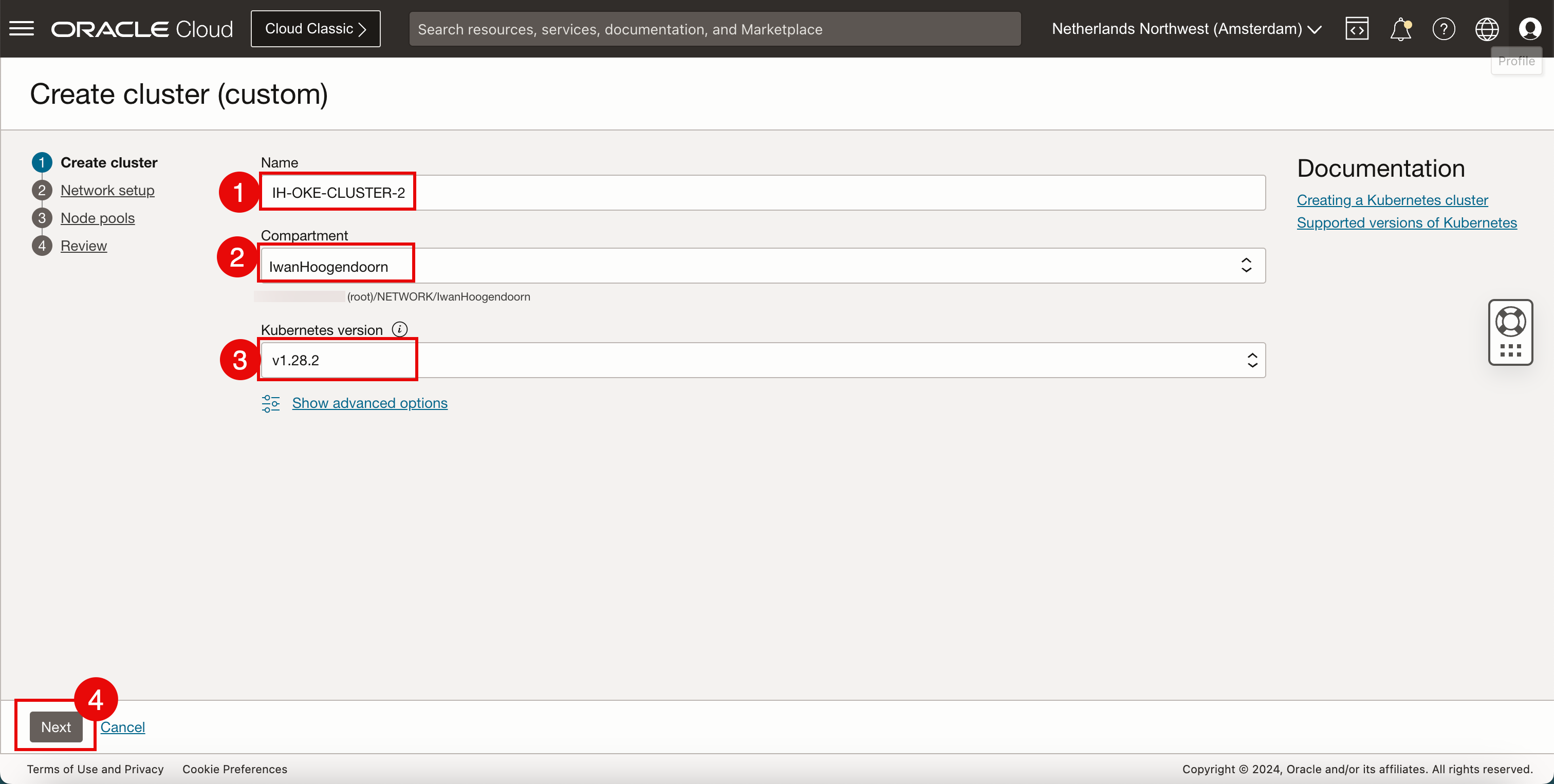

Enter the following information.
- Enter a cluster Name.
- Select a Compartment.
- Select the Kubernetes version.
- Click Next.
-

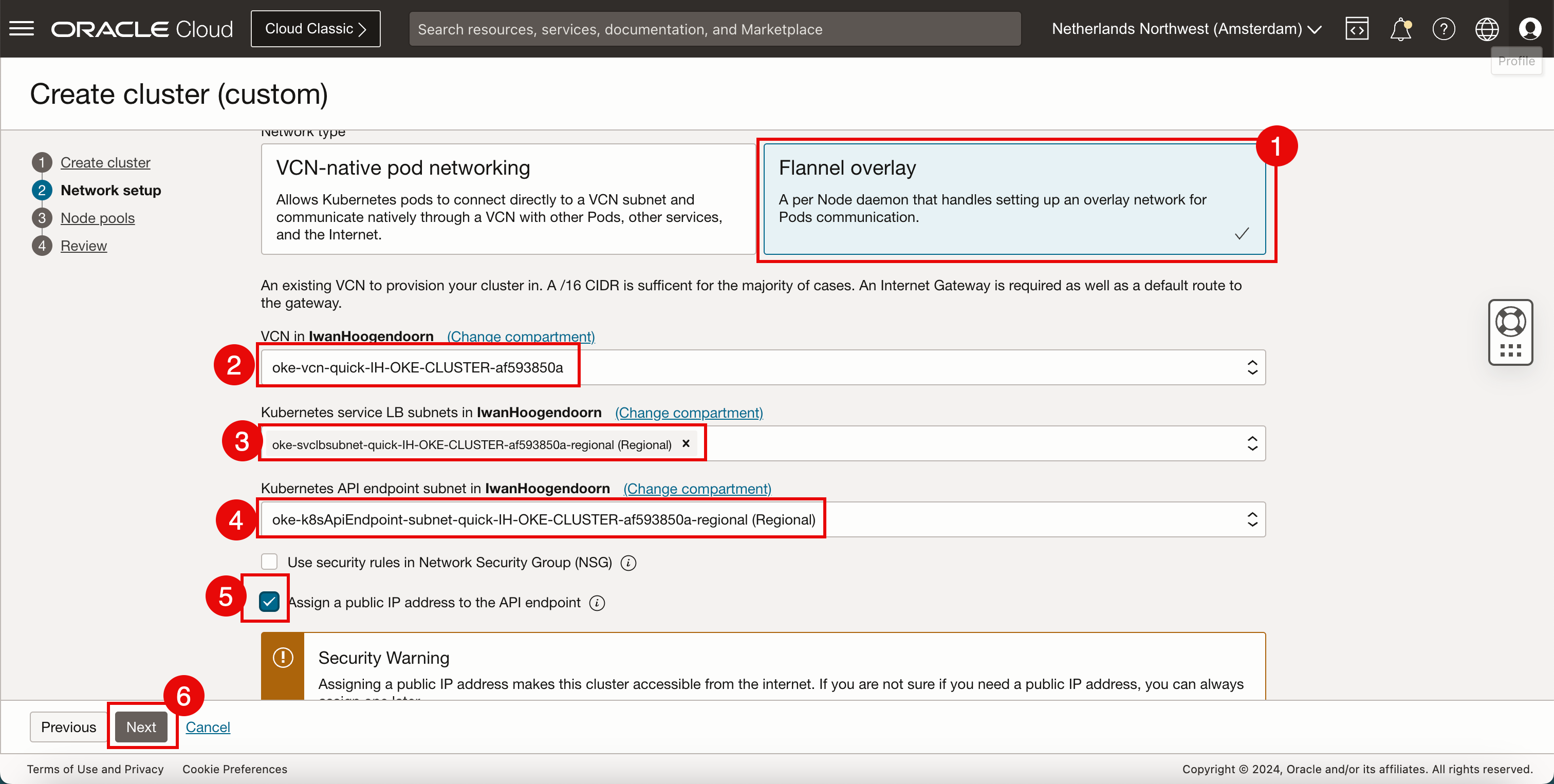

In Network setup, enter the following information.
- Select Flannel overlay as the Network Type.
- Select a VCN that you want to use to deploy the new Kubernetes cluster. To create a VCN, see Create a New VCN.
- Select a subnet inside the VCN you have selected to provide IP addresses to the Kubernetes services. To create a subnet, see Create a Private Subnet inside the VCN.
- Select a subnet inside the VCN you have selected to provide IP addresses to the Kubernetes API endpoints.
- Select Assign a public IP address to the API endpoint.
- Click Next.
-

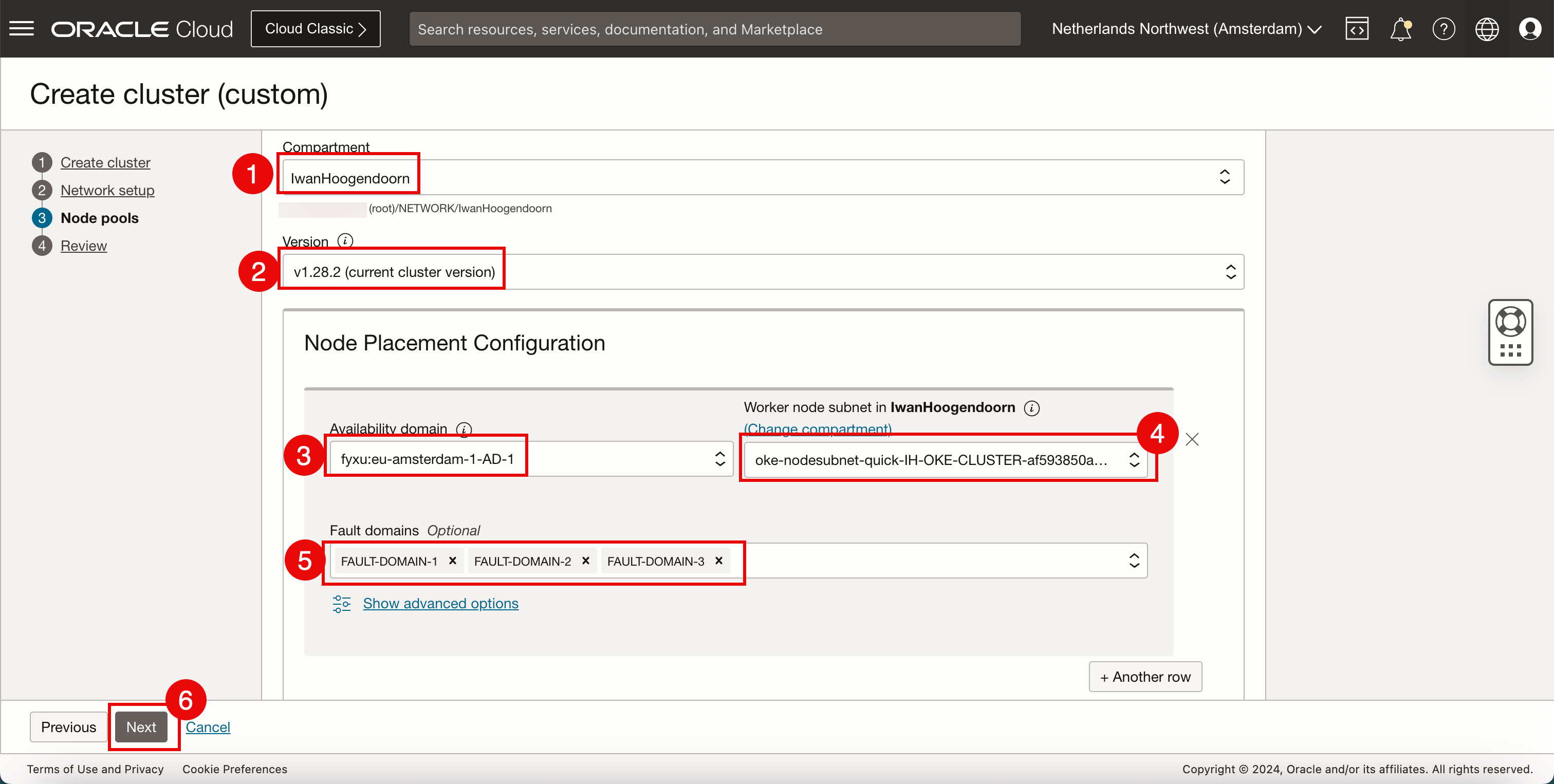

In Node pool (worker nodes), enter the following information. We can select different settings, but we are going to try to keep the same.
- Select a Compartment.
- Select the Kubernetes version.
- Select an Availability Domain.
- Select a subnet inside the VCN you have selected to provide IP addresses to the Kubernetes worker nodes.
- Select the Fault Domains you want to make use of to place your worker nodes in.
- Click Next.

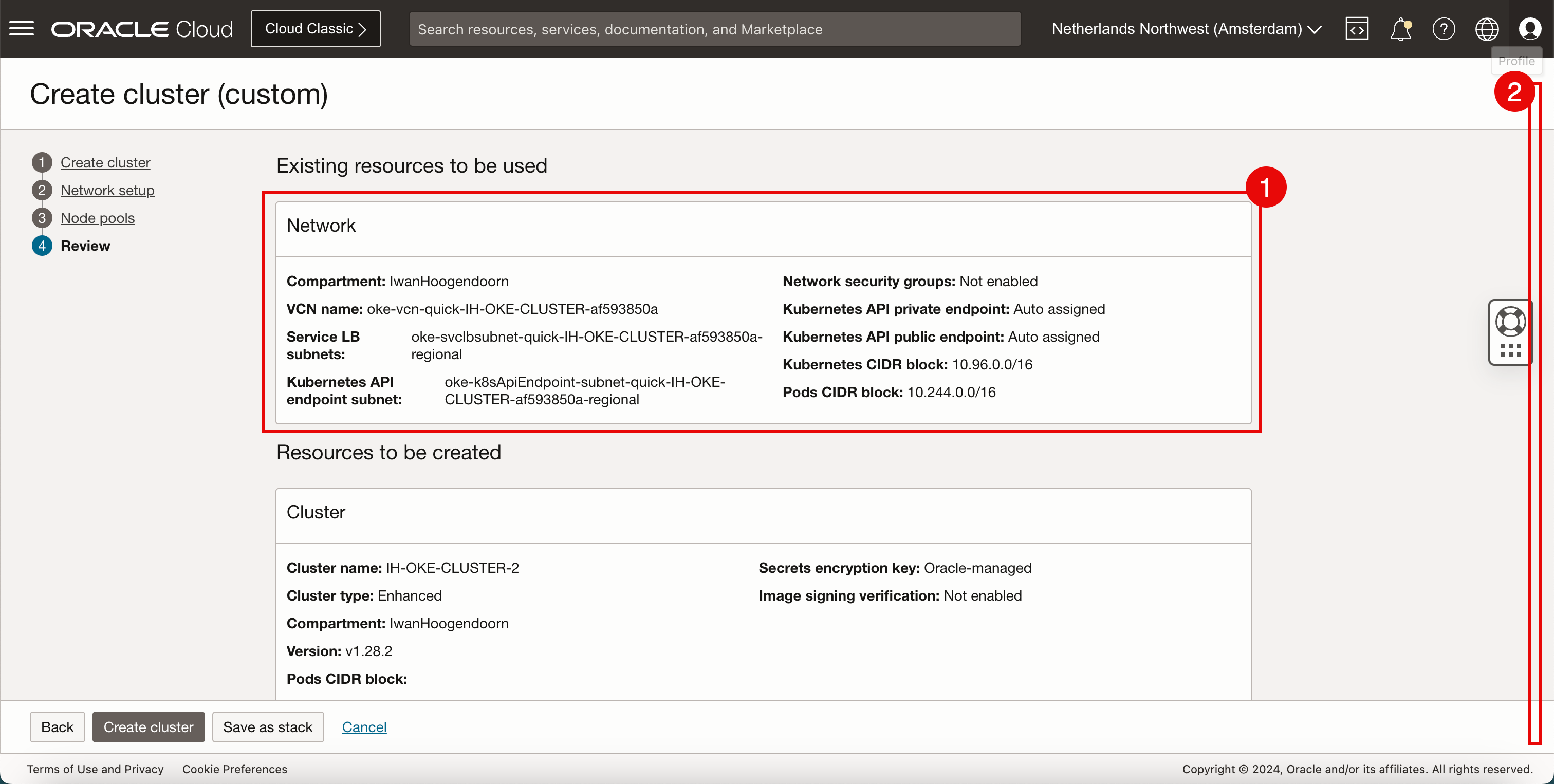

- Review the Network information.
- Scroll down.

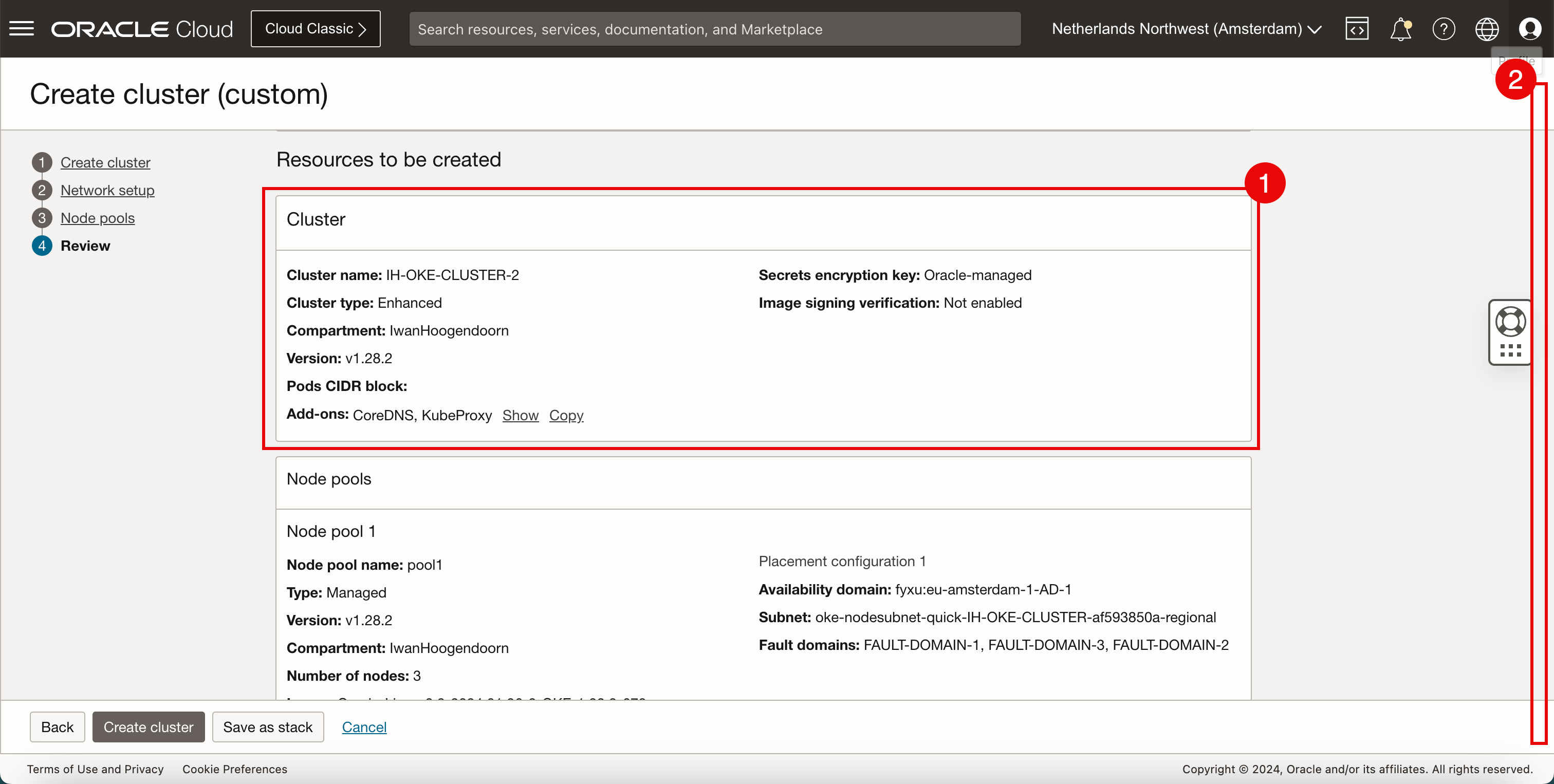

- Review the Cluster information.
- Scroll down.
- Review the Node pools information.
- Scroll down.
- Do not select Create a Basic Cluster.
- Click Create cluster.

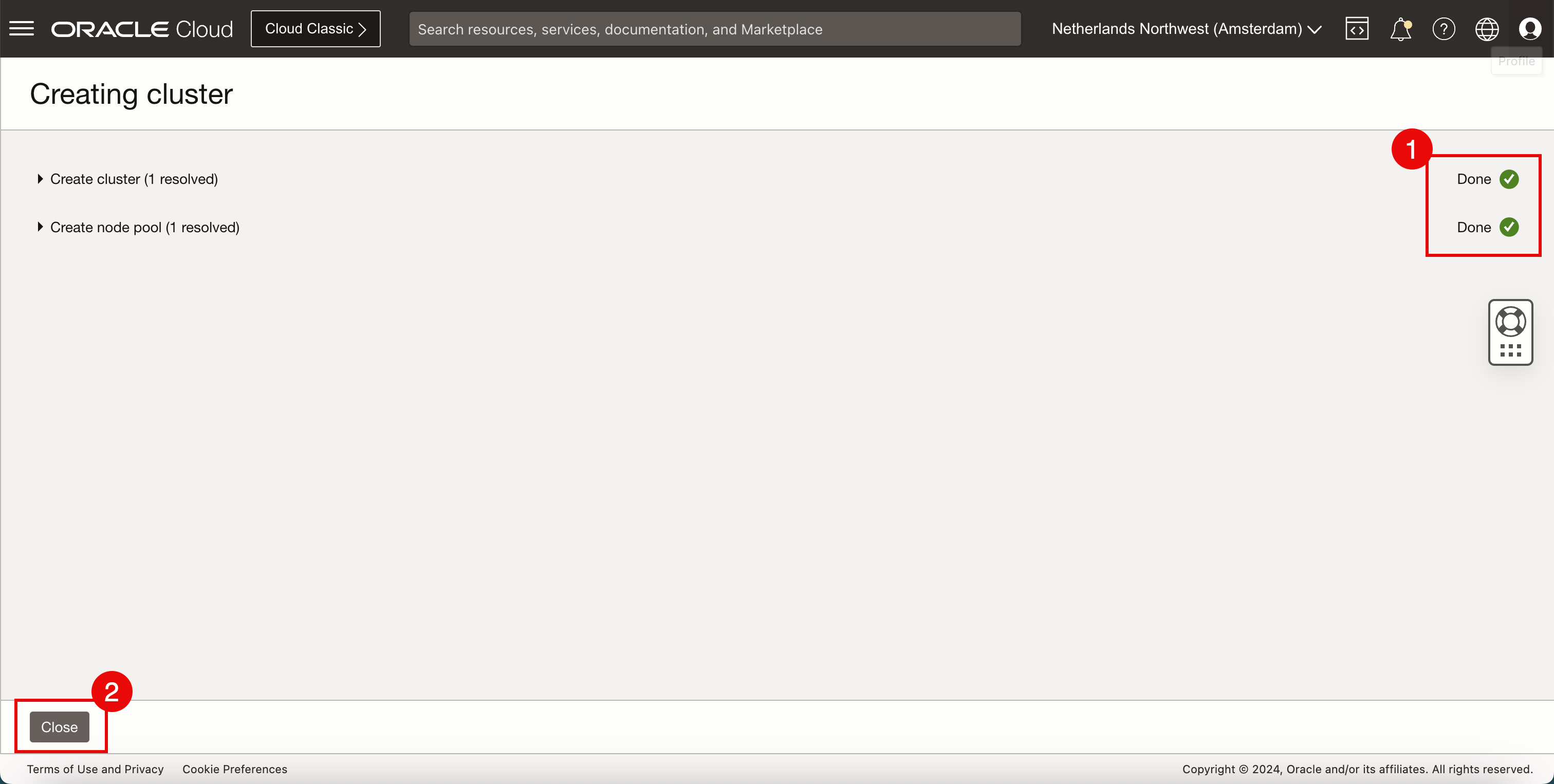

- Review the status of the different components.
- Click Close.
-

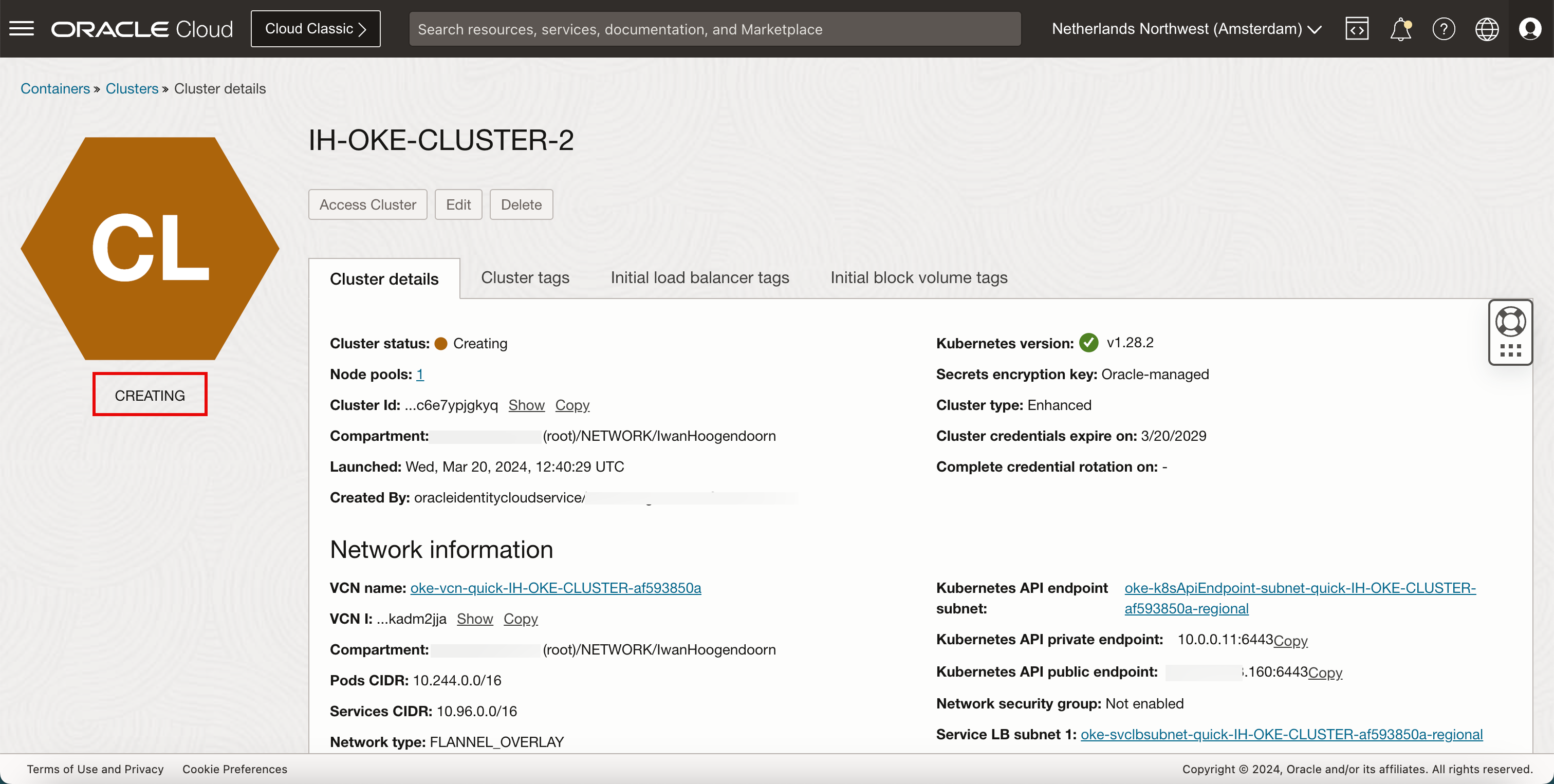

Review that the status is CREATING.

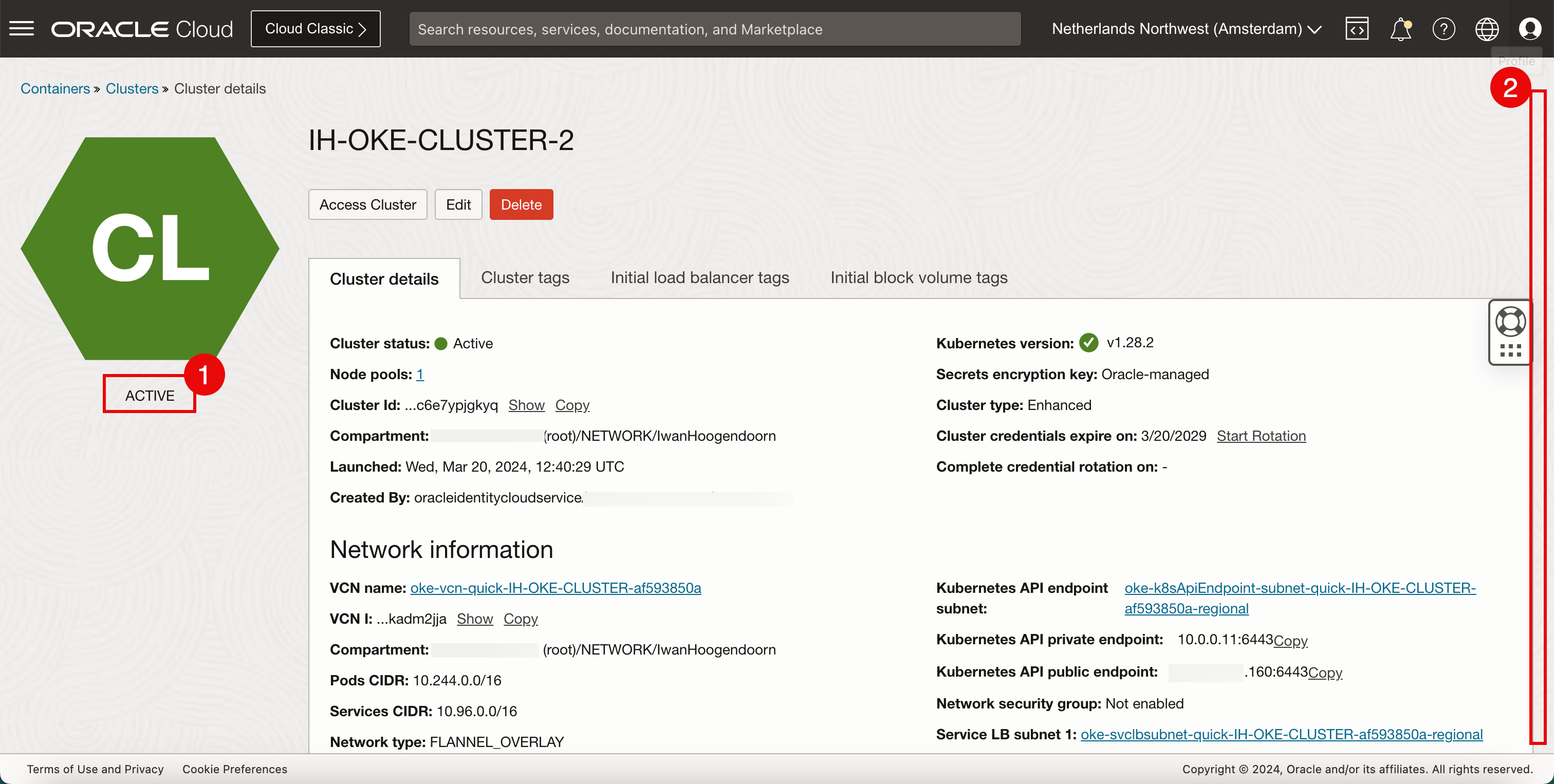

- Verify that the status is ACTIVE.
- Scroll down.

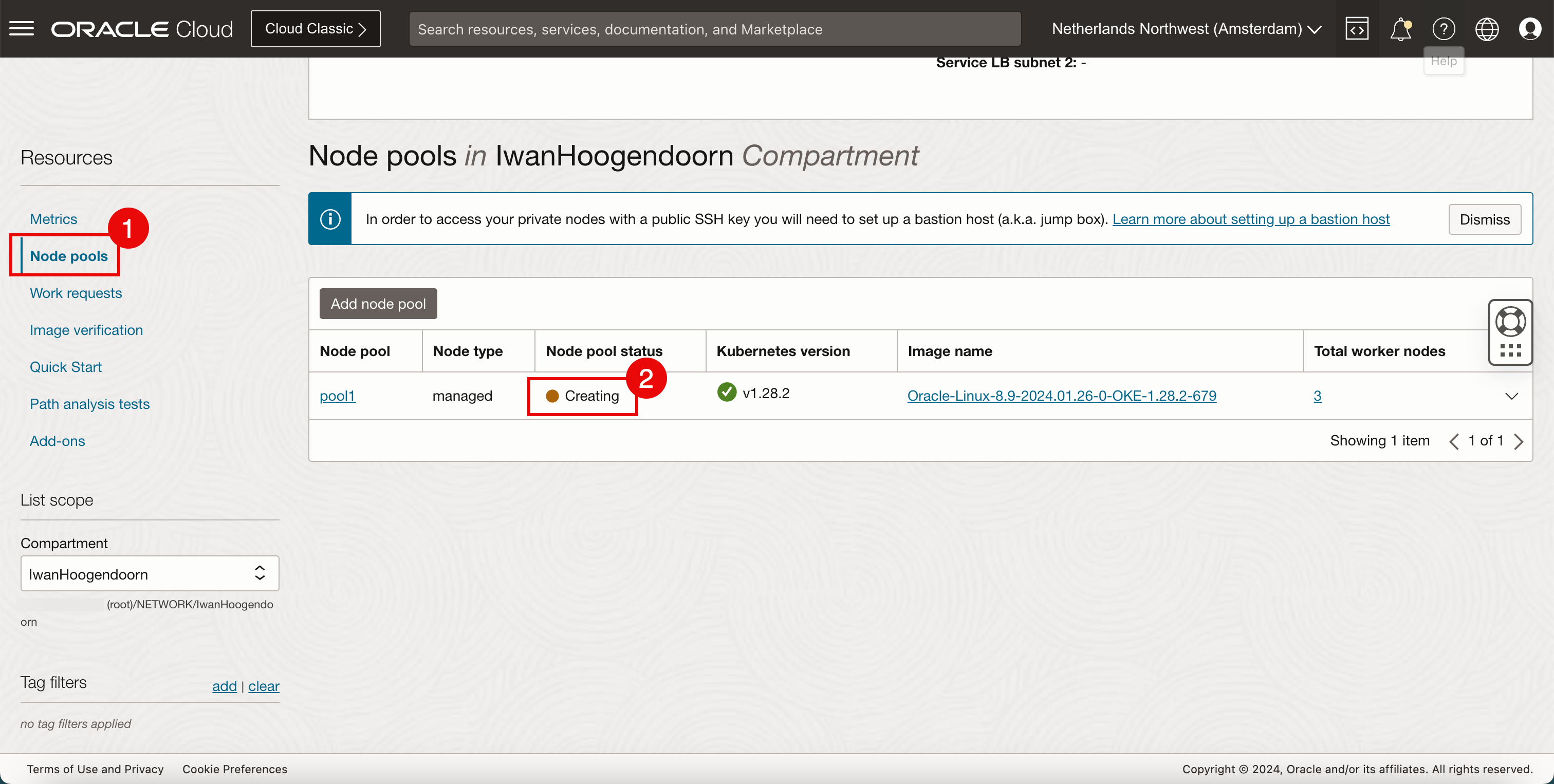

- Click Node Pools.
- Notice that the worker node in the pool are still Creating.

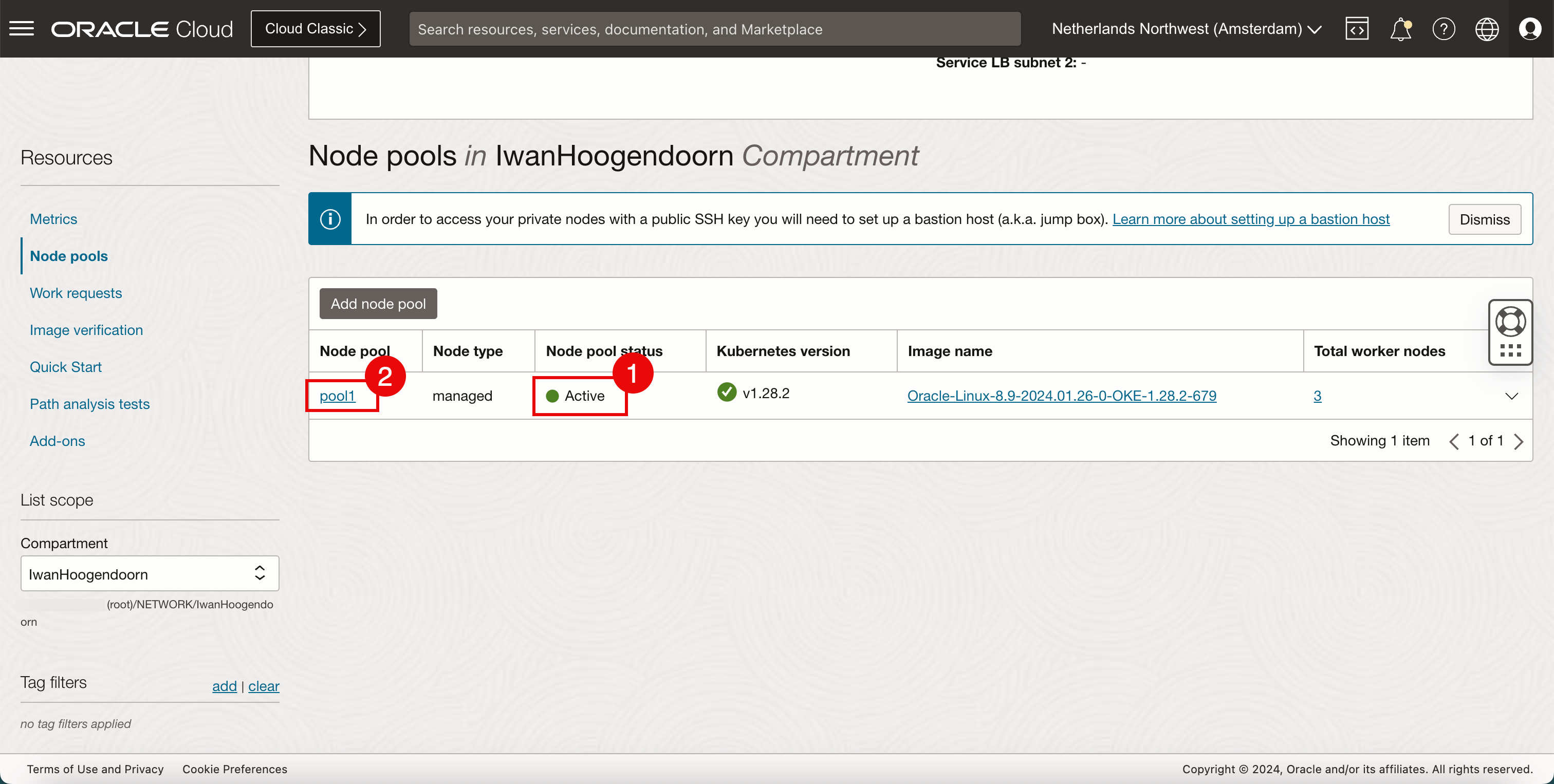

- Notice that the worker node in the pool is Active.
- Click the node pool name.
-

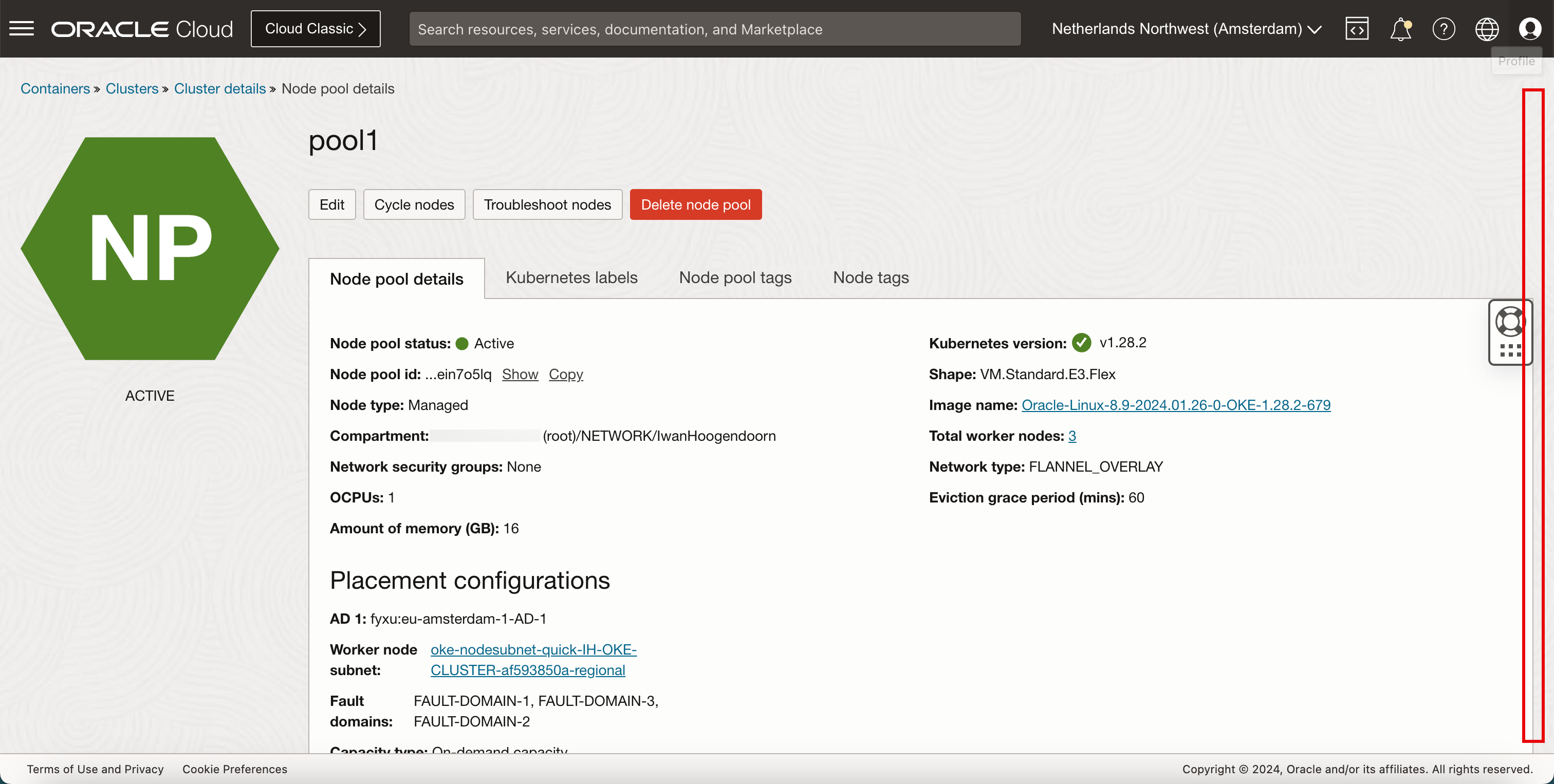

Scroll down.
-

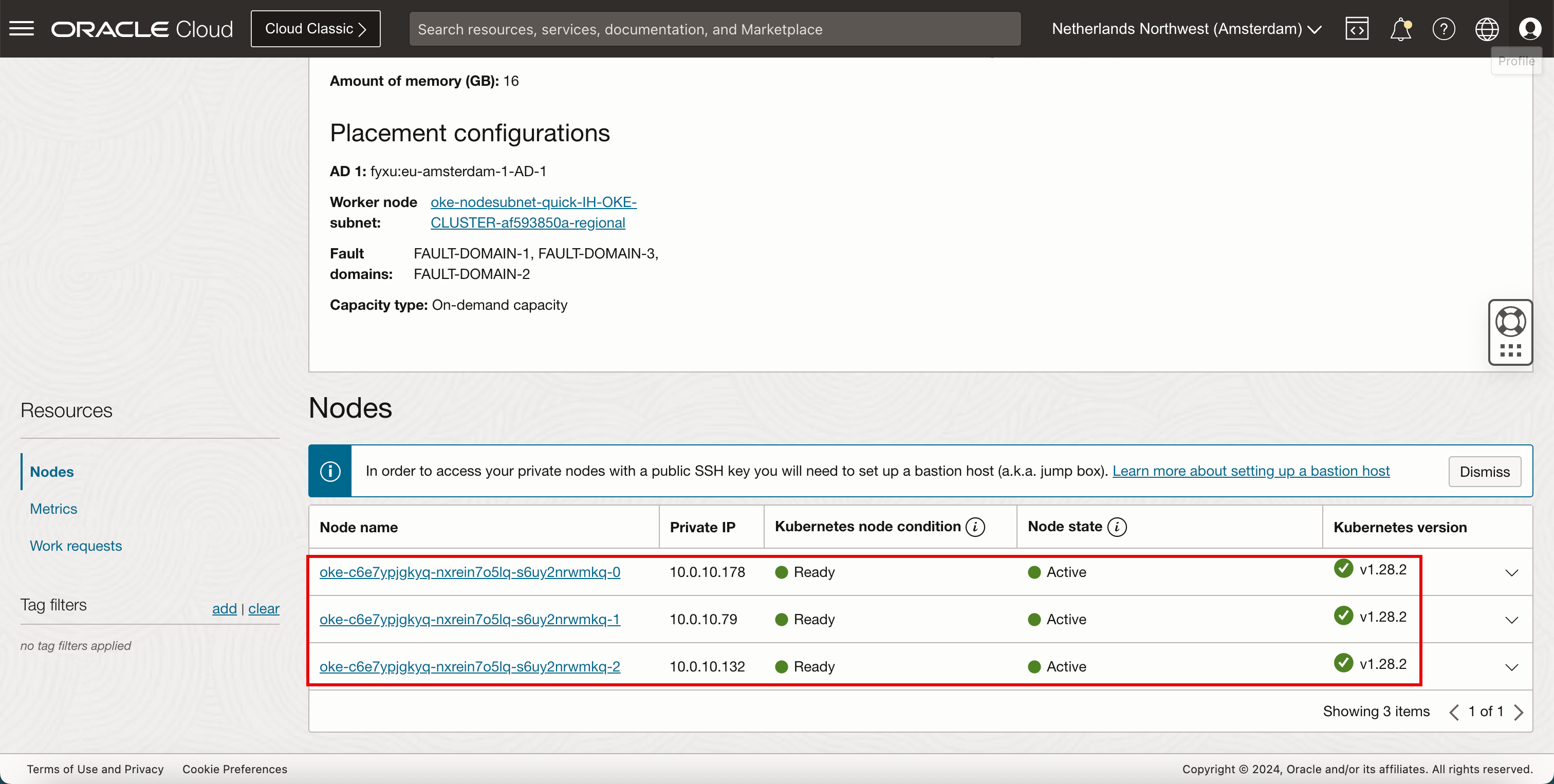

Notice that all nodes are Ready and Active.

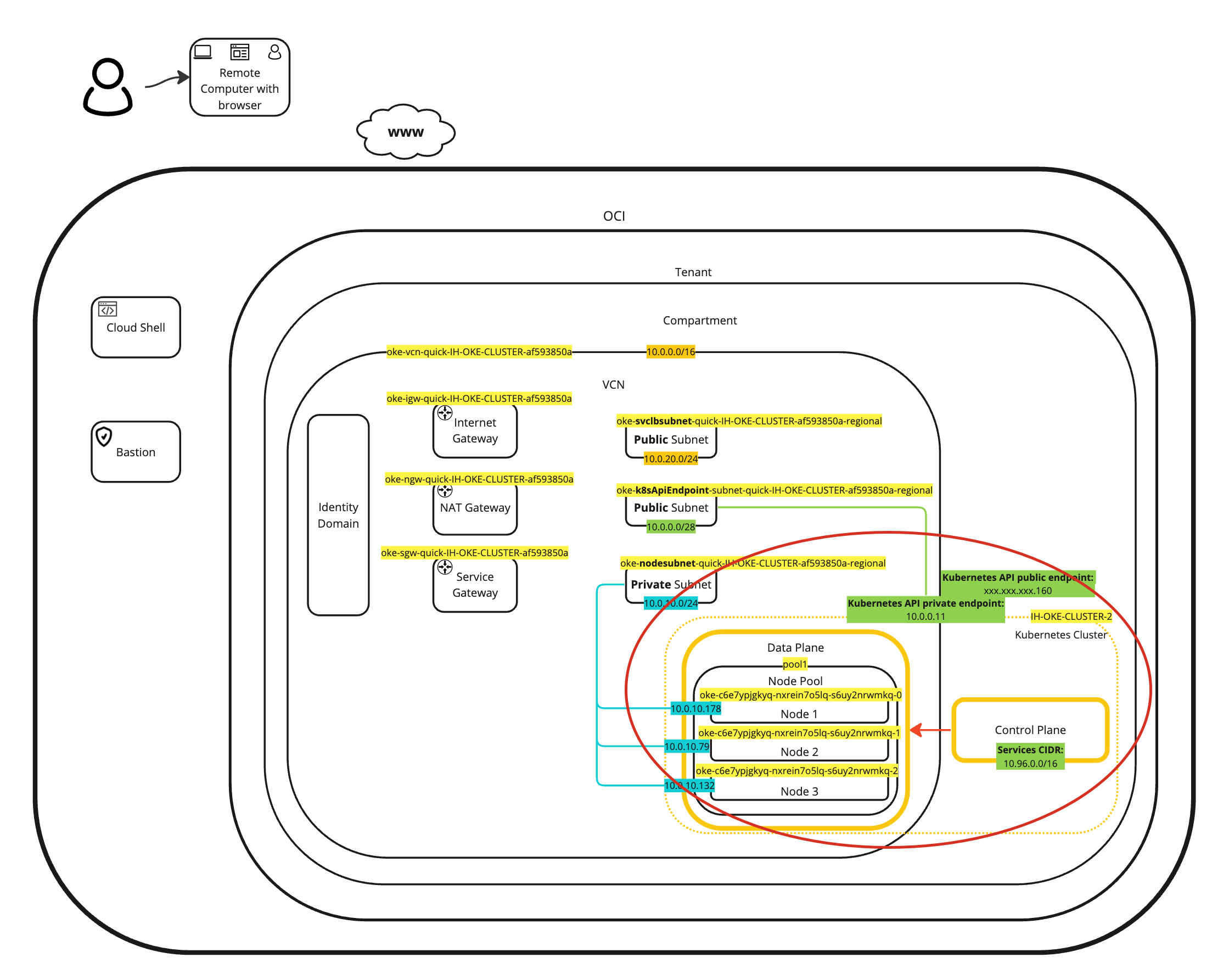

A visual representation of this deployment can be found in the following diagram.
-

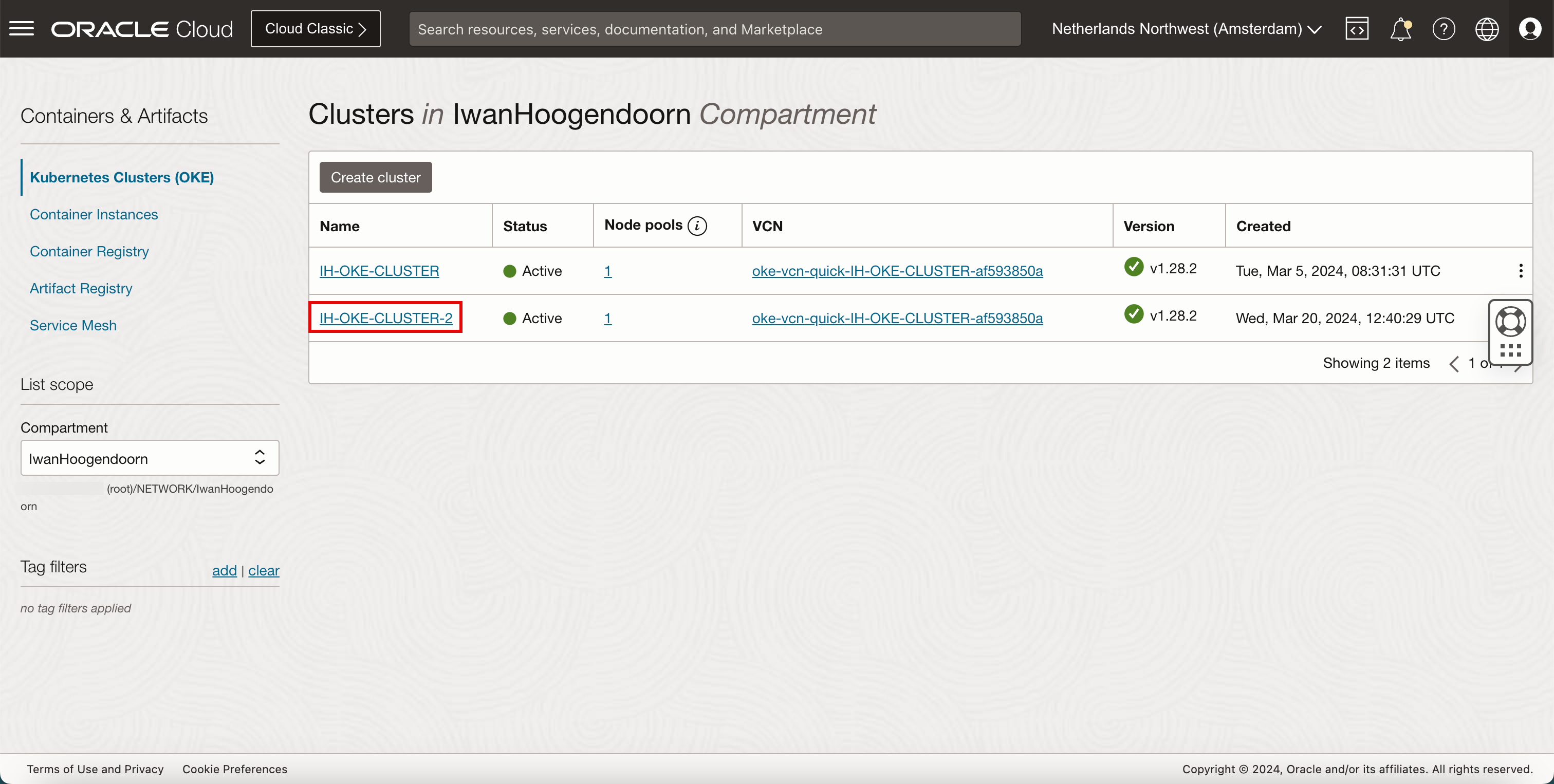

Navigate to Developer Services and Kubernetes Clusters (OKE). Click the newly deployed Kubernetes cluster.
-

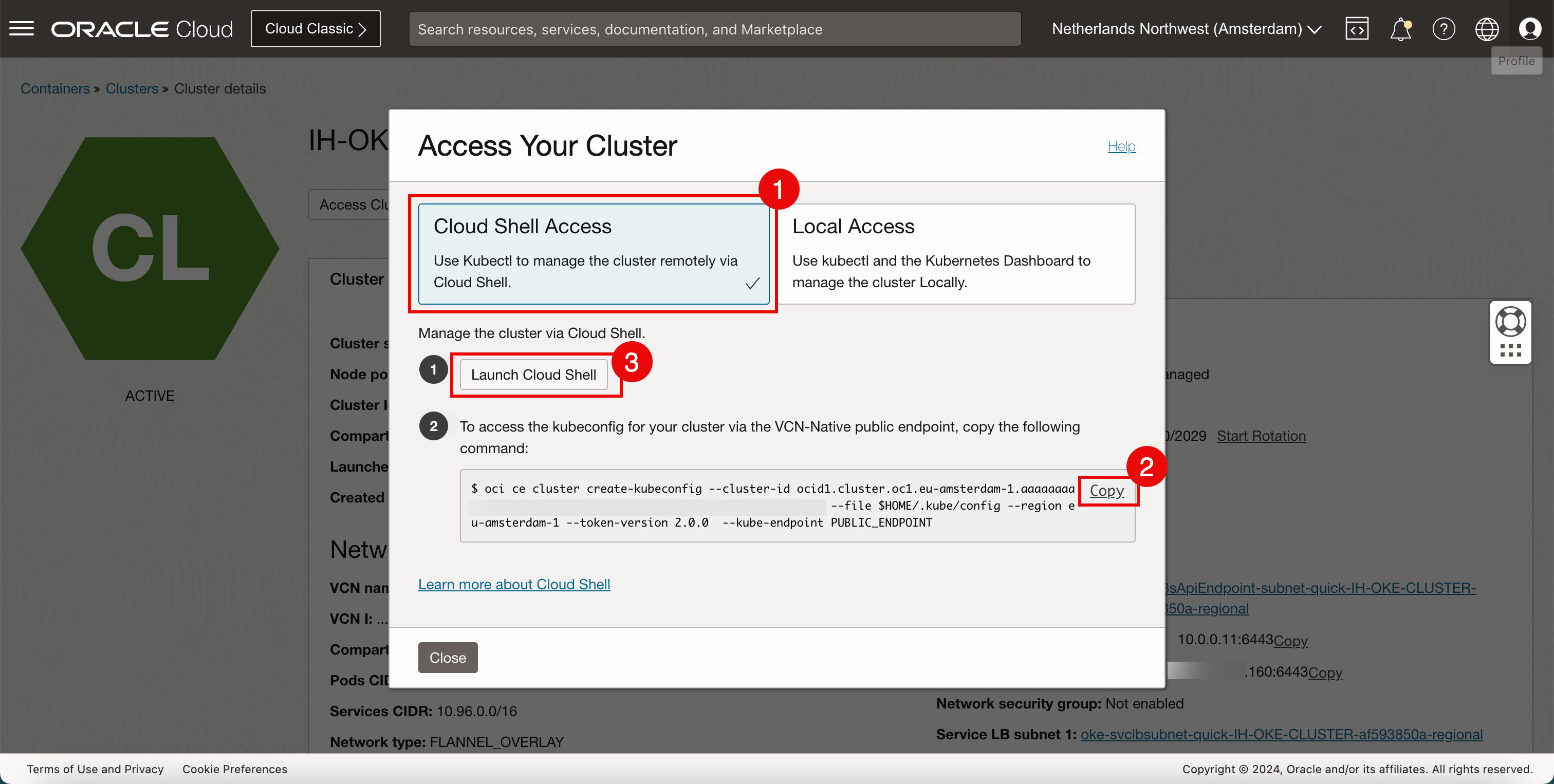

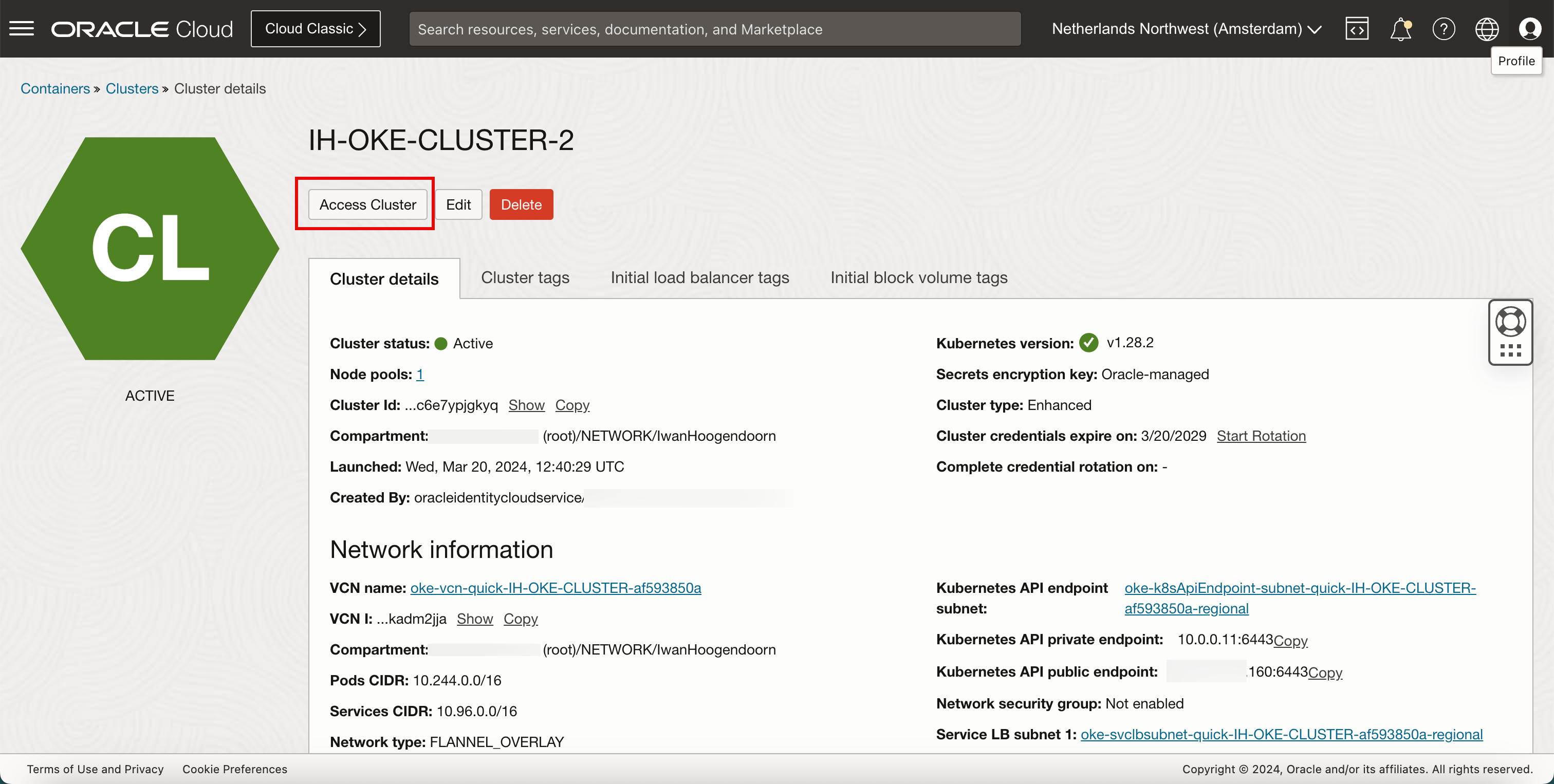

Click Access Cluster.
- Select Cloud Shell Access.
- Click Copy to copy the command to allow access to the Kubernetes cluster.
- Click Launch Cloud Shell.
-

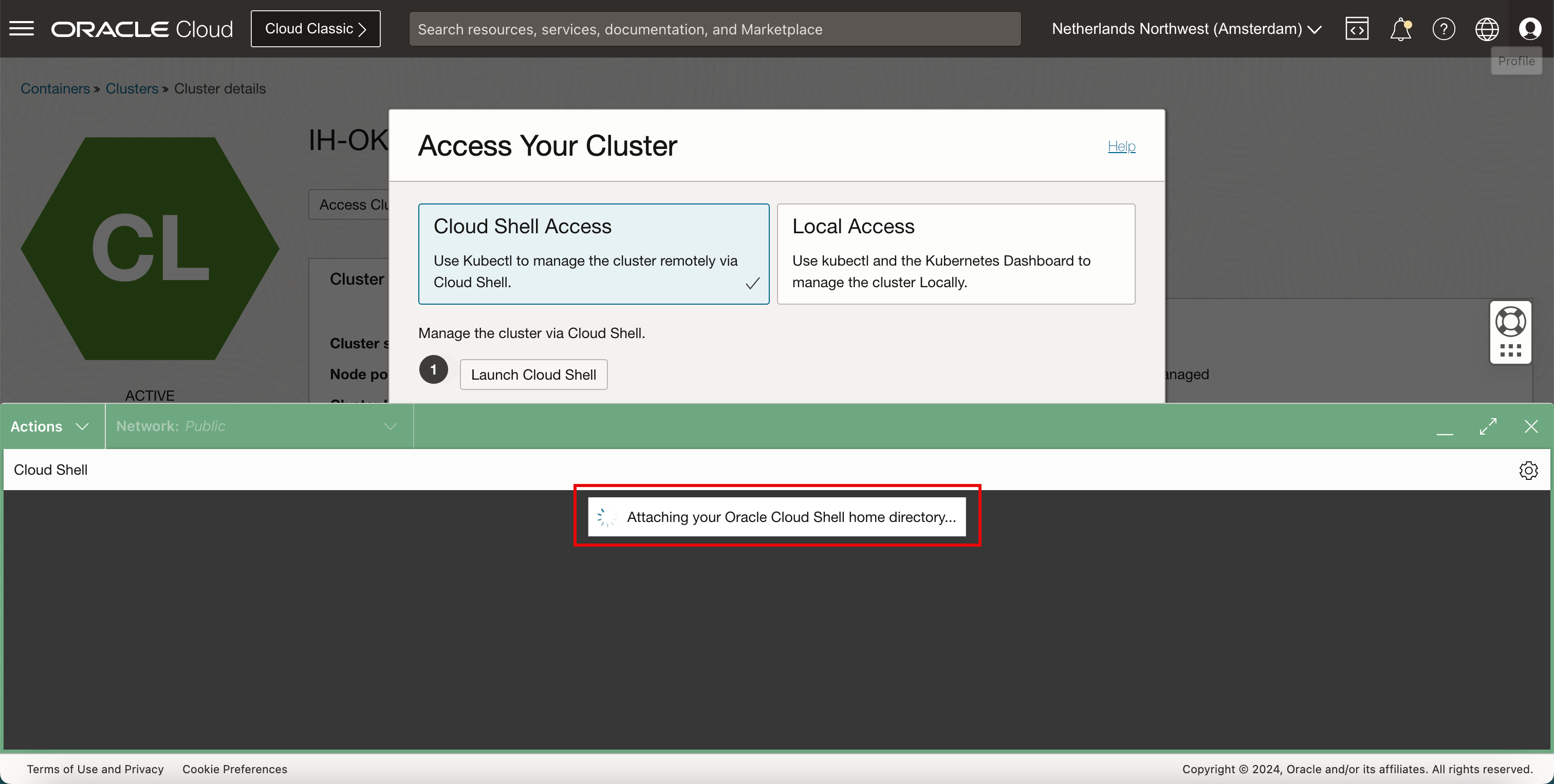

The Cloud Shell will now start. Some information will be shown in the background.

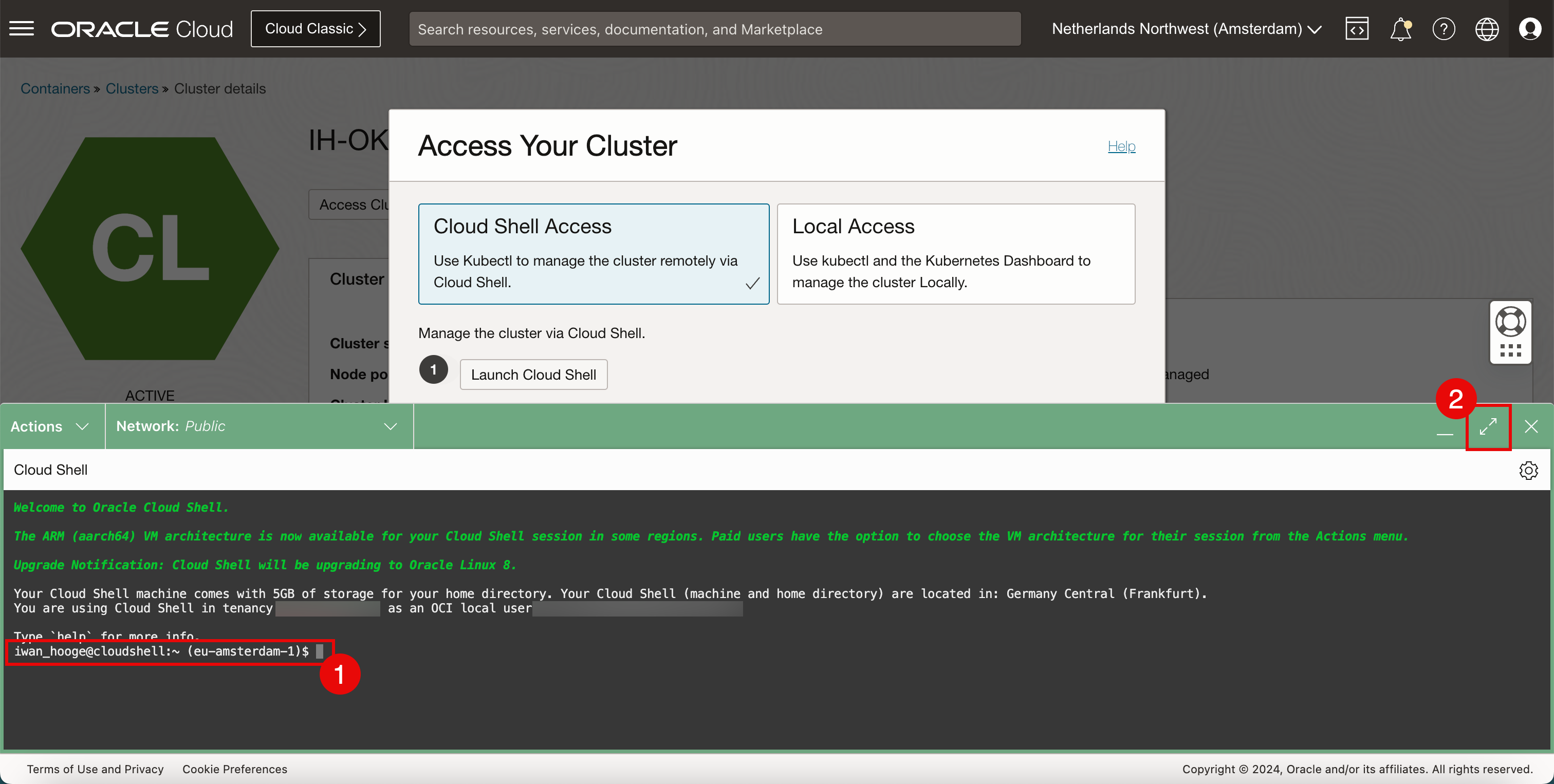

- Notice that you have Cloud Shell access.
- Click the maximize icon to make the Cloud Shell window larger.
-

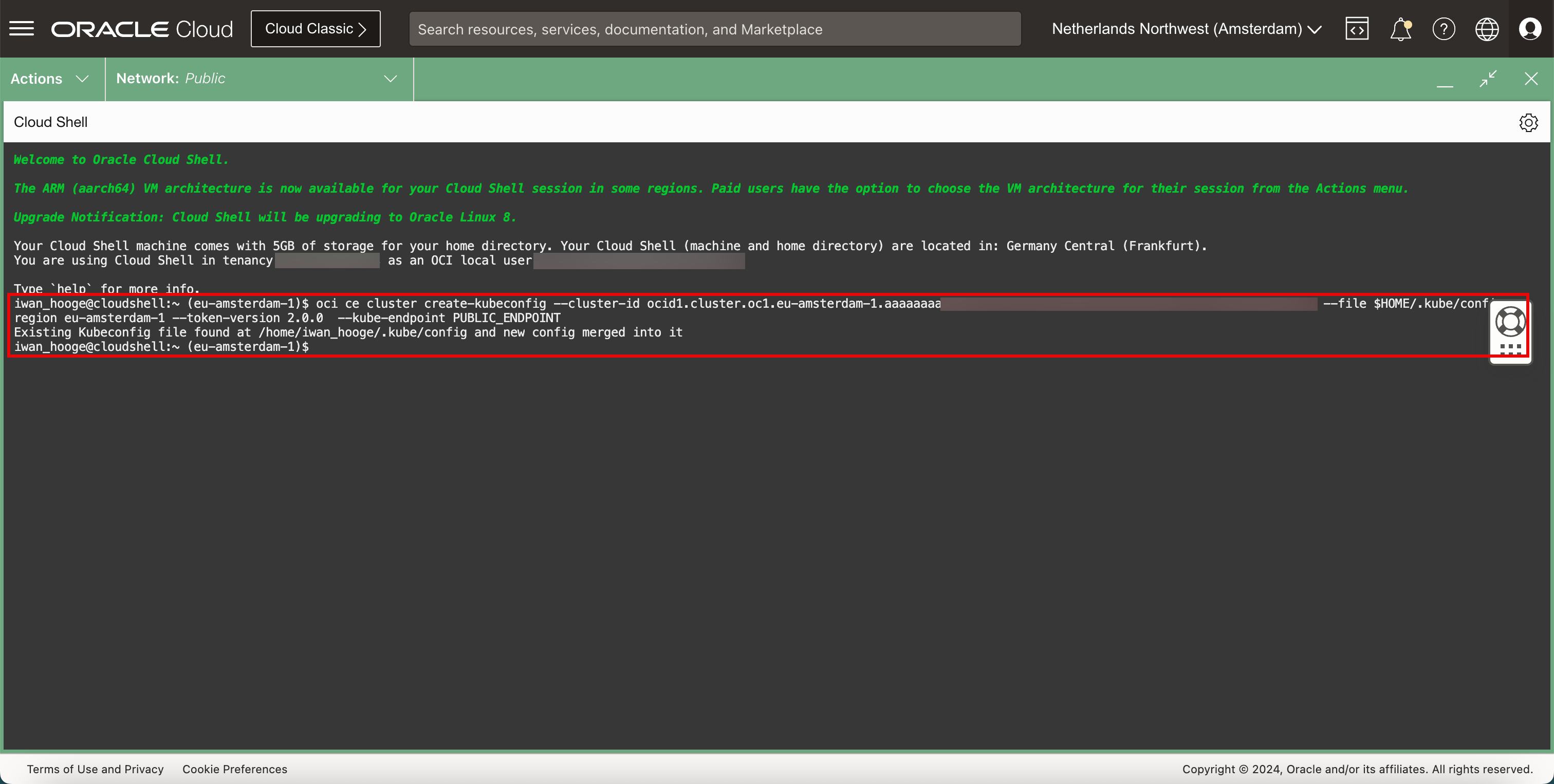

Paste the command that was copied.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ oci ce cluster create-kubeconfig --cluster-id ocid1.cluster.oc1.eu-amsterdam-1.aaaaaaaaXXX --file $HOME/.kube/config --region eu-amsterdam-1 --token-version 2.0.0 --kube-endpoint PUBLIC_ENDPOINT Existing Kubeconfig file found at /home/iwan_hooge/.kube/config and new config merged into it
-

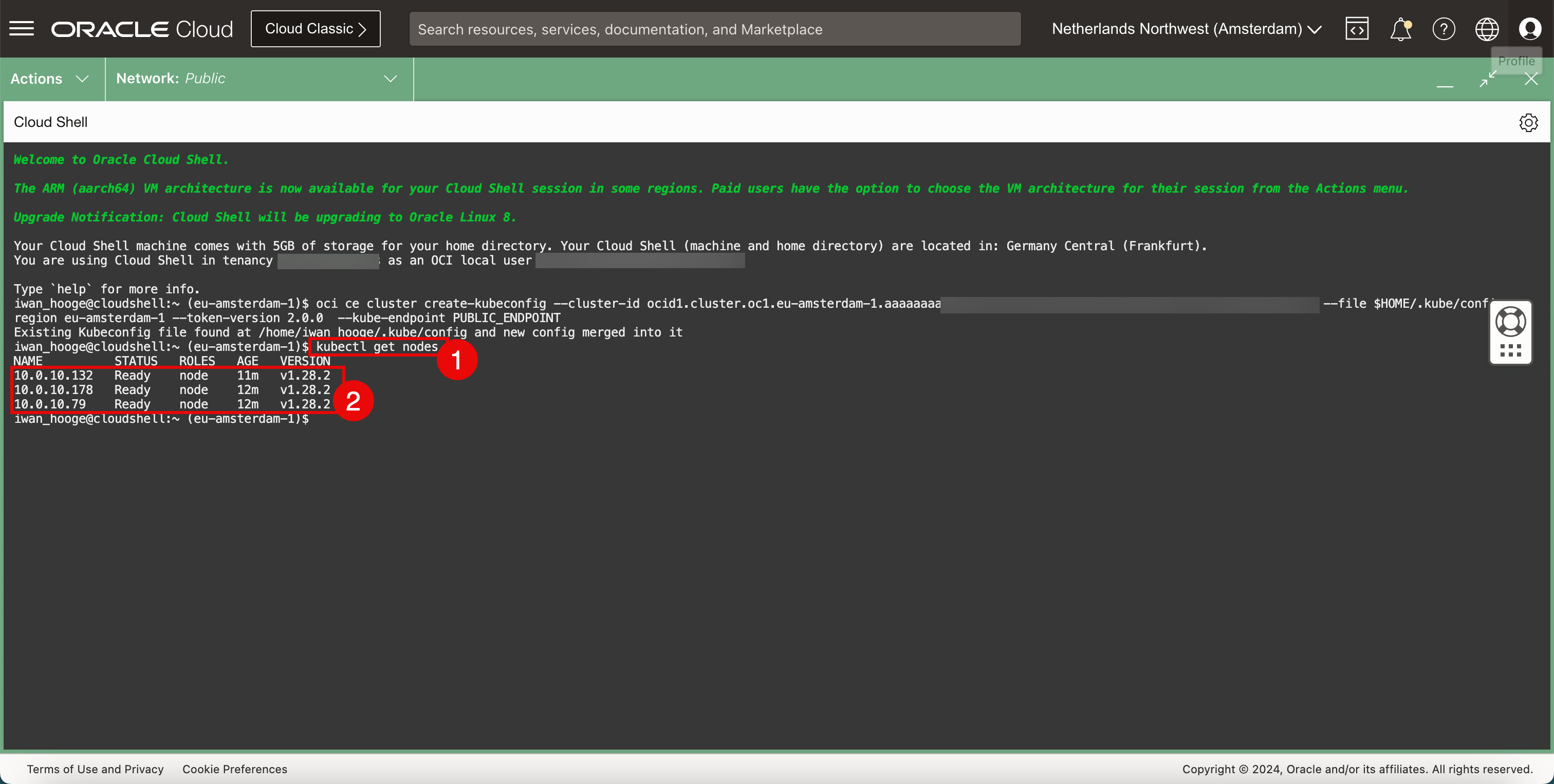

Run the following command to get the information about the worker nodes.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get nodes NAME STATUS ROLES AGE VERSION 10.0.10.132 Ready node 11m v1.28.2 10.0.10.178 Ready node 12m v1.28.2 10.0.10.79 Ready node 12m v1.28.2
-
Review the deployed worker nodes.
-
Task 2: Install Cilium as a CNI Plugin on the OKE deployed Kubernetes Cluster
-

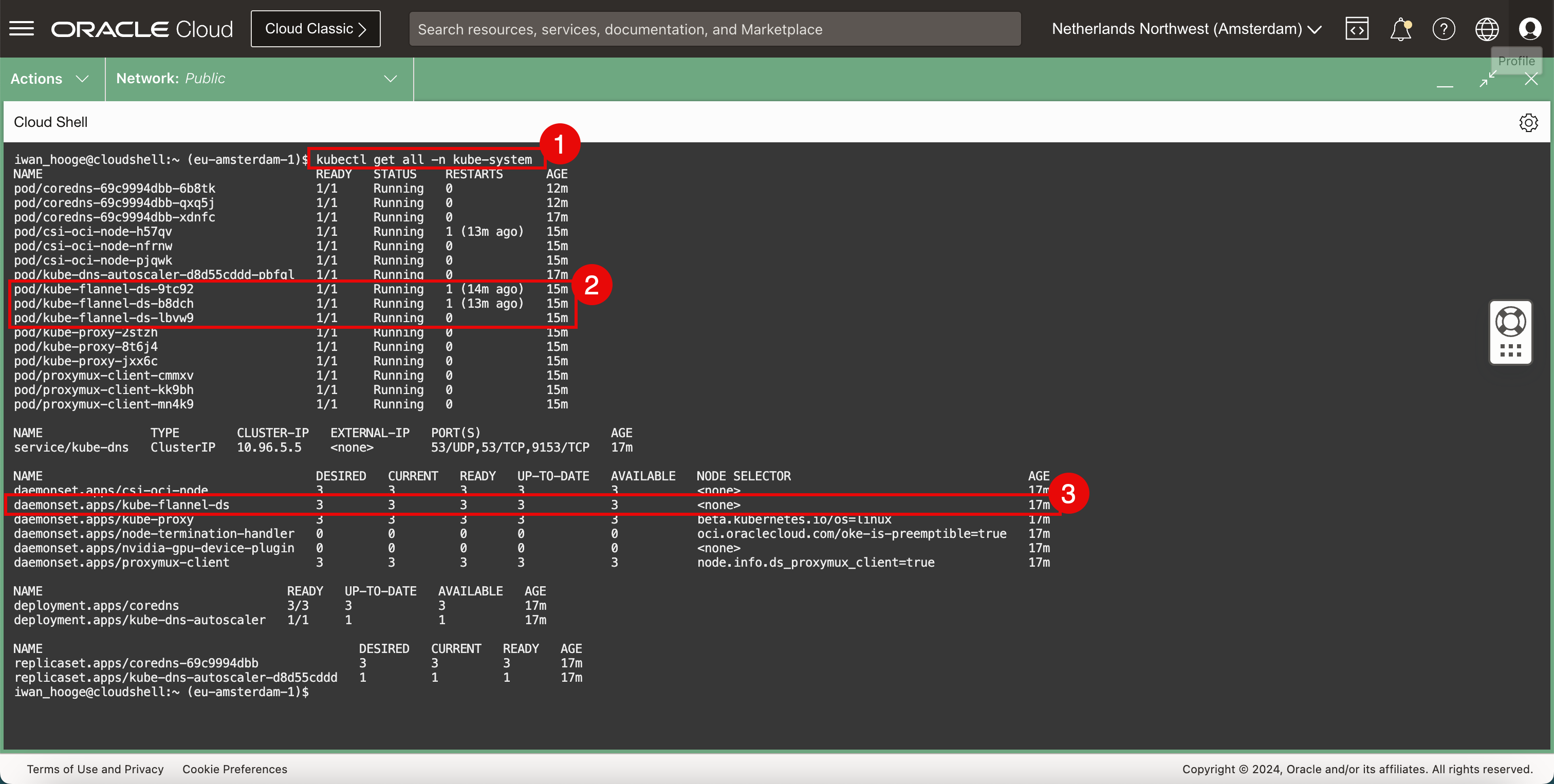

Verify the currently deployed CNI plugin (Flannel).
-
Run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get all -n kube-system NAME READY STATUS RESTARTS AGE pod/coredns-69c9994dbb-6b8tk 1/1 Running 0 12m pod/coredns-69c9994dbb-qxq5j 1/1 Running 0 12m pod/coredns-69c9994dbb-xdnfc 1/1 Running 0 16m pod/csi-oci-node-h57qv 1/1 Running 1 (12m ago) 14m pod/csi-oci-node-nfrnw 1/1 Running 0 14m pod/csi-oci-node-pjqwk 1/1 Running 0 15m pod/kube-dns-autoscaler-d8d55cddd-pbfql 1/1 Running 0 16m pod/kube-flannel-ds-9tc92 1/1 Running 1 (13m ago) 14m pod/kube-flannel-ds-b8dch 1/1 Running 1 (12m ago) 14m pod/kube-flannel-ds-lbvw9 1/1 Running 0 15m pod/kube-proxy-2stzh 1/1 Running 0 15m pod/kube-proxy-8t6j4 1/1 Running 0 14m pod/kube-proxy-jxx6c 1/1 Running 0 14m pod/proxymux-client-cmmxv 1/1 Running 0 15m pod/proxymux-client-kk9bh 1/1 Running 0 14m pod/proxymux-client-mn4k9 1/1 Running 0 14m NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/kube-dns ClusterIP 10.96.5.5 <none> 53/UDP,53/TCP,9153/TCP 16m NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE daemonset.apps/csi-oci-node 3 3 3 3 3 <none> 16m daemonset.apps/kube-flannel-ds 3 3 3 3 3 <none> 16m daemonset.apps/kube-proxy 3 3 3 3 3 beta.kubernetes.io/os=linux 16m daemonset.apps/node-termination-handler 0 0 0 0 0 oci.oraclecloud.com/oke-is-preemptible=true 16m daemonset.apps/nvidia-gpu-device-plugin 0 0 0 0 0 <none> 16m daemonset.apps/proxymux-client 3 3 3 3 3 node.info.ds_proxymux_client=true 16m NAME READY UP-TO-DATE AVAILABLE AGE deployment.apps/coredns 3/3 3 3 16m deployment.apps/kube-dns-autoscaler 1/1 1 1 16m NAME DESIRED CURRENT READY AGE replicaset.apps/coredns-69c9994dbb 3 3 3 16m replicaset.apps/kube-dns-autoscaler-d8d55cddd 1 1 1 16m iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the Flannel CNI plugin is deployed as a pod.
-
Notice that the Flannel CNI plugin is deployed as a service.

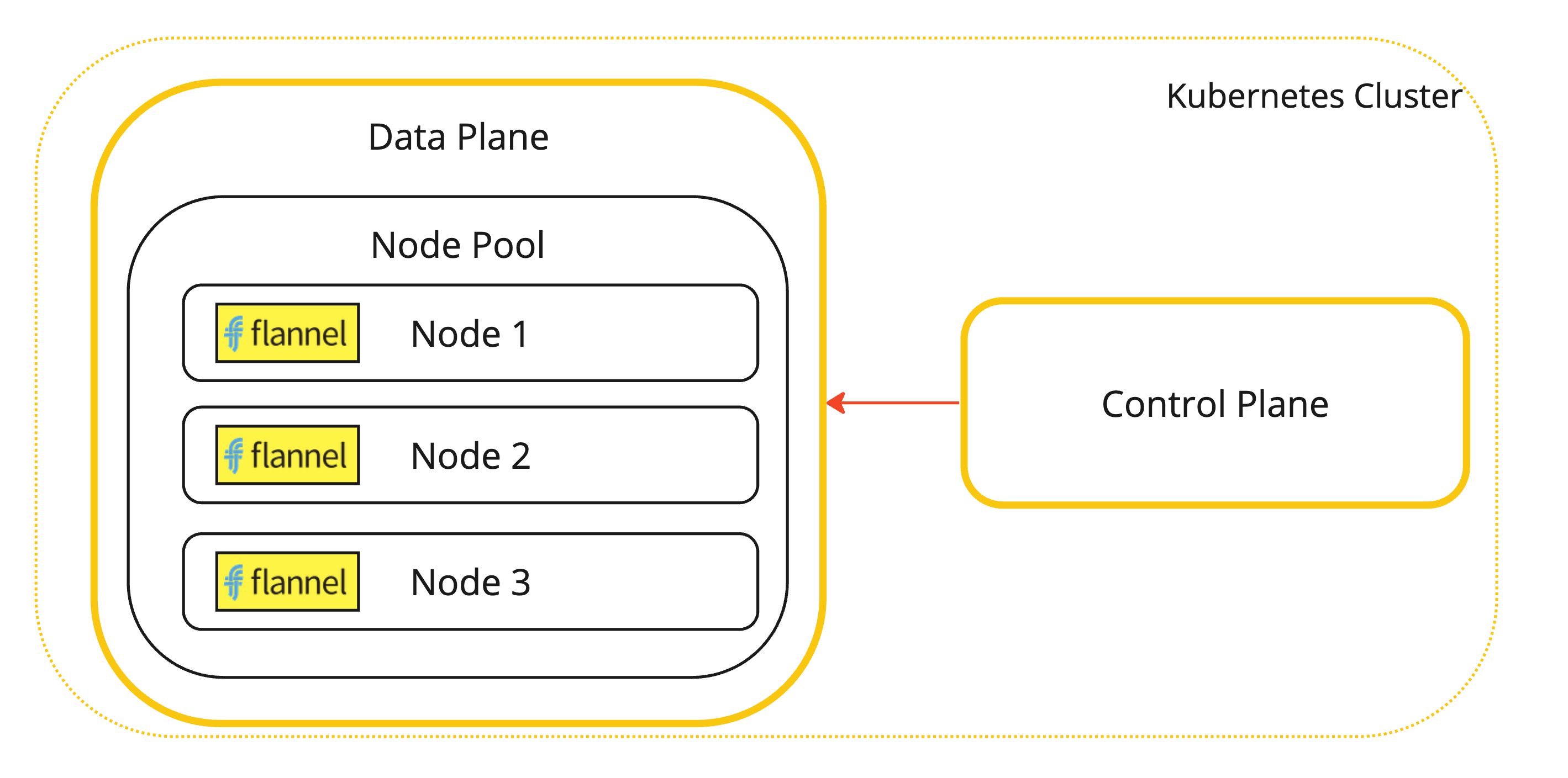

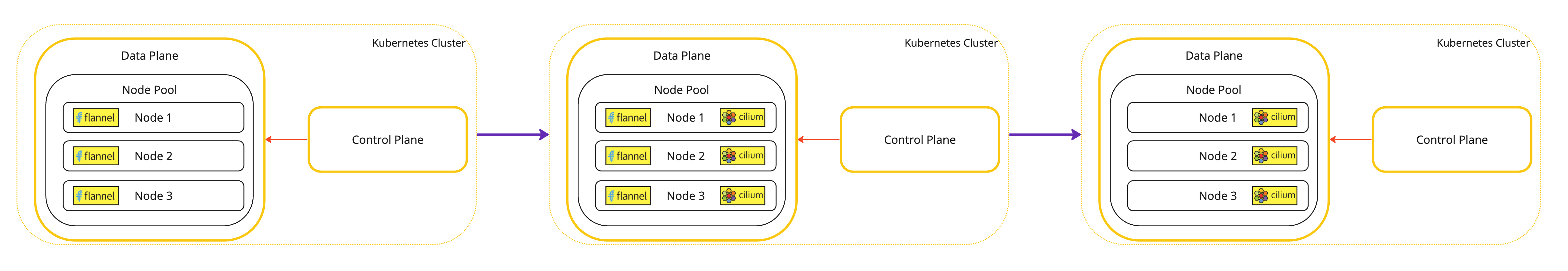

This is a visual representation of the Kubernetes worker nodes with the Flannel CNI plugin installed.
-
-
Add the Cilium repository.
-
Run the following command to add the Cilium repository.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ helm repo add cilium https://helm.cilium.io/ WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /home/iwan_hooge/.kube/config WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /home/iwan_hooge/.kube/config "cilium" has been added to your repositories
-
Run the following command to generate the cilium deployment
YAML
file.iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ helm show values cilium/cilium > cilium.yaml WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /home/iwan_hooge/.kube/config WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /home/iwan_hooge/.kube/config iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
-
Confirm that the Cilium
YAML
file is present by using the following command.-

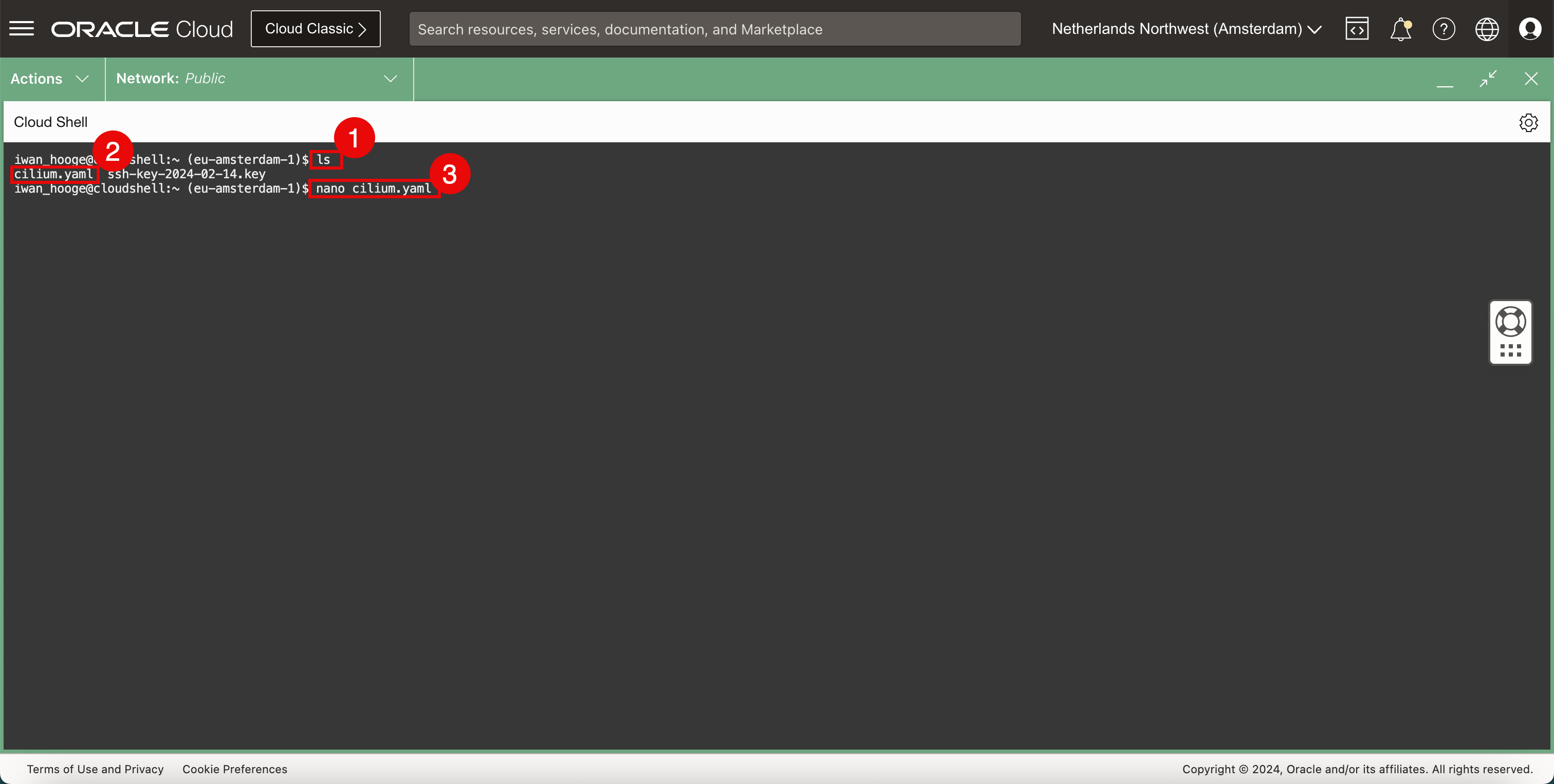

Run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ls cilium.yaml ssh-key-2024-02-14.key
-
Confirm that the
YAML
file is present. -
Run the following command to edit the
YAML
file with the nano editor.iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ nano cilium.yaml
-
-
The
YAML

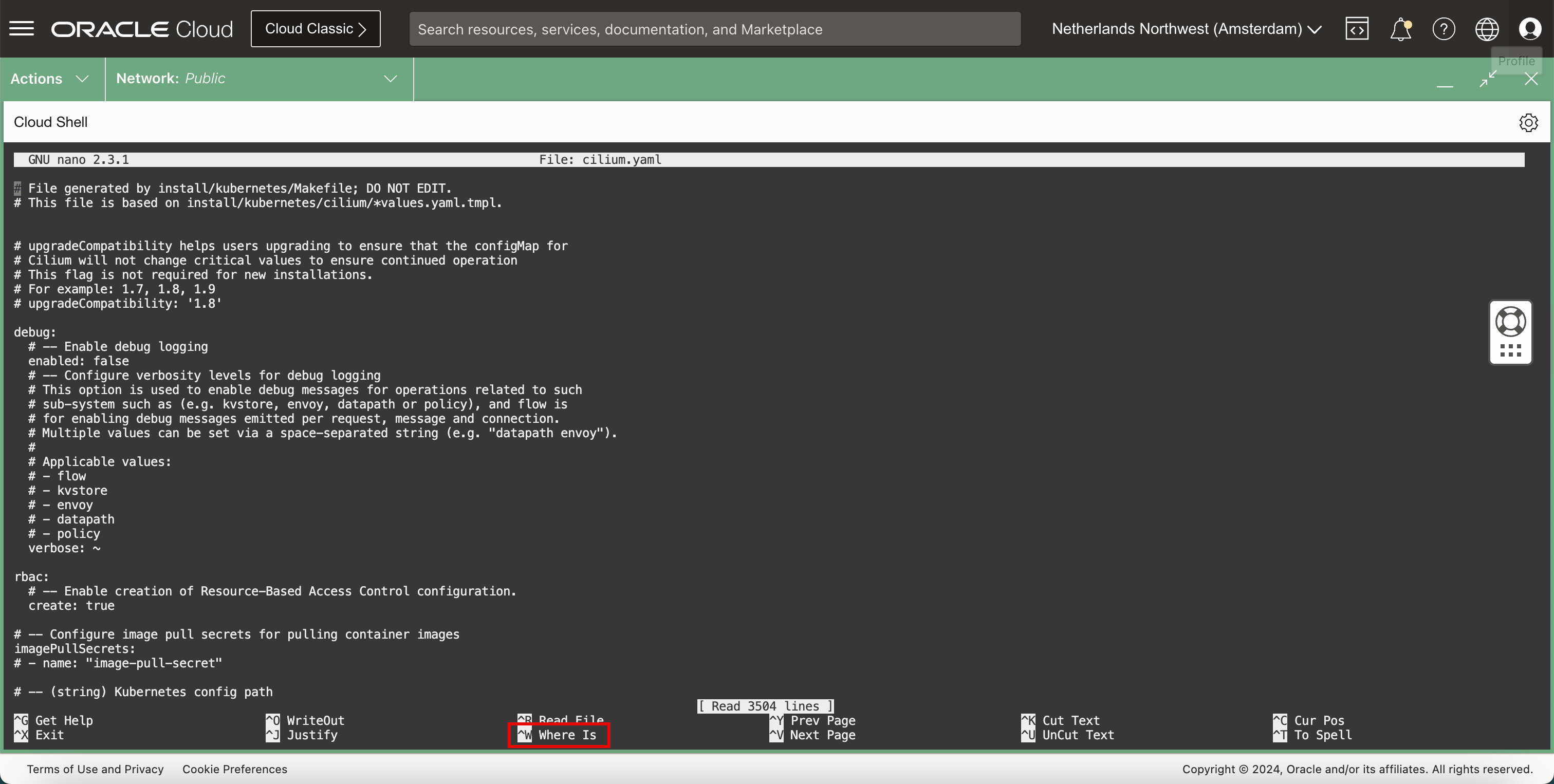

file is a large file with a lot of settings, scroll through the file to find the following settings, and update.containerRuntime: integration: crio hubble: tls: enabled: false hubble: relay: enabled: true hubble: ui: enabled: true ipam: mode: "kubernetes" clustermesh: useAPIServer: true
-
Use
CTRL + W

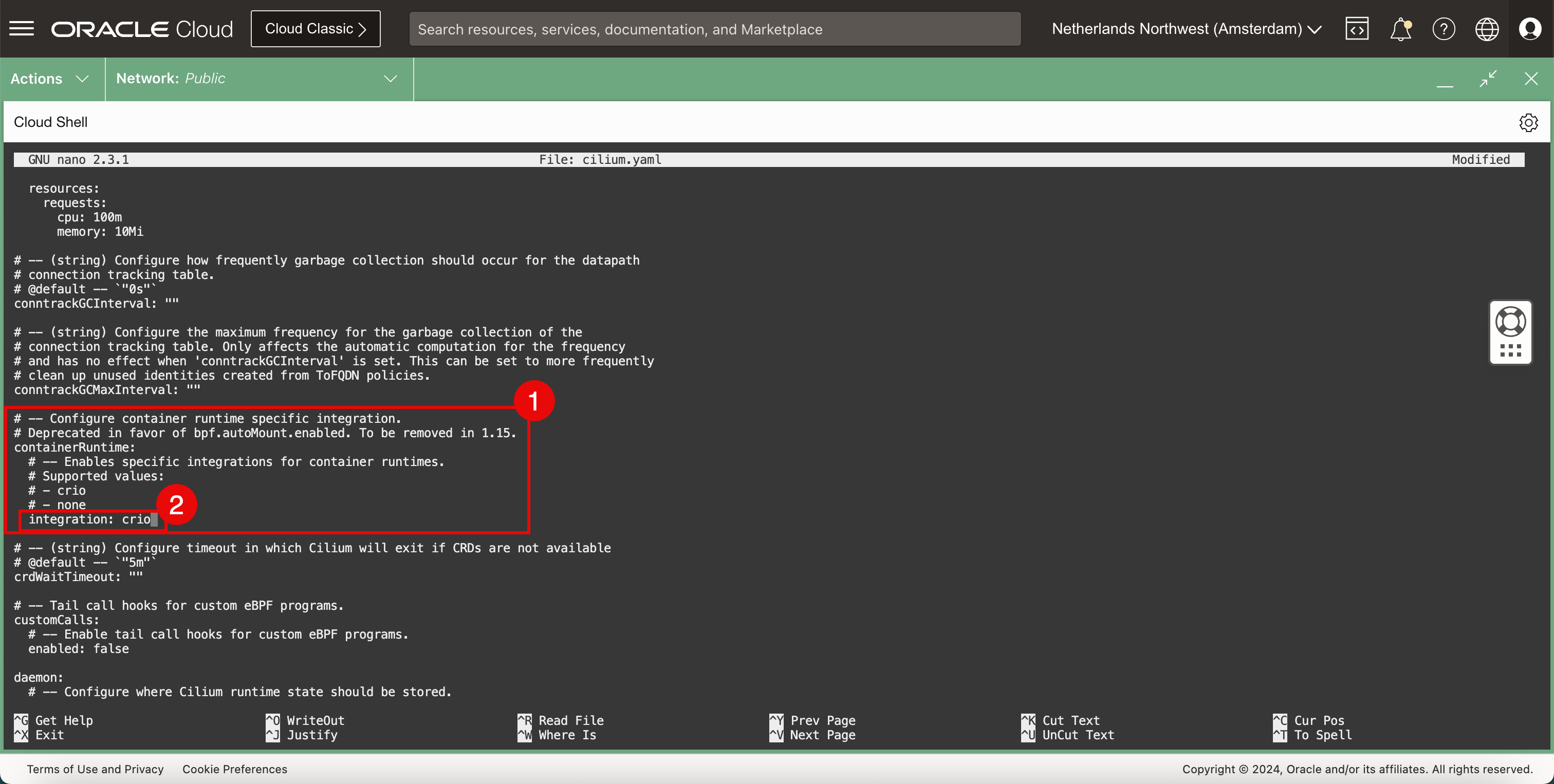

shortcut to find a keyword, setting or section.- Locate the container runtime section.
- Change the integration type.

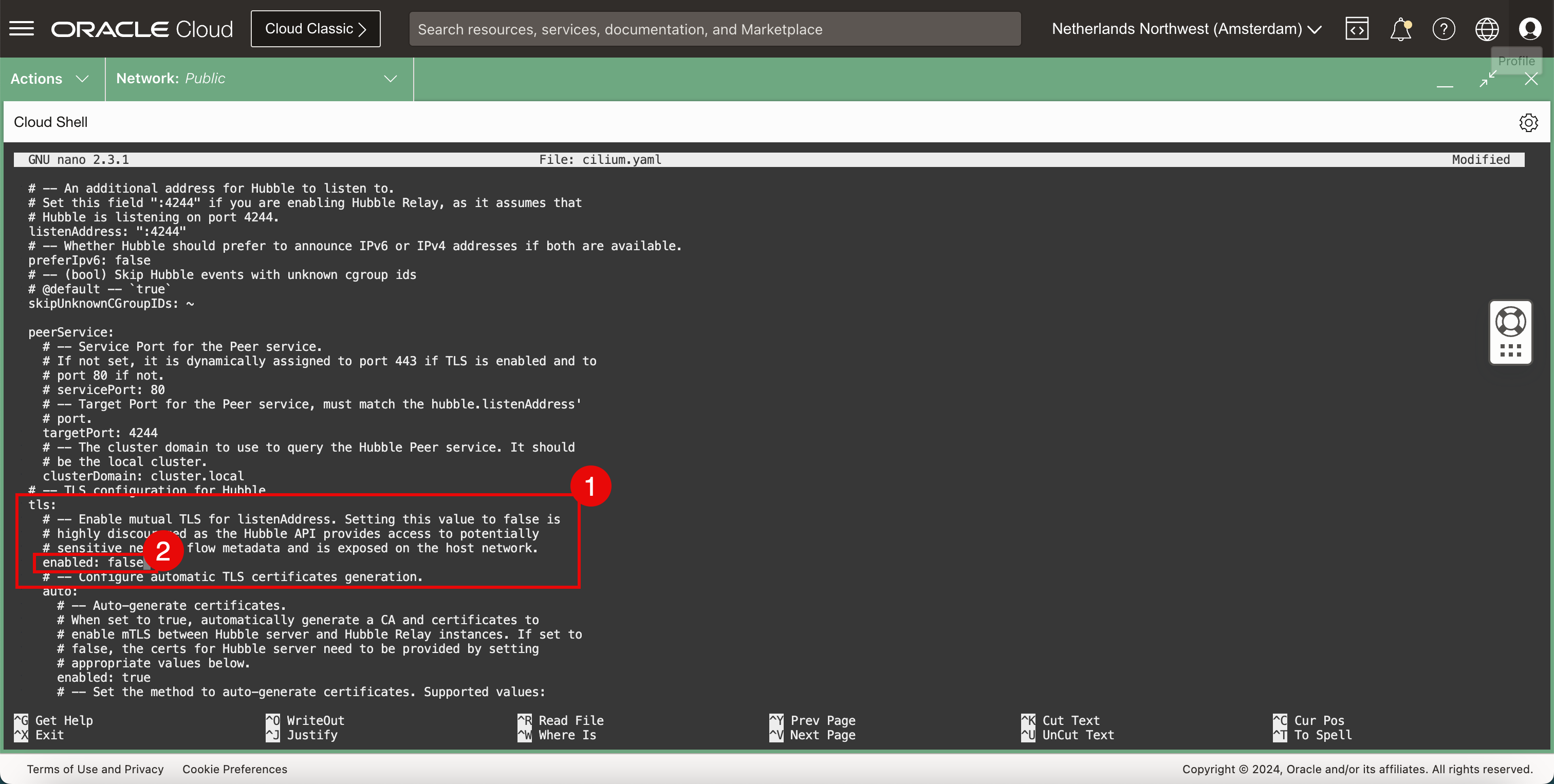

- In the TLS configuration for Hubble section.
- Disable TLS.

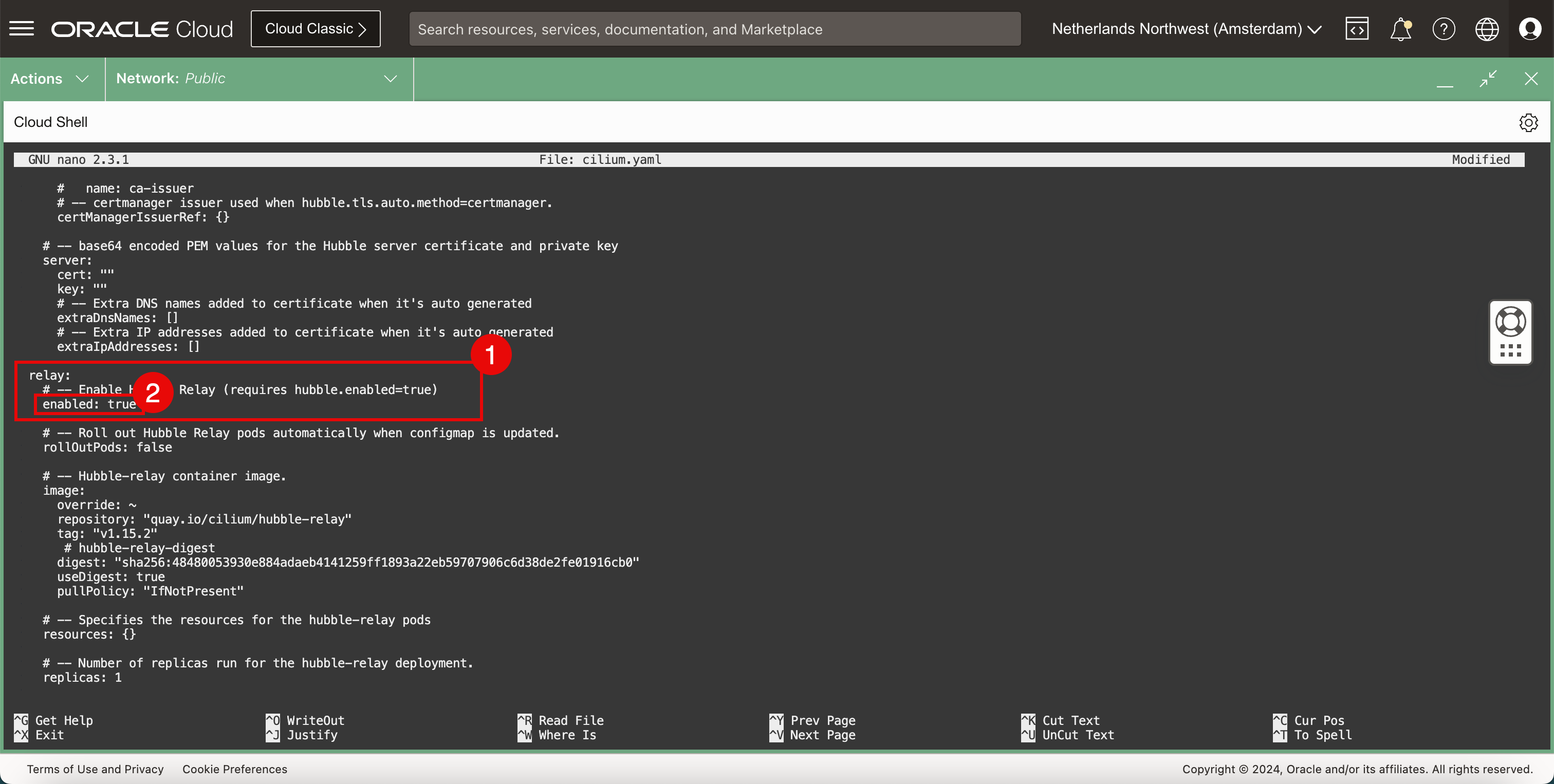

- In the relay section.
- Enable relay.
- In the *ui section.
- Enable the UI.

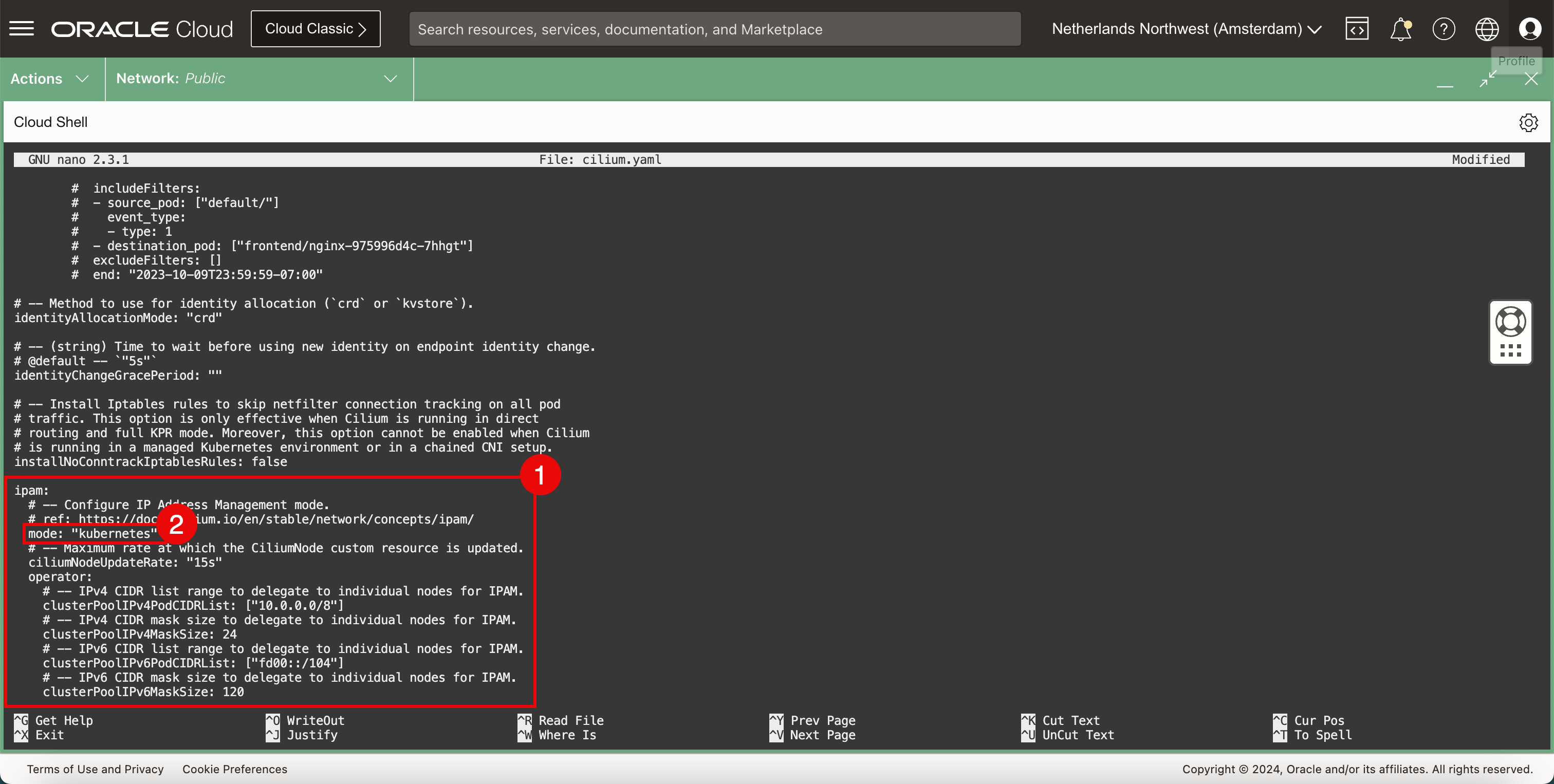

- In the ipam section.
- Set the mode to kubernetes.

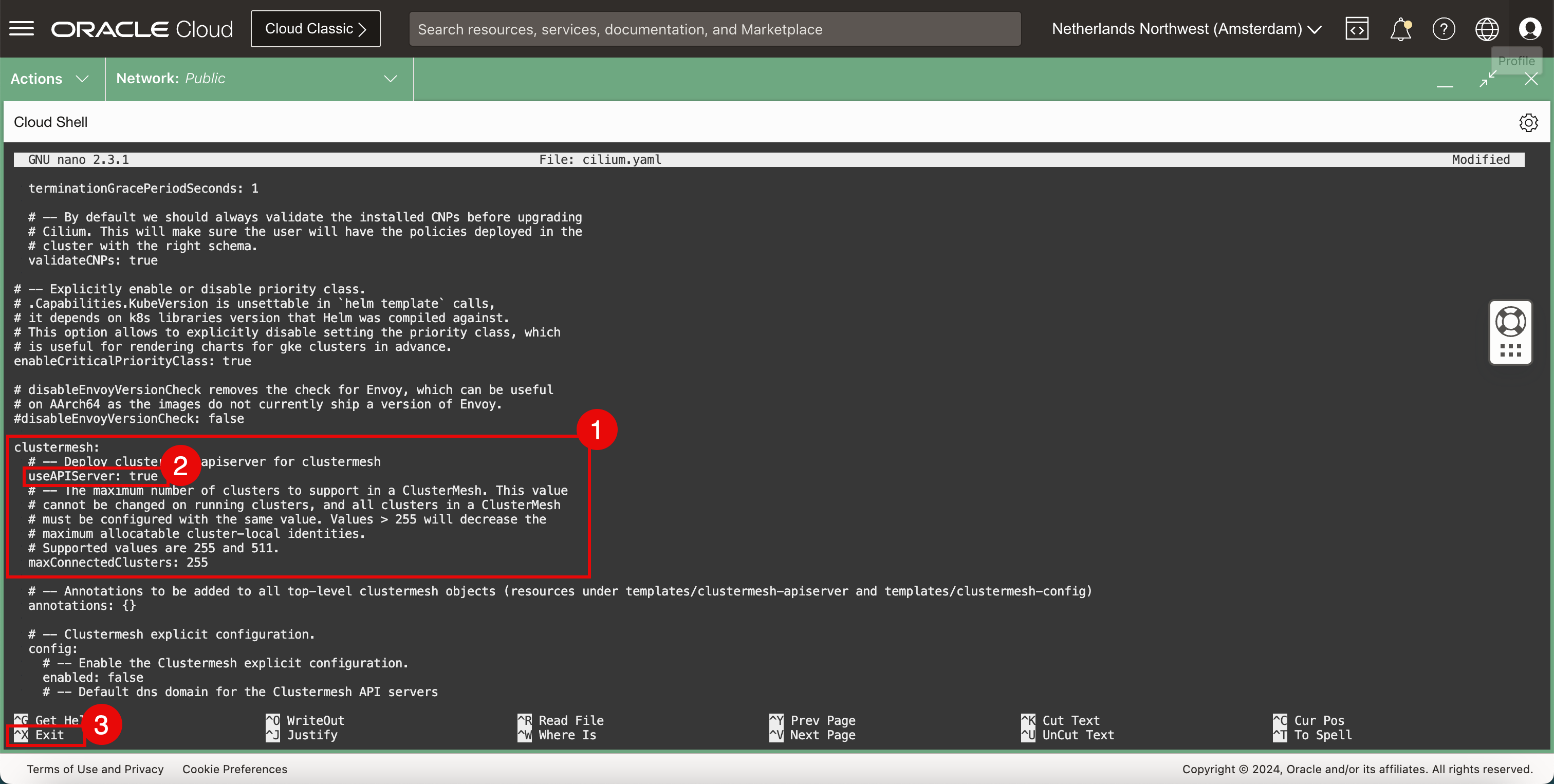

- In the clustermesh section.
- Set the useAPIServer to
true
. - Use

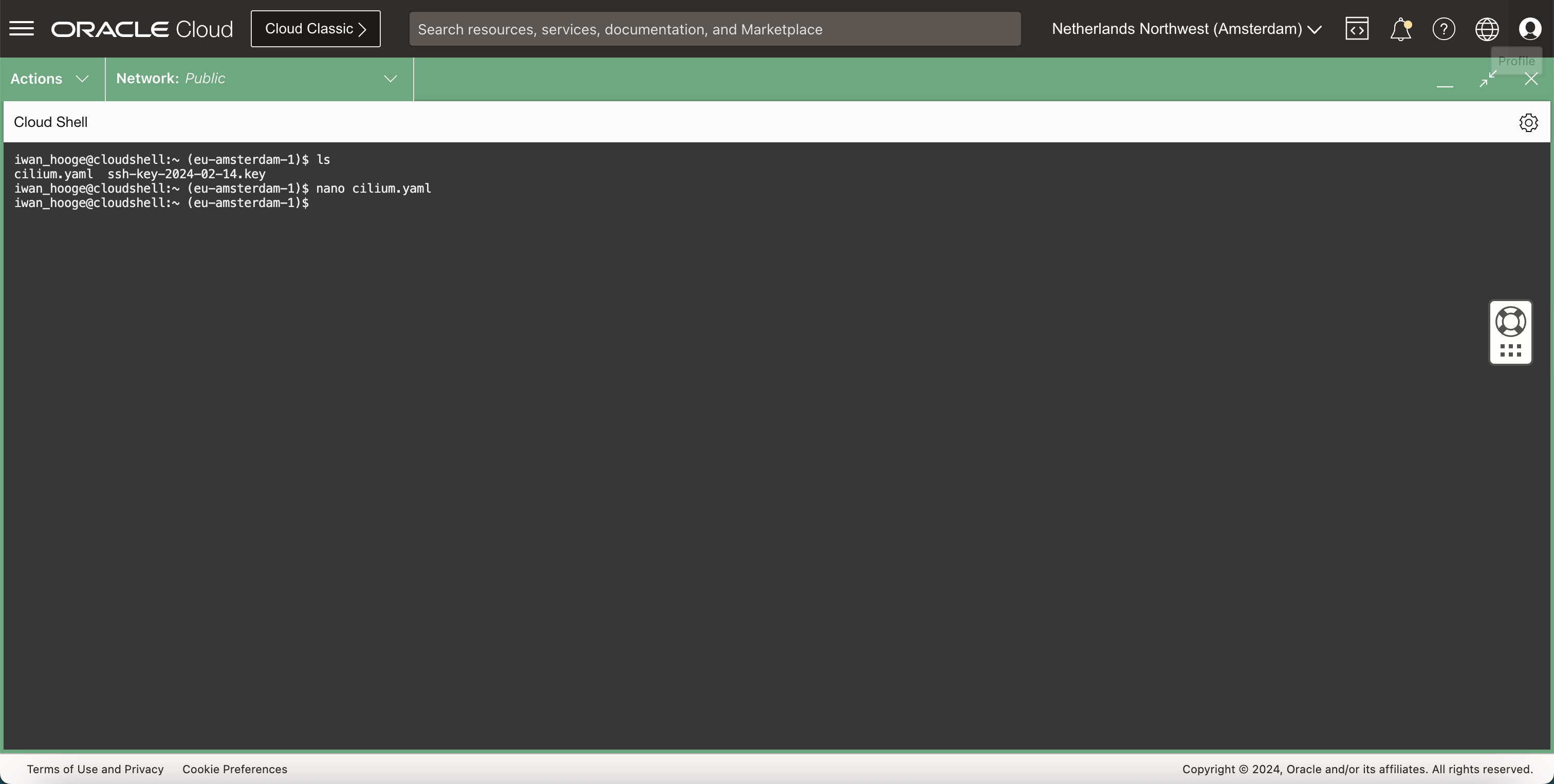

CTRL + X
shortcut to exit the nano editor.
-

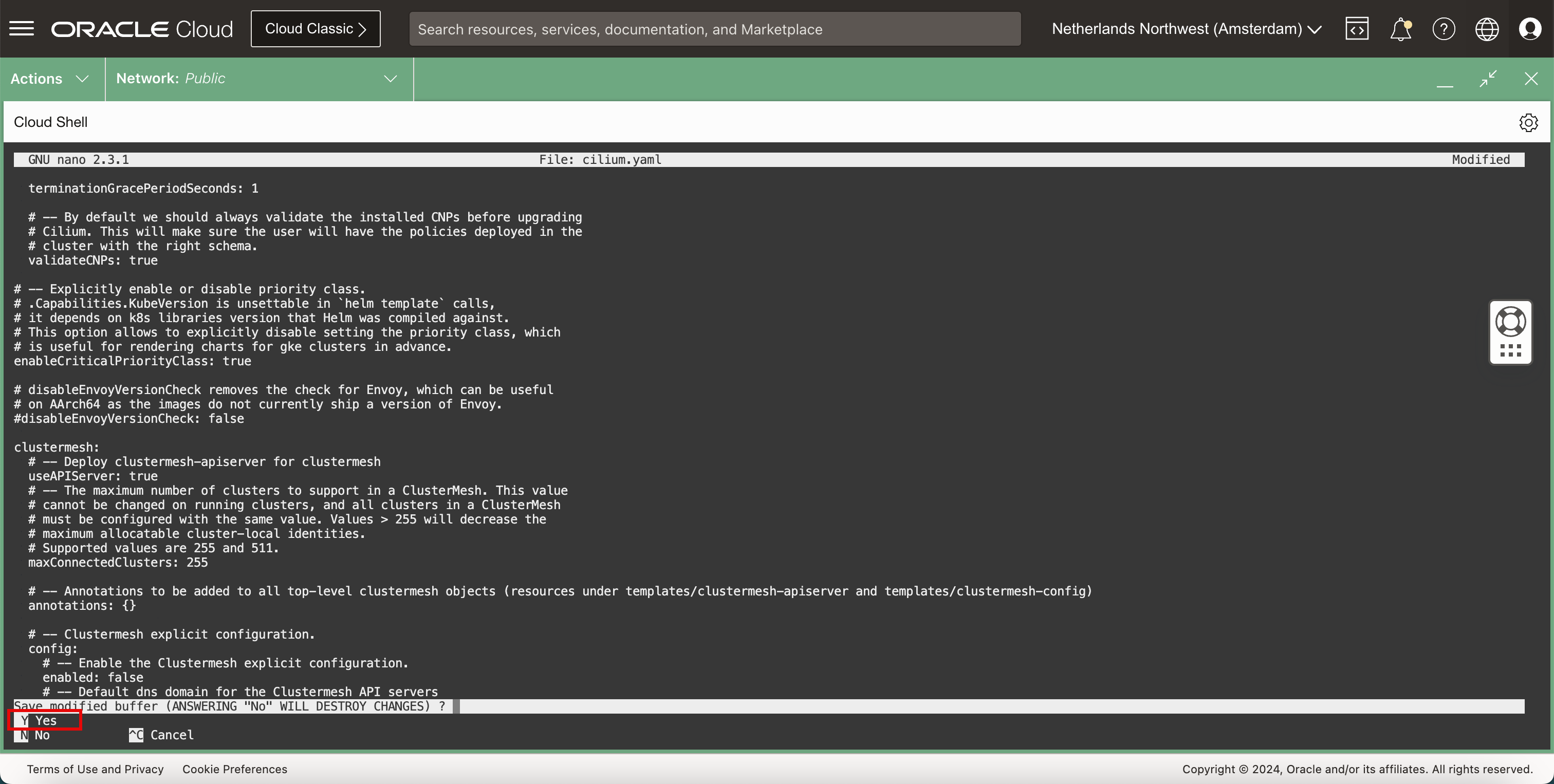

Enter
Y
(yes) to save theYAML
file. -

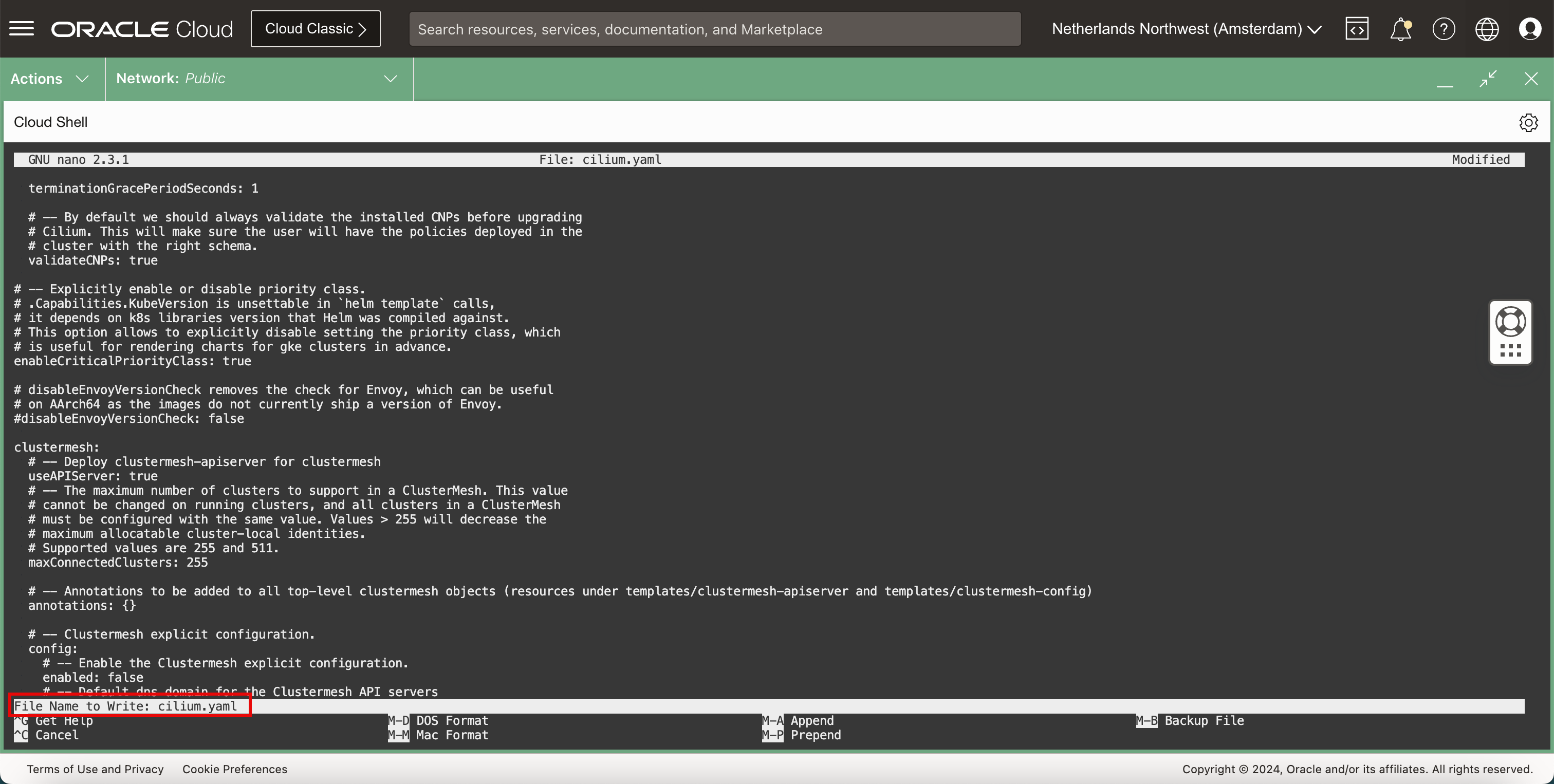

Keep the
YAML
file name default. -
When the file has been saved, you will return to the terminal.
-
Install Cilium.
-

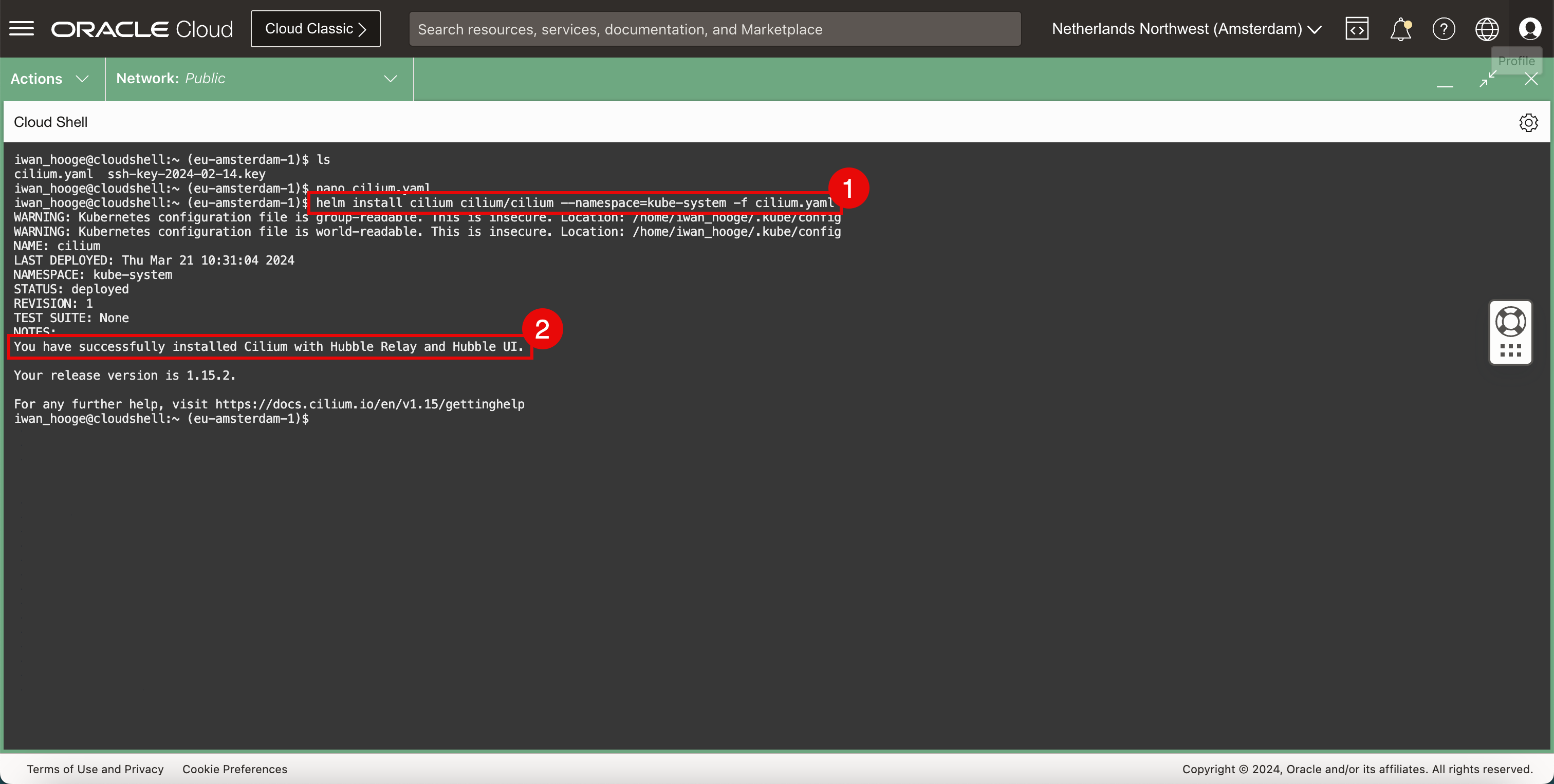

Run the following command to install Cilium.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ helm install cilium cilium/cilium --namespace=kube-system -f cilium.yaml WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /home/iwan_hooge/.kube/config WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /home/iwan_hooge/.kube/config NAME: cilium LAST DEPLOYED: Thu Mar 21 10:31:04 2024 NAMESPACE: kube-system STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: You have successfully installed Cilium with Hubble Relay and Hubble UI. Your release version is 1.15.2. For any further help, visit https://docs.cilium.io/en/v1.15/gettinghelp iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Note the message that Cilium is successfully installed.
-
-

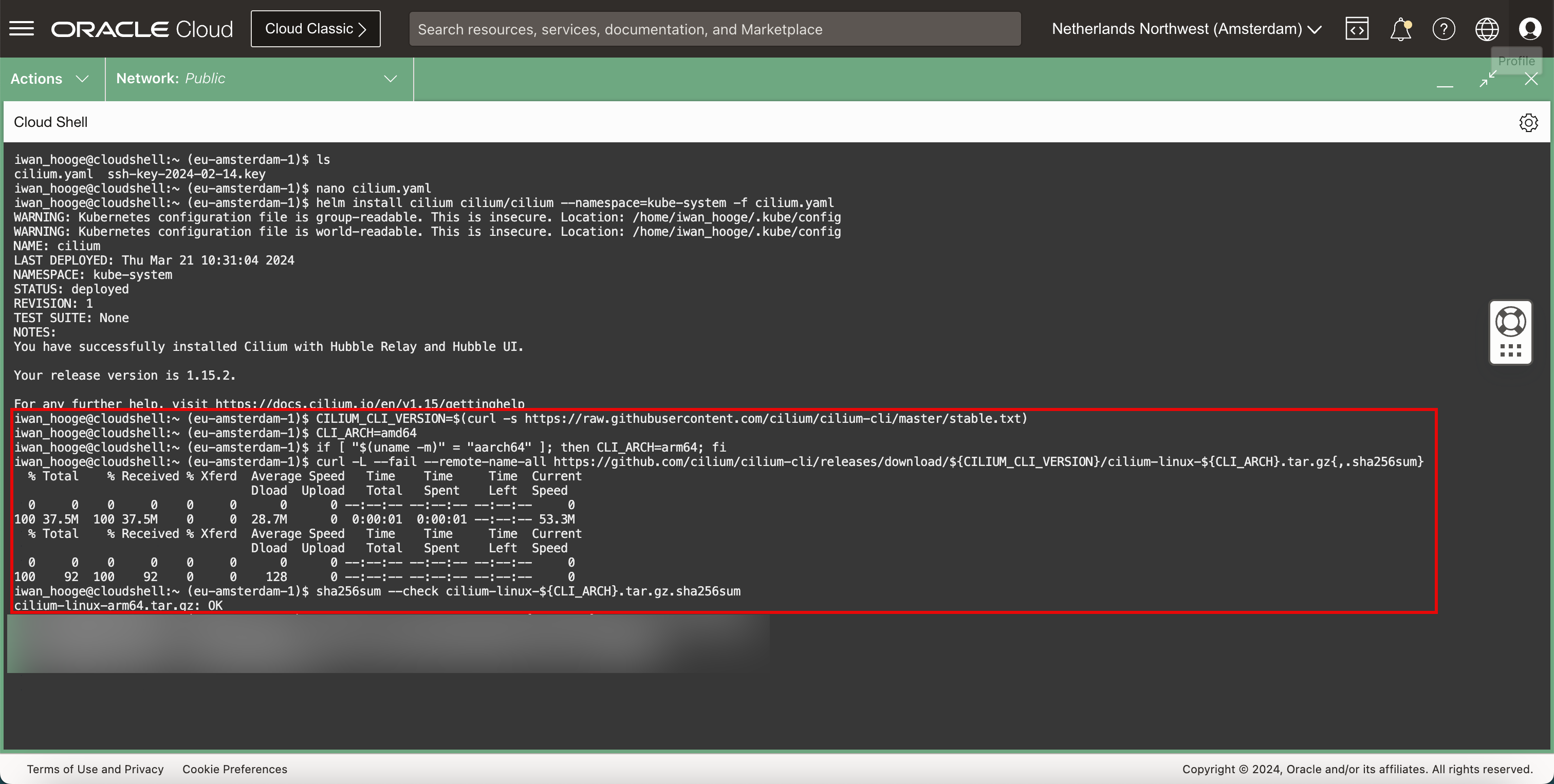

To execute Cilium commands, download the Cilium Command Line Interface (CLI) by using the following commands.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/master/stable.txt) iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ CLI_ARCH=amd64 iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ if [ "$(uname -m)" = "aarch64" ]; then CLI_ARCH=arm64; fi iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ curl -L --fail --remote-name-all https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum} % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0 100 37.5M 100 37.5M 0 0 28.7M 0 0:00:01 0:00:01 --:--:-- 53.3M % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0 100 92 100 92 0 0 128 0 --:--:-- --:--:-- --:--:-- 0 iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ sha256sum --check cilium-linux-${CLI_ARCH}.tar.gz.sha256sum cilium-linux-arm64.tar.gz: OK
-

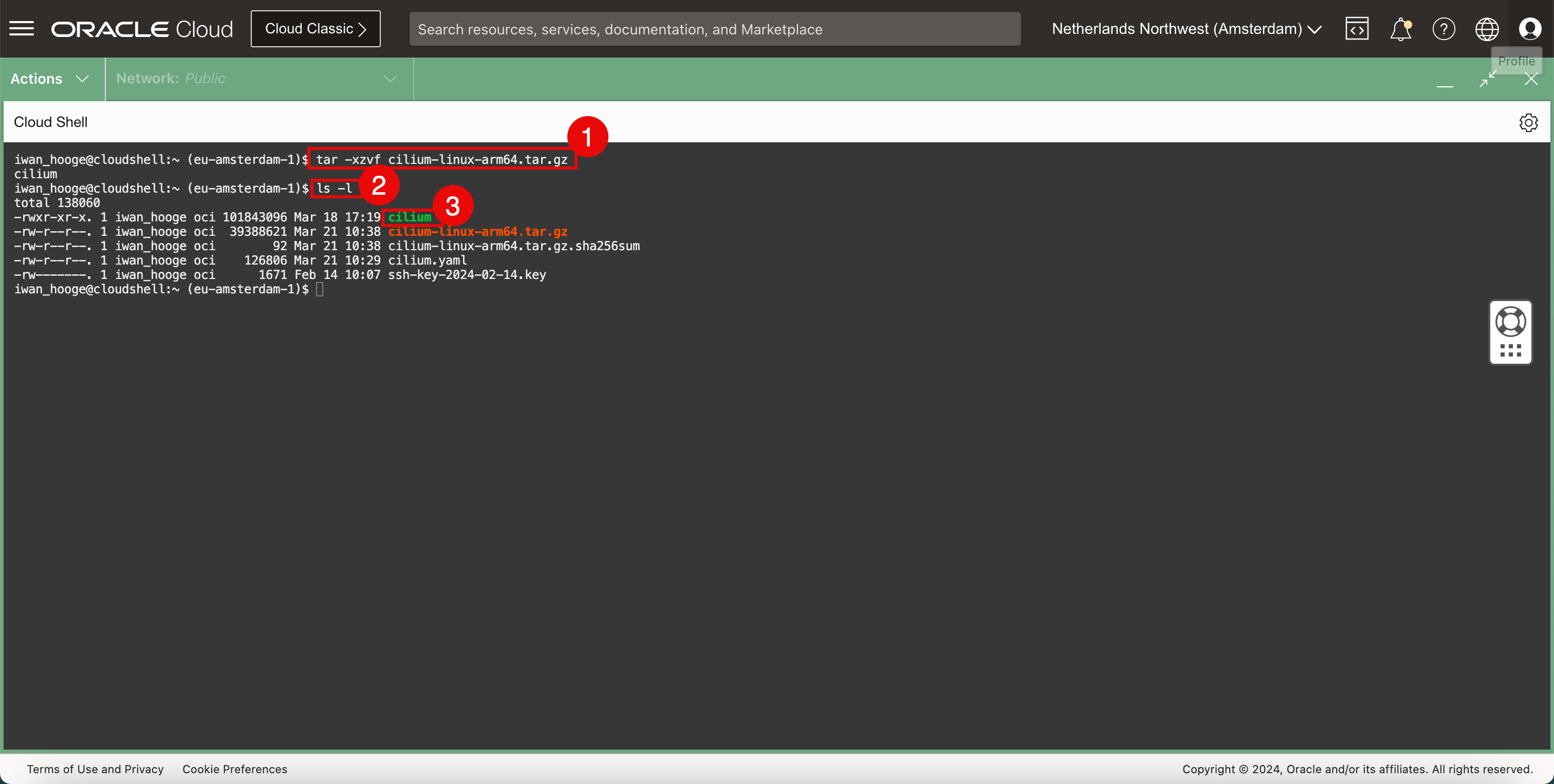

Run the following command to uncompress the Cilium CLI application.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ sudo tar xzvf cilium-linux-${CLI_ARCH}.tar.gz
-
To confirm the Cilium CLI file is present, run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ls -l total 138060 -rw-r--r--. 1 iwan_hooge oci 101843096 Mar 18 17:19 cilium -rw-r--r--. 1 iwan_hooge oci 39388621 Mar 21 10:38 cilium-linux-arm64.tar.gz -rw-r--r--. 1 iwan_hooge oci 92 Mar 21 10:38 cilium-linux-arm64.tar.gz.sha256sum -rw-r--r--. 1 iwan_hooge oci 126806 Mar 21 10:29 cilium.yaml -rw-------. 1 iwan_hooge oci 1671 Feb 14 10:07 ssh-key-2024-02-14.key iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
After successful compression, notice a file that is named
cillium
in the list.
-
-
Run the following command to remove the downloaded compressed file.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ rm cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}
-
Use the Cilium CLI.
-
Run the following command to make the Cilium CLI file executable.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ chmod 777 cilium
-

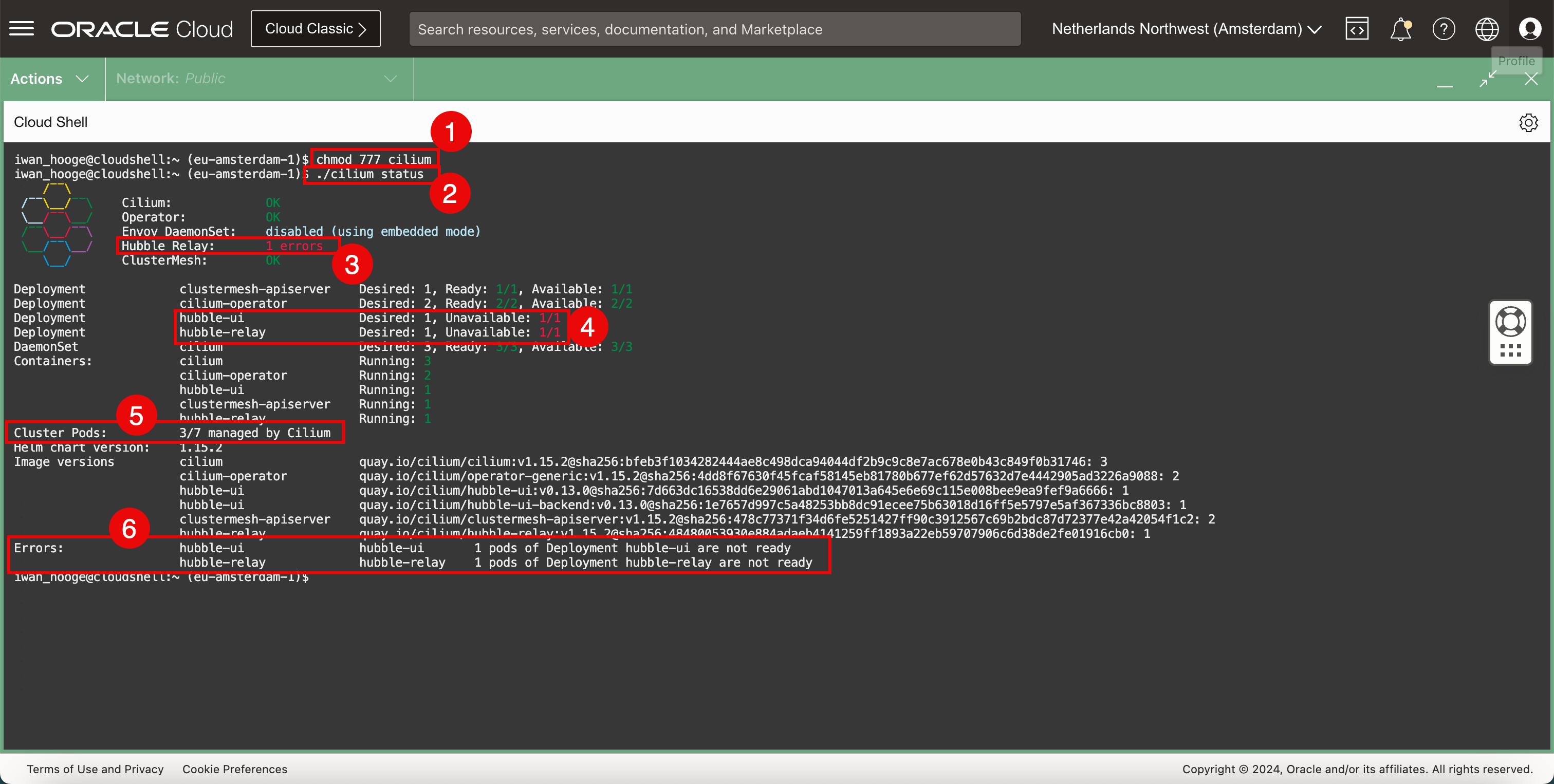

Run the following command to check the status of the Kubernetes cluster with Cilium.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ./cilium status /¯¯\ /¯¯\__/¯¯\ Cilium: OK \__/¯¯\__/ Operator: OK /¯¯\__/¯¯\ Envoy DaemonSet: disabled (using embedded mode) \__/¯¯\__/ Hubble Relay: 1 errors \__/ ClusterMesh: OK Deployment clustermesh-apiserver Desired: 1, Ready: 1/1, Available: 1/1 Deployment cilium-operator Desired: 2, Ready: 2/2, Available: 2/2 Deployment hubble-ui Desired: 1, Unavailable: 1/1 Deployment hubble-relay Desired: 1, Unavailable: 1/1 DaemonSet cilium Desired: 3, Ready: 3/3, Available: 3/3 Containers: cilium Running: 3 cilium-operator Running: 2 hubble-ui Running: 1 clustermesh-apiserver Running: 1 hubble-relay Running: 1 Cluster Pods: 3/7 managed by Cilium Helm chart version: 1.15.2 Image versions cilium quay.io/cilium/cilium:v1.15.2@sha256:bfeb3f1034282444ae8c498dca94044df2b9c9c8e7ac678e0b43c849f0b31746: 3 cilium-operator quay.io/cilium/operator-generic:v1.15.2@sha256:4dd8f67630f45fcaf58145eb81780b677ef62d57632d7e4442905ad3226a9088: 2 hubble-ui quay.io/cilium/hubble-ui:v0.13.0@sha256:7d663dc16538dd6e29061abd1047013a645e6e69c115e008bee9ea9fef9a6666: 1 hubble-ui quay.io/cilium/hubble-ui-backend:v0.13.0@sha256:1e7657d997c5a48253bb8dc91ecee75b63018d16ff5e5797e5af367336bc8803: 1 clustermesh-apiserver quay.io/cilium/clustermesh-apiserver:v1.15.2@sha256:478c77371f34d6fe5251427ff90c3912567c69b2bdc87d72377e42a42054f1c2: 2 hubble-relay quay.io/cilium/hubble-relay:v1.15.2@sha256:48480053930e884adaeb4141259ff1893a22eb59707906c6d38de2fe01916cb0: 1 Errors: hubble-ui hubble-ui 1 pods of Deployment hubble-ui are not ready hubble-relay hubble-relay 1 pods of Deployment hubble-relay are not ready iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
Note: You will get some errors because some pods are not yet managed by Cilium as the pod started before Cilium was running.
-
This error is related to ClusterMesh.
-
This error is related to Hubble UI and Hubble Relay.
-
Notice that not all Cluster pods are managed by Cilium. Only 3/7 pods are managed by Cilium. We need to ensure all of them are managed by Cilium.
-
Notice some additional error messages related to the above errors.
-
-
Check and allocate the pods that are currently not managed by Cilium. Cilium provides a script to help you identify them.
-

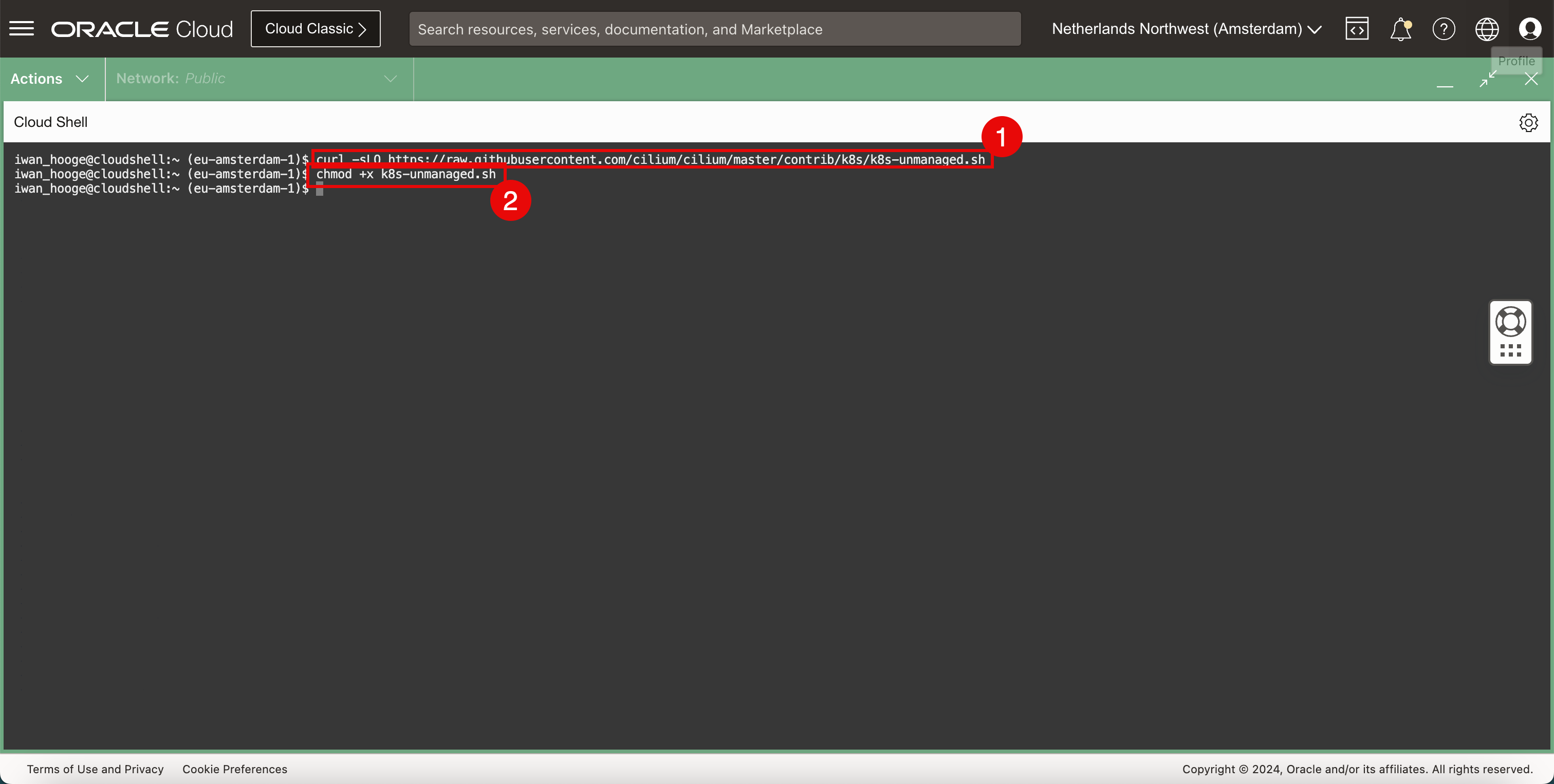

Run the following command to download the script.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ curl -sLO https://raw.githubusercontent.com/cilium/cilium/master/contrib/k8s/k8s-unmanaged.sh
-
Run the following command to make this script executable.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ chmod +x k8s-unmanaged.sh
-
Run the following command to execute this script and to detect pods that need additional attention.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ./k8s-unmanaged.sh Skipping pods with host networking enabled or with status not in Running or Pending phase... kube-system/clustermesh-apiserver-664b6c9c84-p49tr kube-system/hubble-relay-58d6b4cc94-kdwl4 kube-system/hubble-ui-6548d56557-w9s6t kube-system/kube-dns-autoscaler-d8d55cddd-pbfql iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the pods that need attention.
-

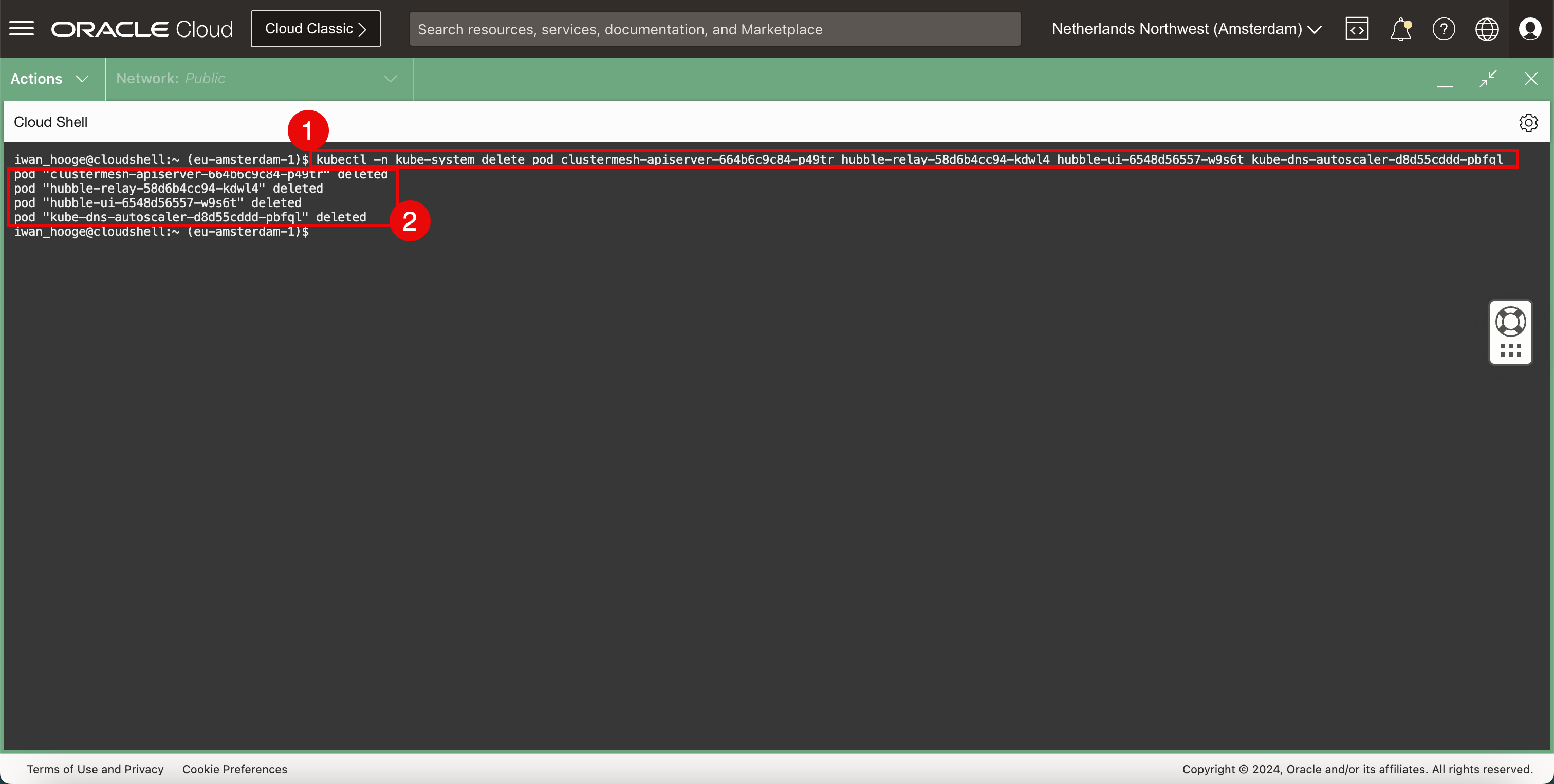

Run the following command to delete the pods that need attention.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl -n kube-system delete pod clustermesh-apiserver-664b6c9c84-p49tr hubble-relay-58d6b4cc94-kdwl4 hubble-ui-6548d56557-w9s6t kube-dns-autoscaler-d8d55cddd-pbfql pod "clustermesh-apiserver-664b6c9c84-p49tr" deleted pod "hubble-relay-58d6b4cc94-kdwl4" deleted pod "hubble-ui-6548d56557-w9s6t" deleted pod "kube-dns-autoscaler-d8d55cddd-pbfql" deleted iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
The confirmation of the deleted pods.
-
-

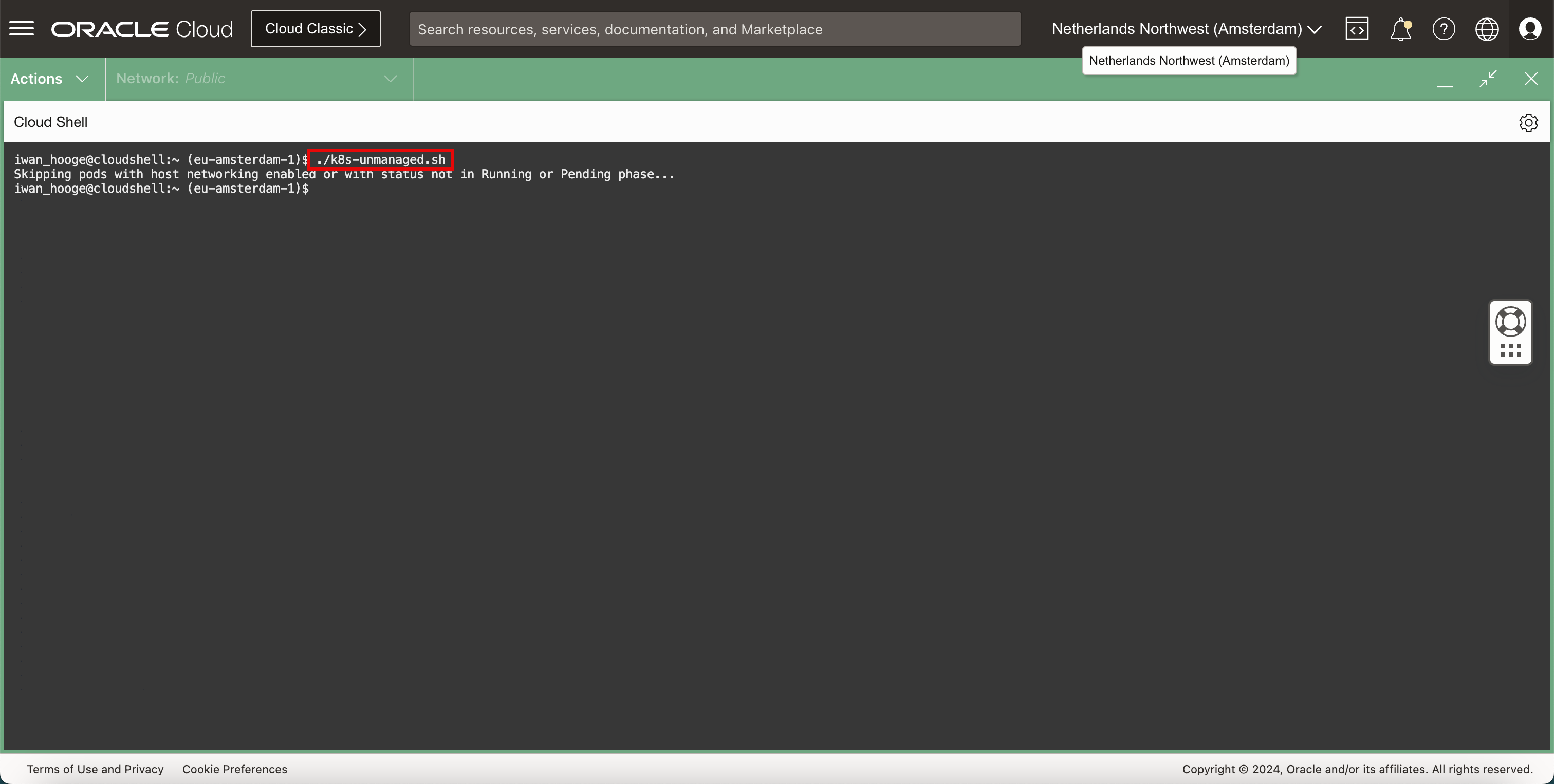

Run the following command to execute this script and to detect pods that need additional attention again.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ./k8s-unmanaged.sh Skipping pods with host networking enabled or with status not in Running or Pending phase... iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that there are no pods that need attention anymore which means the pods are now recreated with Cilium networking enabled.
-
Check the status of the Kubernetes cluster with Cilium.
-

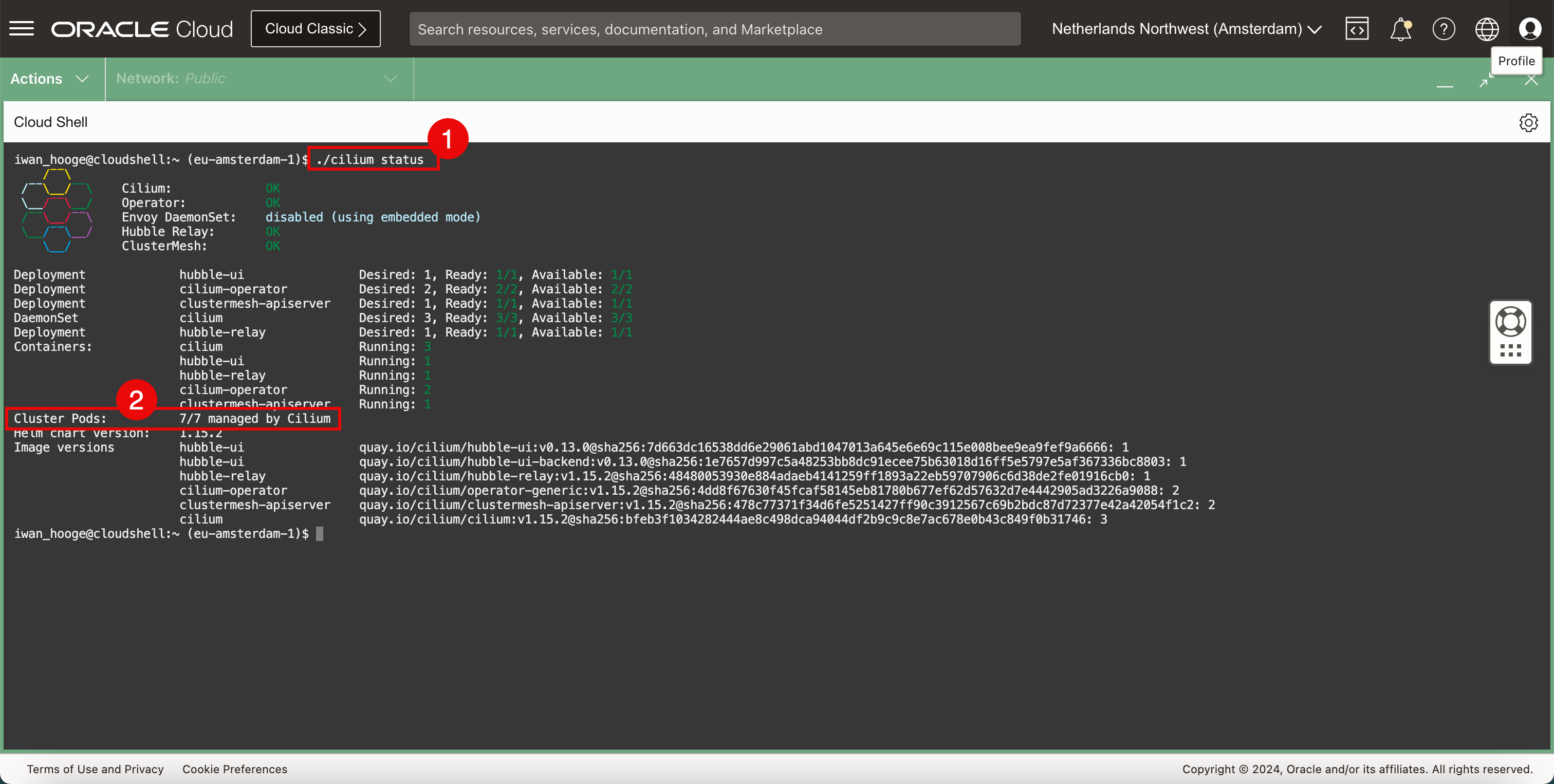

Run the following command to check the status of the Kubernetes cluster with Cilium.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ./cilium status /¯¯\ /¯¯\__/¯¯\ Cilium: OK \__/¯¯\__/ Operator: OK /¯¯\__/¯¯\ Envoy DaemonSet: disabled (using embedded mode) \__/¯¯\__/ Hubble Relay: OK \__/ ClusterMesh: OK Deployment hubble-ui Desired: 1, Ready: 1/1, Available: 1/1 Deployment cilium-operator Desired: 2, Ready: 2/2, Available: 2/2 Deployment clustermesh-apiserver Desired: 1, Ready: 1/1, Available: 1/1 DaemonSet cilium Desired: 3, Ready: 3/3, Available: 3/3 Deployment hubble-relay Desired: 1, Ready: 1/1, Available: 1/1 Containers: cilium Running: 3 hubble-ui Running: 1 hubble-relay Running: 1 cilium-operator Running: 2 clustermesh-apiserver Running: 1 Cluster Pods: 7/7 managed by Cilium Helm chart version: 1.15.2 Image versions hubble-ui quay.io/cilium/hubble-ui:v0.13.0@sha256:7d663dc16538dd6e29061abd1047013a645e6e69c115e008bee9ea9fef9a6666: 1 hubble-ui quay.io/cilium/hubble-ui-backend:v0.13.0@sha256:1e7657d997c5a48253bb8dc91ecee75b63018d16ff5e5797e5af367336bc8803: 1 hubble-relay quay.io/cilium/hubble-relay:v1.15.2@sha256:48480053930e884adaeb4141259ff1893a22eb59707906c6d38de2fe01916cb0: 1 cilium-operator quay.io/cilium/operator-generic:v1.15.2@sha256:4dd8f67630f45fcaf58145eb81780b677ef62d57632d7e4442905ad3226a9088: 2 clustermesh-apiserver quay.io/cilium/clustermesh-apiserver:v1.15.2@sha256:478c77371f34d6fe5251427ff90c3912567c69b2bdc87d72377e42a42054f1c2: 2 cilium quay.io/cilium/cilium:v1.15.2@sha256:bfeb3f1034282444ae8c498dca94044df2b9c9c8e7ac678e0b43c849f0b31746: 3 iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-

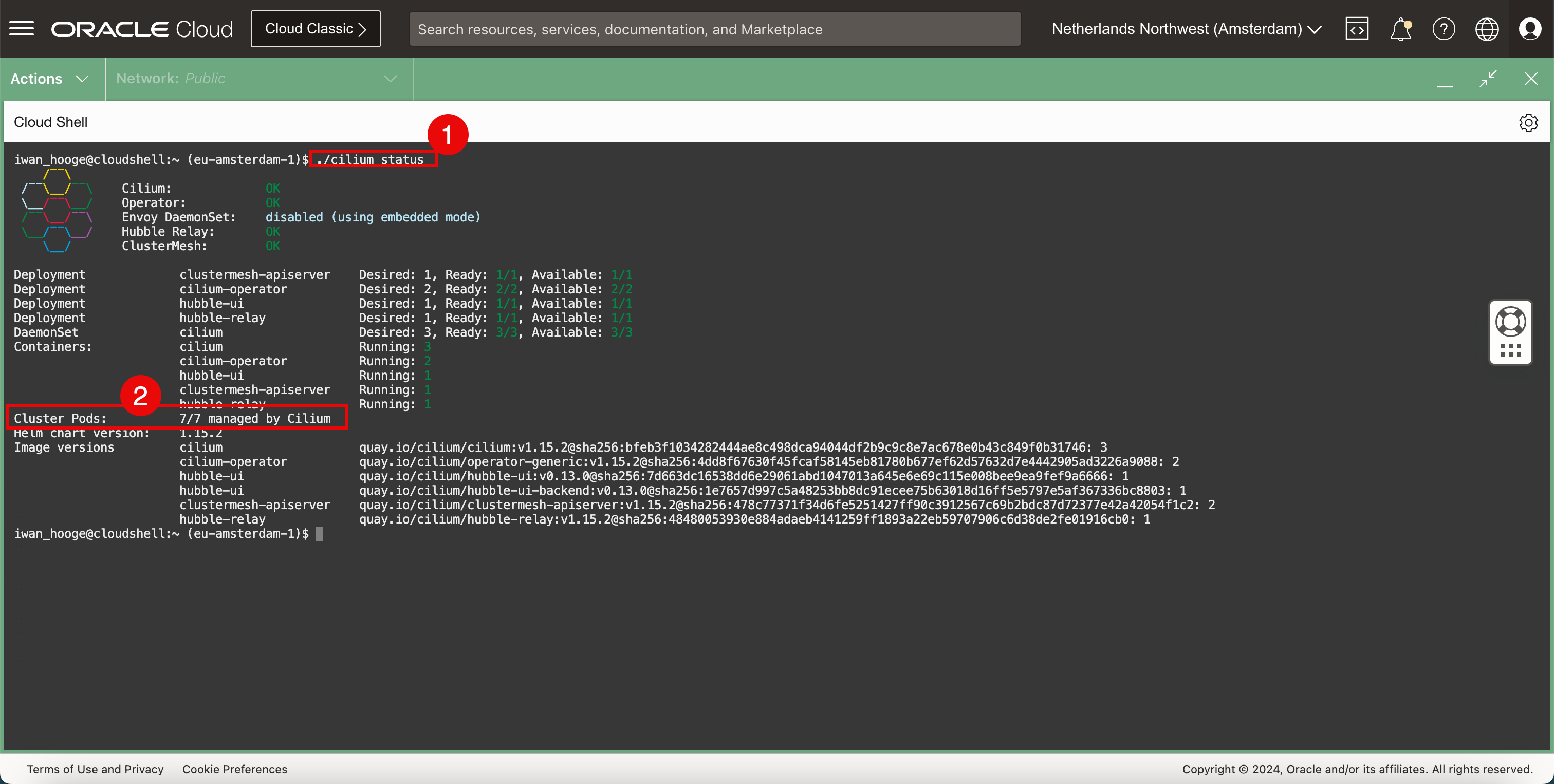

Notice that all cluster pods are managed by Cilium.
-
-
Verify the currently deployed CNI plugins.
-
Run the following command to verify the currently deployed CNI plugins (Flannel and Cilium).
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get all -n kube-system NAME READY STATUS RESTARTS AGE pod/cilium-operator-5995454695-8c6m4 1/1 Running 0 33m pod/cilium-operator-5995454695-s28sl 1/1 Running 0 33m pod/cilium-v8phg 1/1 Running 0 33m pod/cilium-vnfng 1/1 Running 0 33m pod/cilium-w8qq9 1/1 Running 0 33m pod/clustermesh-apiserver-664b6c9c84-4gvrp 1/2 Error 1 (77s ago) 2m29s pod/coredns-69c9994dbb-c2v77 1/1 Running 0 33m pod/coredns-69c9994dbb-kjdxp 1/1 Running 0 33m pod/coredns-69c9994dbb-sqv8t 1/1 Running 0 32m pod/csi-oci-node-h57qv 1/1 Running 1 (22h ago) 22h pod/csi-oci-node-nfrnw 1/1 Running 0 22h pod/csi-oci-node-pjqwk 1/1 Running 0 22h pod/hubble-relay-58d6b4cc94-lrjls 1/1 Running 0 2m29s pod/hubble-ui-6548d56557-hnt2d 2/2 Running 0 2m29s pod/kube-dns-autoscaler-d8d55cddd-n5zv5 1/1 Running 0 2m29s pod/kube-flannel-ds-9tc92 1/1 Running 1 (22h ago) 22h pod/kube-flannel-ds-b8dch 1/1 Running 1 (22h ago) 22h pod/kube-flannel-ds-lbvw9 1/1 Running 0 22h pod/kube-proxy-2stzh 1/1 Running 0 22h pod/kube-proxy-8t6j4 1/1 Running 0 22h pod/kube-proxy-jxx6c 1/1 Running 0 22h pod/proxymux-client-cmmxv 1/1 Running 0 22h pod/proxymux-client-kk9bh 1/1 Running 0 22h pod/proxymux-client-mn4k9 1/1 Running 0 22h NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/clustermesh-apiserver NodePort 10.96.181.249 <none> 2379:32379/TCP 33m service/clustermesh-apiserver-metrics ClusterIP None <none> 9962/TCP,9963/TCP 33m service/hubble-peer ClusterIP 10.96.249.93 <none> 80/TCP 33m service/hubble-relay ClusterIP 10.96.172.180 <none> 80/TCP 33m service/hubble-ui ClusterIP 10.96.119.250 <none> 80/TCP 33m service/kube-dns ClusterIP 10.96.5.5 <none> 53/UDP,53/TCP,9153/TCP 22h NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE daemonset.apps/cilium 3 3 3 3 3 kubernetes.io/os=linux 33m daemonset.apps/csi-oci-node 3 3 3 3 3 <none> 22h daemonset.apps/kube-flannel-ds 3 3 3 3 3 <none> 22h daemonset.apps/kube-proxy 3 3 3 3 3 beta.kubernetes.io/os=linux 22h daemonset.apps/node-termination-handler 0 0 0 0 0 oci.oraclecloud.com/oke-is-preemptible=true 22h daemonset.apps/nvidia-gpu-device-plugin 0 0 0 0 0 <none> 22h daemonset.apps/proxymux-client 3 3 3 3 3 node.info.ds_proxymux_client=true 22h NAME READY UP-TO-DATE AVAILABLE AGE deployment.apps/cilium-operator 2/2 2 2 33m deployment.apps/clustermesh-apiserver 0/1 1 0 33m deployment.apps/coredns 3/3 3 3 22h deployment.apps/hubble-relay 1/1 1 1 33m deployment.apps/hubble-ui 1/1 1 1 33m deployment.apps/kube-dns-autoscaler 1/1 1 1 22h NAME DESIRED CURRENT READY AGE replicaset.apps/cilium-operator-5995454695 2 2 2 33m replicaset.apps/clustermesh-apiserver-664b6c9c84 1 1 0 33m replicaset.apps/coredns-69c9994dbb 3 3 3 22h replicaset.apps/hubble-relay-58d6b4cc94 1 1 1 33m replicaset.apps/hubble-ui-6548d56557 1 1 1 33m replicaset.apps/kube-dns-autoscaler-d8d55cddd 1 1 1 22h iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the Cilium CNI plugin is present.
-
Notice that the Flannel CNI plugin is also present.

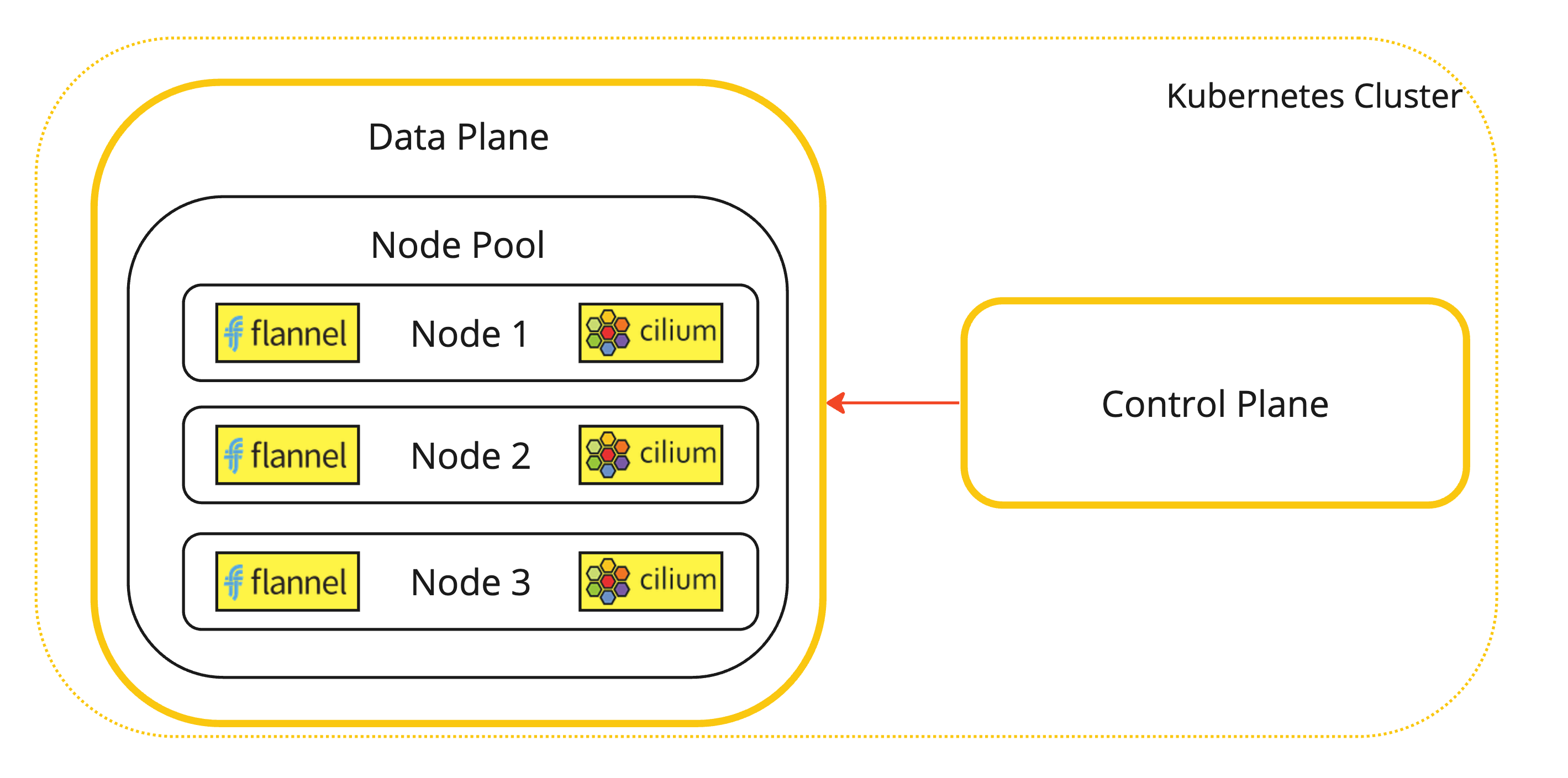

This is a visual representation of the Kubernetes worker nodes with the Flannel and Cilium CNI plugin installed.
-
-
Delete the Flannel CNI plugin.
-

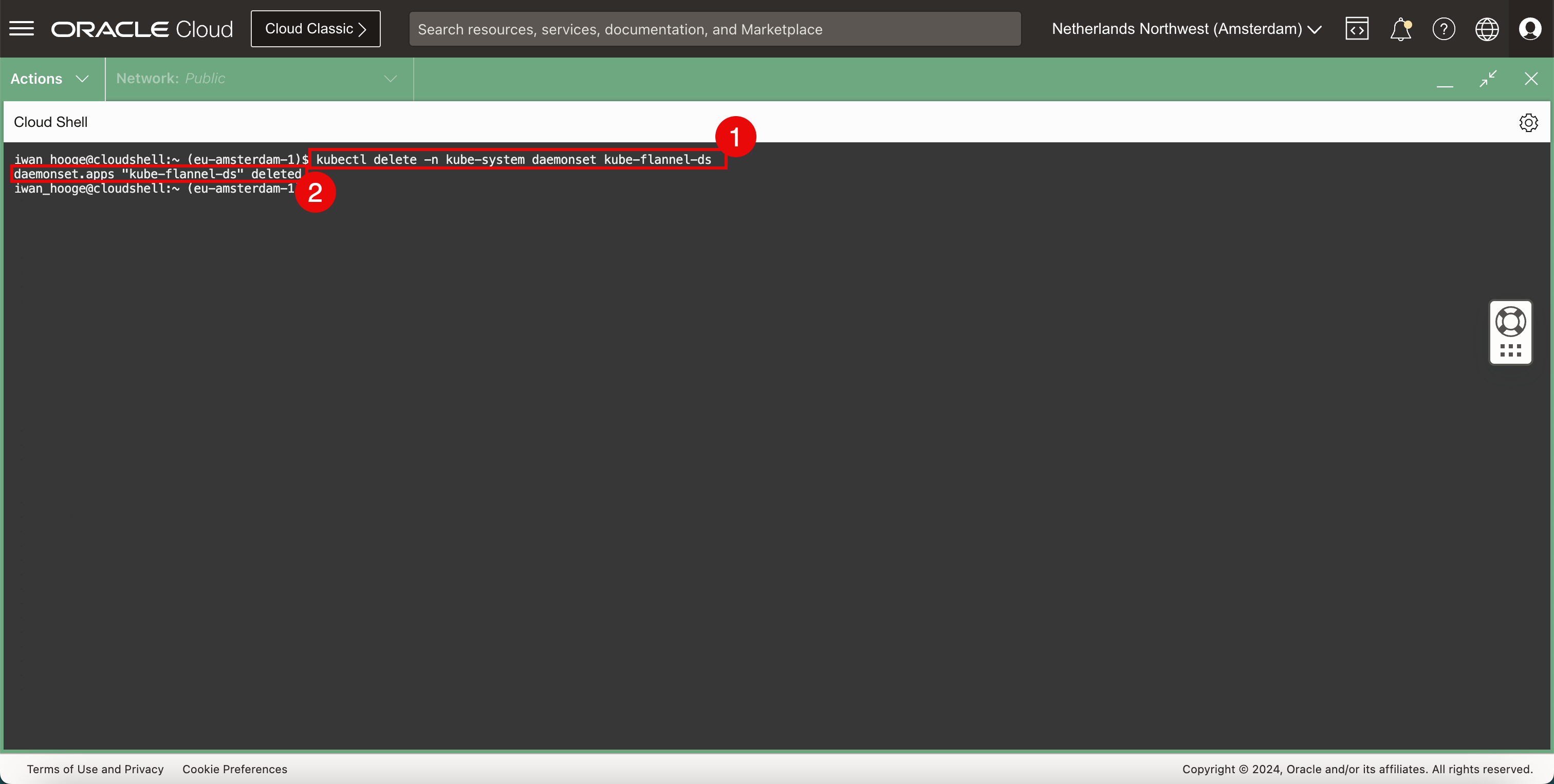

Run the following command to delete the Flannel CNI plugin.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl delete -n kube-system daemonset kube-flannel-ds daemonset.apps "kube-flannel-ds" deleted iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice the message that the Flannel CNI plugin has been successfully deleted.
-
-
Verify the currently deployed CNI plugins.
-
Run the following command to verify the currently deployed CNI plugins (Cilium).

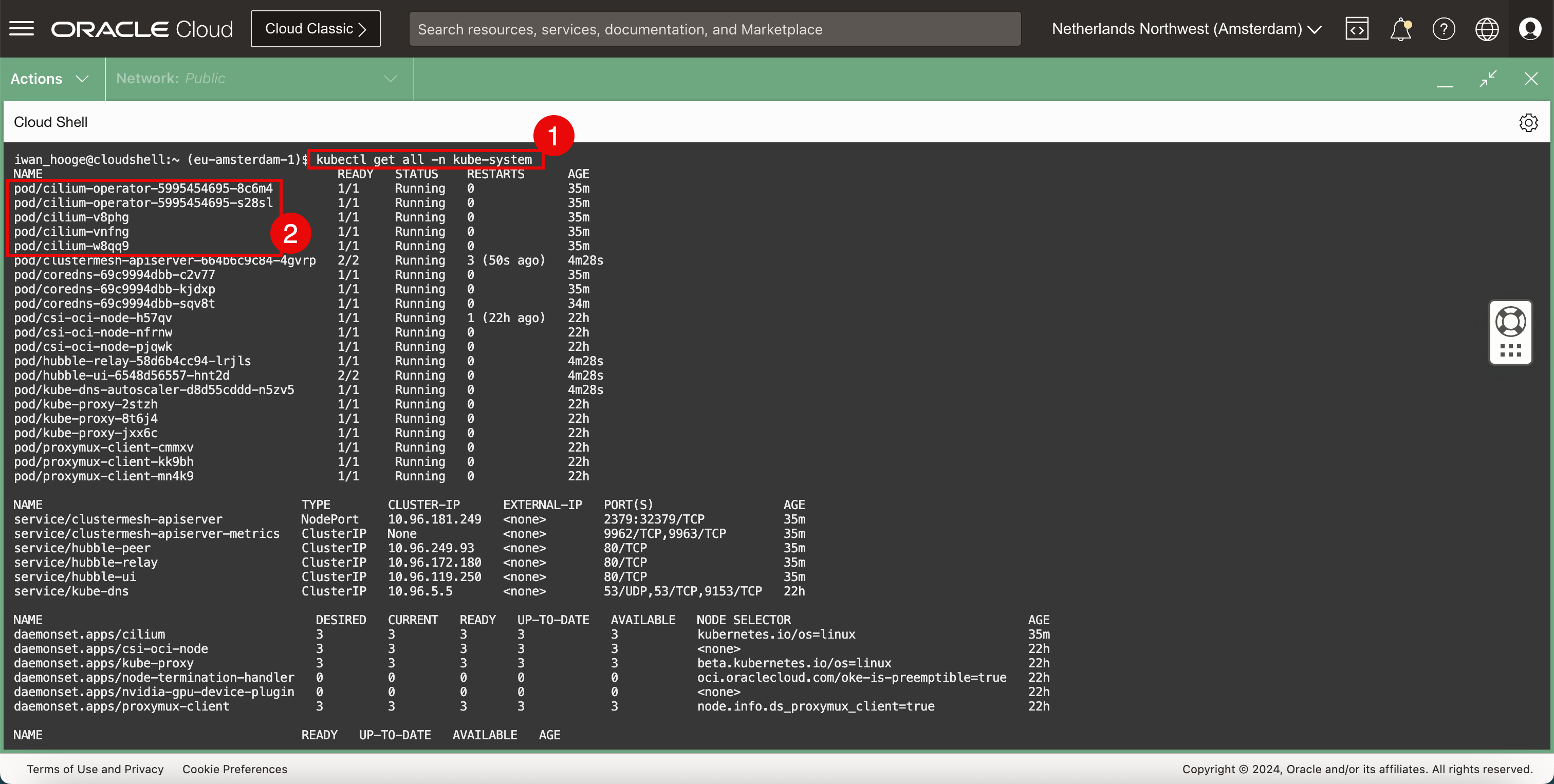

iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get all -n kube-system NAME READY STATUS RESTARTS AGE pod/cilium-operator-5995454695-8c6m4 1/1 Running 0 35m pod/cilium-operator-5995454695-s28sl 1/1 Running 0 35m pod/cilium-v8phg 1/1 Running 0 35m pod/cilium-vnfng 1/1 Running 0 35m pod/cilium-w8qq9 1/1 Running 0 35m pod/clustermesh-apiserver-664b6c9c84-4gvrp 2/2 Running 3 (50s ago) 4m28s pod/coredns-69c9994dbb-c2v77 1/1 Running 0 35m pod/coredns-69c9994dbb-kjdxp 1/1 Running 0 35m pod/coredns-69c9994dbb-sqv8t 1/1 Running 0 34m pod/csi-oci-node-h57qv 1/1 Running 1 (22h ago) 22h pod/csi-oci-node-nfrnw 1/1 Running 0 22h pod/csi-oci-node-pjqwk 1/1 Running 0 22h pod/hubble-relay-58d6b4cc94-lrjls 1/1 Running 0 4m28s pod/hubble-ui-6548d56557-hnt2d 2/2 Running 0 4m28s pod/kube-dns-autoscaler-d8d55cddd-n5zv5 1/1 Running 0 4m28s pod/kube-proxy-2stzh 1/1 Running 0 22h pod/kube-proxy-8t6j4 1/1 Running 0 22h pod/kube-proxy-jxx6c 1/1 Running 0 22h pod/proxymux-client-cmmxv 1/1 Running 0 22h pod/proxymux-client-kk9bh 1/1 Running 0 22h pod/proxymux-client-mn4k9 1/1 Running 0 22h NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/clustermesh-apiserver NodePort 10.96.181.249 <none> 2379:32379/TCP 35m service/clustermesh-apiserver-metrics ClusterIP None <none> 9962/TCP,9963/TCP 35m service/hubble-peer ClusterIP 10.96.249.93 <none> 80/TCP 35m service/hubble-relay ClusterIP 10.96.172.180 <none> 80/TCP 35m service/hubble-ui ClusterIP 10.96.119.250 <none> 80/TCP 35m service/kube-dns ClusterIP 10.96.5.5 <none> 53/UDP,53/TCP,9153/TCP 22h NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE daemonset.apps/cilium 3 3 3 3 3 kubernetes.io/os=linux 35m daemonset.apps/csi-oci-node 3 3 3 3 3 <none> 22h daemonset.apps/kube-proxy 3 3 3 3 3 beta.kubernetes.io/os=linux 22h daemonset.apps/node-termination-handler 0 0 0 0 0 oci.oraclecloud.com/oke-is-preemptible=true 22h daemonset.apps/nvidia-gpu-device-plugin 0 0 0 0 0 <none> 22h daemonset.apps/proxymux-client 3 3 3 3 3 node.info.ds_proxymux_client=true 22h NAME READY UP-TO-DATE AVAILABLE AGE deployment.apps/cilium-operator 2/2 2 2 35m deployment.apps/clustermesh-apiserver 1/1 1 1 35m deployment.apps/coredns 3/3 3 3 22h deployment.apps/hubble-relay 1/1 1 1 35m deployment.apps/hubble-ui 1/1 1 1 35m deployment.apps/kube-dns-autoscaler 1/1 1 1 22h NAME DESIRED CURRENT READY AGE replicaset.apps/cilium-operator-5995454695 2 2 2 35m replicaset.apps/clustermesh-apiserver-664b6c9c84 1 1 1 35m replicaset.apps/coredns-69c9994dbb 3 3 3 22h replicaset.apps/hubble-relay-58d6b4cc94 1 1 1 35m replicaset.apps/hubble-ui-6548d56557 1 1 1 35m replicaset.apps/kube-dns-autoscaler-d8d55cddd 1 1 1 22h iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the Cilium CNI plugin is present and Flannel CNI plugin is removed.

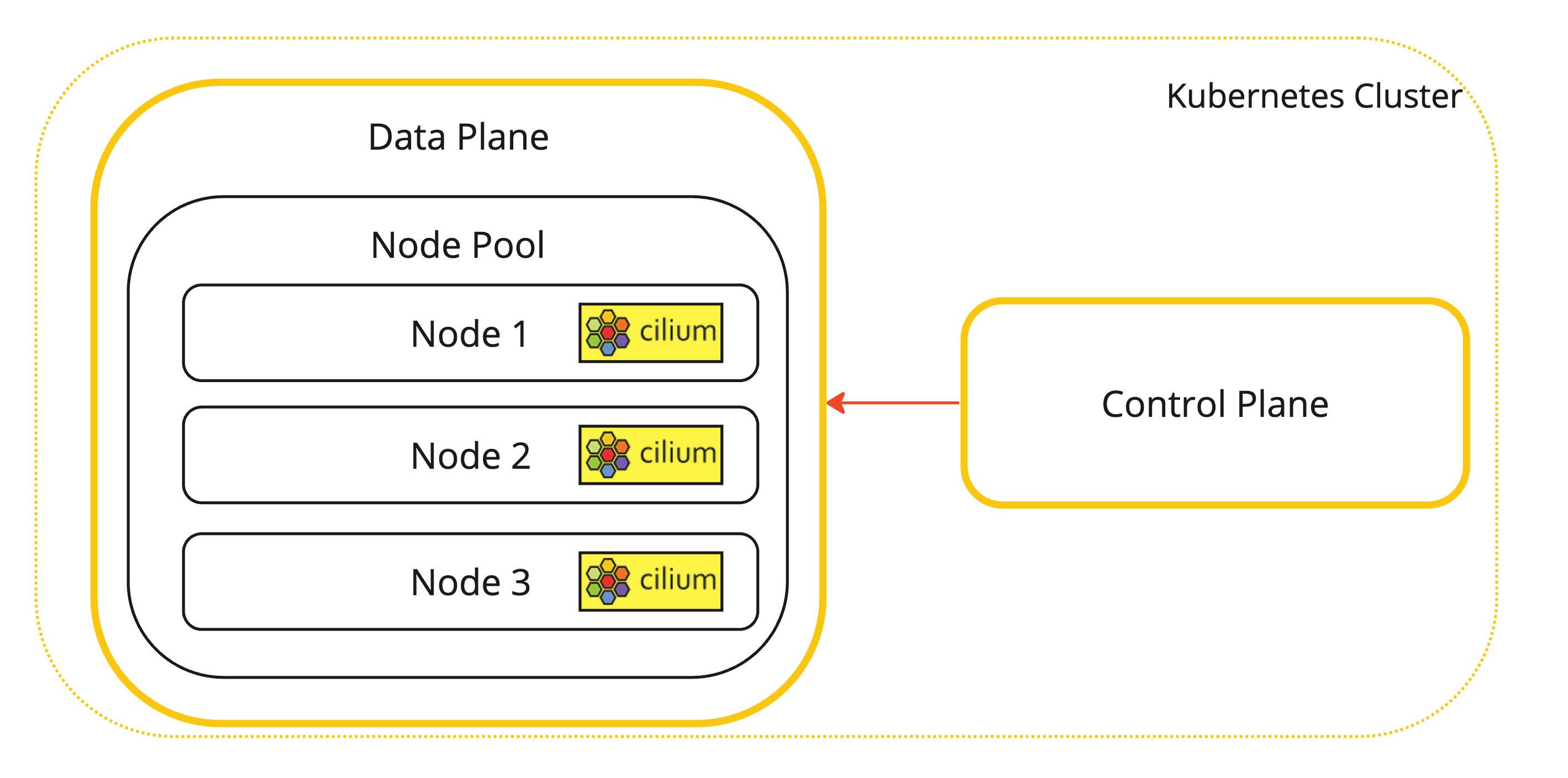

This is a visual representation of the Kubernetes worker nodes with the Cilium CNI plugin installed.
-
-
Additional command that can be used to verify where Cilium is installed.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl -n kube-system get pods -l k8s-app=cilium NAME READY STATUS RESTARTS AGE cilium-v8phg 1/1 Running 0 22h cilium-vnfng 1/1 Running 0 22h cilium-w8qq9 1/1 Running 0 22h iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Check the status of the Kubernetes cluster with Cilium.
-
Run the following command to check the status of the Kubernetes cluster with Cilium.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ./cilium status /¯¯\ /¯¯\__/¯¯\ Cilium: OK \__/¯¯\__/ Operator: OK /¯¯\__/¯¯\ Envoy DaemonSet: disabled (using embedded mode) \__/¯¯\__/ Hubble Relay: OK \__/ ClusterMesh: OK Deployment clustermesh-apiserver Desired: 1, Ready: 1/1, Available: 1/1 Deployment cilium-operator Desired: 2, Ready: 2/2, Available: 2/2 Deployment hubble-ui Desired: 1, Ready: 1/1, Available: 1/1 Deployment hubble-relay Desired: 1, Ready: 1/1, Available: 1/1 DaemonSet cilium Desired: 3, Ready: 3/3, Available: 3/3 Containers: cilium Running: 3 cilium-operator Running: 2 hubble-ui Running: 1 clustermesh-apiserver Running: 1 hubble-relay Running: 1 Cluster Pods: 7/7 managed by Cilium Helm chart version: 1.15.2 Image versions cilium quay.io/cilium/cilium:v1.15.2@sha256:bfeb3f1034282444ae8c498dca94044df2b9c9c8e7ac678e0b43c849f0b31746: 3 cilium-operator quay.io/cilium/operator-generic:v1.15.2@sha256:4dd8f67630f45fcaf58145eb81780b677ef62d57632d7e4442905ad3226a9088: 2 hubble-ui quay.io/cilium/hubble-ui:v0.13.0@sha256:7d663dc16538dd6e29061abd1047013a645e6e69c115e008bee9ea9fef9a6666: 1 hubble-ui quay.io/cilium/hubble-ui-backend:v0.13.0@sha256:1e7657d997c5a48253bb8dc91ecee75b63018d16ff5e5797e5af367336bc8803: 1 clustermesh-apiserver quay.io/cilium/clustermesh-apiserver:v1.15.2@sha256:478c77371f34d6fe5251427ff90c3912567c69b2bdc87d72377e42a42054f1c2: 2 hubble-relay quay.io/cilium/hubble-relay:v1.15.2@sha256:48480053930e884adaeb4141259ff1893a22eb59707906c6d38de2fe01916cb0: 1 iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that all cluster pods are managed by Cilium.
-
-

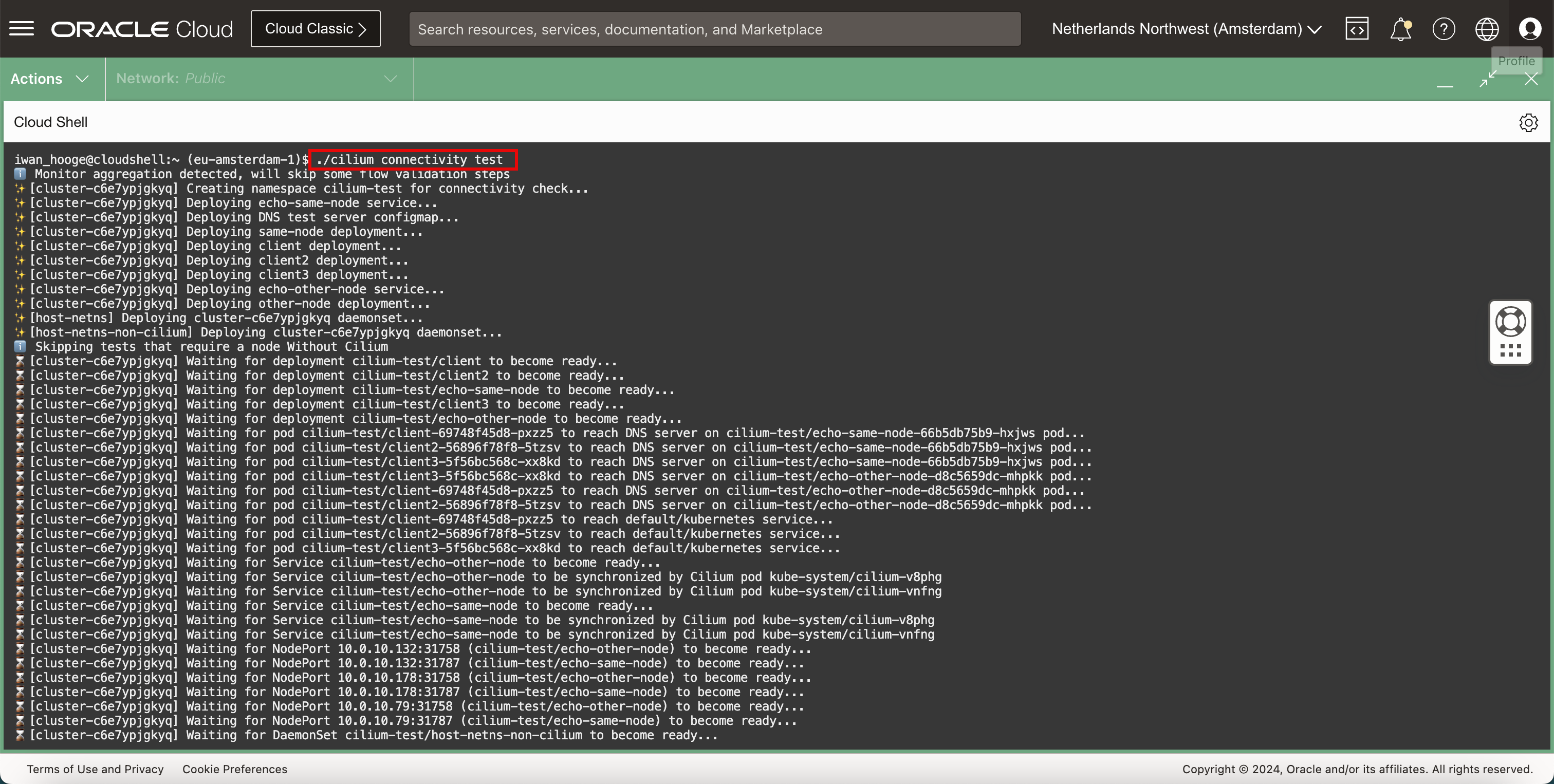

Cilium has a built-in connectivity test that is capable of testing networking inside the Kubernetes cluster. Run the following command to perform the Cilium connectivity tests.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ./cilium connectivity test ℹ️ Monitor aggregation detected, will skip some flow validation steps ✨ [cluster-c6e7ypjgkyq] Creating namespace cilium-test for connectivity check... ✨ [cluster-c6e7ypjgkyq] Deploying echo-same-node service... ✨ [cluster-c6e7ypjgkyq] Deploying DNS test server configmap... ✨ [cluster-c6e7ypjgkyq] Deploying same-node deployment... ✨ [cluster-c6e7ypjgkyq] Deploying client deployment... ✨ [cluster-c6e7ypjgkyq] Deploying client2 deployment... ✨ [cluster-c6e7ypjgkyq] Deploying client3 deployment... ✨ [cluster-c6e7ypjgkyq] Deploying echo-other-node service... ✨ [cluster-c6e7ypjgkyq] Deploying other-node deployment... ✨ [host-netns] Deploying cluster-c6e7ypjgkyq daemonset... ✨ [host-netns-non-cilium] Deploying cluster-c6e7ypjgkyq daemonset... ℹ️ Skipping tests that require a node Without Cilium ⌛ [cluster-c6e7ypjgkyq] Waiting for deployment cilium-test/client to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for deployment cilium-test/client2 to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for deployment cilium-test/echo-same-node to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for deployment cilium-test/client3 to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for deployment cilium-test/echo-other-node to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client-69748f45d8-pxzz5 to reach DNS server on cilium-test/echo-same-node-66b5db75b9-hxjws pod... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client2-56896f78f8-5tzsv to reach DNS server on cilium-test/echo-same-node-66b5db75b9-hxjws pod... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client3-5f56bc568c-xx8kd to reach DNS server on cilium-test/echo-same-node-66b5db75b9-hxjws pod... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client3-5f56bc568c-xx8kd to reach DNS server on cilium-test/echo-other-node-d8c5659dc-mhpkk pod... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client-69748f45d8-pxzz5 to reach DNS server on cilium-test/echo-other-node-d8c5659dc-mhpkk pod... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client2-56896f78f8-5tzsv to reach DNS server on cilium-test/echo-other-node-d8c5659dc-mhpkk pod... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client-69748f45d8-pxzz5 to reach default/kubernetes service... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client2-56896f78f8-5tzsv to reach default/kubernetes service... ⌛ [cluster-c6e7ypjgkyq] Waiting for pod cilium-test/client3-5f56bc568c-xx8kd to reach default/kubernetes service... ⌛ [cluster-c6e7ypjgkyq] Waiting for Service cilium-test/echo-other-node to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for Service cilium-test/echo-other-node to be synchronized by Cilium pod kube-system/cilium-v8phg ⌛ [cluster-c6e7ypjgkyq] Waiting for Service cilium-test/echo-other-node to be synchronized by Cilium pod kube-system/cilium-vnfng ⌛ [cluster-c6e7ypjgkyq] Waiting for Service cilium-test/echo-same-node to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for Service cilium-test/echo-same-node to be synchronized by Cilium pod kube-system/cilium-v8phg ⌛ [cluster-c6e7ypjgkyq] Waiting for Service cilium-test/echo-same-node to be synchronized by Cilium pod kube-system/cilium-vnfng ⌛ [cluster-c6e7ypjgkyq] Waiting for NodePort 10.0.10.132:31758 (cilium-test/echo-other-node) to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for NodePort 10.0.10.132:31787 (cilium-test/echo-same-node) to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for NodePort 10.0.10.178:31758 (cilium-test/echo-other-node) to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for NodePort 10.0.10.178:31787 (cilium-test/echo-same-node) to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for NodePort 10.0.10.79:31758 (cilium-test/echo-other-node) to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for NodePort 10.0.10.79:31787 (cilium-test/echo-same-node) to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for DaemonSet cilium-test/host-netns-non-cilium to become ready... ⌛ [cluster-c6e7ypjgkyq] Waiting for DaemonSet cilium-test/host-netns to become ready... ℹ️ Skipping IPCache check 🔭 Enabling Hubble telescope... ⚠️ Unable to contact Hubble Relay, disabling Hubble telescope and flow validation: rpc error: code = Unavailable desc = connection error: desc = "transport: Error while dialing: dial tcp 127.0.0.1:4245: connect: connection refused" ℹ️ Expose Relay locally with: cilium hubble enable cilium hubble port-forward& ℹ️ Cilium version: 1.15.2 🏃 Running 75 tests ... [=] Test [no-unexpected-packet-drops] [1/75] ... [=] Test [no-policies] [2/75] ......................................................... [=] Skipping Test [no-policies-from-outside] [3/75] (skipped by condition) [=] Test [no-policies-extra] [4/75] ................................................ [=] Test [allow-all-except-world] [5/75] .................................... [=] Test [client-ingress] [6/75] ...... [=] Test [client-ingress-knp] [7/75] ...... [=] Test [allow-all-with-metrics-check] [8/75] ...... [=] Test [all-ingress-deny] [9/75] ............ [=] Skipping Test [all-ingress-deny-from-outside] [10/75] (skipped by condition) [=] Test [all-ingress-deny-knp] [11/75] ............ [=] Test [all-egress-deny] [12/75] ........................ [=] Test [all-egress-deny-knp] [13/75] ........................ [=] Test [all-entities-deny] [14/75] ............ [=] Test [cluster-entity] [15/75] ... [=] Skipping Test [cluster-entity-multi-cluster] [16/75] (skipped by condition) [=] Test [host-entity-egress] [17/75] .................. [=] Test [host-entity-ingress] [18/75] ...... [=] Test [echo-ingress] [19/75] ...... [=] Skipping Test [echo-ingress-from-outside] [20/75] (skipped by condition) [=] Test [echo-ingress-knp] [21/75] ...... [=] Test [client-ingress-icmp] [22/75] ...... [=] Test [client-egress] [23/75] ...... [=] Test [client-egress-knp] [24/75] ...... [=] Test [client-egress-expression] [25/75] ...... [=] Test [client-egress-expression-knp] [26/75] ...... [=] Test [client-with-service-account-egress-to-echo] [27/75] ...... [=] Test [client-egress-to-echo-service-account] [28/75] ...... [=] Test [to-entities-world] [29/75] ......... [=] Test [to-cidr-external] [30/75] ...... [=] Test [to-cidr-external-knp] [31/75] ...... [=] Skipping Test [from-cidr-host-netns] [32/75] (skipped by condition) [=] Test [echo-ingress-from-other-client-deny] [33/75] .......... [=] Test [client-ingress-from-other-client-icmp-deny] [34/75] ............ [=] Test [client-egress-to-echo-deny] [35/75] ............ [=] Test [client-ingress-to-echo-named-port-deny] [36/75] .... [=] Test [client-egress-to-echo-expression-deny] [37/75] .... [=] Test [client-with-service-account-egress-to-echo-deny] [38/75] .... [=] Test [client-egress-to-echo-service-account-deny] [39/75] .. [=] Test [client-egress-to-cidr-deny] [40/75] ...... [=] Test [client-egress-to-cidr-deny-default] [41/75] ...... [=] Test [health] [42/75] ... [=] Skipping Test [north-south-loadbalancing] [43/75] (Feature node-without-cilium is disabled) [=] Test [pod-to-pod-encryption] [44/75] . [=] Test [node-to-node-encryption] [45/75] ... [=] Skipping Test [egress-gateway] [46/75] (skipped by condition) [=] Skipping Test [egress-gateway-excluded-cidrs] [47/75] (Feature enable-ipv4-egress-gateway is disabled) [=] Skipping Test [pod-to-node-cidrpolicy] [48/75] (Feature cidr-match-nodes is disabled) [=] Skipping Test [north-south-loadbalancing-with-l7-policy] [49/75] (Feature node-without-cilium is disabled) [=] Test [echo-ingress-l7] [50/75] .................. [=] Test [echo-ingress-l7-named-port] [51/75] .................. [=] Test [client-egress-l7-method] [52/75] .................. [=] Test [client-egress-l7] [53/75] ............... [=] Test [client-egress-l7-named-port] [54/75] ............... [=] Skipping Test [client-egress-l7-tls-deny-without-headers] [55/75] (Feature secret-backend-k8s is disabled) [=] Skipping Test [client-egress-l7-tls-headers] [56/75] (Feature secret-backend-k8s is disabled) [=] Skipping Test [client-egress-l7-set-header] [57/75] (Feature secret-backend-k8s is disabled) [=] Skipping Test [echo-ingress-auth-always-fail] [58/75] (Feature mutual-auth-spiffe is disabled) [=] Skipping Test [echo-ingress-mutual-auth-spiffe] [59/75] (Feature mutual-auth-spiffe is disabled) [=] Skipping Test [pod-to-ingress-service] [60/75] (Feature ingress-controller is disabled) [=] Skipping Test [pod-to-ingress-service-deny-all] [61/75] (Feature ingress-controller is disabled) [=] Skipping Test [pod-to-ingress-service-deny-ingress-identity] [62/75] (Feature ingress-controller is disabled) [=] Skipping Test [pod-to-ingress-service-deny-backend-service] [63/75] (Feature ingress-controller is disabled) [=] Skipping Test [pod-to-ingress-service-allow-ingress-identity] [64/75] (Feature ingress-controller is disabled) [=] Skipping Test [outside-to-ingress-service] [65/75] (Feature ingress-controller is disabled) [=] Skipping Test [outside-to-ingress-service-deny-world-identity] [66/75] (Feature ingress-controller is disabled) [=] Skipping Test [outside-to-ingress-service-deny-cidr] [67/75] (Feature ingress-controller is disabled) [=] Skipping Test [outside-to-ingress-service-deny-all-ingress] [68/75] (Feature ingress-controller is disabled) [=] Test [dns-only] [69/75] ............... [=] Test [to-fqdns] [70/75] ............ [=] Skipping Test [pod-to-controlplane-host] [71/75] (skipped by condition) [=] Skipping Test [pod-to-k8s-on-controlplane] [72/75] (skipped by condition) [=] Skipping Test [pod-to-controlplane-host-cidr] [73/75] (skipped by condition) [=] Skipping Test [pod-to-k8s-on-controlplane-cidr] [74/75] (skipped by condition) [=] Test [check-log-errors] [75/75] ............................. ✅ All 47 tests (555 actions) successful, 28 tests skipped, 1 scenarios skipped. iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-

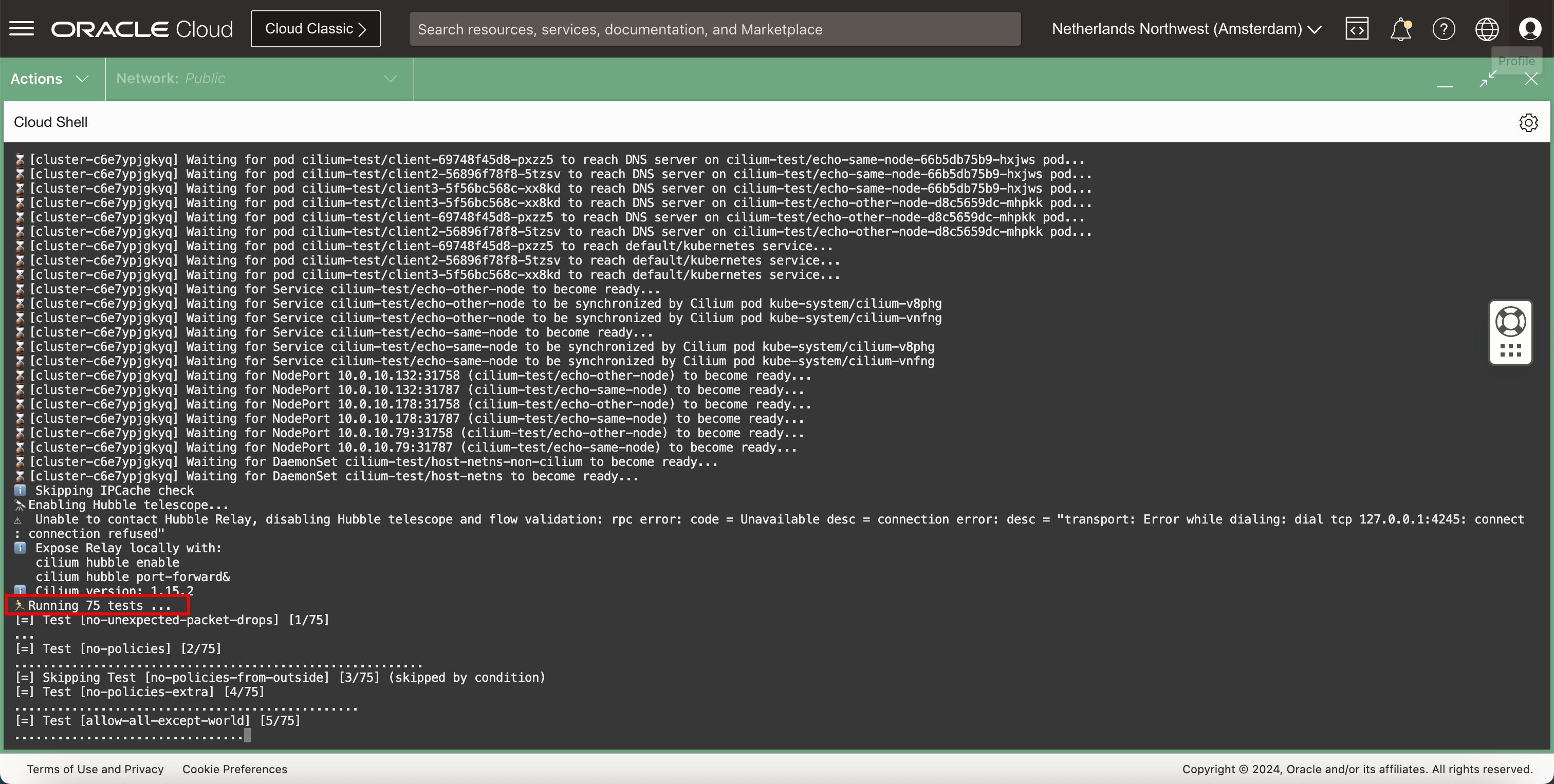

Notice that the test has determined to run 75 tests in this case.
-

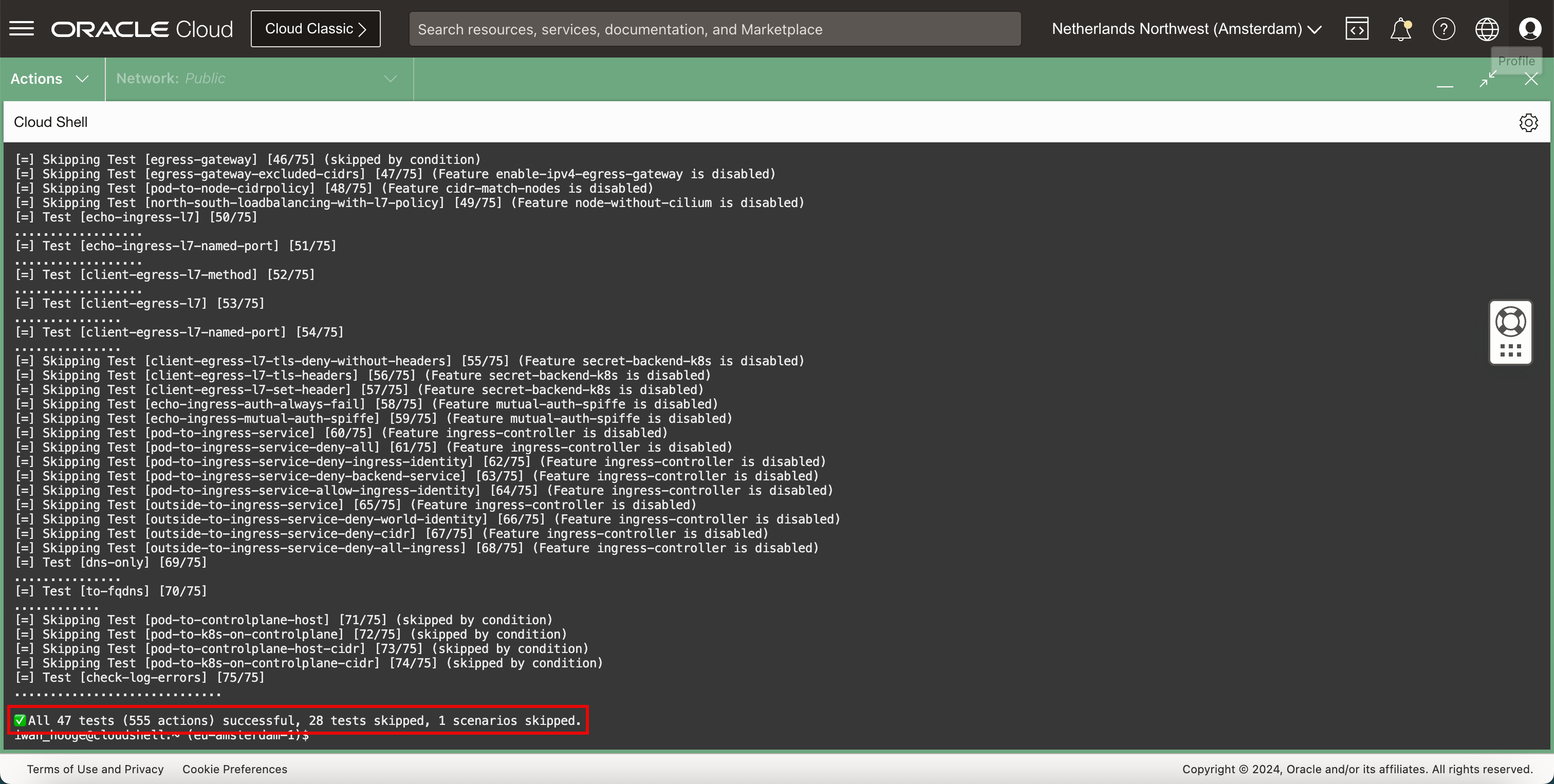

When the tests are finished, a summary will be displayed.
Task 3: Deploy a Sample Web Application and Service
-
Deploy a sample web application and service.
-

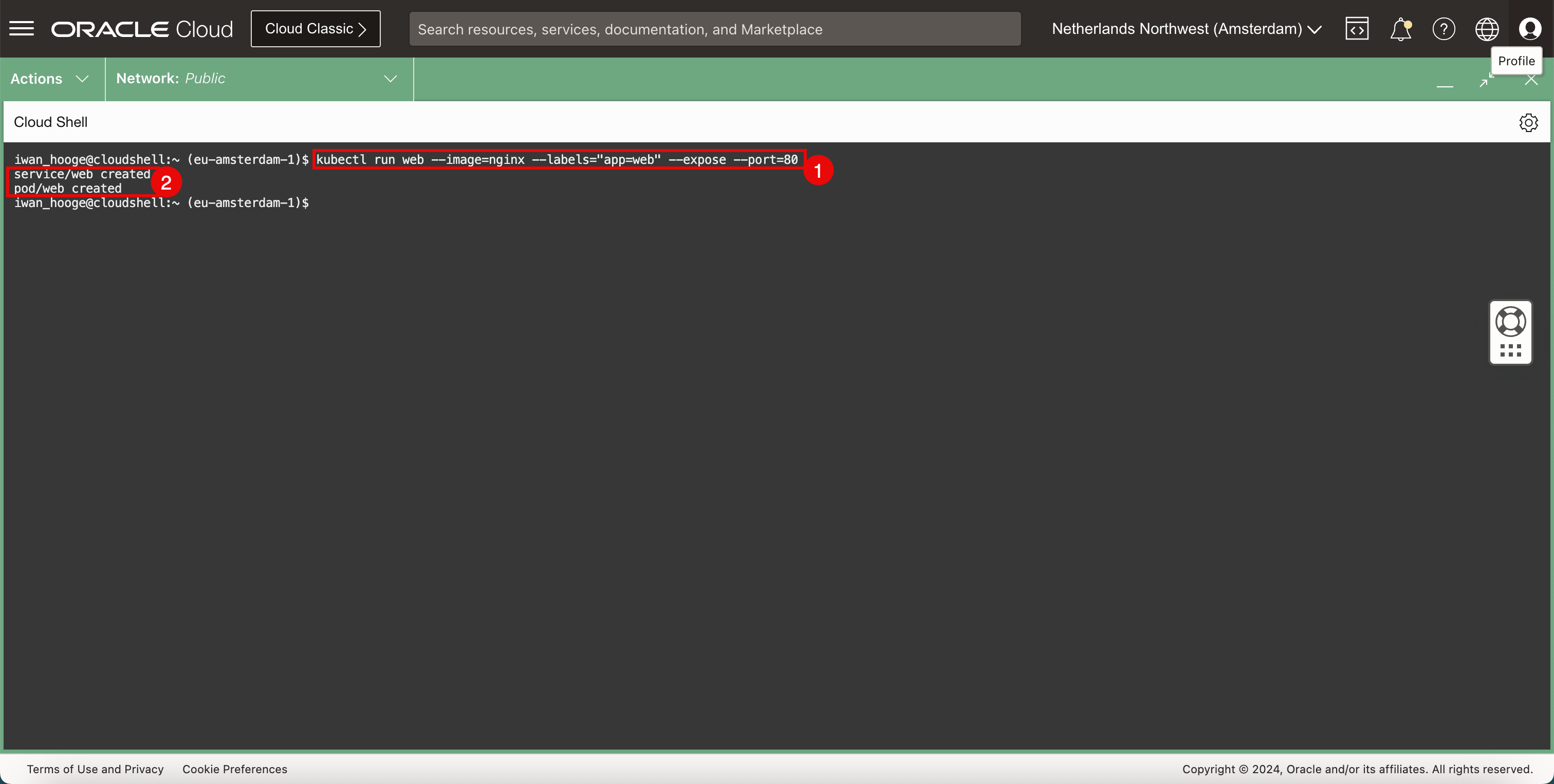

Run the following command to deploy a sample web application and service.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl run web --image=nginx --labels="app=web" --expose --port=80 service/web created pod/web created iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the application and service have been created successfully.
-
-
Verify the deployed application.
-

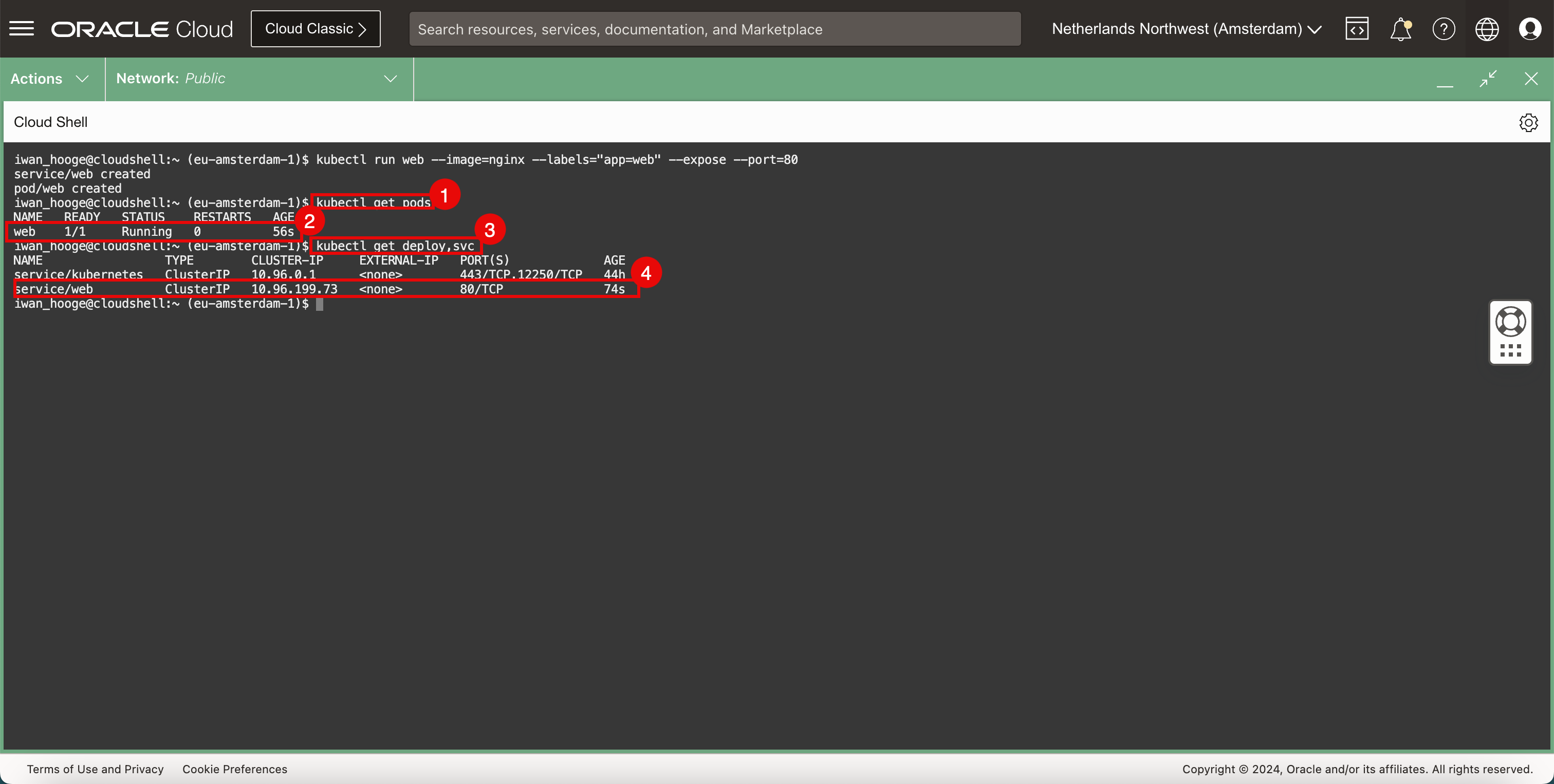

Run the following command to verify the deployed application.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get pods NAME READY STATUS RESTARTS AGE web 1/1 Running 0 56s
-
Notice that the web application is running.
-
Run the following command to verify the deployed service.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get deploy,svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP,12250/TCP 44h service/web ClusterIP 10.96.199.73 <none> 80/TCP 74s
-
Notice that the web service is running.
-
-
There are multiple ways to test connectivity to the application, one way is to open a browser and test if we can access the webpage. but when we do not have a browser available, we can do another quick test by deploying a temporary pod.
-

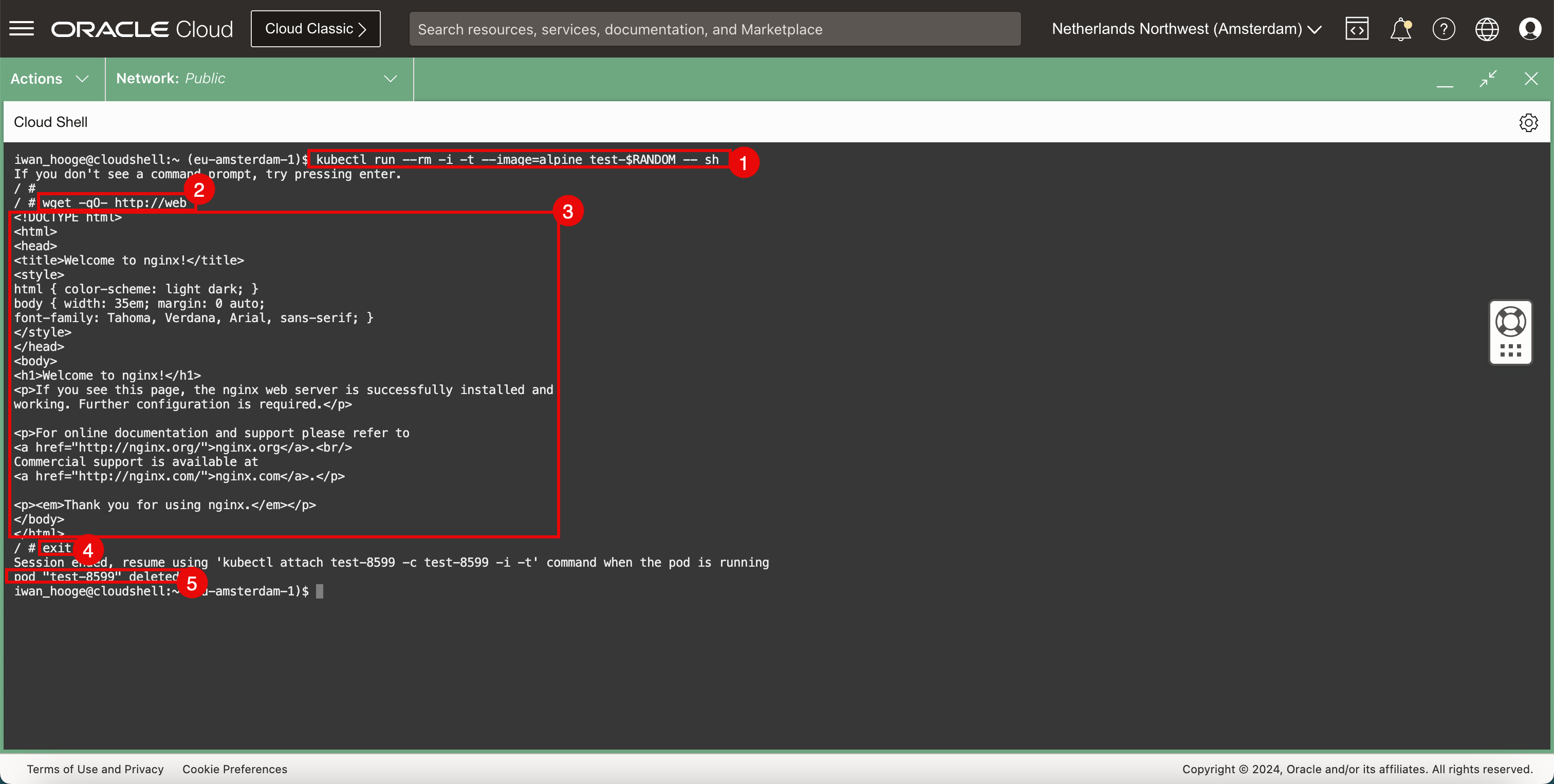

Run the following command to deploy a sample pod to test the web application connectivity.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl run --rm -i -t --image=alpine test-$RANDOM -- sh If you don't see a command prompt, try pressing enter. / #
-
Run the following command to test connectivity to the web server using
wget
./ # wget -qO- http://web <!DOCTYPE html> <html> <head> <title>Welcome to nginx!</title> <style> html { color-scheme: light dark; } body { width: 35em; margin: 0 auto; font-family: Tahoma, Verdana, Arial, sans-serif; } </style> </head> <body> <h1>Welcome to nginx!</h1> <p>If you see this page, the nginx web server is successfully installed and working. Further configuration is required.</p> <p>For online documentation and support please refer to <a href="http://nginx.org/">nginx.org</a>.<br/> Commercial support is available at <a href="http://nginx.com/">nginx.com</a>.</p> <p><em>Thank you for using nginx.</em></p> </body> </html>
-
Notice the HTML code that the web server returns, confirms the webserver and connectivity is working.
-
Run the following command to exit the temporary pod.
/ # exit Session ended, resume using 'kubectl attach test-8599 -c test-8599 -i -t' command when the pod is running pod "test-8599" deleted iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the pod is deleted immediately after we exit the CLI.
-
Task 4: Configure Kubernetes Services of NetworkPolicy Type
One of the network security services that the Cilium CNI plugin offers is the service of the NetworkPolicy type. This is a way of controlling the connectivity between pods by denying connectivity between two pods.
-
Run the following command to open the nano editor to create a new
YAML
file to implement a NetworkPolicy to deny all network traffic.iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ nano web-deny-all.yaml
-

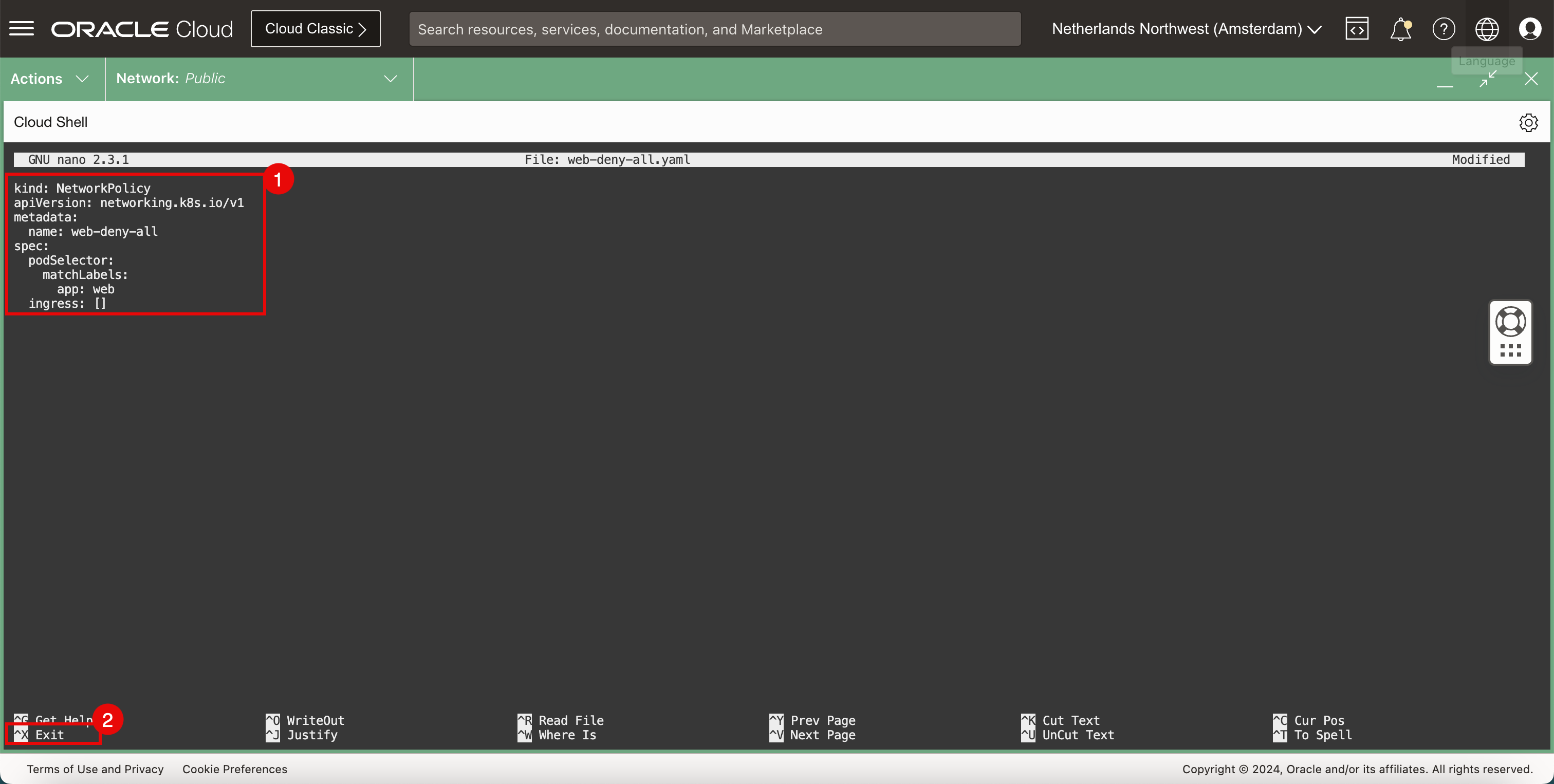

Use the following content in the
YAML
file.kind: NetworkPolicy apiVersion: networking.k8s.io/v1 metadata: name: web-deny-all spec: podSelector: matchLabels: app: web ingress: []
-
Use
CTRL + X
shortcut to exit the nano editor.
-
-
Enter
Y
(yes) to save theYAML
file. -

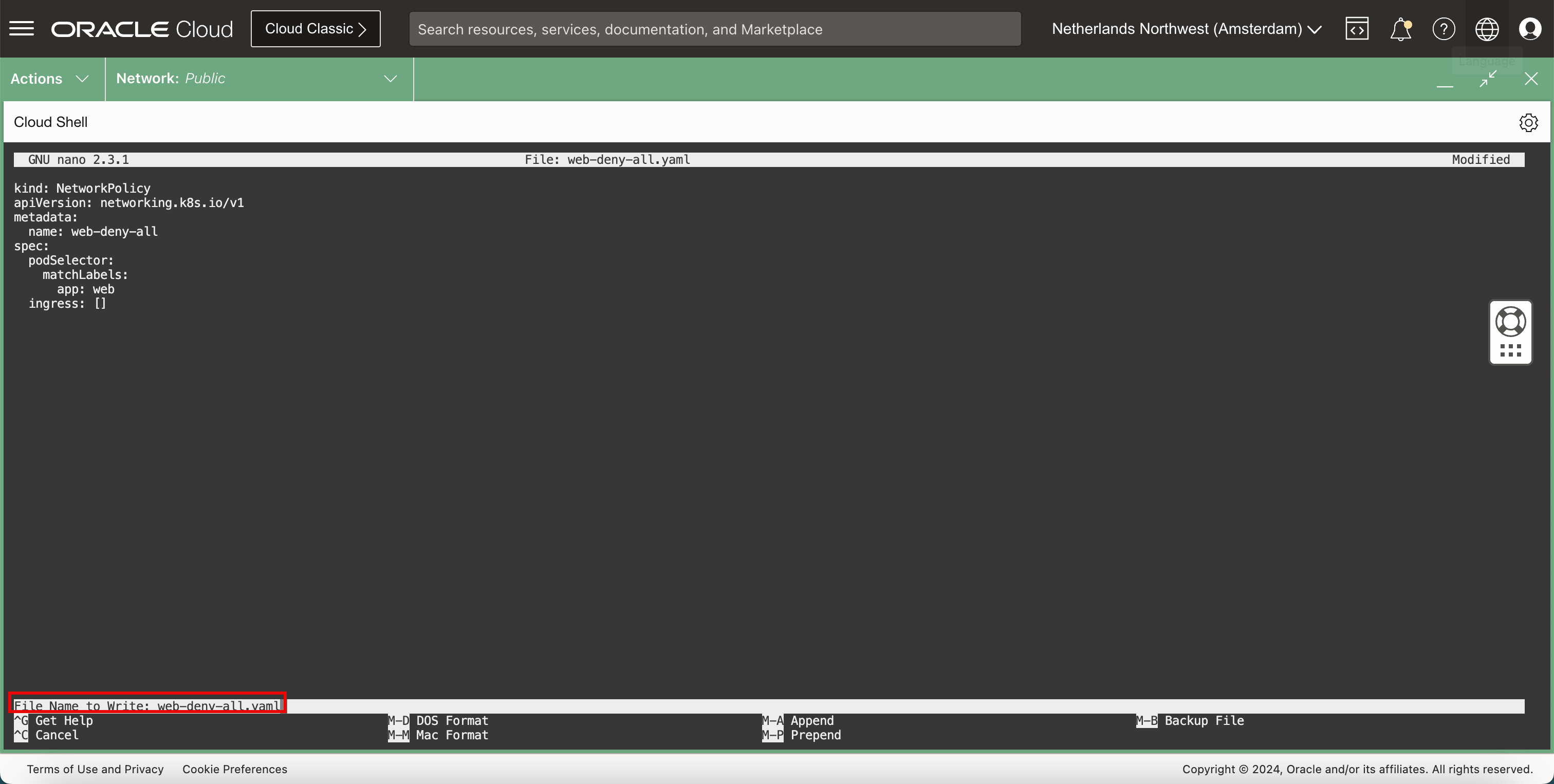

Keep the
YAML
file name default. -
Verify the
YAML
file.-
Run the following command to verify the new
YAML
file.iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ ls -l total 138068 -rwxrwxrwx. 1 iwan_hooge oci 101843096 Mar 18 17:19 cilium -rw-r--r--. 1 iwan_hooge oci 39388621 Mar 21 10:38 cilium-linux-arm64.tar.gz -rw-r--r--. 1 iwan_hooge oci 92 Mar 21 10:38 cilium-linux-arm64.tar.gz.sha256sum -rw-r--r--. 1 iwan_hooge oci 126806 Mar 21 10:29 cilium.yaml -rwxr-xr-x. 1 iwan_hooge oci 574 Mar 21 10:58 k8s-unmanaged.sh -rw-------. 1 iwan_hooge oci 1671 Feb 14 10:07 ssh-key-2024-02-14.key -rw-r--r--. 1 iwan_hooge oci 151 Mar 22 09:11 web-deny-all.yaml
-
Notice that the
web-deny-all.yaml
file is present.
-
-
Implement the security policy.
-

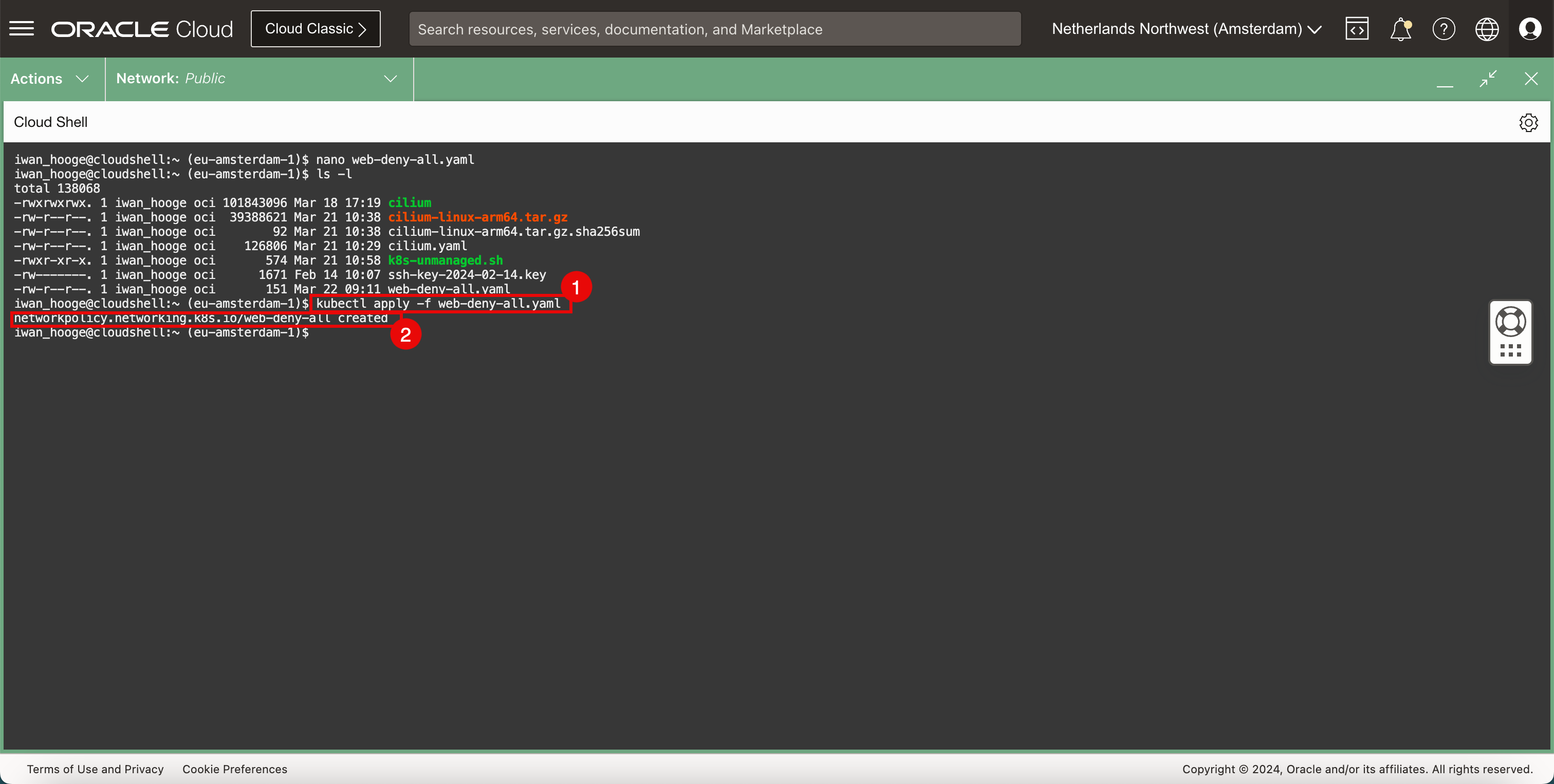

Run the following command to implement the security policy.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl apply -f web-deny-all.yaml networkpolicy.networking.k8s.io/web-deny-all created iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the security policy is created.
-
-

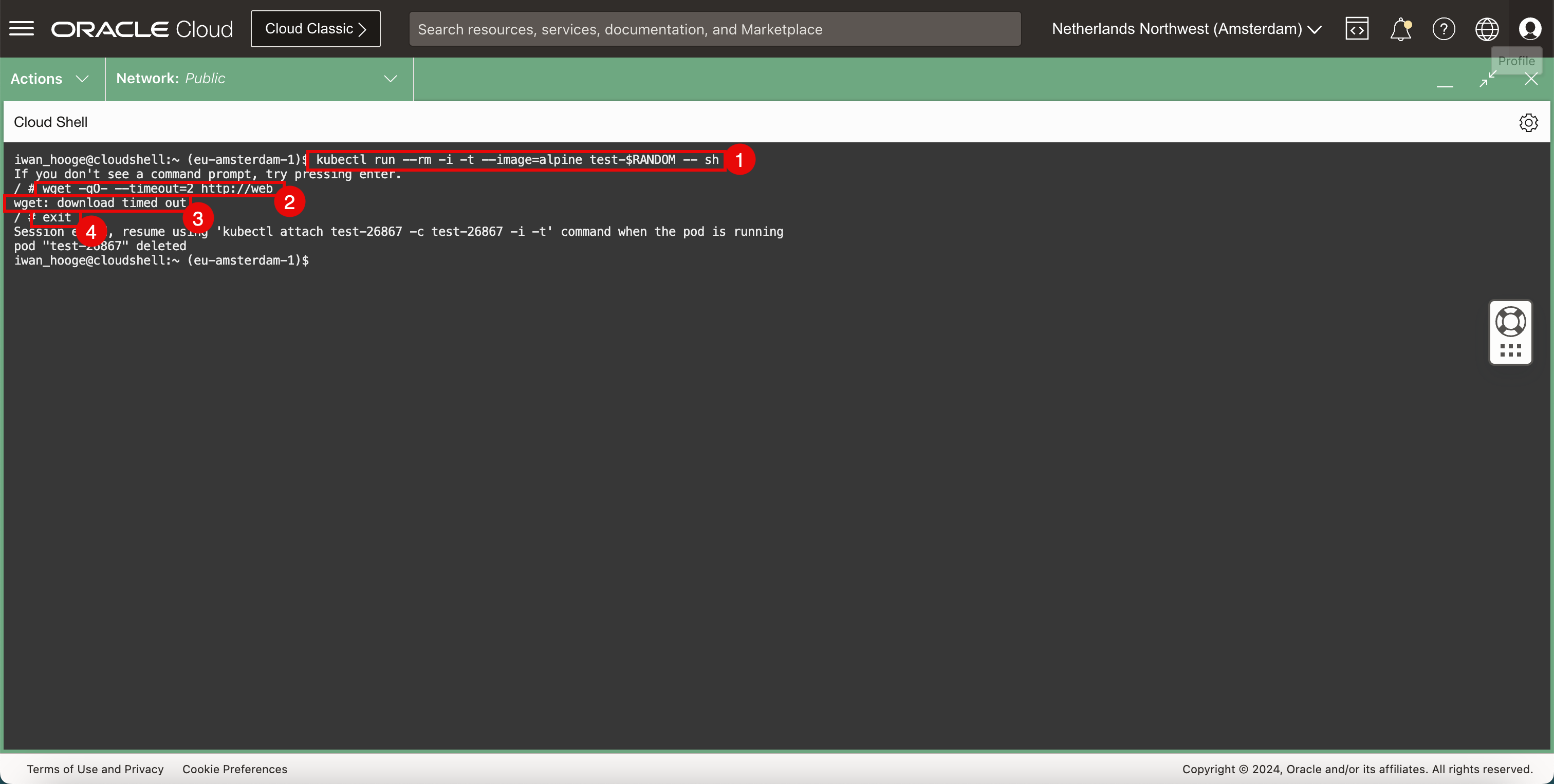

Deploy a sample pod to test the web application connectivity again after the NetworkPolicy has been deployed.
-
Run the following command to deploy a sample pod to test the web application connectivity.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl run --rm -i -t --image=alpine test-$RANDOM -- sh If you don't see a command prompt, try pressing Enter.
-
Run the following command to test connectivity to the web server using
wget
./ # wget -qO- --timeout=2 http://web wget: download timed out
-
Notice that the request is timing out.
-
Run the following command to exit the temporary pod.
/ # exit Session ended, resume using 'kubectl attach test-26867 -c test-26867 -i -t' command when the pod is running pod "test-26867" deleted
-
-

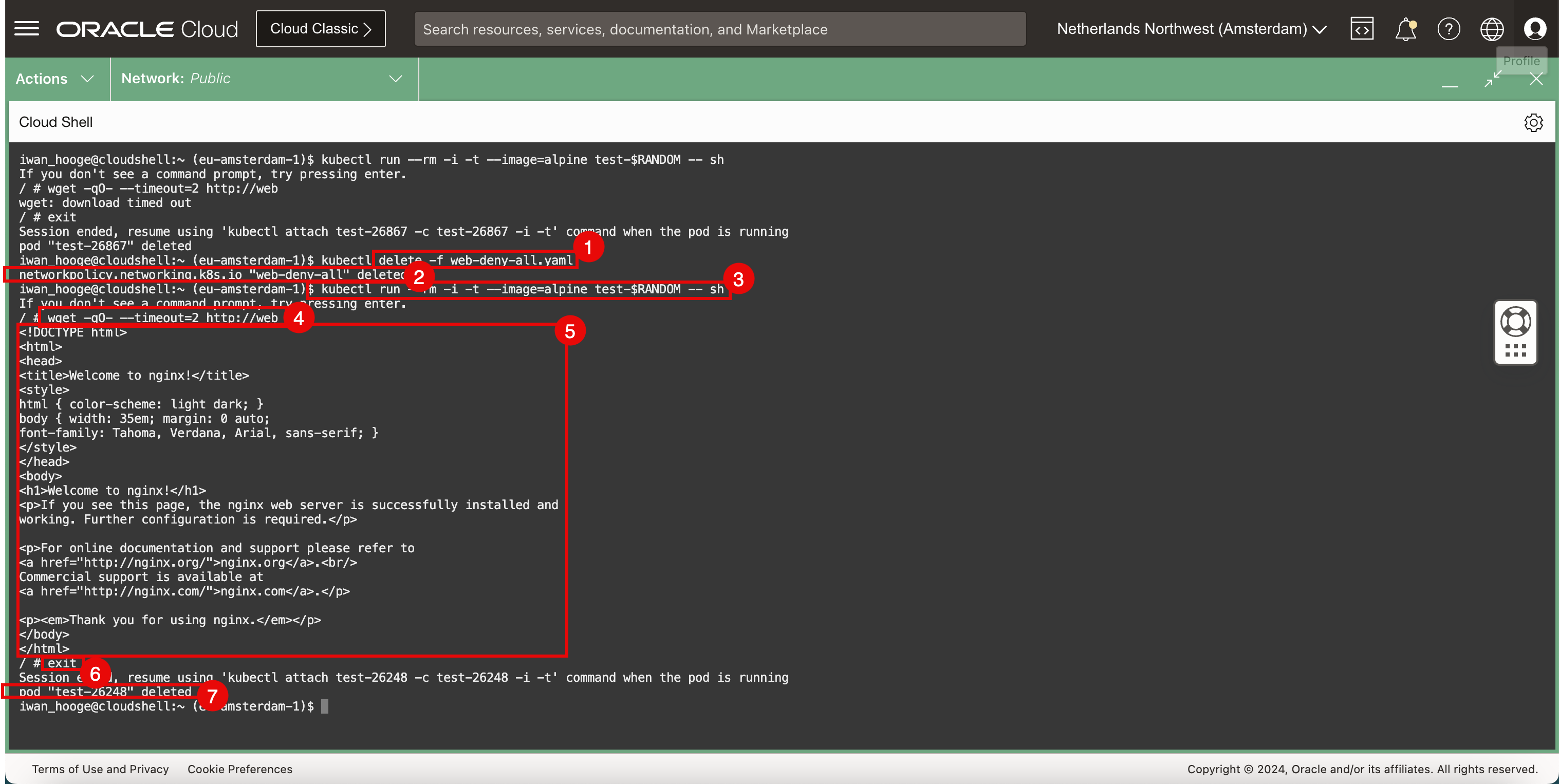

Remove the security policy, and perform the tests again.
-
Run the following command to delete the security policy.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl delete -f web-deny-all.yaml
-
Notice that the security policy is removed.
-
Run the following command to deploy a sample pod to test the web application connectivity.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl run --rm -i -t --image=alpine test-$RANDOM -- sh If you don't see a command prompt, try pressing enter.
-
Run the following command to test connectivity to the web server using
wget
. -
Note the HTML code that the web server returns, this confirms the web server and connectivity is working.
-
Run the following command to exit the temporary pod.
/ # exit Session ended, resume using 'kubectl attach test-26248 -c test-26248 -i -t' command when the pod is running pod "test-26248" deleted iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the pod is deleted immediately after we exit the CLI.
-
Task 5: Remove the Sample Web Application and Service
-
To remove the deployed web application, run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl delete service web --namespace default service "web" deleted
-
To remove the deployed web service, run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl delete pods -l app=web --namespace default pod "web" deleted
Task 6: Deploy a Sample Application and Configure Kubernetes Services of LoadBalancer Type
We have tested the NetworkPolicy service using Cilium, let us also test the LoadBalancer service using Cilium.
-
Deploy a new sample application and service.
-

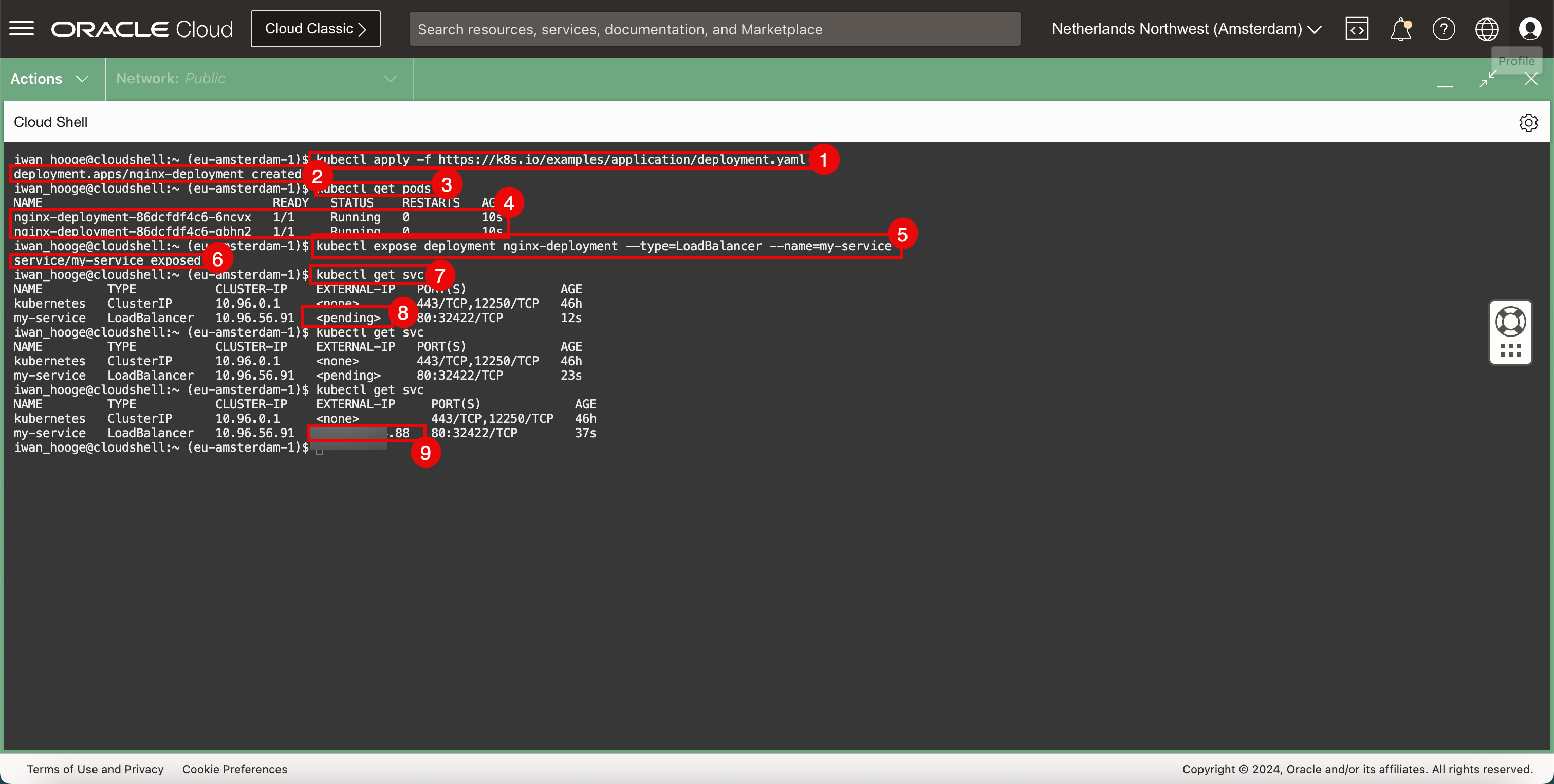

Run the following command to deploy a new sample application.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl apply -f https://k8s.io/examples/application/deployment.yaml deployment.apps/nginx-deployment created
-
Verify that the application is successfully created.
-
Run the following command to get the pods that are deployed.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get pods NAME READY STATUS RESTARTS AGE nginx-deployment-86dcfdf4c6-6ncvx 1/1 Running 0 10s nginx-deployment-86dcfdf4c6-qbhn2 1/1 Running 0 10s
-
Review the deployed pods.
-
Run the following command to expose the application to the LoadBalancer service.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl expose deployment nginx-deployment --type=LoadBalancer --name=my-service service/my-service exposed
-
Verify that the service is successfully created and the application is successfully exposed.
-
Run the following command to review the exposed services and the IP addresses.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP,12250/TCP 46h my-service LoadBalancer 10.96.56.91 <pending> 80:32422/TCP 12s iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP,12250/TCP 46h my-service LoadBalancer 10.96.56.91 <pending> 80:32422/TCP 23s
-
Notice that the external IP is pending.
-
Run the following command and notice that the public IP address is configured (ends with
.88
).iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP,12250/TCP 46h my-service LoadBalancer 10.96.56.91 XXX.XXX.XXX.88 80:32422/TCP 37s iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
-

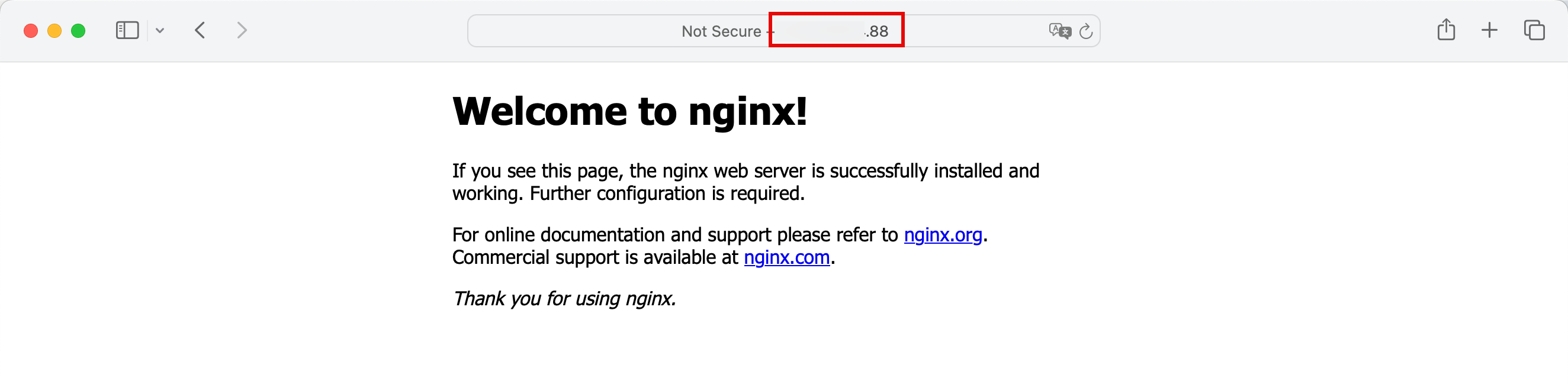

Copy and paste the public IP address in an Internet browser and verify if the deployed application (Nginx web server with the default website) is reachable using the LoadBalancer service public IP address.
Task 7: Remove a Sample Application and Kubernetes Services of LoadBalancer Type
-

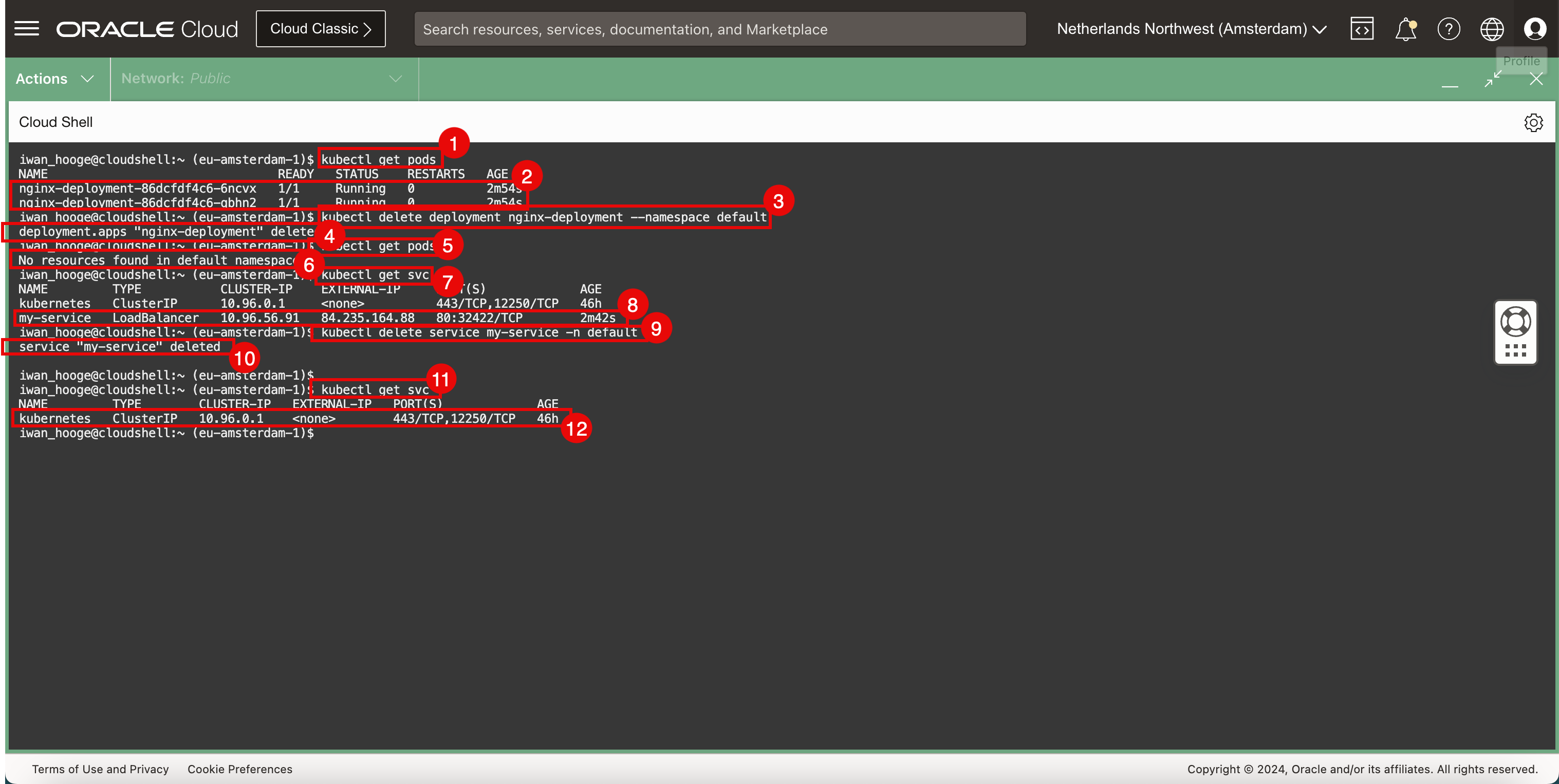

Run the following command to get the pods that are deployed.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get pods NAME READY STATUS RESTARTS AGE nginx-deployment-86dcfdf4c6-6ncvx 1/1 Running 0 2m54s nginx-deployment-86dcfdf4c6-qbhn2 1/1 Running 0 2m54s
-
Review the deployed pods.
-
To remove the deployed web application, run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl delete deployment nginx-deployment --namespace default deployment.apps "nginx-deployment" deleted
-
Confirm that the application is deleted.
-
Run the following command to get the pods that are deployed.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get pods No resources found in default namespace.
-
Notice that the pods are no longer deployed and successfully deleted.
-
Run the following command to get the services that are deployed.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP,12250/TCP 46h my-service LoadBalancer 10.96.56.91 XXX.XXX.XXX.88 80:32422/TCP 2m42s
-
Review the deployed services.
-
To remove the deployed LoadBalancer services, run the following command.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl delete service my-service -n default service "my-service" deleted
-
Verify that the service is deleted.
-
Run the following command to get the services that are deployed.
iwan_hooge@cloudshell:~ (eu-amsterdam-1)$ kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.96.0.1 <none> 443/TCP,12250/TCP 46h iwan_hooge@cloudshell:~ (eu-amsterdam-1)$
-
Notice that the LoadBalancer service is no longer deployed and successfully deleted.
Related Links
Acknowledgments
- Author - Iwan Hoogendoorn (OCI Network Specialist)
More Learning Resources
Explore other labs on docs.oracle.com/learn or access more free learning content on the Oracle Learning YouTube channel. Additionally, visit education.oracle.com/learning-explorer to become an Oracle Learning Explorer.
For product documentation, visit Oracle Help Center.
Use Cilium to Provide Networking Services in Oracle Cloud Infrastructure Container Engine for Kubernetes
F96006-01
April 2024
