Work with Oracle JET Web Components

Oracle JET Web Components are reusable pieces of user interface code that you can embed as custom HTML elements. Web Components can contain Oracle JET components, other Web Components, HTML, JavaScript, and CSS. You can create your own Web Component or add one to your page.

Design Custom Web Components

Oracle JET Web Components are custom components that include multiple component types. Web components that you create can be used in your app or they can be uploaded to Oracle Component Exchange to share with other developers.

The variety of component types supported by Oracle JET and Oracle Component Exchange are:

You can create standalone Web Components to support your specific app needs. You can also create sets of Web Components that you intend to be used together and assemble those in a JET Pack, or pack component type. The pack component contains the Web Components and configuration files that define the version stripe of each component in the pack. When Web Components are part of a pack, changes to their definition file are required to differentiate them from the same component used as a standalone component.

When you assemble components into a small number of packs, from the consumer's point of view, it makes path setup and dependency management much simpler.

You can enhance JET Pack components by using resource components when you have re-usable libraries of assets that are themselves not specifically UI components. The resource component structure is flexible so you add anything that you want, such as shared images, resource bundles, utility classes and so forth.

If you need to reference third-party code in a Web Component, you can create a reference component. The reference component doesn't include any third-party libraries, but it can define a pointer to that code either as a NPM module and/or as a CDN location. Although it is possible to embed third party library code into the packaged distribution of a given component, by separating it out you get two particular benefits:

The only component type that is not allowed in packs are reference components.

When creating JET Packs it is important to think about how their components can evolve over time in relation to the consuming apps. A common mistake is to start out syncing the component version numbers to the version number of the primary consuming app. This relationship can break down, however, for example when a breaking API change in one of your components forces a major version change which now takes you out of sync. The best practice is to adopt Semantic Versioning (SemVer) of components from the start and not to sync versions with the consuming app. Take the time to understand how SemVer works, particularly in relation to re-release versions. For more information, see Version Numbering Standards.

You should maintain the source code for your component sets separately from the apps that will consume them. Remember that components will evolve over time at a separate rate from the consuming app so having the source code decoupled into a separate source code project and repository makes a huge amount of sense.

The recommended project layout for your component source project is based on the default project layout created by Oracle JET CLI tooling. The JET CLI supports the creation of TypeScript components as well as standard ES6 based components. If you follow adhere to the project layout generated by JET tooling, then you derive the following tooling benefits:

About Web Components

Oracle JET Web Components are packaged as standalone modules that your app can load using RequireJS. The framework supplies APIs that you can use to register Web Components. Knockout currently provides one and two way data binding, template markup, and Web Component activation.

If you are new to Web Components and would like to learn more, visit this Oracle Blogs page for a series of articles that will introduce you to important concepts: https://blogs.oracle.com/groundside/cca.

Web Component Architecture

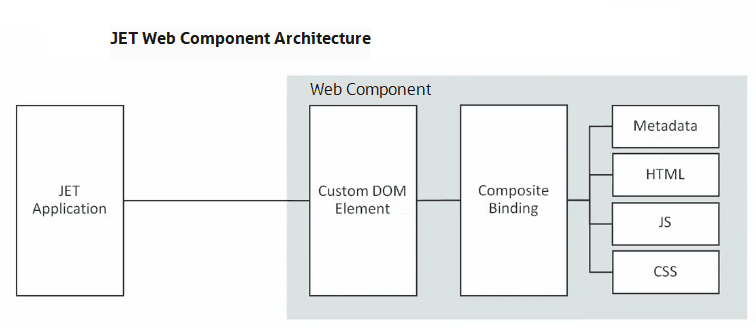

The following image shows a high-level view of the JET Web Component architecture. In this example, an Oracle JET app is consuming the Web Component, but you can add Web Components to other JavaScript or Oracle apps where supported.

Here's a concise and accessible alt text for the image: "Diagram showing JET Web Component Architecture: A JET Application connects to a Web Component, which contains a Custom DOM Element and Composite Binding, further breaking down into Metadata, HTML, JS, and CSS components."

Description of the illustration ui-composite-arch.png

Web Components contain:

Web Component Files

Web Components can contain CSS, HTML, JavaScript, and metadata files that you can modify according to your app requirements.

You can create a Web Component manually by creating a folder and adding the required files within the folder. You can also create a Web Component by using the Oracle JET CLI command ojet create component <component-name> that automatically generates the Web Component folder with the required files for your app.

When you create a Web Component manually, place the Web Component files in a folder with the same name as the Web Component tag. Typically, you place the folder within your app in a jet-composites folder: app-path/jet-composites/my-web-component/.

You can also place your Web Component in a different file location or reference a Web Component on a different server using RequireJS path mapping. For examples, see Composite - Packaging and Registration.

Each Web Component file should use the following naming convention to match the purpose:

Web Component Slotting

Slots are used as placeholders in a Web Component that users can fill in with their markup. Slot is defined in the component JSON file of your Web Component.

Use slotting to add child components (which can also be Web Components) that get slotted into specified locations within the Web Component's View markup. The following example contains a portion of the View markup for a Web Component named demo-columns.

<div class="oj-flex oj-flex-item-pad">
  <div
    role="group"
    :aria-label="[[$properties.headers[0]]]"
    class="oj-flex-item demo-columns-col-a
           oj-flex oj-sm-flex-direction-column
           oj-sm-align-items-center">
    <h3>
      <oj-bind-text value="[[$properties.headers[0]]]"></oj-bind-text>
    </h3>
    <oj-bind-slot name="columnA"></oj-bind-slot>
  </div>
... content omitted
</div>

In this example, the demo-columns Web Component defines an oj-bind-slot named columnA. As shown below, a developer can specify a child component with a slot named columnA when adding the demo-columns Web Component to the page.

<demo-columns
  id="composite-container"
  headers='["Sales", "Human Resources", "Support"]'>
  <!-- ko foreach: sales -->
  <demo-card slot="columnA" name="[[name]]" work-title="[[title]]"></demo-card>
  <!-- /ko -->
... contents omitted
</demo-columns>

Web Component Template Slots

You can define placeholders in your template using template slots that can be filled with any markup fragment you want when the template element is used within a markup of your component.

When you need to reuse a stamped template with varying data, you can use a template slot to expose the additional data from the component's binding context.

Template slots for Web Components define additional binding contexts for a slotted content within an app. To declaratively define a template slot, use the oj-bind-template-slot element in the Web Component's View markup for the slot that contains a stamped template DOM. The oj-bind-template-slot element is similar to the oj-bind-slot element, but its slotted content should be wrapped inside a template element within the app DOM.

In the following example, the demo-list Web Component defines an oj-bind-template-slot named item. This template slot provides the data attribute that exposes additional properties to the template DOM and an data-oj-as attribute that is used as an alias for the $current variable.

<table>
  <thead>
    <tr>
      <th>
        <oj-bind-text value="[[$properties.header]]"></oj-bind-text>
      </th>
    </tr>
  </thead>
  <tbody>
    <oj-bind-for-each data="{​{$properties.data}​}">
      <template>
        <tr>
          <td>
            <!-- Template slot for list items with default template
                 and an optional alias -->
            <oj-bind-template-slot
              name="item"
              data="{​{'value': $current.data}​}">
              <!-- Default template -->
              <template data-oj-as="listItem">
                <span>
                  <oj-bind-text value="[[listItem.value]]"></oj-bind-text>
                </span>
              </template>
            </oj-bind-template-slot>
          </td>
        </tr>
      </template>
    </oj-bind-for-each>
  </tbody>
  ... contents omitted
</table>

The children of the oj-bind-template-slot are resolved when the Web Component's view bindings are applied. These children are resolved in the app's binding context, which is extended with additional properties provided by the Web Component. These additional properties are accessible through the $current variable within the app's template slot. Alternatively, the app can define an alias for $current using the optional data-oj-as attribute in the template. The following example shows a portion of the app’s markup in a component named demo-list.

<demo-list data="{​{groceryList}​}" header="Groceries">
  <template slot="item" data-oj-as="groceryItem">
    <oj-checkboxset>
      <oj-option value="bought">
        <oj-bind-text value="[[groceryItem.value]]"></oj-bind-text>
      </oj-option>
    </oj-checkboxset>
  </template>
... contents omitted
</demo-list>

The Oracle JET Cookbook at Web Component - Template Slots includes complete examples for using template slots. oj-bind-template-slot API documentation describes the attributes and other template slot properties.

Web Component Events

Oracle JET Web Components can fire automatic property changed events that are mapped to the properties defined in the component metadata. These components will also fire custom events for the events declared in the component metadata.

Web Components can internally listen to the automatically generated propertyChanged events that are mapped to the properties in the component metadata using the propertyChanged lifecycle method. For example, a propertyChanged event is fired when a property is updated. This propertyChanged event contains the following properties:

When there is aneed to declaratively define a custom event for a Web Component, you must declare the event in the component's metadata file. These events will only be fired if the code of the Web Component calls the dispatchEvent() method. The app can listen to these events by declaring the event listener attributes and property setters. These event listeners can be added declaratively or programmatically.

For the declarative specification of event listeners, use the on-[event-name] syntax for the attributes. For example, on-click, on-value-changed, and so on.

    <oj-element-name
  value="{​{currentValue}​}"
  on-value-changed="{​{valueChangedListener}​}">
</oj-element-name>

The programmatic specification of event listeners may use the DOM addEventListener mechanism or by using the custom element property.

The DOM addEventListener mechanism uses the elementName.addEventListener method. For example:

elementName.addEventListener("valueChanged", function(event) {...});

The custom element property uses the elementName.onEventName syntax for the property setter. For example:

elementName.onValueChanged = function(event) {...};

For more information, see the Web Components - Events and Listeners API documentation.

Web Component Examples

Web Components can contain slots, data binding, template slots, nested Web Components, and events. You can use the examples provided in the Oracle JET Cookbook for these Web Component features.

The Oracle JET Cookbook contains complete examples for creating basic and advanced Web Components. You can also find examples that use slotting and data binding. For details, see Web Component - Basic.

For additional information about Web Component fields and methods, see Composite in the API documentation.

Best Practices for Web Component Creation

Best practices for creating Oracle JET Web Components include required and recommended patterns, configuration, coding practices, version numbering, and styling standards. Follow best practices to ensure interoperability with other Web Components and consuming frameworks.

Recommended Standard Patterns and Coding Practices

Recommended patterns and coding practices for Oracle JET Web Components include standards for configuration, versioning, coding, and archival.

Component Versioning

Your Web Component must be assigned a version number in semantic version format.

When assigning and incrementing the version number associated with your components, be sure to follow semantic version rules and update Major, Minor and Patch version numbers appropriately. By doing so, component consumers will have a clear understanding about the compatibility and costs of migrating between different versions of your component.

To assign a version number to your Web Component, see About semantic versioning.

JET Version Compatibility

You must use the semantic version rules to specify the jetVersion of the supported JET version(s). Web Component authors should not specify a semantic version range that includes unreleased JET major versions as major releases may contain non backwards compatible changes. Authors should instead recertify Web Components with each major release and update the component metadata or release a new version that is compatible with the new release changes.

Translatable Resources

Developers who want to localize Web Component translatable resources now get a resource bundle (template) when they create their Web Component. These components should use the standard Oracle JET mechanism using the ojL10n requireJS plugin. You must store the translation bundles in the webcomponentname/resources/nls subdirectory that is a peer to the webcomponentname/resources/nls/root subdirectory with the resource strings for your Web Component’s folder. You can declare the languages and locales that you support in the Web Component metadata.

Peer-to-Peer Communication

Components must prefer a shared observable provided by the consumer over any kind of secret signaling mechanism when you are dealing with a complex integration. For example, a filter component and a data display component. By using a shared observable you can pre-seed and programmatically interact with the components through the filter.

Alternatively, you can use events and public methods based on one of the following approaches being used:

Under the web-component standards (shadow DOM), events will be re-targeted as they transition the boundary between the component and the consuming view. That is, the apparent identity of the raising element might be changed, particularly in the case of Nested Web Component architecture where the event would get tagged with the element representing the outer Web Component rather than the inner Web Component. Therefore, you should not rely on the event.target attribute to identify the Web Component source when listening at the document level. Instead, the event.deepPath attribute can be used to understand the actual origin of the event.

Access to External Data

Web Components do not permit the usage of the knockout binding hierarchy to obtain data from outside the Web Component context, for example, $root, $parent[1], and so on. All data transfer in and out of the component must be through the formal properties, methods, and events.

Object Scope

All properties and functions of Web Components should be confined to the scope of the view model. No window or global scope objects should be created. Similarly, the existence of window scope objects should not be assumed by the Web Component author. If a consumer Web Component defined externally at window or global level is required for read or write then that component must be passed in by the consuming view model through a formal property. Even if a well known global reference is needed from outside of the component, it should be formally injected using the require define() function and declared as a dependency in the Web Component metadata.

External References

If a Web Component must reference an external component, it should be part of the formal API of the component. The formal API passes the component reference through a property. For example, to allow the registration of a listener, the Web Component code requires a component reference defined externally. You must not allow Web Components to obtain IDs from hard-coded values, global storage, or walking the DOM.

Subcomponent IDs

Within the framework if any component needs a specific ID, use context.unique or context.uniqueId value to generate the ID. This ID is unique within the context of the page.

ID Storage

Any generated IDs should not be stored across invocation, such as in local storage or in cookies. The context.unique value for a particular Web Component may change each time a particular view is executed.

LocalStorage

It is difficult to consistently identify a unique instance of a Web Component within an app. So, it is advised not to allow a Web Component to utilize the local storage of a browser for persisting information that is specific to an instance of that Web Component. However, if the app provides a unique key through the public properties of the component you can then identify the unique instance of the component.

Additionally, do not use local storage as a secret signaling mechanism between composites. You cannot assure the availability of the capability and so it is recommended to exchange information through a shared JavaScript object or events as part of the public API for the component(s).

String Overrides

Web Components will often contain string resources internally to service their default needs for UI and messages. However, sometimes you may want to allow the consumer to override these strings. To do this, expose a property for this purpose on the component. By convention such a property would be called translations, and within it you can have sub-properties for each translatable string that relates to a required property on the component, for example requiredHint, requiredMessageSummary, and so on. These properties can then be set on the component tag using sub-property references. For example:

"properties" : {
  "translations": {
    "description": "Property to allow override of default messages",
    "writeback" : false,
    "properties" : {
      "requiredHint": {
        "description": "Change the text of the required hint",
        "type": "string"
         },
      "requiredMessageSummary": {
        "description": "...",
        "type": "string"
        },
      "requiredMessageDetail": {
          "description": "...",
          "type": "string"
        }
      }
     }
   }
}

Logging

Use Logger to write log messages from your code in preference to console.log(). The Web Components should respect the logging level of the consuming app and not change it. You should ideally prefix all log messages emitted from the component with an identification of the source Web Component. As a preference, you can use the Web Component name. The components should not override the writer defined by the consuming app.

Expensive Initialization

Web Components should carry out minimum work inside the constructor function. Expensive initialization should be deferred to the activated lifecycle method or later. The constructor of a Web Component is invoked even if the component is not actually added to the visible DOM. For example, if a constructor is invoked within a Knockout if block. The further lifecycle phases will only occur when the component is actually needed.

Service Classes

The use of global service classes, that is functionality shared across multiple Web Components, can constitute an invisible contract that the consumer of your Web Component has to know about. To avoid this, we recommend:

Using ojModule

If you use ojModule in a Web Component and plan to distribute the Web Component outside of your app, you must take additional steps to ensure that the contained ojModule could be loaded from the location relative to the location of the Web Component. Unless the View and ViewModel instances are being passed to ojModule directly, you will need to provide the require function instance and the relative paths for views and view models. The require function instance should be obtained by the component loader module by specifying require as a dependency.

<div data-bind="ojModule: {require: {instance: require_instance, viewPath: "path_to_Web_Component_Views", modelPath: "path_to_cWeb_Component_ViewModels"}}"></div>
require Option Type Description

instance

Function

Function defining the require instance

viewPath

String

String containing the path to the Web Component’s Views

modelPath

String

String containing the path to the Web Component’s ViewModels

For additional information about working with ojModule, see ojModule.

Archiving Web Components for Distribution

If you want to create a zip file for packaging, create an archive with the same name as the component itself. You may add version-identifying suffixes to the zip file name for operational reasons. The Web Component artifacts must be placed in the root of the zip file, and there should be no intermediate directory structure before reaching the files.

Using Lifecycle Methods

If a ViewModel is provided for a Web Component, the following optional callback methods can be defined on its ViewModel that will be called at each stage of the Web Component's lifecycle. Some of the callback methods that can be used are listed below:

For additional information on Web Component lifecycle methods, see Composite - Lifecycle.

Template Aliasing

JET components that support inline templates can now use an optional data-oj-as attribute to provide template specific aliases for $current variable at the app level. In the instances where the component must support multiple template slots as in the case of chart and table components, a single alias may not be sufficient. In such cases, you can use an optional data-oj-as attribute on the template element. For more information on the usage of this optional attribute with template slots, see oj-bind-template-slot API documentation.

CSS and Theming Standards

Oracle JET Web Components should comply with all recommended styling standards to ensure interoperability with other Web Components and consuming apps.

For information on the generic best practices for using CSS and Themes, see Best Practices for Using CSS and Themes.

Standard Details Example

Prevent flash of unstyled content

Oracle JET will add the oj-complete class to the Web Component DOM element after metadata properties have been resolved. To prevent a flash of unstyled content before the component properties have been setup, the component’s CSS should include a rule to hide the component until the oj-complete class is set on the element.

Note that this is an element selector, and there should not be a dot (.) before acme-branding .

acme-branding:not(.oj-complete) {
  visibility: hidden;
}

Add scoping

Use an element selector to minimize the chance that one of your classes is used by someone outside of your component and becomes dependent on your internal implementation. In the example to the right, if someone tries to apply the class acme-branding-header , it will have no effect if it's not within an acme-branding tag.

acme-branding .acme-branding-header {
  color: white;
  background: blue;
}

IMPORTANT : If your component also includes a dialog, then when displayed, that dialog will be attached to the main document DOM tree and will not be a child of your component. Therefore, if you define a style to apply to a dialog defined by your component, you cannot scope it to the component name as that's not the actual container for the dialog when displayed.

To resolve, use the component name as the prefix instead:

.acme-branding-dialog-background{
  color: white;
  background: blue;
}

Avoid element styling

The app will often style HTML tag elements like headers, links, and so on. In order to blend in with the app, avoid styling these elements in your Web Component.

Warning Icon Avoid styling on elements like headers.

acme-branding .acme-branding-header h3{
  font-size: 45px;
}

Version Numbering Standards

All types of Web Components, including standalone, JET Pack, and Resource components, require a version number and that number should adhere to a semantic versioning (SemVer) scheme that ensures a standard for development teams to follow similar to the approach adopted by Oracle JET release versioning.

Reference components are a slightly special case as the version of the reference component will always match the version of the NPM library that it references.

All other Web Component types, rely on semantic versioning to designate a version of the component. Semantic versioning defines a version number which has three primary segments and an optional fourth segment. The first three segments are defined as MAJOR.MINOR.PATCH with these meanings:

For background on semantic versioning, visit https://semver.org.

When defining a version number for your Web Component, you must define all three of these core segments:

1.0.0

Additionally after the PATCH version, you can append an optional extension segment which can consist of two additional pieces of information:

Here's an example of a fully-defined version number for a pre-release version of a component:

1.0.1-beta.1+332

In this case beta.1 is a pre-release indicator and 332 is a build number.

The change in version number for a Web Component should indicate to consumers the risk level of consuming that new version. Consumers should know that they can drop in a new MINOR or PATCH release of your components without needing to revise their code. If you make changes to the Web Component source code that forces the consuming app to do more than just refresh the Web Component's directory or change a CDN reference, then you should revise the MAJOR version to indicate this.

The Web Component metadata file component.json lets you define the supported version of Oracle JET that the component can work with. This is the jetVersion attribute which can be set to a specific version or version range, as defined by npm-semver. For example, the jetVersion attribute will be set to one of the following:

The Oracle JET recommended format is the first case defined similar to "^9.1.0". Given that JET itself follows the semantic versioning rules, changes that occur in MINOR or PATCH versions ought not break your Web Component source code. This also means that you don't have to release an update to all your Web Components for every MINOR release of Oracle JET (unless you choose to make use of a new feature).

For background on npm-semver, visit npm documentation at this web site https://docs.npmjs.com/about-semantic-versioning.

In the case of JET Packs, you should pay attention to the dependencies attribute in the component.json file located in the pack. You should strive to require the various components bundled into the pack to be consumed together, and as such, you should define such dependencies with absolute version matches rather than version ranges to indicate this. For example, in this case the demo-memory-game component at version 1.0.2 will only expect to host a demo-memory-card at exactly version 1.0.2.

{
  "name": "demo-memory-game",
  "version": "1.0.2",
  "type": "pack",
  "displayName": "JET Memory Game",
  "description": "A memory game element with a configurable card set and attempt counter.",
  "dependencies": {
    "demo-memory-card": "1.0.2"
    }
}

Create Web Components

Oracle JET supports a variety of custom Web Component component types. You can create standalone Web Components or you can create sets of Web Components that you intend to be used together and you can then assemble those in a JET Pack, or pack component type. You can enhance JET Packs by creating resource components when you have re-usable libraries of assets that are themselves not specifically UI components. And, if you need to reference third-party code in a standalone component, you can create reference components to define pointers to that code.

Create Standalone Web Components

Use the Oracle JET command-line interface (CLI) to create an Oracle JET Web Component template implemented as JavaScript or TypeScript that you can populate with content. If you’re not using the tooling, you can add the Web Component files and folders manually to your Oracle JET app.

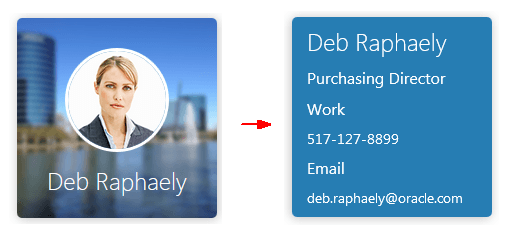

The following image shows a simple Web Component named demo-card that displays contact cards with the contact’s name and image if available. When the user selects the card, the content flips to show additional detail about the contact.

Here is the alt text for the image: "Profile photo of Deb Raphael, Purchasing Director, with contact information including phone number and email address."

Description of the illustration ui-composite-basic.png

The procedure below lists the high level steps to create a Web Component using this demo-card component as an example. Portions of the code are omitted for the sake of brevity, but you can find the complete example at Web Component - Basic. You can also download the demo files by clicking the download button ( download demo icon ) in the cookbook.

Before you begin:

To create a Web Component:

  1. Determine a name for your Web Component.

    The Web Component specification restricts custom element names as follows:

    • Names must contain a hyphen.

    • Names must start with a lowercase ASCII letter.

    • Names must not contain any uppercase ASCII letters.

    • Names should use a unique prefix to reduce the risk of a naming collision with other components.

      A good pattern is to use your organization's name as the first segment of the component name, for example, org-component-name. Names must not start with the prefix oj- or ns-, which correspond to the root of the reserved oj and ns namespaces.

    • Names must not be any of the reserved names. Oracle JET also reserves the oj and the ns namespace and prefixes.

    For example, use demo-card to duplicate the contact card example.

  2. Determine where to place your Web Component, using one of the following options.

    • Add the Web Component to an existing Oracle JET app that you created with the Oracle JET CLI.

      If you use this method, you'll use the CLI to create a Web Component template that contains the folders and files you'll need to store the Web Component's content.

    • Manually add the Web Component to an existing Oracle JET app that doesn't use the Oracle JET CLI.

      If you use this method, you'll create the folders and files manually to store the Web Component's content.

  3. Depending upon the choice you made in the previous step, perform one of the following tasks to create the Web Component.

    • If you used the Oracle JET CLI to create an app, then in the app's top level directory, enter the following command at a terminal prompt to generate the Web Component template:

      ojet create component component-name

    For example, enter ojet create component demo-card to create a Web Component named demo-card in a base app created with JavaScript. The command will add jet-composites/demo-card to the app's js folder and files containing stub content for the Web Component.

    File directory listing with folders and files related to web development, including JavaScript, CSS, and HTML files for a demo card component.

    Description of the illustration composite-files.png

    The base app's implementation of JavaScript or TypeScript determines the folder and implementation of the Web Component. If your base app has a TypeScript implementation, then the ts folder, not the js folder, contains the stub contents of the Web Component.

    • If you're not using the Oracle JET CLI, create a jet-composites folder in your app's js folder or ts folder, and add folders containing the name of each Web Component you will create.

      For the demo-card example, create the jet-composites folder and add a demo-card folder to it. You'll create the individual Web Component files in the remaining steps.

  4. Determine the properties, methods, and events that your Web Component will support and add them to the component.json file in the Web Component's root folder, creating the file if needed.

    The name of the Web Component properties, event listeners, and methods should avoid collision with the existing HTML element properties, event listeners, and methods. Additionally, the property name slot should not be used. Also, you must not re-define the global attributes and events.

    The demo-card example defines properties for the Web Component and the contact's full name, employee image, title, work number, and email address. The required properties are highlighted in bold.

     {
  "name": "demo-card",
  "description": "A card element that can display an avatar or initials on one side and employee information on the other.",
  "version": "1.0.2",
  "displayName": "Demo Card",
  "jetVersion": ">=6.0.0 <20.0.0",
  "properties": {
    "name": {
      "description": "The employee's full name.",
      "type": "string"
    },
    "avatar": {
      "description": "The url of the employee's image.",
      "type": "string"
    },
    "workTitle": {
      "description": "The employee's job title.",
      "type": "string"
    },
    "workNumber": {
      "description": "The employee's work number.",
      "type": "number"
    },
    "email": {
      "description": "The employee's email.",
      "type": "string"
    }
  }
}

This basic demo-card example only defines properties for the Web Component. You can also add metadata that defines methods and events as shown below. The metadata lists the name of the method or event and supported parameters.

{
  "properties": {
    ... contents omitted
  },
  "methods": {
     "flipCard": {
       "description": "Method to toggle flipping a card"
     },
     "enableFlip": {
       "description": "Enables or disables the ability to flip a card.",
       "params": [
         {
           "name": "bEnable",
           "description": "True to enable card flipping and false otherwise.",
           "type": "boolean"
          }
        ]
      },
    },
   "events": {
     "cardClick": {
       "description": "Triggered when a card is clicked and contains the value of the clicked card..",
       "bubbles": true,
       "detail": {
         "value": {
           "description": "The value of the card.",
           "type": "string"
                }
            }
        }
    }
}

  1. If your Web Component contains a ViewModel, add its definition to web—component-name-viewModel.js in the Web Component's root folder, creating the file if needed.

    The code sample below shows the ViewModel for the demo-card Web Component. Comments describe the purpose, parameters, and return value of each function.

    define(['knockout', 'ojs/ojknockout'],
    function(ko) {
        function model(context) {
            var self = this;
            self.initials = null;
            self.workFormatted = null;
            var element = context.element;

            /**
             * Formats a 10 digit number as a phone number.
             * @param  {number} number The number to format
             * @return {string}        The formatted phone number
             */
            var formatPhoneNumber = function(number) {
                return Number(number).toString().replace(/(\d{3})(\d{3})(\d{4})/, '$1-$2-$3');
            }

            if (context.properties.name) {
                var initials = context.properties.name.match(/\b\w/g);
                self.initials = (initials.shift() + initials.pop()).toUpperCase();
            }
            if (context.properties.workNumber)
                self.workFormatted = formatPhoneNumber(context.properties.workNumber);

            /**
             * Flips a card
             * @param  {MouseEvent} event The click event
             */
            self.flipCard = function(event) {
                if (event.type === 'click' || (event.type === 'keypress' && event.keyCode === 13)) {
                    // It's better to look for View elements using a selector
                    // instead of by DOM node order which isn't guaranteed.
                    $(element).children('.demo-card-flip-container').toggleClass('demo-card-flipped');
                }
            };
        }

        return model;
    }
)

  2. In the Web Component's root folder, add the View definition to web—component-name-view.html, creating the file if needed.

    The View for the demo-card Web Component is shown below. Any property defined in the component's metadata is accessed using the $properties property of the View binding context.


<div tabindex="0" role="group" class="demo-card-flip-container"
  on-click="[[flipCard]]" on-keypress="[[flipCard]]" :aria-label="[[$properties.name + ' Press Enter for
more info.']]">
  <div class="demo-card-front-side">
    <oj-avatar class="demo-card-avatar" role="img" size="lg" initials="[[initials]]"
src="[[$properties.avatar]]" :aria-label="[['Avatar of ' + $properties.name]]">
    </oj-avatar>
    <h2>
      <oj-bind-text value="[[$properties.name]]"></oj-bind-text>
    </h2>
  </div>

  <div class="demo-card-back-side">
    <div class="demo-card-inner-back-side">
      <h2>
              <oj-bind-text value="[[$properties.name]]"></oj-bind-text>
      </h2>
      <h5>
        <oj-bind-text value="[[$properties.workTitle]]"></oj-bind-text>
      </h5>
      <oj-bind-if test="[[$properties.workNumber != null]]">
        <h5>Work</h5>
        <span class="demo-card-text"><oj-bind-text value="[[workFormatted]]"></oj-bind-text></span>
      </oj-bind-if>
      <oj-bind-if test="[[$properties.email != null]]">
        <h5>Email</h5>
        <span class="demo-card-text"><oj-bind-text value="[[$properties.email]]"></oj-bind-text></span>
      </oj-bind-if>
    </div>
  </div>
</div>

    For accessibility, the View's role is defined as group, with aria-label specified for the contact's name. In general, follow the same accessibility guidelines for the Web Component View markup that you would anywhere else within the app.

  3. If you're not using the Oracle JET CLI, create the loader.js RequireJS module and place it in the Web Component's root folder.

    The loader.js module defines the Web Component dependencies and registers the component's tagName, demo-card in this example.

    define(['ojs/ojcomposite', 'text!./demo-card-view.html', './demo-card-viewModel',
        'text!./component.json', 'css!./demo-card-styles'],
  function(Composite, view, viewModel, metadata) {
    Composite.register('demo-card', {
      view: view,
      viewModel: viewModel,
      metadata: JSON.parse(metadata)
    });
  }
);

    In this example, the CSS is loaded through a RequireJS plugin (css!./demo-card-styles), and you do not need to pass it explicitly in Composite.register().

  4. Configure any custom styling that your Web Component will use.

    • If you only have a few styles, add them to web—component-name-styles.css file in the Web Component's root folder, creating the file if needed.

      For example, the demo-card Web Component defines styles for the demo card's display, width, height, margin, padding, and more. It also defines the classes that will be used when the user clicks a contact card. A portion of the CSS is shown below.

      /* This is to prevent the flash of unstyled content before the Web Component properties have been setup. */
demo-card:not(.oj-complete) {
  visibility: hidden;
}

demo-card {
  display: block;
  width: 200px;
  height: 200px;
  perspective: 800px;
  margin: 10px;
  box-sizing: border-box;
  cursor: pointer;
}

demo-card h2,
demo-card h5,
demo-card a,
demo-card .demo-card-avatar  {
  color: #fff;
  padding: 0;
}
 ... remaining contents omitted

    • If you used the Oracle JET tooling to create your app and want to use Sass to generate your CSS:

      1. If needed, at a terminal prompt in your app's top level directory, type the following command to add Dart Sass (sass) to your app: ojet add sass.

      2. Create web—component-name-styles.scss and place it in the Web Component's top level folder.

      3. Edit web—component-name-styles.scss with any valid SCSS syntax and save the file.

        In this example, a variable defines the demo card size:

        $demo-card-size: 200px;

/* This is to prevent the flash of unstyled content before the Web Component properties have been setup. */
demo-card:not(.oj-complete) {
  visibility: hidden;
}

demo-card {
  display: block;
  width: $demo-card-size;
  height: $demo-card-size;
  perspective: 800px;
  margin: 10px;
  box-sizing: border-box;
  cursor: pointer;
}

demo-card h2,
demo-card h5,
demo-card a,
demo-card .demo-card-avatar  {
  color: #fff;
  padding: 0;
}
... remaining contents omitted

      4. To compile Sass, at a terminal prompt type ojet build or ojet serve with the --sass flag and app-specific options.

        ojet build|serve [options] --sass

        ojet build --sass will compile your app and generate web—component-name-styles.css and web—component-name-styles.css.map files in the default platform's folder. For a web app, the command will place the CSS in **web**/js/js-composites/web—component-name.

        ojet serve --sass will also compile your app but will display the web app in a running browser with livereload enabled. If you save a change to web—component-name-styles.scss in the app's **src**/js/jet-composites/web—component-name folder, Oracle JET will compile Sass again and refresh the display.

        For help with ojet command syntax, type ojet help at a terminal prompt.

  5. If you want to add documentation for your Web Component, add content to README.md in your Web Component's root folder, creating the file if needed.

    Your README.md file should include an overview of your component with well-formatted examples. Include any additional information that you want to provide to your component's consumers. The recommended standard for README file format is markdown.

For help with markdown, refer to GitHub documentation.

For the complete code of the demo-card Web Component CSS styles, see demo-card-styles.css in the Web Component - Basic cookbook sample.

For information on adding Web Component metadata that defines methods and events, see the Web Component - Events cookbook sample.

Create JET Packs

Create JET Packs to simplify project management for consumers who might pick up a component that is related to one or more components. You may require specific versions of the referenced components for individual JET Packs.

Fundamentally, the JET Pack is a library of related Web Components that does not directly include those assets, but is as an index to a particular versioned stripe of components.

Note there is one exception to the pack as a reference mechanism for related components. A pack might include one or more RequireJS bundle files which package up optimized forms of the component set into a small number of physical downloads. This, however, is always in addition to the actual components being available as independent entities in Oracle Component Exchange.

The components referenced by the JET Pack are intended to be used together and their usage is restricted by individual component version. Thus, the JET Pack that you create will tie very specific versions of each component into a relationship with very specific, fixed versions of the other components in the same set. Thus, a JET Pack itself has a "version stripe" which determines the specific components that users import into their apps. Since the version number of individual components may vary, the JET Pack guarantees the consumer associates their app with the version of the pack as a whole, and not with the individual components contained by the pack.

For details about versioning JET Packs, see Version Numbering Standards.

  1. Create the JET Pack using the JET tooling from the root folder of your app.

    ojet create pack my-pack

    Consider the pack name carefully, as the name will determine the prefix to any components within that pack.

    The tooling adds the folder structure with the template files that you will need to modify:

    /(working folder)
  /src
    /js
      /jet-composites
        /my-pack
          component.json

  2. Create the components that you want to bundle with the JET Pack by using the JET tooling from the root folder of your app. The component name that you specify must be unique within the pack.

    ojet create component my-widget-1 --pack=my-pack

    The tooling nests the component folder /my-widget-1 under the my-pack root folder and the new component files resemble those created for a standalone Web Component.

    /(working folder)
  /src
    /js
      /jet-composites
        /my-pack
          component.json
          /my-widget-1
            /resources
              /nls
                /root
                  my-widget-1-strings.js
            component.json
            loader.js
            README.md
            my-widget-1-viewModel.js
            my-widget-1-styles.css
            my-widget-1-view.html

    Note the following about the created component files.

    • component.json specifies the name of the component as my-widget-1 and the pack is set to my-pack, providing the complete definition of the component's identity.
    • loader.js registers the HTML tag for the new component as my-pack-my-widget-1. This is the full name of the component, which is a concatenation of the pack name and the component name. When you need to refer to this component in a dependency from another component's metadata or in HTML, you will use the full name.

  3. Optionally, for any Resource components that you created, as described in Create Resource Components for JET Packs, add the component's working folder with its own component.json file to the pack file structure.

    The tooling nests the component folder /my-widget-1 under the my-pack root folder and the new component files resemble those created for a standalone Web Component.

    /(working folder)
  /src
    /js
      /jet-composites
        /my-pack
          component.json
          /my-widget-1
            /resources
              /nls
                /root
                  my-widget-1-strings.js
            component.json
            loader.js
            README.md
            my-widget-1-viewModel.js
            my-widget-1-styles.css
            my-widget-1-view.html
          /my-resource-component-1
            component.json
            /converters
              file1.js
              ...
            /resources
              /nls
                /root
                  strings-file.js
            /validators
              file1.js
              ...

  4. Optionally, generate any required bundled for desired components of the pack. Refer to RequireJS documentation for details at the https://requirejs.org web site.

    You can use RequireJS to create optimized bundles of the pack components, so that rather than each component being downloaded separately by the consuming app at runtime, instead a single JavaScript file can be downloaded that contains multiple components. It\'s a good idea to use this facility if you have sets of components that are almost always used together. A pack can have any number of bundles (or none at all) in order to group the available components as required. Be aware that not every component in the pack has to be included in one of the bundles and that each component can only be part of one bundle.

  5. Use a text editor to modify the component.json file in the pack folder root similar to the following sample, to identify pack dependencies and optional bundles. Added components must be associated by their full name and a specific version.

    {
    "name": "my-pack",
    "version": "1.0.0",
    "type": "pack",
    "displayName": "My JET Pack",
    "description": "An example JET Pack",
    "dependencies": {
      "my-pack-my-widget-1":"1.0.0",
      ...
    },
    "bundles":{
        "*my-pack*/*my-bundle*":[
          "*my-pack*/*my-bundle-file1*/loader",
          ...
        ]
      },
    "extension": {
        "catalog": {
            "coverImage": "coverimage.png"
        }
     }
  }
}

    Your pack component's component.json file must contain the following unique definitions:

    • name is the name of the JET Pack has to be unique, and should be defined with the namespace relevant to your group. This name will be prepended to create the full name of individual components of the pack.

    • version defines the exact version number of the pack, not a SemVer range.

      Changes in version number with a given release of a pack should reflect the most significant change in the pack contents. For example, if the pack contained two components and as part of a release one of these had a Patch level change and the other a Major version change then the pack version number change should also be a Major version change. There is no requirement for the actual version number of the pack to match the version number(s) of any of it's referenced components. For more information see, Version Numbering Standards.

    • type must be set to pack.

    • displayName is the name of the pack component that you want displayed in in Oracle Component Exchange. Set this to something readable but not too long.

    • description is the description that you want displayed in Oracle Component Exchange. For example, use this to explain how the pack is intended to be used.

    • dependencies defines the set of components that make up the pack, specified by the component full name (a concatenation of pack name and component name). Note that exact version numbers are used here, not SemVer ranges. It's important that you manage revisions of dependency version numbers to reflect changes to the referenced component's version and also to specify part of the path to reach the components within the pack.

      If you want to include all components in the JET Pack directory, use a token, "@dependencies@", as the value for dependencies rather than defining individual entries for all the components in the pack. The following snippet illustrates how you use this token in your component.json file:

      {
  "name": "my-pack",
  "version": "1.0.0",
  "type": "pack",
  "displayName": "My JET Pack",
  "description": "An example JET Pack",
  "dependencies": "@dependencies@"
}

    • bundles defines the available bundles (optional) and the contents of each. Note how both the bundle name and the contents of that bundle are defined with the pack name prefix as this is the RequireJS path that is needed to map those artifacts.

    • catalog defines the working metadata for Oracle Component Exchange, including a cover image in this case.

  6. Use a text editor to modify the component.json file in the component folder root similar to the following sample, to identify the pack relationship. Components must be identified by a unique name (without the pack prefix) and a specific version.

    {
    "name": "my-widget-1",
    "pack": "my-pack",
    "displayName": "My Web Component",
    "description": "Fully featured component",
    "version": "1.0.0",
    "jetVersion": "^10.0.0",
    "dependencies": {
      "my-widget-file1":"^1.0.0",
      ...
    },
    ...
}

    Your pack component's component.json file must contain the following unique definitions:

    • name is the name of the component has to be unique. This name will be prepended with the pack name to create the component full name. For example,

    • pack is the name of the JET Pack that the component is a part of.

    • displayName is the name of the component that you want displayed in Oracle Component Exchange.

    • description is the description that you want displayed in Oracle Component Exchange. For example, use this to explain the role of the components in the pack as they are intended to be used.

    • version defines the exact version number of the component, not a SemVer range.

    • jetVersion defines the compatible version(s) of Oracle JET, specified by a semantic version (SemVer) range. It's important that you manage revisions of this version number to inform consumers of the compatibility of a given change and also to specify part of the path to reach the components within the pack. For more information see, Version Numbering Standards.

    • dependencies defines the set of libraries and other components that make up the component within the pack. In the case where a dependent component is also listed as a member of the JET Pack, specify components here by their full name (a concatenation of pack name and component name). For example, my-pack-my-component. Note that SemVer ranges are allowed. It's important that the range selected for a component within a particular JET Pack version overlaps with the members of that stripe.

  7. Optionally, create a readme file in the root of your working folder. This should be defined as a plain text file called README.txt (or README.md when using markdown format).

  8. Optionally, create a cover image in the root of your working folder to display the component on Oracle Exchange. The file name can be the same as the name attribute in the component.json file.

  9. Use the JET tooling to create a zip archive of the JET Pack working folder when you want to upload the component to Oracle Component Exchange, as described in Package Web Components.

  10. Support consuming the JET Pack in Oracle Visual Builder projects by uploading the component to Oracle Component Exchange, as described in Publish Web Components to Oracle Component Exchange.

Create Resource Components for JET Packs

Create a resource component when you want to reuse assets across web components that you assemble into JET Packs. The resource component can be reused by multiple JET Packs.

When dealing with complex sets of components you may find that it makes sense to share certain assets between multiple components. In such cases, the components can all be included into a single JET Pack and then a resource component can be added to the pack in order to hold the shared assets. There is no constraint on what can be stored in a pack, typically it may expose shared JavaScript, CSS, and JSON files and images. Note that third party libraries should generally be referenced from a reference component and should not be included into a resource component.

You don't need any tools to create the resource component. You will need to create a folder in a convenient location. This folder will ultimately be zipped to create the distributable resource component. Internally this folder can then hold any content in any structure that you desire.

To create a resource component:

  1. If you have not already done so, create a JET Pack using the following command from the root folder of your app to contain the resource component(s):

    ojet create pack my-resource-pack

  2. Still in the root folder of your app, create the resource component in the JET Pack:

    ojet create component my-resource-comp --type=resource --pack=my-resource-pack

    The tooling adds the folder structure with a single template component.json file and an index file.

    /root folder
  /src
    /js or /ts
      /jet-composites
        /my-resource-pack
        /my-resource-comp
           component.json

  3. Populate the created folder (my-resource-comp, in our example) with the desired content. You can add content in any structure desired, with the exception of NLS content for translation bundles. In the case of NLS content, preserve the typical JET folder structure; this is important if your resource component is going to include such bundles.

    /(my-resource-folder)
  /converters
    phoneConverter.js
    phoneConverterFactory.js
  /resources
    /nls
      /root
       oj-ext-strings.js
    /phone
      countryCodes.json
  /validators
    emailValidator.js
    emailValidatorFactory.js
    phoneValidator.js
    phoneValidatorFactory.js
    urlValidator.js
    urlValidatorFactory.js

    In this sample notice how the /resources/nls folder structure for translation bundles is preserved according to the folder structured of the app generated by JET tooling.

  4. Use a text editor to update the component.json file in the folder root similar to the following sample, which defines the resource my-resource-comp for the JET Pack my-resource-pack.

    {
  "name": "my-resource-comp",
  "pack": "my-resource-pack",
  "displayName": "Oracle Jet Extended Utilities",
  "description": "A set of reusable utility classes used by the Oracle JET extended
                  component set and available for general use.  Includes various
                  reusable validators",
  "license": "https://opensource.org/licenses/UPL",
  "type": "resource",
  "version": "2.0.2",
  "jetVersion": ">=8.0.0 <10.1.0",
  "publicModules": [
    "validators/emailValidatorFactory",
    "validators/urlValidatorFactory"
  ],
  "extension":{
    "catalog": {
      "category": "Resources",
        "coverImage": "cca-resource-folder.svg"
    }
  }
}

    Your resource component's component.json file must contain the following unique definitions:

    • name is the name of the resource component has to be unique, and should be defined with the namespace relevant to your group.

    • pack is the name of the JET Pack containing the resource component.

    • displayName is the name of the resource component as displayed in Oracle Component Exchange. Set this to something readable but not too long.

    • description is the description that you want displayed in Oracle Component Exchange. For example, use this to explain the available assets provided by the component.

    • type must be set to resource.

    • version defines the semantic version (SemVer) of the resource component as a whole. It's important that you manage revisions of this version number to inform consumers of the compatibility of a given change.

      Changes to the resource component version should roll up all of the changes within the resource component, which might not be restricted to changes only in .js files. A change to a CSS selector defined in a shared .css file can trigger a major version change when it forces consumers to make changes to their downstream uses of that selector. For more information see, Version Numbering Standards.

    • jetVersion defines the supported Oracle JET version range using SemVer notation. This is optional and depends on the nature of what you include into the resource component. If the component contains JavaScript code and any of that code makes reference to Oracle JET APIs, then you really should include a JET version range in that case. For more information about specifying semantic versions see Version Numbering Standards.

    • publicModules lists entry points within the resource component that you consider as being public and intend to be consumed by any component that depends on this component. Any API not listed in the array is considered to be pack-private and therefore can only be used by components within the same pack namespace, but may not be used externally.

    • catalog defines the working metadata for Oracle Component Exchange, including a cover image in this case.

  5. Optionally, create a readme file in the root of your working folder. A readme can be used to document the assets of the resource. This should be defined as a plain text file called README.txt (or README.md when using markdown format).

    Take care to explain the state of the assets. For example, you might choose to include utility classes in the resource component that are deemed public and can safely be used by external consumers (for example, code outside of the JET Pack that the component belongs to). However, you may want to document other assets as private to the pack itself.

  6. Optionally, create a change log file in the root of your working folder. The change log can detail significant changes to the pack over time and is strongly recommended. This should be defined as a text file called CHANGELOG.txt (or CHANGELOG.md when using markdown format).

  7. Optionally, include a License file in the root of your working folder.

  8. Optionally, create a cover image in the root of your working folder to display the component on Oracle Exchange. Using the third party logo can be helpful here to identify the usage. The file name can be the same as the name attribute in the component.json file.

  9. Create a zip archive of the working folder when you want to upload the component to Oracle Component Exchange. Oracle recommends using the format <fullName>-<version>.zip for the archive file name. For example, my-resource-pack-my-resource-comp-2.0.2.zip.

For information about using the resource component in a JET Pack, see Create JET Packs.

Create Reference Components for Web Components

Create a reference component when you need to obtain a pointer to third-party libraries for use by Web Components.

Sometimes your JET Web Components need to use third party libraries to function and although it is possible to embed such libraries within the component itself, or within a resource component, it generally better to reference a shared copy of the library by defining a reference component.

Create the Reference Component

You don't need any tools to create the reference component. You will need to create a folder in a convenient location where you will define metadata for the reference component in the component.json file. This folder will ultimately be zipped to create the distributable reference component.

Reference components are generally standalone, so the component.json file you create must not be contained within a JET Pack.

To create a reference component:

  1. Create the working folder and use a text editor to create a component.json file in the folder root similar to the following sample, which references the moment.js library.

    {
  "name": "oj-ref-moment",
  "displayName": "Moment library",
  "description": "Supplies reference information for moment.js used to parse,
                  validate, manipulate, and display dates and times in JavaScript",
  "license": "https://opensource.org/licenses/MIT",
  "type": "reference",
  "package":"moment",
  "version": "2.24.0",
  "paths": {
    "npm": {
      "debug": "moment",
      "min": "min/moment.min"
    },
    "cdn": {
      "debug": "https://static.oracle.com/cdn/jet/packs/3rdparty/moment/2.24.0/moment.min",
      "min": "https://static.oracle.com/cdn/jet/packs/3rdparty/moment/2.24.0/moment.min"
    }
  },
  "extension": {
    "catalog": {
      "category": "Third Party",
      "tags": [
        "momentjs"
      ],
      "coverImage": "coverImage.png"
    }
  }
}

    Your reference component's component.json file must contain the following unique definitions:

    • name is the name of the reference component has to be unique, and should be defined with the namespace relevant to your group.
    • displayName is the name of the resource component as displayed in Oracle Component Exchange. Set this to something readable but not too long.
    • description is the description that you want displayed in Oracle Component Exchange. For example, use this to explain the function of the third party library.
    • license comes from the third party library itself and must be specified.
    • type must be set to reference.
    • package defines the npm package name for the library. This will also be used as the name of the associated RequireJS path that will point to the library and so will be used by components that depend on this reference.
    • version should reflect the version of the third party library that this reference component defines. If you need to be able to reference multiple versions of a given library then you will need multiple versions of the reference component in order to map each one.
    • paths defines the CDN locations for this library. See below for more information about getting access to the Oracle CDN.
    • min points to the optimal version of the library to consume. The debug path can point to a debug version or just the min version as here.
    • catalog defines the working metadata for Oracle Component Exchange including a cover image in this case.

  2. Optionally, create readme file in the root of your working folder. A readme can be used to point at the third party component web site for reference. This should be defined as a plain text file called README.txt (or README.md when using markdown format).

  3. Optionally, create a cover image in the root of your working folder to display the component on Oracle Exchange. Using the third party logo can be helpful here to identify the usage. The file name can be the same as the name attribute in the component.json file.

  4. Create a zip archive of the working folder when you want to upload the component to Oracle Component Exchange. Oracle recommends using the format <fullName>-<version>.zip for the archive file name. For example, oj-ref-moment-2.24.0.zip.

  5. Support consuming the reference component in Oracle Visual Builder projects by uploading the component to a CDN. See below for more details.

Consume the Reference Component

When your Web Components need access to the third party library defined in one of these reference components, you use the dependency attribute metadata in the component.json to point to either an explicit version of the reference component or you can specify a semantic range. Here's a simple example of a component that consumes two such reference components at specific versions:

{
    "name":"calendar",
    "pack":"oj-sample",
    "displayName": "JET Calendar",
    "description": "FullCalendar wrapper with Accessibility added.",
    "version": "1.0.2",
    "jetVersion": "^9.0.0",
    "dependencies": {
        "oj-ref-moment":"2.24.0",
        "oj-ref-fullcalendar":"3.9.0"
    },

    ...

When the above component is added to an Oracle JET or Oracle Visual Builder project this dependency information will be used to create the correct RequireJS paths for the third party libraries pointed to be the reference component.

For more information about semantic version usage, see Version Numbering Standards.

Alternatively, when you install a Web Component that depends on a reference component and you use Oracle JET CLI, the tooling will automatically do an npm install for you so that the libraries are local. However, with the same component used in Oracle Visual Builder, a CDN location must be used and therefore the reference component must exist on the CDN in order to be used in Visual Builder.

Theme Web Components

Oracle JET Web Components may need to inherit styling from consuming app, such as the background color, where the color style is themeable. Web Components may also enable theming so the consuming app can customize the provided styles. You can add theming support to your Web Component, and you can define CSS variables to support customization of your component's look and feel.

About Web Component Theming

When you theme Web Components you work with SASS partial files to define the style classes and expose the styles through CSS variables, by using the JET Tooling to derive optimized CSS.

It is not always necessary to theme custom components and component packs that you create. In many cases you may not need to enable custom theming. For example, when you only need to wrap some core JET components with no additional user interface, no theming is needed. As these two use cases suggest, it depends how you expect your components to be used in the consuming app.

Oracle JET relies on CSS variables to theme apps. The use of CSS variables to theme your Web Component supports easy integration into a consuming app. To streamline the theming process and support the generation of optimised stylesheets, your Web Component relies on SASS partial files and SCSS processing.

After you create the Web Component, you run the ojet add theming command to install support for scss processing into the base app where you will add the component. Then you can use the ojet create component command to add your component to the jet-composites folder. The new component project will contain a themes folder and three subfolders: base,redwood, and stable containing SASS partials files, as follows:

The SASS partials split between these folders supports the separation of the core style definitions from the variable driven theme-specific definitions. This structure allows you to define multiple themes but in practice is not a requirement for JET web apps, where the Redwood theme runs across platforms and environments, such as iOS on a mobile device or Windows on a desktop machine.

In addition to the generated theme folders, each component also has an SCSS file (ie, myComponent-styles.scss) at the root of the component folder that the JET Tooling processes to generate the final CSS from the theme SASS partials. The root .scss file contains a single line:

@import "themes/redwood/_myComponent.scss";

Guidelines for Web Component Theming

JET relies on the use of CSS variables as the primary vehicle for theming, which allows even a single supported theme configuration to adapt to the requirements of the consuming app.

When theming the Web Component observe the following considerations to guide the process.

If your themed component is configured through CSS variables so that the consuming app may override at the app or instance level, then add those variables to a section called Theming in the component README.md and document what they do and what they should be set to. Once documented in this way, the variables become a formal part of the component API and you should follow the normal semver rules when it comes to making changes. A change to the default theme should be classed as a MAJOR version number change in semantic version number.

Theme a Web Component

You can use Oracle JET Tooling to theme-enable a custom Web Components project and work with CSS variables to theme custom components that you add to the project.

You enable theming of a new Web Components project, or JET Pack project, by using the JET Tooling to add theming support to the containing project. The tooling adds SASS partials files used to streamline the CSS generation process and is a prerequisite step to creating a custom component or pack to support modifications to the base theme.

After you theme-enable your containing project by running the ojet add theming command at the project root, new custom components that you create in the project will contain a themes folder with subfolders that each contain a single SASS partials file that you will modify:

Additionally, any custom component in a theme-enabled project will also contain a <componentName>.scss SASS file in the component's root folder. This file serves to import the CSS file that the JET build process generates from the SASS partials files.

A CSS build error may result if a pack or component is created before running ojet add theming. The add theming command enables SCSS compilation to generate the CSS. Be sure to run add theming before creating the pack or component.

Before you begin:

To add theming support and theme a component:

  1. In your Web Component project's top-level directory, enter the following command at a terminal prompt to install the theming toolchain.

    ojet add theming

  2. Create a Web Component in the containing project. Or, create a JET Pack and add a Web Component to the pack, as this sample shows.

    ojet create pack my-pack
ojet create component my-widget1 --pack=my-pack

    For example, the following commands create a pack oj-sample and add a custom component metric to the pack.

    ojet create pack oj-sample
ojet create component metric --pack=oj-sample

    These commands create a jet-composites folder that contains the oj-sample pack folder and the metric component.

    src
|   index.html
|
+---css
+---js
\---ts
    +---jet-composites
    |   \---oj-sample
    |       |   component.json
    |       |
    |       \---metric
    |           |   component.json
    |           |   loader.ts
    |           |   metric-styles.scss
    |           |   metric-view.html
    |           |   metric-viewModel.ts
    |           |   README.md
    |           |
    |           +---resources
    |           \---themes
    |               +---base
    |               |       _metric.scss
    |               |
    |               +---redwood
    |               |       _metric.scss
    |               |
    |               \---stable
    |                       _metric.scss
    |
    +---viewModels
    +---views

    In the directory above, the metric folder shows the base SASS file metric-styles.scss. The themes subfolder contains the SASS partials files _metric.scss that you will modify.

    If you see a .css file instead of a .scss file in the root folder of the component, it indicates you did not run the add theming command before creating the component.

  3. In the /<componentName>/themes/base folder, edit the _componentName.scss SAAS partials file to define the style selectors for your component. You can define selector properties with hardcoded values or you can define properties controlled by CSS variables when you want to allow overriding of the property by a consuming app.

    Note that style and variable names must be named-spaced to the owning component's HTML element tag to avoid redefinition. For example, the style .oj-sample-metric-value-color is name-spaced by oj-sample-metric.

    @import "oj/utilities/_oj.utilities.modules.scss";
// Even if this file is imported many times 'module-include-once' ensures the content is included just once.
@include module-include-once("oj-sample-metric.base") {
  oj-sample-metric:not(.oj-complete){
    visibility: hidden;
  }
  // Selector definitions section
  oj-sample-metric .oj-sample-metric-value-text {
    display:inline-block;
    align-self:center;
  }
  oj-sample-metric .oj-sample-metric-label {
    font-size: var(--oj-sample-metric-label-font-size);
  }
  oj-sample-metric .oj-sample-metric-value-color {
    color: var(--oj-sample-metric-value-color);
  }
  oj-sample-metric .oj-sample-metric-label-color {
    color: var(--oj-sample-metric-label-color);
  }
  ...
}

    In this sample, only the selector .oj-sample-metric-value-text selector is completely defined in place and references no CSS variables. Properties of this style cannot be overridden. The font-size property for the .oj-sample-metric-label selector references a CSS variable that you will define in the theme-specific SASS partials file. The color property for the .oj-sample-metric-value-color and .oj-sample-metric-label-color selectors also references a CSS variable to be defined. The usage of CSS variables allows these properties to be overridden in the consuming app.

    When you do not need to allow overriding of a selector property value in the consuming app, you can reference variables defined by JET itself without definition in the theme-specific SASS partials file. In this next sample, the selector is defined directly by --oj-core-text-color-secondary, a JET CSS variable that defines text color.

    ...
oj-sample-metric .oj-sample-metric-label-color {
  color: var(--oj-core-text-color-secondary);
}
...

    For a list of JET CSS variables, refer to the resources listed in the Before You Begin section of this topic.

    If you define mappings such as:

color: rgb(var(--oj-palette-neutral-rgb-60));

    Then, when you build your project, you will encounter an error: "Error: Function rgb is missing argument $green" in your .scss files. This is a known SASS compiler issue and the workaround is to use uppercase for the function name, like this:

color: RGB(var(--oj-palette-neutral-rgb-60));

  4. In the /<componentName>/themes/redwood or /<componentName>/themes/stable folder, edit the _componentName.scss SAAS partials file to provide the theme-specific settings required by the base partials SCCS file. Within root you can define all component-specific CSS variables as hardcoded values or JET CSS variables.

    @include module-include-once("_metric.redwood") {
  :root {
    --oj-sample-metric-label-font-size:0.875rem;
    --oj-sample-metric-value-color:var(--oj-core-text-color-primary);
    --oj-sample-metric-label-color:var(--oj-core-text-color-secondary);
    ...
  }
}

    In this sample, only the CSS variable --oj-sample-metric-label-font-size is hardcoded. The other two variables inherit values from underlying JET variables. However, all settings defined in the theme-partials file may be overridden in the app that consumes the web component.

    For a list of JET CSS variables, refer to the resources listed in the Before You Begin section of this topic.

    To prepare the themed component or pack for a consuming app, see these topics:

Consolidate CSS for JET Packs

You can consolidate the stylesheets of custom components in a JET Pack to a single CSS file.

When you add custom Web Components to a JET Pack, initially, each component provides it's own CSS file. Although this approach works, it's optimal in a production app to reduce the number of physical roundtrips to the server and take full advantage of browser caching and the CDN. To reduce the number of roundtrips, you can enable loading from a single CSS file through the use of a shared Resource component that you add to the pack.

Before you begin:

To create a single shared CSS file in a pack:

  1. Add the Resource component that you created with a component.json file to the pack file structure and add a subfolder styles with a single SCSS file that you will use to import the CSS of the individual components in the pack.

    Here’s a concise and accessible alt text for the image: **Alt text:** A file tree structure showing folders and files related to a web project, including "jet-composites," "oj-sample," "metric," "common," "component.json," "styles," and "oj-sample-styles.scss."

    Description of the illustration mytheme-res-css-files.jpg

    In the figure above, the folder common is the working folder for the Resource component and the styles subfolder shows a SCSS file oj-sample-style.scss named for the pack.

  2. Edit the SCCS file in the styles folder to replicate the import commands for the SCSS partials files of the components that you want to combine into the consolidated stylesheet.

    @import "../../metric/themes/redwood/_metric.scss";
@import "../../input-email/themes/redwood/_input-email.scss";
@import "../../input-email/themes/redwood/_input-url.scss";

    In this sample, we show import statements for three components from the oj-sample pack example. In addition to the metric component's import, we include the import statements for the input-email component and the input-url component (omitted from the figure).

  3. For each component that you want to consolidate into a shared stylesheet, edit the component's loader.js file (.ts in the case of a TypeScript project) to reference the shared stylesheet named in the Resource component. Do not edit the loader file for any component that you want to continue to use the component-specific stylesheet.

    define (['ojs/ojcomposite',
         'text!./metric-view.html',
         './metric-viewModel',
         'text!./component.json',
         'css!oj-sample/common/styles/oj-sample-styles'
         ],

function(Composite, view, viewModel, metadata){
  Composite.register("oj-sample-metric", {
    view: view,
    viewModel: viewModel,
    metadata: JSON.parse(metadata)
  });
 }
);

    In this JavaScript sample, the loader script for the metric component shows the modified path statement references oj-sample-style from the SCSS file that was added to the Resource component's /common/styles folder.

    In the case of a TypeScript app, modify the import statement like this sample:

    import "css!oj-sample/common/styles/oj-sample-styles";
    Do not use relative path mapping to reference a pack component. Identify the path to the consolidated file in the pack component as shown in the previous examples for a JavaScript and TypeScript app.

    To perform a further optimization that allows the consuming app to manage the style completely in its own CSS, you can perform this task:

Optimize CSS to Allow Consuming Apps to Provide Styles

You can optimize the loading of component styles in the theme CSS for the consuming app.

To support downstream usages of the themed component, the Web Component needs to establish a contract for what the component needs. The developer who consumes your themed custom component into their app should be able to incorporate the styles unchanged and, optionally, perform a CSS optimization to enable loading from a single CSS file.

To enable these usages you must establish a contract that the downstream developer can observe when adding your component to their app.

To define and support the contract, you decorate the custom component with metadata that specifies the theme SCSS partials that the component exposes, and you modify the default loader script for the component CSS to specify the CSS requireJS plugin with the configurable ojcss plugin.

Before you begin:

To define a theme-consuming contract for the component:

  1. For each component that you want to consolidate into a shared stylesheet, edit the component's loader.js file (.ts in the case of a TypeScript project) and modify the import statement for the consolidated stylesheet by replacing the normal CSS requireJS plugin with the configurable ojcss plugin.

    define (['ojs/ojcomposite',
         'text!./metric-view.html',
         './metric-viewModel',
         'text!./component.json',
         'ojcss!oj-sample/common/styles/oj-sample-styles'
         ],

function(Composite, view, viewModel, metadata){
  Composite.register("oj-sample-metric", {
    view: view,
    viewModel: viewModel,
    metadata: JSON.parse(metadata)
  });
 }
);

    In the case of a TypeScript app, modify the import statement like this sample:

    import "ojcss!oj-sample/common/styles/oj-sample-styles";

    Note that the ojcss plugin import gives the downstream developer the ability to set up their app to configure the processing of the plugin directive and optionally suppress loading of custom component stylesheets when the consuming app defines the styles.

  2. For these same components, edit the component's component.json file to decorate the component with the extension metadata to specify the SCSS partials that define its theme.

    {
    "name": "metric",
    "pack": "oj-sample",
    "type":"composite",
    "displayName": "Metric Component",
    "license": "https://opensource.org/licenses/UPL",
    "description": "A simple tile that displays a label and value.",
    "version": "4.0.0",
    "jetVersion": ">=8.0.0 <10.0.0",
    "icon": {
        "iconPath": "extension/images/cca-metric.svg",
        "selectedIconPath": "extension/images/cca-metric.svg",
        "hoverIconPath": "extension/images/cca-metric-ovr.svg"
    },
    "properties": {
      . . .
    },
    "events": {
        . . .
    },
    "extension": {
        "themes":{
            "default":"Redwood",
            "unsupportedThemes":["Alta"]
            "partials":{
              "Redwood":"themes/redwood/_oj-sample-metric.scss"}
      }
        "catalog": {
            . . .
        },
        "vbdt": {
            . . .
        }
    }

  }

    In this sample, the extension : themes attribute defines an array of themes supported by the component. Each theme points to the relative path of the root partial as the source for that component's theme implementation. The definition also indicates whether or not it is the expected default theme. Components may support multiple themes, but only one of can be marked as the default.

    Note that this metadata is not required by JET but is recommended for any themeable custom component. This information will be used by the downstream developer to set up their app to pull in these SCSS partials into its own SCSS file. They can then build the app to assemble individual stylesheets into a combined CSS file.

    In normal usage there is no difference in operation between the ojcss and css plugins. However, the consuming app now has the ability to control the processing of the plugin directive.

    To understand how the consuming app controls the processing of the plugin directive to suppress the loading of the component CSS and define style classes within their app's custom theme, see Incorporate Themed Components into a Consuming App.

Incorporate Themed Components into a Consuming App

You can override CSS variables in a properly themed Web Component by making changes to the style classes in your consuming app's theme.

When consuming a custom component and its theme is the same as your app's theme, then you can add the custom component to your app and use it without changes. However, when the consuming app theme changes the styles of the custom component, you need to reference the custom component theme partials SCSS files in your app.

For example, if your app's custom theme alters the default Redwood theme color ramp, you want to ensure that the same colors are inherited by the themeable custom components that you add to your app. This process of overriding the CSS variables of the custom component by the consuming app requires that you incorporate the partials supplied by each component that you want to consume. This process is statically defined and therefore you will need to re-perform this whenever you add a new component that requires theming into the consuming app.

Note that you also can use this process when you do not need to make changes to the underlying Redwood theme and only want to optimize the number of CSS files by consolidating both the core Redwood styles, plus the extra styles defined for the custom components you will use.

Before you begin:

  1. Create a working project that you will use to carry out the theme creation process.

    ojet create redwood-plus-theme-source --template=basic

    In this example, the working project is named redwood-plus-theme-source.

  2. Add theming support to the project and create the custom theme.

    ojet add theming
ojet create theme redwood-plus --basetheme=redwood

    In this example, the theme name redwood-plus distinguishes the custom theme from the out-of-the-box redwood theme name. Note that JET, as of release 11.0.0, supports another out-of-the-box theme (stable) that is less likely to be affected by future changes to the out-of-the-box redwood theme. Choose stable as the --basetheme argument value if the consuming app uses a theme based on the stable theme.

  3. When working with Oracle Component Exchange to add Web Components, set up access to Component Exchange.

    ojet configure --exchange-url=https://xxxxx-cloud01.developer.ocp.oraclecloud.com/xxxxx-cloud01/s/xxxxx-cloud01_sharedcomponentcatalog_8325/compcatalog/0.2.0

  4. Add the components that you want to include into your theme. This process will download the components into the /jet_components cache folder in the root of your theme source project.

    You can add the components one by one:

    ojet add component oj-sample-metric@^4.0.0

    Or, you can add an entire pack at once.

    ojet add pack oj-sample@^4.0.0

    In this example, the component name and pack name are reused from the examples shown in the previous topics in this section.

    Note when adding the components or packs, you should specify the versions that you need. Similar to the way you would use the core JET theme, you can expect to rebuild and regenerate the theme if there is a change in the major version number of the component or pack.

To incorporate themeable components into the custom theme:

  1. In the working project, where you added the custom components, open the /src/themes/<themeName>/web folder and examine the folder structure.

    /src
  /themes
    /redwood-plus
      /web
        _redwood-plus.components.scss
        _redwood-plus.cssvars.settings.scss
        _redwood-plus.sass.settings.scss
        redwood-plus.scss

    In this sample, we see three SCSS partials files and the CSS aggregating file redwood-plus.scss. In the context of customizing the theme in the working project with themeable custom components, the four files have these purposes.

    • _redwood-plus.components.sccs allows you to tune the overall size of your theme by specifying that it should only style specific components from JET core. Usually you will not touch this file as you'll be styling the whole component set. See also Optimize the CSS in a Custom Theme.
    • _redwood-plus.cssvars.settings.scss is the file that you use to make most of the style changes in your custom theme, assuming you need to make any. You will use it to set the CSS variable values that you want to be used by the various JET Core components (and possibly by the custom components, as well). For example, to change the primary text color for JET, as a whole, you can do it in this file by uncommenting and setting the value for --oj-core-text-color-primary. Assuming this same variable happens to be used by one of the custom components, then it would share this common change. See also Modify the Custom Theme with the JET CLI.
    • _redwood-plus.sass.settings defines other aspects of the theme that you may need to change but that can't be expressed as simple variable values, for example animation effects. For basic theming scenarios, you probably don't need to touch this file.
    • redwood-plus.scss this is the main CSS aggregating file for the theme as a whole and is the one that will be transformed into the final output, as the redwood-plus.css file.

  2. In the /src/themes/<themeName>/web folder, edit the CSS aggregating file <themeName>.scss and add the import statements for the theme-able custom components that you added to the working project.

    ...
// import SASS custom variable overrides
@import "_redwood-plus.sass.settings.scss";

// Imports all jet components styles
//@import "oj/all-components/themes/redwood/_oj-all-components.scss";

// To optimize performance, consider commenting out the above oj-all-components
// import and uncomment _redwood-plus.components.scss below.
// Then in _redwood-plus.components.scss uncomment only the component
// imports that your app needs.
//

// @import "_redwood-plus.components.scss";

// Import components from oj-sample JET Pack
@import "oj-sample/metric/themes/redwood/_oj-sample-metric.scss";
@import "oj-sample/input-email/themes/redwood/_input-email.scss";
@import "oj-sample/input-url/themes/redwood/_input-url.scss";

// import CSS Custom properties
@import "_redwood-plus.cssvars.settings.scss";

    In this sample, the import statements for the three theme-able custom components in the oj-sample pack are added. With these import statements referencing each component partials' includePath added to the CSS aggregating file, the indicated component partials will be incorporated into the custom theme.

  3. Optionally, if you are making changes to the theme (and not using the process only to consolidate CSS), you can test your theme by embedding sample components, including your custom components, into the working project's index.html page and run it. You can then verify the theme changes are what you expect. However, before you run the project, you must ensure that the custom components can pick up their styles from the theme, and not from their own stylesheets.

    1. To suppress the loading of component CSS, edit the main.js file and add an ojcss configuration section in the requirejs configuration that names the CSS loading to suppress.

      requirejs.config(
    {
      baseUrl: 'js',
      ojcss: {
        'exclude': ['oj-sample']
       },
      paths:
      /* DO NOT MODIFY
       All paths are dynamically generated from the path_mappings.json file.
       Add any new library dependencies in path_mappings json file
      */
      // injector:mainReleasePaths
      {
        ...
      }
      // endinjector
      ,

    }
  );
}());

      Make sure that you add the ojcss configuration section outside of the//injector block, as shown. Otherwise, the build process will remove and ignore the section.

      In this sample, the ojcss section of the requirejs configuration excludes the consolidated stylesheet of the JET Pack oj-sample. The ojcss section defines an array of requireJS paths that will be excluded from loading. Note this configuration depends upon imports within the component using consistent Reliable Referencing based paths that match.

    2. Run the project to verify the changes.

      ojet serve --theme=redwood-plus

  4. Update the version number in the /src/themes/<myTheme>/theme.json file to one that is suitable for the target CSS and build the consolidated theme. By default the version number is initially 0.0.1.

    ojet build --theme=redwood-plus

Test Web Components

Test Oracle JET Web Components using your favorite testing tools for client-side JavaScript apps.

Regardless of the test method you choose, be sure that your tests fully exercise the Web Component’s:

For additional information about testing Oracle JET apps, see Test Oracle JET Apps.

Add Web Components to Your Page

To use an Oracle JET Web Component, you must register the Web Component’s loader file in your app and you must also include the Web Component element in the app’s HTML. You can add any supporting CSS or files as needed.

  1. In the Web Components's root folder, open component.json and verify that your version of Oracle JET is compatible with the version specified in jetVersion.

    For example, the demo-card example specifies the following jetVersion:

    "jetVersion": ">=3.0.0 <20.0.0"

This indicates that the component is compatible with JET versions greater than or equal to 3.0.0 and less than 20.0.0.

If your version of Oracle JET is lower than the jetVersion, you must update your version of Oracle JET before using the component. If your version of Oracle JET is greater than the jetVersion, contact the developer to get an updated version of the component.

  1. In your app's index.html or main app HTML, add the component and any associated property declarations.

    For example, to use the demo-card standalone Web Component, add it to your index.html file and add declarations for name, avatar, work-title, work-number, email, and background-image.

    <div id="composite-container" class="oj-flex oj-sm-flex-items-initial">
   <oj-bind-for-each data="[[employees]]">
     <template>
       <demo-card class="oj-flex-item"
                  name="[[$current.data.name]]"
                  avatar="[[$current.data.avatar]]"
                  work-title="[[$current.data.title]]"
                  work-number="[[$current.data.work]]"
                  email="[[$current.data.email]]">
       </demo-card>
     </template>
   </oj-bind-for-each>
</div>

    In the case of components within a JET Pack, the HTML tag name is the component full name. The full name of a pack's member component is always a concatenation of the pack name and the component name, as specified by the dependencies attribute of the pack-level component.json file (located in the pack root folder under jet-composites). For example, a component widget-1 that is a member of the JET Pack my-pack, has the following full name that you can reference as the HTML tag name.

    my-pack-widget-1

    Note that the framework maps the attribute names in the markup to the component's properties.

    • Attribute names are converted to lowercase. For example, a workTitle attribute will map to a worktitle property.

    • Attribute names with dashes are converted to camelCase by capitalizing the first character after a dash and then removing the dashes. For example, the work-title attribute will map to a workTitle property.

    You can access the mapped properties programmatically as shown in the following markup:

    <h5><oj-bind-text value="[[properties.workTitle]]"></oj-bind-text></h5>

  2. In your app's ViewModel, set values for the properties you declared in the previous step and add the component's loader file to the list of app dependencies.

    For example, the following code adds the ViewModel to the app's RequireJS bootstrap file. The code also defines the jet-composites/demo-card/loader dependency.

    require(['ojs/ojbootstrap', 'knockout', 'ojs/ojknockout', 'demo-card/loader'],
function(Bootstrap, ko) {
  function model() {
    var self = this;
    self.employees = [
      {
        name: 'Deb Raphaely',
        avatar: 'images/composites/debraphaely.png',
        title: 'Purchasing Director',
        work: 5171278899,
        email: 'deb.raphaely@oracle.com'
      },
      {
        name: 'Adam Fripp',
        avatar: null,
        title: 'IT Manager',
        work: 6501232234,
        email: 'adam.fripp@oracle.com'
      }
    ];
  }

  Bootstrap.whenDocumentReady().then(function()
    {
      ko.applyBindings(new model(), document.getElementById('composite-container'));
    }
  );
});

    In the case of a JET Pack, you add the loader file for the JET Pack by specifying the path based on the pack root and folder name of the component contained within the pack.

    'my-pack/widget-1/loader'

  3. Add any supporting CSS, folders, and files as needed.

    For example, the demo card example defines a background image for the contact card in the app's demo.css:

    #composite-container demo-card .demo-card-front-side {
    background-image: url('images/composites/card-background_1.png');
}

Build Web Components

You can build your Oracle JET Web Component to optimize the files and to generate a minified folder of the component that can be shared with the consumers.

When your Web Component is configured and is ready to be used in different apps, you can build the Web Components of the type: standalone Web Component, JET Pack, and Resource component. Building these components using JET tooling generates a minified content with the optimized component files. This minified version of the component can be easily shared with the consumers for use. For example, you would build the component before publishing it to Oracle Component Exchange. To build the Web Component, use the following command from the root folder of the JET app containing the component:

ojet build component my-web-component-name

For example, if your Web Component name is demo-card-example, use the following command:

ojet build component demo-card-example

For a JET Pack, specify the pack name.

ojet build component my-pack-name

Note that the building individual components within the pack is not supported, and the whole pack must be built at once.

This command creates a /min folder in the web/js/jet-composites/demo-card-example/x.x.x directory of your Oracle JET web app, where x.x.x is the version number of the component. The /min folder contains the minified (release) version of your Web Component files.

Reference component do not require minification or bundling and therefore do not need to be built.

When you build Web Components:

Generate API Documentation for VComponent-based Web Components

The Oracle JET CLI includes a command (ojet add docgen) that you can use to assist with the generation of API documentation for the VComponent-based web components (VComponent) that you develop.

When you run the command from the root of your project, the JSDoc NPM package is installed and an apidoc_template directory is added to the src directory of your project. The apidoc_template directory contains HTML files (footer, header, and main) that you can customize with appropriate titles, subtitles, and footer information, such as copyright information, for the API reference documentation that you'll subsequently generate for your VComponent(s). The command also adds an "enableDocGen": true entry to the oraclejetconfig.json file of the Oracle JET app. When true, API doc is generated. When false, no API doc is generated for the VComponents.

You write comments in the source file of your VComponent, as in the following example:

import { ExtendGlobalProps, registerCustomElement } from "ojs/ojvcomponent";
. . .

type Props = Readonly<{
  message?: string;
  address?: string;
}>;

/**
 *
 * @ojmetadata version "1.0.0"
 * @ojmetadata displayName "A user friendly, translatable name of the component"
 * @ojmetadata description "<p>Write a description here.</p>
                            <p>Use HTML tags to put in new paragraphs</p>
                            <ul>
                                <li>Bullet list item 1</li>
                                <li>Bullet list item 2</li></ul>
         * <p>Everything before the closing quote is rendered</p>
 * "
 *
 */


function StandaloneVcompFuncImpl({ address = "Redwood shores",
                         message = "Hello from  standalone-vcomp-func" }: Props) {
  return (
    <div>
    . . .
    </div>
  );
}

Once you have completed documenting your VComponent’s API in the source file, you run the build command for your component or the JET Pack, if the component is part of a JET pack (ojet build component component-name or ojet build component jet-pack-name) to generate API reference doc in the appRootDir/web/js/jet-composites/component-or-pack-name/vcomponent-version/docs directory.

The following /docs directory listing shows the files that the Oracle JET CLI generates for a standalone VComponent. You can’t generate the API documentation by building the Oracle JET app that contains the component. You have to build the individual VComponent or the JET Pack that contains VComponents. Note too that you can’t generate API doc for CCA-based web components using the Oracle JET CLI ojet add docgen command.

appRootDir/web/js/jet-composites/standalone-vcomp-func/1.0.0/docs
|   index.html
|   jsDocMd.json
|   standalone-vcomp-func.html
|   standalone.StandaloneVcompFunc.html
|
+---scripts
|   |   deprecated.js
|   |
|   \---prettify
|           Apache-License-2.0.txt
|           lang-css.js
|           prettify.js
|
\---styles
    |   jsdoc-default.css
    |   prettify-jsdoc.css
    |   prettify-tomorrow.css
    |
    \---images

One final thing to note is that if you want to include an alternative logo and/or CSS styles to change the appearance of the generated API doc, you update the content in the following directory appRootDir/node_modules/@oracle/oraclejet/dist/jsdoc/static/styles/.

Package Web Components

You can create a sharable zip file archive of the minified Oracle JET Web Component from the Command-Line Interface.

When you want to share Web Components with other developers, you can create an archive file of the generated output contained in the jet-composites subfolder of the app's /web. After you build a standalone Web Component or a Resource component, you use the JET tooling to run the package command and create a zip file that contains the Web Component compiled and minified source.

ojet package component my-web-component-name

Similarly, in the case of JET packs, you cannot create a zip file directly from the file system. It is necessary to use the JET tooling to package JET packs because the output under the /jet-composites/<packName> subfolder contains nested component folders and the tooling ensures that each component has its own zip file.

ojet package pack my-JET-Pack-name

The package command packages the component's minified source from the /web/js/jet-composites directory and makes it available as a zip file in a /dist folder at the root of the containing app. This zip file will contain both the specified component and a minified version of that component in a /min subfolder.

Reference components do not require minification or bundling and therefore do not need to be built. You can archive the Reference component by creating a simple zip archive of the component's folder.

The zip archive of the packaged component is suitable to share, for example, on Oracle Component Exchange, as described in Publish Web Components to Oracle Component Exchange. To help organize components that you want to publish, the JET tooling appends the value of the version property from the component.json file for the JET pack and the individual components to the generated zip in the dist folder. Assume, for example, that you have a component pack, my-component-pack, that has a version value of 1.0.0 and the indiviudal components (my-widget-1, and so on) within the pack also have version values of 1.0.0, then the zip file names for the generated files will be as follows:

appRootDir/dist/
my-web-component-name_1-0-0.zip
my-component-pack_1-0-0.zip
my-component-pack-my-widget-1_1-0-0.zip
my-component-pack-my-widget-2_1-0-0.zip
my-component-pack-my-widget-3_1-0-0.zip

You can also generate an archive file when you want to upload the component to a CDN. In the CDN case, additional steps are required before you can share the component, as described in Upload and Consume Web Components on a CDN.

Create a Project to Host a Shared Oracle Component Exchange

When you want to store and share Web Components across machines for re-use by other developers, you can use a Component Exchange that you create in Oracle Visual Builder Studio.

When you want to share Web Components, you generally need to set up a dedicated project to specifically host a Shared Exchange. Although every project within Oracle Visual Builder Studio has a private Component Exchange instance, the Shared Exchange makes uploaded components accessible to other developers. You can use the same project in your Shared Exchange to host the source code repository of your components.

To create the Shared Exchange:

  1. Create a new project in Oracle Visual Builder Studio. Image shows the New Project page of the Oracle Visual Builder Studio.
  2. Select the Initial Repository template for the new project. Image shows the New Project Templates page of the Oracle Visual Builder Studio.
  3. Leave the defaults settings unchanged or, optionally, select the settings for importing your component source code and click Finish. Image shows the Project Properties page of the Oracle Visual Builder Studio.
  4. In the project provisioning screen, verify that Component Exchange is one of the services being created. Image shows the Shared Component Catalog home page hosted by the Oracle Visual Builder Studio.
  5. Share the project with all users who will need to access published components by adding them as members to the project. They will then use their own user name and password to access the Shared Component Exchange.

Once the project is created you can obtain the correct URL for use with the Oracle JET tooling to access the Shared Component Exchange, as described in Publish Web Components to Oracle Component Exchange.

Publish Web Components to Oracle Component Exchange

When you want to store and share Web Components across machines for re-use by other developers, you can use the Oracle JET CLI (Command-Line Interface) to configure access to a Shared Component Exchange defined in Oracle Visual Builder Studio and then publish components to a public project.

When you want to share Web Components, you can use Oracle JET CLI to configure access to a Shared Component Exchange by supplying the URL to the target Component Exchange. Once you have configured the JET tooling for a specific Component Exchange, you can run the publish component command in the JET CLI to upload specified components. Users with access rights can use the CLI to search the Component Exchange for components by keyword and add components to their web app project.

Before you begin:

To publish components to a Shared Component Exchange:

  1. Obtain the URL to the Shared Component Exchange that you can use to configure Oracle JET tooling.

    1. From the Shared Component Exchange that you created, copy the URL that you would use to clone the GIT repository. The URL will look similar to this.

      https://john.doe@example.org@xxxxx-cloud01.developer.ocp.oraclecloud.com/xxxxx-cloud01/s/xxxxx-cloud01_sharedcomponentcatalog_8325/scm/sharedcomponentcatalog.git

    2. Using the copied URL, remove the user name prefix (for example, john.doe@example.org@) and remove elements from /scm onwards to obtain a root of just the project, similar to this.

      https://xxxxx-cloud01.developer.ocp.oraclecloud.com/xxxxx-cloud01/s/xxxxx-cloud01_sharedcomponentcatalog_8325

    3. Next, append /compcatalog/0.2.0.

      In this example, the Exchange URL that you need for the Oracle JET tooling looks like this.

      https://xxxxx-cloud01.developer.ocp.oraclecloud.com/xxxxx-cloud01/s/xxxxx-cloud01_sharedcomponentcatalog_8325/compcatalog/0.2.0

  2. Configure Oracle JET tooling to access the Component Exchange project by running the ojet configure command in the Oracle JET CLI. Set the --exchange-url flag on the command to pass the Component Exchange URL you obtained.

    ojet configure --exchange-url=https://xxxxx-cloud01.developer.ocp.oraclecloud.com/xxxxx-cloud01/s/xxxxx-cloud01_sharedcomponentcatalog_8325/compcatalog/0.2.0
    You can use the JET CLI to define an Exchange URL that is global to all projects for your user:
    ojet configure --global --exchange-url=myExchange.org
    The URL that you pass to the ojet configure` command at the project level, overrides the global definition.

  3. In the Oracle JET CLI, publish a component to the configured Component Exchange by running the publish component command.

    ojet publish component my-demo-card

    Optionally, you can supply Component Exchange login user name and password with the publish command. For more information, enter ojet help publish in the CLI.

Oracle JET tooling supports searching the configured Component Exchange by running the search exchange command with a keyword, such as the component name. Additionally, you can add components to your web app by running the add component command for the configured Component Exchange. For more information, use ojet help in the JET CLI.

Upload and Consume Web Components on a CDN

You can package a Web Component to make it available on a Content Delivery Network (CDN) and you can reuse the component in your app.

You can include the CDN location of the component in the component metadata as defined in the component's component.json file. By doing this, tools such as Oracle JET tooling and Oracle Visual Builder will be able to point to the CDN location when you build your apps in release mode.

CDN information is encoded by using the paths attribute in the component.json file. A typical example looks similar to this.

{
  "name": “demo-samplecomponent",
  "displayName": “Sample component",
  "version": "1.0.0",
  "paths": {
    "cdn": {
      "min": "https://static.example.com/cdn/jet/components/demo-samplecomponent/1.0.0/min",
      "debug": "https://static.example.com/cdn/jet/components/demo-samplecomponent/1.0.0"
    }
  },
...

The following notes apply to the paths attribute that you specify:

To prepare for CDN distribution, package the component by running the package component command in the Oracle JET Command-Line Interface. This will produce a zip file with the same name as the component (for example, demo-samplecomponent.zip) in the /dist folder of the containing Oracle JET app. This zip file will contain both the specified component and a minified version of that component in a /min subfolder.

Unpack the zip file that you created under the /<component-name>/<version> folder for your CDN as identified in the component.json file.

After a component is available on a CDN, you can then use it in your JET app by pointing the requireJS path for the component to the CDN location that you identified for the component. If you use Oracle JET tooling, this will be done for you; however, if you need to define the requireJS paths manually, such a mapping will look similar to this in main.js file:

requirejs.config(
    {
      baseUrl: 'js',
      paths:
      {
        'demo-samplecomponent': '"https://static.example.com/cdn/jet/components/demo-samplecomponent/1.0.0/min',
      ...

References to the component can be made using the path <component-name>/loader.
