Implement a Cloud-Native DICOM Store on Oracle Cloud Infrastructure
In modern medicine, managing and exchanging medical images and metadata efficiently is critical for patient care.
Digital Imaging and Communications in Medicine (DICOM), is the global standard for storing, transmitting, and handling medical imaging data. A DICOM store is a centralized digital repository that stores medical images, such as X-rays, CT scans, MRIs, and ultrasound images along with associated metadata, such as patient ID, imaging modality, and scan date.
A cloud-based DICOM store is a modern solution for storing and managing medical imaging data in the cloud that follows the DICOM standard. It allows healthcare organizations to upload, archive, access, and share DICOM images and metadata using scalable, secure, and highly available cloud infrastructure.
Unlike traditional on-premises systems, cloud-based DICOM stores offer greater flexibility, remote access, easier integration with AI and analytics tools, and reduced infrastructure management. Combined with DICOMweb APIs, these solutions enable seamless interaction with imaging data through web and mobile applications and support modern healthcare needs such as telemedicine, multisite collaboration, and long-term image retention.
At its core, a DICOM store acts like a specialized medical image database. It allows healthcare systems, radiologists, and medical software to:
- Store imaging data in a standardized format
- Retrieve images for viewing and analysis
- Share data between systems, facilities, or clinicians
- Integrate with PACS (Picture Archiving and Communication Systems) and Electronic Health Records (EHRs)
Traditionally, DICOM stores are deployed on‑premises which creates multiple challenges:
High infrastructure costs
- Medical images are large, especially CT and MRI images, and volumes grow quickly over time.
- Infrastructure investment in servers, storage arrays, cooling, and physical security is an ongoing expense.
- Scaling requires physical upgrades, which are expensive and slow to implement.
Maintenance and support
- Dedicated IT staff is required to manage hardware, software updates, backups, and compliance requirements.
- There is a risk of downtime due to hardware failure, especially if disaster recovery plans aren’t robust.
Security and compliance risks
- On-premises systems are vulnerable to ransomware attacks and unauthorized access if not properly maintained.
- Strong access controls, auditing, and encryption are required to comply with HIPAA, GDPR, and other regulations.
Interoperability and sharing limitations
- Sharing DICOM images with other hospitals, specialists, or systems is harder from siloed, on-premises storage.
- Custom VPNs or secure transfer setups are required, which are slow and prone to compatibility issues.
Limited Support for AI and cloud-based workflows
- Modern AI tools and cloud-based diagnostic services often require integration with cloud DICOM stores or APIs.
- On-premises systems may block or slow down innovation because they lack cloud-native compatibility.
Architecture
This architecture implements a DICOM store on Oracle Cloud Infrastructure.

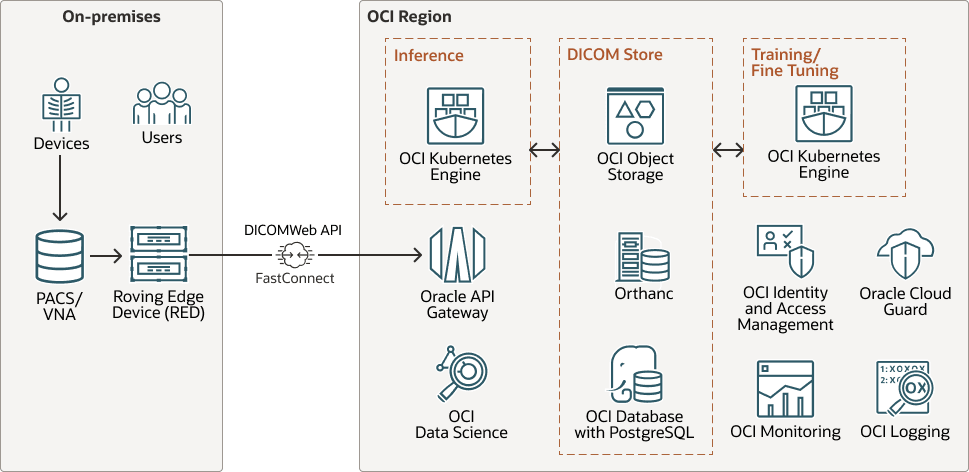

The following diagram illustrates this reference architecture.
The architecture has the following components:
- Oracle Cloud
Infrastructure
Oracle Cloud Infrastructure (OCI) is Oracle's cloud computing platform that provides a comprehensive suite of services for building, deploying, and managing applications in the cloud. Designed for enterprise performance and security, OCI offers infrastructure as a service (IaaS), platform as a service (PaaS), and other cloud services such as AI, machine learning, networking, storage, and database solutions.
OCI provides high performance, scalability, and cost-efficiency, supporting a wide range of workloads from legacy enterprise applications to cloud-native services. It is ideal for businesses seeking robust cloud capabilities with strong support for hybrid and multi-cloud architectures.
- Cloud-based data science platform
Oracle Cloud Infrastructure Data Science is a fully managed platform that enables data scientists to build, train, deploy, and manage machine learning models at scale. It provides a collaborative, secure environment with integrated tools for the entire data science lifecycle, including notebooks, automated model training, model evaluation, and deployment.
Data Science supports popular open-source frameworks like TensorFlow, scikit-learn, PyTorch, and XGBoost, and offers seamless integration with other OCI services such as Object Storage, Data Flow, and AI Services. Backed by a wide selection of CPU and GPU shapes, Data Science helps organizations accelerate AI development, streamline collaboration across teams, and operationalize machine learning models efficiently in the cloud.
- AI model training and inference
AI training and inference are the two core stages in the lifecycle of an artificial intelligence model:
- Training is the process by which a model learns from large datasets by adjusting its internal parameters to recognize patterns, make predictions, or perform specific tasks. This phase is computationally intensive and requires powerful hardware like GPUs or TPUs, as well as high-throughput storage and networking.
- Inference is the stage where the trained model is used to make predictions or decisions based on new, unseen data. Inference typically needs to be fast and scalable, especially in real-time applications like medical imaging, fraud detection, or virtual assistants.
Chosen by world’s leading AI companies such as OpenAI and xAI, OCI Generative AI infrastructure has emerged as a leading platform for AI model training and inference, offering a unique combination of performance, scalability, and cost-efficiency.
- Security and Compliance
OCI offers a comprehensive set of security and compliance features designed to protect data, applications, and workloads across the cloud environment. OCI provides built-in security at every layer, including network security, identity and access management (IAM), data encryption, threat detection, and monitoring.
Key features include isolated network virtualization, customer-controlled encryption keys, security zones, and Oracle Cloud Guard for continuous monitoring and automated threat response. OCI also supports compliance with major industry and regulatory standards such as ISO, SOC, HIPAA, GDPR, and FedRAMP, helping organizations meet strict data protection and governance requirements.
These capabilities make OCI a trusted platform for running sensitive, mission-critical workloads securely and in compliance with global standards.
- Orthanc
Orthanc is an open-source, lightweight DICOM server designed to manage, store, and share medical imaging data. It is widely used in hospitals and research labs, and by developers to build imaging workflows without relying on heavy commercial PACS (Picture Archiving and Communication Systems).
Orthanc seamlessly integrates with OCI Object Storage and OCI Database with PostgreSQL, providing a DICOMweb API endpoint that enables users to store, retrieve, and query DICOM images by using RESTful APIs.
In this reference architecture, Orthanc is deployed on OCI Container Instances or OCI Container Instances (OKE), eliminating the infrastructure management overhead for our healthcare customers.
- OCI Object Storage
Actual DICOM images are stored in an OCI Object Storage bucket.
OCI Object Storage offers highly durable, infinitely scalable, and secure storage for any type of data—structured or unstructured. Whether you're archiving medical images, serving media files, or backing up enterprise workloads, OCI Object Storage provides low-latency access, built-in redundancy, and tiered pricing to optimize cost and performance. It is designed for modern cloud applications, integrates natively with AI, analytics, and DevOps tools, and offers seamless data lifecycle management, all with no up-front hardware investment.
- OCI Database with PostgreSQL
In this reference architecture, Orthanc is integrated with OCI Database with PostgreSQL to manage and index the non-image metadata associated with DICOM files. While Orthanc can run without an external database (using its built-in SQLite engine), integrating with a managed and more powerful database such as OCI Database with PostgreSQL is recommended for scalability and performance.
- OCI Kubernetes Engine
Oracle Cloud Infrastructure Kubernetes Engine (OCI Kubernetes Engine or OKE) is a fully managed, enterprise-grade Kubernetes service that simplifies container orchestration on Oracle Cloud. With OKE, you get automated provisioning, scaling, and updates, so you can deploy, run, and manage cloud-native applications with less overhead.
Running AI workloads on OKE gives you the best of both worlds: the flexibility of containers and Kubernetes, combined with the power of OCI’s high-performance infrastructure. Whether you're training models on GPU nodes or deploying inference at scale, OKE lets you manage AI pipelines with ease using your favorite tools like TensorFlow, PyTorch, or Hugging Face.
With automated scaling, GPU support, integrated logging, and cost-efficient pricing, OKE makes it simple to build, run, and scale AI workloads in production, all in a secure, enterprise-grade environment.
- OCI FastConnect
OCI FastConnect offers dedicated, private network connectivity between customer’s on-premises facility, such as a hospital, and Oracle Cloud, delivering high throughput, low latency, and predictable performance for enterprise workloads. It bypasses the public internet entirely, improving security and reliability for hybrid and multi-cloud architectures.
But what sets OCI FastConnect apart is its cost model: OCI doesn’t charge for data egress over Oracle Cloud, unlike other cloud providers that often impose steep outbound data transfer fees. This creates significant cost savings for data-heavy workloads like medical imaging.
- OCI Roving Edge Device
OCI Roving Edge Devices (REDs) help facilitate DICOM data transmission and provide the necessary infrastructure for local inference. They bring the power of Oracle Cloud to the edge: rugged, portable, high-performance nodes that let you run applications, process data, and deploy AI models in disconnected or remote environments.
REDs enable low-latency edge computing with full compatibility with OCI services. You can preload VMs, containers, and data, then synchronize with the cloud when connectivity is available.
Recommendations
- Virtual cloud network (VCN)
When you create a VCN, determine the number of CIDR blocks required and the size of each block based on the number of resources that you plan to attach to subnets in the VCN. Use CIDR blocks that are within the standard private IP address space.
Select CIDR blocks that don't overlap with any other network (in Oracle Cloud Infrastructure, your on-premises data center, or another cloud provider) to which you intend to set up private connections.
After you create a VCN, you can change, add, and remove its CIDR blocks.
When you design the subnets, consider your traffic flow and security requirements. Attach all the resources within a specific tier or role to the same subnet, which can serve as a security boundary.
Use regional subnets.
- Cloud Guard
Clone and customize the default recipes provided by Oracle to create custom detector and responder recipes. These recipes enable you to specify what type of security violations generate a warning and what actions are allowed to be performed on them. For example, you might want to detect OCI Object Storage buckets that have visibility set to public.
Apply Oracle Cloud Guard at the tenancy level to cover the broadest scope and to reduce the administrative burden of maintaining multiple configurations.
You can also use the Managed List feature to apply certain configurations to detectors.
- Security Zones
For resources that require maximum security, Oracle recommends that you use security zones. A security zone is a compartment associated with an Oracle-defined recipe of security policies that are based on best practices. For example, the resources in a security zone must not be accessible from the public internet and they must be encrypted using customer-managed keys. When you create and update resources in a security zone, OCI validates the operations against the policies in the recipe, and prevents operations that violate any of the policies.
- Network security groups (NSGs)
You can use NSGs to define a set of ingress and egress rules that apply to specific VNICs. We recommend using NSGs rather than security lists, because NSGs enable you to separate the VCN's subnet architecture from the security requirements of your application.
