2 Enable the OHF SSA Usage Tracking

Set Up the Data Model

1. Make sure the Repository Creation Utility (RCU) has been successfully run while installing OBIEE. You should have the <prefix>_BIPLATFORM schema installed with the following tables in it:

   • S_NQ_ACCT

   • S_NQ_DB_ACCT

   • S_NQ_INITBLOCK

2. Go to <OBIEE_HOME>/bi/bifoundation/samples/usagetracking.

3. Extract the UsageTracking-datafiles.zip archive.

4. Connect to the <prefix>_BIPLATFORM schema and execute the following SQL scripts in order:

   1. Oracle_create_nQ_Calendar.sql

   2. Oracle_create_nQ_Clock.sql

   3. Oracle_nQ_Calendar.sql

   4. Oracle_nQ_Clock.sql

5. Create a view in the <prefix>_BIPLATFORM schema:

   CREATE OR REPLACE VIEW nq_login_group AS SELECT DISTINCT user_name AS login FROM s_nq_acct;

Enable the Usage Tracking Feature in the NQSConfig.INI File

1. Go to <OBIEE_HOME>/user_projects/domains/bi_domain/config/fmwconfig/biconfig/OBIS/.

2. Open the NQSConfig.INI file in a text editor.

3. In the [Usage Tracking] section set the ENABLE parameter to YES.

4. Set the DIRECT_INSERT parameter to YES.

5. Set the PHYSICAL_TABLE_NAME parameter to point to the S_NQ_ACCT table in the <prefix>_BIPLATFORM schema in the following format: "<Database>"."<Catalog>"."<Schema>"."<Table>";

   Use the database, catalog, schema, and table names predefined in the OHF SSA RPD file:

   • Database: "OHF Usage Tracking"

   • Catalog: "Catalog"

   • Schema: "dbo"

   • Table Name: "S_NQ_ACCT"

6. Set the CONNECTION_POOL parameter in the following format "<Database>"."<Connection Pool>";

   Use the database and connection pool values predefined in the OHF SSA RPD file:

   • Database: "OHF Usage Tracking"

   • Connection Pool: "OHF Usage Tracking Connection Pool"

7. Uncomment the INIT_BLOCK_TABLE_NAME parameter and set it to point to the S_NQ_INITBLOCK table in the <prefix>_BIPLATFORM schema in the following format: "<Database>"."<Catalog>"."<Schema>"."<Table>";

   Use the following values:

   • Database: "OHF Usage Tracking"

   • Catalog: "Catalog"

   • Schema: "dbo"

   • Table Name: "S_NQ_INITBLOCK"

8. Uncomment the INIT_BLOCK_CONNECTION_POOL parameter and set it to refer to the connection pool for writing statuses to the S_NQ_INITBLOCK table in the <prefix>_BIPLATFORM schema in the following format: "<Database>"."<Connection Pool>";

   Use the database and connection pool values predefined in the OHF SSA RPD file:

   • Database: "OHF Usage Tracking"

   • Connection Pool: "OHF Usage Tracking Connection Pool"

   The above parameters should be set as below:

   ===============================================================================
# Parameters used for inserting data into the table (i.e. DIRECT_INSERT = YES).
#
# Init-Block Tracking Options are commented out and as a result disabled.
# To enable Init-Block Tracking Feature, define the two parameters for
# Init-Block, INIT_BLOCK_TABLE_NAME and INIT_BLOCK_CONNECTION_POOL.
#
PHYSICAL_TABLE_NAME = "OHF Usage Tracking"."Catalog"."dbo"."S_NQ_ACCT"; # Or "<Database>"."<Schema>"."<Table>" ;
CONNECTION_POOL = "OHF Usage Tracking"."OHF Usage Tracking Connection Pool";
INIT_BLOCK_TABLE_NAME = "OHF Usage Tracking"."Catalog"."dbo"."S_NQ_INITBLOCK" ; # Or "<Database>"."<Schema>"."<Table>" ;
INIT_BLOCK_CONNECTION_POOL = "OHF Usage Tracking"."OHF Usage Tracking Connection Pool";

9. Stop and restart the OBIEE Services using the stop and start scripts available in <OBIEE_HOME>/user_projects/domains/bi_domain/bitools/bin.

Configure the OHF SSA RPD File

Update the OHF Usage Tracking Connection Pool in the OHF SSA RPD file to point to the <prefix>_BIPLATFORM schema:

1. In the Oracle BI Administration Tool, navigate to the selfserviceanalytics\hcd_rpd folder.

2. Open the ohf_ssa_hcd.rpd file.

3. In the RPD Physical layer, expand OHF Usage Tracking and double-click OHF Usage Tracking Connection Pool.

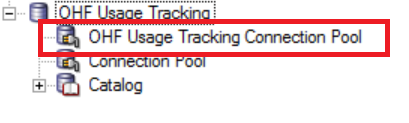

   Figure 2-1 Selecting the OHF Usage Tracking Connection Pool




4. Update the data source name with the database host name, port number, and service name of the <prefix>_BIPLATFORM schema.

5. Update the username as the <prefix>_BIPLATFORM schema name.

6. Enter the schema password and confirm.

   Figure 2-2 OHF Usage Tracking Connection Pool Setup




7. Save the ohf_ssa_hcd.rpd file and choose No when prompted for Consistency Check.

Deploy the OHF SSA RPD File

Use the datamodel.sh utility to upload the RPD file to the OBIEE server:

1. Go to [OBIEE_HOME]/user_projects/domains/bi/bitools/bin/.

2. Run the datamodel.sh utility using the following syntax:

   datamodel.sh uploadrpd -I <location of rpd file to be uploaded> -W <RPDpwd> -SI <Service Instance Name> -U <weblogic user> -P <weblogic password>

   To find the Service Instance Name, look in the <OBIEE Home>/user_projects/domains/bi/bidata/service_instances directory. For example:

   Figure 2-3 Running the datamodel.sh Utility




After usage tracking is enabled, OBIEE starts to log usage information and statistics and display this information in the Audit Trail and Usage Tracking Dashboard.
