An ODB peering connection allows to set up a peering connection between ODB network and a VPC which enables applications to connect to your Exadata Database.
There are prerequisites that must be completed before creating an
ODB peering connection. Complete the following steps:
Note
- Ensure that the ODB network and VPC are not already peered with the each other.
- Creating peering VPC and ODB network in different availability zone(s) (AZ) are supported.
- From the Oracle Database@AWS dashboard , select the ODB peering connections button.
- Select the Create ODB peering connection button to start the creation process.

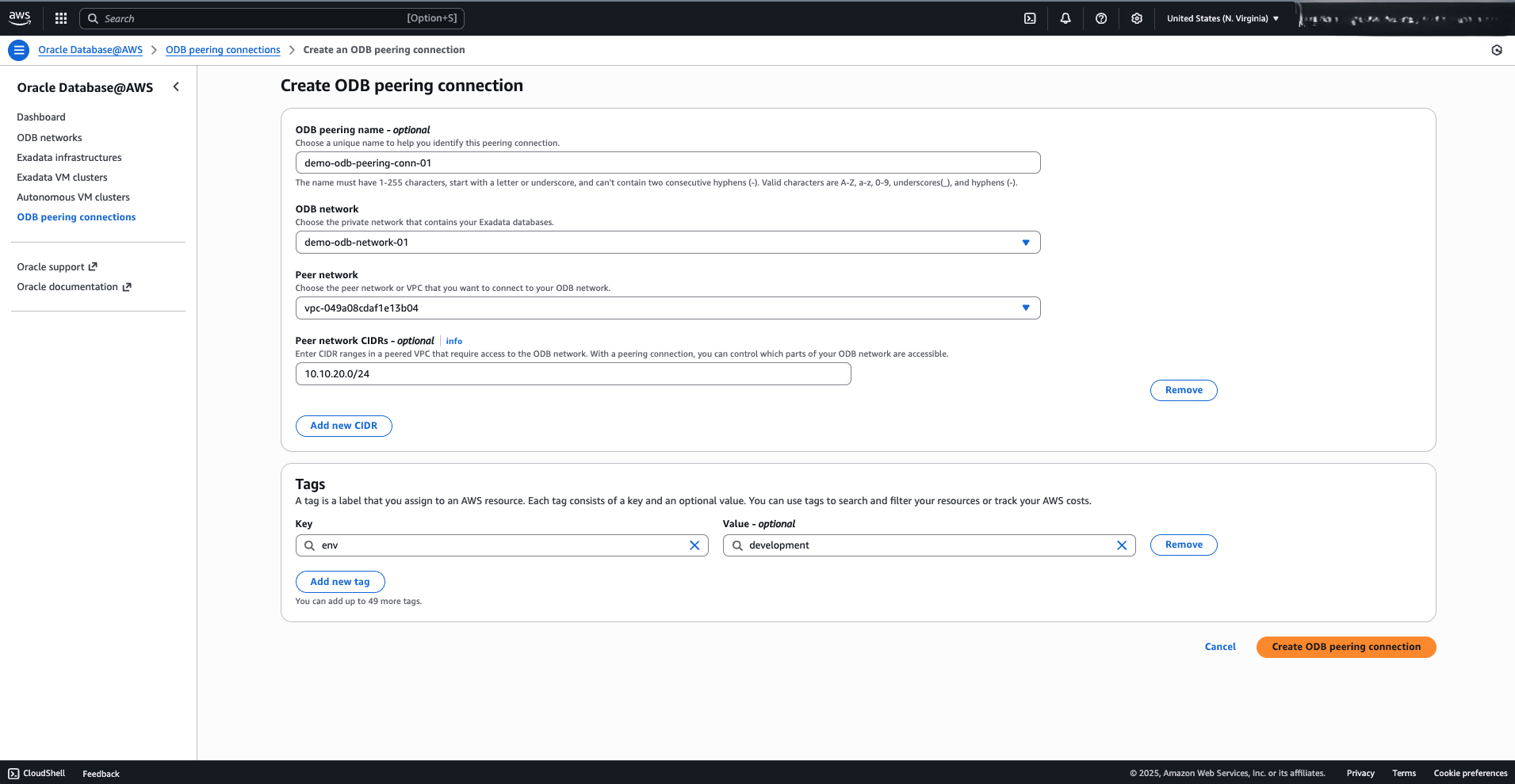

- Enter an unique name in the ODB peering name field.
The ODB peering name can be up to 255 characters. It must start with a letter or underscore (_) and cannot contain two successive hyphens(-). It can include the following characters: a-z, A-Z, 0-9, underscore (_), and dash (-).
- From the dropdown list, select the ODB network.
- From your Peer Network dropdown list, select your VPC that you want to pair with your ODB network.
- If you want to assign a tag to your AWS resources, you can select the Add new tag button, and then enter a key and a value. This step is optional.
- Review the information you entered and then select the Create ODB peering connection button.
- Once the creation of the ODB peering connection is successful, you will see the success message.

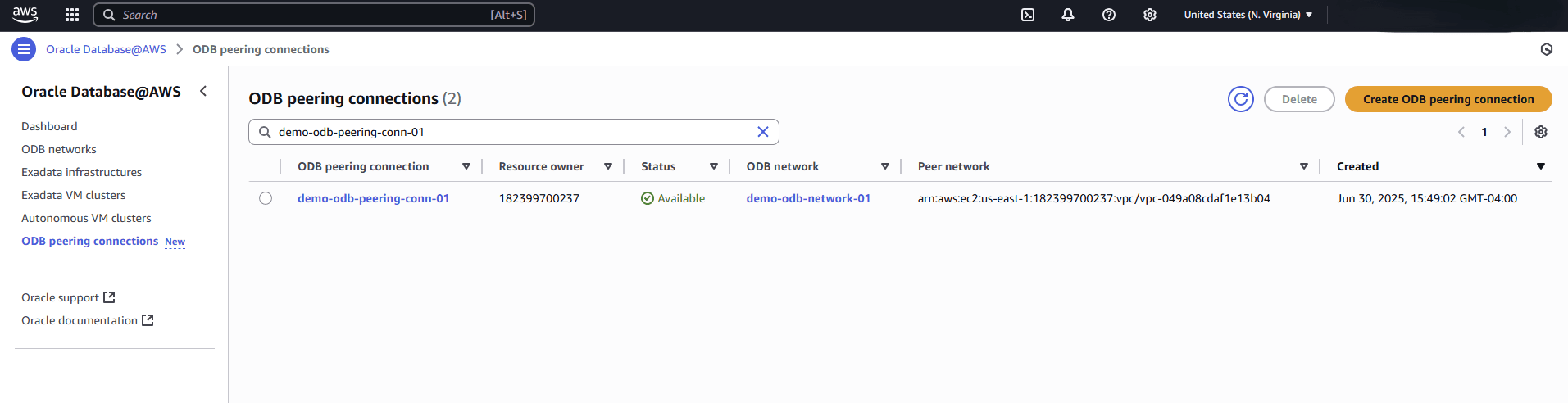

- You can also monitor the status of the provisioning and, once the ODB peering connection is active, review its details from the ODB peering connections list.
- Once the ODB peering connection is created, you can view the details of it from the ODB peering connections list on the Oracle Database@AWS dashboard.
