This chapter contains the following topics:
To use Oracle Ultra Search, you must install the following components with the Oracle Universal Installer:
The Ultra Search server component can be installed on any already existing database that is Oracle database release 9.0.1 or higher with Oracle Text installed. To do this, invoke OPCA (Oracle Portal Configuration Assistant) from a middle tier host, and specify a database host.
ORACLE_HOME
refers to the Oracle home directory where the Ultra Search server component is installed. ORACLE_HOME
also refers to the Oracle home directory where the Ultra Search middle tier component is installed.
REMOTE_ORACLE_HOME
refers to the Oracle home directory where the Ultra Search server component is installed on a remote crawler host.
The following section describes the Ultra Search system requirements.
The Ultra Search indexing engine runs within Oracle. Hence, it is important that the system have enough memory to accommodate a large Oracle installation. The Oracle instance system global area should be a minimum of 50MB.
The Ultra Search Web crawler runs as a separate Java process on the same host. Allocate 50MB of memory for the Web crawler alone.
The Ultra Search administration tool is a J2EE 1.2 standard Web application. Therefore, it can be installed and run on a separate host from the Ultra Search server component. However, you might want to install and run this component on the same host as the Ultra Search server component. Regardless of your choice, allocate enough memory for the J2EE engine. Oracle Corporation recommends using the Oracle HTTP server with the Oracle J2EE container. Allocate enough memory for the HTTP server as well as the JDK that runs the J2EE engine.
Because customer requirements vary widely, Oracle cannot recommend a specific amount of disk space. However, as a general guideline, the minimal requirements are as follows:
TEMPORARY
tablespace. As a general guideline, create a TEMPORARY
tablespace as large as available depending on the RAM on your host.The Ultra Search middle tier components are Web applications. Therefore, they require a Web server to run. Oracle Corporation recommends the Oracle HTTP Server and Jserv or Oracle HTTP Server and the Oracle J2EE container.
The Ultra Search server component is included as part of the Oracle database. It is installed together with the Ultra Search middle tier component during the installation. It is installed in the same Oracle home directory as the database server tier.
The Ultra Search server component consists of the following:
Start up the Oracle Universal Installer (OUI) on the relevant host. After choosing the destination Oracle home name and full path, choose the option "Oracle9i Server." Ultra Search server tier is installed with the Oracle9i database by default.
Start up the OUI on the relevant host. After choosing the destination Oracle home name and full path, choose the option "Oracle9iAS Infrastructure 9.0.2.0.0." Ultra Search server tier is installed with the Oracle iAS infrastructure by default.
During the installation of iAS or the Oracle database server, the Ultra Search server component is installed. The following activity occurs during this process:
ORACLE_HOME
of the designated database installation.WKSYS
with password wksys is created. You should change this password later for security purposes. All Ultra Search database objects are installed in this user's schema.WKSYS
. These scripts install and create various database objects.
After you have installed all Ultra Search components, you must configure the Oracle database. This is a post-installation operation.
Ultra Search can be installed on an Oracle9i database, or an iAS metadata repository, that is currently in use.
Installing Ultra Search on an existing database or metadata repository includes transferring files, creating Ultra Search super user WKSYS
, loading Ultra Search PL/SQL database packages, and associating Oracle9i Application Server (9iAS) with Ultra Search.
Unlike the infrastructure database installation, Ultra Search packages are loaded from the middle tier installation. By choosing to install Oracle Portal to your database, Oracle Portal Configuration Assistant (OPCA) loads the Ultra Search packages onto the database host you choose. You then manually transfer necessary files to the database tier's file system.
See Also:
|
JOB_QUEUE_PROCESSES
set to greater than two.WKSYS
, load Ultra Search PL/SQL packages, and associate Ultra Search with 9iAS.
Ultra Search PL/SQL database packages are loaded during the middle tier (9iAS) installation. During this installation, after the Oracle Universal Installer copies the necessary files to the middle tier host, OPCA associates Ultra Search with 9iAS. After specifying the database tier host, Oracle SID, and port, Ultra Search packages area loaded by OPCA to the database on the database tier host.
If OPCA detects that the Ultra Search superuser WKSYS
already exists, and the Ultra Search release is 1.0.3 (based on Oracle9i database 9.0.1), then it asks the user to choose from the following three options:
WKSYS
user, creates a new WKSYS
user, and reloads the Ultra Search packages. All data collected by Ultra Search is deleted.
Note: The default password for |
ORACLE_HOME/ultrasearch/setup/
directory, there are several files including setupDB
.jar
, setupDB
.bat
, setupDB
.csh
, and setupDB
.sh
. Copy these files to the ORACLE_HOME
of your remote database tier.For Windows NT: Edit setupDB
.bat
using any text editor. After the line "set ORACLE_HOME=" put the directory name where you installed the Oracle database. Save the change and run setupDB
.bat
by double clicking setupDB
.bat
or by running setupDB
in the command prompt.
For Solaris: Run setupDB
.sh
under the Bourne shell prompt. The system sets the current directory as ORACLE_HOME
and asks for the path to your JDK_HOME
. If the default path to the jar executable or Java executable is not correct, then the system asks for the path to JDK. If you do not have JDK installed, then download the latest JDK and run setupDB
.sh
again.
WKSYS
, load Ultra Search PL/SQL packages, and associate Ultra Search with 9iAS.
Ultra Search PL/SQL packages are loaded during the middle tier (9iAS) installation. During this installation, after the Oracle Universal Installer copies the necessary files to the middle tier host, OPCA associates Ultra Search with 9iAS. After specifying the metadata repository tier host, Oracle SID, and port, Ultra Search packages area loaded by OPCA to the metadata repository on the metadata repository tier host.
If the detected Ultra Search release is 9.0.2 or later, then it asks the user to choose from the following three options:
WKSYS
user, creates a new WKSYS
user, and reloads the Ultra Search packages. All data collected by Ultra Search is deleted.
Note: The default password for |
ORACLE_HOME/ultrasearch/setup/
directory, there are several files including setupDB
.jar
, setupDB
.bat
, setupDB
.csh
, and setupDB
.sh
. Copy these files to the ORACLE_HOME
of your remote metadata repository tier.For Windows NT: Edit setupDB
.bat
using any text editor. After the line "set ORACLE_HOME=" put the directory name where you installed the Oracle metadata repository. Save the change and run setupDB
.bat
by double clicking setupDB
.bat
or by running setupDB
in the command prompt.
For Solaris: Run setupDB
.sh
under the Bourne shell prompt. The system sets the current directory as ORACLE_HOME
and asks for the path to your JDK_HOME
. If the default path to the jar executable or Java executable is not correct, then the system asks for the path to JDK. If you do not have JDK installed, then download the latest JDK and run setupDB
.sh
again.
The Ultra Search middle tier component includes the following:
For the iAS release, the Ultra Search middle tier component is part of the Application Server install. You must choose the "Oracle 9iAS Portal and Wireless" option from the Oracle Universal Installer menu to install and configure the Ultra Search middle tier component with the Application Server install.
For the database release, the Ultra Search middle tier component is installed with the Ultra Search server component during the database server install. This component is also part of the database client install. However, Oracle database client install does not install Oracle HTTP server, which is a requirement for the Ultra Search middle tier component. You should install Oracle HTTP server before installing the Ultra Search middle tier component. Do so by choosing the "server" install option from the Oracle Universal Installer menu. Then, perform a custom install and choose the Oracle HTTP Server for installation.
The following section describes how to install and configure the Ultra Search middle tier component on a host that you have designated to be a Web server. You can install the Ultra Search middle tier component on multiple Web server hosts to handle a large number of incoming queries by end users.
The Ultra Search administration tool and the Ultra Search JSP query applications are Java Server Page Web applications. These are three tier architecture applications. Figure 2-1 shows the relationship between the browser interface (the first tier), the Web server and the JSP engine (the middle tier), and the Oracle database (the third tier). Typically, you install JSP applications on the same host as your Web server. The Ultra Search JSP applications consist of Ultra Search Java libraries, JSP files, and the ultrasearch
.properties
configuration file. This file specifies which database the JSP applications connect to.

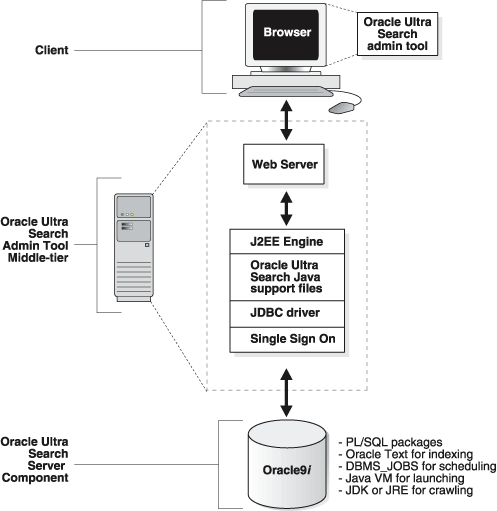

Your Web server accepts requests from the browser and forwards all administration tool JSP page requests to the JSP engine for processing. To store and retrieve crawler configuration data, the JSP engine communicates with the Oracle database through the JDBC driver, as in Figure 2-1.
To invoke the Ultra Search administration tool or the Ultra Search JSP query applications, enter a URL that invokes those Web applications. The URLs are described in the following section. Use the Ultra Search administration tool to define Ultra Search instances, manage users, configure and schedule the Ultra Search crawler, and set query options. Use the Ultra Search JSP query applications to search for documents gathered and indexed by the Ultra Search server component.
Text description of the illustration isrch010.gif
To use the administration tool, your browser must be Netscape version 4.0 or Microsoft Internet Explorer version 4.0 or higher.
There are two ways to configure the Ultra Search middle tier component:
Install Ultra Search middle tier component into an Oracle home with Oracle HTTP Server preinstalled. If the Oracle HTTP server is preinstalled, then the installer can automatically configure it to run the Ultra Search middle tier component. To obtain the Oracle HTTP server, choose the "Server" install option from the Oracle Universal Installer (OUI) menu. Then, perform a custom install and choose the Oracle HTTP server for installation.
Install without Oracle HTTP server preinstalled.
If the Oracle HTTP Server is not preinstalled, then you must manually perform all configuration work that the installer does. If you use a different Web server, then you must also manually configure the Web server accordingly.
Choose the installation option. Start up OUI on the relevant host. Choose to install the Oracle9i client. Make sure to choose the "Administrator Install" or the "Custom Install" option. The OUI prompts for an Oracle home directory in which to install the middle tier component. This directory is referred to as $ORACLE_HOME
.
Start the OUI on the relevant host. Choose the destination Oracle home name and full path, and do the following steps:
Note: If you decide to use a third party J2EE container or a servlet engine, then uncheck the option "Oracle9iAS Portal" on the "Component Configuration" screen of Oracle Installer, and see the "Deploying the Ultra Search EAR File on a Third Party Middle Tier". Upon completion of this step, all middle tier component files are copied under the |
If you chose Option 1, then OUI automatically configures the Ultra Search middle tier component with Oracle HTTP server and Jserv. Proceed to "Editing the ultrasearch.properties File".
If you chose Option 2, then you must manually perform the following steps to configure your existing Web server. The default Web server setup of Oracle 9.2 is Oracle HTTP server with Jserv. You can also deploy the Ultra Search middle tier component on Oracle HTTP server with Oracle J2EE container (OC4J). However, Oracle J2EE container is only available with Oracle9i Application Server. Proceed to the section corresponding to the Web server you decide to use to configure the Ultra Search middle tier component.
If you checked the "Oracle9iAS Portal" option on the "Component Configuration" Oracle Installer screen, then the configuration steps in the following section are automatically performed by OPCA. Proceed directly "Editing the data-sources.xml File".
If not, then you must manually perform the steps under "Configuring the Middle Tier Component with Oracle HTTP Server and Jserv" to configure your existing Web server.
You can also deploy Ultra Search Web applications using Oracle Enterprise Manager.
See Also:
Oracle9i Database Administrator's Guide for more information on Enterprise Manager |
$ORACLE_HOME/Apache/jsp/conf/ojsp
.conf
to create an alias for the Ultra Search document root. The following line is added to that file:
Alias /ultrasearch/doc/ "$ORACLE_HOME/ultrasearch/doc/"
$ORACLE_HOME/Apache/jsp/conf/ojsp
.conf
to create an alias for the Ultra Search JSP tree root. The following line is added to that file:
Alias /ultrasearch/admin/ "$ORACLE_HOME/ultrasearch/webapp/isearch_admin/"
$ORACLE_HOME/Apache/jsp/conf/ojsp
.conf
to create an alias for the Ultra Search JSP tree root. The following line is added to that file:
Alias /ultrasearch/ "$ORACLE_HOME/ultrasearch/sample/"
$ORACLE_HOME/Apache/Jserv/etc/jserv
.properties
to include those files. The following five lines are added:
wrapper.classpath=$ORACLE_HOME/ultrasearch/lib/ultrasearch_midtier.jar wrapper.classpath=$ORACLE_HOME/ultrasearch/lib/ultrasearch_query.jar wrapper.classpath=$ORACLE_HOME/ultrasearch/lib/jgl3.1.0.jar wrapper.classpath=$ORACLE_HOME/lib/mail.jar wrapper.classpath=$ORACLE_HOME/lib/activation.jar
$ORACLE_HOME/Apache/Jserv/etc/jserv
.properties
to include that directory. The following three lines are added:
wrapper.classpath=$ORACLE_HOME/jlib/uix2.jar wrapper.classpath=$ORACLE_HOME/jlib/share.jar wrapper.classpath=$ORACLE_HOME/jlib/regexp.jar
$ORACLE_HOME/Apache/Jserv/etc/jserv
.properties
to include that directory. The following line is added:
wrapper.classpath=$ORACLE_HOME/jdbc/lib/classes12.zip
ultrasearch
.properties
file to the servlet engine classpath. The Installer edits $ORACLE_HOME/Apache/Jserv/etc/jserv
.properties
to include that directory. The following line is added:
wrapper.classpath=$ORACLE_HOME/ultrasearch/webapp/config/
servlet
.jar
. To configure Jserv with version 2.2 of servlet
.jar
, edit $ORACLE_HOME/Apache/Jserv/etc/jserv
.properties
file, and add the following line:
wrapper.classpath=$ORACLE_HOME/lib/servlet.jar
See Also:
"Deploying the Ultra Search EAR File on a Third Party Middle Tier" if you use a third party J2EE container or servlet engine |
server
.xml
, application
.xml
, and default-web-site
.xml
in $ORACLE_HOME/j2ee/OC4J_Portal/config/
. The configuration of OC4J works with Ultra Search J2EE applications.
See Also:
OC4J documentation for more information on deploying EAR and WAR applications and for the more advanced functionality of OC4J. |
server
.xml
, under <application-server> tag, add the following:
<application name="ultrasearch_admin" path="$ORACLE_ HOME/ultrasearch/webapp/ultrasearch_admin.ear" /> <application name="ultrasearch_query" path="$ORACLE_ HOME/ultrasearch/sample.ear" /> <application name="ultrasearch_portlet" path="$ORACLE_ HOME/ultrasearch/webapp/ultrasearch_portlet.ear" />
Note: These lines let OC4J know that it must deploy the Ultra Search EAR file, as well as define where this EAR files is. |
application
.xml
, under <orion-application> tag, add the following:
<library path="$ORACLE_HOME/ultrasearch/lib/ultrasearch_query.jar" /> <library path="$ORACLE_HOME/ultrasearch/webapp/config" /> <library path="$ORACLE_HOME/jlib/uix2.jar" /> <library path="$ORACLE_HOME/jlib/share.jar" /> <library path="$ORACLE_HOME/jlib/regexp.jar" /> <library path="$ORACLE_HOME/lib/mail.jar" /> <library path="$ORACLE_HOME/lib/activation.jar" /> <library path="$ORACLE_HOME/lib/xmlparserv2.jar" /> <library path="$ORACLE_HOME/jdbc/lib/nls_charset12.zip" /> <library path="$ORACLE_HOME/jdbc/lib/classes12.jar" />
The preceding libraries are required for the Ultra Search administration tool and query Web applications to run.
Note:
|
default-web-site
.xml
For <web-site> tag, set port="<ajp13 port>" and add protocol="ajp13" as a attribute for <web-site> tag. Under <web-site> tag, add the following:
<web-app application="ultrasearch_admin" name="admin" root="/ultrasearch/admin" /> <web-app application="ultrasearch_query" name="query" root="/ultrasearch/query" /> <web-app application="ultrasearch_portlet" name="query" root="/provider/ultrasearch" />
The preceding lines describe which Web application (WAR file) in the Ultra Search EAR files are deployed.
server
.xml
.http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/admin/
.
$ORACLE_HOME/Apache/Apache/conf/mod_oc4j
.conf
:
Oc4jMount /ultrasearch/admin/* ajp13://<host>:<ajp13 port> Oc4jMount /ultrasearch/query/* ajp13://<host>:<ajp13 port> Oc4jMount /provider/ultrasearch/* ajp13://<host>:<ajp13 port>
Where <host> is the host name of the computer where the OC4J is installed, and <ajp13 port> is the port for ajp13 protocol. It must match the <ajp13 port> listed under default-web-site
.xml
, and the OC4Jmount must match the root of web-app in default-web-site
.xml
.
$ORACLE_HOME/Apache/jsp/conf/ojsp
.conf
file to deploy the Ultra Search online help documentation and the Ultra Search welcome page:
Alias /ultrasearch/doc/ "$ORACLE_HOME/ultrasearch/doc/" for Solaris
Alias /ultrasearch/doc/ "$ORACLE_HOME\ultrasearch\doc/" for NT
Alias /ultrasearch/ "$ORACLE_HOME/ultrasearch/sample/" for Solaris
Alias /ultrasearch/ "$ORACLE_HOME\ultrasearch\sample/" for NT
If you choose to install Ultra Search on an already existing database, then in addition to the preceding steps, the installation of Ultra Search on a customer's database is required.
Follow instructions in the Configuring the Administration Tool with Single Sign-On Server; otherwise proceed to "Editing the data-sources.xml File".
All sample JSP source code are in $ORACLE_HOME/ultrasearch/sample/query
directory.
The following files contain username, password, and connection string values:
To configure the Ultra Search administration tool with Oracle single sign-on (SSO) server, you must also follow the steps in the following section in addition to the configuration in "Configuring the Middle Tier Component with Oracle HTTP Server and OC4J".
application
.xml
, and default-web-site
.xml
in $ORACLE_HOME/j2ee/OC4J_Portal/config/
.
application
.xml
, under <orion-application> tag, add the following:
<library path="$ORACLE_HOME/jlib/repository.jar" /> <library path="$ORACLE_HOME/jlib/jndi.jar" /> <library path="$ORACLE_HOME/jlib/ldapjclnt9.jar" /> <library path="$ORACLE_HOME/j2ee/home/jazn.jar" /> <library path="$ORACLE_HOME/j2ee/home/jaas.jar" />
default-web-site
.xml
, under <web-site> tag, add the following:
<web-app application="ultrasearch_admin" name="admin" root="/ultrasearch/admin_sso" />
mod_oc4j
.conf
: Oc4jMount /ultrasearch/admin_sso/* ajp13://<host>:<ajp13 port>
httpd
.conf
under $ORACLE_HOME/Apache/Apache/conf
directory, add the following lines:
<IfModule mod_osso.c> <Location /ultrasearch/admin_sso> require valid-user authType Basic </Location> </IfModule>
Access URL http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/admin_sso/
to log on to Ultra Search administration tool using SSO authentication.
Proceed to "Editing the data-sources.xml File".
Because Ultra Search EAR files contain only Web applications (WAR files), they can be made to deploy on any J2EE 1.2 container. To do so, you must know the Ultra Search WAR file name, the predefined URL root, and the Java library required. The following section explains the Ultra Search EAR files that you need to know to deploy in a standard J2EE 1.2 container. It does not contain information on the configuration of each J2EE 1.2 container.
See Also:
|
Ultra Search administration tool is a Web application contained in $ORACLE_HOME/ultrasearch/webapp/ultrasearch_admin
.ear
file. The following is the file structure of ultrasearch_admin
. Extract the archived file by running the command "jar -xvf ultrasearch_admin.ear".
ultrasearch_admin.ear META-INF/ application.xml orion-application.xml admin.war admin_sso.war ultrasearch_midtier.jar jgl3.1.0.jar
The following is the structure of admin
.war
and admin_sso
.war
. They contain the same set of files. You can see it by running the command "jar -xvf admin.war" and "jar -xvf admin_sso.war".
admin_sso.war and admin.war WEB-INF/ lib/ web.xml index.jsp */*.jsp
To make Ultra Search EAR file and WAR file J2EE 1.2 compliant, you must move the ultrasearch_midtier
.jar
and jgl3
.1
.0
.jar
to the WEB-INF/lib/
directory of admin
.war
and admin_sso
.war
. Then, rejar admin
.war
, admin_sso
.war
, and ultrasearch_admin
.ear
using the command "jar -cvf <war file or EAR file name> <files to jar>".
Note: The new |
The following Java libraries are needed for Ultra Search administration tool. They should be added to the library path of J2EE container or the servlet engine used to deploy the Ultra Search administration tool.
$ORACLE_HOME/ultrasearch/webapp/config $ORACLE_HOME/jlib/uix2.jar $ORACLE_HOME/jlib/share.jar $ORACLE_HOME/jlib/regexp.jar $ORACLE_HOME/jdbc/lib/nls_charset12.zip $ORACLE_HOME/jdbc/lib/classes12.jar $ORACLE_HOME/lib/xmlparserv2.jar
To configure Ultra Search with SSO, you must have the Oracle iAS infrastructure installed and Oracle Internet Directory turned on. In addition to this library path, the following library paths are also needed:
$ORACLE_HOME/jlib/repository.jar $ORACLE_HOME/jlib/jndi.jar $ORACLE_HOME/jlib/ldapjclnt9.jar $ORACLE_HOME/j2ee/home/jazn.jar $ORACLE_HOME/j2ee/home/jaas.jar
Ultra Search sample query applications are Web applications contained in the $ORACLE_HOME/ultrasearch/sample
.ear
file. This file is already compliant to the J2EE 1.2 standard. You should not have to change this file to deploy it.
The following is the file structure of sample
.ear
. Extract the archived file by running the command "jar -xvf sample.ear".
sample.ear META-INF/ application.xml query.war agent/ index.html
All the query JSP pages are contained in query
.war
. This file is a servlet 2.2 compliant Web application. Deploy it alone with any servlet 2.2 engine. The context root for query
.war
is /ultrasearch/query
. It is defined in the META-INF/application
.xml
of the sample
.ear
file. You can change it by editing this file.
The following are the Java libraries needed for Ultra Search sample query application:
$ORACLE_HOME/ultrasearch/webapp/config $ORACLE_HOME/jdbc/lib/classes12.jar $ORACLE_HOME/jdbc/lib/nls_charset12.zip $ORACLE_HOME/lib/xmlparserv2.jar $ORACLE_HOME/lib/activation.jar $ORACLE_HOME/lib/mail.jar
Ultra Search query applications also use the connection pooling functionality of J2EE container. You must define a container authenticated data source. This data source must return an Oracle connection. Oracle Corporation recommends using the Java class equal to oracle
.jdbc
.pool
.OracleConnectionCacheImpl
for this data source.
In addition, the data source should contain the field location equal to jdbc/UltraSearchPooledDS, username, password equal to the Ultra Search instance owner's database username, and password and URL equal to the JDBC connection string in the form of "jdbc:oracle:thin:@<database host>:<oracle port>:<oracle sid>".
See Also:
"Editing the data-sources.xml File" for the data source configuration of the Oracle J2EE container |
Ultra Search Portlet is a Web application contained in the $ORACLE_HOME/ultrasearch/webapp/ultrasearch_portlet
.ear
file. This file is compliant to the J2EE 1.2 standard. This file is similar to sample
.ear
in terms of file structure. Extract the archived file by running the command "jar -xvf ultrasearch_portlet.ear".
ultrasearch_portlet.ear META-INF/ application.xml query.war agent/ index.html
All the query JSP pages are contained in query
.war
. This file is a servlet 2.2 compliant Web application. You can deploy it alone with any servlet 2.2 engine. The context root for query
.war
is /provider/ultrasearch/
. It is defined in the META-INF/application
.xml
of the ultrasearch_portlet
.ear
file. You can change it by editing this file.
The following Java libraries are needed for the Ultra Search Portlet:
$ORACLE_HOME/jdbc/lib/classes12.jar $ORACLE_HOME/jdbc/lib/nls_charset12.zip $ORACLE_HOME/lib/xmlparserv2.jar $ORACLE_HOME/lib/activation.jar $ORACLE_HOME/lib/mail.jar
Ultra Search Portlet uses the connection pooling functionality of J2EE container. You must define a container authenticated data source. This data source must return an Oracle connection. Oracle Corporation recommends using the Java class equal to oracle
.jdbc
.pool
.OracleConnectionCacheImpl
for this data source.
In addition, the data source should contain the field location equal to jdbc/UltraSearchPooledDS, username, password equal to the Ultra Search instance owner's database username, and password and URL equal to the JDBC connection string in the form of "jdbc:oracle:thin:@<database host>:<oracle port>:<oracle sid>".
See Also:
"Editing the data-sources.xml File" for the data source configuration of Oracle J2EE container |
Caution: Storage of clear database schema passwords in |
The Ultra Search iAS query API uses the data source functionality of the J2EE container. Under directory $ORACLE_HOME/j2ee/OC4J_Portal/config
, edit the file data-sources
.xml
. Under tag <data-sources>
add the following:
<data-source class="oracle.jdbc.pool.OracleConnectionCacheImpl" name="UltraSearchDS" location="jdbc/UltraSearchPooledDS" username="<username>" password="<password>" url="jdbc:oracle:thin:@<database_host>:<oracle_port>:<oracle_sid>" />
where <username> and <password> are the Ultra Search instance owner's database username and password, <database_host> is the host name of the back end database machine, <oracle_port> is the port to the user's Oracle database, and <oracle_sid> is the SID of the user's Oracle database. In addition to username, password, and JDBC URL, data-sources
.xml
also allows configuration of the connection cache size, as well as the cache scheme. The following tag specifies the minimum and maximum limits of the cache size, the inactivity time-out interval, and the cache scheme.
<data-source class="oracle.jdbc.pool.OracleConnectionCacheImpl" name="UltraSearchDS" location="jdbc/UltraSearchPooledDS" username="wk_test" password="wk_test" url="jdbc:oracle:thin:@localhost:5521:isearch" min-connections="3" max-connections="30" inactivity-timeout="30"> <property name="cacheScheme" value="1"/> </data-source>
There are three types of caching schemes:
The ultrasearch
.properties
file specifies which database the Web application and JSP applications connect to. Edit $ORACLE_HOME/ultrasearch/webapp/config/ultrasearch
.properties
to specify the hostname, port, and SID of the Oracle instance and listener.
To do this, edit the line that begins with "connection.url" to read: "connection.url=jdbc:oracle:thin:<hostname>:<port>:<SID>"
Here is an example connection
.url
string:
connection.url=jdbc:oracle:thin:@ultrasearch.us.oracle.com:1521:myInstance
If you chose to configure the Ultra Search middle tier component with Oracle HTTP Server and Jserv, then you must also edit the line that begins with "admin.srchome" to read: "admin.srchome=<jsp_src_home>".
Where $ORACLE_HOME is the Oracle home directory where the Ultra Search server component is installed.
This is the location of the Ultra Search administration tool JSP pages.
Note: You should not need to change the first line, because it is the name of the Oracle JDBC driver. |
With the iAS release only, if you allow Oracle Portal Configuration Assistant to configure the Web server for you, then you should start the Web server using the Enterprise Manager console.
With the database release, or if you choose to configure the Oracle HTTP server and OC4J manually, do the following:
$ORACLE_HOME/Apache/Apache/bin/spachectl stop
followed by $ORACLE_HOME/Apache/Apache/bin/spachectl start
.$ORACLE_HOME/Apache/Apache/conf/httpd
.conf
http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/index
.html
. This page provides general information about Ultra Search, and it also contains links to the Ultra Search administration tool, as well as Ultra Search sample query JSP page. However, the Ultra Search administration tool, Ultra Search sample query page, and the directory $ORACLE_HOME/ultrasearch/sample
are not available after OC4J is started.java -jar $ORACLE_HOME/j2ee/home/oc4j
.jar -config $ORACLE_HOME/j2ee/OC4J_Portal/config/server
.xml
Check that the Web Server is running.
Test your changes by attempting to log on to the administration tool:
http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/admin/index
.jsp
where <hostname.domainname> is the full name of the host where you have installed the Ultra Search middle tier component, and <HTTPport> is the default Web server port. If you are running the Web browser on the same host, then enter "localhost".
After you verify that the Ultra Search administration tool is working, you should be able to run the Ultra Search JSP sample query applications.
To test the Ultra Search JSP sample query applications, do one of the following:
http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/search
.jsp
http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/index
.html
See Also:
"Configuring the Middle Tier Component with Oracle HTTP Server and OC4J" for information about configuring the JSP to query a specific instance |
Locations for sample query applications are listed in the following section. Access the sample query source code by going to the directories list. You can also see a working demo of each sample query JSP page with the URL root, and you can append the correct JSP file name at the end of the URL root.
The root query directory is $ORACLE_HOME/ultrasearch/sample/query/
.
The URL root for the query is http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/
.
The 9iAS query (query sample JSP pages that use the 9iAS query API and include usearch
.jsp
and search
.jsp
) is in $ORACLE_HOME/ultrasearch/sample/query/
.
The URL root for the 9iAS query is in http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/
.
(For example: access search
.jsp
with http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/search
.jsp
.)
The 9i query (query JSP that uses the 9i query API and includes gsearch
.jsp
) is in $ORACLE_HOME/ultrasearch/sample/query/9i
/.
The URL root for the 9i query is in http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/9i/
.
Portlet is in $ORACLE_HOME/ultrasearch/sample/query/portlet/
.
The URL root for Portlet is in http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/portlet/
.
Taglib is in $ORACLE_HOME/ultrasearch/sample/query/tag/
.
The URL root for taglib is in http
://<
hostname.domainname>
:<
HTTPport>/ultrasearch/query/tag/
The Ultra Search remote crawler allows multiple crawlers to run in parallel on different hosts. However, all remote crawler hosts must share common resources, such as common directories and a common Ultra Search database.
The Ultra Search remote crawler is part of the Ultra Search server component. Therefore, the installation procedure is the same as installing the Ultra Search server component.
On each remote crawler host, the Ultra Search server component is installed under a common directory known as the Oracle home. You should have been prompted by the Oracle Universal Installer to enter this directory. The Oracle home directory is referred to as $REMOTE_ORACLE_HOME
.
If you choose not to install the Oracle HTTP server during the Oracle9i Application Server (9iAS) installation, then you must perform the following steps manually for remote crawling:
$REMOTE_ORACLE_HOME/ultrasearch/tools/remotecrawler/scripts/unix/define_env
on a UNIX system or $REMOTE_ORACLE_HOME/ultrasearch/tools/remotecrawler/scripts/winnt/define_env
.bat
on a Windows NT system.%ORACLE_HOME%
with the value of the REMOTE_ORACLE_HOME
environment variable.%s_jreLocation%
with the directory path of a Java runtime environment (JRE) version 1.2.2 and higher. You should specify the root directory of the JRE.%s_jreJDBCclassfile%
with the full path and file name of the Oracle JDBC thin driver (version 12).The only configuration needed for an Ultra Search remote crawler host is to register the host with the Ultra Search system. The registration process is done by running a SQL script on the Ultra Search remote crawler host. The SQL script connects over SQL*Plus to the 9iAS middle tier and registers the remote crawler host.
The Ultra Search middle tier component is installed under a common directory known as the Oracle home. If you have installed other Oracle products prior to the Ultra Search middle tier component, then you could have multiple Oracle homes on your host. The registration script requires that you enter the Oracle home directory in which the Ultra Search middle tier component is installed.
WKSYS
superuser password.
You must run the registration script as the WKSYS
superuser or as a database user that has been granted the WKADMIN
role.
The SQL script is located in /ultrasearch/tools/remotecrawler/scripts
/common/register
.sql
under $REMOTE_ORACLE_HOME
.
You must now run SQL*Plus. Be sure to run the correct version of SQL*Plus, because multiple versions can reside on the same host if you have previously installed some Oracle products. On UNIX platforms, make sure that the correct values for PATH
, ORACLE_HOME
and TNS_ADMIN
variables are set. On Windows platforms, choose the correct menu item from the Start menu.
After you have identified how to run the correct SQL*Plus client, you must log on to the Ultra Search database. To do this, you might need to configure an Oracle Net service setting for the Ultra Search database.
See Also:
Oracle9i Net Services Administrator's Guide for information on how to configure a service setting |
After SQL*Plus is running, log on to the database using the schema and password that you located in Step 2.
Starting up SQL*Plus as the WKSYS
superuser and enter the following:
@<full path name of registration script>
For example, if value for $REMOTE_ORACLE_HOME
on a UNIX host is /home/oracle9i
, then enter the following at the SQL*Plus prompt:
@/home/oracle9i/ultrasearch/tools/remotecrawler/scripts/unix/register.sql
If you are running SQL*Plus on Windows NT, and $REMOTE_ORACLE_HOME
is in d
:\Oracle\Oracle9i
, then enter the following at the SQL*Plus prompt:
@d:\Oracle\Oracle9i\ultrasearch\tools\remotecrawler\scripts\winnt\register.sql
The registration script prompts you for two variables. The following is a list of the variables and their descriptions:
REMOTE_CRAWLER_HOSTNAME
: The DNS host name of the remote crawler host.
ORACLE_HOME
: The Oracle home located in Step 1. For example, /u01/oracle9i
on a UNIX host or D:/u01/oracle9i
on a Windows NT host. (Be careful to use forward slashes for Windows NT hosts.)
The registration script invokes the wk_crw
.register_remote_crawler
PL/SQL API. The REMOTE_CRAWLER_HOSTNAME
and ORACLE_HOME
variables are used to compose arguments for the wk_crw
.register_remote_crawler
API.
Be sure to enter the correct values for both variables. To verify that the registration has completed correctly, log on to the Ultra Search administration tool. Click the Remote Crawler Profiles subtab in the Crawler tab. You should see the host name of the remote crawler host you have just registered in the remote crawler Profile List. Click Edit to complete the configuration process for the remote crawler profile.
If you enter any wrong values for the register
.sql
script, then you must unregister the remote crawler using the unregister
.sql
script. Invoke the unregister script the same way as you invoke the registration script. The unregister
.sql
script calls the wk_crw
.unregister_remote_crawler
PL/SQL API.
After you have successfully unregistered the remote crawler, you can rerun the register
.sql
script.
