As your data delivery needs change due to growth, shrinkage, or emergencies, you are undoubtedly going to need to change the configuration of your replication environment. This chapter discusses managing the master sites of your replication environment. Specifically, this section describes altering and reconfiguring your master sites.
This chapter contains these topics:
Many replication administrative tasks can be performed only from the master definition site. Use the RELOCATE_MASTERDEF
procedure in the DBMS_REPCAT
package to move the master definition site to another master site. This API is especially useful when the master definition site becomes unavailable and you need to specify a new master definition site (see "Option 2: The Old Master Definition Site Is Not Available").
Perform the actions in this section to change the master definition site if all master sites are available. Meet the following requirements to complete these actions:
Executed As: Replication Administrator
Executed At: Any Master Site
Replication Status: Running Normally (Not Quiesced)
Complete the following steps:
Step 1 Connect to a master site as the replication administrator.
CONNECT repadmin/repadmin@orc1.world
Step 2 Relocate the master definition site.
BEGIN
DBMS_REPCAT.RELOCATE_MASTERDEF ( gname => 'hr_repg', old_masterdef => 'orc1.world', new_masterdef => 'orc2.world', notify_masters => TRUE, include_old_masterdef => TRUE); END; /
Perform the actions in this section to change the master definition site if the old master definition site is not available. Meet the following requirements to complete these actions:
Executed As: Replication Administrator
Executed At: Any Master Site
Replication Status: Normal
Complete the following steps:
Step 1 Connect to a master site as the replication administrator.
CONNECT repadmin/repadmin@orc2.world
Step 2 Relocate the master definition site.
BEGIN
DBMS_REPCAT.RELOCATE_MASTERDEF ( gname => 'hr_repg', old_masterdef => 'orc1.world', new_masterdef => 'orc2.world', notify_masters => TRUE, include_old_masterdef => FALSE); END; /
As your replication environment expands, you might need to add new master sites to a master group. You can either add new master sites to a master group that is running normally or to a master group that is quiesced. If the master group is not quiesced, then users can perform data manipulation language (DML) operations on the data while the new master sites are being added. However, more administrative actions are required when adding new master sites if the master group is not quiesced.
Follow the instructions in the appropriate section to add new master sites to a master group:
This section contains procedures for adding new master sites to an existing master group that is not quiesced. These new sites might or might not already be replication sites (master sites or materialized view sites) in other replication groups.
You can use one of the following methods when you are adding a new master site without quiescing the master group:
Use full database export/import or change-based recovery to add a new master site that does not currently have any replication groups. See "Using Full Database Export/Import or Change-Based Recovery" for instructions.
Use object-level export/import to add a new master site that already has other replication groups or to add a new master site that does not currently have any replication groups. See "Using Object-Level Export/Import" for instructions.
Use full database export/import and change-based recovery to add all of the replication groups at the master definition site to the new master sites. When you use this method, the following conditions apply:
The new master sites cannot have any existing replication groups.
The master definition site cannot have any materialized view groups.
The master definition site must be the same for all of the master groups. If one or more of these master groups have a different master definition site, then do not use full database export/import or change-based recovery. Use object-level export/import instead.
The new master site must include all of the replication groups in the master definition site when the extension process is complete. That is, you cannot add a subset of the master groups at the master definition site to the new master site. All of the groups must be added.
If your environment does not meet all of these conditions, then you must use object-level export/import to add the new master sites. Figure 7-1 summarizes these conditions.
Note:
To use change-based recovery, the existing master site and the new master site must be running under the same operating system, although the release of the operating system can differ. This condition does not apply to full database export/import.
You can use either Data Pump export/import or original export/import to perform exports and imports in an Advanced Replication environment. General references to export/import in this document refer to both Data Pump and original export/import.

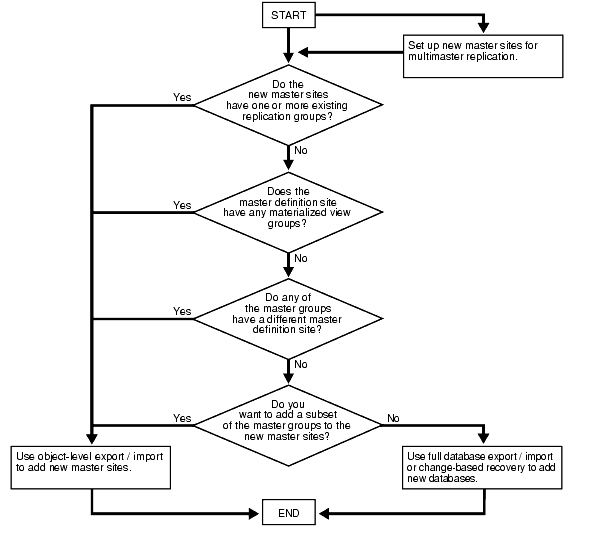

Figure 7-1 Determining Which Method to Use When Adding Master Sites
Use object-level export/import to add a master group to master sites that already have other replication groups or to add a master group to master sites that do not currently have any replication groups. This method can add one or more master groups to new master sites at a time, and you can choose a subset of the master groups at the master definition site to add to the new master sites during the operation.
If you use object-level export/import and there are integrity constraints that span more than one master group, then you must temporarily disable these integrity constraints on the table being added to a new master site, if the other tables to which these constraints refer already exist at the new master site. Initially, there are two rows in the DEFSCHEDULE
data dictionary view that refer to the new master sites. When propagation is caught up, there is one row in this view, and when propagation from all the master sites to the new master site is caught up, you can reenable the integrity constraints you disabled.
Again, the two methods for adding new master sites without quiescing the master groups are the following:
Full database export/import or change-based recovery
Object-level export/import
When you use either method, propagation of deferred transactions to the new master site is partially or completely disabled while the new master sites are being added. Therefore, make sure each existing master site has enough free space to store the largest unpropagated deferred transaction queue that you might encounter.
In addition, the following restrictions apply to both methods:
All affected master groups must be using asynchronous replication. Synchronous replication is not allowed.
All scheduled links must use parallel propagation with parallelism set to 1 or higher.
Either the database links of all affected master groups must have no connection qualifier or they must all have the same connection qualifier.
After you begin the process of adding new master sites to one or more master groups, you must wait until these new master sites are added before you begin to add another set of master sites to any of the affected master groups. If there is information about an affected master group in the DBA_NEW_REPSITES
data dictionary view at the master definition site, then the process is started and is not yet complete for that master group.
After you begin the process of adding new master sites to one or more master groups, you cannot relocate the master definition site for these master groups until the new master sites are added. If there is information about an affected master group in the DBA_NEW_REPSITES
data dictionary view, then the process is started and is not yet complete for that master group.
Only one add master site request at a time is allowed at a master site. For example, if hq1.world
is the master definition site for mgroup1
and hq2.world
is the master definition site for mgroup2
, then you cannot add hq1.world
to mgroup2
and hq2.world
to mgroup1
at the same time.
All master sites must be at 9.0.1 or higher compatibility level. You control the compatibility level with the COMPATIBLE
initialization parameter. If any master sites are lower than 9.0.1 compatibility level, then the master group must be quiesced to extend it with new master sites. In this case, follow the instructions in "Adding New Master Sites to a Quiesced Master Group".
If you are using object-level or full database export/import, then make sure there is enough space in your rollback segments or undo tablespace for the export.
Also, before adding new master sites with either method, make sure you properly set up your new master sites for multimaster replication.
Note:
If progress appears to stop during one of the procedures described in the following sections, then check your trace files and the alert log for messages.See Also:
"Setting Up Master Sites" for information about setting up your new master sites for multimaster replication
Oracle Database Administrator's Guide for more information about trace files and the alert log
Oracle Database Administrator's Guide for information about managing undo space
Figure 7-2 shows the major steps for using full database export/import or change-based recovery to add new master sites to a master group without quiescing. The following example script adds the new master sites orc4.world
and orc5.world
to the hr_repg
master group. In this example, orc4.world
is added using full database export/import and orc5.world
is added using change-based recovery.

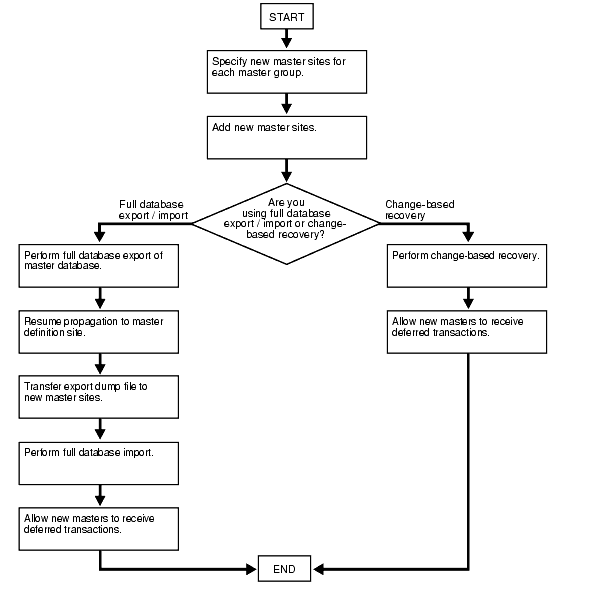

Figure 7-2 Using Full Database Export/Import or Change-Based Recovery
Meet the following requirements to complete these actions:
Executed As: Replication Administrator, unless specified otherwise
Executed At:
Step 1 at Each New Master Site
Step 6 at the Master Definition Site and at Each New Master Site
Step 7 requires an export at the Master Definition site and a file transfer between sites.
Replication Status: Running Normally (Not Quiesced)
Complete the following steps to use full database export/import or change-based recovery to add sites to a master group.
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 If you are using full database export/import, then create the databases that you want to add to the master group.
This step is not required if you are using change-based recovery.
See Also:
Oracle Database Administrator's Guide for information about creating a database*/ SET ECHO ON SPOOL add_masters_full.out PAUSE Press <RETURN> when the databases for the new master sites are created. /*
Step 2 Set up each new master site as a replication site.
Remember that you need to configure the following:
*/ PAUSE Press <RETURN> to continue the new master sites have been setup and the required scheduled links have been created. /*
See Also:
Oracle Database Advanced Replication for information about scheduled links
The replication administrator at each new master site
A scheduled link from each existing master site to each new master site
A scheduled link from each new master site to each existing master site
A schedule purge job at each new master site
Step 3 Connect as the replication administrator to the master definition site.
*/
CONNECT repadmin/repadmin@orc1.world /*
Step 4 Specify new master sites for each master group.
Before you begin, create the required scheduled links between existing master sites and each new master site if they do not already exist.
See Also:
Oracle Database Advanced Replication for information about scheduled links
"Creating Scheduled Links Between the Master Sites" for examples
*/ BEGIN DBMS_REPCAT.SPECIFY_NEW_MASTERS ( gname => 'HR_REPG', master_list => 'orc4.world,orc5.world'); END; / /*
You can begin to track the extension process by querying the following data dictionary views in another SQL*Plus session:
DBA_REPSITES_NEW
DBA_REPEXTENSIONS
*/ PAUSE Press <RETURN> when you have completed the these steps. /*
Step 5 Add the new master sites.
Before running the following procedure, ensure that there are an adequate number of background jobs running at each new master site. If you are using full database export/import, then make sure there is enough space in your rollback segments or undo tablespace for the export before you run this procedure.
See Also:
Oracle Database Advanced Replication for information about setting the JOB_QUEUE_PROCESSES
initialization parameter properly for a replication environment
Oracle Database Administrator's Guide for information about managing undo space
*/ VARIABLE masterdef_flashback_scn NUMBER; VARIABLE extension_id VARCHAR2(32); BEGIN DBMS_REPCAT.ADD_NEW_MASTERS ( export_required => true, available_master_list => NULL, masterdef_flashback_scn => :masterdef_flashback_scn, extension_id => :extension_id, break_trans_to_masterdef => false, break_trans_to_new_masters => false, percentage_for_catchup_mdef => 80, cycle_seconds_mdef => 60, percentage_for_catchup_new => 80, cycle_seconds_new => 60); END; / /*
The values for masterdef_flashback_scn
and extension_id
are saved into variables to be used later in the process. To see these values, you can query the DBA_REPSITES_NEW
and DBA_REPEXTENSIONS
data dictionary views.
*/ PAUSE Press <RETURN> when you have completed the these steps. /*
If you need to undo the changes made to a particular master site by the SPECIFY_NEW_MASTERS
and ADD_NEW_MASTERS
procedures, then use the DBMS_REPCAT.UNDO_ADD_NEW_MASTERS_REQUEST
procedure.
For the export_required
parameter, true
is specified because orc4.world
is being added using full database export/import. Although orc5.world
is using change-based recovery, the true
setting is correct because at least one new master site is added using export/import.
After successfully executing this procedure, monitor its progress by querying the DBA_REPCATLOG
data dictionary view in another SQL*Plus session. Do not proceed to Step 7 until there is no remaining information in this view about adding the new master sites. Assuming no extraneous information exists in DBA_REPCATLOG
from other operations, you can enter the following statement:
SELECT COUNT(*) FROM DBA_REPCATLOG;
All of the processing is complete when this statement returns zero (0).
*/ PAUSE Press <RETURN> to continue when DBA_REPCATLOG is empty. /*
Step 6 If you are using full database export/import, then create a directory object at each database.
For master sites being added using change-based recovery, this step is not required and you can proceed to Step 8.
Each database involved in this operation must have a directory object to hold the Data Pump dump file, and the user who will perform the export or import must have READ
and WRITE
privileges on this directory object. In this example, a Data Pump export is performed at the master definition site, and a Data Pump import is performed at each new master site.
If you are using full database export/import, then, while connected in SQL*Plus to the a database as an administrative user who can create directory objects using the SQL statement CREATE
DIRECTORY
, create a directory object to hold the Data Pump dump file and log files. For example:
*/ CONNECT SYSTEM/MANAGER@orc1.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; CONNECT SYSTEM/MANAGER@orc4.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; CONNECT SYSTEM/MANAGER@orc5.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; /*
In this example, SYSTEM
user performs all exports and imports. If a user other than the user who created the directory object will perform the export or import, then grant this user READ
and WRITE
privileges on the directory object.
Make sure you complete these actions at each database involved in the operation.
Step 7 Perform the following substeps for the master sites being added using full database export/import.
For master sites being added using change-based recovery, these substeps are not required and you can proceed to Step 8.
Perform full database export of the master definition database. Use the system change number (SCN) returned by the masterdef_flashback_scn
parameter in Step 5 for the FLASHBACK_SCN
export parameter.
You can query the DBA_REPEXTENSIONS
data dictionary view for the FLASHBACK_SCN
value:
SELECT FLASHBACK_SCN FROM DBA_REPEXTENSIONS;
In this example, assume that the value returned by this query is 124723
.
In this example, orc4.world
is using full database export/import. Therefore, perform the full database export of the master definition database so that it can be imported into orc4.world
during a later step. However, the orc5.world
database is using change-based recovery. Therefore, the export would not be required if you were adding only orc5.world
.
On a command line, perform the export. This example connects as the SYSTEM
user. The following is an example Data Pump export command:
expdp system/manager FULL=y DIRECTORY=DPUMP_DIR DUMPFILE=fulldb_orc1.dmp FLASHBACK_SCN=124723
Consider the following when you run the Export utility:
Only users with the DBA
role or the EXP_FULL_DATABASE
role can export in full database mode.
Make sure the UNDO_RETENTION
initialization parameter is set correctly before performing the export.
If you use the original Export utility, then do not use the CONSISTENT
export parameter. This parameter does not apply to Data Pump.
See Also:
Oracle Database Utilities for information about performing a Data Pump export
Oracle Database Administrator's Guide for information about managing undo space and setting this parameter
*/ PAUSE Press <RETURN> to continue when the export is complete. /*
Resume propagation to the master definition site.
Running the following procedure indicates that export is effectively finished and propagation can be enabled for both extended and unaffected master groups at the master sites.
*/ BEGIN DBMS_REPCAT.RESUME_PROPAGATION_TO_MDEF ( extension_id => :extension_id); END; / /*
You can find the extension_id
by querying the DBA_REPSITES_NEW
data dictionary view.
Transfer the export dump file to the new master sites.
Using the DBMS_FILE_TRANSFER
package, FTP, or some other method, transfer the export dump file to the other new master sites that are being added with full database export/import. You will need this export dump file at each new site to perform the import described in the next step.
*/ PAUSE Press <RETURN> to continue after transferring the dump file. /*
Set the JOB_QUEUE_PROCESSES
initialization parameter to zero for each new master site.
*/ PAUSE Press <RETURN> to continue after JOB_QUEUE_PROCESSES is set to zero at each new master site. /*
Step 8 Perform import or change-based recovery at each new master site.
If you are using full database export/import, then complete the full database import of the database you exported in Step 7 at each new master site that is being added with full database export/import.
Perform the import. This example connects as the SYSTEM
user to perform the import at orc4.world
. The following is an example import command:
impdp system/manager FULL=y DIRECTORY=DPUMP_DIR DUMPFILE=fulldb_orc1.dmp
Only users with the DBA
role or the IMP_FULL_DATABASE
role can import in full database mode.
See Also:
Oracle Database Utilities for information about performing a Data Pump import*/ PAUSE Press <RETURN> to continue when the import is complete. /*
If you are using change-based recovery, then perform change-based recovery using the system change number (SCN) returned by the masterdef_flashback_scn
parameter in Step 5. You can query the DBA_REPEXTENSIONS
data dictionary view for the masterdef_flashback_scn
value.
You can perform a change-based recovery in one of the following ways:
Using the SQL*Plus RECOVER
command. See the Oracle Database Backup and Recovery Advanced User's Guide for instructions.
Using the Recovery Manager (RMAN) DUPLICATE
command. See the Oracle Database Backup and Recovery Advanced User's Guide for instructions.
Connect to the site where you will perform the change-based recovery:
*/ CONNECT repadmin/repadmin@orc5.world PAUSE Press <RETURN> to continue when the change-based recovery is complete. You can use a separate terminal window to perform the change-based recovery. /*
Step 9 Configure the new sites for multimaster replication by completing the following steps:
Ensure that the database structures, such as the datafiles, exist for the replicated schemas at each new master site. In this example, the replicated schema is hr
.
Set the global name for each new master site. The global name for each new master site must match the global names specified in the SPECIFY_NEW_MASTERS
procedure that you ran in Step 4. You can query the DBLINK
column in the DBA_REPSITES_NEW
data dictionary view to see the global name for each new master site.
You can set the global name using the ALTER
DATABASE
statement, as in the following example:
ALTER DATABASE RENAME GLOBAL_NAME TO orc4.world;
Create the appropriate scheduled links between the new master sites and the existing master sites, including the master definition site.
See Also:
"Creating Scheduled Links Between the Master Sites" for information*/ PAUSE Press <RETURN> when you have completed the these steps. /*
Step 10 Allow new masters to receive deferred transactions.
The following procedure enables the propagation of deferred transactions from other prepared new master sites and existing master sites to the invocation master site. This procedure also enables the propagation of deferred transactions from the invocation master site to the other new master sites and existing master sites.
Caution:
Do not invoke this procedure until instantiation (export/import or change-based recovery) of the new master site is complete.Do not allow any data manipulation language (DML) statements directly on the objects in the extended master group in the new master site until execution of this procedure returns successfully, because these DML statements might not be replicated.
*/ CONNECT repadmin/repadmin@orc4.world BEGIN DBMS_REPCAT.PREPARE_INSTANTIATED_MASTER ( extension_id => :extension_id); END; / CONNECT repadmin/repadmin@orc5.world BEGIN DBMS_REPCAT.PREPARE_INSTANTIATED_MASTER ( extension_id => :extension_id); END; / SET ECHO OFF SPOOL OFF /*
Note:
You can find theextension_id
by querying the DBA_REPSITES_NEW
data dictionary view.************************** END OF SCRIPT **********************************/
Figure 7-3 shows the major steps for using object-level export/import to add new master sites to a master group without quiescing. The following example procedure adds the new master sites orc4.world
and orc5.world
to the hr_repg
master group. An object-level export/import involves exporting and importing the tables in a master group. When you export and import the tables, other dependent database objects, such as indexes, are exported and imported as well.
If you have an integrity constraint that spans two master groups, then you have a child table in one master group (the child master group) and a parent table in a different master group (the parent master group). In this case, Oracle recommends that you add new master sites to both master groups at the same time. However, if you cannot do this, then you must quiesce the child master group before adding new master sites to it. Here, the child table includes a foreign key, which makes it dependent on the values in the parent table. If you do not quiesce the child master group, then conflicts might result when you add master sites to it. You can still add master sites to the parent master group without quiescing it.

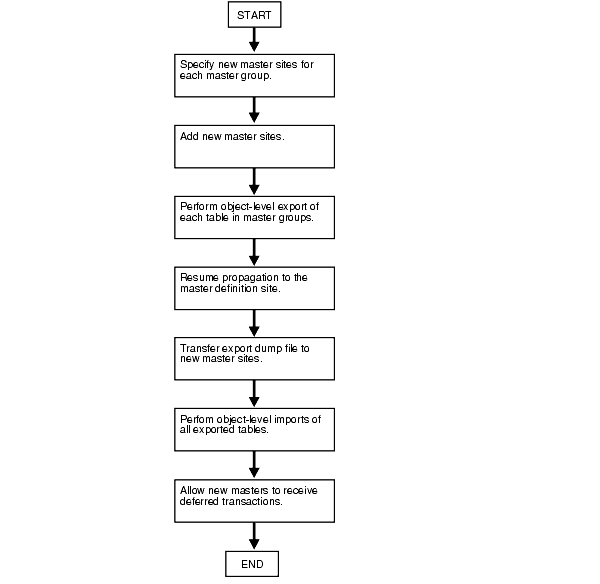

Figure 7-3 Using Object-Level Export/Import
Meet the following requirements to complete these actions:
Executed As: Replication Administrator, unless specified otherwise
Executed At:
Step 7 at the Master Definition Site and at Each New Master Site
Step 10 requires a file transfer between sites.
Replication Status: Running Normally (Not Quiesced)
Complete the following steps to use object-level export/import to add sites to a master group.
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 If the users for the replicated schemas do not exist at the new master sites, then create them now.
In this example, the replicated schema is hr
. This schema probably already exist at the new master sites because it is a sample schema that is installed when you install Oracle.
See Also:
Oracle Database Sample Schemas for general information about the sample schemas and for information about installing them*/ SET ECHO ON SPOOL add_masters_object.out PAUSE Press <RETURN> to continue when the users are created at the new master sites. /*
Step 2 If any of the tables in the master group have circular dependencies, then precreate these tables at the new master sites.
Failure to precreate these tables will result in errors later in the procedure. If there are no circular dependencies, then this step is not required, and you can proceed to Step 3.
Some of the tables in the hr
schema contain circular dependencies. Therefore, in this example, the tables in the hr
schema must be precreated at each new master site. Again, the hr
schema tables are typically created during Oracle installation and so might already exist at the new master sites.
If you need to precreate tables, then disable referential integrity constraints for these tables at the new master sites before the import. Referential integrity constraints can cause errors when you import data into existing tables. This example disables the referential integrity constraints for the precreated tables in the hr
schema at the new master sites.
Further, the precreated tables at the new master sites should not contain any data. This example truncates the tables in the hr
schema at the new master sites to ensure that they do not contain any data.
See Also:
The note under "Adding New Master Sites" for more information about circular dependencies
Oracle Database Utilities for information about importing data into existing tables
*/ PAUSE Press <RETURN> to continue when the tables are precreated at the new master sites, if table precreation is required. After the tables are precreated, the following statements disable the referential integrity constraints related to the hr schema and truncate the tables in the hr schema at the new site. CONNECT oe/oe@orc4.world ALTER TABLE oe.warehouses DISABLE CONSTRAINT warehouses_location_fk; ALTER TABLE oe.customers DISABLE CONSTRAINT customers_account_manager_fk; ALTER TABLE oe.orders DISABLE CONSTRAINT orders_sales_rep_fk; CONNECT hr/hr@orc4.world ALTER TABLE hr.countries DISABLE CONSTRAINT countr_reg_fk; ALTER TABLE hr.departments DISABLE CONSTRAINT dept_mgr_fk DISABLE CONSTRAINT dept_loc_fk; ALTER TABLE hr.employees DISABLE CONSTRAINT emp_dept_fk DISABLE CONSTRAINT emp_job_fk DISABLE CONSTRAINT emp_manager_fk; ALTER TABLE hr.job_history DISABLE CONSTRAINT jhist_job_fk DISABLE CONSTRAINT jhist_emp_fk DISABLE CONSTRAINT jhist_dept_fk; ALTER TABLE hr.locations DISABLE CONSTRAINT loc_c_id_fk; TRUNCATE TABLE hr.countries; TRUNCATE TABLE hr.departments; TRUNCATE TABLE hr.employees; TRUNCATE TABLE hr.jobs; TRUNCATE TABLE hr.job_history; TRUNCATE TABLE hr.locations; TRUNCATE TABLE hr.regions; CONNECT oe/oe@orc5.world ALTER TABLE oe.warehouses DISABLE CONSTRAINT warehouses_location_fk; ALTER TABLE oe.customers DISABLE CONSTRAINT customers_account_manager_fk; ALTER TABLE oe.orders DISABLE CONSTRAINT orders_sales_rep_fk; CONNECT hr/hr@orc5.world ALTER TABLE hr.countries DISABLE CONSTRAINT countr_reg_fk; ALTER TABLE hr.departments DISABLE CONSTRAINT dept_mgr_fk DISABLE CONSTRAINT dept_loc_fk; ALTER TABLE hr.employees DISABLE CONSTRAINT emp_dept_fk DISABLE CONSTRAINT emp_job_fk DISABLE CONSTRAINT emp_manager_fk; ALTER TABLE hr.job_history DISABLE CONSTRAINT jhist_job_fk DISABLE CONSTRAINT jhist_emp_fk DISABLE CONSTRAINT jhist_dept_fk; ALTER TABLE hr.locations DISABLE CONSTRAINT loc_c_id_fk; TRUNCATE TABLE hr.countries; TRUNCATE TABLE hr.departments; TRUNCATE TABLE hr.employees; TRUNCATE TABLE hr.jobs; TRUNCATE TABLE hr.job_history; TRUNCATE TABLE hr.locations; TRUNCATE TABLE hr.regions; /*
Step 3 Set up each new master site as a replication site.
Remember that you need to configure the following:
The replication administrator at each new master site
A scheduled link from each existing master site to each new master site
A scheduled link from each new master site to each existing master site
A schedule purge job at each new master site
*/ PAUSE Press <RETURN> to continue the new master sites have been setup and the required scheduled links have been created. /*
See Also:
Oracle Database Advanced Replication for information about scheduled links
Step 4 Connect to the master definition site as the replication administrator.
*/
CONNECT repadmin/repadmin@orc1.world /*
Step 5 Specify new master sites for each master group.
*/
BEGIN DBMS_REPCAT.SPECIFY_NEW_MASTERS ( gname => 'hr_repg', master_list => 'orc4.world,orc5.world'); END; / /*
You can begin to track the extension process by querying the following data dictionary views in another SQL*Plus session:
DBA_REPSITES_NEW
DBA_REPEXTENSIONS
Step 6 Add the new master sites.
Before running the following procedure, ensure that there are an adequate number of background jobs running at each new master site. Also, make sure there is enough space in your rollback segments or undo tablespace for the export before you run this procedure.
See Also:
Oracle Database Advanced Replication for information about setting the JOB_QUEUE_PROCESSES
initialization parameter properly for a replication environment
Oracle Database Administrator's Guide for information about managing undo space
*/ VARIABLE masterdef_flashback_scn NUMBER; VARIABLE extension_id VARCHAR2(32); BEGIN DBMS_REPCAT.ADD_NEW_MASTERS ( export_required => true, available_master_list => 'orc4.world,orc5.world', masterdef_flashback_scn => :masterdef_flashback_scn, extension_id => :extension_id, break_trans_to_masterdef => false, break_trans_to_new_masters => false, percentage_for_catchup_mdef => 80, cycle_seconds_mdef => 60, percentage_for_catchup_new => 80, cycle_seconds_new => 60); END; / /*
The sites specified for the available_master_list
parameter must be same as the sites specified in the SPECIFY_NEW_MASTERS
procedure in Step 5.
The values for masterdef_flashback_scn
and extension_id
are saved into variables to be used later in the process. To see these values, you can also query the DBA_REPSITES_NEW
and DBA_REPEXTENSIONS
data dictionary views.
If you need to undo the changes made to a particular master site by the SPECIFY_NEW_MASTERS
and ADD_NEW_MASTERS
procedures, then use the UNDO_ADD_NEW_MASTERS_REQUEST
procedure.
After successfully executing this procedure, monitor its progress by querying the DBA_REPCATLOG
data dictionary view in another SQL*Plus session. Do not proceed to Step 8 until there is no remaining information in this view about adding the new master sites. Assuming there is no extraneous information in DBA_REPCATLOG
from other operations, you can enter the following statement:
SELECT COUNT(*) FROM DBA_REPCATLOG;
All of the processing is complete when this statement returns zero (0).
*/ PAUSE Press <RETURN> to continue when DBA_REPCATLOG is empty. /*
Step 7 Create a directory object at each database.
Each database involved in this operation must have a directory object to hold the Data Pump dump file, and the user who will perform the export or import must have READ
and WRITE
privileges on this directory object. In this example, a Data Pump export is performed at the master definition site, and a Data Pump import is performed at each new master site.
While connected in SQL*Plus to the a database as an administrative user who can create directory objects using the SQL statement CREATE
DIRECTORY
, create a directory object to hold the Data Pump dump file and log files. For example:
*/ CONNECT SYSTEM/MANAGER@orc1.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; CONNECT SYSTEM/MANAGER@orc4.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; CONNECT SYSTEM/MANAGER@orc5.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; /*
In this example, SYSTEM
user performs all exports and imports. If a user other than the user who created the directory object will perform the export or import, then grant this user READ
and WRITE
privileges on the directory object.
Make sure you complete these actions at each database involved in the operation.
Step 8 Perform object-level export of tables at master definition database.
At the master definition database, perform an object-level export for each master table in the master groups that will be created at the new master sites. An object-level export includes exports performed in table mode, user mode, or tablespace mode.
Use the system change number (SCN) returned by the masterdef_flashback_scn
parameter in Step 6 for the FLASHBACK_SCN
export parameter. You can query the DBA_REPEXTENSIONS
data dictionary view for the FLASHBACK_SCN
value:
SELECT FLASHBACK_SCN FROM DBA_REPEXTENSIONS;
In this example, assume that the SCN value is 3456871
.
On a command line, perform the export. This example connects as the SYSTEM
user. The following is an example Data Pump export command:
expdp system/manager TABLES=HR.COUNTRIES,HR.DEPARTMENTS,HR.EMPLOYEES, HR.JOB_HISTORY,HR.JOBS,HR.LOCATIONS,HR.REGIONS DIRECTORY=DPUMP_DIR DUMPFILE=hr_tables.dmp CONTENT=data_only FLASHBACK_SCN=3456871
The CONTENT
parameter is used in this example because the tables already exist at the import sites. You might not need to specify this parameter.
Consider the following when you run perform the export:
Make sure the UNDO_RETENTION
initialization parameter is set correctly before performing the export.
If you use the original Export utility, then do not use the CONSISTENT
export parameter. This parameter does not apply to Data Pump.
See Also:
Oracle Database Utilities for information about performing a Data Pump export
Oracle Database Administrator's Guide for information about managing undo space and setting the UNDO_RETENTION
initialization parameter
*/ PAUSE Press <RETURN> to continue when the export is complete. /*
Step 9 Resume propagation to the master definition site.
Running the following procedure indicates that export is effectively finished and propagation can be enabled for both extended and unaffected master groups at the master sites.
*/ CONNECT repadmin/repadmin@orc1.world BEGIN DBMS_REPCAT.RESUME_PROPAGATION_TO_MDEF ( extension_id => :extension_id); END; / /*
You can find the extension_id
by querying the DBA_REPSITES_NEW
data dictionary view.
Step 10 Transfer the export dump files to the new master sites.
Using the DBMS_FILE_TRANSFER
package, FTP, or some other method, transfer the export dump files to the other new master sites that are being added with object-level export/import. You will need these export dump files at each new site to perform the import described in the next step.
*/ PAUSE Press <RETURN> to continue when the export dump files have been transfered to the new master sites that are being added with object-level export/import. /*
Step 11 Perform object-level imports at each new master site of each object you exported in Step 8.
On a command line, perform the import. This example connects as the SYSTEM
user. The following is an example import command:
impdp system/manager TABLES=HR.COUNTRIES,HR.DEPARTMENTS,HR.EMPLOYEES, HR.JOB_HISTORY,HR.JOBS,HR.LOCATIONS,HR.REGIONS DIRECTORY=DPUMP_DIR DUMPFILE=hr_tables.dmp CONTENT=data_only TABLE_EXISTS_ACTION=append
Other objects, such as the indexes based on the tables, are imported automatically. The CONTENT
and TABLE_EXISTS_ACTION
parameters are used in this example because the tables already exist at the import sites. You might not need to specify these parameters.
See Also:
Oracle Database Utilities for information about performing a Data Pump importPerform the object-level imports at each site:
*/ PAUSE Press <RETURN> to continue when the imports are complete at each site. You can use a separate terminal window to perform the object-level imports. /*
Step 12 Allow new masters to receive deferred transactions.
The following procedure enables the propagation of deferred transactions from other prepared new master sites and existing master sites to the invocation master site. This procedure also enables the propagation of deferred transactions from the invocation master site to the other new master sites and existing master sites.
Caution:
Do not invoke this procedure until object-level export/import for the new master site is complete.Do not allow any data manipulation language (DML) statements directly on the objects in the extended master group in the new master site until execution of this procedure returns successfully, because these DML statements might not be replicated.
*/ CONNECT repadmin/repadmin@orc4.world BEGIN DBMS_REPCAT.PREPARE_INSTANTIATED_MASTER ( extension_id => :extension_id); END; / CONNECT repadmin/repadmin@orc5.world BEGIN DBMS_REPCAT.PREPARE_INSTANTIATED_MASTER ( extension_id => :extension_id); END; / SET ECHO OFF SPOOL OFF /*
Note:
You can find theextension_id
by querying the DBA_REPSITES_NEW
data dictionary view.************************** END OF SCRIPT **********************************/
You can add new master sites to a quiesced master group in one of the following ways:
Adding New Master Sites Using the ADD_MASTER_DATABASE Procedure
Adding New Master Sites with Offline Instantiation Using Export/Import
Typically, you should only use the ADD_MASTER_DATABASE
procedure if you have a relatively small master group or if you plan to precreate the replication tables and load the data into them at the new master sites. If this is not the case, the ADD_MASTER_DATABASE
procedure might not be a good option because the entire master group is copied over the network. For larger master groups, either precreate the objects in the master group at the new master sites or use offline instantiation.
You can use the ADD_MASTER_DATABASE
procedure to add additional master sites to an existing master group that is quiesced. Executing this procedure replicates existing master objects to the new site. If any master site is lower than 9.0.1 compatibility level, then you must use the following procedure. That is, the master group must be quiesced to extend it with new master sites. You control the compatibility level of a database with the COMPATIBLE
initialization parameter.
Meet the following requirements to complete these actions:
Executed As: Replication Administrator
Executed At: Master Definition Site
Replication Status: Quiesced
Complete the following steps to use the ADD_MASTER_DATABASE
procedure to add sites to a master group.
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Set up the new master site.
Make sure the appropriate schema and database links have been created before adding your new master site. Be sure to create the database links from the new master site to each of the existing masters sites. Also, create a database link from each of the existing master sites to the new master site. After the database links have been created, make sure that you also define the scheduled links for each of the new database links.
*/ SET ECHO ON SPOOL add_masters_quiesced.out PAUSE Press <RETURN> to the new master site has been set up. /*
Step 2 Connect to the master definition site as the replication administrator.
*/
CONNECT repadmin/repadmin@orc1.world /*
Step 3 If the replication status is normal, then change the status to quiesced.
*/
BEGIN DBMS_REPCAT.SUSPEND_MASTER_ACTIVITY ( gname => 'hr_repg'); END; / /*
Step 4 Add the new master sites.
This example assumes that the replicated objects do not exist at the new master site. Therefore, the copy_rows
parameter is set to true
to copy the rows in the replicated objects at the master definition site to the new master site, and the use_existing_objects
parameter is set to false
so that Advanced Replication creates the replicated objects at the new site. If the replicated objects already exist at the new site but do not contain any data, then set use_existing_objects
to true
.
*/ BEGIN DBMS_REPCAT.ADD_MASTER_DATABASE ( gname => 'hr_repg', master => 'orc4.world', use_existing_objects => FALSE, copy_rows => TRUE, propagation_mode => 'ASYNCHRONOUS'); END; / /*
You should wait until the DBA_REPCATLOG
view is empty. This view has temporary information that is cleared after successful execution. Execute the following SELECT
statement in another SQL*Plus session to monitor the DBA_REPCATLOG
view:
SELECT COUNT(*) FROM DBA_REPCATLOG WHERE GNAME = 'HR_REPG';
All of the processing is complete when this statement returns zero (0).
*/ PAUSE Press <RETURN> to continue when DBA_REPCATLOG is empty. /*
Step 5 Resume replication activity.
*/
BEGIN DBMS_REPCAT.RESUME_MASTER_ACTIVITY ( gname => 'hr_repg'); END; / SET ECHO OFF SPOOL OFF /************************* END OF SCRIPT **********************************/
Expanding established replication environments can cause network traffic when you add a new master site to your replication environment using the ADD_MASTER_DATABASE
procedure. This is caused by propagating the entire contents of the table or materialized view through the network to the new replicated site.
To minimize such network traffic, you can expand your replication environment by using the offline instantiation procedure. Offline instantiation takes advantage of Oracle's Export and Import utilities, which allow you to create an export file and transfer the data to the new site through another storage medium, such as CD-ROM, tape, and so on.
The following script is an example of how to perform an offline instantiation of a master site. This script can potentially eliminate large amounts of network traffic caused by the other method of adding a new master site to an existing quiesced master group. The script assumes that the hr
schema does not exist at the new master site and instantiates this schema at the new master site. The hr
schema is created automatically when Oracle is installed. You can choose to drop the hr
schema at the new master site before you start this example.
Note:
You can use either Data Pump export/import or original export/import to perform exports and imports in an Advanced Replication environment. General references to export/import in this document refer to both Data Pump and original export/import.Meet the following requirements to complete these actions:
Executed As: Replication Administrator, unless specified otherwise
Executed At: Master Definition Site and New Master Site
Replication Status: Quiesced and Partial
Complete the following steps to use offline instantiation to add sites to a master group.
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Set up the new master site.
Make sure the appropriate schema and database links have been created before performing the offline instantiation of your new master site. Be sure to create the database links from the new master site to each of the existing masters sites. Also, create a database link from each of the existing master sites to the new master site. After the database links have been created, make sure that you also define the scheduled links for each of the new database links.
*/ SET ECHO ON SPOOL add_masters_instant.out PAUSE Press <RETURN> to the new master site has been set up. /*
Step 2 Connect to the master definition site as the replication administrator.
*/
CONNECTrepadmin/repadmin@orc1.world /*
Step 3 Suspend master activity.
You need to suspend master activity for the existing master sites before exporting your master data and beginning the offline instantiation process.
*/ BEGIN DBMS_REPCAT.SUSPEND_MASTER_ACTIVITY ( gname => 'hr_repg'); END; / /*
Step 4 Verify that there are no pending transactions in a separate SQL*Plus session.
This includes pushing any outstanding deferred transactions, resolving any error transactions, and pushing any administrative transactions. This step must be performed at each of the existing master sites.
Check the error transaction queue.
SELECT * FROM DEFERROR;
If any deferred transactions have been entered into the error queue, then you need to resolve the error situation and then manually reexecute the deferred transaction. The following is an example:
BEGIN DBMS_DEFER_SYS.EXECUTE_ERROR ( deferred_tran_id => '128323', destination => 'orc1.world'); END; /
Check for outstanding administrative requests.
SELECT * FROM DBA_REPCATLOG;
If any administrative requests remain, then you can manually execute these requests or wait for them to be executed automatically. You might need to execute the DBMS_REPCAT.DO_DEFERRED_REPCAT_ADMIN
procedure several times, because some administrative operations have multiple steps. The following is an example:
BEGIN DBMS_REPCAT.DO_DEFERRED_REPCAT_ADMIN ( gname => 'hr_repg', all_sites => TRUE); END; / */ PAUSE Press <RETURN> to continue when you have verified that there are no pending requests. /*
Step 5 Begin offline instantiation procedure.
*/
BEGIN DBMS_OFFLINE_OG.BEGIN_INSTANTIATION ( gname => 'hr_repg', new_site => 'orc4.world'); END; / /*
You should wait until the DBA_REPCATLOG
view is empty. This view has temporary information that is cleared after successful execution. Execute the following SELECT
statement in another SQL*Plus session to monitor the DBA_REPCATLOG
view:
SELECT * FROM DBA_REPCATLOG WHERE GNAME = 'HR_REPG'; */ PAUSE Press <RETURN> to continue when DBA_REPCATLOG is empty. /*
Step 6 Create a directory object at each database.
Each database involved in this operation must have a directory object to hold the Data Pump dump file, and the user who will perform the export or import must have READ
and WRITE
privileges on this directory object. In this example, a Data Pump export is performed at the master definition site, and a Data Pump import is performed at the new master site.
While connected in SQL*Plus to a database as an administrative user who can create directory objects using the SQL statement CREATE
DIRECTORY
, create a directory object to hold the Data Pump dump file and log files. For example:
*/ CONNECT SYSTEM/MANAGER@orc1.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; CONNECT SYSTEM/MANAGER@orc4.world CREATE DIRECTORY DPUMP_DIR AS '/usr/dpump_dir'; /*
Make sure you complete these actions at both databases involved in the operation. In this example, SYSTEM
user creates the directory objects and performs all exports and imports. If a user who does not own the directory object will perform the export or import, then grant the user READ
and WRITE
privileges on the directory object.
Step 7 In a separate terminal window, perform the export.
On a command line, perform the export. This example connects as the SYSTEM
user. The following is an example Data Pump export command:
expdp system/manager SCHEMAS=hr DIRECTORY=DPUMP_DIR DUMPFILE=hr_schema.dmp
When you export tables, their indexes are exported automatically.
See Also:
Oracle Database Utilities for information about performing a Data Pump export*/ PAUSE Press <RETURN> to continue when the export is complete. /*
Step 8 Resume partial replication activity.
Because it might take some time to complete the offline instantiation process, you can resume replication activity for the remaining master sites (excluding the new master site) by executing the RESUME_SUBSET_OF_MASTERS
procedure in the DBMS_OFFLINE_OG
package after the export is complete. In the following example, replication activity is resumed at all master sites except the new master site -- orc4.world
.
*/ CONNECT repadmin/repadmin@orc1.world BEGIN DBMS_OFFLINE_OG.RESUME_SUBSET_OF_MASTERS ( gname => 'hr_repg', new_site => 'orc4.world'); END; / /*
Step 9 Transfer the export dump files to the new master site.
Using the DBMS_FILE_TRANSFER
package, FTP, or some other method, transfer the export dump file to the new master site. You will need this export dump file at the new site to perform the import described in the next step.
*/ PAUSE Press <RETURN> to continue when the export dump file has been transfered to the new master site. /*
Step 10 Connect to the new master site as the replication administrator.
*/
CONNECT repadmin/repadmin@orc4.world /*
Step 11 Prepare the new master site.
You must prepare the new site to import the data in your export file. Make sure you execute the following procedure at the new master site.
*/ BEGIN DBMS_OFFLINE_OG.BEGIN_LOAD ( gname => 'hr_repg', new_site => 'orc4.world'); END; / /*
Step 12 In a separate terminal window, import data from export dump file.
On a command line, perform the import. This example connects as the SYSTEM
user. The following is an example import command:
impdp system/manager SCHEMAS=hr DIRECTORY=DPUMP_DIR DUMPFILE=hr_schema.dmp
Other objects, such as the indexes based on the tables, are imported automatically.
See Also:
Oracle Database Utilities for information about performing a Data Pump import*/ PAUSE Press <RETURN> to continue when the import is complete. /*
Step 13 Complete the load process at new master site.
After importing the export file, you are ready to complete the offline instantiation process at the new master site. Executing the DBMS_OFFLINE_OG.END_LOAD
procedure prepares the new site for normal replication activity.
*/ BEGIN DBMS_OFFLINE_OG.END_LOAD ( gname => 'hr_repg', new_site => 'orc4.world'); END; / /*
Step 14 Connect to the master definition site as the replication administrator.
*/
CONNECT repadmin/repadmin@orc1.world /*
Step 15 Complete instantiation process.
After completing the steps at the new master site, you are ready to complete the offline instantiation process. Executing the END_INSTANTIATION
procedure in the DBMS_OFFLINE_OG
package completes the process and resumes normal replication activity at all master sites. Make sure you execute the following procedure at the master definition site.
*/ BEGIN DBMS_OFFLINE_OG.END_INSTANTIATION ( gname => 'hr_repg', new_site => 'orc4.world'); END; / SET ECHO OFF SPOOL OFF /************************* END OF SCRIPT **********************************/
When it becomes necessary to remove a master site from a master group, use the REMOVE_MASTER_DATABASES
procedure to drop one or more master sites.
Meet the following requirements to complete these actions:
Executed As: Replication Administrator
Executed At: Master Definition Site
Replication Status: Quiesced
Complete the following steps to remove a master site.
Note:
If you are viewing this document online, then you can copy the text from the "BEGINNING OF SCRIPT" line after this note to the "END OF SCRIPT" line into a text editor and then edit the text to create a script for your environment./************************* BEGINNING OF SCRIPT ******************************
Step 1 Connect to the master definition site as the replication administrator.
*/
SET ECHO ON SPOOL remove_masters.out CONNECT repadmin/repadmin@orc1.world /*
Step 2 If the replication status is normal for the master group, then change the status to quiesced.
*/
BEGIN DBMS_REPCAT.SUSPEND_MASTER_ACTIVITY ( gname => 'hr_repg'); END; / /*
Step 3 Remove the master site.
*/
BEGIN DBMS_REPCAT.REMOVE_MASTER_DATABASES ( gname => 'hr_repg', master_list => 'orc4.world'); END; / /*
You should wait until the DBA_REPCATLOG
view is empty. Execute the following SELECT
statement in another SQL*Plus session to monitor the DBA_REPCATLOG
view:
SELECT * FROM DBA_REPCATLOG WHERE GNAME = 'HR_REPG'; */ PAUSE Press <RETURN> to continue when DBA_REPCATLOG is empty for the master group. /*
Step 4 Resume master activity for the master group.
*/
BEGIN DBMS_REPCAT.RESUME_MASTER_ACTIVITY ( gname => 'hr_repg'); END; / SET ECHO OFF SPOOL OFF /************************* END OF SCRIPT **********************************/
The sites being removed from a master group do not have to be accessible. When a master site will not be available for an extended period of time due to a system or network failure, you might decide to drop the master site from the master group.
However, because the site is unavailable, you most likely cannot suspend replication activity for the master group. You can use the REMOVE_MASTER_DATABASES
procedure in the DBMS_REPCAT
package to remove master sites from a master group, even if the master group is not quiesced.
If this is the case, you are responsible for:
Cleaning the deferred transaction queue
Removing any data inconsistencies
Specifically, the next time that you suspend replication activity for a master group, you must complete the following steps as soon as possible after the unavailable master sites are removed:
Step 1 Suspend replication activity for the master group.
See "SUSPEND_MASTER_ACTIVITY Procedure" for information.
Step 2 Delete all deferred transactions from each master site where the destination for the transaction is a removed master site.
See "DELETE_TRAN Procedure" for information.
Step 3 Remove all deferred transactions from removed master sites.
See "DELETE_TRAN Procedure" for information.
Step 4 Reexecute or delete all error transactions at each remaining master site.
See "Managing the Error Queue" for information about reexecuting error transactions, and see "DELETE_TRAN Procedure" for information about removing error transactions.
Step 5 Ensure that no deferred or error transactions exist at each remaining master.
If you cannot remove one or more deferred transactions from a remaining master, execute the DBMS_DEFER_SYS.DELETE_TRAN
procedure at the master site.
Step 6 Ensure that all replicated data is consistent.
See Chapter 16, "DBMS_RECTIFIER_DIFF" for information about determining and correcting differences.
Step 7 Resume replication activity for the master group.
See "RESUME_MASTER_ACTIVITY Procedure" for information.
Note:
After dropping an unavailable master site from a master group, you should also remove the master group from the dropped site to finish the cleanup.Several procedures in the DBMS_REPCAT
package enable you to update the comment information in the various data dictionary views associated with replication. Table 7-1 lists the appropriate procedure to call for each view.
Table 7-1 Updating Comments in Advanced Replication Views
View | DBMS_REPCAT Procedure | See for Parameter Information |
---|---|---|
DBA_REPGROUP |
COMMENT_ON_REPGROUP( gname IN VARCHAR2, comment IN VARCHAR2) |
|
DBA_REPOBJECT |
COMMENT_ON_REPOBJECT( sname IN VARCHAR2, oname IN VARCHAR2, type IN VARCHAR2, comment IN VARCHAR2) |
|
DBA_REPSITES |
COMMENT_ON_REPSITES( gname IN VARCHAR2, master IN VARCHAR, comment IN VARCHAR2) |
|
DBA_REPCOLUMN_GROUP |
COMMENT_ON_COLUMN_GROUP( sname IN VARCHAR2, oname IN VARCHAR2, column_group IN VARCHAR2, comment IN VARCHAR2) |
|
DBA_REPPRIORITY_GROUP |
COMMENT_ON_PRIORITY_GROUP( gname IN VARCHAR2, pgroup IN VARCHAR2) comment IN VARCHAR2) |
|
DBA_REPPRIORITY_GROUP (site priority group) |
COMMENT_ON_SITE_PRIORITY( gname IN VARCHAR2, name IN VARCHAR2, comment IN VARCHAR2) |
|
DBA_REPRESOLUTION (uniqueness conflicts) |
COMMENT_ON_UNIQUE_RESOLUTION( sname IN VARCHAR2, oname IN VARCHAR2, constraint_name IN VARCHAR2, sequence_no IN NUMBER, comment IN VARCHAR2) |
The parameters for the |
DBA_REPRESOLUTION (update conflicts) |
COMMENT_ON_UPDATE_RESOLUTION( sname IN VARCHAR2, oname IN VARCHAR2, column_group IN VARCHAR2, sequence_no IN NUMBER, comment IN VARCHAR2) |
The parameters for the |
DBA_REPRESOLUTION (delete conflicts) |
COMMENT_ON_DELETE_RESOLUTION( sname IN VARCHAR2, oname IN VARCHAR2, sequence_no IN NUMBER, comment IN VARCHAR2) |
The parameters for the |

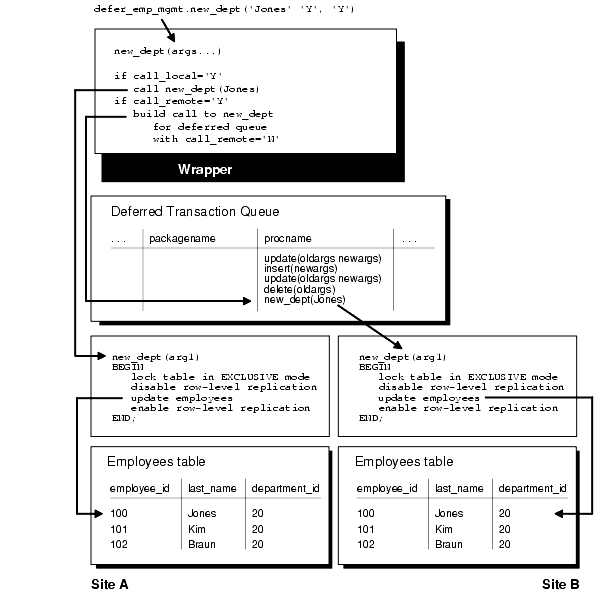

Procedural replication can offer performance advantages for large batch-oriented operations operating on large numbers of rows that can be run serially within a replication environment.
A good example of an appropriate application is a purge operation, also referred to as an archive operation, that you run infrequently (for example, once in each quarter) during off hours to remove old data, or data that was "logically" deleted from the online database. An example using procedural replication to purge deleted rows is described in the "Avoiding Delete Conflicts" section in Chapter 5, "Conflict Resolution Concepts and Architecture", of Oracle Database Advanced Replication.
All parameters for a replicated procedure must be IN
parameters; OUT
and IN/OUT
modes are not supported. The following datatypes are supported for these parameters:
VARCHAR2
NVARCHAR2
NUMBER
DATE
RAW
ROWID
CHAR
NCHAR
Binary LOB (BLOB
)
Character LOB (CLOB
)
National character LOB (NCLOB
)
User-defined datatypes
Oracle cannot detect update conflicts produced by replicated procedures. Replicated procedures must detect and resolve conflicts themselves. Because of the difficulties involved in writing your own conflict resolution routines, it is best to simply avoid the possibility of conflicts altogether.
Adhering to the following guidelines helps you ensure that your tables remain consistent at all sites when you plan to use procedural replication:
You must disable row-level replication within the body of the deferred procedure. See "Updating the Comments Fields in Data Dictionary Views".
Only one replicated procedure should be run at a time, as described in "Serializing Transactions".
Deferred transactions should be propagated serially. For more information about guidelines for scheduled links, see Oracle Database Advanced Replication.
The replicated procedure must be packaged and the package cannot contain any functions. Standalone deferred procedures and standalone or packaged deferred functions are not currently supported.
The deferred procedures must reference only locally owned data.
The procedures should not use locally generated fields, values, or environmentally dependent SQL functions. For example, the procedure should not call SYSDATE
.
Your data ownership should be statically partitioned. That is, ownership of a row should not change between sites.
If you have multiple master groups at a master site, and one or more master groups are quiesced, then you cannot perform procedural replication on any master group at the master site. This restriction is enforced because a procedure in one master group can update objects in another master group. You can only perform procedural replication when all of the master groups on a master site are replicating data normally (that is, when none of the master groups is quiesced).
For example, if you have a procedure named sal_raise
in master group A on master site db1
, then you cannot run the sal_raise
procedure if master group B on master site db1
is quiesced, even if master group A is replicating normally.
When using procedural replication, a procedure call is only propagated to master replication sites. The procedure call is not propagated to materialized view sites. However, procedural replication can be initiated at a materialized view site. In this case, the procedure call is propagated to all of the master sites in the replication environment, but the procedure call is not propagated to any other materialized view sites. Other materialized view sites must pull changes made at the master site by performing a materialized view refresh.
For example, suppose a replication environment includes two master sites named msite1
and msite2
and two materialized view sites named mview1
and mview2
. If procedural replication is initiated at mview1
, then the procedure is run at mview1
and the procedure call is propagated to the two master sites, msite1
and msite2
, where the procedure is also run. However, the procedure call is not propagated to mview2
. Therefore, during the next refresh, mview2
pulls down all of the changes made by the procedure at its master site.
When using procedural replication, the user-defined types and the objects referenced in the procedure must meet the following conditions:
For an object type, all replication sites must agree about the order of attributes in the object type. You establish the attribute order when you create the object type. Consider the following object type:
CREATE TYPE cust_address_typ AS OBJECT (street_address VARCHAR2(40), postal_code VARCHAR2(10), city VARCHAR2(30), state_province VARCHAR2(10), country_id CHAR(2)); /
At all replication sites, street_address
must be the first attribute, postal_code
must be the second attribute, city
must be the third attribute, and so on.
For an Oracle object, all replication sites must have the same object identifier (OID), schema owner, and type name for each replicated object type.
You can meet these conditions by always using distributed schema management to create or modify any replicated object, including object types, tables with column objects, and object tables. If you do not use distributed schema management to create and modify object types, then replication errors can result.
See Also:
Oracle Database Advanced Replication for more information about type agreement at replication sitesSerial execution ensures that your data remains consistent. The replication facility propagates and executes replicated transactions one at a time. For example, assume that you have two procedures, A and B, that perform updates on local data. Now assume that you perform the following actions, in order:
Execute A and B locally.
Queue requests to execute other replicas of A and B on other nodes.
Commit.
The replicas of A and B o n the other nodes are executed completely serially, in the same order that they were committed at the originating site. If A and B execute concurrently at the originating site, however, then they can produce different results locally than they do remotely. Executing A and B serially at the originating site ensures that all sites have identical results. Propagating the transaction serially ensures that A and B are executing in serial order at the target site in all cases.
Alternatively, you could write the procedures carefully, to ensure serialization. For example, you could use SELECT...
FOR
UPDATE
for queries to ensure serialization at the originating site and at the target site if you are using parallel propagation.
You must disable row-level replication support at the start of your procedure, and then reenable support at the end. This operation ensures that any updates that occur as a result of executing the procedure are not propagated to other sites. Row-level replication is enabled and disabled by calling the following procedures, respectively:
DBMS_REPUTIL.REPLICATION_ON
DBMS_REPUTIL.REPLICATION_OFF
When you generate replication support for your replicated package, Oracle creates a wrapper package in the schema of the replication propagator.
Note:
Unregistering the current propagator drops all existing generated wrappers in the propagator's schema. Replication support for wrapped stored procedures must be regenerated after you register a new propagator.The wrapper package has the same name as the original package, but its name is prefixed with the string you supply when you generate replication support for the procedure. If you do not supply a prefix, then Oracle uses the default prefix, defer_
. The wrapper procedure has the same parameters as the original, along with two additional parameters: call_local
and call_remote
. These two CHAR
parameters determine where the procedure is executed. When call_local
is 'Y'
, the procedure is executed locally. When call_remote
is 'Y'
, the procedure will ultimately be executed at all other master sites in the replication environment.
The remote procedures are called directly if you are propagating changes synchronously, or calls to these procedures are added to the deferred transaction queue if you are propagating changes asynchronously. By default, call_local
is 'N'
, and call_remote
is 'Y'
.
Oracle generates replication support for a package in two phases. The first phase creates the package specification at all sites. Phase two generates the package body at all sites. These two phases are necessary to support synchronous replication.
For example, suppose you create the package emp_mgmt
containing the procedure new_dept
, which takes one argument, email
. To replicate this package to all master sites in your system, you can use the Replication Management tool to add the package to a master group and then generate replication support for the object. After completing these steps, an application can call procedure in the replicated package as follows:
BEGIN defer_emp_mgmt.new_dept( email => 'jones', call_local => 'Y', call_remote => 'Y'); END; /
See Also:
The Replication Management tool's online help for more information about managing master groups and replicated objects using the Replication Management toolAs shown in Figure 7-4, the logic of the wrapper procedure ensures that the procedure is called at the local site and subsequently at all remote sites. The logic of the wrapper procedure also ensures that when the replicated procedure is called at the remote sites, call_remote
is false
, ensuring that the procedure is not further propagated.
If you are operating in a mixed replication environment with static partitioning of data ownership (that is, if you are not preventing row-level replication), then Advanced Replication preserves the order of operations at the remote node, because both row-level and procedural replication use the same asynchronous queue.
Figure 7-4 Asynchronous Procedural Replication
