This chapter explains the concepts and architecture of the Streams capture process.
This chapter contains these topics:
See Also:
Chapter 11, "Managing a Capture Process"Every Oracle database has a set of two or more redo log files. The redo log files for a database are collectively known as the database redo log. The primary function of the redo log is to record all changes made to the database.
Redo logs are used to guarantee recoverability in the event of human error or media failure. A capture process is an optional Oracle background process that scans the database redo log to capture DML and DDL changes made to database objects. When a capture process is configured to capture changes from a redo log, the database where the changes were generated is called the source database.

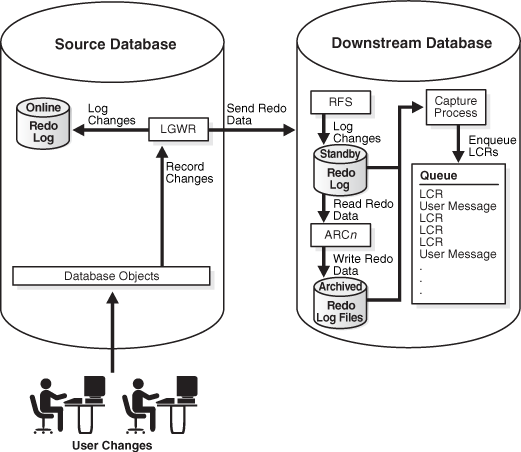

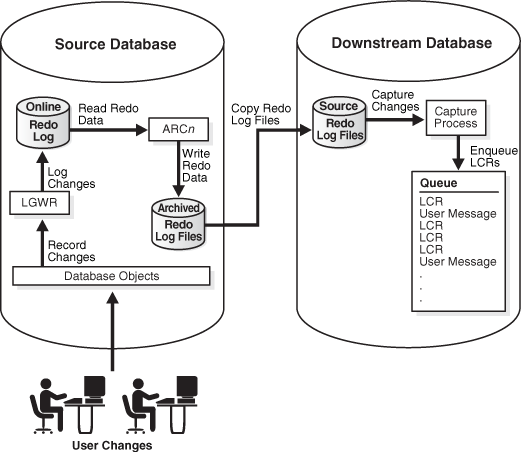

A capture process can run on the source database or on a remote database. When a capture process runs on the source database, the capture process is a local capture process. When a capture process runs on a remote database, the capture process is called a downstream capture process, and the remote database is called the downstream database.
A capture process reformats changes captured from the redo log into LCRs. An LCR is a message with a specific format that describes a database change. A capture process captures two types of LCRs: row LCRs and DDL LCRs. Row LCRs and DDL LCRs are described in detail later in this section.
After capturing an LCR, a capture process enqueues a message containing the LCR into a queue. A capture process is always associated with a single ANYDATA
queue, and it enqueues messages into this queue only. For improved performance, captured messages always are stored in a buffered queue, which is System Global Area (SGA) memory associated with an ANYDATA
queue. You can create multiple queues and associate a different capture process with each queue.

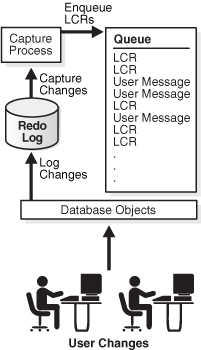

Figure 2-1 shows a capture process capturing LCRs.
See Also:
Oracle Streams Replication Administrator's Guide for information about managing LCRs
Oracle Database PL/SQL Packages and Types Reference for more information about LCR types
A row LCR describes a change to the data in a single row or a change to a single LONG
, LONG
RAW
, or LOB column in a row. The change results from a data manipulation language (DML) statement or a piecewise update to a LOB. For example, a single DML statement can insert or merge multiple rows into a table, can update multiple rows in a table, or can delete multiple rows from a table.
Therefore, a single DML statement can produce multiple row LCRs. That is, a capture process creates an LCR for each row that is changed by the DML statement. In addition, an update to a LONG
, LONG
RAW
, or LOB column in a single row can result in more than one row LCR.
Each row LCR is encapsulated in an object of LCR$_ROW_RECORD
type and contains the following attributes:
source_database_name
: The name of the source database where the row change occurred.
command_type
: The type of DML statement that produced the change, either INSERT
, UPDATE
, DELETE
, LOB
ERASE
, LOB
WRITE
, or LOB
TRIM
.
object_owner
: The schema name that contains the table with the changed row.
object_name
: The name of the table that contains the changed row.
tag
: A raw tag that can be used to track the LCR.
transaction_id
: The identifier of the transaction in which the DML statement was run.
scn
: The system change number (SCN) at the time when the change record was written to the redo log.
old_values
: The old column values related to the change. These are the column values for the row before the DML change. If the type of the DML statement is UPDATE
or DELETE
, then these old values include some or all of the columns in the changed row before the DML statement. If the type of the DML statement is INSERT
, then there are no old values.
new_values
: The new column values related to the change. These are the column values for the row after the DML change. If the type of the DML statement is UPDATE
or INSERT
, then these new values include some or all of the columns in the changed row after the DML statement. If the type of the DML statement is DELETE
, then there are no new values.
A captured row LCR can also contain transaction control statements. These row LCRs contain directives such as COMMIT
and ROLLBACK
. Such row LCRs are internal and are used by an apply process to maintain transaction consistency between a source database and a destination database.
A DDL LCR describes a data definition language (DDL) change. A DDL statement changes the structure of the database. For example, a DDL statement can create, alter, or drop a database object.
Each DDL LCR contains the following information:
source_database_name
: The name of the source database where the DDL change occurred.
command_type
: The type of DDL statement that produced the change, for example ALTER
TABLE
or CREATE
INDEX
.
object_owner
: The schema name of the user who owns the database object on which the DDL statement was run.
object_name
: The name of the database object on which the DDL statement was run.
object_type
: The type of database object on which the DDL statement was run, for example TABLE
or PACKAGE
.
ddl_text
: The text of the DDL statement.
logon_user
: The logon user, which is the user whose session executed the DDL statement.
current_schema
: The schema that is used if no schema is specified for an object in the DDL text.
base_table_owner
: The base table owner. If the DDL statement is dependent on a table, then the base table owner is the owner of the table on which it is dependent.
base_table_name
: The base table name. If the DDL statement is dependent on a table, then the base table name is the name of the table on which it is dependent.
tag
: A raw tag that can be used to track the LCR.
transaction_id
: The identifier of the transaction in which the DDL statement was run.
scn
: The SCN when the change was written to the redo log.
Note:
Both row LCRs and DDL LCRs contain the source database name of the database where a change originated. If captured messages will be propagated by a propagation or applied by an apply process, then, to avoid propagation and apply problems, Oracle recommends that you do not rename the source database after a capture process has started capturing changes.See Also:
The "SQL Command Codes" table in the Oracle Call Interface Programmer's Guide for a complete list of the types of DDL statementsIn addition to the information discussed in the previous sections, row LCRs and DDL LCRs optionally can include the following extra information (or LCR attributes):
row_id
: The rowid of the row changed in a row LCR. This attribute is not included in DDL LCRs or row LCRs for index-organized tables.
serial#
: The serial number of the session that performed the change captured in the LCR.
session#
: The identifier of the session that performed the change captured in the LCR.
thread#
: The thread number of the instance in which the change captured in the LCR was performed. Typically, the thread number is relevant only in a Real Application Clusters environment.
tx_name
: The name of the transaction that includes the LCR.
username
: The name of the current user who performed the change captured in the LCR.
You can use the INCLUDE_EXTRA_ATTRIBUTE
procedure in the DBMS_CAPTURE_ADM
package to instruct a capture process to capture one or more extra attributes.
See Also:
"Viewing the Extra Attributes Captured by Each Capture Process"
Oracle Database PL/SQL Packages and Types Reference for more information about the INCLUDE_EXTRA_ATTRIBUTE
procedure
Oracle Database PL/SQL User's Guide and Reference for more information about the current user

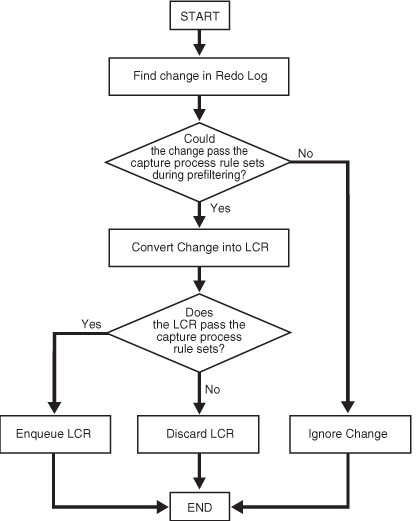

A capture process either captures or discards changes based on rules that you define. Each rule specifies the database objects and types of changes for which the rule evaluates to TRUE
. You can place these rules in a positive rule set or negative rule set for the capture process.
If a rule evaluates to TRUE
for a change, and the rule is in the positive rule set for a capture process, then the capture process captures the change. If a rule evaluates to TRUE
for a change, and the rule is in the negative rule set for a capture process, then the capture process discards the change. If a capture process has both a positive and a negative rule set, then the negative rule set is always evaluated first.
You can specify capture process rules at the following levels:
A table rule captures or discards either row changes resulting from DML changes or DDL changes to a particular table. Subset rules are table rules that include a subset of the row changes to a particular table.
A schema rule captures or discards either row changes resulting from DML changes or DDL changes to the database objects in a particular schema.
A global rule captures or discards either all row changes resulting from DML changes or all DDL changes in the database.
When capturing the row changes resulting from DML changes made to tables, a capture process can capture changes made to columns of the following datatypes:
VARCHAR2
NVARCHAR2
NUMBER
LONG
DATE
BINARY_FLOAT
BINARY_DOUBLE
TIMESTAMP
TIMESTAMP
WITH
TIME
ZONE
TIMESTAMP
WITH
LOCAL
TIME
ZONE
INTERVAL
YEAR
TO
MONTH
INTERVAL
DAY
TO
SECOND
RAW
LONG
RAW
CHAR
NCHAR
CLOB
NCLOB
BLOB
UROWID
A capture process does not capture the results of DML changes to columns of the following datatypes: BFILE
, ROWID
, and user-defined types (including object types, REF
s, varrays, nested tables, and Oracle-supplied types). Also, a capture process cannot capture changes to columns if the columns have been encrypted using transparent data encryption. A capture process raises an error if it tries to create a row LCR for a DML change to a table containing encrypted columns or a column of an unsupported datatype.
When a capture process raises an error, it writes the LCR that caused the error into its trace file, raises an ORA-00902 error, and becomes disabled. In this case, modify the rules used by the capture process to avoid the error, and restart the capture process.
Note:
You can add rules to a negative rule set for a capture process that instruct the capture process to discard changes to tables with columns of unsupported datatypes. However, if these rules are not simple rules, then a capture process might create a row LCR for the change and continue to process it. In this case, a change that includes an unsupported datatype can cause the capture process to raise an error, even if the change does not satisfy the rule sets used by the capture process. The DBMS_STREAMS_ADM
package creates only simple rules.
Some of the datatypes listed previously in this section might not be supported by Streams in earlier releases of Oracle. If your Streams environment includes one or more databases from an earlier release of Oracle, then make sure row LCRs do not flow into a database that does not support all of the datatypes in the row LCRs. See the Streams documentation for the earlier Oracle release for information about supported datatypes.
See Also:
"Simple Rule Conditions" for information about simple rules
Chapter 6, "How Rules Are Used in Streams" for more information about rule sets for Streams clients and for information about how messages satisfy rule sets
"Datatypes Applied" for information about the datatypes that can be applied by an apply process
Oracle Database SQL Reference for more information about datatypes
A capture process can capture only certain types of changes made to a database and its objects. The following sections describe the types of DML and DDL changes that can be captured.
See Also:
Chapter 4, "Streams Apply Process" for information about the types of changes an apply process can applyWhen you specify that DML changes made to certain tables should be captured, a capture process captures the following types of DML changes made to these tables:
INSERT
UPDATE
DELETE
MERGE
Piecewise updates to LOBs
The following are considerations for capturing DML changes:
A capture process converts each MERGE
change into an INSERT
or UPDATE
change. MERGE
is not a valid command type in a row LCR.
A capture process can capture changes made to an index-organized table only if the index-organized table does not contain any columns of the following datatypes:
ROWID
UROWID
User-defined types (including object types, REF
s, varrays, and nested tables)
If an index-organized table contains a column of one of these datatypes, then a capture process raises an error when a user makes a change to the index-organized table and the change satisfies the capture process rule sets.
A capture process ignores CALL
, EXPLAIN
PLAN
, or LOCK
TABLE
statements.
A capture process cannot capture DML changes made to temporary tables or object tables. A capture process raises an error if it attempts to capture such changes.
If you share a sequence at multiple databases, then sequence values used for individual rows at these databases might vary. Also, changes to actual sequence values are not captured. For example, if a user references a NEXTVAL
or sets the sequence, then a capture process does not capture changes resulting from these operations.
See Also:
"Datatypes Captured" for information about the datatypes supported by a capture process
Chapter 6, "How Rules Are Used in Streams" for more information about rule sets for Streams clients and for information about how messages satisfy rule sets
Oracle Streams Replication Administrator's Guide for information about applying DML changes with an apply process and for information about strategies to avoid having the same sequence-generated value for two different rows at different databases
Oracle XML DB Developer's Guide for information about SQL functions that update XML data
A capture process captures the DDL changes that satisfy its rule sets, except for the following types of DDL changes:
ALTER
DATABASE
CREATE
CONTROLFILE
CREATE
DATABASE
CREATE
PFILE
CREATE
SPFILE
FLASHBACK
DATABASE
A capture process can capture DDL statements, but not the results of DDL statements, unless the DDL statement is a CREATE
TABLE
AS
SELECT
statement. For example, when a capture process captures an ANALYZE
statement, it does not capture the statistics generated by the ANALYZE
statement. However, when a capture process captures a CREATE
TABLE
AS
SELECT
statement, it captures the statement itself and all of the rows selected (as INSERT
row LCRs).
Some types of DDL changes that are captured by a capture process cannot be applied by an apply process. If an apply process receives a DDL LCR that specifies an operation that cannot be applied, then the apply process ignores the DDL LCR and records information about it in the trace file for the apply process.
When a capture process captures a DDL change that specifies timestamps or system change number (SCN) values in its syntax, configure a DDL handler for any apply processes that will dequeue the change. The DDL handler must process timestamp or SCN values properly. For example, although a capture process always ignores FLASHBACK
DATABASE
statements, a capture process captures FLASHBACK
TABLE
statements when its rule sets instruct it to capture DDL changes to the specified table. FLASHBACK
TABLE
statements include timestamps or SCN values in its syntax.
See Also:
Oracle Streams Replication Administrator's Guide for information about applying DDL changes with an apply process
Chapter 6, "How Rules Are Used in Streams" for more information about rule sets for Streams clients and for information about how messages satisfy rule sets
The following types of changes are ignored by a capture process:
The session control statements ALTER
SESSION
and SET
ROLE
.
The system control statement ALTER
SYSTEM
.
Invocations of PL/SQL procedures, which means that a call to a PL/SQL procedure is not captured. However, if a call to a PL/SQL procedure causes changes to database objects, then these changes can be captured by a capture process if the changes satisfy the capture process rule sets.
Changes made to a table or schema by online redefinition using the DBMS_REDEFINITION
package. Online table redefinition is supported on a table for which a capture process captures changes, but the logical structure of the table before online redefinition must be the same as the logical structure after online redefinition.
If you use the NOLOGGING
or UNRECOVERABLE
keyword for a SQL operation, then the changes resulting from the SQL operation cannot be captured by a capture process. Therefore, do not use these keywords if you want to capture the changes that result from a SQL operation.
If the object for which you are specifying the logging attributes resides in a database or tablespace in FORCE
LOGGING
mode, then Oracle ignores any NOLOGGING
or UNRECOVERABLE
setting until the database or tablespace is taken out of FORCE
LOGGING
mode. You can determine the current logging mode for a database by querying the FORCE_LOGGING
column in the V$DATABASE
dynamic performance view. You can determine the current logging mode for a tablespace by querying the FORCE_LOGGING
column in the DBA_TABLESPACES
static data dictionary view.
Note:
TheUNRECOVERABLE
keyword is deprecated and has been replaced with the NOLOGGING
keyword in the logging_clause
. Although UNRECOVERABLE
is supported for backward compatibility, Oracle strongly recommends that you use the NOLOGGING
keyword, when appropriate.See Also:
Oracle Database SQL Reference for more information about theNOLOGGING
and UNRECOVERABLE
keywords, FORCE
LOGGING
mode, and the logging_clause
If you use the UNRECOVERABLE
clause in the SQL*Loader control file for a direct path load, then the changes resulting from the direct path load cannot be captured by a capture process. Therefore, if the changes resulting from a direct path load should be captured by a capture process, then do not use the UNRECOVERABLE
clause.
If you perform a direct path load without logging changes at a source database, but you do not perform a similar direct path load at the destination databases of the source database, then apply errors can result at these destination databases when changes are made to the loaded objects at the source database. In this case, a capture process at the source database can capture changes to these objects, and one or more propagations can propagate the changes to the destination databases. When an apply process tries to apply these changes, errors result unless both the changed object and the changed rows in the object exist on the destination database.
Therefore, if you use the UNRECOVERABLE
clause for a direct path load and a capture process is configured to capture changes to the loaded objects, then make sure any destination databases contain the loaded objects and the loaded data to avoid apply errors. One way to make sure that these objects exist at the destination databases is to perform a direct path load at each of these destination databases that is similar to the direct path load performed at the source database.
If you load objects into a database or tablespace that is in FORCE
LOGGING
mode, then Oracle ignores any UNRECOVERABLE
clause during a direct path load, and the loaded changes are logged. You can determine the current logging mode for a database by querying the FORCE_LOGGING
column in the V$DATABASE
dynamic performance view. You can determine the current logging mode for a tablespace by querying the FORCE_LOGGING
column in the DBA_TABLESPACES
static data dictionary view.
See Also:
Oracle Database Utilities for information about direct path loads and SQL*LoaderSupplemental logging places additional column data into a redo log whenever an operation is performed. A capture process captures this additional information and places it in LCRs. Supplemental logging is always configured at a source database, regardless of location of the capture process that captures changes to the source database.
Typically, supplemental logging is required in Streams replication environments. In these environments, an apply process needs the additional information in the LCRs to properly apply DML changes and DDL changes that are replicated from a source database to a destination database. However, supplemental logging can also be required in environments where changes are not applied to database objects directly by an apply process. In such environments, an apply handler can process the changes without applying them to the database objects, and the supplemental information might be needed by the apply handlers.
See Also:
Oracle Streams Replication Administrator's Guide for detailed information about when supplemental logging is requiredIn a Streams environment that shares a database object within a single database or between multiple databases, a source database is the database where changes to the object are generated in the redo log, and a destination database is the database where these changes are dequeued by an apply process. If a capture process captures or will capture such changes, and the changes will be applied locally or propagated to other databases and applied at destination databases, then you must instantiate these source database objects before these changes can be dequeued and processed by an apply process. If a database where changes to the source database objects will be applied is a different database than the source database, then the destination database must have a copy of these database objects.
In Streams, the following general steps instantiate a database object:
Prepare the object for instantiation at the source database.
If a copy of the object does not exist at the destination database, then create an object physically at the destination database based on an object at the source database. You can use export/import, transportable tablespaces, or RMAN to copy database objects for instantiation. If the database objects already exist at the destination database, then this step is not necessary.
Set the instantiation SCN for the database object at the destination database. An instantiation SCN instructs an apply process at the destination database to apply only changes that committed at the source database after the specified SCN.
In some cases, Step 1 and Step 3 are completed automatically. For example, when you add rules for an object to the positive rule set for a capture process by running a procedure in the DBMS_STREAMS_ADM
package, the object is prepared for instantiation automatically. Also, when you use export/import or transportable tablespaces to copy database objects from a source database to a destination database, instantiation SCNs can be set for these objects automatically. Instantiation is required whenever an apply process dequeues captured messages, even if the apply process sends the LCRs to an apply handler that does not execute them.
Note:
You can use either Data Pump export/import or original export/import for Streams instantiations. General references to export/import in this document refer to both Data Pump and original export/import. This document distinguishes between Data Pump and original export/import when necessary.See Also:
Oracle Streams Replication Administrator's Guide for detailed information about instantiation in a Streams replication environmentYou can configure a capture process to run locally on a source database or remotely on a downstream database. A single database can have one or more capture processes that capture local changes and other capture processes that capture changes from a remote source database. That is, you can configure a single database to perform both local capture and downstream capture.
Local capture means that a capture process runs on the source database. Figure 2-1 shows a database using local capture.
If you configure local capture, then the following actions are performed at the source database:
The DBMS_CAPTURE_ADM.BUILD
procedure is run to extract (or build) the data dictionary to the redo log.
Supplemental logging at the source database places additional information in the redo log. This information might be needed when captured changes are applied by an apply process.
The first time a capture process is started at the database, Oracle uses the extracted data dictionary information in the redo log to create a LogMiner data dictionary, which is separate from the primary data dictionary for the source database. Additional capture processes can use this existing LogMiner data dictionary, or they can create new LogMiner data dictionaries.
A capture process scans the redo log for changes using LogMiner.
The rules engine evaluates changes based on the rules in one or more of the capture process rule sets.
The capture process enqueues changes that satisfy the rules in its rule sets into a local ANYDATA
queue.
If the captured changes are shared with one or more other databases, then one or more propagations propagate these changes from the source database to the other databases.
If database objects at the source database must be instantiated at a destination database, then the objects must be prepared for instantiation and a mechanism such as an Export utility must be used to make a copy of the database objects.
The following are the advantages of using local capture:
Configuration and administration of the capture process is simpler than when downstream capture is used. When you use local capture, you do not need to configure redo log file copying to a downstream database, and you administer the capture process locally at the database where the captured changes originated.
A local capture process can scan changes in the online redo log before the database writes these changes to an archived redo log file. When you use downstream capture, archived redo log files are copied to the downstream database after the source database has finished writing changes to them, and some time is required to copy the redo log files to the downstream database.
The amount of data being sent over the network is reduced, because the entire redo log file is not copied to the downstream database. Even if captured messages are propagated to other databases, the captured messages can be a subset of the total changes made to the database, and only the LCRs that satisfy the rules in the rule sets for a propagation are propagated.
Security might be improved because only the source (local) database can access the redo log files. For example, if you want to capture changes in the hr
schema only, then, when you use local capture, only the source database can access the redo log to enqueue changes to the hr
schema into the capture process queue. However, when you use downstream capture, the redo log files are copied to the downstream database, and these redo log files contain all of the changes made to the database, not just the changes made to the hr
schema.
Some types of custom rule-based transformations are simpler to configure if the capture process is running at the local source database. For example, if you use local capture, then a custom rule-based transformation can use cached information in a PL/SQL session variable which is populated with data stored at the source database.
In a Streams environment where messages are captured and applied in the same database, it might be simpler, and use fewer resources, to configure local queries and computations that require information about captured changes and the local data.
Downstream capture means that a capture process runs on a database other than the source database. The following types of downstream capture configurations are possible: real-time downstream capture and archived-log downstream capture. The DOWNSTREAM_REAL_TIME_MINE
capture process parameter controls whether a downstream capture process performs real-time downstream capture or archived-log downstream capture. A real-time downstream capture process and one or more archived-log downstream capture processes can coexist at a downstream database.
Note:
References to "downstream capture processes" in this document apply to both real-time downstream capture processes and archived-log downstream capture processes. This document distinguishes between the two types of downstream capture processes when necessary.
A downstream capture process only can capture changes from a single source database. However, multiple downstream capture processes at a single downstream database can capture changes from a single source database or multiple source databases.
To configure downstream capture, the source database must be an Oracle Database 10g Release 1 database or later.
A real-time downstream capture configuration works in the following way:
Redo transport services use the log writer process (LGWR) at the source database to send redo data to the downstream database either synchronously or asynchronously. At the same time, the LGWR records redo data in the online redo log at the source database.
A remote file server process (RFS) at the downstream database receives the redo data over the network and stores the redo data in the standby redo log.
A log switch at the source database causes a log switch at the downstream database, and the ARCH
n
process at the downstream database archives the current standby redo log file.
The real-time downstream capture process captures changes from the standby redo log whenever possible and from the archived standby redo log files whenever necessary. A capture process can capture changes in the archived standby redo log files if it falls behind. When it catches up, it resumes capturing changes from the standby redo log.
The advantage of real-time downstream capture over archived-log downstream capture is that real-time downstream capture reduces the amount of time required to capture changes made at the source database. The time is reduced because the real-time capture process does not need to wait for the redo log file to be archived before it can capture data from it.
Note:
Only one real-time downstream capture process can exist at a downstream database.A archived-log downstream capture process configuration means that archived redo log files from the source database are copied to the downstream database, and the capture process captures changes in these archived redo log files. You can copy the archived redo log files to the downstream database using redo transport services, the DBMS_FILE_TRANSFER
package, file transfer protocol (FTP), or some other mechanism.
Figure 2-3 Archived-Log Downstream Capture
Note:
As illustrated in Figure 2-3, the source database for a change captured by a downstream capture process is the database where the change was recorded in the redo log, not the database running the downstream capture process.The advantage of archived-log downstream capture over real-time downstream capture is that archived-log downstream capture allows multiple downstream capture processes at a downstream database. You can copy redo log files from multiple source databases to a single downstream database and configure multiple archived-log downstream capture processes to capture changes in these redo log files.
See Also:
Oracle Data Guard Concepts and Administration for more information about redo transport servicesIf you configure either real-time or archived-log downstream capture, then the following actions are performed at the downstream database:
The first time a downstream capture process is started at the downstream database, Oracle uses data dictionary information in the redo data from the source database to create a LogMiner data dictionary at the downstream database. The DBMS_CAPTURE_ADM.BUILD
procedure is run at the source database to extract the source data dictionary information to the redo log at the source database. Next, the redo data is copied to the downstream database from the source database. Additional downstream capture processes for the same source database can use this existing LogMiner data dictionary, or they can create new LogMiner data dictionaries. Also, a real-time downstream capture process can share a LogMiner data dictionary with one or more archived-log downstream capture processes.
A capture process scans the redo data from the source database for changes using LogMiner.
The rules engine evaluates changes based on the rules in one or more of the capture process rule sets.
The capture process enqueues changes that satisfy the rules in its rule sets into a local ANYDATA
queue. The capture process formats the changes as LCRs.
If the captured messages are shared with one or more other databases, then one or more propagations propagate these LCRs from the downstream database to the other databases.
In a downstream capture configuration, the following actions are performed at the source database:
The DBMS_CAPTURE_ADM.BUILD
procedure is run at the source database to extract the data dictionary to the redo log.
Supplemental logging at the source database places additional information that might be needed for apply in the redo log.
If database objects at the source database must be instantiated at other databases in the environment, then the objects must be prepared for instantiation and a mechanism such as an Export utility must be used to make a copy of the database objects.
In addition, the redo data must be copied from the computer system running the source database to the computer system running the downstream database. In a real-time downstream capture configuration, redo transport services use LWGR to send redo data to the downstream database. Typically, in an archived-log downstream capture configuration, redo transport services copy the archived redo log files to the downstream database.
See Also:
Chapter 6, "How Rules Are Used in Streams" for more information about rule sets for Streams clients and for information about how messages satisfy rule setsThe following are the advantages of using downstream capture:
Capturing changes uses fewer resources at the source database because the downstream database performs most of the required work.
If you plan to capture changes originating at multiple source databases, then capture process administration can be simplified by running multiple archived-log downstream capture processes with different source databases at one downstream database. That is, one downstream database can act as the central location for change capture from multiple sources. In such a configuration, one real-time downstream capture process can run at the downstream database in addition to the archived-log downstream capture processes.
Copying redo data to one or more downstream databases provides improved protection against data loss. For example, redo log files at the downstream database can be used for recovery of the source database in some situations.
The ability to configure at one or more downstream databases multiple capture processes that capture changes from a single source database provides more flexibility and can improve scalability.
When you create or alter a downstream capture process, you optionally can specify the use of a database link from the downstream database to the source database. This database link must have the same name as the global name of the source database. Such a database link simplifies the creation and administration of a downstream capture process. You specify that a downstream capture process uses a database link by setting the use_database_link
parameter to true
when you run CREATE_CAPTURE
or ALTER_CAPTURE
on the downstream capture process.
When a downstream capture process uses a database link to the source database, the capture process connects to the source database to perform the following administrative actions automatically:
In certain situations, runs the DBMS_CAPTURE_ADM.BUILD
procedure at the source database to extract the data dictionary at the source database to the redo log when a capture process is created.
Prepares source database objects for instantiation.
Obtains the first SCN for the downstream capture process if the first SCN is not specified during capture process creation. The first SCN is needed to create a capture process.
If a downstream capture process does not use a database link, then you must perform these actions manually.
See Also:
"Preparing to Transmit Redo Data to a Downstream Database" for information about when theDBMS_CAPTURE_ADM.BUILD
procedure is run automatically during capture process creation if the downstream capture process uses a database linkThe following are operational requirements for using downstream capture:
The source database must be running at least Oracle Database 10g and the downstream capture database must be running the same release of Oracle as the source database or later.
The downstream database must be running Oracle Database 10g Release 2 to configure real-time downstream capture. In this case, the source database must be running Oracle Database 10g Release 1 or later.
The operating system on the source and downstream capture sites must be the same, but the operating system release does not need to be the same. In addition, the downstream sites can use a different directory structure from the source site.
The hardware architecture on the source and downstream capture sites must be the same. For example, a downstream capture configuration with a source database on a 32-bit Sun system must have a downstream database that is configured on a 32-bit Sun system. Other hardware elements, such as the number of CPUs, memory size, and storage configuration, can be different between the source and downstream sites.
In a downstream capture environment, the source database can be a single instance database or a multi-instance Real Application Clusters (RAC) database. The downstream database can be a single instance database or a multi-instance RAC database, regardless of whether the source database is single instance or multi-instance.
This section describes system change number (SCN) values that are important for a capture process. You can query the DBA_CAPTURE
data dictionary view to display these values for one or more capture processes.
The captured SCN is the SCN that corresponds to the most recent change scanned in the redo log by a capture process. The applied SCN for a capture process is the SCN of the most recent message dequeued by the relevant apply processes. All messages lower than this SCN have been dequeued by all apply processes that apply changes captured by the capture process. The applied SCN for a capture process is equivalent to the low-watermark SCN for an apply process that applies changes captured by the capture process.
This section describes the first SCN and start SCN for a capture process.
The first SCN is the lowest SCN in the redo log from which a capture process can capture changes. If you specify a first SCN during capture process creation, then the database must be able to access redo data from the SCN specified and higher.
The DBMS_CAPTURE_ADM.BUILD
procedure extracts the source database data dictionary to the redo log. When you create a capture process, you can specify a first SCN that corresponds to this data dictionary build in the redo log. Specifically, the first SCN for the capture process being created can be set to any value returned by the following query:
COLUMN FIRST_CHANGE# HEADING 'First SCN' FORMAT 999999999 COLUMN NAME HEADING 'Log File Name' FORMAT A50 SELECT DISTINCT FIRST_CHANGE#, NAME FROM V$ARCHIVED_LOG WHERE DICTIONARY_BEGIN = 'YES';
The value returned for the NAME
column is the name of the redo log file that contains the SCN corresponding to the first SCN. This redo log file, and subsequent redo log files, must be available to the capture process. If this query returns multiple distinct values for FIRST_CHANGE#
, then the DBMS_CAPTURE_ADM.BUILD
procedure has been run more than once on the source database. In this case, choose the first SCN value that is most appropriate for the capture process you are creating.
In some cases, the DBMS_CAPTURE_ADM.BUILD
procedure is run automatically when a capture process is created. When this happens, the first SCN for the capture process corresponds to this data dictionary build.
The start SCN is the SCN from which a capture process begins to capture changes. You can specify a start SCN that is different than the first SCN during capture process creation, or you can alter a capture process to set its start SCN. The start SCN does not need to be modified for normal operation of a capture process. Typically, you reset the start SCN for a capture process if point-in-time recovery must be performed on one of the destination databases that receive changes from the capture process. In these cases, the capture process can be used to capture the changes made at the source database after the point-in-time of the recovery.
If you specify a start SCN when you create or alter a capture process, then the start SCN specified must be greater than or equal to the first SCN for the capture process. A capture process always scans any unscanned redo log records that have higher SCN values than the first SCN, even if the redo log records have lower SCN values than the start SCN. So, if you specify a start SCN that is greater than the first SCN, then the capture process might scan redo log records for which it cannot capture changes, because these redo log records have a lower SCN than the start SCN.
Scanning redo log records before the start SCN should be avoided if possible because it can take some time. Therefore, Oracle recommends that the difference between the first SCN and start SCN be as small as possible during capture process creation to keep the initial capture process startup time to a minimum.
Attention:
When a capture process is started or restarted, it might need to scan redo log files with aFIRST_CHANGE#
value that is lower than start SCN. Removing required redo log files before they are scanned by a capture process causes the capture process to abort. You can query the DBA_CAPTURE
data dictionary view to determine the first SCN, start SCN, and required checkpoint SCN. A capture process needs the redo log file that includes the required checkpoint SCN, and all subsequent redo log files.See Also:
"Capture Process Creation" for more information about the first SCN and start SCN for a capture processIf you want to capture changes to a database object and apply these changes using an apply process, then only changes that occurred after the database object has been prepared for instantiation can be applied. Therefore, if you set the start SCN for a capture process lower than the SCN that corresponds to the time when a database object was prepared for instantiation, then any captured changes to this database object prior to the prepare SCN cannot be applied by an apply process.
This limitation can be important during capture process creation. If a database object was never prepared for instantiation prior to the time of capture process creation, then an apply process cannot apply any captured changes to the object from a time before capture process creation time.
In some cases, database objects might have been prepared for instantiation before a new capture process is created. For example, if you want to create a new capture process for a source database whose changes are already being captured by one or more existing capture processes, then some or all of the database objects might have been prepared for instantiation before the new capture process is created. If you want to capture changes to a certain database object with a new capture process from a time before the new capture process was created, then the following conditions must be met for an apply process to apply these captured changes:
The database object must have been prepared for instantiation before the new capture process is created.
The start SCN for the new capture process must correspond to a time before the database object was prepared for instantiation.
The redo logs for the time corresponding to the specified start SCN must be available. Additional redo logs previous to the start SCN might be required as well.
See Also:
Oracle Streams Replication Administrator's Guide for more information about preparing database objects for instantiation
When you enable restricted session during system startup by issuing a STARTUP
RESTRICT
statement, capture processes do not start, even if they were running when the database shut down. When restricted session is disabled with an ALTER
SYSTEM
statement, each capture process that was running when the database shut down is started.
When restricted session is enabled in a running database by the SQL statement ALTER
SYSTEM
ENABLE
RESTRICTED
SESSION
clause, it does not affect any running capture processes. These capture processes continue to run and capture changes. If a stopped capture process is started in a restricted session, then the capture process does not actually start until the restricted session is disabled.
You can configure a Streams capture process to capture changes in an Oracle Real Application Clusters (RAC) environment. If you use one or more capture processes and RAC in the same environment, then all archived logs that contain changes to be captured by a capture process must be available for all instances in the RAC environment. In a RAC environment, a capture process reads changes made by all instances.
Each capture process is started and stopped on the owner instance for its ANYDATA
queue, even if the start or stop procedure is run on a different instance. Also, a capture process will follow its queue to a different instance if the current owner instance becomes unavailable. The queue itself follows the rules for primary instance and secondary instance ownership. If the owner instance for a queue table containing a queue used by a capture process becomes unavailable, then queue ownership is transferred automatically to another instance in the cluster. In addition, if the capture process was enabled when the owner instance became unavailable, then the capture process is restarted automatically on the new owner instance. If the capture process was disabled when the owner instance became unavailable, then the capture process remains disabled on the new owner instance.
The DBA_QUEUE_TABLES
data dictionary view contains information about the owner instance for a queue table. Also, any parallel execution servers used by a single capture process run on a single instance in a RAC environment.
LogMiner supports the LOG_ARCHIVE_DEST_
n
initialization parameter, and Streams capture processes use LogMiner to capture changes from the redo log. If an archived log file is inaccessible from one destination, a local capture process can read it from another accessible destination. On a RAC database, this ability also enables you to use cross instance archival (CIA) such that each instance archives its files to all other instances. This solution cannot detect or resolve gaps caused by missing archived log files. Hence, it can be used only to complement an existing solution to have the archived files shared between all instances.
See Also:
"Queues and Oracle Real Application Clusters" for information about primary and secondary instance ownership for queues
"Streams Apply Processes and Oracle Real Application Clusters"
Oracle Database Reference for more information about the DBA_QUEUE_TABLES
data dictionary view
Oracle Database Oracle Clusterware and Oracle Real Application Clusters Administration and Deployment Guide for more information about configuring archived logs to be shared between instances
A capture process is an optional Oracle background process whose process name is c
nnn
, where nnn
is a capture process number. Valid capture process names include c001
through c999
. A capture process captures changes from the redo log by using the infrastructure of LogMiner. Streams configures LogMiner automatically. You can create, alter, start, stop, and drop a capture process, and you can define capture process rules that control which changes a capture process captures.
Changes are captured in the security domain of the capture user for a capture process. The capture user captures all changes that satisfy the capture process rule sets. In addition, the capture user runs all custom rule-based transformations specified by the rules in these rule sets. The capture user must have the necessary privileges to perform these actions, including EXECUTE
privilege on the rule sets used by the capture process, EXECUTE
privilege on all custom rule-based transformation functions specified for rules in the positive rule set, and privileges to enqueue messages into the capture process queue. A capture process can be associated with only one user, but one user can be associated with many capture processes.
See Also:
"Configuring a Streams Administrator" for information about the required privilegesThis section discusses the following topics:
A capture process consists of the following components:
One reader server that reads the redo log and divides the redo log into regions.
One or more preparer servers that scan the regions defined by the reader server in parallel and perform prefiltering of changes found in the redo log. Prefiltering involves sending partial information about changes, such as schema and object name for a change, to the rules engine for evaluation, and receiving the results of the evaluation.
One builder server that merges redo records from the preparer servers. These redo records either evaluated to TRUE
during partial evaluation or partial evaluation was inconclusive for them. The builder server preserves the SCN order of these redo records and passes the merged redo records to the capture process.
The capture process (c
nnn
) performs the following actions for each change when it receives merged redo records from the builder server:
Formats the change into an LCR
If the partial evaluation performed by a preparer server was inconclusive for the change in the LCR, then sends the LCR to the rules engine for full evaluation
Receives the results of the full evaluation of the LCR if it was performed
Enqueues the LCR into the queue associated with the capture process if the LCR satisfies the rules in the positive rule set for the capture process, or discards the LCR if it satisfies the rules in the negative rule set for the capture process or if it does not satisfy the rules in the positive rule set
Each reader server, preparer server, and builder server is a parallel execution server. A capture process (c
nnn
) is an Oracle background process.
See Also:
"Capture Process Parallelism" for more information about the parallelism
parameter
Oracle Database Administrator's Guide for information about managing parallel execution servers
The state of a capture process describes what the capture process is doing currently. You can view the state of a capture process by querying the STATE
column in the V$STREAMS_CAPTURE
dynamic performance view. The following capture process states are possible:
INITIALIZING
- Starting up.
WAITING
FOR
DICTIONARY
REDO
- Waiting for redo log files containing the dictionary build related to the first SCN to be added to the capture process session. A capture process cannot begin to scan the redo log files until all of the log files containing the dictionary build have been added.
DICTIONARY
INITIALIZATION
- Processing a dictionary build.
MINING
(PROCESSED
SCN
=
scn_value
)
- Mining a dictionary build at the SCN scn_value.
LOADING
(step
X
of
Y
)
- Processing information from a dictionary build and currently at step X in a process that involves Y steps, where X and Y are numbers.
CAPTURING
CHANGES
- Scanning the redo log for changes that evaluate to TRUE
against the capture process rule sets.
WAITING
FOR
REDO
- Waiting for new redo log files to be added to the capture process session. The capture process has finished processing all of the redo log files added to its session. This state is possible if there is no activity at a source database. For a downstream capture process, this state is possible if the capture process is waiting for new log files to be added to its session.
EVALUATING
RULE
- Evaluating a change against a capture process rule set.
CREATING
LCR
- Converting a change into an LCR.
ENQUEUING
MESSAGE
- Enqueuing an LCR that satisfies the capture process rule sets into the capture process queue.
PAUSED
FOR
FLOW
CONTROL
- Unable to enqueue LCRs either because of low memory or because propagations and apply processes are consuming messages slower than the capture process is creating them. This state indicates flow control that is used to reduce spilling of captured messages when propagation or apply has fallen behind or is unavailable.
SHUTTING
DOWN
- Stopping.
See Also:
"Displaying Change Capture Information About Each Capture Process" for a query that displays the state of a capture processIf you run multiple capture processes in a single database, consider increasing the size of the System Global Area (SGA) for each instance. Use the SGA_MAX_SIZE
initialization parameter to increase the SGA size. Also, if the size of the Streams pool is not managed automatically in the database, then you should increase the size of the Streams pool by 10 MB for each capture process parallelism. For example, if you have two capture processes running in a database, and the parallelism parameter is set to 4
for one of them and 1
for the other, then increase the Streams pool by 50 MB (4 + 1 = 5 parallelism).
Also, Oracle recommends that each ANYDATA
queue used by a capture process, propagation, or apply process have captured messages from at most one capture process from a particular source database. Therefore, a separate queue should be used for each capture process that captures changes originating at a particular source database.
Note:
The size of the Streams pool is managed automatically if theSGA_TARGET
initialization parameter is set to a nonzero value.See Also:
"Setting Initialization Parameters Relevant to Streams" for more information about the STREAMS_POOL_SIZE
initialization parameter

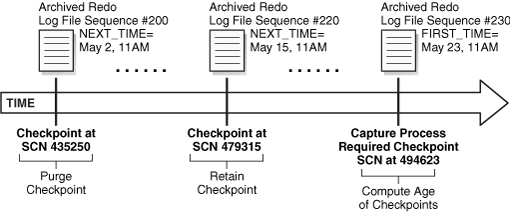

A checkpoint is information about the current state of a capture process that is stored persistently in the data dictionary of the database running the capture process. A capture process tries to record a checkpoint at regular intervals called checkpoint intervals.
The SCN that corresponds to the lowest checkpoint for which a capture process requires redo data is the required checkpoint SCN. The redo log file that contains the required checkpoint SCN, and all subsequent redo log files, must be available to the capture process. If a capture process is stopped and restarted, then it starts scanning the redo log from the SCN that corresponds to its required checkpoint SCN. The required checkpoint SCN is important for recovery if a database stops unexpectedly. Also, if the first SCN is reset for a capture process, then it must be set to a value that is less than or equal to the required checkpoint SCN for the captured process. You can determine the required checkpoint SCN for a capture process by querying the REQUIRED_CHECKPOINT_SCN
column in the DBA_CAPTURE
data dictionary view.
The SCN that corresponds to the last checkpoint recorded by a capture process is the maximum checkpoint SCN. If you create a capture process that captures changes from a source database, and other capture processes already exist which capture changes from the same source database, then the maximum checkpoint SCNs of the existing capture processes can help you decide whether the new capture process should create a new LogMiner data dictionary or share one of the existing LogMiner data dictionaries. You can determine the maximum checkpoint SCN for a capture process by querying the MAX_CHECKPOINT_SCN
column in the DBA_CAPTURE
data dictionary view.
The checkpoint retention time is the amount of time, in number of days, that a capture process retains checkpoints before purging them automatically. A capture process periodically computes the age of a checkpoint by subtracting the NEXT_TIME
of the archived redo log that corresponds to the checkpoint from FIRST_TIME
of the archived redo log file containing the required checkpoint SCN for the capture process. If the resulting value is greater than the checkpoint retention time, then the capture process automatically purges the checkpoint by advancing its first SCN value. Otherwise, the checkpoint is retained. The DBA_REGISTERED_ARCHIVED_LOG
view displays the FIRST_TIME
and NEXT_TIME
for archived redo log files, and the REQUIRED_CHECKPOINT_SCN
column in the DBA_CAPTURE
view displays the required checkpoint SCN for a capture process. Figure 2-4 shows an example of a checkpoint being purged when the checkpoint retention time is set to 20 days.
Figure 2-4 Checkpoint Retention Time Set to 20 Days
In Figure 2-4, with the checkpoint retention time set to 20 days, the checkpoint at SCN 435250 is purged because it is 21 days old, while the checkpoint at SCN 479315 is retained because it is 8 days old.
Whenever the first SCN is reset for a capture process, the capture process purges information about archived redo log files prior to the new first SCN from its LogMiner data dictionary. After this information is purged, the archived redo log files remain on the hard disk, but the files are not needed by the capture process. The PURGEABLE
column in the DBA_REGISTERED_ARCHIVED_LOG
view displays YES
for the archived redo log files that are no longer needed. These files can be removed from disk or moved to another location without affecting the capture process.
If you create a capture process using the CREATE_CAPTURE
procedure in the DBMS_CAPTURE_ADM
package, then you can specify the checkpoint retention time, in days, using the checkpoint_retention_time
parameter. The default checkpoint retention time is 60 days if the checkpoint_retention_time
parameter is not specified in the CREATE_CAPTURE
procedure, or if you use the DBMS_STREAMS_ADM
package to create the capture process. The CHECKPOINT_RETENTION_TIME
column in the DBA_CAPTURE
view displays the current checkpoint retention time for a capture process.
You can change the checkpoint retention time for a capture process by specifying a new time in the ALTER_CAPTURE
procedure in the DBMS_CAPTURE_ADM
package. If you do not want checkpoints for a capture process to be purged automatically, then specify DBMS_CAPTURE_ADM.INFINITE
for the checkpoint_retention_time
parameter in CREATE_CAPTURE
or ALTER_CAPTURE
.
Note:
To specify a checkpoint retention time for a capture process, the compatibility level of the database running the capture process must be 10.2.0 or higher. If the compatibility level is lower than 10.2.0 for a database, then the checkpoint retention time for all capture processes running on the database is infinite.See Also:
"First SCN and Start SCN Specifications During Capture Process Creation"
"A New First SCN Value and Purged LogMiner Data Dictionary Information"
"Managing the Checkpoint Retention Time for a Capture Process"
Oracle Database PL/SQL Packages and Types Reference for more information about the CREATE_CAPTURE
and ALTER_CAPTURE
procedures
You can create a capture process using the DBMS_STREAMS_ADM
package or the DBMS_CAPTURE_ADM
package. Using the DBMS_STREAMS_ADM
package to create a capture process is simpler because defaults are used automatically for some configuration options. In addition, when you use the DBMS_STREAMS_ADM
package, a rule set is created for the capture process and rules can be added to the rule set automatically. The rule set is a positive rule set if the inclusion_rule
parameter is set to true
(the default), or it is a negative rule set if the inclusion_rule
parameter is set to false
.
Alternatively, using the DBMS_CAPTURE_ADM
package to create a capture process is more flexible, and you create one or more rule sets and rules for the capture process either before or after it is created. You can use the procedures in the DBMS_STREAMS_ADM
package or the DBMS_RULE_ADM
package to add rules to a rule set for the capture process. To create a capture process at a downstream database, you must use the DBMS_CAPTURE_ADM
package.
When you create a capture process using a procedure in the DBMS_STREAMS_ADM
package and generate one or more rules in the positive rule set for the capture process, the objects for which changes are captured are prepared for instantiation automatically, unless it is a downstream capture process and there is no database link from the downstream database to the source database.
When you create a capture process using the CREATE_CAPTURE
procedure in the DBMS_CAPTURE_ADM
package, you should prepare for instantiation any objects for which you plan to capture changes as soon as possible after capture process creation. You can prepare objects for instantiation using one of the following procedures in the DBMS_CAPTURE_ADM
package:
PREPARE_TABLE_INSTANTIATION
prepares a single table for instantiation.
PREPARE_SCHEMA_INSTANTIATION
prepares for instantiation all of the objects in a schema and all objects added to the schema in the future.
PREPARE_GLOBAL_INSTANTIATION
prepares for instantiation all of the objects in a database and all objects added to the database in the future.
These procedures can also enable supplemental logging for the key columns or for all columns in the table or tables prepared for instantiation.
DBID
or global name of the source database for the capture process. If you change either the DBID
or global name of the source database, then the capture process must be dropped and re-created.See Also:
Chapter 11, "Managing a Capture Process" and Oracle Database PL/SQL Packages and Types Reference for more information about the following procedures, which can be used to create a capture process:
DBMS_STREAMS_ADM.ADD_SUBSET_RULES
DBMS_STREAMS_ADM.ADD_TABLE_RULES
DBMS_STREAMS_ADM.ADD_SCHEMA_RULES
Oracle Streams Replication Administrator's Guide for more information about capture process rules and preparation for instantiation, and for more information about changing the DBID or global name of a source database
A capture process requires a data dictionary that is separate from the primary data dictionary for the source database. This separate data dictionary is called a LogMiner data dictionary. There can be more than one LogMiner data dictionary for a particular source database. If there are multiple capture processes capturing changes from the source database, then two or more capture processes can share a LogMiner data dictionary, or each capture process can have its own LogMiner data dictionary. If the LogMiner data dictionary needed by a capture process does not exist, then the capture process populates it using information in the redo log when the capture process is started for the first time.
The DBMS_CAPTURE_ADM.BUILD
procedure extracts data dictionary information to the redo log, and this procedure must be run at least once on the source database before any capture process capturing changes originating at the source database is started. The extracted data dictionary information in the redo log is consistent with the primary data dictionary at the time when the DBMS_CAPTURE_ADM.BUILD
procedure is run. This procedure also identifies a valid first SCN value that can be used to create a capture process.
You can perform a build of data dictionary information in the redo log multiple times, and a particular build might or might not be used by a capture process to create a LogMiner data dictionary. The amount of information extracted to a redo log when you run the BUILD
procedure depends on the number of database objects in the database. Typically, the BUILD
procedure generates a large amount of redo data that a capture process must scan subsequently. Therefore, you should run the BUILD
procedure only when necessary.
In most cases, if a build is required when a capture process is created using a procedure in the DBMS_STREAMS_ADM
or DBMS_CAPTURE_ADM
package, then the procedure runs the BUILD
procedure automatically. However, the BUILD
procedure is not run automatically during capture process creation in the following cases:
You use CREATE_CAPTURE
and specify a non-NULL
value for the first_scn
parameter. In this case, the specified first SCN must correspond to a previous build.
You create a downstream capture process that does not use a database link. In this case, the command at the downstream database cannot communicate with the source database to run the BUILD
procedure automatically. Therefore, you must run it manually on the source database and specify the first SCN that corresponds to the build during capture process creation.
A capture process requires a LogMiner data dictionary because the information in the primary data dictionary might not apply to the changes being captured from the redo log. These changes might have occurred minutes, hours, or even days before they are captured by a capture process. For example, consider the following scenario:
A capture process is configured to capture changes to tables.
A database administrator stops the capture process. When the capture process is stopped, it records the SCN of the change it was currently capturing.
User applications continue to make changes to the tables while the capture process is stopped.
The capture process is restarted three hours after it was stopped.
In this case, to ensure data consistency, the capture process must begin capturing changes in the redo log at the time when it was stopped. The capture process starts capturing changes at the SCN that it recorded when it was stopped.
The redo log contains raw data. It does not contain database object names and column names in tables. Instead, it uses object numbers and internal column numbers for database objects and columns, respectively. Therefore, when a change is captured, a capture process must reference a data dictionary to determine the details of the change.
Because a LogMiner data dictionary might be populated when a capture process is started for the first time, it might take some time to start capturing changes. The amount of time required depends on the number of database objects in the database. You can query the STATE
column in the V$STREAMS_CAPTURE
dynamic performance view to monitor the progress while a capture process is processing a data dictionary build.
See Also:
Oracle Streams Replication Administrator's Guide for more information about preparing database objects for instantiation
Consider a scenario in which a capture process has been configured to capture changes to table t1
, which has columns a
and b
, and the following changes are made to this table at three different points in time:
Time 1: Insert values a=7
and b=15
.
Time 2: Add column c
.
Time 3: Drop column b
.
If for some reason the capture process is capturing changes from an earlier time, then the primary data dictionary and the relevant version in the LogMiner data dictionary contain different information. Table 2-1 illustrates how the information in the LogMiner data dictionary is used when the current time is different than the change capturing time.
Table 2-1 Information About Table t1 in the Primary and LogMiner Data Dictionaries
Current Time | Change Capturing Time | Primary Data Dictionary | LogMiner Data Dictionary |
---|---|---|---|
1 |
1 |
Table |
Table |
2 |
1 |
Table |
Table |
3 |
1 |
Table |
Table |
Assume that the capture process captures the change resulting from the insert at time 1 when the actual time is time 3. If the capture process used the primary data dictionary, then it might assume that a value of 7
was inserted into column a
and a value of 15
was inserted into column c
, because those are the two columns for table t1
at time 3 in the primary data dictionary. However, a value of 15
actually was inserted into column b
, not column c
.
Because the capture process uses the LogMiner data dictionary, the error is avoided. The LogMiner data dictionary is synchronized with the capture process and continues to record that table t1
has columns a
and b
at time 1. So, the captured change specifies that a value of 15
was inserted into column b
.
If one or more capture processes are capturing changes made to a source database, and you want to create a new capture process that captures changes to the same source database, then the new capture process can either create a new LogMiner data dictionary or share one of the existing LogMiner data dictionaries with one or more other capture processes. Whether a new LogMiner data dictionary is created for a new capture process depends on the setting for the first_scn
parameter when you run CREATE_CAPTURE
to create a capture process:
If you specify NULL
for the first_scn
parameter, then the new capture process attempts to share a LogMiner data dictionary with one or more existing capture processes that capture changes from the same source database. NULL
is the default for the first_scn
parameter.
If you specify a non-NULL
value for the first_scn
parameter, then the new capture process uses a new LogMiner data dictionary that is created when the new capture process is started for the first time.
Note:
When you create a capture process and specify a non-NULL
first_scn
parameter value, this value should correspond to a data dictionary build in the redo log obtained by running the DBMS_CAPTURE_ADM.BUILD
procedure.
During capture process creation, if the first_scn
parameter is NULL
and the start_scn
parameter is non-NULL
, then an error is raised if the start_scn
parameter setting is lower than all of the first SCN values for all existing capture processes.
If multiple LogMiner data dictionaries exist, and you specify NULL
for the first_scn
parameter during capture process creation, then the new capture process automatically attempts to share the LogMiner data dictionary of one of the existing capture processes that has taken at least one checkpoint. You can view the maximum checkpoint SCN for all existing capture processes by querying the MAX_CHECKPOINT_SCN
column in the DBA_CAPTURE
data dictionary view.
If multiple LogMiner data dictionaries exist, and you specify a non-NULL
value for the first_scn
parameter during capture process creation, then the new capture process creates a new LogMiner data dictionary the first time it is started. In this case, before you create the new capture process, you must run the BUILD
procedure in the DBMS_CAPTURE_ADM
package on the source database. The BUILD
procedure generates a corresponding valid first scn value that you can specify when you create the new capture process. You can find a first SCN generated by the BUILD
procedure by running the following query:
COLUMN FIRST_CHANGE# HEADING 'First SCN' FORMAT 999999999 COLUMN NAME HEADING 'Log File Name' FORMAT A50 SELECT DISTINCT FIRST_CHANGE#, NAME FROM V$ARCHIVED_LOG WHERE DICTIONARY_BEGIN = 'YES';
This query can return more than one row if the BUILD
procedure was run more than once.
The most important factor to consider when deciding whether a new capture process should share an existing LogMiner data dictionary or create a new one is the difference between the maximum checkpoint SCN values of the existing capture processes and the start SCN of the new capture process. If the new capture process shares a LogMiner data dictionary, then it must scan the redo log from the point of the maximum checkpoint SCN of the shared LogMiner data dictionary onward, even though the new capture process cannot capture changes prior to its first SCN. If the start SCN of the new capture process is much higher than the maximum checkpoint SCN of the existing capture process, then the new capture process must scan a large amount of redo data before it reaches its start SCN.
A capture process creates a new LogMiner data dictionary when the first_scn
parameter is non-NULL
during capture process creation. Follow these guidelines when you decide whether a new capture process should share an existing LogMiner data dictionary or create a new one:
If one or more maximum checkpoint SCN values is greater than the start SCN you want to specify, and if this start SCN is greater than the first SCN of one or more existing capture processes, then it might be better to share the LogMiner data dictionary of an existing capture process. In this case, you can assume there is a checkpoint SCN that is less than the start SCN and that the difference between this checkpoint SCN and the start SCN is small. The new capture process will begin scanning the redo log from this checkpoint SCN and will catch up to the start SCN quickly.
If no maximum checkpoint SCN is greater than the start SCN, and if the difference between the maximum checkpoint SCN and the start SCN is small, then it might be better to share the LogMiner data dictionary of an existing capture process. The new capture process will begin scanning the redo log from the maximum checkpoint SCN, but it will catch up to the start SCN quickly.
If no maximum checkpoint SCN is greater than the start SCN, and if the difference between the highest maximum checkpoint SCN and the start SCN is large, then it might take a long time for the capture process to catch up to the start SCN. In this case, it might be better for the new capture process to create a new LogMiner data dictionary. It will take some time to create the new LogMiner data dictionary when the new capture process is first started, but the capture process can specify the same value for its first SCN and start SCN, and thereby avoid scanning a large amount of redo data unnecessarily.

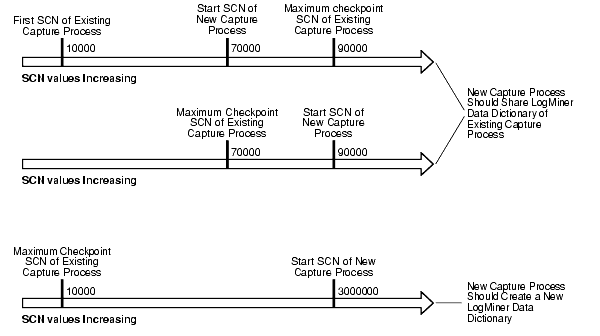

Figure 2-5 illustrates these guidelines.
Figure 2-5 Deciding Whether to Share a LogMiner Data Dictionary
Note:
If you create a capture process using one of the procedures in the DBMS_STREAMS_ADM
package, then it is the same as specifying NULL
for the first_scn
and start_scn
parameters in the CREATE_CAPTURE
procedure.
You must prepare database objects for instantiation if a new capture process will capture changes made to these database objects. This requirement holds even if the new capture process shares a LogMiner data dictionary with one or more other capture processes for which these database objects have been prepared for instantiation.
When you create a capture process using the CREATE_CAPTURE
procedure in the DBMS_CAPTURE_ADM
package, you can specify the first SCN and start SCN for the capture process. The first SCN is the lowest SCN in the redo log from which a capture process can capture changes, and it should be obtained through a data dictionary build or a query on the V$ARCHIVED_LOG
dynamic performance view. The start SCN is the SCN from which a capture process begins to capture changes. The start SCN must be equal to or greater than the first SCN.
A capture process scans the redo data from the first SCN or an existing capture process checkpoint forward, even if the start SCN is higher than the first SCN or the checkpoint SCN. In this case, the capture process does not capture any changes in the redo data before the start SCN. Oracle recommends that, at capture process creation time, the difference between the first SCN and start SCN be as small as possible to keep the amount of redo scanned by the capture process to a minimum.
In some cases, the behavior of the capture process is different depending on the settings of these SCN values and on whether the capture process is local or downstream.
Note:
When you create a capture process using theDBMS_STREAMS_ADM
package, both the first SCN and the start SCN are set to NULL
during capture process creation.The following sections describe capture process behavior for SCN value settings:
Non-NULL First SCN and NULL Start SCN for a Local or Downstream Capture Process
Non-NULL First SCN and Non-NULL Start SCN for a Local or Downstream Capture Process
NULL First SCN and Non-NULL Start SCN for a Local Capture Process
NULL First SCN and Non-NULL Start SCN for a Downstream Capture Process
The new capture process is created at the local database with a new LogMiner session starting from the value specified for the first_scn
parameter. The start SCN is set to the specified first SCN value automatically, and the new capture process does not capture changes that were made before this SCN.
The BUILD
procedure in the DBMS_CAPTURE_ADM
package is not run automatically. This procedure must have been run at least once before on the source database, and the specified first SCN must correspond to the SCN value of a previous build that is still available in the redo log. When the new capture process is started for the first time, it creates a new LogMiner data dictionary using the data dictionary information in the redo log. If the BUILD
procedure in the DBMS_CAPTURE_ADM
package has not been run at least once on the source database, then an error is raised when the capture process is started.
Capture process behavior is the same for a local capture process and a downstream capture process created with these SCN settings, except that a local capture process is created at the source database and a downstream capture process is created at the downstream database.
If the specified value for the start_scn
parameter is greater than or equal to the specified value for the first_scn
parameter, then the new capture process is created at the local database with a new LogMiner session starting from the specified first SCN. In this case, the new capture process does not capture changes that were made before the specified start SCN. If the specified value for the start_scn
parameter is less than the specified value for the first_scn
parameter, then an error is raised.
The BUILD
procedure in the DBMS_CAPTURE_ADM
package is not run automatically. This procedure must have been called at least once before on the source database, and the specified first_scn
must correspond to the SCN value of a previous build that is still available in the redo log. When the new capture process is started for the first time, it creates a new LogMiner data dictionary using the data dictionary information in the redo log. If the BUILD
procedure in the DBMS_CAPTURE_ADM
package has not been run at least once on the source database, then an error is raised.
Capture process behavior is the same for a local capture process and a downstream capture process created with these SCN settings, except that a local capture process is created at the source database and a downstream capture process is created at the downstream database.
The new capture process creates a new LogMiner data dictionary if either one of the following conditions is true:
There is no existing capture process for the local source database, and the specified value for the start_scn
parameter is greater than or equal to the current SCN for the database.
There are existing capture processes, but none of the capture processes have taken a checkpoint yet, and the specified value for the start_scn
parameter is greater than or equal to the current SCN for the database.
In either of these cases, the BUILD
procedure in the DBMS_CAPTURE_ADM
package is run during capture process creation. The new capture process uses the resulting build of the source data dictionary in the redo log to create a LogMiner data dictionary the first time it is started, and the first SCN corresponds to the SCN of the data dictionary build.
However, if there is at least one existing local capture process for the local source database that has taken a checkpoint, then the new capture process shares an existing LogMiner data dictionary with one or more of the existing capture processes. In this case, a capture process with a first SCN that is lower than or equal to the specified start SCN must have been started successfully at least once.
If there is no existing capture process for the local source database (or if no existing capture processes have taken a checkpoint yet), and the specified start SCN is less than the current SCN for the database, then an error is raised.
If the use_database_link
parameter is set to true
during capture process creation, then the database link is used to obtain the current SCN of the source database. In this case, the new capture process creates a new LogMiner data dictionary if either one of the following conditions is true:
There is no existing capture process that captures changes to the source database at the downstream database, and the specified value for the start_scn
parameter is greater than or equal to the current SCN for the source database.
There are existing capture processes that capture changes to the source database at the downstream database, but none of the capture processes have taken a checkpoint yet, and the specified value for the start_scn
parameter is greater than or equal to the current SCN for the source database.
In either of these cases, the BUILD
procedure in the DBMS_CAPTURE_ADM
package is run during capture process creation. The first time you start the new capture process, it uses the resulting build of the source data dictionary in the redo log files copied to the downstream database to create a LogMiner data dictionary. Here, the first SCN for the new capture process corresponds to the SCN of the data dictionary build.
However, if at least one existing capture process has taken a checkpoint and captures changes to the source database at the downstream database, then the new capture process shares an existing LogMiner data dictionary with one or more of these existing capture processes, regardless of the use_database_link
parameter setting. In this case, one of these existing capture processes with a first SCN that is lower than or equal to the specified start SCN must have been started successfully at least once.
If the use_database_link
parameter is set to true
during capture process creation, there is no existing capture process that captures changes to the source database at the downstream database (or no existing capture process has taken a checkpoint), and the specified start_scn
parameter value is less than the current SCN for the source database, then an error is raised.
If the use_database_link
parameter is set to false
during capture process creation and there is no existing capture process that captures changes to the source database at the downstream database (or no existing capture process has taken a checkpoint), then an error is raised.
The behavior is the same as setting the first_scn
parameter to NULL
and setting the start_scn
parameter to the current SCN of the source database.
When you reset the first SCN value for an existing capture process, Oracle automatically purges LogMiner data dictionary information prior to the new first SCN setting. If the start SCN for a capture process corresponds to information that has been purged, then Oracle automatically resets the start SCN to the same value as the first SCN. However, if the start SCN is higher than the new first SCN setting, then the start SCN remains unchanged.

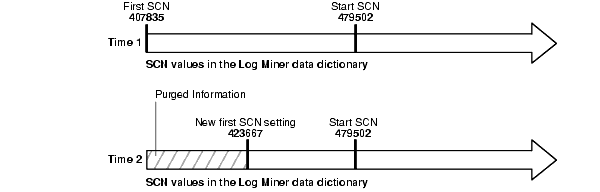

Figure 2-6 shows how Oracle automatically purges LogMiner data dictionary information prior to a new first SCN setting, and how the start SCN is not changed if it is higher than the new first SCN setting.
Figure 2-6 Start SCN Higher than Reset First SCN

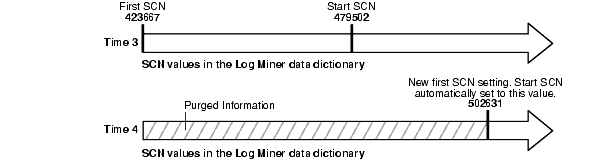

Given this example, if the first SCN is reset again to a value higher than the start SCN value for a capture process, then the start SCN no longer corresponds to existing information in the LogMiner data dictionary. Figure 2-7 shows how Oracle resets the start SCN automatically if it is lower than a new first SCN setting.
Figure 2-7 Start SCN Lower than Reset First SCN
As you can see, the first SCN and start SCN for a capture process can continually increase over time, and, as the first SCN moves forward, it might no longer correspond to an SCN established by the DBMS_CAPTURE_ADM.BUILD
procedure.
See Also:
The DBMS_CAPTURE_ADM.ALTER_CAPTURE
procedure in the Oracle Database PL/SQL Packages and Types Reference for information about altering a capture process
Propagations and apply processes use a Streams data dictionary to keep track of the database objects from a particular source database. A Streams data dictionary is populated whenever one or more database objects are prepared for instantiation at a source database. Specifically, when a database object is prepared for instantiation, it is recorded in the redo log. When a capture process scans the redo log, it uses this information to populate the local Streams data dictionary for the source database. In the case of local capture, this Streams data dictionary is at the source database. In the case of downstream capture, this Streams data dictionary is at the downstream database.
When you prepare a database object for instantiation, you are informing Streams that information about the database object is needed by propagations that propagate changes to the database object and apply processes that apply changes to the database object. Any database that propagates or applies these changes requires a Streams data dictionary for the source database where the changes originated.
After an object has been prepared for instantiation, the local Streams data dictionary is updated when a DDL statement on the object is processed by a capture process. In addition, an internal message containing information about this DDL statement is captured and placed in the queue for the capture process. Propagations can then propagate these internal messages to destination queues at databases.
A Streams data dictionary is multiversioned. If a database has multiple propagations and apply processes, then all of them use the same Streams data dictionary for a particular source database. A database can contain only one Streams data dictionary for a particular source database, but it can contain multiple Streams data dictionaries if it propagates or applies changes from multiple source databases.
See Also:
Oracle Streams Replication Administrator's Guide for more information about instantiation
The following list describes how different types of capture processes read the redo data:
A local capture process reads online redo logs whenever possible and archived redo log files otherwise. Therefore, the source database must be running in ARCHIVELOG
mode when a local capture process is configured to capture changes.
A real-time downstream capture process reads online redo data from its source database whenever possible and archived redo log files that contain redo data from the source database otherwise. In this case, the redo data from the source database is stored in the standby redo log at the downstream database, and the archiver at the downstream database archives the redo data in the standby redo log. Therefore, both the source database and the downstream database must be running in ARCHIVELOG
mode when a real-time downstream capture process is configured to capture changes.
An archived-log downstream capture process always reads archived redo log files from its source database. Therefore, the source database must be running in ARCHIVELOG
mode when an archived-log downstream capture process is configured to capture changes.
You can query the REQUIRED_CHECKPOINT_SCN
column in the DBA_CAPTURE
data dictionary view to determine the required checkpoint SCN for a capture process. When the capture process is restarted, it scans the redo log from the required checkpoint SCN forward. Therefore, the redo log file that includes the required checkpoint SCN, and all subsequent redo log files, must be available to the capture process.
You must keep an archived redo log file available until you are certain that no capture process will need that file. The first SCN for a capture process can be reset to a higher value, but it cannot be reset to a lower value. Therefore, a capture process will never need the redo log files that contain information prior to its first SCN. Query the DBA_LOGMNR_PURGED_LOG
data dictionary view to determine which archived redo log files will never be needed by any capture process.
When a local capture process falls behind, there is a seamless transition from reading an online redo log to reading an archived redo log, and, when a local capture process catches up, there is a seamless transition from reading an archived redo log to reading an online redo log. Similarly, when a real-time downstream capture process falls behind, there is a seamless transition from reading the standby redo log to reading an archived redo log, and, when a real-time downstream capture process catches up, there is a seamless transition from reading an archived redo log to reading the standby redo log.
Note:
At a downstream database in a downstream capture configuration, log files from a remote source database should be kept separate from local database log files. In addition, if the downstream database contains log files from multiple source databases, then the log files from each source database should be kept separate from each other.See Also:
Oracle Database Administrator's Guide for information about running a database in ARCHIVELOG
mode
"Displaying SCN Values for Each Redo Log File Used by Each Capture Process" for a query that determines which redo log files are no longer needed
Some Recovery Manager (RMAN) commands delete archived redo log files. If one of these RMAN commands is used on a database that is running one or more local capture processes, then the RMAN command does not delete archived redo log files that are needed by a local capture process. That is, the RMAN command does not delete archived redo log files that contain changes with SCN values that are equal to or greater than the required checkpoint SCN for a local capture process.
The following RMAN commands delete archived redo log files:
The RMAN command DELETE
OBSOLETE
permanently purges the archived redo log files that are no longer needed. This command only deletes the archived redo log files in which all of the changes are less than the required checkpoint SCN for a local capture process.
The RMAN command BACKUP
ARCHIVELOG
ALL
DELETE
INPUT
copies the archived redo log files and deletes the original files after completing the backup. This command only deletes the archived redo log files in which all of the changes are less than the required checkpoint SCN for a local capture process. If archived redo log files are not deleted because they contain changes required by a capture process, then RMAN display a warning message about skipping the delete operation for these files.
If a database is a source database for a downstream capture process, then these RMAN commands might delete archived redo log files that have not been transferred to the downstream database and are required by a downstream capture process. Therefore, before running these commands on the source database, make sure any archived redo log files needed by a downstream database have been transferred to the downstream database.
Note:
The flash recovery area feature of RMAN might delete archived redo log files that are required by a capture process.See Also:
"Are Required Redo Log Files Missing?" for information about determining whether a capture process is missing required archived redo log files and for information correcting this problem. This section also contains information about flash recovery area and local capture processes.
Oracle Database Backup and Recovery Advanced User's Guide and Oracle Database Backup and Recovery Reference for more information about RMAN
After creation, a capture process is disabled so that you can set the capture process parameters for your environment before starting it for the first time. Capture process parameters control the way a capture process operates. For example, the time_limit
capture process parameter specifies the amount of time a capture process runs before it is shut down automatically.
See Also:
This section does not discuss all of the available capture process parameters. See the DBMS_CAPTURE_ADM.SET_PARAMETER
procedure in the Oracle Database PL/SQL Packages and Types Reference for detailed information about all of the capture process parameters.
The parallelism
capture process parameter controls the number of preparer servers used by a capture process. The preparer servers concurrently format changes found in the redo log into LCRs. Each reader server, preparer server, and builder server is a parallel execution server, and the number of preparer servers equals the number specified for the parallelism
capture process parameter. So, if parallelism
is set to 5
, then a capture process uses a total of seven parallel execution servers, assuming seven parallel execution servers are available: one reader server, five preparer servers, and one builder server.
Note:
Resetting the parallelism
parameter automatically stops and restarts the capture process.
Setting the parallelism
parameter to a number higher than the number of available parallel execution servers might disable the capture process. Make sure the PROCESSES
and PARALLEL_MAX_SERVERS
initialization parameters are set appropriately when you set the parallelism
capture process parameter.
See Also:
"Capture Process Components" for more information about preparer serversYou can configure a capture process to stop automatically when it reaches certain limits. The time_limit
capture process parameter specifies the amount of time a capture process runs, and the message_limit
capture process parameter specifies the number of messages a capture process can capture. The capture process stops automatically when it reaches one of these limits.
The disable_on_limit
parameter controls whether a capture process becomes disabled or restarts when it reaches a limit. If you set the disable_on_limit
parameter to y
, then the capture process is disabled when it reaches a limit and does not restart until you restart it explicitly. If, however, you set the disable_on_limit
parameter to n
, then the capture process stops and restarts automatically when it reaches a limit.
When a capture process is restarted, it starts to capture changes at the point where it last stopped. A restarted capture process gets a new session identifier, and the parallel execution servers associated with the capture process also get new session identifiers. However, the capture process number (c
nnn
) remains the same.
A capture process evaluates changes it finds in the redo log against its positive and negative rule sets. The capture process evaluates a change against the negative rule set first. If one or more rules in the negative rule set evaluate to TRUE
for the change, then the change is discarded, but if no rule in the negative rule set evaluates to TRUE
for the change, then the change satisfies the negative rule set. When a change satisfies the negative rule set for a capture process, the capture process evaluates the change against its positive rule set. If one or more rules in the positive rule set evaluate to TRUE
for the change, then the change satisfies the positive rule set, but if no rule in the positive rule set evaluates to TRUE
for the change, then the change is discarded. If a capture process only has one rule set, then it evaluates changes against this one rule set only.
A running capture process completes the following series of actions to capture changes:
Finds changes in the redo log.
Performs prefiltering of the changes in the redo log. During this step, a capture process evaluates rules in its rule sets at a basic level to place changes found in the redo log into two categories: changes that should be converted into LCRs and changes that should not be converted into LCRs. Prefiltering is done in two phases. In the first phase, information that can be evaluated during prefiltering includes schema name, object name, and command type. If more information is needed to determine whether a change should be converted into an LCR, then information that can be evaluated during the second phase of prefiltering includes tag values and column values when appropriate.
Prefiltering is a safe optimization done with incomplete information. This step identifies relevant changes to be processed subsequently, such that:
A capture process converts a change into an LCR if the change satisfies the capture process rule sets. In this case, proceed to Step 3.
A capture process does not convert a change into an LCR if the change does not satisfy the capture process rule sets.
Regarding MAYBE
evaluations, the rule evaluation proceeds as follows:
If a change evaluates to MAYBE
against both the positive and negative rule set for a capture process, then the capture process might not have enough information to determine whether the change will definitely satisfy both of its rule sets. In this case, further evaluation is necessary. Proceed to Step 3.
If the change evaluates to FALSE
against the negative rule set and MAYBE
against the positive rule set for the capture process, then the capture process might not have enough information to determine whether the change will definitely satisfy both of its rule sets. In this case, further evaluation is necessary. Proceed to Step 3.
If the change evaluates to MAYBE
against the negative rule set and TRUE
against the positive rule set for the capture process, then the capture process might not have enough information to determine whether the change will definitely satisfy both of its rule sets. In this case, further evaluation is necessary. Proceed to Step 3.
If the change evaluates to TRUE
against the negative rule set and MAYBE
against the positive rule set for the capture process, then the capture process discards the change.
If the change evaluates to MAYBE
against the negative rule set and FALSE
against the positive rule set for the capture process, then the capture process discards the change.
Converts changes that satisfy, or might satisfy, the capture process rule sets into LCRs based on prefiltering.
Performs LCR filtering. During this step, a capture process evaluates rules regarding information in each LCR to separate the LCRs into two categories: LCRs that should be enqueued and LCRs that should be discarded.
Discards the LCRs that should not be enqueued because they did not satisfy the capture process rule sets.
Enqueues the remaining captured messages into the queue associated with the capture process.
For example, suppose the following rule is defined in the positive rule set for a capture process: Capture changes to the hr.employees
table where the department_id
is 50
. No other rules are defined for the capture process, and the parallelism
parameter for the capture process is set to 1
.
Given this rule, suppose an UPDATE
statement on the hr.employees
table changes 50 rows in the table. The capture process performs the following series of actions for each row change:
Finds the next change resulting from the UPDATE
statement in the redo log.
Determines that the change resulted from an UPDATE
statement to the hr.employees
table and must be captured. If the change was made to a different table, then the capture process ignores the change.
Captures the change and converts it into an LCR.
Filters the LCR to determine whether it involves a row where the department_id
is 50.
Either enqueues the LCR into the queue associated with the capture process if it involves a row where the department_id
is 50
, or discards the LCR if it involves a row where the department_id
is not 50
or is missing.
See Also:
Chapter 6, "How Rules Are Used in Streams" for more information about rule sets for Streams clients and for information about how messages satisfy rule sets
Figure 2-8 illustrates capture process rule evaluation in a flowchart.
Figure 2-8 Flowchart Showing Capture Process Rule Evaluation
A capture process maintains a persistent status when the database running the capture process is shut down and restarted. For example, if a capture process is enabled when the database is shut down, then the capture process automatically starts when the database is restarted. Similarly, if a capture process is disabled or aborted when a database is shut down, then the capture process is not started and retains the disabled or aborted status when the database is restarted.
