C Appendix: Installer Windows for Mobile Point-of-Service Server

You need the following details about your environment for the installer to successfully install the Mobile Point-of-Service Server application. This appendix shows the windows that are displayed during the installation. Depending on the options you select, you may not see some windows or fields.

For each field in a window, a table is included in this appendix that describes the field.

Note:

The paths shown in the window examples in this appendix use the path format for Microsoft Windows. In the table describing those fields, example paths for both Microsoft Windows and Novell SLEPOS are shown.

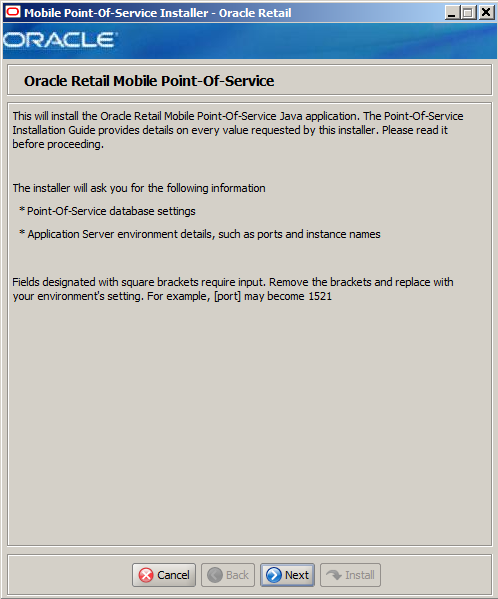

Figure C-1 Introduction

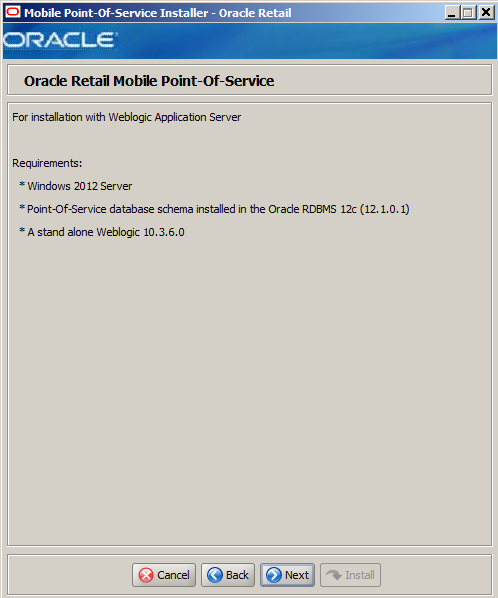

Figure C-2 Requirements

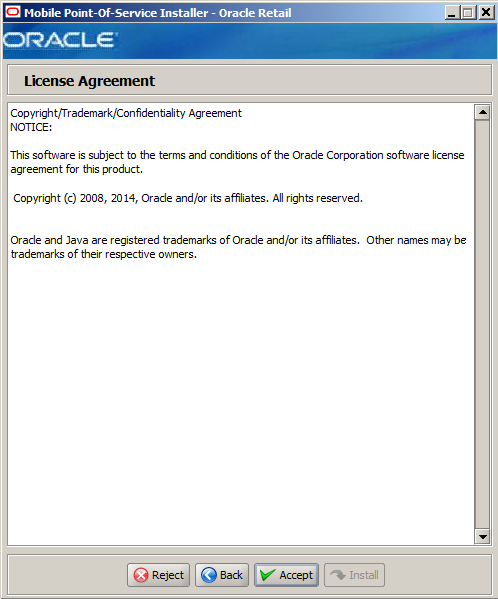

Figure C-3 License Agreement

Note:

You must choose to accept the terms of the license agreement in order for the installation to continue.

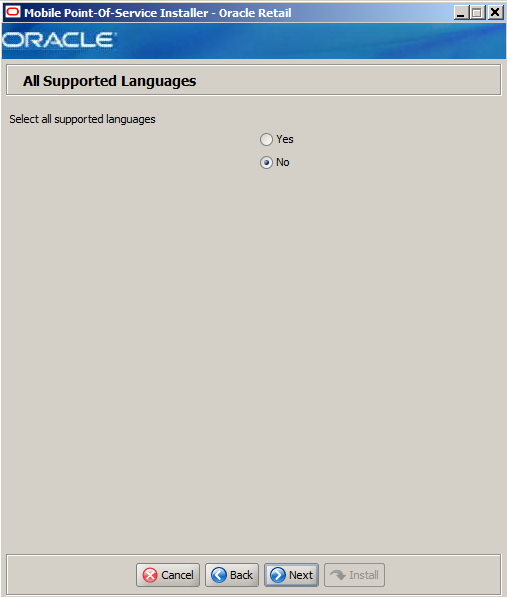

Figure C-4 All Supported Languages

The field in this window is described in the following table:

Details	Content
Field Title	Select all supported languages
Field Description	Choose whether all languages are initially selected on the Supported Languages screen: To have all available languages initially selected, select Yes. To have only English initially selected, select No.
Example	No

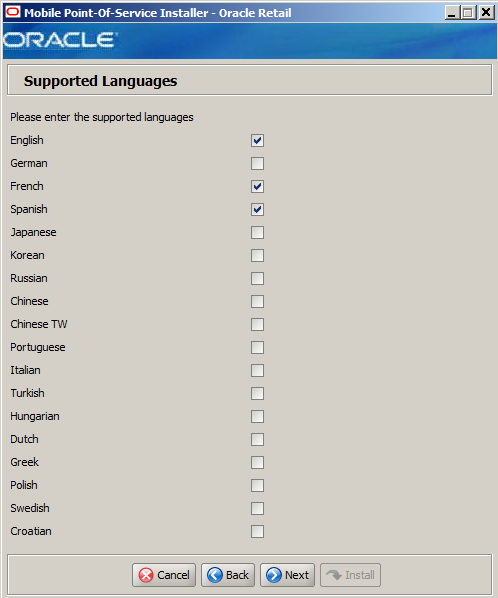

Figure C-5 Supported Languages

The field in this window is described in the following table:

Details	Content
Field Title	Please enter the supported languages
Field Description	Select the languages that will be available for the Mobile Point-of-Service application. The languages selected in this window determine the available choices in the Enter Default Locale window.
Example	English, French, and Italian

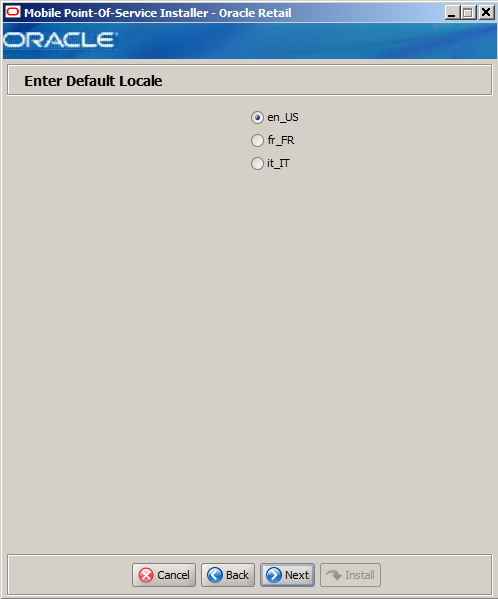

Figure C-6 Enter Default Locale

The field in this window is described in the following table:

Details	Content
Field Title	Enter Default Locale
Field Description	Locale support in Mobile Point-of-Service enables the date, time, currency, calendar, address, and phone number to be displayed in the format for the selected default locale. The choices for default locale are dependent on the selections made in the Supported Languages window. For each selected language, the default locale for that language is displayed in the Enter Default Locale window. For example, if English, French, and Italian are selected in the Supported Languages window, en_US, fr_FR, and it_IT are the available choices for the default locale.
Example	en_US

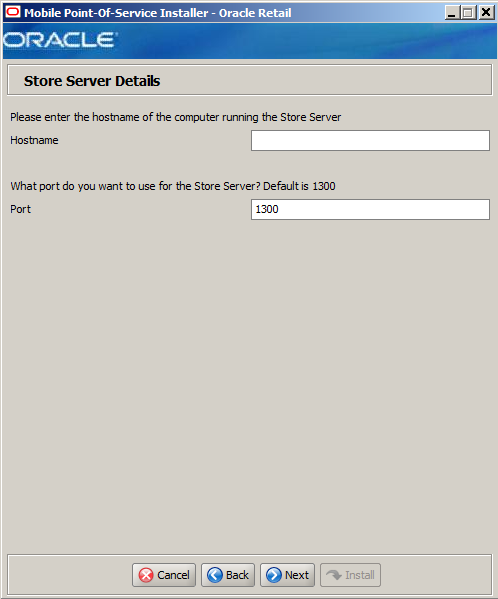

Figure C-7 Store Server Details

The fields in this window are described in the following tables:

Details	Content
Field Title	Hostname
Field Description	Enter the host name of the store server.

Details	Content
Field Title	Port
Field Description	Enter the port number of the store server used for the communication between the store server and the host computer.
Example	1300

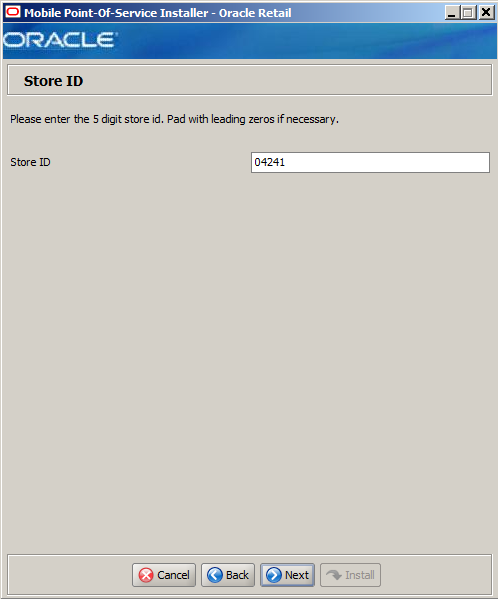

Figure C-8 Store ID

The field in this window is described in the following table:

Details	Content
Field Title	Store ID
Field Description	Enter the store ID. Note: The store ID must be five digits. It can be padded with leading zeroes if necessary. The store ID can only contain the numeric characters 0 through 9.
Example	04241

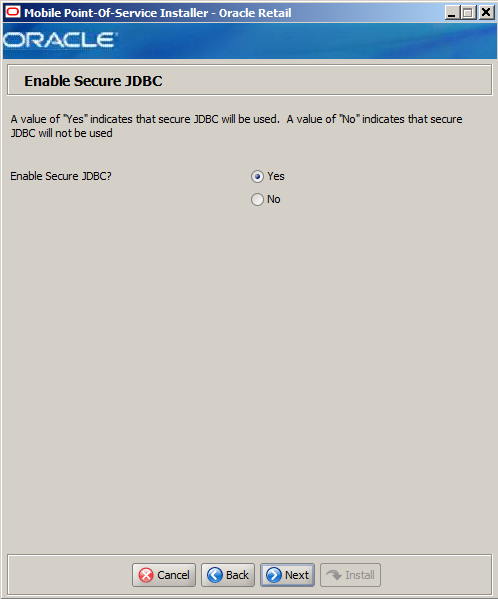

Figure C-9 Enable Secure JDBC

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure JDBC?
Field Description	Select whether secure JDBC is to be used for communication between the mobile server and mobile devices.
Example	Yes

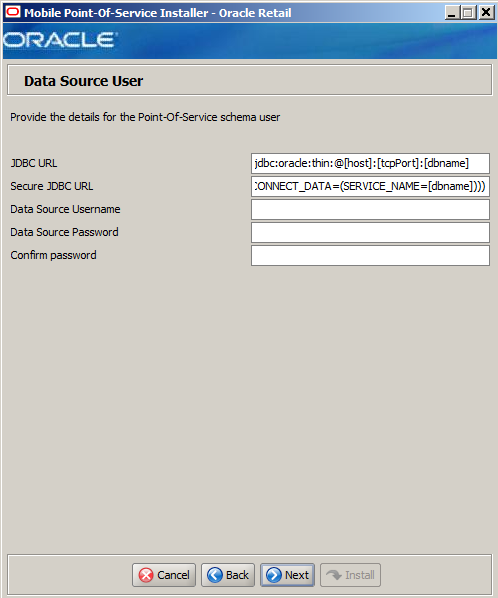

Figure C-10 Database Source User

The fields in this window are described in the following tables:

Details	Content
Field Title	JDBC URL
Field Description	URL used by Mobile Point-of-Service to access the database schema. For the expected syntax, see Appendix E. Note: If Enable Secure JDBC is selected in the Secure Options window, this URL is only used by the installer.
Example	jdbc:oracle:thin:@DB_HOST_NAME:1521:DB_NAME

Details	Content
Field Title	Secure JDBC URL
Field Description	Secure URL containing the specific parameters used by Mobile Point-of-Service to access the database schema. See Appendix E for the expected syntax. This field is only displayed if Enable Secure JDBC is selected in the Secure Options window.
Example	jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=[host])(PORT=[tcpsPort]))(CONNECT_DATA=(SERVICE_NAME=[dbname])))

Details	Content
Field Title	Data Source Username
Field Description	Database user name that can access and manipulate the data in the schema. This user can have Select, Insert, Update, Delete, and Execute privileges on objects in the schema, that is, Data Manipulation Language (DML) execution privileges. For information on creating this user, see "Create the Database Schema Owner and Data Source Users" in Chapter 3. Note: This schema user is used by Mobile Point-of-Service to access the database.

Details

Content

Field Title

Data Source Username

Field Description

Database user name that can access and manipulate the data in the schema. This user can have Select, Insert, Update, Delete, and Execute privileges on objects in the schema, that is, Data Manipulation Language (DML) execution privileges. For information on creating this user, see "Create the Database Schema Owner and Data Source Users" in Chapter 3.

Note: This schema user is used by Mobile Point-of-Service to access the database.

Details	Content
Field Title	Data Source Password
Field Description	Password for the data source user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Data Source Password used to confirm the password. Note: The passwords in the Data Source Password and Confirm Password fields must match.

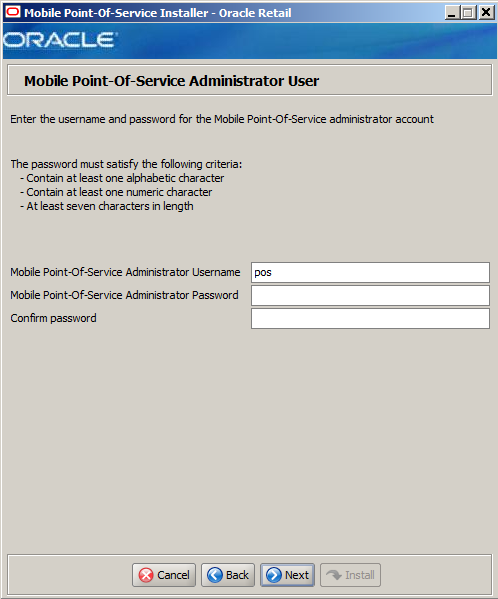

Figure C-11 Mobile Point-of-Service Administrator User

The fields in this window are described in the following tables:

Details	Content
Field Title	Mobile Point-of-Service Administrator Username
Field Description	Enter the user name used for performing Mobile Point-of-Service administrative functions.
Example	pos

Details	Content
Field Title	Mobile Point-of-Service Administrator Password
Field Description	Enter the password for the administrator user.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Mobile Point-of-Service Administrator Password used to confirm the password. Note: The passwords in the Mobile Point-of-Service Administrator Password and Confirm Password fields must match.

Figure C-12 App Server WL_HOME

The fields in this window are described in the following tables:

Details	Content
Field Title	WL_HOME
Field Description	Home directory for the Oracle WebLogic Server installation.
Example	Microsoft Windows: D:\Oracle\Middleware\wlserver_10.3 Novell SLEPOS: /opt/Oracle/Middleware/wlserver_10.3

Details	Content
Field Title	BEA_HOME
Field Description	Home directory for the Oracle BEA installation.
Example	Microsoft Windows: D:\Oracle\Middleware Novell SLEPOS: /opt/Oracle/Middleware

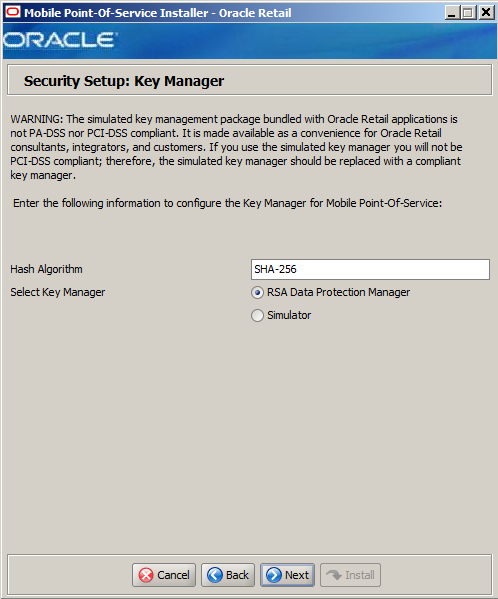

Figure C-13 Security Setup: Key Manager

This window is used to configure the Encryption Key Manager.

The fields in this window are described in the following tables:

Details	Content
Field Title	Hash Algorithm
Field Description	Name of the algorithm used by the Key Manager to hash sensitive data.
Example	SHA-256

Details	Content
Field Title	Select Key Manager
Field Description	Provider for Key Store management. RSA Data Protection Manager package, select RSA Data Protection Manager. The next window displayed is Figure C-14. To use the simulated key management package, select Simulator. The next window displayed is Figure C-17.
Example	RSA Data Protection Manager

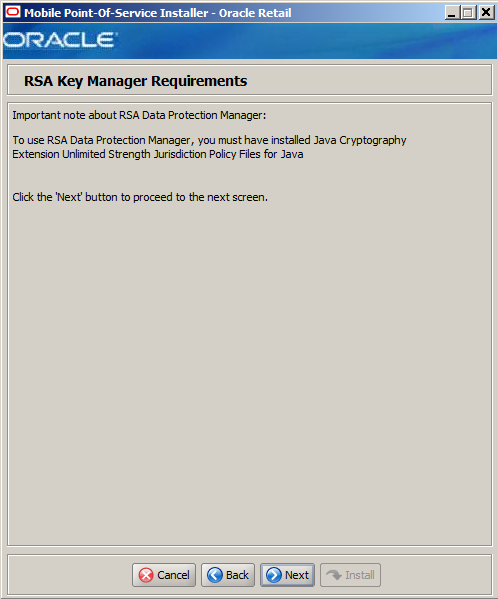

Figure C-14 RSA Key Manager Requirements

This window is only displayed if RSA Data Protection Manager is selected in the Security Setup: Key Manager window. This informational window explains the requirements needed to use the RSA Data Protection Manager. Verify that you meet the requirements and then click Next.

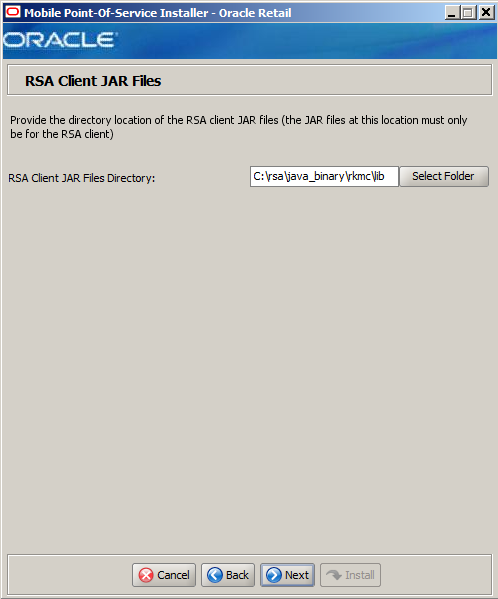

Figure C-15 RSA Client JAR Files

This window is only displayed if RSA Data Protection Manager is selected in the Security Setup: Key Manager window.

The field in this window is described in the following table:

Details	Content
Field Title	RSA Client JAR Files Directory
Field Description	Choose the directory where the following jar files are located: cryptojce.jar cryptojcommon.jar jcm.jar jcmFIPS.jar kmsclient.jar LB.jar LBJNI.jar sslj.jar
Example	Microsoft Windows: C:\rsa\java_binary\rlmc\lib Novell SLEPOS: /opt/rsa/java_binary/rlmc/lib

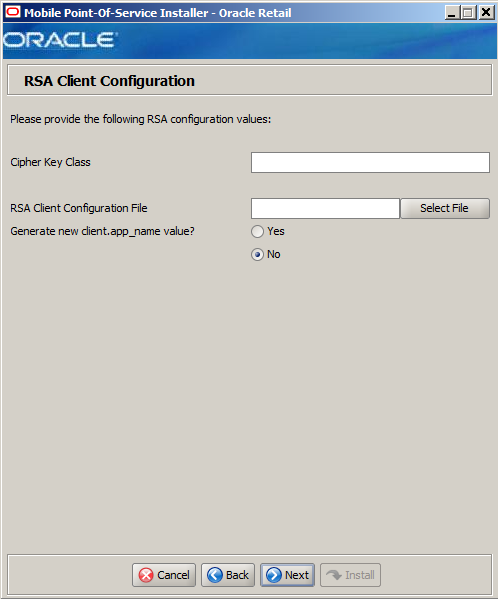

Figure C-16 RSA Client Configuration

This window is only displayed if RSA Data Protection Manager is selected in the Security Setup: Key Manager window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Cipher Key Class
Field Description	Enter the name of the cipher suite that define the authentication and encryption algorithms that will be used by RSA to negotiate the security settings for the network connection.

Details	Content
Field Title	RSA Client Configuration File
Field Description	Select the location of the RSA client configuration file. This file contains the details for configuring the RSA client.

Details	Content
Field Title	Generate new client.app_name value?
Field Description	To have the installer generate a unique name for the client.app.name value in the RSA client configuration file, select Yes. To not change the value in the configuration file, select No.

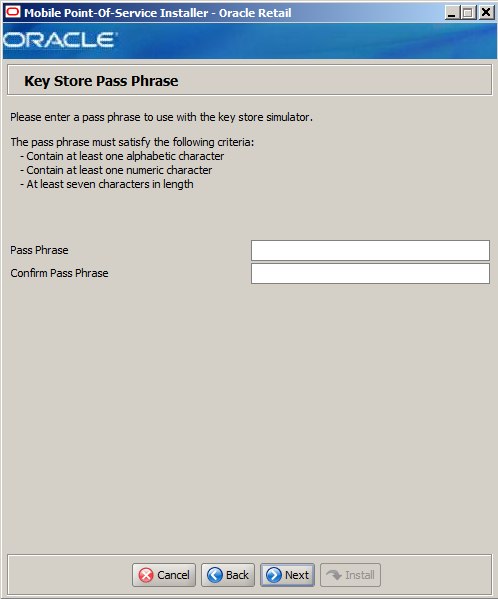

Figure C-17 Key Store Pass Phrase

This window is only displayed if Simulator is selected in the Security Setup: Key Manager window.

The field in this window is described in the following table:

Details	Content
Field Title	Pass Phrase
Field Description	Enter the pass phrase used to access the Key Store simulator. Note: Use the same pass phrase for all Oracle Retail POS Suite applications in your configuration.

Details	Content
Field Title	Confirm Pass Phrase
Field Description	Reentered Pass Phrase used to confirm the pass phrase. Note: The pass phrases in the Pass Phrase and Confirm Pass Phrase fields must match.

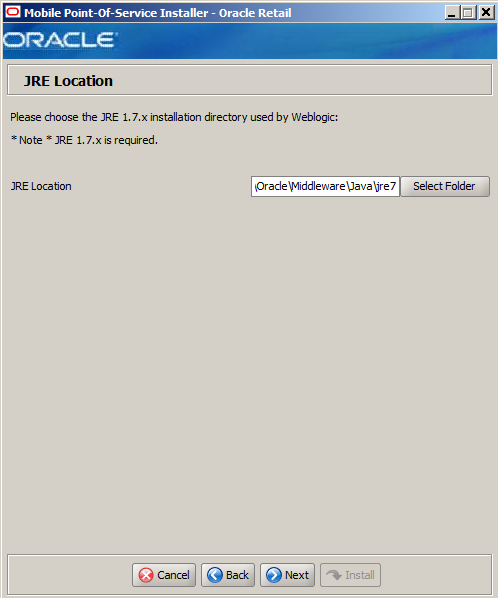

Figure C-18 JRE Location

The field in this window is described in the following table:

Details	Content
Field Title	JRE Location
Field Description	Enter the location where the JRE is installed.
Example	Microsoft Windows: C:\Program Files\Java\jre7 Novell SLEPOS: /opt/Java/jre7

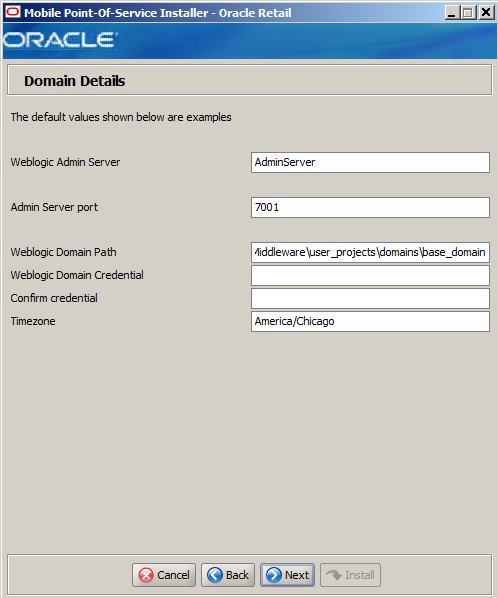

Figure C-19 Domain Details

The fields in this window are described in the following tables:

Details	Content
Field Title	Weblogic Admin Server
Field Description	Name of the admin server to which the Mobile Point-of-Service application is being deployed.
Example	AdminServer

Details	Content
Field Title	Admin Server port
Field Description	Port used by the administration server. This port was selected when the administration domain was created.
Example	7001

Details	Content
Field Title	Weblogic Domain Path
Field Description	Path to the domain to which the Mobile Point-of-Service application is being deployed.
Example	C:\Oracle\Middleware\user_projects\domains\base_domain

Details	Content
Field Title	Weblogic Domain Credential
Field Description	Password shared between domains in order to establish a trust relationship. Note: Use the same password for all Oracle Retail applications in the trust relationship in your configuration.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Weblogic Domain Credential used to confirm the password. Note: The passwords in the Weblogic Domain Credential and Confirm Password fields must match.

Details	Content
Field Title	Timezone
Field Description	Time zone for the Mobile Point-of-Service domain.
Example	America/Chicago

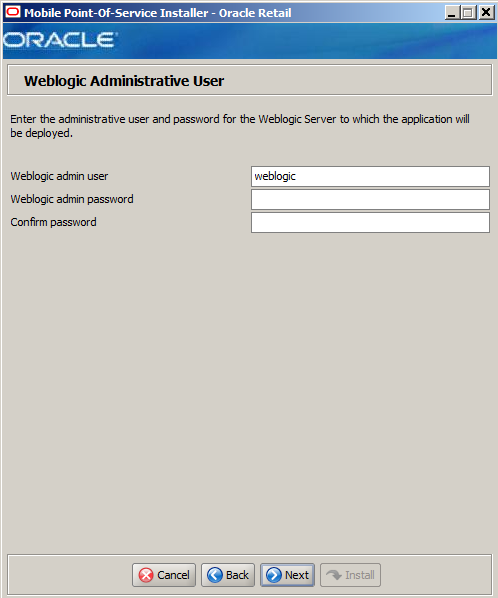

Figure C-20 Weblogic Administrative User

The fields in this window are described in the following tables:

Details	Content
Field Title	Weblogic admin user
Field Description	User name of the administrative user for the WebLogic Server to which the Mobile Point-of-Service application is being deployed.
Example	weblogic

Details	Content
Field Title	Weblogic admin password
Field Description	Password for the WebLogic Server administrative user. You chose this password when you installed the WebLogic Server.

Details	Content
Field Title	Confirm password
Field Description	Reentered Weblogic Admin Password used to confirm the password. Note: The passwords in the Weblogic Admin Password and Confirm Password fields must match.

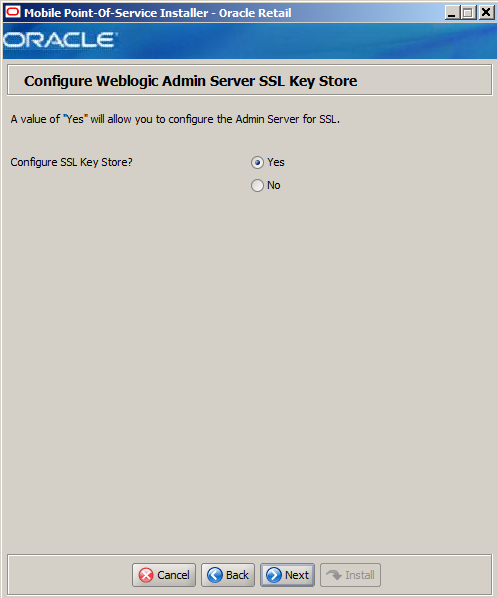

Figure C-21 Configure Weblogic Admin Server SSL Key Store

The field in this window is described in the following table:

Details	Content
Field Title	Configure SSL Key Store?
Field Description	Select whether the Admin Server will be configured for SSL: To configure the Admin Server for SSL, select Yes. To not configure the Admin Server for SSL, select No.

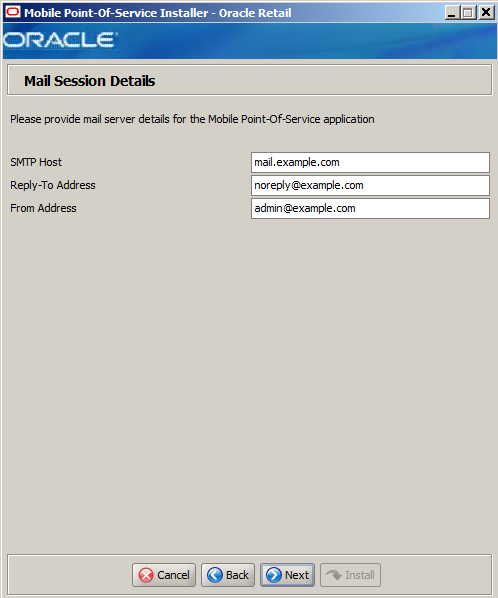

Figure C-22 Mail Session Details

The fields in this window are described in the following tables:

Details	Content
Field Title	SMTP host
Field Description	Host where the SMTP server is running.
Example	mail.example.com

Details	Content
Field Title	Reply-To Address
Field Description	Reply-to address in e-mails generated by Mobile Point-of-Service.
Example	noreply@example.com

Details	Content
Field Title	From Address
Field Description	From address in e-mails generated by Mobile Point-of-Service.
Example	admin@example.com

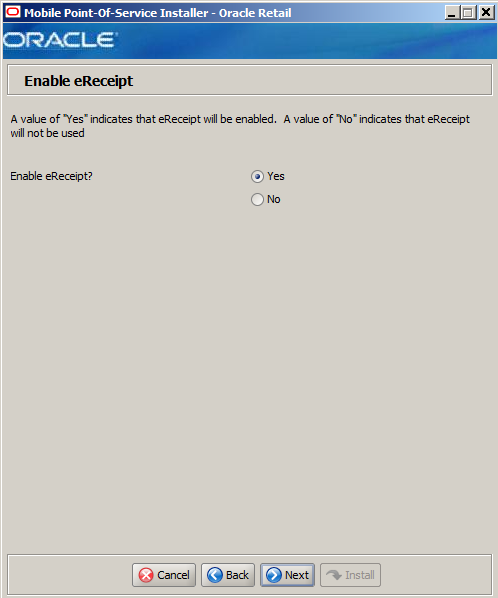

Figure C-23 Enable eReceipt

The field in this window is described in the following table:

Details	Content
Field Title	Enable eReceipt?
Field Description	Choose whether the use of eReceipts is enabled.
Example	Yes

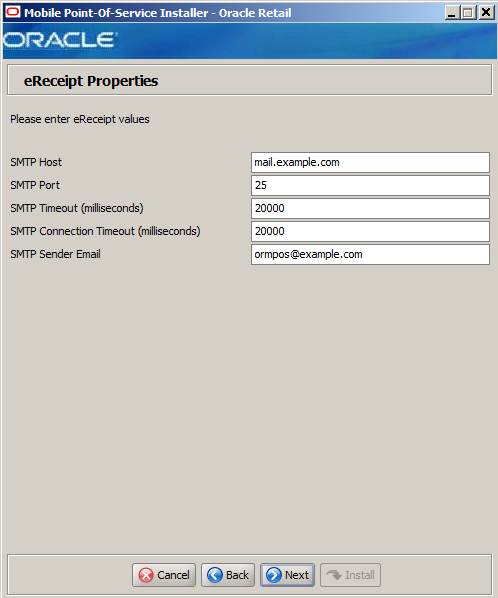

Figure C-24 eReceipt Properties

This window is only displayed if Yes is selected in the Enable eReceipt window.

The fields in this window are described in the following tables:

Details	Content
Field Title	SMTP Host
Field Description	Enter the host name for the SMTP server.
Example	mail.example.com

Details	Content
Field Title	SMTP Port
Field Description	Enter the port number for the SMTP server.
Example	25

Details	Content
Field Title	SMTP Timeout (milliseconds)
Field Description	Enter the amount of time to wait for the SMTP server.
Example	20000

Details	Content
Field Title	SMTP Connection Timeout (milliseconds)
Field Description	Enter the amount of time to wait for the connection to the SMTP server.
Example	20000

Details	Content
Field Title	SMTP Sender Email
Field Description	Enter the e-mail address to use for the from address in e-mails generated by Mobile Point-of-Service.
Example	ormpos@example.com

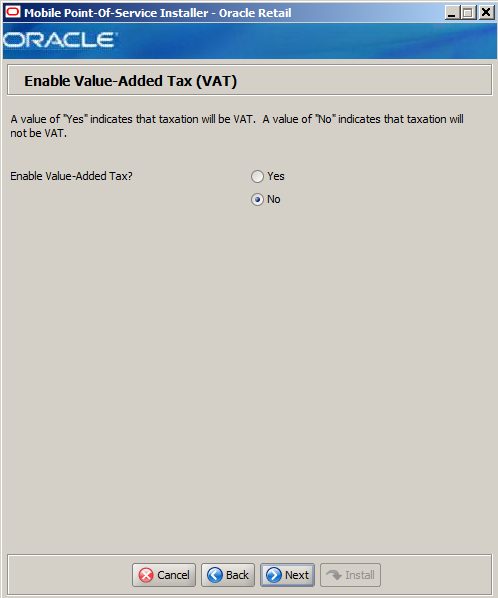

Figure C-25 Value-Added Tax (VAT)

The field in this window is described in the following table:

Details	Content
Field Title	Enable Value-Added Tax?
Field Description	Select Yes if Value-Added Tax is used.
Example	No

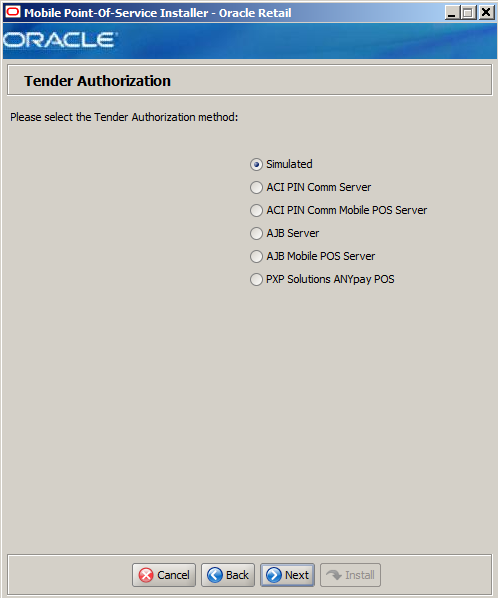

Figure C-26 Tender Authorization

The field in this window is described in the following table:

Details

Content

Field Title

Please select the tender authorization method

Field Description

Choose where tender authorizations are sent:

If approvals do not leave the store server and are based on values and certain numbers, choose Simulated.
If approvals are sent by the store server to a third-party system to approve the authorizations, choose ACI PIN Comm Server or AJB Server.
If approvals are handled by the Mobile Point-of-Service server, select ACI PIN Comm Mobile POS Server, AJB Mobile POS Server, or PXP Solutions ANYpay POS.

Note: If the store server is located at a remote location, it is highly recommended to configure ACI PINComm at Mobile POS Server or AJB Mobile POS Server in order to help minimize network delay.

Note: Demo installations should use the Simulated option.

Example

Simulated

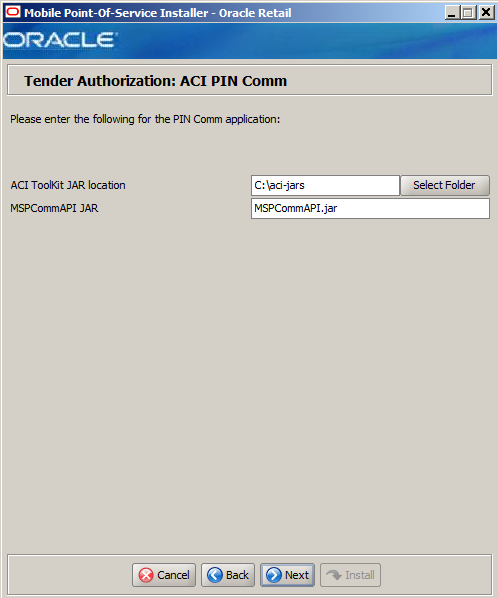

Figure C-27 Tender Authorization: ACI PIN Comm

This window is only displayed if ACI PIN Comm Server is selected in the Tender Authorization window.

The fields in this window are described in the following tables:

Details	Content
Field Title	ACI ToolKit JAR Location
Field Description	Enter the path to the ACI ToolKit JAR file.
Example	Microsoft Windows: C:\aci-jars Novell SLEPOS: /opt/aci-jars

Details	Content
Field Title	MSPCommAPI JAR
Field Description	Enter the name of the MSPCommAPI JAR file.
Example	MSPCommAPI.jar

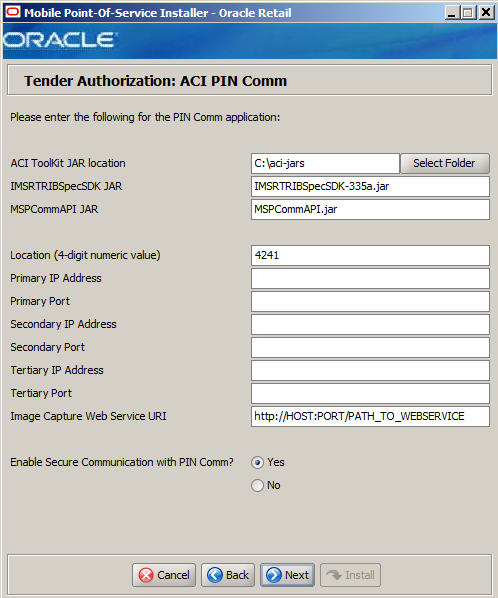

Figure C-28 Tender Authorization: ACI PIN Comm

This window is only displayed if ACI PIN Comm Mobile POS Server is selected in the Tender Authorization window.

The fields in this window are described in the following tables:

Details	Content
Field Title	ACI ToolKit JAR Location
Field Description	Enter the path to the ACI ToolKit JAR file.
Example	Microsoft Windows: C:\aci-jars Novell SLEPOS: /opt/aci-jars

Details	Content
Field Title	IMSRTRIBSpecSDK JAR
Field Description	Enter the name of the IMSRTRIBSpecSDK JAR file.
Example	IMSRTRIBSpecSDK-335a.jar

Details	Content
Field Title	MSPCommAPI JAR
Field Description	Enter the name of the MSPCommAPI JAR file.
Example	MSPCommAPI.jar

Details	Content
Field Title	Location (4-digit numeric value)
Field Description	Enter the four digit numeric value for the location.
Example	4241

Details	Content
Field Title	Primary IP Address
Field Description	Enter the primary IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Primary Port
Field Description	Enter the primary port number used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Secondary IP Address
Field Description	Enter the secondary IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Secondary Port
Field Description	Enter the secondary port number used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Tertiary IP Address
Field Description	Enter the tertiary IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Tertiary Port
Field Description	Enter the tertiary port number used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Image Capture Web Service URI
Field Description	Enter the address of the Image Capture web service.
Example	http://HOST:PORT/PATH_TO_WEBSERVICE

Details	Content
Field Title	Enable Secure Communication with PIN Comm?
Field Description	Select Yes for communication with ACI PIN Comm using HTTPS.
Example	Yes

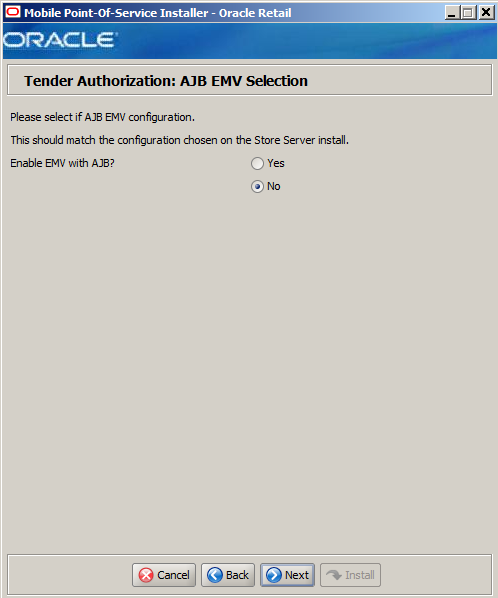

Figure C-29 Tender Authorization: AJB

This window is only displayed if AJB Server is selected in the Tender Authorization window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable EMV with AJB?
Field Description	Select whether Europay, MasterCard, and Visa (EMV) is enabled with AJB: To enable EMV, select Yes. To not enable EMV, select No.
Example	No

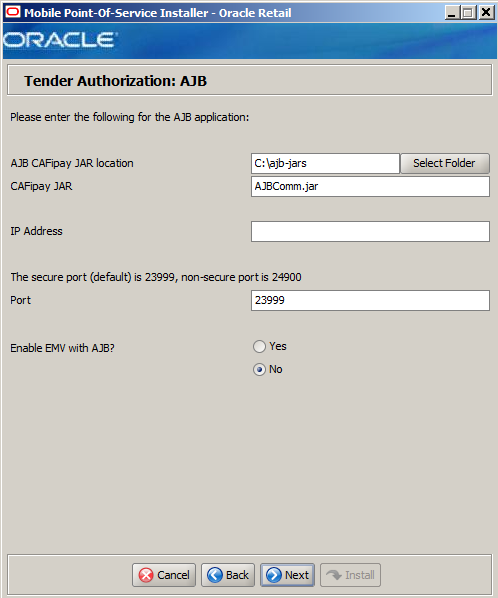

Figure C-30 Tender Authorization: AJB

This window is only displayed if AJB Mobile POS Server is selected in the Tender Authorization window.

The fields in this window are described in the following tables:

Details	Content
Field Title	AJB CAFipay JAR Location
Field Description	Enter the path to the AJB CAFipay JAR file.
Example	Microsoft Windows: C:\ajb-jars Novell SLEPOS: /opt/ajb-jars

Details	Content
Field Title	CAFipay JAR
Field Description	Enter the name of the CAFipay JAR file.
Example	AJBComm.jar

Details	Content
Field Title	IP Address
Field Description	Enter the IP address used for the communication between the store server and the tender authorizer.

Details	Content
Field Title	Port
Field Description	Enter the port number used for the communication between the store server and the tender authorizer.
Example	23999

Details	Content
Field Title	Enable EMV with AJB?
Field Description	Select whether Europay, MasterCard, and Visa (EMV) is enabled with AJB: To enable EMV, select Yes. To not enable EMV, select No.
Example	No

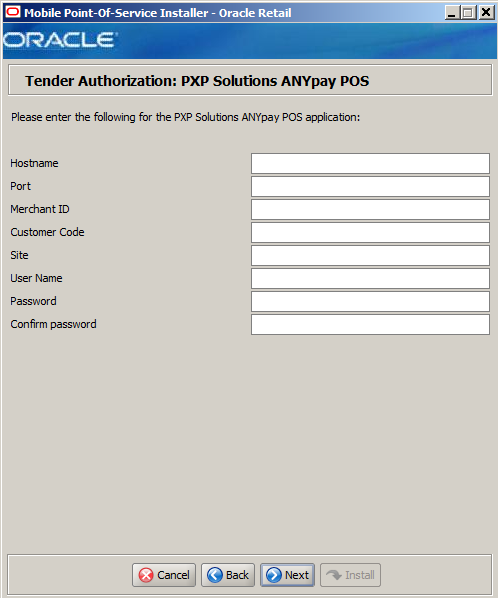

Figure C-31 Tender Authorization: PXP Solutions ANYpay POS

This window is only displayed if PXP Solutions ANYpay POS is selected for the Tender Authorization.

The fields in this window are described in the following tables:

Details	Content
Field Title	Hostname
Field Description	Enter the host name of the PXP Solutions server.

Details	Content
Field Title	Port
Field Description	Enter the port number for the PXP Solutions server.

Details	Content
Field Title	Merchant ID
Field Description	Enter the ID of the merchant used to access the PXP Solutions application.

Details	Content
Field Title	Customer Code
Field Description	Enter the customer code used to access the PXP Solutions application.

Details	Content
Field Title	Site
Field Description	Enter the site to access the PXP Solutions application.

Details	Content
Field Title	User Name
Field Description	Enter the user name to use to access the PXP Solutions application.

Details	Content
Field Title	Password
Field Description	Enter the password to use to access the PXP Solutions application.

Details	Content
Field Title	Confirm Password
Field Description	Reentered Password used to confirm the password. Note: The passwords in the Password and Confirm Password fields must match.

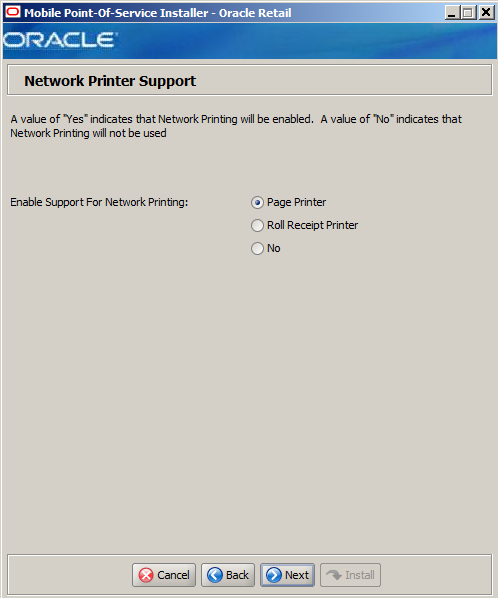

Figure C-32 Network Printer Support

The field in this window is described in the following table:

Details	Content
Field Title	Enable Support for Network Printing
Field Description	Choose the type of network printing: To use a network printer, select Page Printer. To use a receipt printer with a paper roll, select Roll Receipt Printer. To not enable network printing, select No.
Example	Page Printer

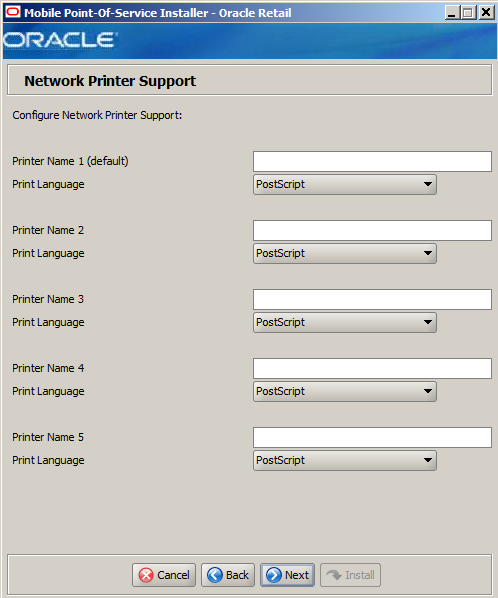

Figure C-33 Network Printer Support Configuration for Page Printers

This window is only displayed if Page Printer is selected in the Network Printer Support window.

The fields in this window are described in the following tables. Enter the following information for each network printer:

Details	Content
Field Title	Printer Name
Field Description	Enter the network printer name.

Details	Content
Field Title	Print Language
Field Description	Select the language for the network printer.

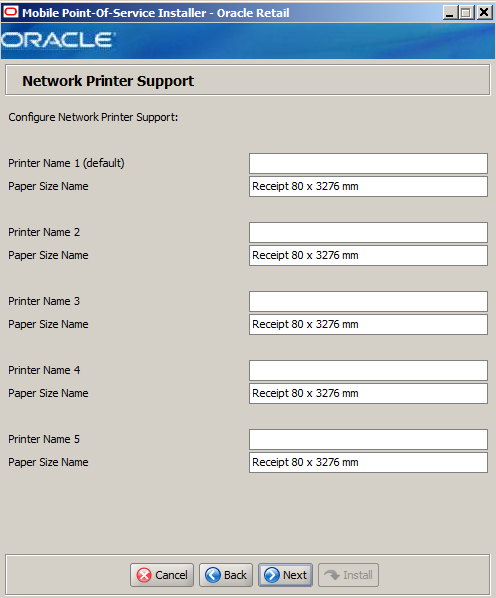

Figure C-34 Network Printer Support Configuration for Roll Receipt Printers

This window is only displayed if Roll Receipt Printer is selected in the Network Printer Support window.

The fields in this window are described in the following tables. Enter the following information for each roll receipt printer:

Details	Content
Field Title	Printer Name
Field Description	Enter the printer name.

Details	Content
Field Title	Paper Size Name
Field Description	Enter the name for the paper size for the printer.
Example	Receipt 80 x 3276 mm

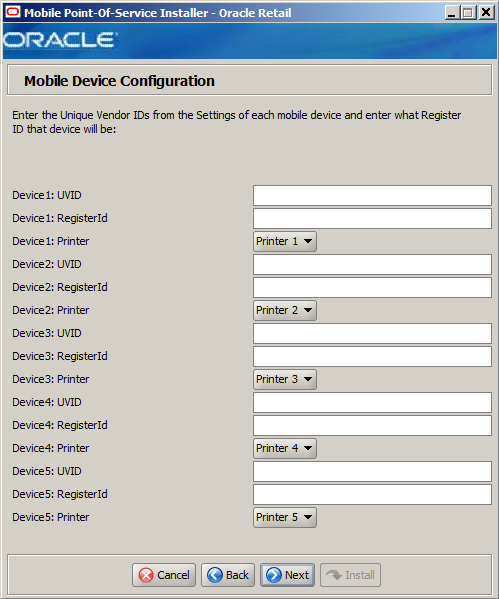

Figure C-35 Mobile Device Configuration

Each register associated with a mobile device must be configured to use register accountability. For more information, see "Register Accountability" in Chapter 5.

For information on adding more mobile devices, see the Oracle Retail POS Suite Implementation Guide, Volume 5 - Mobile Point-of-Service.

The fields in this window are described in the following tables. Enter the following information for each mobile device:

Details	Content
Field Title	UVID
Field Description	Enter the unique vendor ID associated with a mobile device configured to work with the Mobile Point-of-Service server.

Details	Content
Field Title	RegisterId
Field Description	Enter the register ID to associate with the given vendor ID. Note: 1 to 255 is supported for the register number. Do not install more than one device with the same register number at a store.

Details	Content
Field Title	Printer
Field Description	Select the printer for the device.

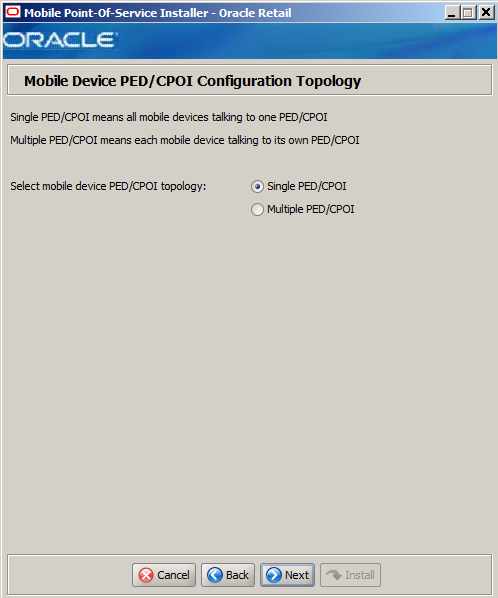

Figure C-36 Mobile Device PED/CPOI Configuration Topology

The field in this window is described in the following table:

Details	Content
Field Title	Select mobile device PED/CPOI topology
Field Description	Select how the mobile devices will talk to a PED/CPOI: To have a single PED/CPOI configured for all mobile devices, select Single PED/CPOI. To have each mobile device configured for a separate PED/CPOI, select Multiple PED/CPOI.
Example	Single PED/CPOI

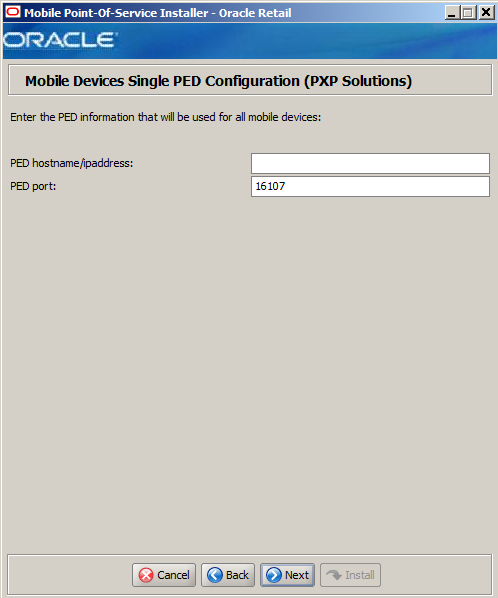

Figure C-37 Mobile Devices Single PED Configuration (PXP Solutions)

This window is only displayed if PXP Solutions ANYpay POS is selected in the Tender Authorization window and Single PED/CPOI in the Mobile Device PED/CPOI Configuration Topology window.

The fields in this window are described in the following tables:

Details	Content
Field Title	PED hostname/ipaddress
Field Description	Enter the host name or IP address of the PED.

Details	Content
Field Title	PED port
Field Description	Enter the port number that the PED is listening on.
Example	16107

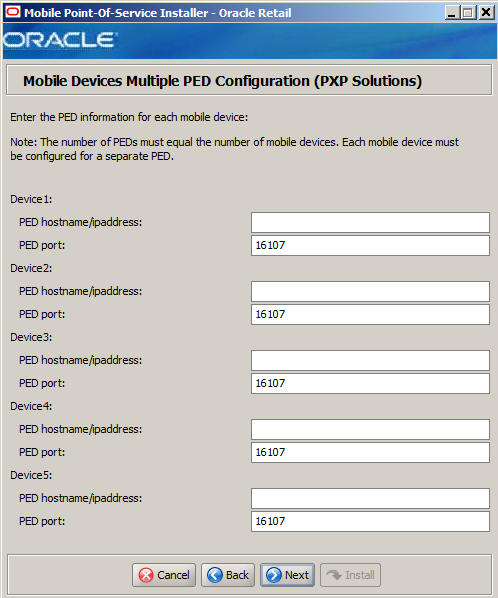

Figure C-38 Mobile Devices Multiple PED Configuration (PXP Solutions)

This window is only displayed if PXP Solutions ANYpay POS is selected in the Tender Authorization window and Multiple PED/CPOI is selected in the Mobile Device PED/CPOI Configuration Topology window.

The fields in this window are described in the following tables: Enter the following information for each mobile device.

Details	Content
Field Title	PED hostname/ipaddress
Field Description	Enter the host name or IP address of the PED.

Details	Content
Field Title	PED port
Field Description	Enter the port number that the PED is listening on.
Example	16107

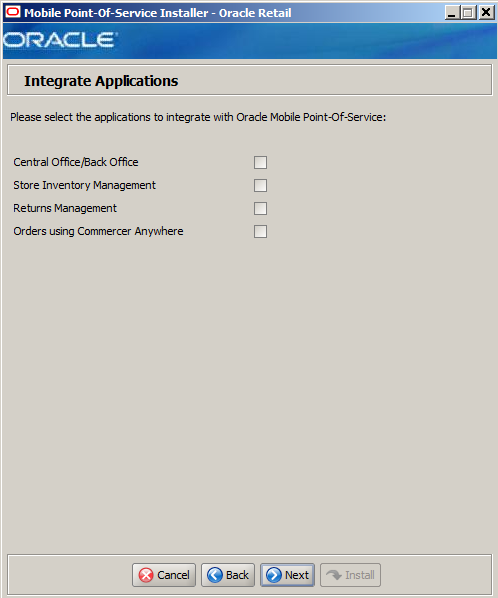

Figure C-39 Integrate Applications

The field in this window is described in the following table:

Details	Content
Field Title	Please select the applications to integrate with Oracle Mobile Point-of-Service
Field Description	Select the applications that Mobile Point-of-Service is integrated with. Central Office/Back Office Store Inventory Management Returns Management Orders using Commerce Anywhere

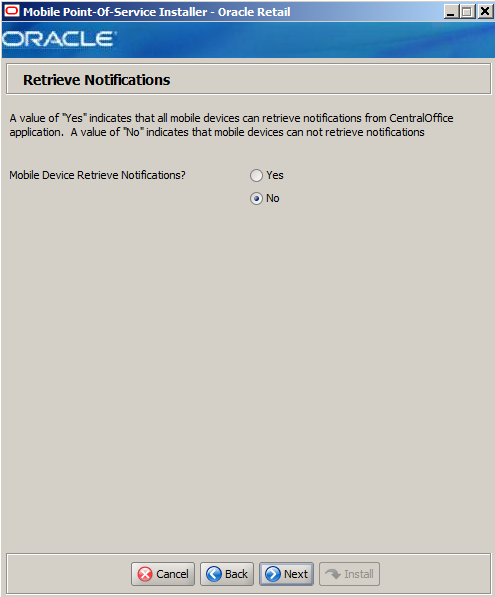

Figure C-40 Retrieve Notifications

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Mobile Device Retrieve Notifications?
Field Description	Select Yes if mobile devices can retrieve notifications from Central Office.
Example	No

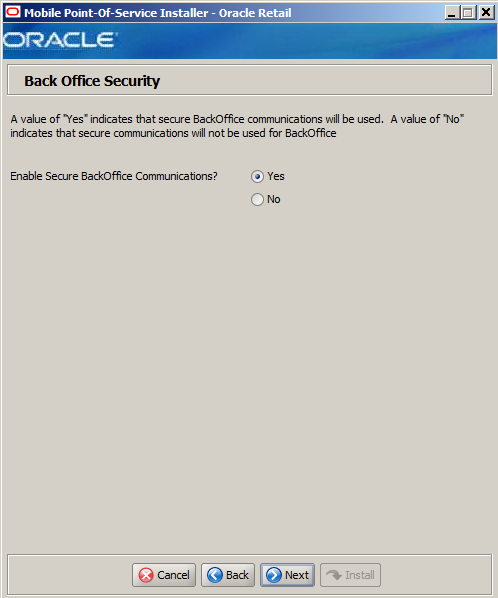

Figure C-41 Back Office Security

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure Back Office Communications?
Field Description	Select Yes if secure communication with Back Office is required.
Example	Yes

Figure C-42 Commerce Anywhere Add-on Features

This window is only displayed if Orders using Commerce Anywhere is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select the Commerce Anywhere Add-on features
Field Description	Select the Commerce Anywhere features that will be used in Mobile Point-of-Service: To use the Assisted Selling Application (ASA), select Assisted Selling. Note: This feature is not tested in Release 14.1. To enable integrated commerce, select Integrated Commerce Enablement.

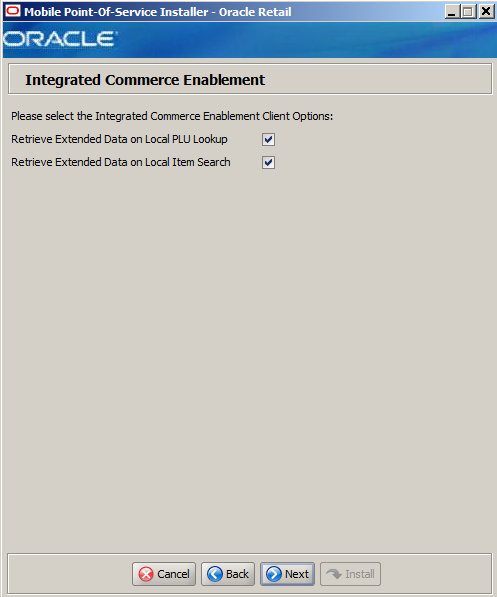

Figure C-43 Integrated Commerce Enablement

This window is only displayed if Integrated Commerce Enablement is selected in the Commerce Anywhere Add-on Features window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select the Integrated Commerce Enablement Client features
Field Description	Select the Commerce Anywhere client features that will be used in Mobile Point-of-Service: To retrieve extended data on local PLU lookup, select Retrieve Extended Data on Local PLU lookup. To retrieve extended data on local item search, select Retrieve Extended Data on Local Item Search.

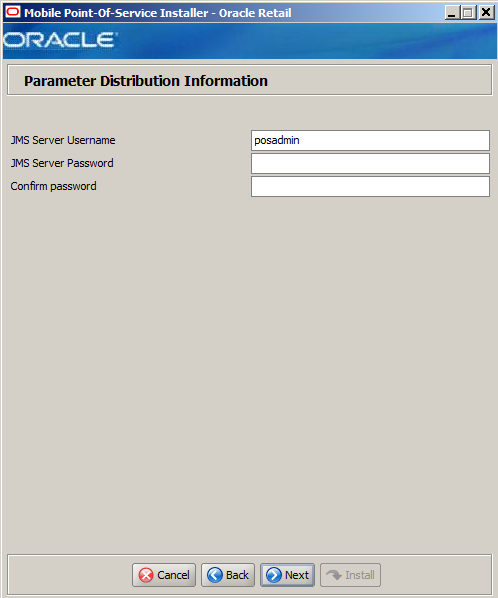

Figure C-44 Parameter Distribution Information

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The fields in this window are described in the following tables:

Details	Content
Field Title	JMS Server Username
Field Description	Identifier of the JMS server user for receiving parameter updates.
Example	posadmin

Details	Content
Field Title	JMS Server Password
Field Description	Password of the JMS server user receiving parameter updates.

Details	Content
Field Title	Confirm Password
Field Description	Reentered JMS Server Password used to confirm the password. Note: The passwords in the JMS Server Password and Confirm Password fields must match.

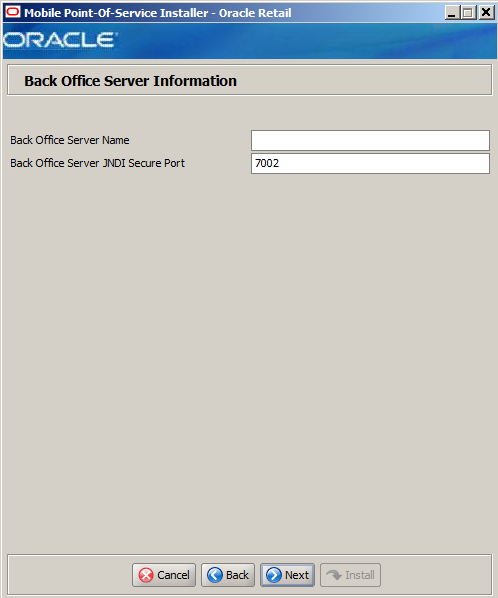

Figure C-45 Back Office Server Information

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The fields in this window are described in the following tables:

Details	Content
Field Title	Back Office Server Name
Field Description	Enter the host name for the Back Office application.

Details	Content
Field Title	Back Office Server JNDI Secure Port
Field Description	Enter the port number for the Back Office application. This is the port number that was selected when the Back Office domain was created.
Example	7002

Figure C-46 Transaction Retrieval Location

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details

Content

Field Title

Please select location for Transaction Retrieval

Field Description

Choose the location for retrieving transactions.

If transactions should only be retrieved from the store database, choose Local.
If transactions should only be retrieved from the corporate database, choose Central.
If transactions should be retrieved from the corporate database, and if not found, then retrieved from the store database, choose Central, Local Failover.

Note: You must choose the same location for both the store server and client installations.

Example

Local

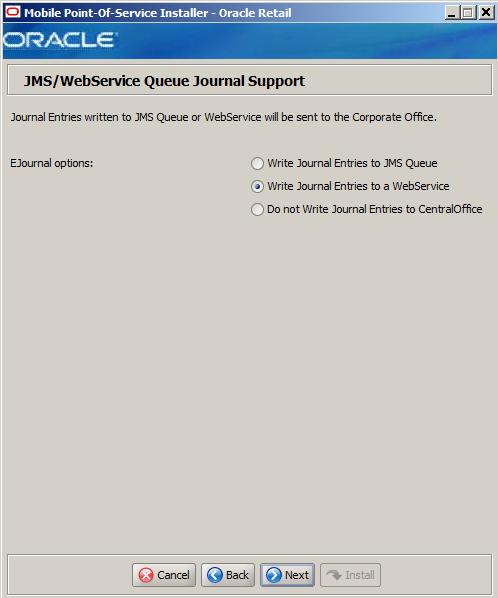

Figure C-47 JMS /Webservice Queue Journal Support

This window is only displayed if Central Office/Back Office is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details

Content

Field Title

EJournal Options

Field Description

Select an option for journaling. Journal entries written to a JMS queue or web service are sent to the corporate office.

Write Journal Entries to JMS Queue
Write Journal Entries to a WebService
Do not Write Journal Entries to CentralOffice

Note: The same selection must be made for the server and the client.

Example

Write Journal Entries to a WebService

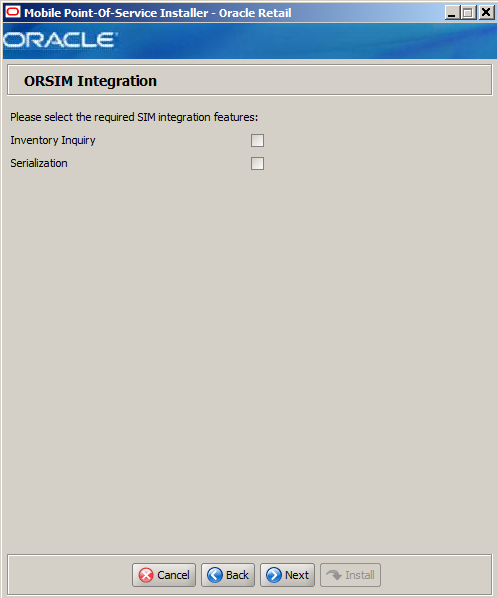

Figure C-48 ORSIM Integration

This window is only displayed if Store Inventory Management is selected in the Integrate Applications window.

The field in this window is described in the following table:

Details	Content
Field Title	Please select the required SIM integration features
Field Description	Select the Oracle Retail Store Inventory Management (SIM) features that will be used in Mobile Point-of-Service: To inquire about inventory using SIM, select Inventory Inquiry. To enable serialization using SIM, select Serialization.

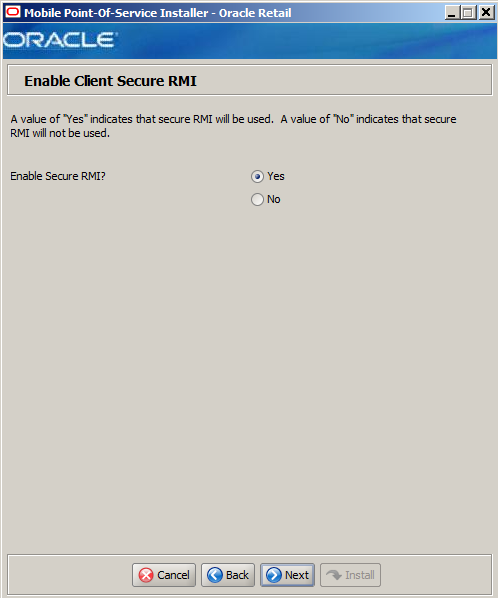

Figure C-49 Enable Client Secure RMI

The field in this window is described in the following table:

Details	Content
Field Title	Enable Secure RMI?
Field Description	Select whether secure RMI is to be used for communication between the store server and Mobile Point-of-Service server. Note: If Yes is selected, secure RMI must also have been configured for the store server.
Example	Yes

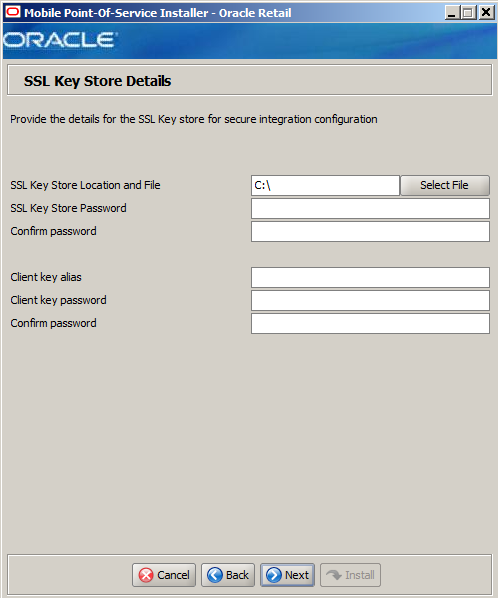

Figure C-50 SSL Key Store Details

The fields in this window are described in the following tables:

Details	Content
Field Title	SSL Key Store Location and File
Field Description	Enter the location and name of the SSL key store file.
Example	Microsoft Windows: C:\ Novell SLEPOS: /opt/

Details	Content
Field Title	SSL Key Store Password
Field Description	Enter the password for the key store.

Details	Content
Field Title	Confirm Password
Field Description	Reentered SSL Key Store Password used to confirm the password. Note: The passwords in the SSL Key Store Password and Confirm Password fields must match.

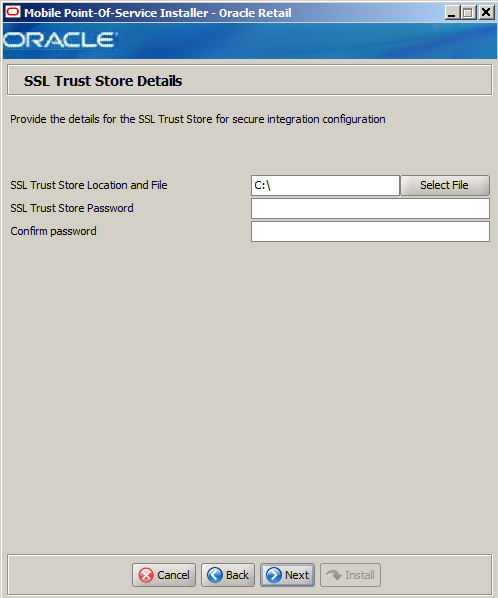

Figure C-51 SSL Trust Store Details

The fields in this window are described in the following tables:

Details	Content
Field Title	SSL Truststore Location and File
Field Description	Enter the location and name of the truststore file.
Example	Microsoft Windows: C:\ Novell SLEPOS: /opt/

Details	Content
Field Title	SSL Trust Store Password
Field Description	Enter the password for the truststore.

Details	Content
Field Title	Confirm Password
Field Description	Reentered SSL Trust Store Password used to confirm the password. Note: The passwords in the SSL Trust Store Password and Confirm Password fields must match.

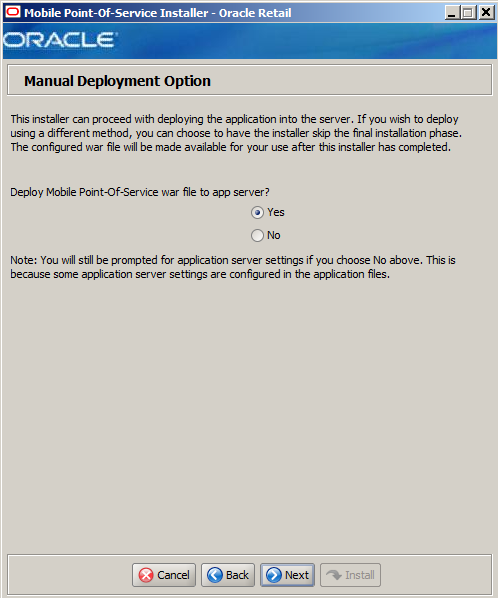

Figure C-52 Manual Deployment Option

The field in this window is described in the following table:

Details	Content
Field Title	Deploy Mobile Point-of-Service war file to app server?
Field Description	By default, the installer will deploy the war file and copy files under the application server home directory. This window gives you the option to leave the home directory unmodified and configure the application in the staging area for use in a manual installation at a later time. This option can be used in situations where modifications to files under the home directory must be reviewed by another party before being applied. If you choose No, see "Manual Deployment of the Mobile Point-of-Service Server Application" in Chapter 5 for the manual steps you need to perform after the installer completes.
Example	Yes

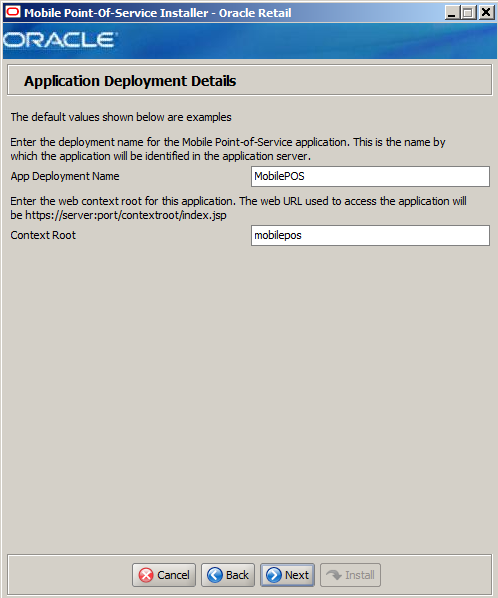

Figure C-53 Application Deployment Details

The fields in this window are described in the following tables:

Details	Content
Field Title	App Deployment Name
Field Description	Name by which the Mobile Point-of-Service application will be identified in the application server.
Example	MobilePOS

Details	Content
Field Title	Context Root
Field Description	Path under the HTTPS URL that will be used to access the Mobile Point-of-Service application.
Example	mobilepos

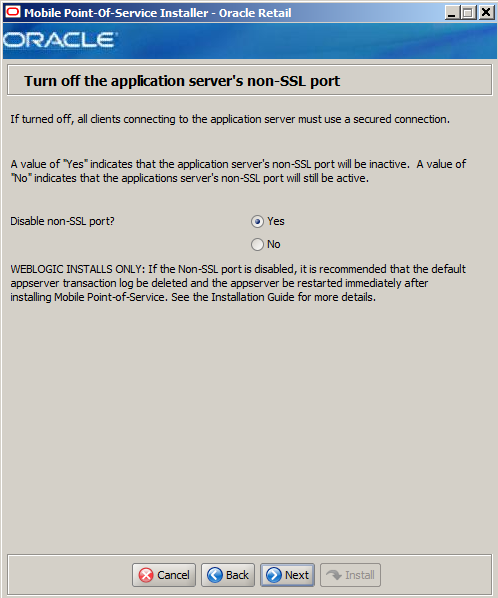

Figure C-54 Turn Off the Application Server's Non-SSL Port

The field in this window is described in the following table:

Details

Content

Field Title

Disable non-SSL port?

Field Description

Sets whether connecting to the application server requires a secured connection.

Note: It is recommended that you disable the non-SSL port in order to increase the security of your environment.

To disable the use of a non-SSL port, choose Yes.
To enable using a non-SSL port, choose No.

If you select Yes, see "Disable Non-SSL Port" in Chapter 5.

Example

Yes

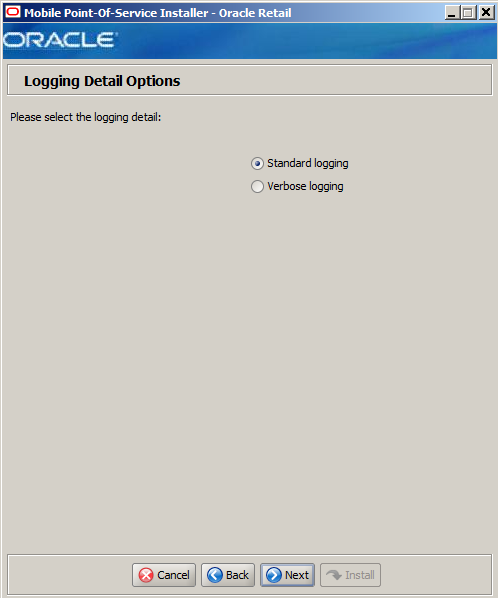

Figure C-55 Logging Detail Options

The field in this window is described in the following table:

Details	Content
Field Title	Please select the logging detail
Field Description	Choose the level of logging. To only log some of the messages, choose Standard Logging. To log all of the messages, choose Verbose Logging.
Example	Standard logging

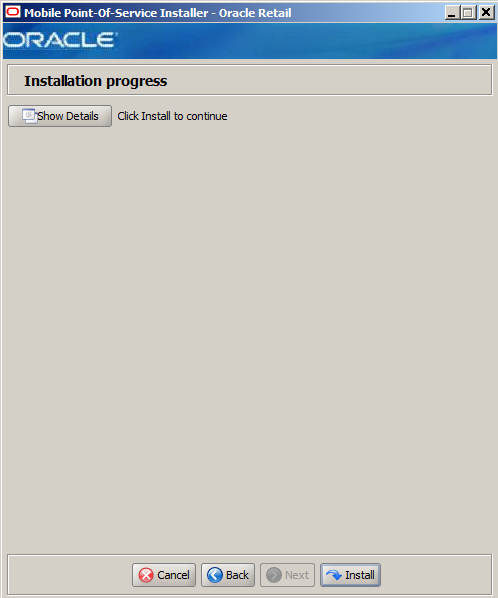

Figure C-56 Installation Progress

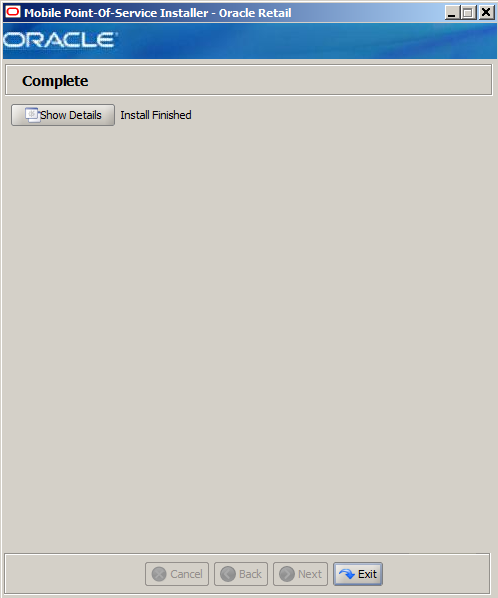

Figure C-57 Install Complete
