You are here: Configuration > Segments > Create a New Segment

Create a New Segment

Steps to Create a New Segment

Navigate to the plan.
Right-click on the segment folder.
Select New Segment.
Enter the segment name and select Next.
Select the TypeCode for the segment and then select Next. (Please see Codes Names for further detail.)
Select Finish.

The segment will then appear in the segment folder in blue font. This indicates that it has been created, but has not yet been saved to the database. Check-in the segment in order for it to be saved.

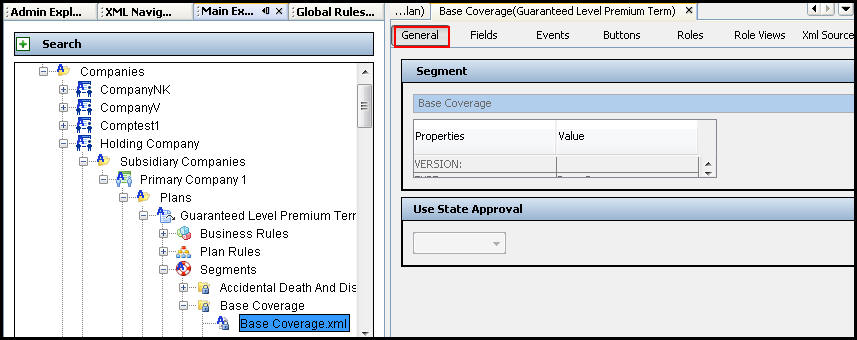

Segment General Pane

General Pane of a Segment

General Pane

View the segment properties, such as version number and TYPE, from the General pane.

Fields Pane

This pane is used to create fields that will display on the Segment’s screen. The functionality is exactly the same as the Fields pane described in the rules section of this guide. Please see the Fields pane for more information.

Events Pane

This pane is used to create validations that will display on the Segment’s screen. The functionality is exactly the same as described in the configuration section. Please see the Events Pane for more information.

Buttons Pane

The Buttons pane allows for the selection of the type of button to be displayed on the Segment screen. Checking the box next to the button adds the button name to the right in the Order column. The Up and Down buttons can be used to change the order of the buttons on the screen. There is a preview of the buttons located in the Preview box at the bottom of the Configuration Area.

Calculate Button has a drop-down box where a Calculate business rule can be selected for the segment. When a segment is calculated, the math configured in a Calculate business rule takes into account various aspects of the policy and arrives at the values, which are critical to the policy. Calculate business rules will all start with CalculateGeneral as a standard.

The Calculate rule selected is then stored in the Segments Calculate Rule folder in the Main Explorer tab for that plan. The Calculate rule can be edited from this folder by double-clicking on its XML file.

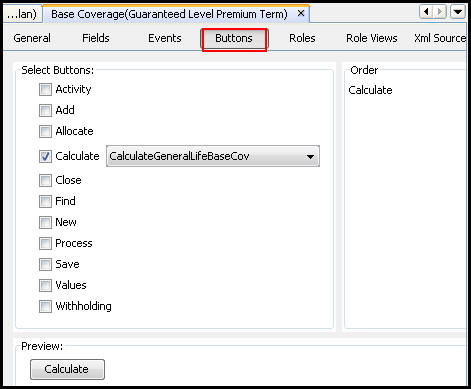

Segment Button Pane

Buttons Pane for a Segment

Button Security

Security is applied to the buttons on the Segment screen in the Admin Explorer. Open the Security folder to reveal the options for applying security.

Steps to Add Security to Buttons

Open Admin Explorer | Security | Application Security | Security Groups.
Select the Security Group that has access to the Segment screen.
Open Plan Security | Name of the Company | Plan Pages.
Right-click the PolicySegment node and select Check-out to open it in the Configuration Area.
Check the box next to each button the users in the security group will have access to in OIPA.
Check-in the file to save the changes to the database.

Roles Pane

The Roles pane is used to add, edit, or remove roles that are associated with a segment.

Steps to Add a New Role

Select the Roles pane.
Right-click on the Roles node in the Navigator menu and select Add Role.

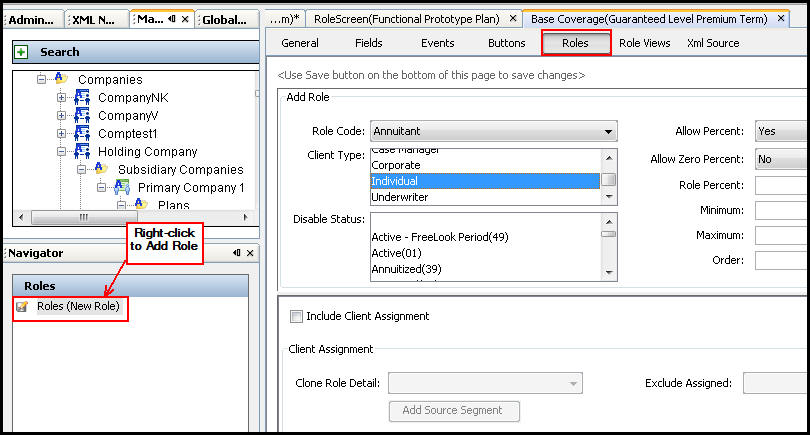

Role Node in Navigator Window

Select the desired role name from the available list in the RoleCode drop-down box.

Note: Role options are populated by AsCodeRole, which can be updated through the Codes Names folder in Admin Explorer.

Select Yes or No in the Allow Percent drop down box. If Yes is selected, then the AllowZeroPercent drop down box will be enabled.
Select Yes or No in the AllowZeroPercent drop down box.
If applicable, select a ClientType. This selection defines the client types that can be assigned to the role. Only these client types will be displayed in the client type drop-down box on the Client screen for the specific role. For example, an insured may need to be an Individual client type for a particular plan.
Select a role percent from the available list in the RolePercent field. Percentages are available from 0 to 100.
Select a status from the Disable Status list. This tells OIPA to disable role fields based on policy status. The list is populated by AsCodeStatus.
Type a minimum in the Minimum box. This is the minimum number of this type of role that can exist on the segment.
Type a maximum in the Maximum box. This is the maximum number of this type of role that can exist on the segment.
Type an order in the Order box. This is the order in which the role will appear on the screen.
Check or uncheck the Include Client Assignment checkbox.
- Checked: The Include Client Assignment check box will enable the following source segment fields: Add Source Segment button, Clone Role Detail combo box, Exclude Assigned combo box. The selection of the Include Client Assignment check box will not place any tags into the XML Source until the Save button on the bottom of the editor is clicked.
- Unchecked: If the Include Client Assignment check box is unselected then all of these actions will be done: all Source Segments defined for the role will be removed. The ClientAssignment element will be removed from the XML Source after the Save button is clicked.
Select Yes or No to Clone Role Detail.
Select Yes or No to Excluded Assigned.
Click the Add Source Segment button to add a Source Segment and Segment Role Code fields. The maximum number of additions will be equal to the number of segments for the plan minus one.
Select the Save button at the bottom of the Roles pane when finished.

Note: To add multiple new roles, you need to select Add Role from the Navigator window before each new role is entered. This clears the fields. CTRL + click deselects the options if they are already selected in a drop down list.

Steps to Remove a Role

Click the Roles pane.
Click the role to be removed from the Roles section of the Navigator window. The role will appear highlighted in blue.
Right-click the role and select Delete.

Steps to Edit a Role

Select the Roles pane.
Select a role from the Navigator window. The role will appear in the Configuration Area.
Make the necessary changes.
Click Save at the bottom of the Roles pane.

Role Views

The Role Views pane controls two aspects of roles: Role Views and Display Status.

Display Status: determines the filter status for the role views. Multiple statuses can be selected.
Role Views: controls the roles that are visible to the user. Multiple roles can be selected.

Steps to Set Display Status

Check-out a segment.
Click the Role Views pane. This will open the Navigator window in the bottom right corner of the screen.
Click Display Status in the Navigator window. This will open the Display status options in the Configuration Area.
Select the status when the Role Views may be used. Hold the CTRL key down and click to select multiple statuses.
Click Save when finished.

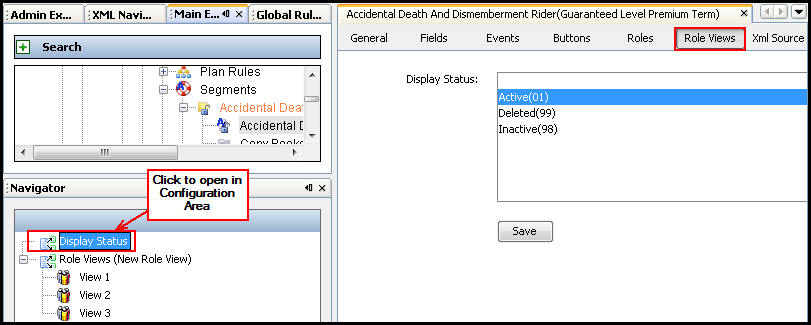

Role Views Display option

Role Views Display Status

Steps to Create Role Views

Check-out a segment.
Click the Role Views pane. This will open the Navigator window in the bottom right corner of the screen.
Right-click the Role Views node in the Navigator window and select New Role View. The Role View information will open in the Configuration Area.
Enter a name for the view in the View Name box.
Select the roles that will be available to display for that view. Hold the CTRL key down and click to select multiple roles or use the All Roles checkbox.
Click Save when finished.

Steps to Remove a Role View

Right-click on the Role View in the Navigator window and select Remove Role View.
Click OK when the Confirmation Window appears.

XML Source Pane

This pane allows individuals who prefer to configure in XML to do so. Please see the XML Configuration Guide topic in this help system for a list of all elements, attributes and values needed for configuration. View Business Rules | Plan Rules | Segment Screen.
