Solstice PPP 3.0.1 管理者ガイド

非同期クライアント/サーバー構成

図 5-4 は、非同期リンクを使用して少数のクライアントと 1 個のサーバーを接続する例を示します。クライアントはサーバーに対して発信し、サーバーはチャレンジハンドシェーク認証プロトコル (CHAP) による認証を要求します。

図 5-4 非同期クライアント/サーバー構成

Graphic

サーバーは、1 つのポイントツーマルチポイント IP インタフェースを使用して、複数のクライアントの仮想サブネットワークを作成します。各クライアントは、1 つのポイントツーポイント IP 接続をサーバーに対して確立します。

サーバーに対して発信するには、リンク確立フェーズで送信するログイン識別子とパスワードを指定する CHAT (接続) スクリプトを各クライアントが使用します。

クライアントからの呼を受信するには、サーバーに対応するユーザーアカウントが必要です。このアカウントによって、要求されるログイン識別子とログインのパスワードが指定されます。上記の簡単な例におけるサーバーは、モデムと IP インタフェースを 1 つずつしか持っていないため、1 度に受信できる呼は 1 個だけです。

papyrus の PPP 構成ファイル (ppp.conf)


ifconfig ipdptp0 plumb
ifconfig ipdptp0 papyrus server netmask 255.255.255.0 mtu 1500 up

dialup_path
    ip_interface          ipdptp0
    remote_host           server
    send_authentication   chap
    send_chap_name        chap-papyrus
    chap_own_secret       Secret*1

papyrus のリンク構成ファイル (link.conf)


dialup_device             pppdev0
    unix_device           ttya
    line_speed            38400
    modem                 BocaModem V.34 DataFax
    call_setup            dial

remote_host server
    phone_number          1234561000
    chat_script           server.script

papyrusserver への発信に使用する CHAT スクリプト (server.script)


# Set the line regarding the remote site configuration
# Due to UUCP limitations some systems only accept cs7
#
# setline	cs7 parodd

send	   RETURN
expect	 "ogin:"  10  onerror send BREAK repeat 3

send	   "ppp_log1"
expect	 "word: " 40
#
# Set the ppp password of the remote host here
#
send	  "papyrus-pass"

scribbler の PPP 構成ファイル (ppp.conf)


ifconfig ipdptp0 plumb
ifconfig ipdptp0 scribbler server netmask 255.255.255.0 mtu 1500
up

dialup_path
    ip_interface            ipdptp0
    remote_host             server
    send_authentication     chap
    send_chap_name          chap-scribbler
    chap_own_secret         Secret*2

scribbler のリンク構成ファイル (link.conf)


dialup_device          pppdev0
    unix_device        ttya
    line_speed         38400
    modem              Practical 14400 V32bis
    call_setup         dial

remote_host server
    phone_number       1234561000
    chat_script        server.script

scribberserver への発信に使用する CHAT スクリプト (server.script)


# Set the line regarding the remote site configuration
# Due to UUCP limitations some systems only accept cs7
#
# setline	cs7 parodd

send	   RETURN
expect	 "ogin:"  10  onerror send BREAK repeat 3

send	   "ppp_log2"
expect	 "word: " 40
#
# Set the ppp password of the remote host here
#
send	  "scribbler-pass"

server の PPP 構成ファイル (ppp.conf)


ifconfig ipd0 plumb
ifconfig ipd0 papyrus netmask 255.255.255.0 mtu 1500 up

dialup_path
    ip_interface             ipd0
    remote_ip_addr           papyrus-ppp
    expect_login_id          ppp_log1
    expect_authentication    chap
    expect_chap_name         chap-papyrus
    chap_peer_secret         Secret*1

dialup_path
    ip_interface             ipd0
    remote_ip_addr           scribbler-ppp
    expect_login_id          ppp_log2
    expect_authentication    chap
    expect_chap_name         chap-scribbler
    chap_peer_secret         Secret*2

server のリンク構成ファイル (link.conf)


dialup_device                pppdev0
    unix_device              ttya
    line_speed               38400
    modem                    Cardinal V.34/V.FC 28.8 data/fax
    call_setup               answer

dialup_device                ppdev1
    unix_device              ttyb
    line_speed               38400
    modem                    Cardinal V.34/V.FC 28.8 data/fax
    call_setup               answer

papyrus からの呼の受信に使用する server 上のユーザーアカウント

Graphic

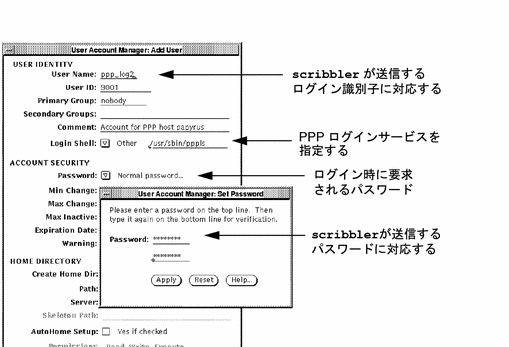

scribbler からの呼の受信に使用する server 上のユーザーアカウント

Graphic
