To Install the HBA

1. Attach an antistatic wrist strap and remove the HBA from its protective bag.

   See Observing ESD and Handling Precautions.

2. Ensure that the jumper settings on the HBA are in the desired position.

   The jumpers are set at the factory, and you usually do not need to change them. See HBA Card Layout for information about the location of the jumpers on the HBA.

3. If a removable memory option is present, ensure that the module is seated firmly in the dual-inline memory module (DIMM) socket.

   ---

   Note - This HBA has on-board DDR2 memory.

   ---

4. Refer to the service or installation manual for your particular system for instructions on how to locate the 210-pin mezzanine plug connector on the board of the system.
5. Insert the notch of the HBA into the bracket in the system (located near the mezzanine plug connector), and then connect the 210-pin mezzanine plug connector on the HBA to the 210-pin mezzanine plug connector on the system board, as shown in Installing Oracle's Sun Storage 6 Gb SAS REM RAID HBA.

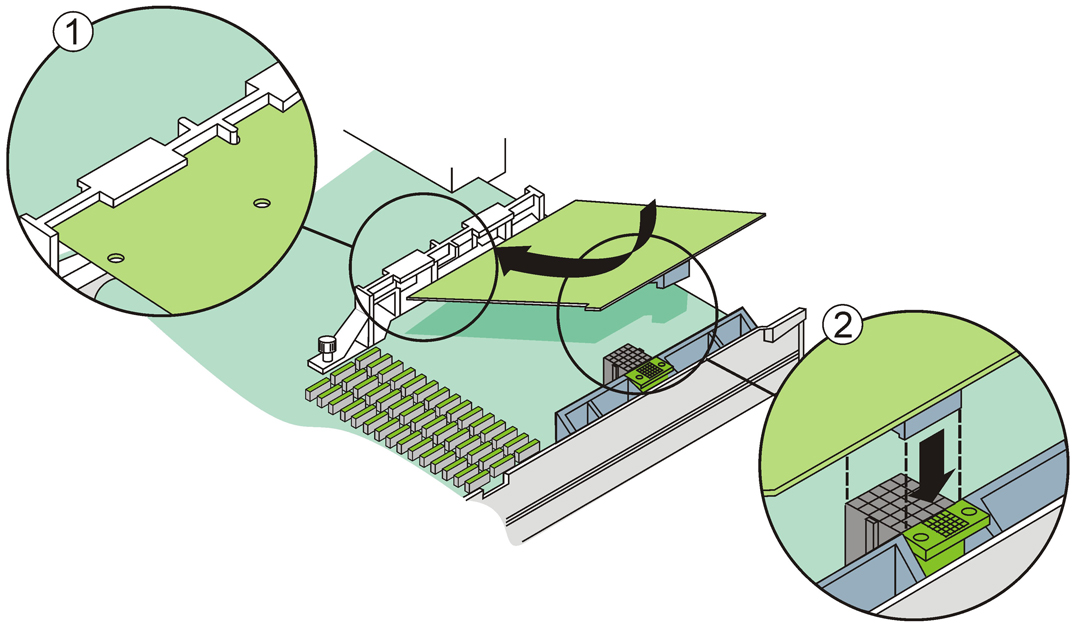

   Figure 2-1  Installing Oracle's Sun Storage 6 Gb SAS REM RAID HBA



   Figure Legend

   1 Notch in the HBA and the bracket

   2210-pin mezzanine plug connectors on the system and the HBA

   ---

   Note - The configuration of the enclosure might not be the same as shown in this illustration.

   ---

6. Press down gently and firmly to seat the HBA in the mezzanine plug connector.
