Setting Up the Sun Fire X2270 Server Hardware
|
This chapter describes how to set up the Sun Fire
X2270 server hardware. It includes the following topics:
Safety and Compliance Information
Refer to the following documents for safety information regarding the Sun Fire X2270 Server:
- Important Safety Information for Sun Hardware Systems (816-7190): printed document included in the ship kit.
- Sun Fire X2270 Server Safety and Compliance Manual (820-5605): available online by navigating to the Sun Fire X2270 Server document page from the following URL:
http://docs.sun.com/app/docs/prod/servers
Planning the Installation Process

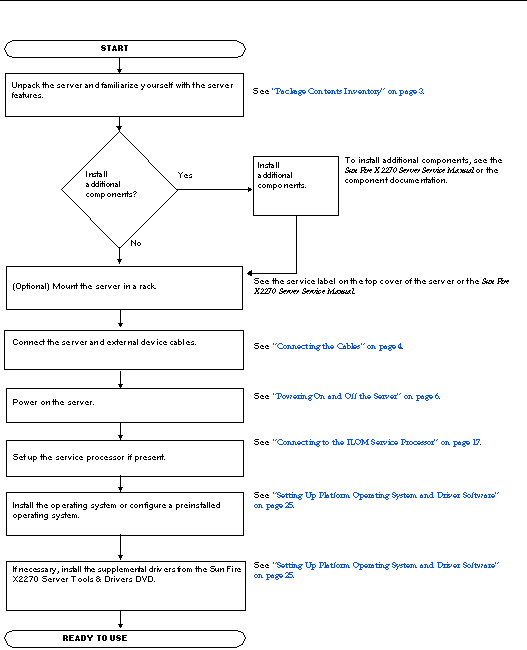

Use the flowchart in FIGURE 1-1 to assist you with the server installation process.
FIGURE 1-1 Sun Fire X2270 Server Installation Process
Package Contents Inventory
Carefully unpack all server components from the packing cartons. The following items might be packaged with your Sun Fire X2270 Server:
- Sun Fire X2270 Server Base Documentation Kit, which includes the following:
- Sun Fire X2270 Server Getting Started Guide (820-5610)
- License and safety documentation
- (Optional) Sun Fire X2270 Server Documentation and Media Kit, which includes the following:
- Sun Fire X2270 Server Installation Guide (820-5604)
- Accessing Sun Product Documentation (820-0541)
- Tools & Drivers DVD (includes drivers and additional software)
- Sun Installation Assistant (SIA) CD/DVD
- SunVTS CD/DVD
- Additional license and safety documentation
- Hardware applicable to the system, such as adapters and network cables
- Power cord packaged separately with country kit
- (Optional) Rackmount kit containing rack rails and installation instructions
Installing the Server Into a Rack With Optional Slide Rails
The service label on the top cover of the Sun Fire X2270 Server contains instructions for installing your server into a four-post rack using the orderable slide-rail and cable management arm options. Detailed instructions can also be found online in the Sun Fire X2270 Server Service Manual (820-5607) at the following URL:
http://docs.sun.com/app/docs/prod/servers
The slide rails for the Sun Fire X2270 Server are compatible with a wide range of equipment racks that meet the following standards:
- Four-post structure (mounting at both front and rear). Two-post racks are not compatible.
- Rack horizontal opening and unit vertical pitch conforming to ANSI/EIA 310-D-1992 or IEC 60927 standards.
- Distance between front and rear mounting planes of 610 mm to 915 mm
(24 inches to 36 inches).
- Clearance depth (to front cabinet door) in front of front rack mounting plane of at least 25.4 mm (1 inch).
- Clearance depth (to rear cabinet door) behind front rack mounting plane of at least 800 mm (31.5 inches) with the cable management arm, or 700 mm (27.5 inches) without the cable management arm.
- Clearance width (between structural supports and cable troughs) between front and rear mounting planes of at least 456 mm (18 inches).
|
Caution - Always load equipment into a rack from the bottom up so that the rack will not become top-heavy and tip over. Deploy your rack’s anti-tilt bar to prevent the rack from tipping during equipment installation.
|
|
|
Caution - Ensure that the temperature in the rack does not exceed the server’s maximum ambient rated temperatures. Consider the total airflow requirements of all equipment installed in the rack, to ensure that the equipment is operating within its specified temperature range.
|
Connecting the Cables
See FIGURE 1-2 and TABLE 1-1 for the locations of the connectors.
 To Connect the Cables
|
Connect the server and external devices as follows:
1. Connect a serial null modem cable to the serial port.
The default serial port speed is 9600 baud with no flow control.
2. Connect Ethernet cables to the RJ-45 LAN Gigabit Ethernet ports as needed (see FIGURE 1-2).
Note the following guidelines regarding the Ethernet (NET) ports:
- The Network Management (NET MGT) Ethernet port on the optional SP module, or the Serial Management (SER MGT)/ RS-232-F RJ-45 serial port can be used for server management and network access.
See Setting Up the Sun Fire X2270 Server Software for additional information about setting up the service processor (SP) for remote system management.
- The two Gigabit Ethernet ports (NET-0 and NET-1) are the primary network interface controllers (NICs) and should be used for network installation of the operating system and drivers.
3. Connect any additional external devices to the server’s other ports.

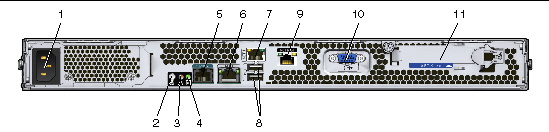

FIGURE 1-2 Back Panel
[ D ]
TABLE 1-1 Back Panel
|
Label
|
Connector/Slot
|
Label
|
Connector/Slot
|
|
1
|
AC Power connector
|
7
|
Gigabit Ethernet port (NET-1)
|
|
2
|
White Locate LED
|
8
|
USB 2.0 ports (2)
|
|
3
|
Amber Fault LED
|
9
|
Network Management (NET MGT) Ethernet port (available only in systems that contain an SP module)
|
|
4
|
Green Power/OK LED
|
10
|
HD15 video connector (available only in systems that contain an SP module)
|
|
5
|
Serial Management (SER MGT) / RS-232-F
RJ-45 serial port
|
11
|
PCI Express slot
|
|
6
|
Gigabit Ethernet port (NET-0)
|
|
|
Powering On and Off the Server
You only need to apply standby power to the server at this point so that you can perform initial configuration of the service processor (SP). Procedures for powering on to main power mode and for shutting down from main power mode are also included in this section, for your reference.
| Note - The procedures for applying standby power for initial service processor configuration are applicable only to systems that contain an optional service processor module. If your system does not contain a service processor, continue with the instructions To Power On Main Power Mode.
|
To Apply Standby Power for Initial Service Processor Configuration
|
Use this procedure to apply standby power to the service processor before initial configuration.
|
|
Caution - Do not operate the server without all fans, component heatsinks, air baffles, and the cover installed. Severe damage to server components can occur if operated without adequate cooling mechanisms.
|
1. Connect a grounded AC power cord to the AC power connector on the back panel of the server and to a grounded AC power outlet.
In standby power mode, the Power/OK LED on the front panel flashes, indicating that the SP is receiving power. See FIGURE 1-3 and TABLE 1-2 for the Sun Fire X2270 with removable hard disk drives (HDDs) or solid state drives (SSDs), and FIGURE 1-4 and TABLE 1-3 for the Sun Fire X2270 with fixed HDDs or SSDs.

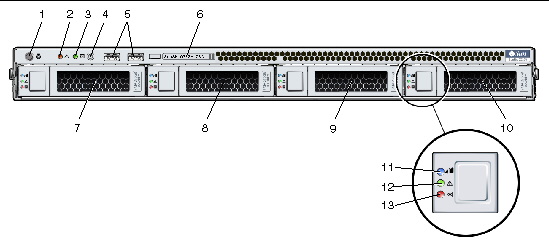

FIGURE 1-3 Front Panel With Removable Hard Disk Drives or Solid State Disk Drives
[ D ]
TABLE 1-2 Front Panel With Removable Hard Disk Drives or Solid State Drives
|
Label
|
Button/LED/Port
|
Label
|
Button/LED/Port
|
|
1
|
White Locate LED/Switch
|
8
|
Optional removable SATA HDD/SSD 1
|
|
2
|
Amber Fault LED
|
9
|
Optional removable SATA HDD/SSD 2
|
|
3
|
Green Power/OK LED
|
10
|
Optional removable SATA HDD/SSD 3
|
|
4
|
Power button
|
11
|
Disk Ready-to-Remove LED-
non-operational
|
|
5
|
USB 2.0 ports (2)
|
12
|
Disk Service Action Required LED-
non-operational
|
|
6
|
System serial label
|
13
|
Green Disk OK LED-indicates that data is being read from or written to the HDD/SSD
|
|
7
|
Optional removable SATA HDD/SSD 0
|
|
|

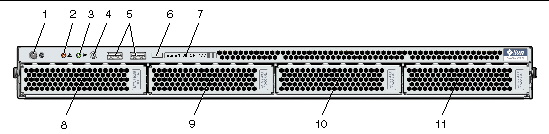

FIGURE 1-4 Front Panel With Fixed Hard Disk Drives or Solid State Drives
[ D ]
TABLE 1-3 Front Panel With Fixed Hard Disk Drives or Solid State Drives
|
Label
|
Button/LED/Port
|
Label
|
Button/LED/Port
|
|
1
|
White Locate LED/Switch
|
7
|
System serial label
|
|
2
|
Amber Fault LED
|
8
|
Optional fixed SATA HDD/SSD 0
|
|
3
|
Green Power/OK LED
|
9
|
Optional fixed SATA HDD/SSD 1
|
|
4
|
Power button
|
10
|
Optional fixed SATA HDD/SSD 2
|
|
5
|
USB 2.0 ports (2)
|
11
|
Optional fixed SATA HDD/SSD 3
|
|
6
|
HDD/SSD Activity LED
|
|
|
2. Continue with initial software setup tasks, as described in Chapter 2.
| Note - At this point, standby power is supplied only to the service processor and power supply fans. You can proceed to Chapter 2 of this guide to begin initial configuration. Do not apply main power to the rest of the server until you are ready to install a platform operating system.
|
To Power On Main Power Mode
|
| Note - If your system does not contain an SP module, begin with Step 2.
|
To power on main power for all server components:
1. Verify that the power cord has been connected to the server. If your server contains an SP module, verify that standby power is on.
For servers with an SP module, in standby power mode, the Power/OK LED on the front panel flashes. Depending on your server configuration, see either FIGURE 1-3 or FIGURE 1-4.
2. Press and release the Power button on the server front panel.
When main power is applied to the full server, the Power/OK LED next to the Power button lights and remains lit.
| Note - The first time the server powers on, the power-on self-test (POST) can take up to one minute to complete.
|
To Power Off Main Power Mode
|
To power off the server from main power mode, use one of the following two methods:
- Graceful shutdown: Press and release the Power button on the front panel. This causes Advanced Configuration and Power Interface (ACPI) enabled operating systems to perform an orderly shutdown of the operating system. Servers not running ACPI-enabled operating systems will shut down to standby power mode immediately.
- Emergency shutdown: Press and hold the Power button for at least four seconds to force main power off and enter standby power mode. When the main power is off, the Power/OK LED on the front panel will begin flashing (only in systems that contain an SP module), indicating that the server is in standby power mode.
|
|
Caution - To completely power off the server, you must disconnect the AC power cords from the back panel of the server.
|
Setup Troubleshooting and Support
This section contains information to help you troubleshoot minor server setup problems. It includes the following topics:
Troubleshooting the Sun Fire X2270 Server Setup
If you experience problems while setting up your server, refer to the troubleshooting information in TABLE 1-4.
TABLE 1-4 Troubleshooting Procedures
|
Problem
|
Possible Solution
|
|
Server powers on, but the monitor does not.
|
- Is the Power button for the monitor turned on?
- Is the monitor power cord connected to a wall outlet?
- Does the wall outlet have power? Test by connecting another device.
|
|
CD or DVD does not eject from the media tray when you press the Eject button.
|
- Move the mouse or press any key on the keyboard. The drive might be in low power mode.
- Use the utility software installed on your server to eject the CD.
- Ensure that the media in the device is not in use and is not mounted by the operating system.
|
|
No video is displayed on the monitor screen.
|
- Is the monitor cable attached to the video connector?
- Does the server have an SP module? If the server does not contain an SP module or an optional video card, video is routed to the server serial port. Connect the monitor to the server serial port.
- Does the monitor work when connected to another system?
- If you have another monitor, does it work when connected to the original system?
- If, after POST and BIOS complete, you no longer see video output on your monitor and only see a flashing cursor, check the configuration of the operating system to determine whether it is configured to redirect its output exclusively over the serial line.
|
|
Server does not power on when the front panel Power button is pressed.
|
Keep notes on the following situations in case you need to call Sun service:
- Is the Power/OK LED illuminated on the front of the system? (Ensure that the power cord is connected to the system and to a grounded power supply.)
- Does the wall outlet have power? Test by connecting another device.
- Does the monitor synchronize within five minutes after power on? (The green LED on the monitor stops flashing and remains illuminated.)
|
|
Keyboard or mouse does not respond to actions.
|
- Verify that the mouse and keyboard cables are connected to the on-board USB 2.0 ports on the server.
- Verify that the server is powered on and the front Power/OK LED is illuminated.
|
|
Server appears to be in low power mode, but the Power/OK LED does not blink.
|
The Power/OK LED only blinks when all server components are in low power mode. A tape drive might be connected to your server. Because tape drives do not enter low power mode, the Power/OK LED does not blink.
|
|
Server is hung or frozen: No response from mouse or keyboard or any application.
|
Try to access your system from a different server on the network:
- On another system, type ping IP_address_of_X2270
- If a response is returned, then try logging in to the Sun Fire X2270 Server using either telnet, ssh or rlogin.
- If you successfully log in, list the running processes using the ps command.
- Kill any processes that appear unresponsive or should not be running, by using the kill process_ID command.
- Check the responsiveness of the Sun Fire X2270 Server after each process is killed.
If the above procedure does not work, power cycle the server:
- Press the Power button to power off the server and wait 20 to 30 seconds.
- Press the Power button again to power on the system.
|
| Note - For additional troubleshooting information, see the Sun Fire X2270 Server Service Manual (820-5607).
|
Contacting Support
If the troubleshooting procedures in this chapter fail to solve your problem, use TABLE 1-5 to collect information that you might need to communicate to the support personnel. TABLE 1-6 lists the Sun web sites and telephone numbers for additional technical support.
TABLE 1-5 System Information Needed for Support
|
System Configuration Information Needed
|
Your Information
|
|
Sun service contract number
|
|
|
System model
|
|
|
Operating environment
|
|
|
System serial number
|
|
|
Peripherals attached to the system
|
|
|
Email address and phone number for you and a secondary contact
Street address where the system is located
|
|
|
Superuser password
|
|
|
Summary of the problem and the work being done when the problem occurred
|
|
|
Other Useful Information
|
|
IP address
|
|
|
Server name (system host name)
|
|
|
Network or internet domain name
|
|
|
Proxy server configuration
|
|
