The Oracle Hardware Installation Assistant application has a autorun utility to assist in the creation of the netboot.img file. To use the autorun utility, mount the Oracle Hardware Installation Assistant CD/DVD or CD/DVD ISO image.
Before You Begin
See How to Download the Oracle Hardware Installation Assistant PXE Image Files.
The initial screen for the autorun utility screen appears.

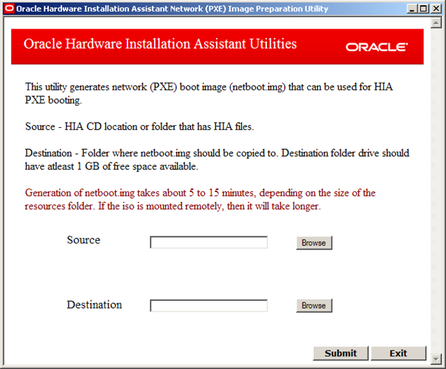

The autorun PXE Preparation utility appears.
Note - The destination folder must have at least 1 GB of free space available.
Note - The netboot.img file can take up to 15 minutes to generate. If the ISO file is mounted remotely, then it might take longer.
Next Steps
To launch the Oracle Hardware Installation Assistant application in attended mode, see Launching an Attended PXE-Based Session.
To launch the Oracle Hardware Installation Assistant application in unattended mode, see Performing Unattended PXE-Based Provisioning Tasks.
|
