2 SPARCserver 1000 System Procedures





This chapter contains the procedures for installing or replacing SIMMs and NVSIMMs in the SPARCserver 1000 system.

2.1 Halting the System

To halt the system safely:

    1. Back up the system files and data, if necessary.
    2. Notify users that the system is going down.
    3. Halt the system using the appropriate commands.
    4. Wait for the system-halted message and the boot monitor prompt.
    5. Turn the key switch located on the front panel of the server to the Standby position.
    6. Turn the AC power switch on the system back panel off.

Caution -

The system chassis power must be turned off, and the AC power cord must remain plugged in to ensure a proper ground.

2.2 Removing a System Board

Caution -

Use a cushioned ESD mat for these procedures. There are breakable parts on the bottom of the system board.

    1. Unfasten any cable connectors from the board back panel and set them aside.

    First disconnect any keyboard, SCSI, network, or other cables connected to the back panel. Label any cables that are similar in appearance, to avoid confusion later.

    2. Remove the two screws that hold the system board to the card cage.

    See Figure 2-1. Set the screws aside for later reinstallation.

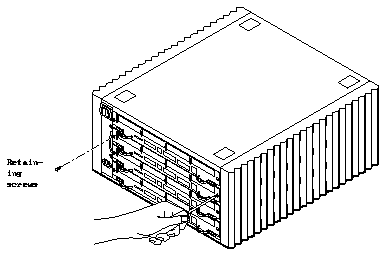

    Figure 2-1 Removing the System Board Retaining Screws

    3. Pull the curved ends of both extraction levers outward simultaneously to release the board from the backplane connectors.

    See Figure 2-2.

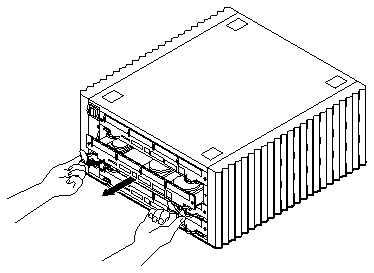

    Figure 2-2 Removing the System Board

    4. Holding the board by both of the extraction levers, gently slide the board out of the card cage.

Caution -

The board has a cutout on the right-hand side, therefore, the right side of the board will clear the card guides before the left side. Grip the edges of the board firmly or the board could fall and damage components.

    5. Place the board on a cushioned ESD mat.

    Be careful not to flex the board while moving it.

2.3 Finding Socket Locations

If replacing faulty SIMMs, refer to the location numbers (also known as J-numbers or U-numbers) shown in Figure 2-3.

If upgrading memory, install sets of SIMMs or NVSIMMs as full groups of four. When upgrading more than one board, start with bank 0 on the lowest- numbered board. Distribute SIMM sets in all group 0 locations before filling group 1 locations.

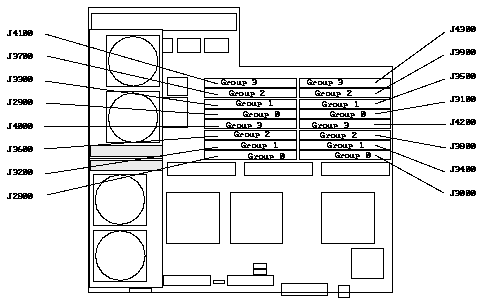

    Figure 2-3 SIMM Socket Locations on the SPARCserver 1000 Board

2.4 Removing a SIMM or NVSIMM

To remove a SIMM from a system board:

    1. Locate the faulty SIMM by matching the location number displayed by POST with the J-number shown in Figure 2-3.
    2. Orient the system board so that the backplane connector faces you.
    3. To unlock a SIMM, press the locking tabs toward the outside of the socket and tilt the SIMM forward.

    See Figure 2-4.

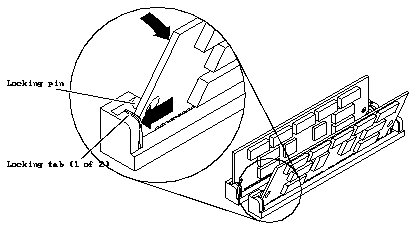

    Figure 2-4 Unlocking a SIMM

    4. Unlock two more SIMMs to make space for the faulty SIMM to tilt forward far enough to be free of the locking pins.

    See Figure 2-5.

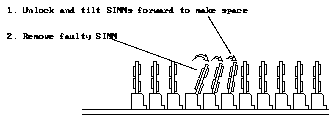

    Figure 2-5 Creating Space to Remove a SIMM

    5. For NVSIMM only:

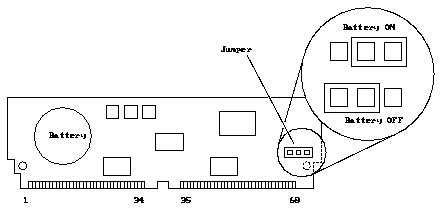

    Figure 2-6 NVSIMM Jumper Location

    6. Store or ship the SIMM or NVSIMM in an antistatic bag.

2.5 Installing a SIMM or NVSIMM

Note - Do not mix SIMMs of different capacities in the same bank.

    1. Orient the system board so that the XDBus connectors face you.
    2. Remove the SIMM (or NVSIMM) from the antistatic package.
    3. For NVSIMM only: if the battery is not already activated, move the jumper to the ON position. See Figure 2-6. If the jumper is already in the ON position, do not move it.

Caution -

Never move the jumper after the battery has been turned on, or data contained in the NVSIMM will be lost.

    4. Hold the SIMM at the edges, with pin 1 to your left.

    The large alignment notch (see Figure 1-1) is at the left side.

    5. Guide the SIMM into the slot so that the SIMM connector pads touch the bottom of the socket.

    Align the bottom alignment notch on the SIMM with the tab in the center of the socket. The locking pins (see Figure 2-4) must align with the holes in the sides of the SIMM.

    6. Tilt the SIMM upright to lock it in place.

    The locking tabs should automatically lock around the SIMM.

Note - The SIMM should require very little insertion force. If there are difficulties, the replacement SIMM may be backward. The alignment holes and the alignment notch must align exactly with corresponding parts of the socket.

    7. Lock back into place any SIMMs that were loosened in the SIMM removal steps.

2.6 Replacing a System Board

    1. Carefully insert the board in the proper slot in the card cage, ensuring that the board does not slip out of the left and right card guides.

    The component side of the board must face up.

    2. Ensure that the extraction levers are in the outward position as you slide the board toward the backplane connectors.

    See Figure 2-2. The board will not seat fully unless the levers are in this starting position.

Caution -

DO NOT FORCE any board into a slot, this can cause damage to the board and system. The board should insert and seat smoothly. If it binds, remove it, and inspect the card cage slot for any obvious obstructions. Also inspect both the board and the backplane for bent pins or other damage.

    3. Use the extraction levers to seat the board.

    Swing both extraction levers simultaneously into the locked position. Do not press on board to seat it - doing so will damage the connector pins.

    4. Install two screws to secure the board to the card cage.

    See Figure 2-1.

    5. Connect any applicable interface cables to the system board back panel.

2.7 Restarting the System

To verify that the hardware was installed properly, run the POST program.

    1. Turn on power to the monitor.

    If the system does not have a monitor, connect an TTY terminal to serial port A on the system master board and configure the terminal software. Refer to the instruction manual shipped with the terminal for configuration instructions.

    The most commonly-used set-up is:

Note - The parameters listed above may differ from the customer site settings. See the set-defaults and printenv commands in the manual, OpenBoot Command Reference.

    2. Turn the server front panel key switch to 1 in order to boot the system and run normal system diagnostics.

    Watch the diagnostics display for error messages. POST should finish in approximately 60 seconds.

    3. Watch the boot display to confirm that the system memory total includes the newly installed memory modules.
    4. After the system finishes booting, log in and resume normal operation.
