Netra 150 Server Hardware Installation Manual

UPS Vendors

An external disk enclosure can be powered by a quality, commercially available UPS with the following characteristics:

The following is a list of recommended uninterruptible power supplies:

Table B-1 Recommended Uninterruptible Power Supplies

Manufacturer

Deltec

American Power Corp.

Power rating

600 VA

450 VA

Product line

PowerRite Pro

SmartUPS

Model number

PRA600a-SM

SU450

Contact info

www.deltecpower.com

1-800-854-2658

1-619-291-4211 in California

www.apcc.com

Sun Service/Express Part Number

110V UPS: 370-2240-02

110V UPS: SX-SU450

To Connect the Backup Power System to an External Disk Enclosure

  1. Verify that you have a Fast-Wide SCSI card installed in SBus slot 1 in the Netra 150 server (Figure B-1).

    If you do not have a Fast-Wide SCSI card installed in SBus slot 1 in the Netra 150 server, follow the instructions in "Installing an SBus Card" to install a Fast-Wide SCSI card in SBus slot 1, then return here.

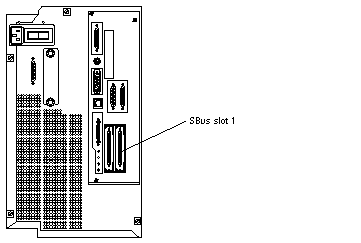

    Figure B-1 Connecting an External Disk Enclosure to the Netra NFS Server

    Graphic

  2. Connect the SCSI cable from the external disk enclosure to the SCSI port on the Fast-Wide SCSI card installed in SBus slot 1 in the Netra 150 server (Figure B-1).

    Do not connect the external disk enclosure to any SCSI port other than the SCSI port on the Fast-Wide SCSI card installed in SBus slot 1 in the Netra 150 server.

  3. Plug the power cord from the external disk enclosure to the power output plug on the backup power system.

  4. Plug the power cord from the backup power system into the same power outlet as the Netra NFS server.

    Note -

    Do not make any other connections to the serial ports or network ports on the backup power system. The backup power system should not communicate with the Netra NFS server or with any other system. Also, do not use the backup power system to supply power to any equipment other than a single external disk enclosure.

    Figure B-2 shows the proper SCSI and power cabling for the external disk enclosure, backup power system, and Netra NFS server.

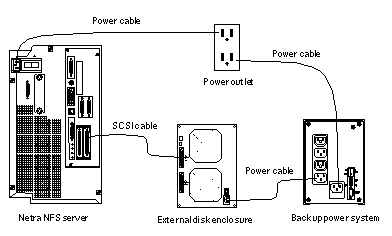

    Figure B-2 Proper Cabling for an External Disk Enclosure, Backup Power System and Netra NFS Server

    Graphic

  5. Power on the backup power system.

    Refer to the manual that you received with your backup power system for those instructions.

  6. Power on the external disk enclosure.

    Refer to the manual that you received with your external disk enclosure for those instructions.

  7. Turn the power switch at the rear of the Netra 150 server to the ON (|) position (Figure B-3).

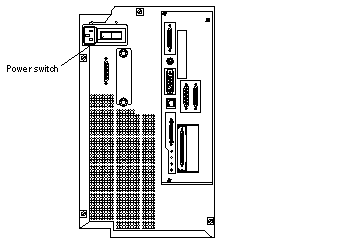

    Figure B-3 Powering On the Netra NFS Server

    Graphic

  8. Go to the browser that you are using to administer your Netra NFS system.

    If you do not already have a browser running to administer your Netra NFS system, follow these instructions to bring one up:

    1. Start a browser on a client system.

    2. Open the following URL:

      http://
netra:81

      where netra is the host name or host address for your Netra server. The Netra password screen is displayed.

    3. Enter setup for the User ID and setup for the Password.

      The Netra Welcome page is displayed.

    4. In the Netra Welcome page, select Administration.

      The Main Administration page is displayed.

  9. Select Network Services and Storage Devices Administration: Storage Management > Advanced Options > File System Battery Backup Administration.

    The File System Battery Backup Administration screen is displayed (Figure B-4).

    Figure B-4 File System Battery Backup Screen

    Graphic

  10. Find the line for the file system and metadevice for the external disk enclosure and click the Yes button under the Battery Backed? column.

    This tells the Netra NFS 1.1 software that the file system for the external disk enclosure is battery-backed.

  11. Click OK.

    A confirmation window is displayed, showing the file systems that are battery-backed for your Netra NFS system.
