Sun WorkShop TeamWare 2.1 User's Guide

Versioning Window

The Versioning main window (see Figure 12-1) displays the directories and SCCS files of the loaded directory.

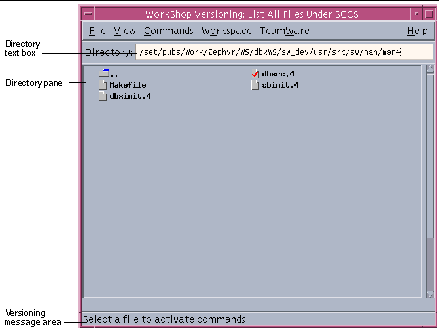

Figure 12-1 Versioning Window

Graphic

File menu

Provides commands for managing files

View menu

Provides commands to control and update the icons shown in the directory pane

Commands menu

Provides commands for checking files in and out

Workspace menu

Provides commands for finding, deleting, and moving files under SCCS control

TeamWare menu

Provides commands for starting other TeamWare tools

Directory text box

Specifies the directory to view

Directory pane

Displays icons for all loaded directories and files under SCCS control

Versioning message area

Displays messages about operations in the Versioning window

A file checked out from SCCS is marked with a check mark.

Directories are shown whether they contain files which are under SCCS control or not. A directory is a container for files and directories and can possibly contain SCCS files and directories further down the hierarchy. Files are only shown in the Versioning window if they are under SCCS control. To look at the non-SCCS files in a directory, use the Check in New window.
