Setting Up PeopleSoft Project Costing Control Data

This chapter provides overviews of project ChartFields, general control data, project-related control data, activity-related control data, and transaction-related control data and discusses how to:

Click to jump to parent topicUnderstanding Project ChartFields

ChartFields store the chart of accounts and provide the basic structure to segregate and categorize transactional and budget data.

See Defining and Using ChartFields.

The PeopleSoft system provides these six project ChartFields:

Use the Standard ChartField Configuration page (STANDARD_CF_TMPLT) to modify these project ChartField attributes:

The Project Business Unit, Activity, Source Type, Category, and Subcategory ChartFields do not appear for selection in the IntraUnit Related ChartField drop-down list on the Standard ChartField Configuration page.

Note. The Analysis Type field (ANALYSIS_TYPE) is not a project ChartField; therefore, it does not appear in the Standard ChartField Configuration page. However, the Journal Lines page (JOURNAL_LN_FS) includes the Analysis Type field with the project ChartFields in the Journal Line Data grid. If you reorder the project ChartFields on the Standard ChartField Configuration page, the Analysis Type field retains its position between the Activity and Source Type ChartFields on the Journal Lines page.

Click to jump to top of pageClick to jump to parent topicSource Types

Project Costing uses transactions to track, analyze, and report on actual and planned project costs. You assign source types to individual transactions to identify the transaction's purpose.

Source types can be as general or as specific as needed. For example, you can use a Labor source type to track total project labor costs, or use overtime labor and standard labor source types to track overtime and standard labor separately.

These source types are necessary for Project Costing source groups, reports, and processes to function properly; if not implemented, these source types must still be configured:

Source Type

Description

AFUDC

AFUDC Interest

DIRCT

Direct Costs

LABOR

Labor

MATER

Materials

OVER

Overhead

Click to jump to top of pageClick to jump to parent topicCategories and Subcategories

Categories and subcategories further define source types. You can combine categories and subcategories in source groups for reporting and analysis. Although defining categories and subcategories is optional, using them provides greater flexibility and granularity for tracking and analyzing costs.

For example, you can divide a labor source type into different categories of labor, such as architect labor, carpenter labor, and plumber labor, and use subcategories for regular hours and overtime hours. By using these categories and subcategories, you can track items such as total labor costs for a project, total overtime hours, architect overtime hours, and carpenter standard hours.

Click to jump to top of pageClick to jump to parent topicRelating Source Types, Categories, and Subcategories

Source types, categories, and subcategories provide flexibility for defining transactions. You can define relationships between these fields to control data-entry options for specific fields, which reduces the possibility of error.

The relationships can be one-to-one or one-to-many. If you relate source types to specific categories, and assign a source type to a transaction, you can assign a category only if it is related to the source type. For example, a transaction with a labor source type can only be entered in a category that is related to labor by its definition. The same is true for relationships between categories and subcategories.

To enable relationships between source types, categories, and subcategories, select Related as the Category Edit Option and SubCategory Edit Option on the Project Costing Definition page (BUS_UNIT_TBL_PC).

See Creating Project Business Units.

Defining relationships between source types, categories, and subcategories is optional. If you do not establish relationships, the system does not limit the categories and subcategories that are available for selection.

Click to jump to parent topicUnderstanding General Control Data

By using control data, you can group Project Costing elements to facilitate system processing, increase system performance, and aid in analyzing and reporting project data. This section provides an overview of three kinds of general control data:

Click to jump to top of pageClick to jump to parent topicAsset Profiles

Asset profiles are templates that contain standard depreciation criteria for an asset type and its corresponding asset books. Profiles help reduce data entry and ensure consistency and accuracy when you add assets. You can use profile data as default values, and you can override any field that is in the asset profile when you enter assets into the system. You set up asset profiles in PeopleSoft Asset Management if you use that application. If you don't use PeopleSoft Asset Management, you must set up asset profiles in Project Costing before you can summarize transactions by profile or by asset.

You must set up at least one asset profile before any assets can be added to the system. Set up asset profiles to match most, if not all, of the major asset categories you track on the books. Asset profiles can range from standard categories, such as land or furniture and fixtures, to more detailed categories, such as computers, phones, and fax machines.

Each asset profile has a unique profile ID that the system uses to group profiles by type. For example, you can define automobile profiles as autos, autos-luxury, and autos-leased.

See Also

Managing Assets

Click to jump to top of pageClick to jump to parent topicTransaction Codes

You can use transaction codes to deal with exceptions and specific cases without creating a transaction type for each case. Add transaction codes to resource transactions as an additional key, and define accounting rules for transactions containing those transaction codes. The accounting rules for those resource transactions can then use the same transaction types but specify different accounts. For example, transaction codes can identify costs specifically for month-end or year-end processing.

Using transaction codes is optional.

Click to jump to top of pageClick to jump to parent topicTransaction Types

Accounting rules determine how project transactions are translated into entries that are sent to the general ledger. Transaction types define generic transactions that are used to define an accounting rule.

Transaction rows that belong to the transaction type are assigned to a general ledger account based on an accounting rule. By defining transaction types in a separate table, you save time and reduce errors when you define accounting rules.

Standard transactions involve moving money from one account to another within the same general ledger business unit. Intercompany transactions involve moving money from an account in one general ledger business unit to an account in another general ledger business unit. Additional transaction rows are required for intercompany transactions.

Click to jump to parent topicUnderstanding Project-Related Control Data

Project-related control data consists of required and optional information that you use primarily to create new projects. This section provides overviews of:

Click to jump to top of pageClick to jump to parent topicIntegration Templates

Project Costing uses integration templates to share projects across multiple business units in PeopleSoft Asset Management, Purchasing, and General Ledger. For example, if you create an integration template that points to multiple general ledger business units, you can share a project across those specific business units. Integration templates also establish business units that are assigned to transactions by default.

You must assign an integration template to each new project. For example, if a company has an aerospace division and a utilities division, aerospace projects may use one general ledger business unit and utilities projects may use another general ledger business unit. Therefore, you will set up two integration templates—one to define the business unit integration for aerospace projects and one to define the business unit integration for utilities projects.

Each project integration template contains a specific set of general ledger business units. Integration templates provide the flexibility to define the integration between project business units and general ledger business units that best fit the organization's needs. You can set up the project and general ledger integration so that:

The system also uses integration templates to control access to general ledger business units. You can post transactions for a project only to a general ledger business unit that is specified in the integration template that is assigned to the project. The same control applies to purchasing business units. You can create requisitions in PeopleSoft Purchasing for a project only if the purchasing business unit is defined on the integration template for the project.

Click to jump to top of pageClick to jump to parent topicProject Types

The system uses project types to categorize projects for reporting and analysis. Additionally, you can assign a default rate set or rate plan to a project type for specific business units. When you create a new project and specify the project type, the system automatically attaches the default rate set or rate plan that is associated with the project type and business unit combination.

Using project types is optional.

See Also

Assigning and Tracking Rates

Click to jump to top of pageClick to jump to parent topicProject and Processing Statuses

Project Costing uses two statuses to convey where a project is in its life cycle—project status and processing status:

You can map these system-defined processing status types to project status types:

This table lists the status types that Project Costing delivers as sample data and their mappings to processing status types:

Status Type

Corresponding Processing Status Type

Status Effective Date

A (Approved)

Active

01/01/1900

B (Budgeted)

Pending

01/01/1900

C (Closed)

Inactive

01/01/1900

F (Forecasted)

Pending

01/01/1900

H (Hold)

Pending

01/01/1900

I (In Service)

Active

01/01/1900

O (Open)

Active

01/01/1900

P (Proposed)

Pending

01/01/1900

Z (Frozen)

Inactive

01/01/1900

Every project status must map to a processing status. You can modify project status types and the delivered mappings, but you must not delete or modify the delivered processing statuses.

Status Effective Dates

The status of a project is effective-dated. When you assign a new project status and effective date, the Project - Processing Status Link Application Engine program (PC_STAT_LINK) assigns the corresponding processing status based on the effective-dated mapping that you defined for the project status type.

When you create a new project manually in Project Costing, if the project start date equals or precedes the current date, the system assigns the project status effective date based on the project start date. If the project start date is in the future, the system assigns the project status effective date based on the current date.

You cannot change the project start date to an earlier date if there is no valid project status assigned to the project based on the effective date. In this situation, adjust the project status effective date before you change the project start date.

You can modify the project status on the Project Definitions - General Information page until you save a new project. After that, you must enter a new effective-dated row on the Project Definitions - Status page to change the project status.

Default Project Statuses for Integration with Other Applications

Use the Project Status Defaults page to specify default project statuses for each system-defined processing status for projects that are programmatically created by these applications:

Also use the Project Status Defaults page to specify both default project and processing statuses for projects that are programmatically created by project requests in an approved status in PeopleSoft Project Portfolio Management or PeopleSoft Program Management. Otherwise, the project request approval process fails.

As an example of using default project statuses for integration with other applications, assume that you create a project to model costs for a proposal in PeopleSoft Proposal Management. The system assigns the pending processing status, and assigns the default project status that is set up for pending projects that are created by project requests in PeopleSoft Proposal Management.

To change the project status for a project that is created by PeopleSoft Resource Management, Grants, Proposal Management, Project Portfolio Management, or Program Management, you select a project status that is mapped to a processing status on the Project Status Defaults page.

Process Flow

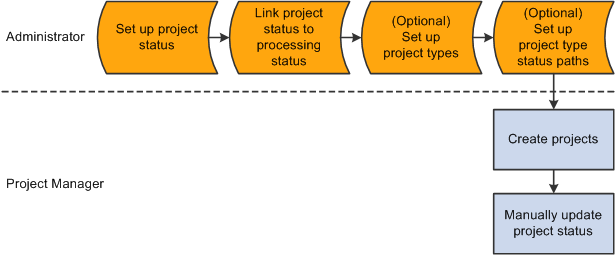

This diagram shows the process flow to set up project and processing statuses and to update a project status:

Setting up project and processing statuses

After you update the project status, the system:

  1. Determines if the corresponding processing status is a valid change based on the previous processing status.

    The processing status:

  2. Determines if the project status effective date is current or future-dated.

    An Application Engine process monitors project status effective dates and updates the processing status as necessary.

  3. Determines if a processing status change is valid.

    If the change is not valid, an error message appears.

  4. Determines if a project type status map exists for the project type.

    If a project type status map exists, the system determines if the project status change is valid based on the project type status path for that project type.

  5. Determines if a project event is defined for this project status change.

    If a project event is defined, the system triggers approval workflow.

  6. Updates project status and processing status.

Click to jump to top of pageClick to jump to parent topicProject Type Status Paths

Project type status paths combine project types and project status types to control the status progression through the life cycle of a project and activity. You can define custom project status paths for each project type and business unit combination.

For example, assume that you set up a project type status path for the project type of R&D (research and development) to manage the project life cycle. The status progression for this project type is:

  1. Proposed

  2. Budgeted

  3. Active or Closed

  4. Closed

In this example, users can change an R&D project from a proposed status only to a budgeted status. In other words, you cannot approve a project until it has been budgeted. You can change an R&D project from a budgeted status to an active status if the budget is approved, or to a closed status if the budget is not approved. When the R&D project is complete, you can change the status from active to closed. This project type status path restricts users from changing a closed project to any other status. In this way, you prevent users from reopening projects that were previously closed.

Select the Use Status Path check box on the Project Types page to use a project type status path for a specific project type. Use the Project Type Status Path page to define status paths.

After the system determines if a project status and the corresponding processing status are valid changes, the system determines if the project type status path is valid.

Note. You must coordinate the default project status for new projects with the project type status path rules that you enable for project types. For example, if the default project status for new projects is Proposed, the project type status path must include a valid path for projects in a Proposed status. You define the default project status for new projects on the Project Status Defaults page.

Click to jump to top of pageClick to jump to parent topicPhase Types

When you enter dates in a project schedule, the phase of the project that those dates represent can be useful information. For example, for a phase type of Clean Up, you can enter a begin cleanup date and an end cleanup date in the project schedule to track the time that is spent specifically on the Clean Up phase. Using phase types is optional.

Click to jump to top of pageClick to jump to parent topicProject Events

Project events are changes in the status of a project or an activity. For example, you can define a change in project status from Proposed to Approved as a project event that requires approval. A project event can be a change in project status between two consecutive status types, such as Proposed and Approved, or two nonconsecutive status types, such as Proposed and Closed. You must define project status types before you define project events. Using project events is optional.

Click to jump to parent topicUnderstanding Activity-Related Control Data

Activity-related control data consists of required and optional information that you use primarily to create new activities. This section provides overviews of:

Click to jump to top of pageClick to jump to parent topicQuality Types

Quality types identify the criteria on which you can rate activities for quality. For example, you can rate projects for quality based on accuracy, on-time performance, safety, or usability. Set up quality types that you can use to group and analyze activities with quality ratings that are based on the same criteria. Using quality types is optional.

Click to jump to top of pageClick to jump to parent topicStandard Activities

You can limit the number and types of activities that users can assign to projects, which facilitates reporting and analysis. Standard activities are predefined, keyed by setID, and based on project type. You can require users to select from a list of standard activities when they assign activities to projects.

To use standard activity functionality:

Using standard activities is optional.

See Also

Defining Projects

Click to jump to parent topicUnderstanding Transaction-Related Control Data

Transaction-related control data consists of required and optional information that you use primarily to create transactions. This section provides overviews of:

Click to jump to top of pageClick to jump to parent topicAnalysis Types

With the exception of programs (summary projects), each project is composed of, at the most basic level, transactions. Transaction rows in the Project Transaction table (PROJ_RESOURCE) contain the quantity and amounts associated with each transaction and all of the identifying information that accompanied those costs. Analysis types are assigned to individual transactions to identify different types of transactions, such as estimated costs, budgeted amounts, actual costs, and billed costs. For example, you can create an analysis type for the calculation of total budgeted amounts of the project compared to total actual costs, to see if the project is over or under budget at any time during the project.

A single transaction can result in multiple transaction rows as it moves through the system. For example, assume that a project has 1,000 USD budgeted for project labor. The actual cost of labor is 1,500 USD, and the amount of billing for the labor is 1,700 USD. The result is three transaction rows that record the same labor transaction as it moves from stage to stage through the project, as shown in this table:

Analysis Type

Transaction Type

Amount

BUD (Budget)

LABOR

1,000.00 USD

ACT (Actual costs)

LABOR

1,500.00 USD

BIL (Billing)

LABOR

1,700.00 USD

Many of the following analysis types are necessary for Project Costing analysis groups, reports, and processes to function properly. If you choose not to implement these analysis types, you still must configure these features. You can create additional analysis types for processing and analysis purposes.

Analysis Type

Description

ACT

Actual Cost

ASP

Express Asset % Distributions

BAJ

Billing Adjustment

BD1 through BD8

Total Cost Budget - Scenario 1 through Total Cost Budget - Scenario 8

BIL

Billable Amount

BLD

Billed Amount

BRT

Billing Retainage

BUD

Total Cost Budget

CAC

Cost Sharing Actuals

CAJ

Cost Share Commitment Adjust

CBA

Cost Budget Adjustments

CBU

Cost Sharing Budget

CCA

Closed Commitment Adjustments

CCO

Cost Sharing Commitment

CCR

Cost Share Commitment Reversal

CFA

Cost Sharing Finance and Administration

CGE

Cost Sharing General Ledger Expense

CLS

Asset Cost Summary

COM

Commitment including Purchase Order & Subcontractor

COR

Cost of Removal of Asset

CPY

Cost Share Payroll

CQR

Cost Share Requisition Reversal

CRQ

Cost Sharing Requisition

CRR

Cost of Removal Cost Summary

CRV

Commitment Reversals

CST

Costing (without PeopleSoft Contracts)

CV1 through CV4

Historical Cost Budget Version 1 through Historical Cost Budget Version 4

DEF

Billing Deferred Amount

DSC

Billing Discount

ESB

Proposal Management Bill Estimate

ESC

Proposal Management Cost Estimate

ETB

Bill Estimate to Complete

ETC

Cost Estimate to Complete

FBD

Fixed Cost Billed Amount

FCC

Completion Cost

FDF

Federal Distribution

FDL

Local Distribution

FDR

Fund Distribution Reversals

FDS

State Distribution

FND

Funds Distribution

FRD

Forward Pricing for Revenue

FRV

Fixed Cost Revenue Amount

FTC

Forecast Cost to Complete

GLE

GL (General Ledger) Expense

GLR

GL Revenue

GNT

Grant Reimbursement

IUP

Inter/Intra-Unit Payable

IUR

Inter/intra-Unit Receivable

MMC

Maintenance Management Costs

NPY

No Pay Time and Labor Actual

ODL

Over Distribution Limit

OFA

Offset Revenue

OLT

Over Limit Amount

ORD

Order

PAY

Time and Labor Actual

PCA

Profile Adjustment

PCL

Profile Cost Summary

PFS

Proceeds from Sale of Asset

PMR

Proposal Management Reversal

PRV

Billing Provisional Pricing

PSD

Purchase/Sold Time Discount

PSR

Proceeds from Sale Summary

PST

Purchase/Sold Time

RAJ

Released Retainage Adjustment

RB1 through RB3

Revenue Budget 1 through Revenue Budget 3

RBD

Revenue Budget

REB

Rebate

REQ

Requisition

RET

Retirement Cost

REV

Revenue

ROL

Revenue Over Limit

RRT

Released Billing Retainage

RRV

Requisition Reversals

RV1 through RV4

Historical Revenue Budget Version 1 through Historical Revenue Budget Version 4

SFA

Sponsor Finance and Administration

SHD

Shared Discount

SHR

Shared Revenue

SUT

Sales/Use Tax

TLA

Time and Labor Estimate

TLB

Time and Labor Estimate for Billing

TLC

Time and Labor Contractors

TLX

Cost from Time Traveler

TUG

Maintenance Management Tools Usage

UAJ

Prepaid Utilization Adjustment

UTL

Prepaid Utilization (Billing)

VAR

Variance

VIN

Not Recoverable Value Added Tax

WAJ

Withholding Adjustment

WFA

Waived Facilities and Administration

WRJ

Withholding Release Adjustment

WRL

Withholding Release

WTH

Withholding

WTO

Write-off

WWO

Withholding Write-off

Project Costing delivers cost sharing analysis types that are used exclusively by PeopleSoft Grants. If a transaction line for a PeopleSoft Grants project meets the criteria of cost sharing that is defined at the Grants business unit level, the system assigns the cost sharing analysis type to the transaction.

Click to jump to top of pageClick to jump to parent topicAnalysis Groups

You use analysis groups to:

Many analysis groups are necessary for Project Costing project analysis functions and mass changes to execute properly. If you choose not to use the analysis groups that are delivered with Project Costing, you still have to configure the analysis groups or create new ones to use with these functions. This table describes the analysis groups:

Analysis Group

Description

ACT

Actual Cost

ADJST

PC (Project Costing) Transaction Adjustment

ALL

All Analysis Types

AMCOR

Project Costing to Asset Management Cost of Removal

AMPFS

Project Costing to Asset Management Proceeds from Sale

BFEE

Billing Fee

BLD

Billed Transactions - Worksheet to Project Transaction table

BUD

Budgets

CBU

Cost Sharing Budget

CLOSE

Project Costing to Asset Management Asset Summary

COM

Commitments

COPY

Template Copy

COSTS

Estimated and Actual Costs

CRQ

Cost Sharing Requisition

CSCOM

Cost Share Commitment Balance

CSTSH

Cost Sharing Analysis Group

EAC

Estimate at Completion

FNA

Facilities and Administration

FOR2C

Forecast Cost at Completion

FREV

Forecast Revenue

GBUD

Grants Budgets

GL

General Ledger Analysis Types

GMACT

Grant Reporting Actual Expense

HBPV1 through HBPV4

Historical Budget Version 1 through Historical Budget Version 4

INT

Interest Calculation

LABOR

Labor Cost and Time

MMCST

Maintenance Management Costs

OPENC

Open Commitment Balance

PCADJ

Project Costing to Asset Management Profile Adjustment

PCBUD

All Projects Budget Types

PMBIL

Mgr Trans Review (Manager Transaction Review) - Billing

PMCST

Mgr Trans Review - Cost

PMEXP

Proposal Management - Expense

PMREV

Mgr Trans Review - Revenue

PMSHR

Mgr Trans Review - Sharing

PMTIM

Proposal Management - Time

POADJ

Purchasing Adjustments

PRECL

Project Costing to Asset Management Profile Summary

PSBLD

Billing to Project Costing

PSCST

Accounting Costs

PSDEF

Funds Distribution Defaults

PSDST

Funds Distribution

PSECC

Estimated Costs to Completion

PSITD

Inception to Date Costs

PSLMT

Limit Processing - Billing

PSREV

System Revenue

PSROL

Limit Processing - Revenue

PSRV2

GC (Government Contracting) System Revenue

PSTDR

Sharing

PSVP

If using variance pricing, use this analysis group to map a converted analysis type to its original analysis type during the Variance Pricing process (PC_VAR_PRICE). As a transaction progresses through the billing process, the analysis type is changed. For example, a BIL analysis type is changed to BLD when the transaction is invoiced in PeopleSoft Billing.

This can cause issues when trying to net new pricing rows with historic rows. Therefore, in the example, this analysis group assists the Variance Pricing process to map the BLD transaction row to the BIL transaction row.

You can modify this analysis group.

PSVPX

If using variance pricing, use this analysis group to prevent analysis types from being included in historical rows. For example, a sales tax row that is generated in Billing may be considered to be outside the contractual rate. This transaction carries the original resource from ID, and would normally have been included in the netting process and the historical rows.

You can modify this analysis group.

PSWKS

Billing Worksheet Grouping

RBUD

Revenue Budget Group

REQ

Requisitions

RFEE

Revenue Fee

SPACT

Grants Sponsor Actual Costs

SPENC

Grants Sponsor Commitments

UNBLD

Unbilled Transactions

VARY

Variance

Using Analysis Groups to Analyze Project Costs

You use analysis groups to define relationships among analysis types to analyze project costs using Project Costing pages, queries, or reports.

Creating an analysis group to analyze projects follows this process:

  1. Group the analysis types to include in the project analysis.

  2. Apply the appropriate multiplier to each analysis type to create a relationship.

A multiplier determines how amounts and quantities for a specific analysis type are factored into the analysis. The multiplier is applied to total quantities and amounts in all transactions identified by a specific analysis type. For example, to add amounts to the analysis, enter 1. To subtract costs from the analysis, enter −1. To add half of the amounts to the analysis, enter 0.5.

The easiest way to create analysis groups for analyzing projects is to start with an equation. An equation makes it easier to determine what multiplier to assign to an analysis type. For instance, to create an analysis group to determine whether or not a project is over budget, you might start with this equation: Budgets − Actuals = Budget-to-Cost Variance.

You assign a multiplier of −1 to the Actual Cost analysis type and a multiplier of 1 to the Total Cost Budget analysis type. When using this analysis group for online analysis or reporting, all actual costs from the analyzed project are subtracted from budgeted costs. If the result is a negative number, the project is over budget. To set up the analysis group so that a positive number means that the project is over budget, reverse the multipliers so that budgeted amounts are subtracted from actual costs.

You can apply multipliers to quantities for each analysis type included in an analysis group. When you create analysis groups to analyze project costs, multipliers will probably be the same for both the amount and the quantity.

Using Analysis Groups to Map Analysis Types

New projects or activities can be created from copies of existing projects and activities. You can specify an analysis group to map analysis types from the existing project or activity to the new project or activity. For example, when you create a new project from an existing project, you can create an analysis group that maps actual (ACT) transactions from the existing project to the newly created project as budget (BUD) transactions. By using analysis groups, you can also manipulate mapped amounts. For example, you can enter a multiplier of 2 to double the budgeted quantities and amounts in the new project.

Using Analysis Groups to Enhance System Performance

On some PeopleSoft Project Costing pages, analysis groups limit the number of resource transactions that appear on a page at one time. For example, when there are tens of thousands of transactions per project in the system, performance is greatly reduced if you try to access all of those transactions every time that you open a page. By using analysis groups, you can limit the number of transactions that appear on a page to transactions of specified analysis types.

To do this, create an analysis group that identifies a group of analysis types. When an analysis group is entered as part of the selection criteria, only the resource transactions that contain the analysis types specified in that analysis group are available for use on the page.

See Also

Creating and Defining Projects

Click to jump to top of pageClick to jump to parent topicSource Groups

The source groups in the following list are necessary for certain award analyses and processes delivered with PeopleSoft Grants to function properly. If you choose not to use the source types that are delivered with PeopleSoft Grants, you still have to configure these source groups or create new ones to be used with these features:

The high-level steps to establish source groups are:

  1. Define source types.

  2. Define resource categories.

  3. Define resource subcategories.

  4. Combine multiple source types for award analysis and billing.

  5. Add descriptions to resource groups.

Click to jump to top of pageClick to jump to parent topicTransaction Identifiers

Tiered pricing enables you to adjust the rate applied to cost transactions during the Pricing Application Engine process (PC_PRICING) based on quantities that accumulate against a contract line. This type of pricing applies to rate-based, contract-line processing only. Implementing tiered pricing requires that you create transaction identifiers, which are similar in concept to using analysis groups. Transaction identifiers provide users with the flexibility to identify and group project ChartField values and eliminate the need to identify the ChartField values each time they define tiered pricing for a new contract line.

Transaction limits, another feature that is available if you use PeopleSoft Contracts, also requires the use of transaction identifiers. Transaction identifiers enable you to apply specific limits to transactions with Project Costing ChartField values that match the contents of the transaction identifier for a specific contract line.

Note. You must use PeopleSoft Contracts to implement the Tiered Pricing and Transaction Limits features.

See Defining Transaction Identifiers.

Click to jump to parent topicSetting Up Project ChartFields

To set up project ChartFields, use these components:

Use these component interfaces to load data into the tables for this component:

This section discusses how to:

Click to jump to top of pageClick to jump to parent topicPages Used to Set Up Project ChartFields

Page Name

Definition Name

Navigation

Usage

Source Types

PROJ_RES_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Source Types, Source Types

Create and modify source types.

Categories

PROJ_CATG_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Categories, Categories

Create and modify categories.

Subcategories

PROJ_SUBCAT_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, SubCategories, Subcategories

Create and modify subcategories.

Relate Source Type/Category

PROJ_TYPE_CAT

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Relate Source Type/Category, Relate Source Type/Category

Relate source types to categories.

Relate Category/Subcategory

PROJ_CAT_SUB

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Relate Category/Subcategory, Relate Category/Subcategory

Relate categories to subcategories.

Click to jump to top of pageClick to jump to parent topicRelating Source Types to Categories

Access the Relate Source Type/Category page (Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Relate Source Type/Category, Relate Source Type/Category).

Category

Enter a category to associate with the displayed source type. Available values are based on the Project Type Category Prompt table (PROJ_TYPE_CAT). Add more rows to add additional categories.

Relationship

Enter a description of the relationship for each type and category combination.

Click to jump to top of pageClick to jump to parent topicRelating Categories to Subcategories

Access the Relate Category/Subcategory page (Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Relate Category/Subcategory, Relate Category/Subcategory).

Subcategory

Enter a subcategory to associate with the displayed category. Available values are based on the Project Subcategory Prompt table (PROJ_CAT_SUB). Add more rows to add additional subcategories.

Relationship

Enter a description for the new category and subcategory relationship.

Click to jump to parent topicSetting Up General Control Data

To set up general control data, use these components:

This section discusses how to:

Click to jump to top of pageClick to jump to parent topicPages Used to Set Up General Control Data

Page Name

Definition Name

Navigation

Usage

Asset Profile

PROFILE_DEFN_PC

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Asset Profile, Asset Profile

Create asset profiles in PeopleSoft Project Costing if you do not use PeopleSoft Asset Management.

Budget Items

PC_BUD_ITEMS

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Budget Items, Budget Items

Create and modify budget items.

Interest Types

PROJ_INTEREST_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Interest Types, Interest Types

Create interest types if you calculate more than one type of interest for a period, such as debt interest and equity interest.

Transaction Codes

PROJ_TRANS_CODE

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Transaction Codes, Transaction Codes

Create and modify transaction codes.

Transaction Types

PROJ_TRANS_TYPE

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Transaction Types, Transaction Types

Create and modify transaction types.

Contracts Workbench Template

CA_CONS_TPL

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Contracts Workbench Template

Use this page to define Contracts Workbench Templates for PeopleSoft Contracts, Grants, and Project Costing.

See Defining Contracts Workbench Templates.

Click to jump to top of pageClick to jump to parent topicDefining Asset Profiles

Access the Asset Profile page (Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Asset Profile, Asset Profile).

Note. Project Costing can create capitalized rows and distribute them without integrating with PeopleSoft Asset Management. You can still use the PeopleSoft Asset Management interface tables (INTFC_FIN and INTFC_PHY_A); however, a custom process is required to extract data from these tables.

Asset Level Defaults

Asset Class

Enter the type of assets that this profile covers to classify assets for reporting purposes.

Acquisition Code

Select the code that identifies how the asset is acquired. Available values are based on the translate values in the Acquisition Code field (ACQUISITION_CD) properties.

Taggable

Capitalized Asset

Select to indicate that the profile is used for assets that are associated with cost and depreciation. Most assets that are in an asset management system are capitalized assets.

Taggable Asset

Select to indicate that the asset can be assigned a numbered tag for tracking purposes. Although most physical assets can be tagged, some assets, such as buildings or leasehold improvements, are not tagged.

Click to jump to top of pageClick to jump to parent topicDefining Budget Items

Access the Budget Items page (Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Budget Items, Budget Items).

Budget Items - General

Effective Date

Enter the date that the budget item takes effect.

Effective Status

Enter the status of the budget item. Values are Active and Inactive.

Inactive budget items do not appear in the list of available budget items when you create budget detail rows. Changing a budget item from Active to Inactive does not affect existing transactions that contain the budget item.

Description

Enter a unique description of the budget item.

Resource Class

Enter a resource class to associate with the budget item. Available values are:

Asset

Labor

Material

Other

For budget items with a resource class of Labor or a blank resource class, the Project Costing system can perform advanced calculations of budget line items based on a project role, employee bill rate, or job code. If you use PeopleSoft Program Management, this is the same functionality that is available by using the Calculate button on the Program Budget Detail page.

If you use PeopleSoft Program Management and enter a resource on the Resources by Activity page, you must choose a resource class for the resource. Then, when you choose a budget item on the Cost tab of the Resources by Activity page, the system validates that the selected budget item belongs to the selected resource class for the resource.

The selection of a resource class for a budget item is optional.

Unit of Measure

Enter a unit of measure to be used on budget rows, or enter % to include all values. Project Costing budgeting reports convert transactions to the unit of measure defined on the budget item. Only transactions that match this unit of measure are included in the actual calculations.

Available values are defined on the Units of Measure page (UNITS_OF_MEASURE).

See Entering Units of Measure.

Billing Business Unit

Enter a business unit if you want to segregate budget amounts by billing business units.

The system uses a percent symbol (%) as a wildcard on the Budget Items page. This symbol indicates that the fields with populated values are used in the budget details when that budget item is selected, and the fields that contain wildcards are blank in the budget details.

Note. To create a new budget item, at a minimum you must enter the Budget Item, Effective Date, Effective Status, Description, and a value other than the percent symbol in at least one other field, excluding the Resource Class and Project Role fields. For example, if you enter the required fields, and a resource class and project role, you must still enter a value other than the percent symbol for any other field.

Project Information and General Ledger Information

Enter default values for the fields in the Project Information tab to define project transaction level groupings, and in the General Ledger Information tab to break down the budget amounts to the ChartField level. ChartField values that you enter here are used to establish default values for budget rows entered in the Budget Detail table (PC_BUD_DETAIL). These ChartField values are also used to identify and group transactions when reviewing costs or revenue charges against a budget.

The primary general ledger business on the integration template of the associated project appears as the default value on detail budget rows.

Click to jump to top of pageClick to jump to parent topicDefining Interest Types

Access the Interest Types page (Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Interest Types, Interest Types).

Use this page to set up interest types, which identify the type of interest that the system calculates for projects.

Interest types are required only if you want to calculate more than one type of interest for a period.

See Calculating Interest.

Click to jump to top of pageClick to jump to parent topicDefining Transaction Types

Access the Transaction Types page (Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Transaction Types, Transaction Types).

Create as many transaction rows as necessary for each transaction type. A single transaction type may contain transaction rows for both standard transactions and intercompany transactions.

Transaction Class

Enter the transaction class that groups transaction types into categories. Available values are based on the translate values in the Transaction Class field (TRANS_CLASS) properties.

The Distribution Type group box functionality is used in earlier releases of Project Costing.

Click to jump to parent topicSetting Up Project-Related Information

To set up project-related information, use these components:

This section discusses how to:

Click to jump to top of pageClick to jump to parent topicPages Used to Set Up Project-Related Information

Page Name

Definition Name

Navigation

Usage

Integration Templates

PROJ_INT_TMPL_01

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Integration Templates, Integration Templates

Describe the project integration template.

General Integration

PROJ_INT_TMPL_02

Select the General Integration tab on the Integration Templates page.

Identify default purchasing and asset business units for each project integration template.

General Ledger Integration

PROJ_INT_TMPL_03

Select the General Ledger Integration tab on the Integration Templates page or General Integration page.

Identify default general ledger business units for each project integration template.

Project Types

PROJ_TYPE_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Types, Project Types

Create and modify project types. Assign default rate plans or rate sets to project types.

Status Types

PROJ_STATUS_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Status Types, Status Types

Create status types and define control actions to limit transactions coming into Project Costing.

Project Type Status Path

PC_PRJ_STATCTL_PNL

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Type Status Path, Project Type Status Path

Define status paths for a particular project type.

Project Status Defaults

PC_STATUS_DEFAULT

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Status Defaults, Project Status Defaults

Establish default project statuses for system-defined processing statuses for projects that are programmatically created.

Project-Processing Status Linkage

PC_STATUS_RNCNTL

Project Costing, Utilities, Project-Processing Status Link, Project-Processing Status Linkage

Schedule the Project-Processing Status Linkage Application Engine process (PC_STAT_LINK) to run nightly or as often as needed by your business processes. This process refreshes the status linkage between the project processing status and the project status. Because the project status is effective dated you can have future dated values. The Project-Processing Status Linkage process updates the processing status when the current date reaches the effective date.

Project Role

PROJ_ROLE_PAGE

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Roles, Project Role

Create or view project roles. Associate a project role with a craft in PeopleSoft Maintenance Management.

Phase Types

PROJ_PHASE_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Phase Types, Phase Types

Create and modify phase types.

Events

PROJ_EVENT_NAME

Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Events, Events

Create and modify project events.

Click to jump to top of pageClick to jump to parent topicDefining Templates for Integration with Other Applications

Access the Integration Templates - General Integration page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Integration Templates, Integration Templates, General Integration).

Enter purchasing and asset business units for transactions that are created by projects that are associated with the integration template. Available values are based on the Integration Template table (PC_INT_TMPL).

Note. Users can overwrite the purchasing business unit on rows that are created in Project Costing with a REQ (Requisition) analysis type. However, when you run the Requisition Loader Application Engine process (PO_REQLOAD), the process converts the purchasing business unit to the one that is defined on the integration template.

Access the Integration Templates - General Ledger Integration page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Integration Templates, Integration Templates, General Ledger Integration).

For each project integration template, enter general ledger business units for all transactions that integrate with a project and all accounting transactions that are created by the project. Available values are based on the Integration Template General Ledger table (PC_INT_TMPL_GL).

Click to jump to top of pageClick to jump to parent topicDefining Project Types

Access the Project Types page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Types, Project Types).

Use this page to set up project types that are used to group projects into clusters. Project types enable you to easily analyze all projects of a certain type. For example, you can assign construction projects, maintenance projects, and capital projects as project types.

Use Status Path

Select to use a project type status path for the project type. Use the Project Type Status Path page to define status paths.

See Project Type Status Paths.

Auto Review for Billing

Select to automatically mark all transactions for this project type as reviewed, and bypass the requirement for a project manager review. This option is available only if the Review Required for Billing option is selected on the Installation Options - Project Costing Integration page. When you create a new project and specify a project type, the project inherits the value of the Auto Review for Billing option for the project type, taking into consideration the effective date and status of the option. You can override the Auto Review for Billing option at the project type level and for individual projects.

If you change the option for the project type:

  • The system does not automatically update the auto review option at the project level.

    For example, assume that the auto review option for the project type is enabled on January 1. On January 15, the auto review option is disabled for the project type. The system does not update the auto review option on existing projects. You can, however, manually override the auto review option for individual existing projects.

  • The system does not automatically update existing transactions that reside in the Project Transaction table.

    For example, assume that the auto review option for the project type is disabled on January 1. On January 15, the auto review option is enabled for the project type. Unreviewed transactions may already exist in the Project Transaction table. You can review the existing transactions by using the Project Manager Review component.

Rates by Unit

Business Unit

Enter a business unit for which you will create projects with rates for this project type.

Rate Selection

Select Rate Plan or Rate Set to determine the column heading and available values that appear for selection in the next column on this page.

Rate Plan or Rate Set

Enter the default rate plan or rate set for the project type and business unit. Available values are based on rate plans and rate sets that are valid for the business unit and are active on the effective date of the project type.

Add rows as necessary to assign default rate plans or sets to additional business units that use this project type.

Note. If you change the default rate plan or rate set on this page, the system does not automatically update the rate plan or rate set on existing projects and activities.

Click to jump to top of pageClick to jump to parent topicDefining Status Types

Access the Status Types page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Status Types, Status Types).

Effective Date

Enter the date when the status change goes into effect. Status types are effective dated, so multiple statuses can be defined and applied sequentially to a project or activity over time.

Status

Select the status of the effective-dated row. Available values are:

Active: This is the default value.

Inactive: Select to deactivate the status control options that are associated with the effective date.

Processing Status

Select the processing status to map to this status type. Available values are Active, Inactive, and Pending. When you update a project status type, the system automatically updates the processing status based on this mapping.

Status Control

Use this group box to associate a project control action with an analysis type for a particular status type. To control transactions by using status control on a project or activity, the Enable Status Control option must be activated on the Installation Options - Project Costing Integration page, the project or activity must contain the specified status type, and the incoming transactions must contain the specified analysis type.

Analysis Type

Enter an analysis type to specify the transactions on which to apply status control options. To enter additional analysis types, add new rows in the Status Control group box.

Note. The analysis types that are used by feeder systems are defined on the Installation Options - Project Costing Integration page.

Control Action

Select a control action to associate with the analysis type. Available values are:

Warning: Select for a warning message to appear before Project Costing accepts transactions with the analysis type that you specify in the Analysis Type field.

Reject: Select for Project Costing to reject transactions with the analysis type that you specify in the Analysis Type field.

No project control action occurs if the Control Action field is blank.

Click to jump to top of pageClick to jump to parent topicDefining Project Type Status Paths

Access the Project Type Status Path page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Type Status Path, Project Type Status Path).

Project Status

Enter the status for the path that you are defining. Available values are based on the Project Status table (PROJ_STATUS_TBL).

Email Notify for Status Change

Select to email project members when the project status changes.

Business Process Name, Activity Name, and Event Name

Select the business process, activity, and event to associate with the project type status path.

Project Status To

Select the statuses to which the current status can change. Add rows to add more statuses.

Click to jump to top of pageClick to jump to parent topicDefining Project Status Default Values

Access the Project Status Defaults page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Status Defaults, Project Status Defaults).

Status

Enter the status of the project status defaults. Values are Active and Inactive. The default value is Active.

Processing Status - Active, Processing Status - Inactive, and Processing Status - Pending

Enter the default statuses to map to the Active, Inactive, and Pending processing statuses that the system assigns to autogenerated projects from PeopleSoft Resource Management, Contracts, Grants, and Proposal Management. PeopleSoft Project Portfolio Management and PeopleSoft Program Management use these default statuses only for projects that are created from project requests that are in a Costing or Declined status.

If you use PeopleSoft Project Costing without PeopleSoft Program Management, the system uses the project status that you enter for the Active processing status as the default value for new projects that you create in Project Costing.

If you use PeopleSoft Program Management, the system uses the project status that you enter for the Pending processing status as the default value for new projects that you create in PeopleSoft Project Costing.

Processing Status

Enter the default processing status that the system assigns to autogenerated projects that are created from approved project requests in PeopleSoft Project Portfolio Management and PeopleSoft Program Management.

Default Project Status

Enter the default project status to map to the processing status for projects that are created from approved project requests in PeopleSoft Project Portfolio Management and PeopleSoft Program Management.

Click to jump to top of pageClick to jump to parent topicDefining Project Roles

Access the Project Role page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Project Roles, Project Role).

Project roles are defined by two profiles—the security profile and the qualification profile.

Craft

Select a craft from the Maintenance Management Craft table (RS_CRAFT_DETAIL) to associate with this project role. The system uses this association to assign crafts to resources when you create work orders from activities. The value that you enter in this field appears as the default value in the Craft column on the Create Work Order page for resources with this project role.

This field is available only if you use PeopleSoft Maintenance Management.

Security Profile

Enter the security profile that defines the role's access to projects, activities, and transactions. Available values are defined on the Security Profile page (PROJ_SEC_PROFILE).

See Defining Project Security.

Qualification Profile

Enter the qualification profile that the PeopleSoft Resource Management system uses for staffing. Available values are defined on the Qualification Profile page (RS_RESRC_TEMPLT) in PeopleSoft Resource Management.

See Creating Qualification Profiles.

Note. You must install PeopleSoft Program Management to integrate with PeopleSoft Resource Management for staffing.

Click to jump to top of pageClick to jump to parent topicDefining Project Events

Access the Events page (Set Up Financials/Supply Chain, Product Related, Project Costing, Project Options, Events, Events).

You must define project status types before you define project events.

From Status Type and To Status Type

Enter the From Status Type and To Status Type that mark an event for a project.

Use the Project Definitions - Approval page to define approval sequences for project events.

Click to jump to parent topicSetting Up Activity-Related Information

To set up activity-related information, use these components:

Use the PC_STD_ACT_INTFC component interface to load data into the tables for the FS_ACTIVITY_TBL component.

This section discusses how to:

Click to jump to top of pageClick to jump to parent topicPages Used to Set Up Activity-Related Information

Page Name

Definition Name

Navigation

Usage

Activity Types

PROJ_ACT_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Activity Options, Activity Types, Activity Types

Create activity types.

Activity Type Status Path

PC_ACT_STATCTL_PNL

Set Up Financials/Supply Chain, Product Related, Project Costing, Activity Options, Activity Type Status Path, Activity Type Status Path

Define the status path for activities.

See Defining Status Types, Defining Project Type Status Paths.

Activity Options - Quality Types

PROJ_QUALITY_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Activity Options, Quality Types, Quality Types

Create and modify quality types.

Standard Activities

FS_ACTVITY_TBL1

Set Up Financials/Supply Chain, Common Definitions, Activities, Define Activities, Standard Activities

Create and modify standard activities.

Click to jump to top of pageClick to jump to parent topicDefining Activity Types

Access the Activity Types page (Set Up Financials/Supply Chain, Product Related, Project Costing, Activity Options, Activity Types, Activity Types).

Activity type labels identify and group activities to facilitate analysis and reporting on similar activities across projects.

Status

Select the status that determines the availability of an activity type.

Use Status Path

Select to enforce the predefined progression of statuses for activities of this type.

See Also

PeopleSoft Project Costing Reports: A to Z

Understanding Integration of PeopleSoft Project Costing with Microsoft Project

Click to jump to top of pageClick to jump to parent topicDefining Activity Type Status Paths

Access the Activity Type Status Path page (Set Up Financials/Supply Chain, Product Related, Project Costing, Activity Options, Activity Type Status Path, Activity Type Status Path).

You must define status types before you define activity type status paths. Activities use the same status type data that you define at the project level.

The procedure to define activity type status paths is the same as the procedure to define status paths for projects.

See Project Type Status Paths.

Click to jump to top of pageClick to jump to parent topicDefining Standard Activities

Access the Standard Activities page (Set Up Financials/Supply Chain, Common Definitions, Activities, Define Activities, Standard Activities).

Use this page to predefine activities that users can assign to projects.

Standard activities are keyed by setID and based on project type. To enable standard activity functionality, select the Standard Activities check box on the Project Costing Definition page for a project. Using standard activities is optional.

Project Type

Enter a project type to restrict the use of this standard activity to projects that have the selected project type and have Standard Activities selected on the Project Costing Definition page. This field appears if you select Projects in the Used By group box.

Leave this field blank for this standard activity to be available to add to any project that does not have a project type assigned.

Used By

Projects: Select for this activity to be available to add to a project as a standard activity.

Performance Measurement: Not used in PeopleSoft Project Costing.

Services Procurement: Not used in PeopleSoft Project Costing.

See Also

Defining Projects

Adding Activities to Projects

Click to jump to parent topicSetting Up Transaction-Related Information

To set up transaction-related information, use these components:

This section discusses how to:

Click to jump to top of pageClick to jump to parent topicPages Used to Set Up Transaction-Related Information

Page Name

Definition Name

Navigation

Usage

Analysis Types

PROJ_ANTYPE_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Analysis Types, Analysis Types

Create and modify analysis types.

Analysis Groups

PROJ_AN_GRP_MAP

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Analysis Groups, Analysis Groups

Create and modify analysis groups.

Analysis Groups - Description

PROJ_AN_GRP_DEFN

Select the Description tab on the Analysis Groups page.

Describe the purpose of the analysis group.

Source Groups

PROJ_RT_GRP_MAP

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Transaction Options, Source Groups, Source Groups

Create and modify source groups.

Source Groups - Description

PROJ_RT_GRP_DEFN

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Source Groups, Description

Describe the source group.

Transaction Identifiers

PC_TRANS_IDENTIFY

Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Transaction Identifiers, Transaction Identifiers

Define transaction identifiers that consist of groups of project ChartField values.

Click to jump to top of pageClick to jump to parent topicDefining Analysis Types

Access the Analysis Types page (Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Analysis Types, Analysis Types).

Commitment Control Amount Type

Select an amount type that tells Commitment Control how to process transactions. This field is directly related to the type of transaction that is coming into Commitment Control and identifies what type of transaction to process.

This field appears only if the Commitment Control feature is activated.

Source Transaction Type

Displays the source transaction type defined in the Commitment Control feature, which maps Project Costing fields to Commitment Control fields. The two source transaction types are PC_JOURNAL and PC_BUDGET. This field appears if the Commitment Control feature is activated.

See Setting Up Commitment Control Source Transaction Types.

Click to jump to top of pageClick to jump to parent topicDefining Analysis Groups

Access the Analysis Groups page (Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Analysis Groups, Analysis Groups).

Perform Mapping

Select to use the analysis group for mapping analysis types from a template to a new project or activity.

Perform Multiplication

Select to manipulate transaction quantities and amounts. Enter multipliers in the Quantity Multiplier and Amount Multiplier fields.

Analysis Type

Select the analysis types to include in the analysis group.

Analysis Type Map

Select the analysis type to which the analysis type in the first column will be converted in the newly created project or activity. These fields appear only if you select the Perform Mapping option.

Quantity Multiplier and Amount Multiplier

Enter a factor that the system uses to modify incoming quantity and amount values. Enter multipliers of zero to copy quantities and amounts into new projects as zero.

Click to jump to top of pageClick to jump to parent topicDefining Source Groups

Access the Source Groups page (Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Transaction Options, Source Groups, Source Groups).

Flexible Rate

Enter a rate by which to multiply the source types in this source group to create a special project view.

Source Types

Select the source types to include in the source group.

Click to jump to top of pageClick to jump to parent topicDefining Transaction Identifiers

Access the Transaction Identifiers page (Set Up Financials/Supply Chain, Product Related, Project Costing, Transaction Options, Transaction Identifiers, Transaction Identifiers).

Enter source type, category, and subcategory rows that are valid combinations of project ChartField values. Use the wildcard value (a percent sign) in a field to indicate that any value for that field is valid in combination with the other field values in that row. Although the system prevents the creation of duplicate rows within a transaction identifier, an identical row can be part of other transaction identifiers.

Transaction identifiers are used when exporting actual costs from PeopleSoft to Primavera P6. For additional information about integrating with Primavera P6:

See Integrating with Primavera P6.

See Also

Defining Tiered Pricing

Pricing Contracts

Click to jump to parent topicSetting Up Summarization Templates

This section discusses setting up summarization templates.

Summarization Templates are used during the feeder interface process (such as PC_EX_TO_PC), the Pricing process (PC_PRICING), and the Variance Pricing process (PC_VAR_PRICE).

For additional information about Feeder and Pricing Summarization,

See Understanding Feeder and Pricing Summarization.

For additional information about Variance Pricing,

See Understanding Variance Pricing.

Click to jump to top of pageClick to jump to parent topicPage Used to Set up Summarization Templates

Page Name

Definition Name

Navigation

Usage

Summarization Template

PC_SUM_TEMPLATE

Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Summarization Template

Define summarization rules for feeder integration applications, the Pricing process, and the Variance Pricing process.

Click to jump to top of pageClick to jump to parent topicSetting up Summarization Templates

Access the Summarization Template page (Set Up Financials/Supply Chain, Product Related, Project Costing, General Options, Summarization Template).

If you have selected the corresponding check box on the Project Costing Integration page, in the Summarization Options group box, then Use this page to create summarization templates. Summarization templates determine the fields and the level of summarization that the system should use when these processes run:

Option selected in the Summarization Options group box

Process

Expenses

PC_EX_TO_PC

General Ledger

PC_GL_TO_PC

Third Party Loader

PC_INTF_GEN and PC_INTFEDIT

Pricing Engine

PC_PRICING

Variance Pricing

PC_VAR_PRICE

Time and Labor

PC_TL_TO_PC

The Variance Pricing summarization process. The results of the Variance Pricing process are posted to the PROJ_RESOURCE table, or can be reviewed prior to posting to the PROJ_RESOURCE table.

Product Code

Select a product code that identifies to which the template applies. For example, Expenses, General Ledger, Time and Labor, or Variance Pricing.

Note. Multiple templates can be created for a product code, but only one template (per product code) can be designated as the default template.

Process Order

Enter a number that determines the order in which the template is processed when multiple templates are defined for a product code. The process order does not have to be consecutive and you can leave gaps in the process order. For example, you can enter 10, 20, and 30 as the process order for a product code. Leaving gaps in the process order enables you to insert templates between existing templates at a later time.

Default

Select to indicate that the template is the default template. The default template is applied to all detail rows that do not match any of the existing templates for the product code.

It is not required to have a default template for a product code. If you do not define a default template, then any data that does not match the criteria of an existing template is not summarized. For example, if you have a template for business unit US001 and no default template is defined, then data for business units US002 and US003 is not summarized.

Custom SQL

Enter customized criteria that you want to apply to a template. In the example page shot, the template applies to all rows that are in business unit US004 and that have ACT and TLX as the analysis type.

If you specify a field that is not on the Project Transaction table, you need to customize the PC_SUM_AELIB summarization engine to join the correct record.

Note. This SQL is not checked by the system for correct syntax. If the SQL is incorrect, then the summarization processes will error. Therefore, this field should be defined by a system administrator or developer within your organization.

Copy From Project (group box)

Use this group box to populate the Summarization Fields group box from an existing summarization template. When you click the Copy button, existing data in the Summarization Fields group box are deleted and replaced with the data being copied.

Field Name

Add non-required fields to include in the summarization selection process.

When creating a template, the system automatically populates all required field names. Required fields names are display only and cannot be deleted.

For Microsoft SQL and Sybase database platforms, you can only have a maximum of 32 fields, which includes the required and non-required fields.

Date Summarization Level and Rollup Date to Use

Enter a date type that determines how dates are to be rolled up by the summarization process. These fields are only displayed for date fields.

The rollup date that you use can impact effective dating. When setting up a date field, make sure that the effective date of your rate plan or rate set are valid with the roll up date. For example, when creating a pricing summarization template, you select Start of Period in the Rollup Date to Use field. This indicates that the summarized rows are assigned an accounting or transaction date of the start of the period, such as January 1, 2010 (01/01/2010). You should verify that the rate plan or rate set that you are using has an effective date of January 1, 2010, or earlier, for all transactions to be summarized.

If you leave a field off of the summarization template you are indicating that the information in that field is not necessary. Therefore, if a field is left off of the template, the field is populated with these values on the summarized transaction:

Because leaving a field off of the summarization template results in a blank, or zero, value in the summarized transaction, you should use caution when deciding to not include the Project Costing ChartFields and General Ledger ChartFields. If you use the Project Costing ChartFields such as source type, category, and subcategory, Oracle's PeopleSoft recommends that these fields be included on summarization templates.

Pricing Summarization Templates

When creating a pricing summarization template, Oracle's PeopleSoft recommends that you include these fields, at a minimum:

If you are using Time and Labor integration and Pricing Summarization, but are not using Time and Labor summarization, then you should include these fields on the Pricing Summarization Template:

Time and Labor Summarization Templates

When creating a Time and Labor summarization template, you must include these fields to reconcile billed estimates with new estimates and actuals. (The first two are required and will generate errors if you leave them off a template but the third field is suggested and will generate a warning to be used if you are doing any type of billing):
