Use this procedure to verify that the library firmware meets or exceeds the minimum requirements for STA. For details, see the “Pre-Installation Planning” chapter within the StorageTek Tape Analytics Planning and Installation Guide.

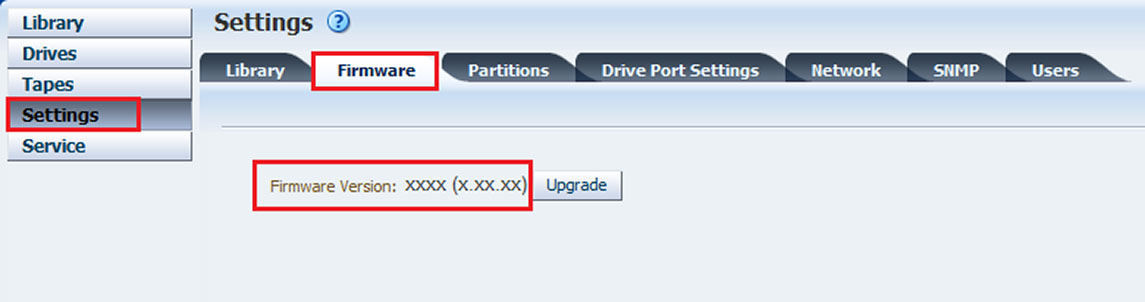

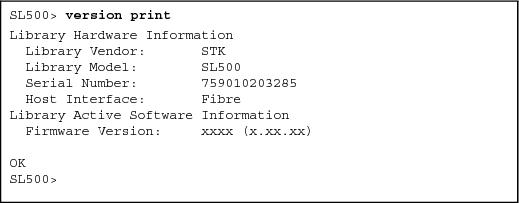

For SL500 libraries, you can perform this procedure with either the CLI or the SL Console. For SL3000 and SL8500 libraries, you must use the SL Console. (Exception: If you are running FRS 8.0 on an SL8500, you can use the CLI version print command to obtain the library firmware version.) For SL150 libraries, you use the library’s browser-based user interface.
Note – If the screen displays SYNTAX ERROR!!, the library firmware is down-level. Contact your Oracle support representative to upgrade the firmware.
▼ |
With the SL Console (All libraries except SL150) |
|
1.
|
Log in to the library with the SL Console.
|
|
2.
|

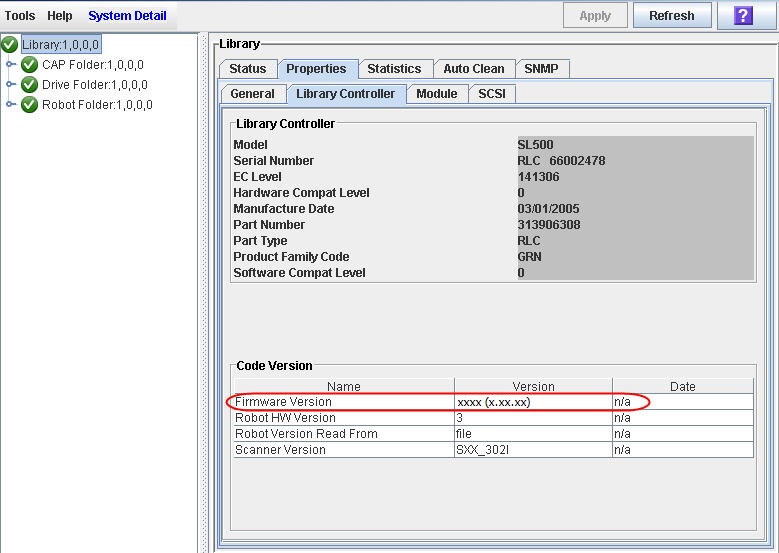

Select System Detail > Library > Properties > Library Controller.
|
|
•
|
If it does, then proceed to either “Retrieve the Library IP Address” or “Retrieve SL3000 or SL8500 IP Addresses”, depending on the library model.
|
The firmware version is displayed.
Note – Alternately, you can click the About button in the lower-right corner of the screen to obtain the firmware version.
|
|
|
|
|
|
