Root Domains

A Root Domain is an SR-IOV domain that hosts the physical I/O devices, or physical functions (PFs), such as the IB HCAs, EMSs, and any Fibre Channel cards installed in the PCIe slots. Almost all of its CPU and memory resources are parked for later use by I/O Domains. Logical devices, or virtual functions (VFs), are created from each PF, with each PF hosting 32 VFs.

Because Root Domains host the physical I/O devices, just as dedicated domains currently do, Root Domains essentially exist at the same level as dedicated domains.

With the introduction of Root Domains, the following parts of the domain configuration for SuperCluster M6-32 are set at the time of the initial installation and can only be changed by an Oracle representative:

A domain can only be a Root Domain if it has either one or two IB HCAs associated with it. A domain cannot be a Root Domain if it has more than two IB HCAs associated with it. If you have a domain that has more than two IB HCAs associated with it (for example, the B4-1 domain), then that domain must be a dedicated domain.

When deciding which domains will be a Root Domain, the last domain must always be the first Root Domain, and you would start from the last domain in your configuration and go in for every additional Root Domain. For example, assume you have four domains in your configuration, and you want two Root Domains and two dedicated domains. In this case, the first two domains would be dedicated domains and the last two domains would be Root Domains.


Note - Even though a domain with two IB HCAs is valid for a Root Domain, domains with only one IB HCA should be used as Root Domains. When a Root Domain has a single IB HCA, fewer I/O Domains have dependencies on the I/O devices provided by that Root Domain. Flexibility around high availability also increases with Root Domains with one IB HCA.


The following domains have only one or two IB HCAs associated with them and can therefore be used as a Root Domain:

In addition, the first domain in the system (the Control Domain) will always be a dedicated domain. The Control Domain cannotbe a Root Domain. Therefore, you cannot have all of the domains on your server as Root Domains, but you can have a mixture of Root Domains and dedicated domains on your server or all of the domains as dedicated domains.

A certain amount of CPU core and memory is always reserved for each Root Domain, depending on which domain is being used as a Root Domain in the domain configuration and the number of IB HCAs that are associated with that Root Domain:


Note - The amount of CPU core and memory reserved for Root Domains is sufficient to support only the PFs in each Root Domain. There is insufficient CPU core or memory resources to support zones or applications in Root Domains, so zones and applications are supported only in the I/O Domains.

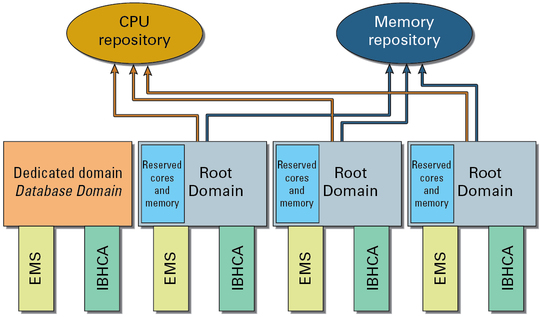

The remaining CPU core and memory resources associated with each Root Domain are parked in CPU and memory repositories, as shown in the following graphic.

image:Graphic showing CPU and memory resources reserved in CPU and memory repositories.

CPU and memory repositories contain resources not only from the Root Domains, but also any parked resources from the dedicated domains. Whether CPU core and memory resources originated from dedicated domains or from Root Domains, once those resources have been parked in the CPU and memory repositories, those resources are no longer associated with their originating domain. These resources become equally available to I/O Domains.

In addition, CPU and memory repositories contain parked resources only from the PDomain that contains the domains providing those parked resources. In other words, if you have two PDomains and both PDomains have Root Domains, there would be two sets of CPU and memory repositories, where each PDomain would have its own CPU and memory repositories with parked resources.

For example, assume you have the B2-4 LDom configuration, with four domains on your PDomain, with three of the four domains as Root Domains, as shown in the previous graphic. Assume each domain has the following IB HCAs and EMSs, and the following CPU core and memory resources:

In this situation, the following CPU core and memory resources are reserved for each Root Domain, with the remaining resources available for the CPU and memory repositories:

A total of 32 cores (10 + 22 cores) are therefore parked in the CPU repository, and 1472 GB of memory (480 + 992 GB of memory) are parked in the memory repository and are available for the I/O Domains.

With Root Domains, connections to the 10GbE client access network go through the physical ports on each EMS, and connections to the IB network go through the physical ports on each IB HCA, just as they did with dedicated domains. However, cards used with Root Domains must also be SR-IOV compliant. SR-IOV compliant cards enable VFs to be created on each card, where the virtualization occurs in the card itself.

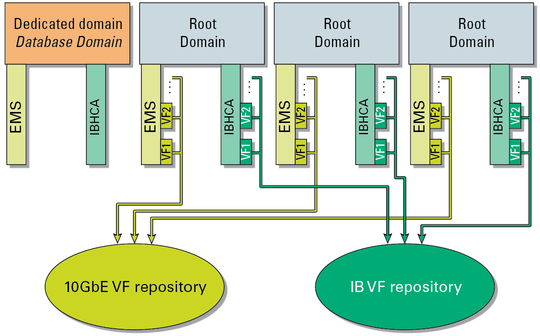

The VFs from each Root Domain are parked in the IB VF and 10GbE VF repositories, similar to the CPU and memory repositories, as shown in the following graphic.

image:Graphic showing IB VF and 10GbE VF resources reserved in IB VF and 10GbE VF repositories.

Even though the VFs from each Root Domain are parked in the VF repositories, the VFs are created on each EMS and IB HCA, so those VFs are associated with the Root Domain that contains those specific EMSs and IB HCA cards. For example, looking at the example configuration in the previous graphic, the VFs created on the last (rightmost) EMS and IB HCA will be associated with the last Root Domain.
