レガシーモード BIOS 設定ユーティリティー画面

このセクションには、レガシーモード BIOS 設定ユーティリティー画面のスクリーンショットが含まれています。BIOS 設定ユーティリティーにアクセスするには、BIOS 設定ユーティリティーにアクセスするを参照してください。

BIOS メニュートップレベル

次の表では、レガシーモードのトップレベル BIOS 設定メニューについて説明します。

メニュー
説明
Main
日時、セキュリティー、ハードウェア構成、CPU、DIMM 情報など、システムと製品の一般的な情報を提供します。
Advanced
プロセッサ、CPU 電源管理、USB ポート、シリアルポート、信頼できるコンピューティング、ネットワークスタック、レガシー iSCSI、BMC ネットワーク構成、および UEFI iSCSI 構成の構成情報。
IO
プラグアンドプレイ (PnP) デバイス、仮想化、内部デバイス、およびアドインカードの構成インタフェース。
Boot
ブートモード (レガシー、UEFI)、Oracle System Assistant 構成、ブートオプション優先順位など、ブート設定の構成インタフェース。
Exit
変更内容を保存または破棄します。

次の図に、各トップレベル BIOS メニューからアクセスできるサブメニューを示します。

Main 画面 (レガシー)


注 ‐  検索用に、各スクリーンショットの下にキーワードのリストを示します。
image:BIOS ユーティリティー「Main」画面のスクリーンショット。

キーワード: Main 画面、Project Version、System Date、System Time、QPI Link Speed、Total Memory、Current Memory Speed、USB Devices、BMC Status、BMC Firmware Revision、Product Information、CPU Information、DIMM Information、Security

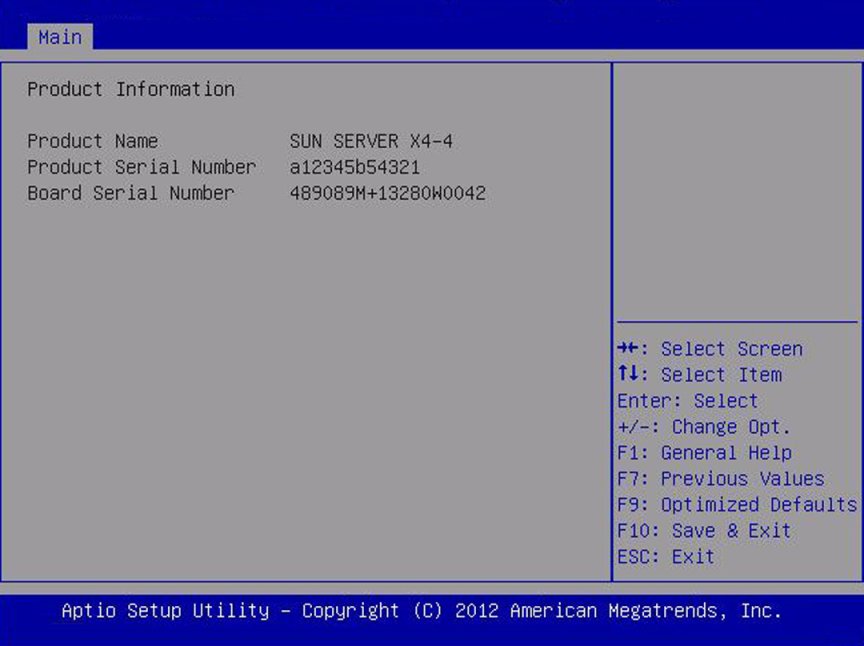

image:「Product Information」画面のスクリーンショット。

キーワード: Main、Product Information、Product Name、Product Serial Number、Board Serial Number

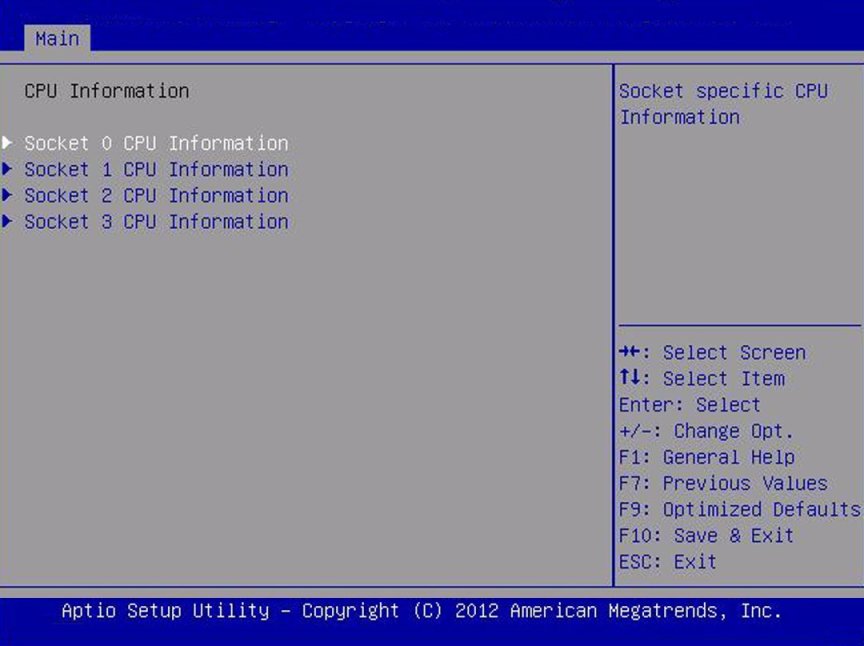

image:「CPU Information」画面のスクリーンショット。

キーワード: Main、CPU Information Socket 0 CPU Information、Socket 1 CPU Information、Socket 2 CPU Information、Socket 3 CPU Information。ソケット固有 CPU 情報。

image:

キーワード: Main、CPU Information Socket 0 CPU Information、Intel Xeon CPU Et-4890 v2、CPU Signature、Microcode Patch、Max CPU Speed、min CPU Speed、Processor Cores、Intel HT Technology、Intel VT-x Technology、L1 Data Cache、L1 Code Cache、L2 Cache、L3 Cache

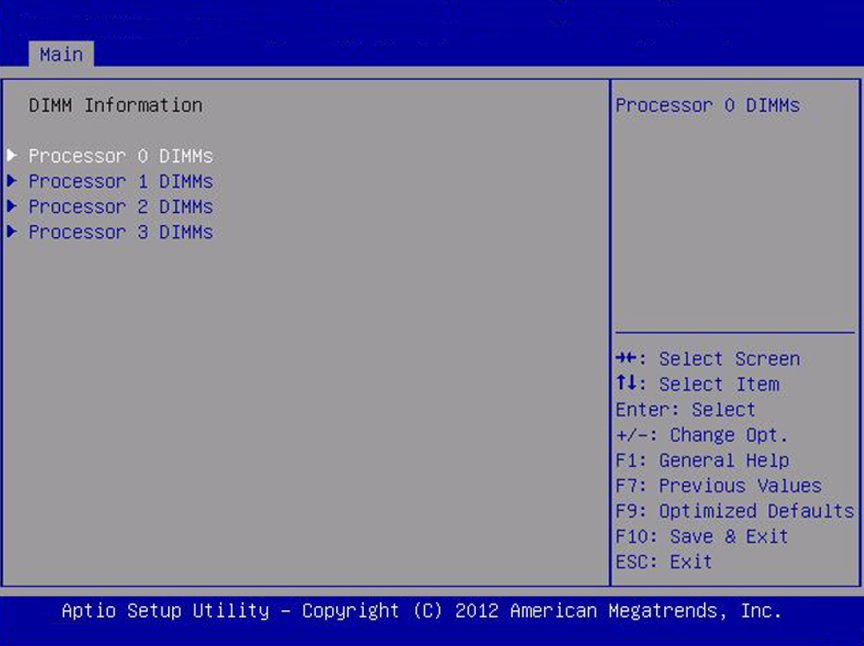

image:画面のスクリーンショット。

キーワード: Main、DIMM Information、Processor 0 DIMMs

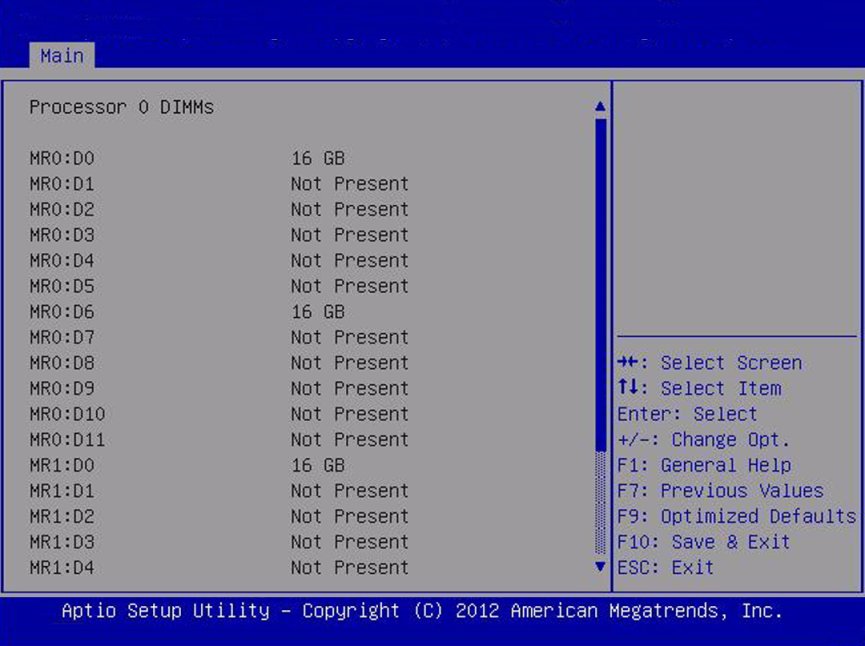

image:画面のスクリーンショット。

キーワード: Main、Processor 0 DIMMs、Not Present

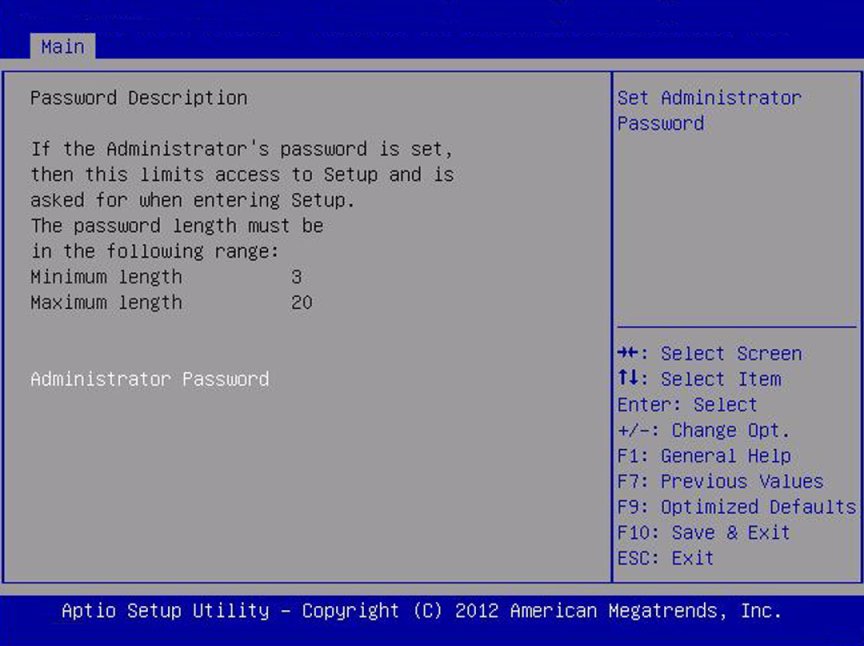

image:「Security」画面のスクリーンショット。

キーワード: Main セキュリティー画面、set administrator password、パスワード説明、minimum length、maximum length、administrator password

Advanced 画面 (レガシー)

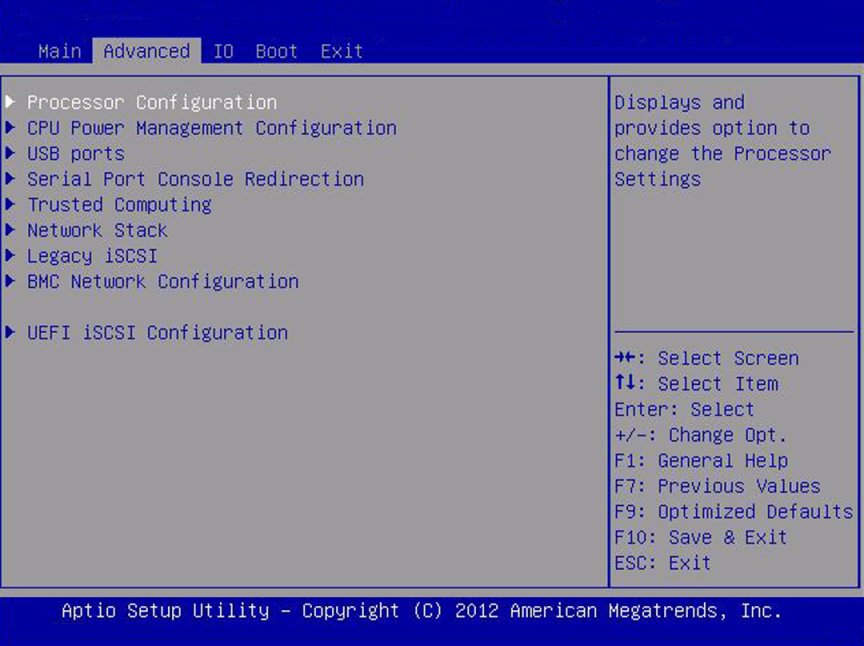

image:レガシーモード「Advanced」画面のスクリーンショット。

キーワード: Advanced、processor configuration、CPU power management configuration、USB ports、serial port console redirection、trusted computing、network stack、legacy iSCSI、BMC network configuration、UEFI iSCSI configuration

image:「Processor Configuration」画面のスクリーンショット。

キーワード: Processor configuration、hyper-threading all、active processor、cores、execute disable bit、hardware prefetcher、adjacent cache、prefetch、DCU streamer、prefetcher、DCU IP prefetcher、Intel virtualization technology。Enabels hyper threading (software method) to enable/disable logical processor threads

image:「Processor Configuration」画面のスクリーンショット。

キーワード: Processor Configuration、Active Processor Cores、Number of cores to enable in each processor package

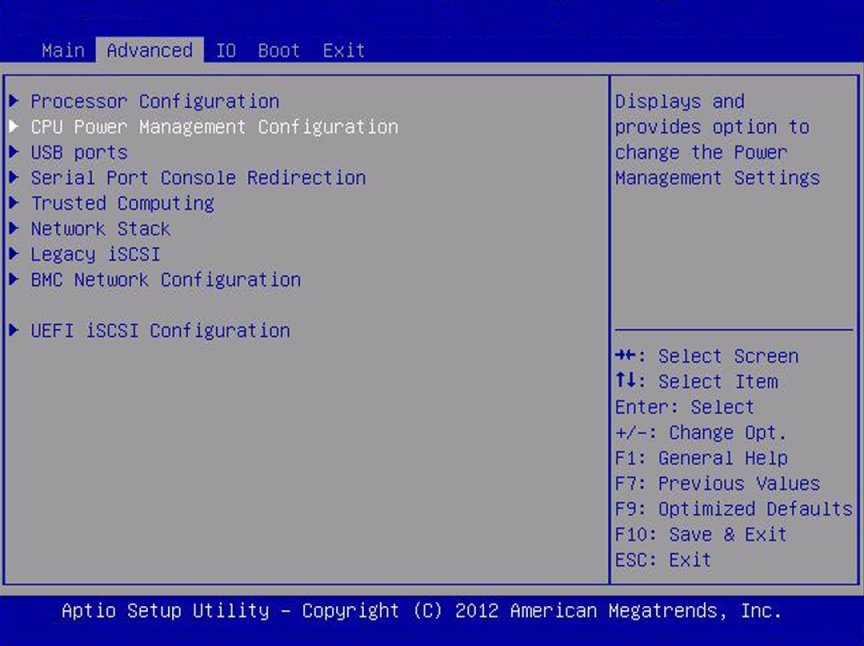

image:「CPU Power Management Configuration」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

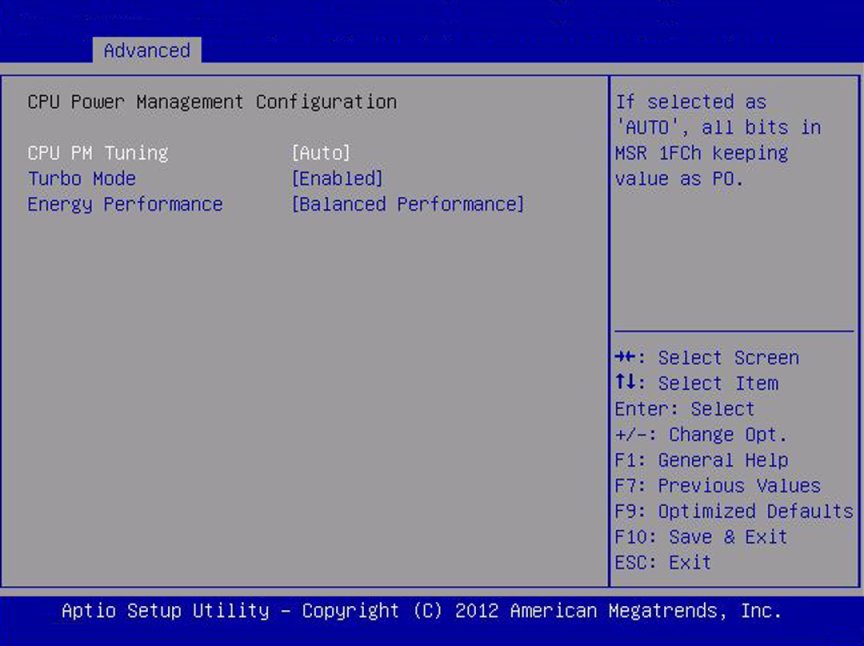

image:「CPU Power Management Configuration」画面のスクリーンショット。

キーワード: CPU Power Management Configuration、CPU PM Tuning、Turbo Mode、Energy Performance、Balanced Performance

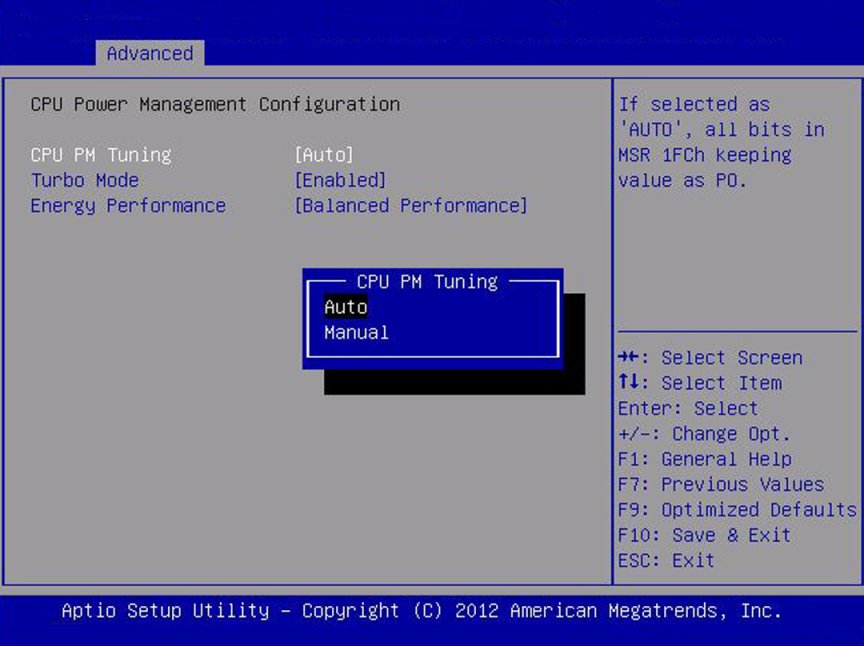

image:「CPU Power Management Configuration」画面のスクリーンショット。

キーワード: CPU Power Management Configuration、CPU PM Tuning Auto Manual、Turbo Mode、Energy Performance、Balanced Performance

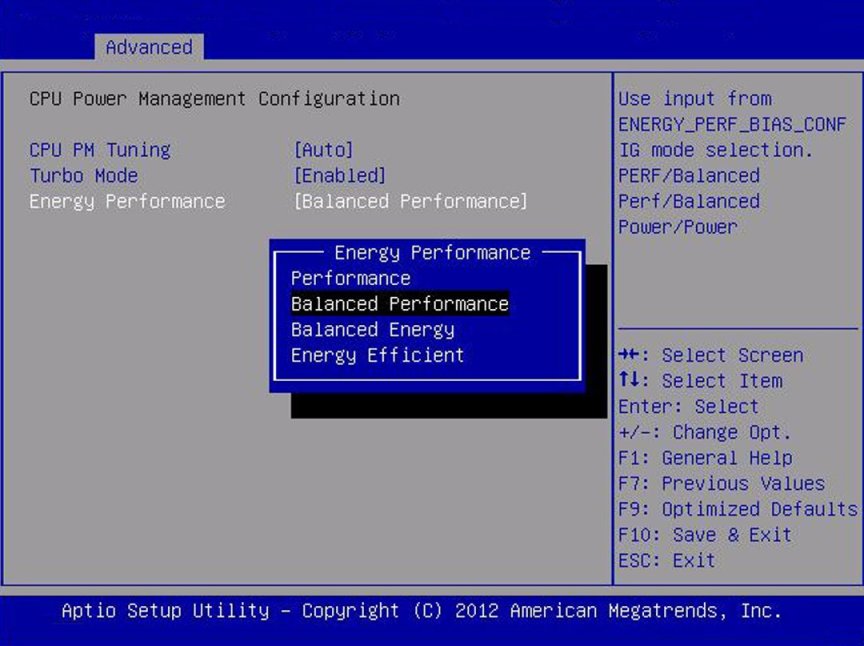

image:「CPU Power Management Configuration」画面のスクリーンショット。

キーワード: CPU Power Management Configuration、CPU PM Tuning、Turbo Mode、Energy Performance、Performance、Balanced Performance、Balanced Energy、Energy Efficient

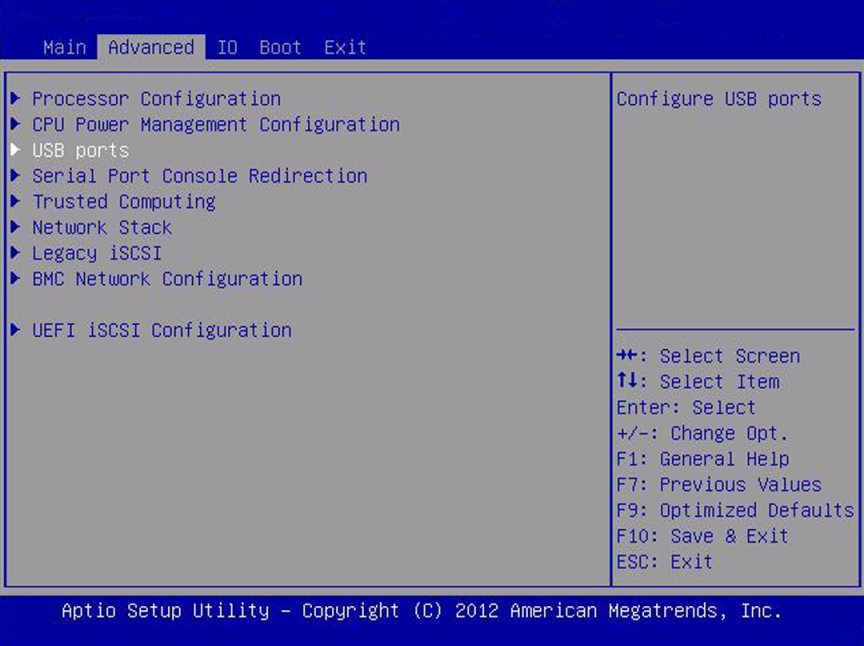

image:「USB ports」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

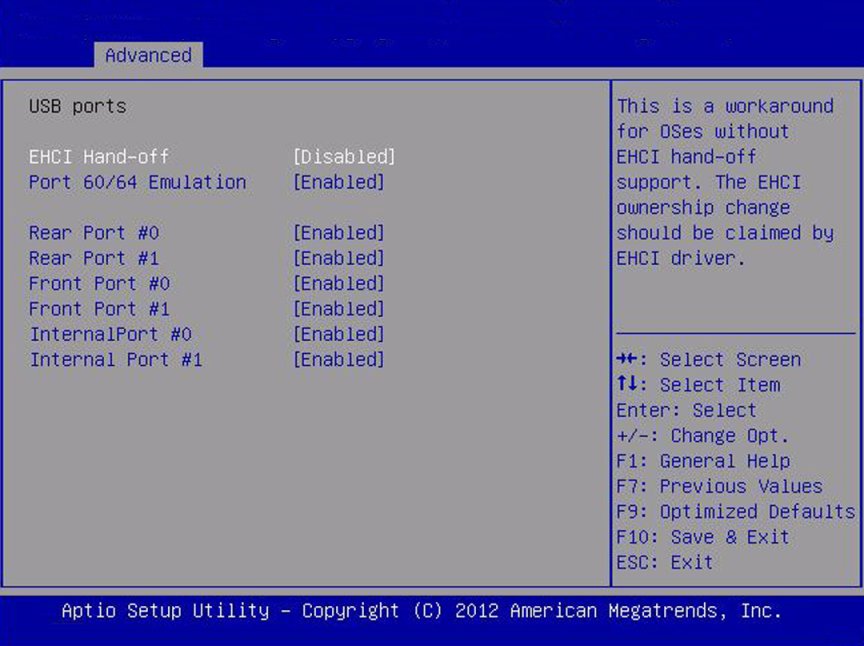

image:「USB ports」画面のスクリーンショット。

キーワード: USB Ports、EHCI Handoff、Port 60/64 Emulation、Rear Port、Front Port、Internal Port

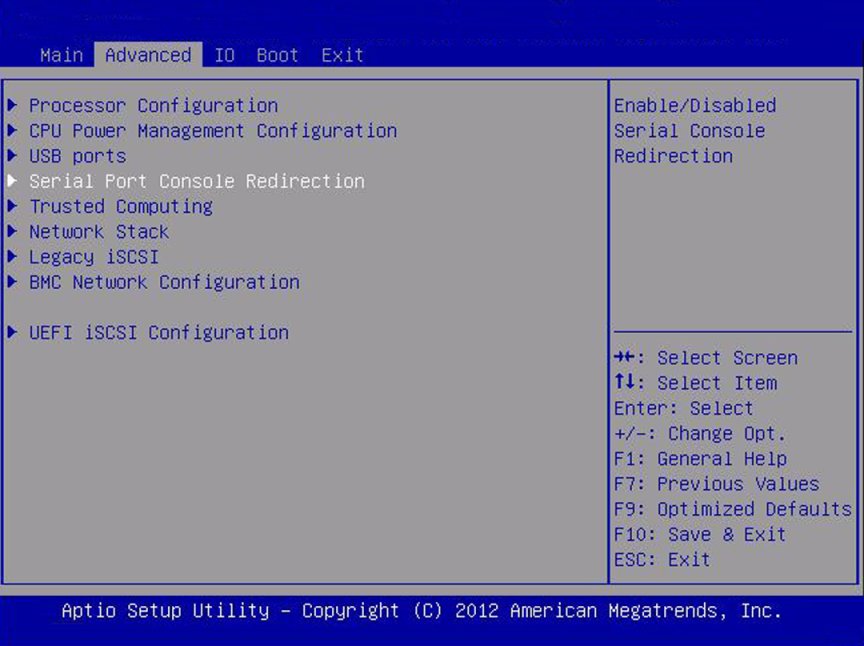

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

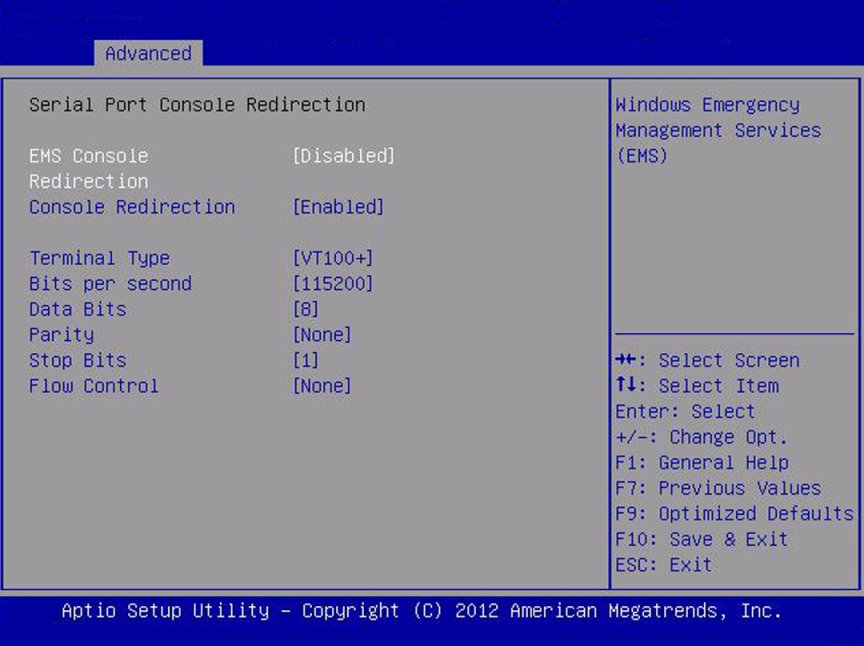

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、Bits per second、Data Bits、Parity、Stop Bits、Flow Control

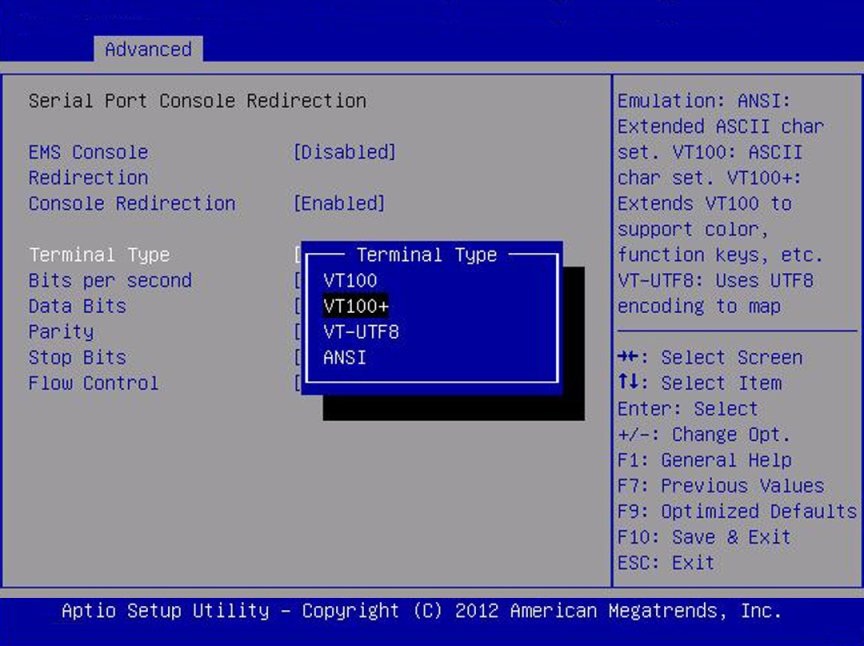

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、VT100、VT100+、VT-UTF8、ANSI

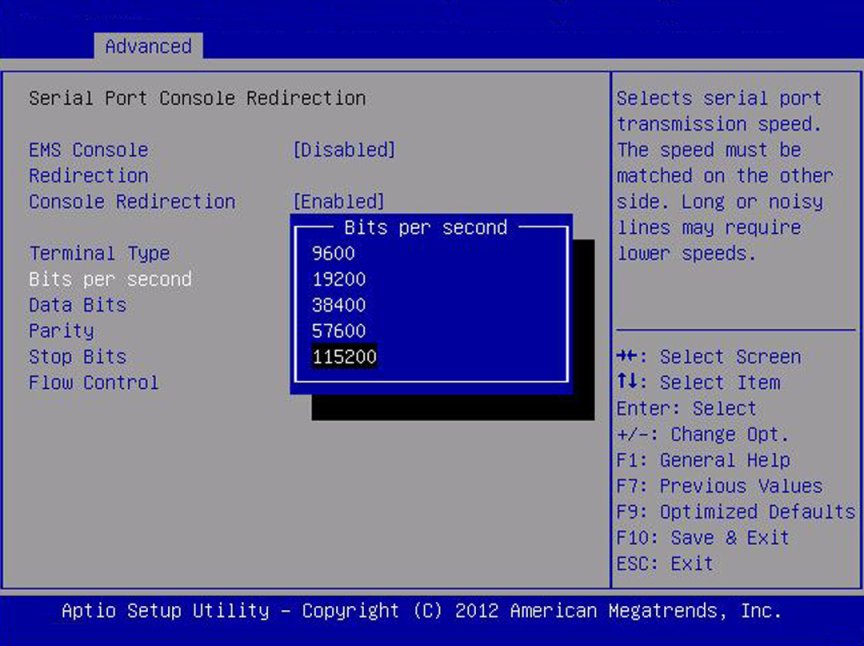

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、Bits per second、9600、19200、38400、57600、115200

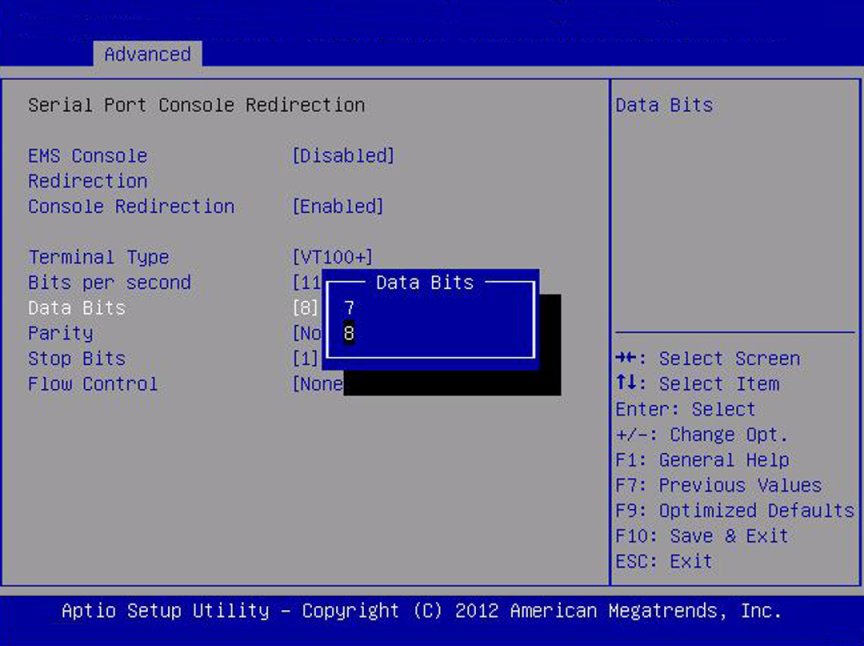

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、Bits per second、Data Bits、7、8

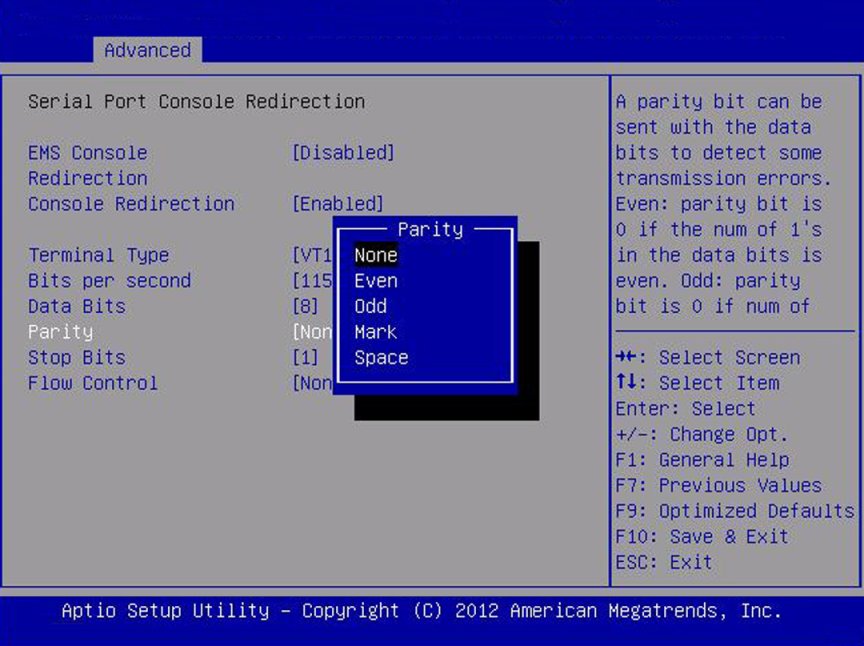

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、Bits per second、Data Bits、Parity、None、Even、Odd、Mark、Space

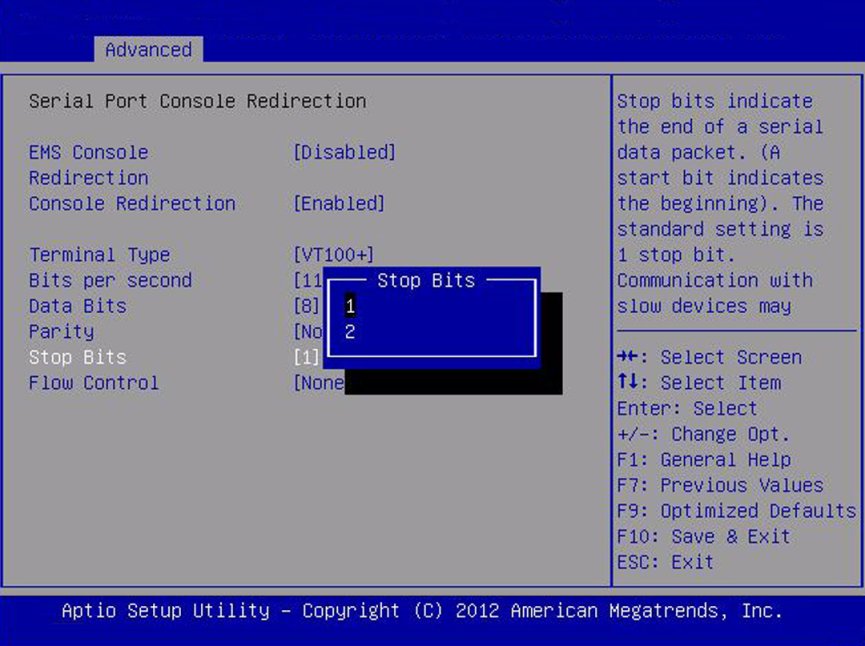

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、Bits per second、Data Bits、Parity、Stop Bits、1、2

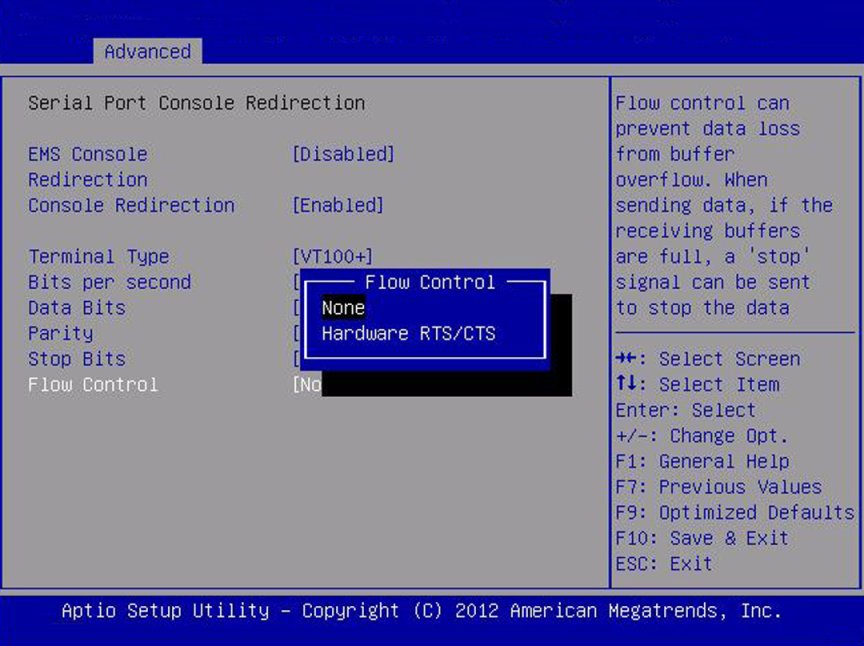

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Serial Port Redirection、EMS Console Redirection、Terminal Type、Bits per second、Data Bits、Parity、Stop Bits、Flow Control、None、Hardware RTS/CTS

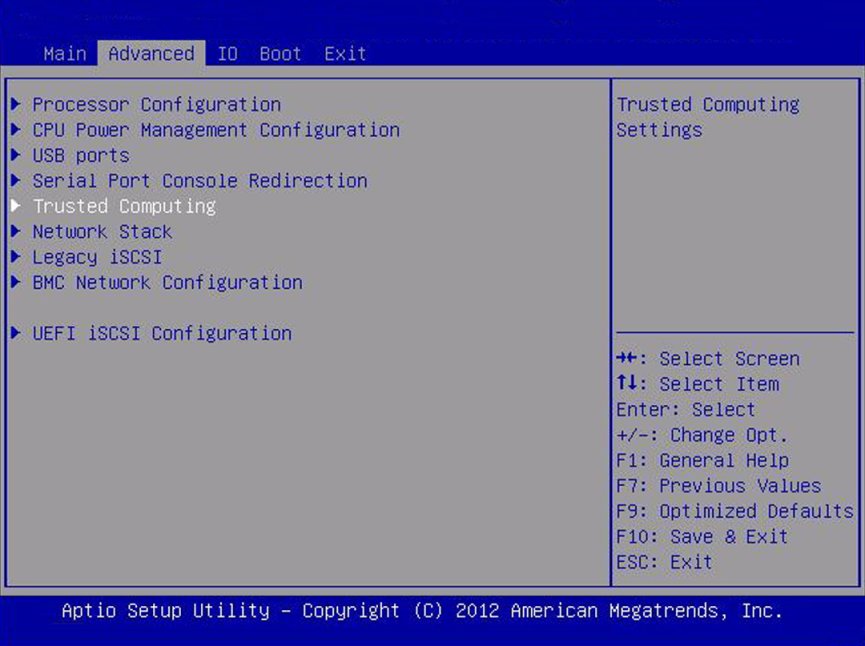

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Advanced、Trusted Computing、TPM Support、Pending Operation、Current Status Information

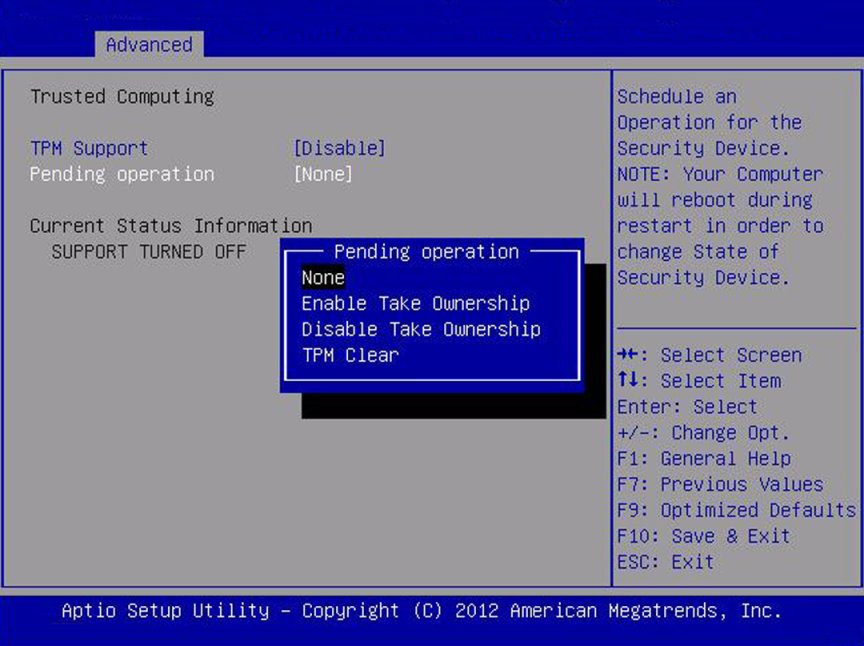

image:「Serial Port Console Redirection」画面のスクリーンショット。

キーワード: Advanced、Trusted Computing、TPM Support、Pending Operation、Enable Take Ownership、Disable Take Ownership、TPM Clear

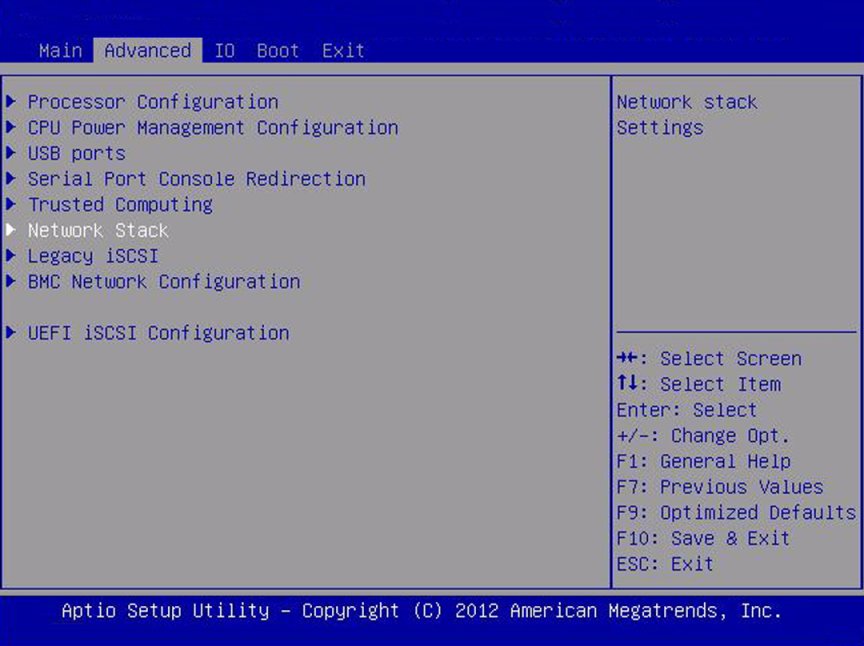

image:「Network Stack」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

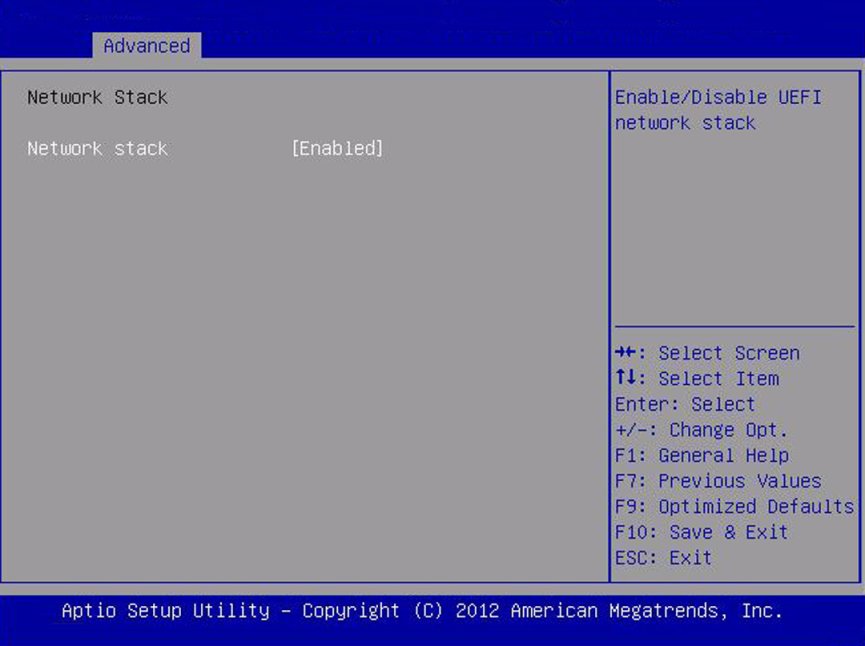

image:「Network Stack」画面のスクリーンショット。

キーワード: Advanced、Network Stack

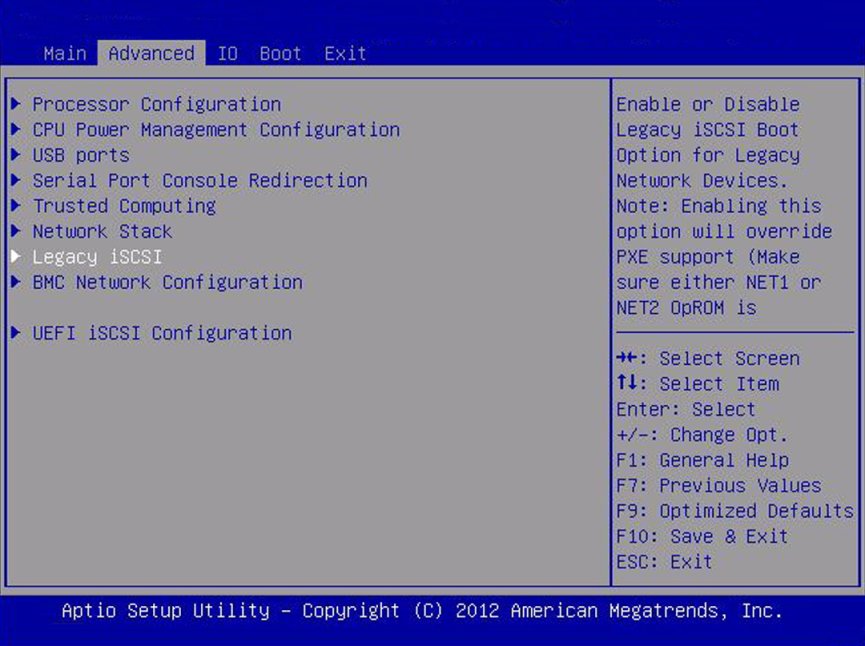

image:「レガシー iSCSI」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

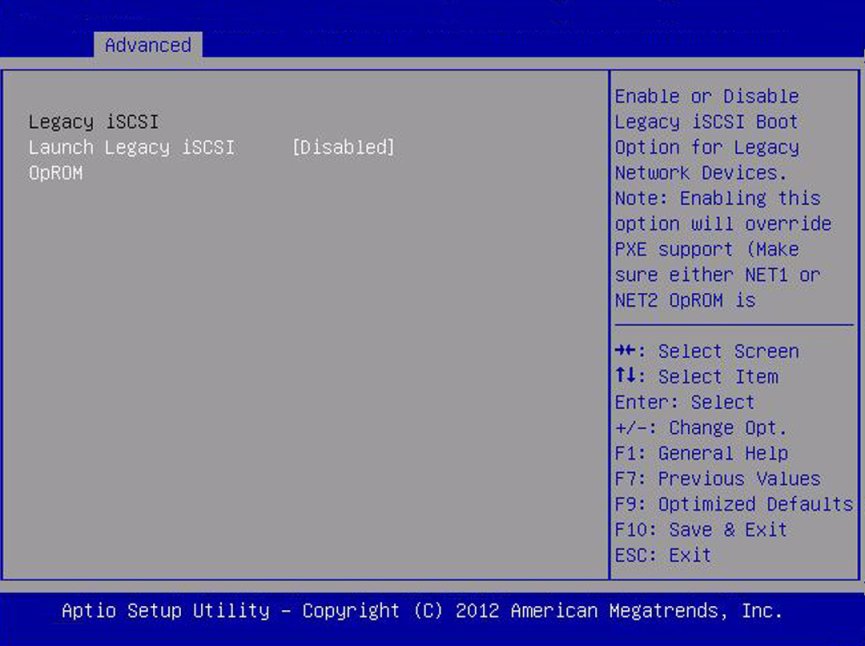

image:「レガシー iSCSI」画面のスクリーンショット。

キーワード: Advanced、Legacy iSCSI、Launchレガシー iSCSI、OpROM

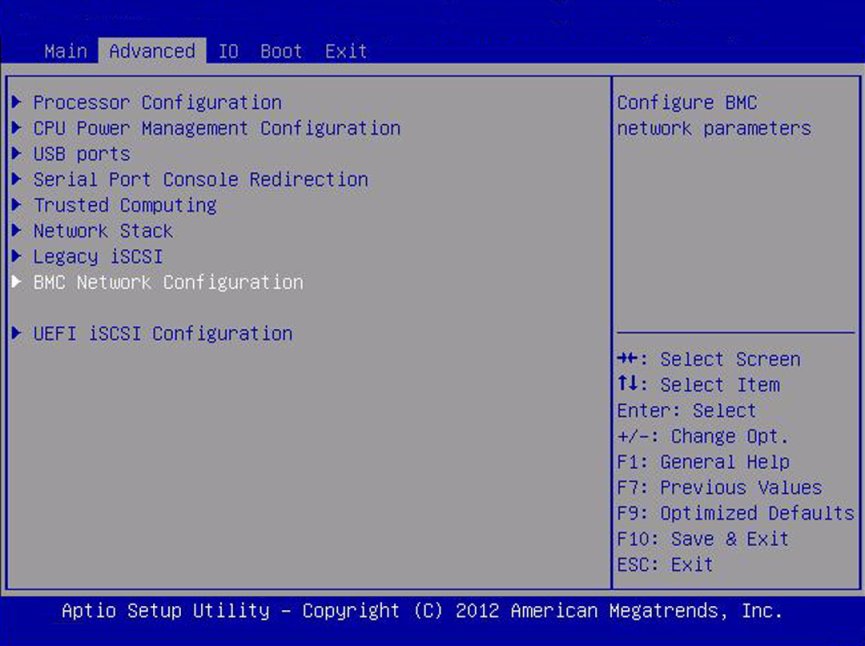

image:「BMC Network Configuration」画面のスクリーンショット。

キーワード: Advanced、Processor Configuration、CPU Power Management Configuration、USB Ports、Serial Port Console Redirection、Trusted Computing、Network Stack、Legacy iSCSI、BMC Network Configuration、UEFI iSCSI Configuration

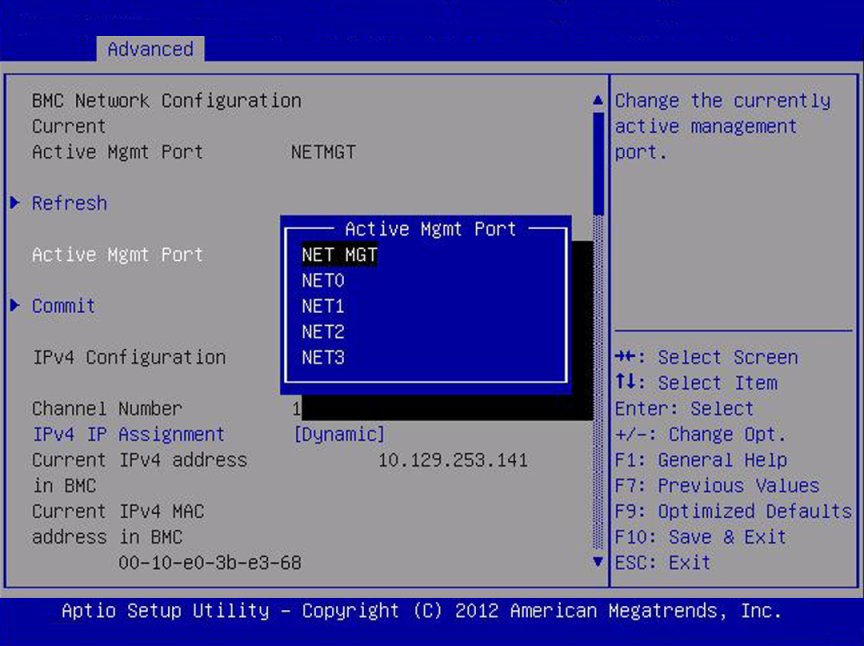

image:「BMC Network Configuration」画面のスクリーンショット。

キーワード: Advanced、BMC Network Configuration、Active Mgmt Port、NET MGT、NET0、NET1、NET2、NET3

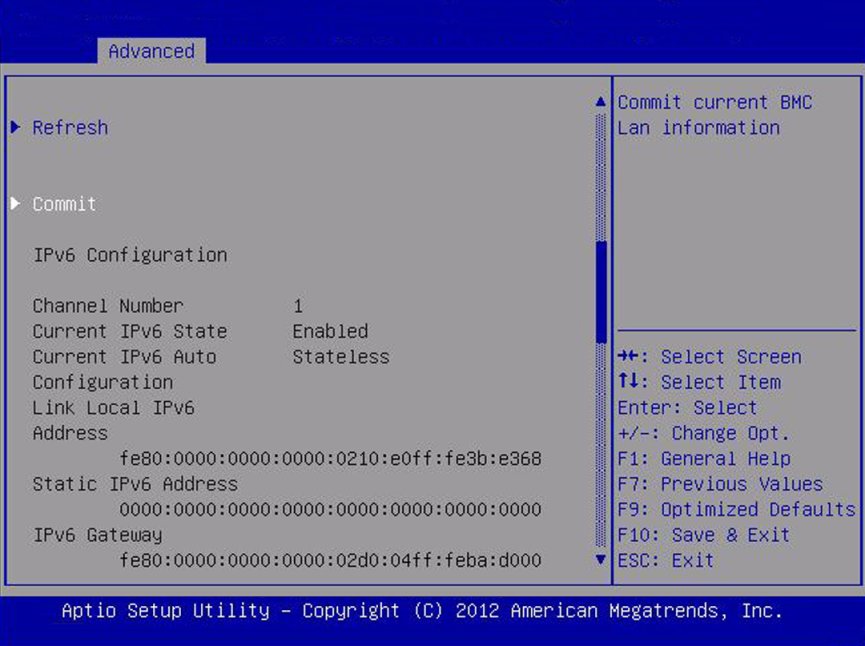

image:

キーワード: Advanced、BMC Network Configuration、Refresh、Commit、IPV6 Configuration、Channel Number、Current IPV6 State、Current IPV6 Auto、Configuration、Link Local IPv6 Address、Static IPv6 Address、IPv6 Gateway

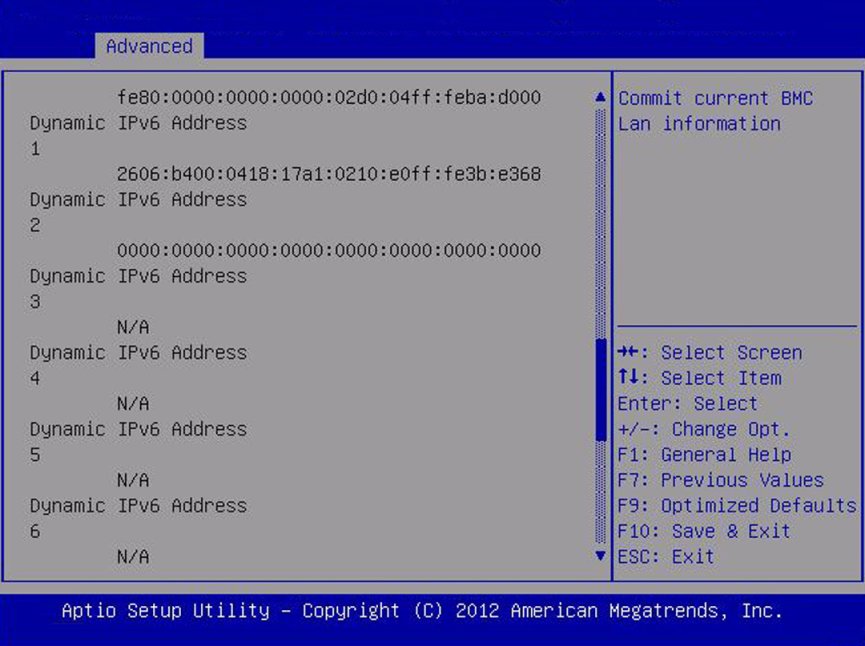

image:

キーワード: Advanced、BMC Network Configuration、Dynamic IPv6 Address

image:

キーワード: Advanced、BMC Network Configuration、Dynamic IPv6 Address

「IO」画面

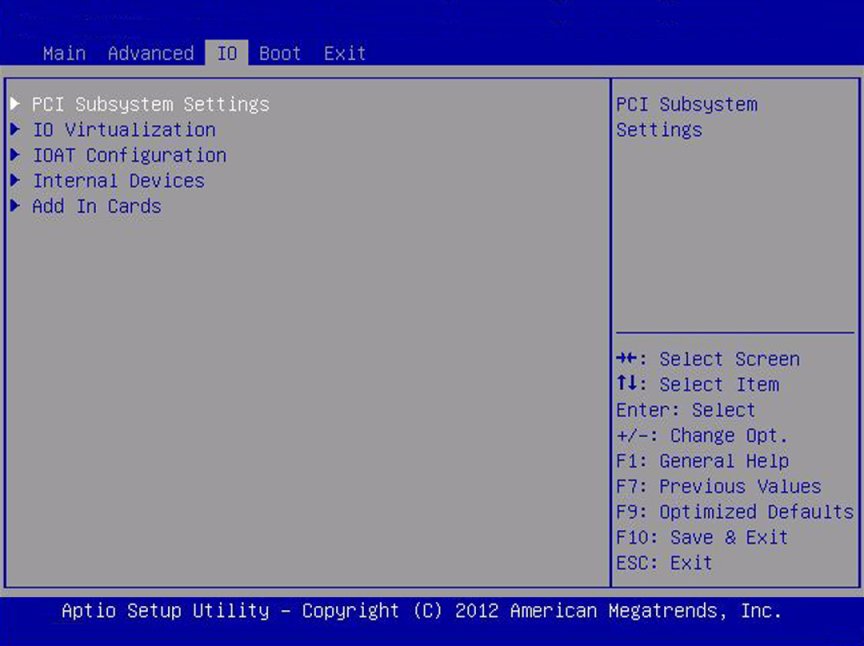

image:レガシーモード「IO」BIOS 画面のスクリーンショット。

キーワード: IO、PCI Subsystem Settings、IO Virtualization、IOAT Configuration、Internal Devices、Add-In Cards

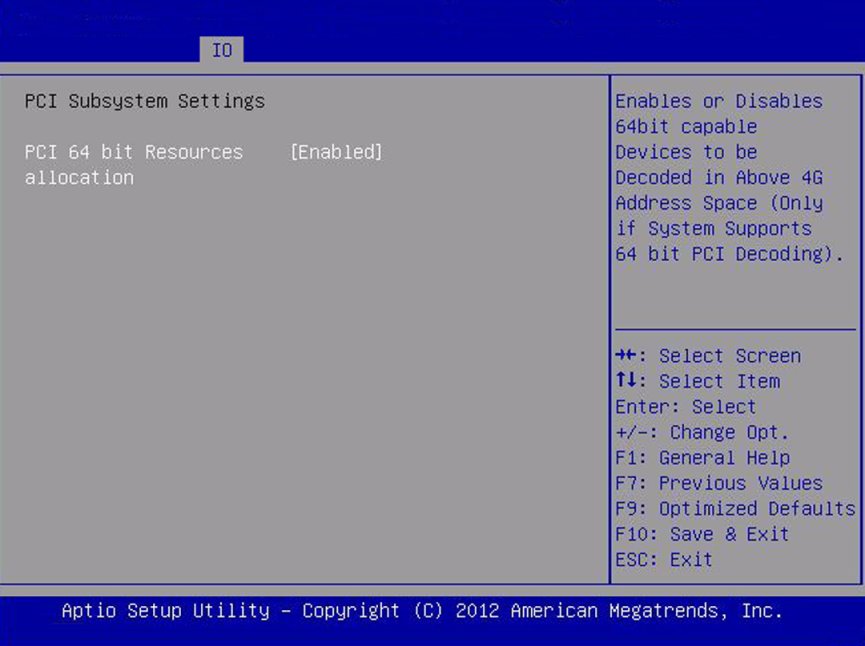

image:

キーワード: IO、PCI Subsystem Settings、PCI 64-bit Resources allocation

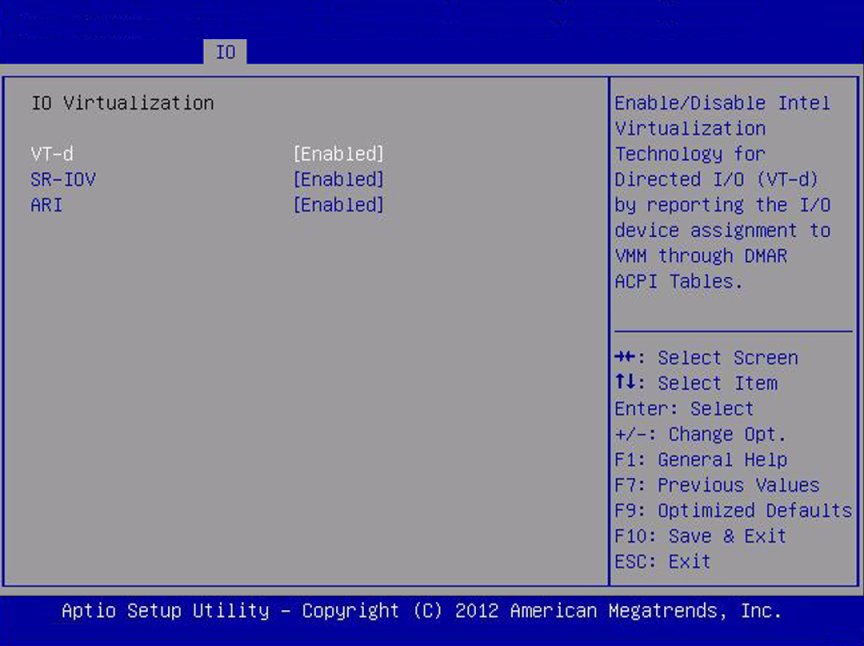

image:

キーワード: IO、IO Virtualization、VT-d、SR-IOV、ARI

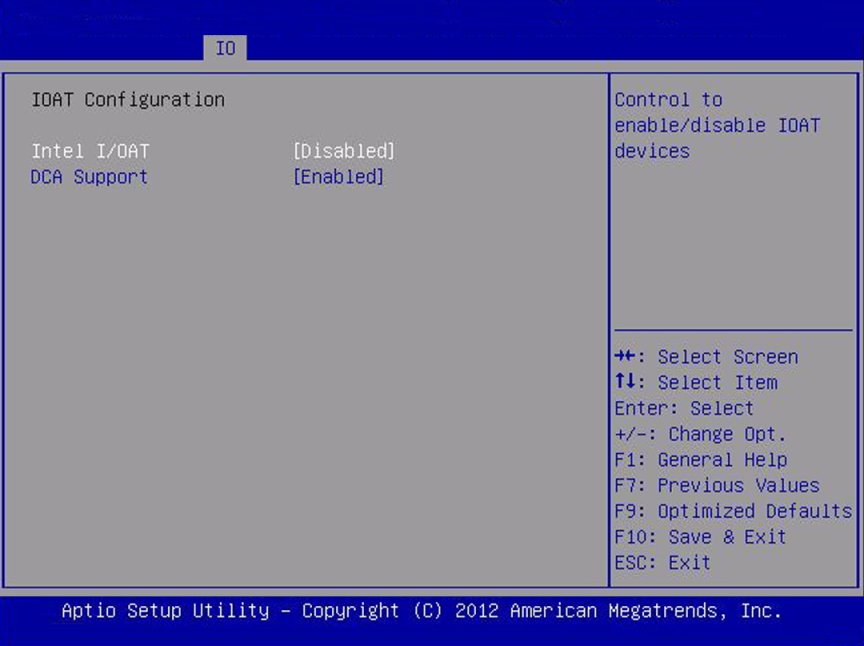

image:

キーワード: IO、IOAT Configuration、Intel I/OAT、DCA Support

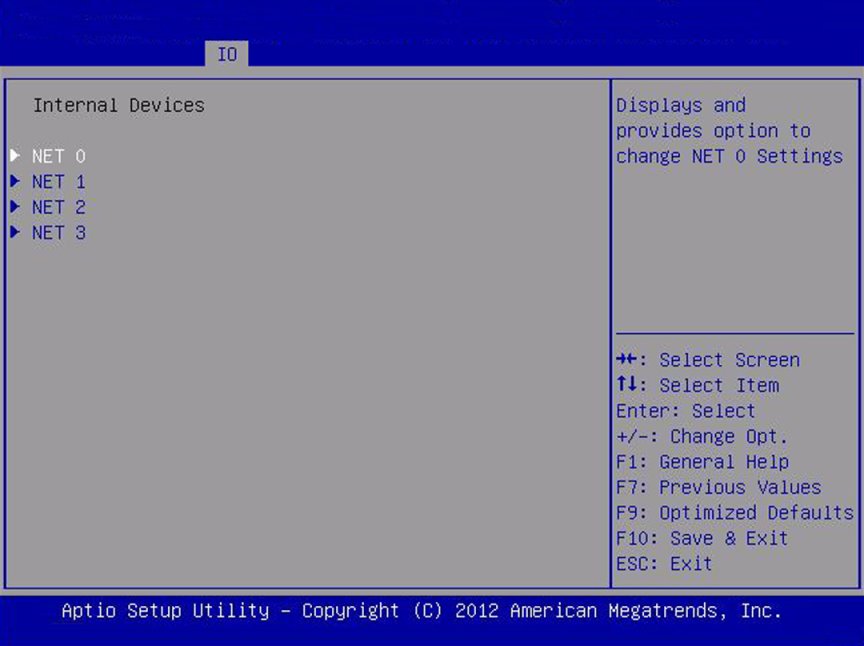

image:

キーワード: IO、Internal Devices、Net0、Net1、Net2、Net3

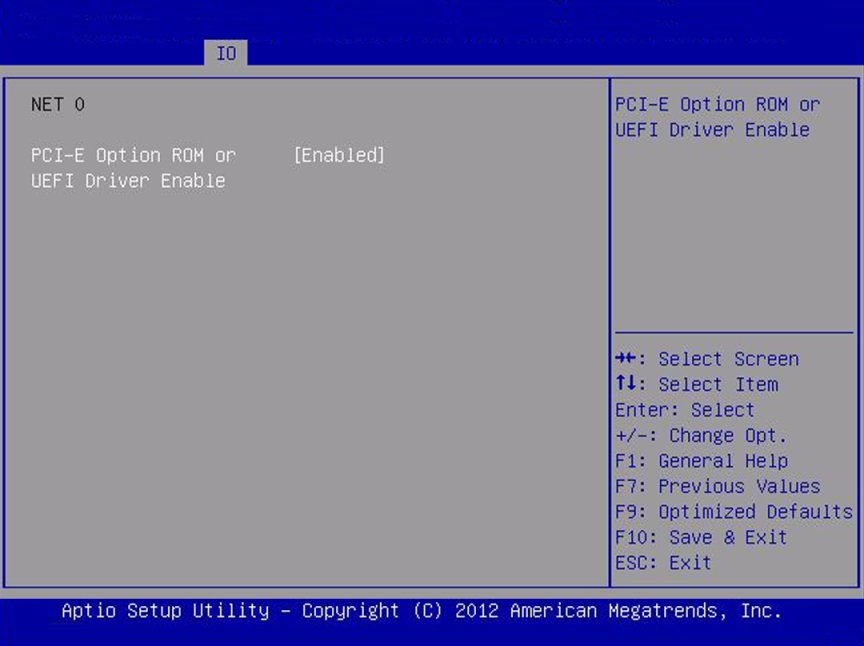

image:

キーワード: IO、Net 0、PCIE Option ROM or UEFI Driver Enable

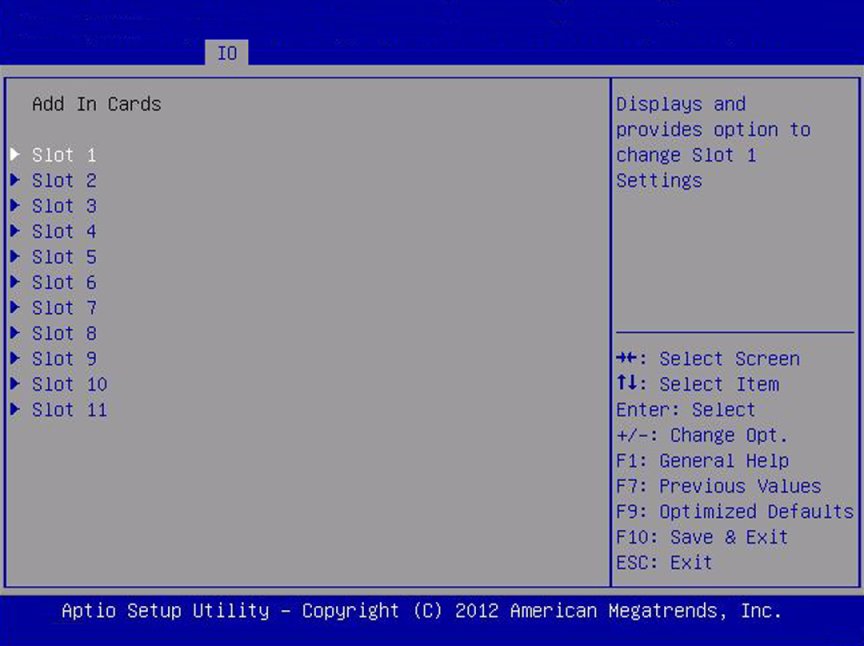

image:

キーワード: IO、Add-In Cards、Slot 1 - Slot 11

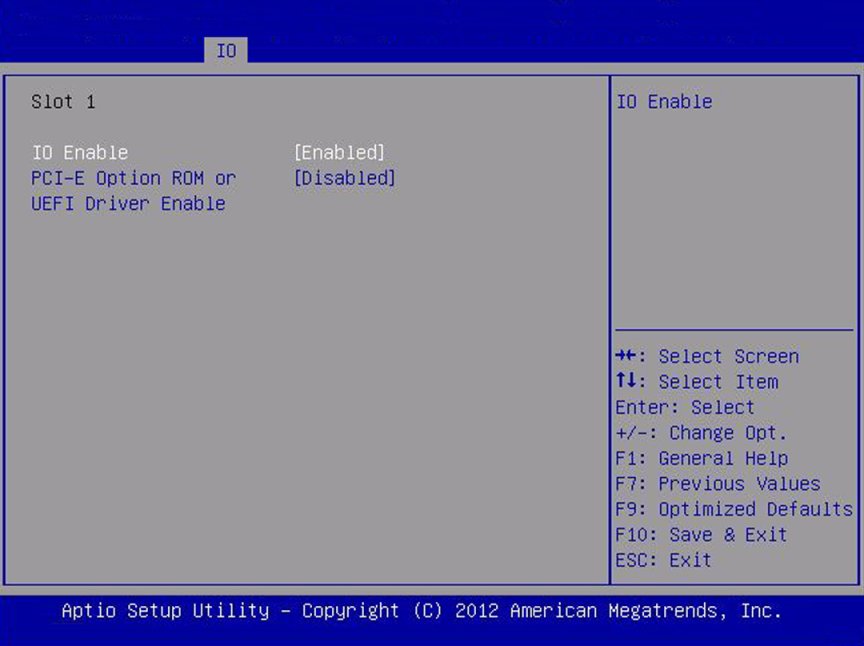

image:

キーワード: IO、Add-In Cards、Slot 1、IO Enable、PCIE Option ROM or UEFI Driver Enable

Boot 画面 (レガシー)

image:レガシーモード「Boot」BIOS 画面のスクリーンショット。

キーワード: UEFI/BIOS Boot Mode、Retry Boot List、Network Boot Retry、IBMS feature、OSA Configuration、Legacy Boot Option Priority

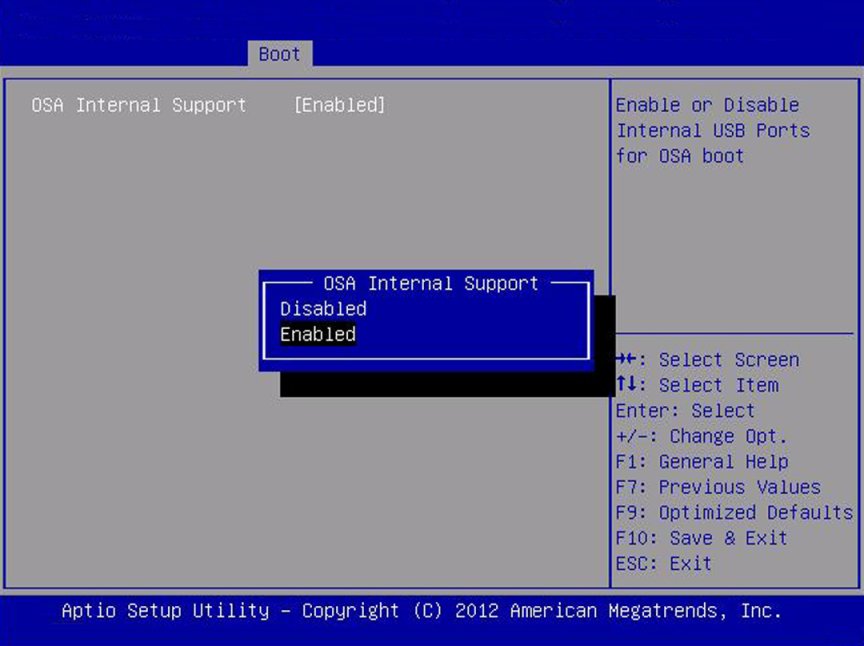

image:レガシーモード「Boot」BIOS 画面のスクリーンショット。

キーワード: OSA Internal Support、Disabled、Enabled

image:レガシーモード「Boot」BIOS 画面のスクリーンショット。

キーワード: UEFI/BIOS Boot Mode、Retry Boot List、Network Boot Retry、IBMS feature、OSA Configuration、Legacy Boot Option Priority、Boot Option #1
