查看配置

要查看框架配置（此配置还包含由系统创建的缺省元素），请键入：

# pooladm
system host
        string  system.comment
        int     system.version 1
        boolean system.bind-default true
        int     system.poold.pid 177916
        string  system.poold.objectives wt-load

        pool dev_pool
                int     pool.sys_id 125
                boolean pool.default false
                boolean pool.active true
                int     pool.importance 1
                string  pool.comment
                string  pool.scheduler IA
                pset    dev_pset

        pool appserver_pool
                int     pool.sys_id 124
                boolean pool.default false
                boolean pool.active true
                int     pool.importance 1
                string  pool.comment
                string  pool.scheduler TS
                pset    app_pset

        pool db_pool
                int     pool.sys_id 123
                boolean pool.default false
                boolean pool.active true
                int     pool.importance 1
                string  pool.comment
                string  pool.scheduler FSS
                pset    db_pset

        pool tp_pool
                int     pool.sys_id 122
                boolean pool.default false
                boolean pool.active true
                int     pool.importance 1
                string  pool.comment
                string  pool.scheduler TS
                pset    tp_pset

        pool pool_default
                int     pool.sys_id 0
                boolean pool.default true
                boolean pool.active true
                int     pool.importance 1
                string  pool.comment
                string  pool.scheduler TS
                pset    pset_default

        pset dev_pset
                int     pset.sys_id 4
                string  pset.units population
                boolean pset.default false
                uint    pset.min 0
                uint    pset.max 2
                string  pset.comment
                boolean pset.escapable false
                uint    pset.load 0
                uint    pset.size 0
                string  pset.poold.objectives locality tight; utilization < 80

        pset tp_pset
                int     pset.sys_id 3
                string  pset.units population
                boolean pset.default false
                uint    pset.min 2
                uint    pset.max 8
                string  pset.comment
                boolean pset.escapable false
                uint    pset.load 0
                uint    pset.size 0
                string  pset.poold.objectives locality tight; 2: utilization < 80

                cpu
                        int     cpu.sys_id 1
                        string  cpu.comment
                        string  cpu.status on-line

                cpu
                        int     cpu.sys_id 2
                        string  cpu.comment
                        string  cpu.status on-line

        pset db_pset
                int     pset.sys_id 2
                string  pset.units population
                boolean pset.default false
                uint    pset.min 4
                uint    pset.max 6
                string  pset.comment
                boolean pset.escapable false
                uint    pset.load 0
                uint    pset.size 0
                string  pset.poold.objectives locality tight; utilization < 80

                cpu
                        int     cpu.sys_id 3
                        string  cpu.comment
                        string  cpu.status on-line

                cpu
                        int     cpu.sys_id 4
                        string  cpu.comment
                        string  cpu.status on-line

                cpu
                        int     cpu.sys_id 5
                        string  cpu.comment
                        string  cpu.status on-line

                cpu
                        int     cpu.sys_id 6
                        string  cpu.comment
                        string  cpu.status on-line
        pset app_pset
                int     pset.sys_id 1
                string  pset.units population
                boolean pset.default false
                uint    pset.min 1
                uint    pset.max 2
                string  pset.comment
                boolean pset.escapable false
                uint    pset.load 0
                uint    pset.size 0
                string  pset.poold.objectives locality tight; utilization < 80
                cpu
                        int     cpu.sys_id 7
                        string  cpu.comment
                        string  cpu.status on-line

        pset pset_default
                int     pset.sys_id -1
                string  pset.units population
                boolean pset.default true
                uint    pset.min 1
                uint    pset.max 4294967295
                string  pset.comment
                boolean pset.escapable false
                uint    pset.load 0
                uint    pset.size 0

                cpu
                        int     cpu.sys_id 0
                        string  cpu.comment
                        string  cpu.status on-line

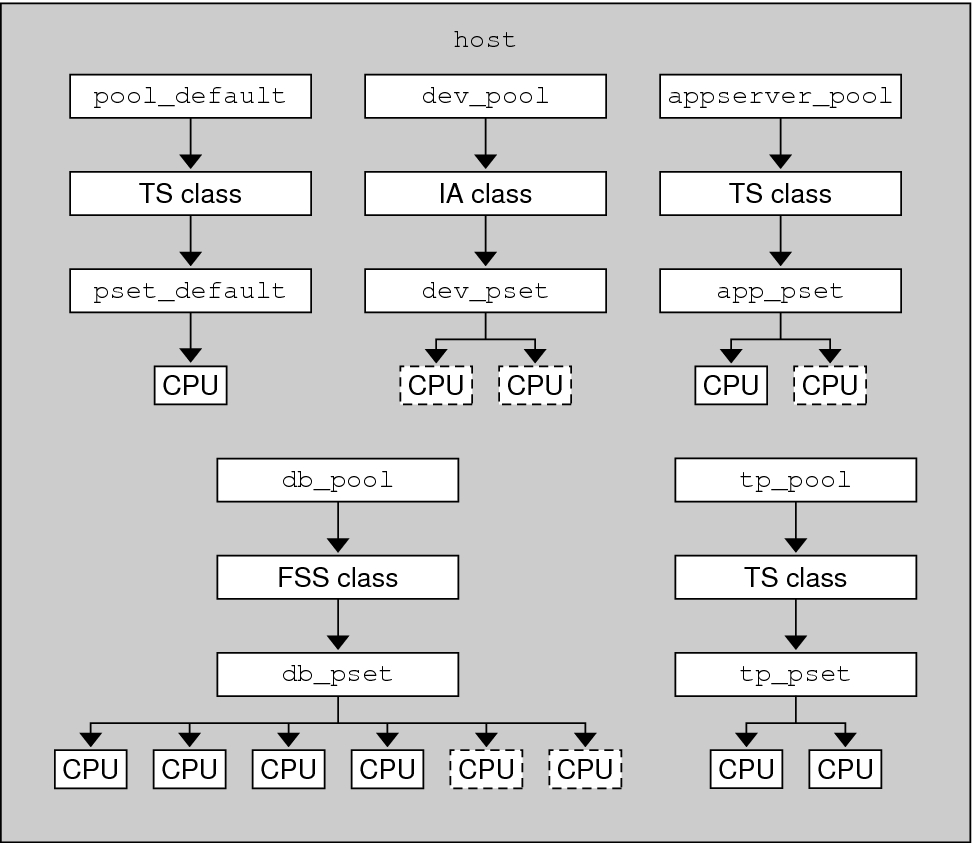

下面是框架的图形表示。

图 14-1  服务器整合配置
