Restarting the EPAP Software

This procedure is used when referenced by one of the procedures in Alarms.

Caution:

Perform this procedure only when directed to by one of the procedures in Alarms. This is not a standalone procedure.

The PDBA items that appear in the screens in this procedure apply only to the EPAP application.

1. Log in to the User Interface screen of the EPAPGUI (see Accessing the EPAP GUI).
2. Check the banner information above the menu to verify that you are logged into the problem EPAP indicated in the UAM.
   If it is necessary to switch to the problem EPAP, select Select Mate.
3. From the epapmaint screen, select Process Control>Stop Software.

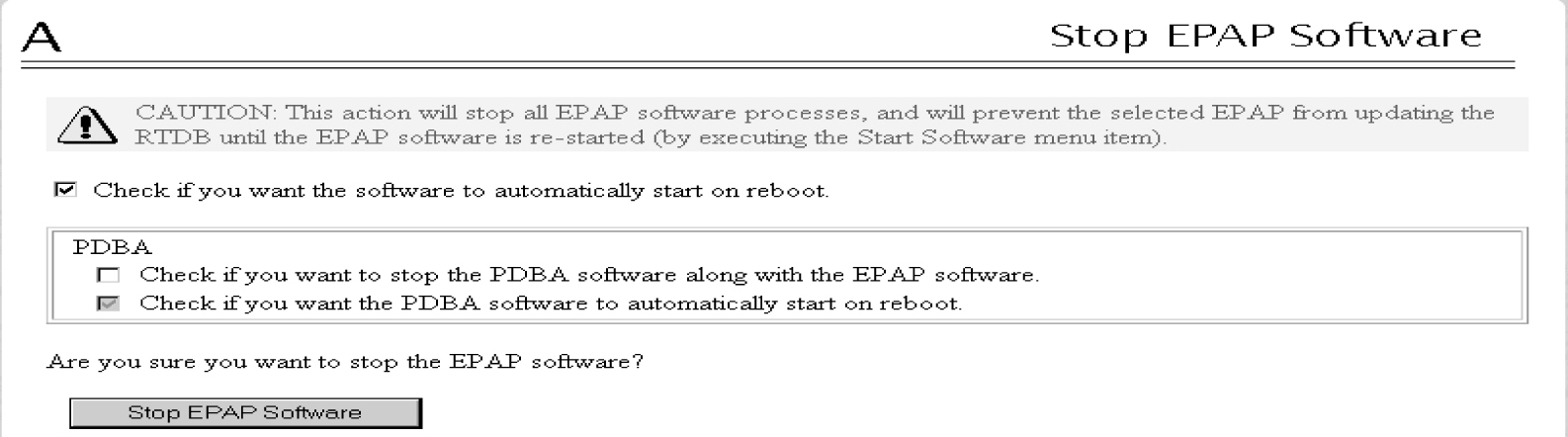

   The screen shown in Figure A-7 appears:

   Figure A-7 Stop Software Confirmation


4. On the Stop EPAP Software screen, make sure that appropriate check boxes are checked as shown in Figure A-7.
5. Click the Stop EPAP Software button to stop the software.

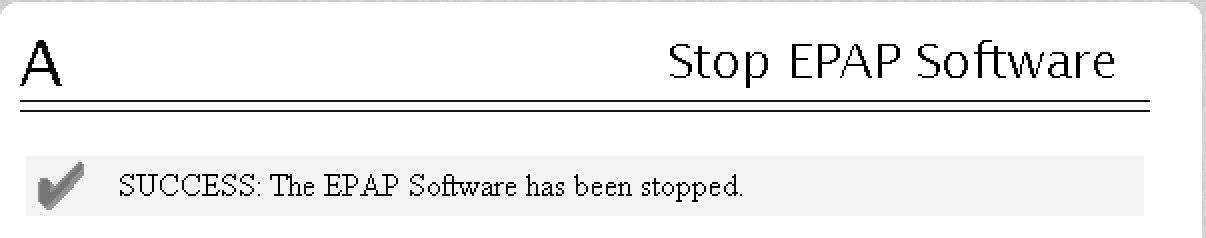

   The screen shown in Figure A-8 appears.

   Figure A-8 Stop Software Completion Screen


6. Select Process Control > Start Software.

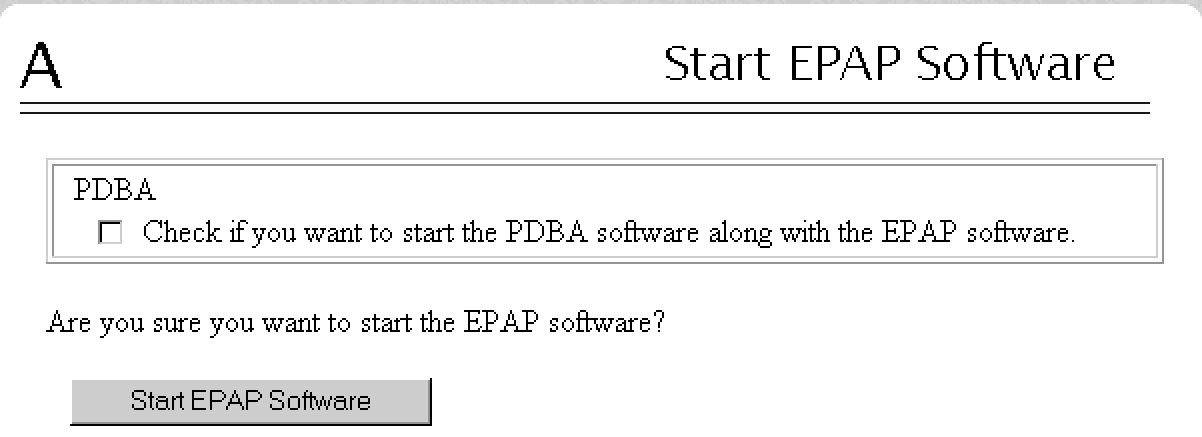

7. From the Start EPAP Software screen, make sure that the check boxes are checked as shown in Figure A-9:

   Figure A-9 Start EPAP Software


8. Click the Start EPAP Software button to start the software.

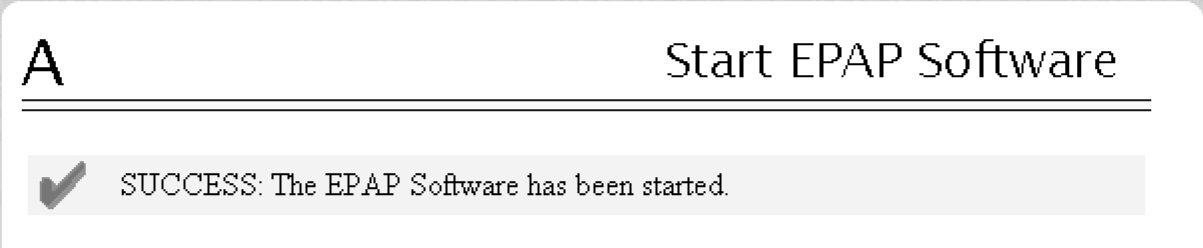

   The screen shown in Figure A-10 confirms that the software has started:

   Figure A-10 Start Software Completion Screen
