Running syscheck Through the EPAP GUI

Refer to Administration Guide for more details and information about logins and permissions.

1. Log in to the User Interface of the EPAP GUI (see Accessing the EPAP GUI).
2. Check the banner information above the menu to verify that the EPAP about which system health information is sought is the one that is logged into.
3. If it is necessary to switch to the other EPAP, click the Select Mate menu item.
4. When the GUI shows you are logged into the EPAP about which you want system health information, select Platform > Run Health Check as shown in the following window.

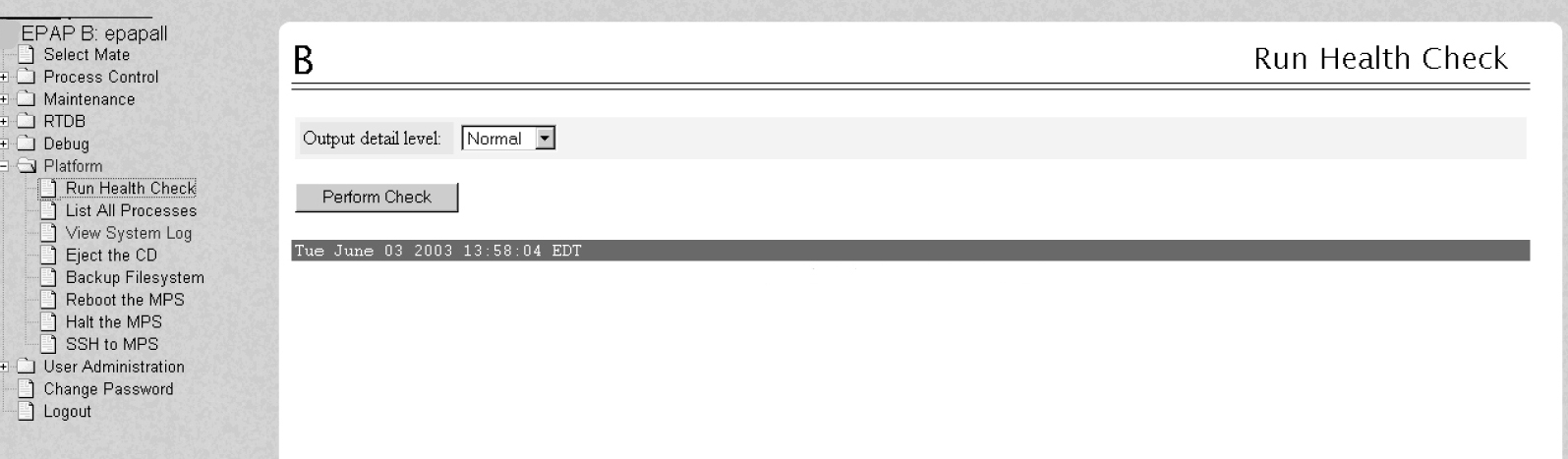

   Figure 3-11 Run Health Check


5. On the Run Health Check window, use the pull-down menu to select Normal or Verbose for the Output detail level desired.
6. Click the Perform Check button to run the system health check on the selected server.
   The system health check output data is displayed. The example shown in Figure 3-12 shows Normal output with errors.

   Figure 3-12 Displaying System Health Check on EPAP GUI
