4000000000100000 - No PDBA Proxy to Remote PDBA Connection

This message indicates that the PDBA Proxy feature is disabled or the software is down.

Recovery

  1. Log in to the User Interface screen of EPAP A (see Accessing the EPAP GUI)
  2. Refer to the LNPDatabase Synchronization Manual for the correct procedures.
  3. Select PDBA>View PDBA Status to verify that the PDBA proxy feature is enabled.
    The Local Proxy Status items only appear if the PDBA Proxy feature is enabled (See Figure 4-13).

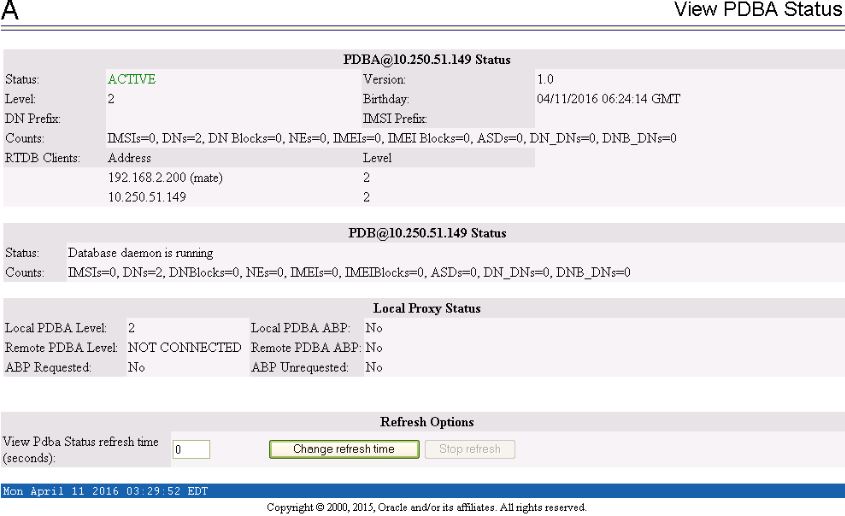

    Figure 4-13 View PDBA Status Screen

  4. Refer to Restarting the EPAP and PDBA to restart the PDBA.
  5. If the problem persists, capture the log files on both EPAPs (see Saving Logs Using the EPAP GUI) and contact My Oracle Support (MOS).
