3.4 OAM Installation for DR SDS NOAM Site (Optional)

Pre-requisites:
  • Ensure the SDS Network Element XML file for Disaster Recovery Provisioning SDS site has been created as described in Creating an XML file for Installing SDS Network Elements.
  • All the Network Element XML files are on the laptop’s hard drive.
  • Ensure an established connection is present to the SDS GUI before configuring the first SDS server.
Configuring DR NOAM Servers (DR SDS NOAM Site Only)

Perform the following steps in DR SDS NOAM-A:

  1. Launch a web browser and connect to the XMI virtual IP address assigned to active SDS site using https://xx.xxx.xx.xxx/
    If the Security Certificate Warning screen displays, click Continue to this website (not recommended).
    Continue to this website (not recommended)

  2. To login, establish a GUI session as the guiadmin user on the NOAM-A server.

    GUI login

  3. To create the SDS VIP network element using the XML file, perform the following steps:
    1. Navigate to Configuration, select Networking, and click Networks.
      Navigating to Networks

    2. Click Browse and enter pathname of the NOAM network XML file.
      Browse

      Note:

      This step assumes that the XML files were previously prepared as described in Appendix A Creating an XML file for Installing SDS Network Elements.
    3. Select the location of the XML file and click Open.
      File Location browse

    4. Click Upload File to upload the XML file.
      Uploading file

      If the values in the XML file pass, an information banner displays.
      Main menu for networks

      Note:

      Left-click on the Info banner to display the banner.
  4. To insert the DR NOAM-A and DR NOAM-B servers, perform the following steps:
    1. Navigate to Configuration and select Servers.
      Navigating to servers

    2. To insert the new NOAM server into the the server or first servers table, click Insert.
    3. Fill in the fields as follows:
      • Hostname: Assigned Hostname
      • Role: NETWORK OAM&P
      • System ID: Assigned Hostname
      • Hardware Profile: SDS Cloud Guest
      • Network Element Name: [Select NE from list]
      • Location: Optional

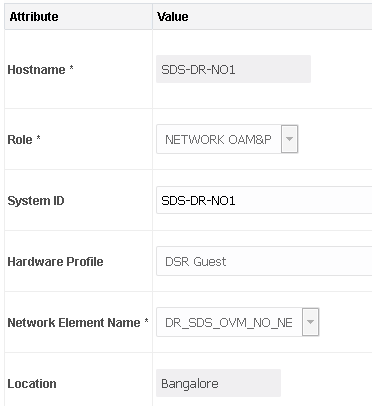

    Servers configuration values

  5. To insert the first VM, perform the following steps:
    The network interface fields are now available with selection choices based on the chosen hardware profile and network element.
    OAM Interfaces

    1. Enter the server IP addresses for the XMI network, select ethX for the interface and retain the VLAN checkbox unchecked.
    2. Enter the server IP addresses for the IMI network, select ethX for the interface and retain the VLAN checkbox unchecked.

      Note:

      For OpenStack, use the IP addresses used during instance booting and networking.
    3. Click Add in the NTP server’s box.
    4. Add the following NTP servers:
      NTP Server Preferred?
      Valid NTP Server Yes
      Valid NTP Server (Optional) No
      Valid NTP Server (Optional) No
    5. Optionally, mark the Prefer checkbox to prefer one server over the other.
    6. Click OK, once entering all the server data is completed.
  6. To export the initial configuration, perform the following steps:
    1. Navigate to Configuration, and select Servers.
      Navigating to Servers

    2. From the GUI screen, select the SDS server and click Export to generate the initial configuration data for that server.
    3. Navigate to the Info tab to confirm the file is created.

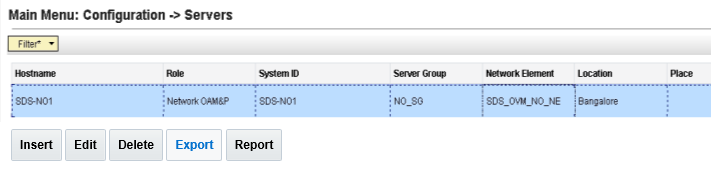

      Main menu for servers

  7. To copy server configuration file to /var/tmp directory, perform the following steps:
    1. Obtain a terminal window to the SDS NOAM-A server, logging in as the admusr user.
    2. Copy the configuration file created in the previous step from the /var/TKLC/db/filemgmt directory on the SDS NOAM-A to the /var/tmp directory. The configuration file has a filename like TKLCConfigData.<hostname>.sh.
      For example:
      $ cp /var/TKLC/db/filemgmt/TKLCConfigData.<hostname>.sh /var/tmp/TKLCConfigData.sh

      Note:

      The server polls the /var/tmp directory for the configuration file and automatically runs it.
      For the NOAM-B server, the command is:
      $ scp \
      /var/TKLC/db/filemgmt/TKLCConfigData.<hostname>.sh \
      <ipaddr>:/var/tmp/TKLCConfigData.sh

      Note:

      The IPADDR is the IP address of NOAM-B associated with the XMI network.

      Wait for configuration to complete.

      The automatic configuration daemon looks for the file named TKLCConfigData.sh in the /var/tmp directory. It implements the configuration in the file and prompts the user to reboot the server.

      A broadcast message is sent to the terminal. This process can take anywhere from 3 up to 20 minutes to complete.

      If you are on the console, wait to be prompted to reboot the server. Do not reboot the server. It is rebooted later in this procedure.

  8. Verify if the script is completed successfully, by checking the following file:
    $ sudo cat /var/TKLC/appw/logs/Process/install.log

    Note:

    Ignore the warning about removing the USB key since no USB key is present. No response occurs until the reboot prompt is issued.
  9. To verify server health, perform the following steps:
    1. Log into the NOAM1 as the admusr user.
    2. Run the following command on the first NOAM server and ensure no errors are returned:
      $ sudo syscheck
      Running modules in class hardware...
      OK
      Running modules in class disk...
      OK
      Running modules in class net...
      OK
      Running modules in class system...
      OK
      Running modules in class proc...
      OK
      LOG LOCATION: /var/TKLC/log/syscheck/fail_log
    3. Exit from the command line to return to the server console.
      $ exit
      sds-mrsvnc-a login:
  10. To configure DR SDS NOAM-B, repeat the above steps from Step 3 to Step 9 of this procedure, in DR SDS NOAM-B.
