Install Management Agents

Download the Agent Software

Perform the following steps to download the agent software:

  1. On the Management Agents home page, click the Downloads and Keys from the left menu to view the Software Download pane.

    The Software Download pane is displayed.

  2. On the Software Download pane, select the operating system that the Management Agent will be installed on from the Download column.

  3. Click the link specific to your operating system to download the agent software file.

    For example, click Agent for WINDOWS (X86_64) for Windows.

Software download page that shows the software download table with links to download the software file.

The software file is now saved on your host.

To verify the file integrity, check if the value of the SHA-256 Checksum column matches the output of the following command: sha256sum <download_file>

Download the Agent Software Using a URL

You can also download the agent software using a URL. This alternative download method is useful if you want to avoid using the Management Agent user interface to download the agent software file.

Note

To download the Management Agent software from a different commercial region, edit the above download URL and replace it with the corresponding region's Object Storage API end point. For details, see https://docs.oracle.com/iaas/api/#/en/objectstorage/20160918/.

Create Install Key

You need to create an install key before performing the Management Agent installation.

An install key is issued against your identity domain and validates the authenticity of the installation. Ensure you have it created before starting the Management Agent installation process.

To create a key:

  1. On the Management Agents home page, click Download and Keys from the left menu to view the Install Keys pane.

    The Install Keys pane is displayed at the bottom of the page.

  2. On the Install Keys pane, click Create Key to create a key.

  3. Enter the required details in the Create Key window.

    1. In the Key Name field, specify a name to identify the key.

    2. In the Compartment field, select the compartment from the drop-down list. This is the compartment where the agent resource will be created.

    3. In the Maximum Installs field, specify a number that indicates the maximum number of installs that can be associated with the key. Default value is 1000.

    4. In the Valid for field, specify a number that indicates the period the key is valid for. Default value is 1 Week.

    5. The Unlimited checkbox is optional.

      If it's selected, the key can be used for an unlimited number of agent and gateway installations and the key never expires.

      Risks of using unlimited keys: Oracle recommends to keep the life time of an Install Key to a minimum required time and limited number of agents. Ensure that you keep the downloaded key in a secure location to protect confidentiality. If the unlimited install key is compromised, an attacker can install rogue agents in your tenancy. A regular audit of your tenancy's agents can help to mitigate any potential risks associated with unlimited install keys. When an unlimited install key is not needed anymore, ensure to delete it either using the Management Agents Console or CLI.

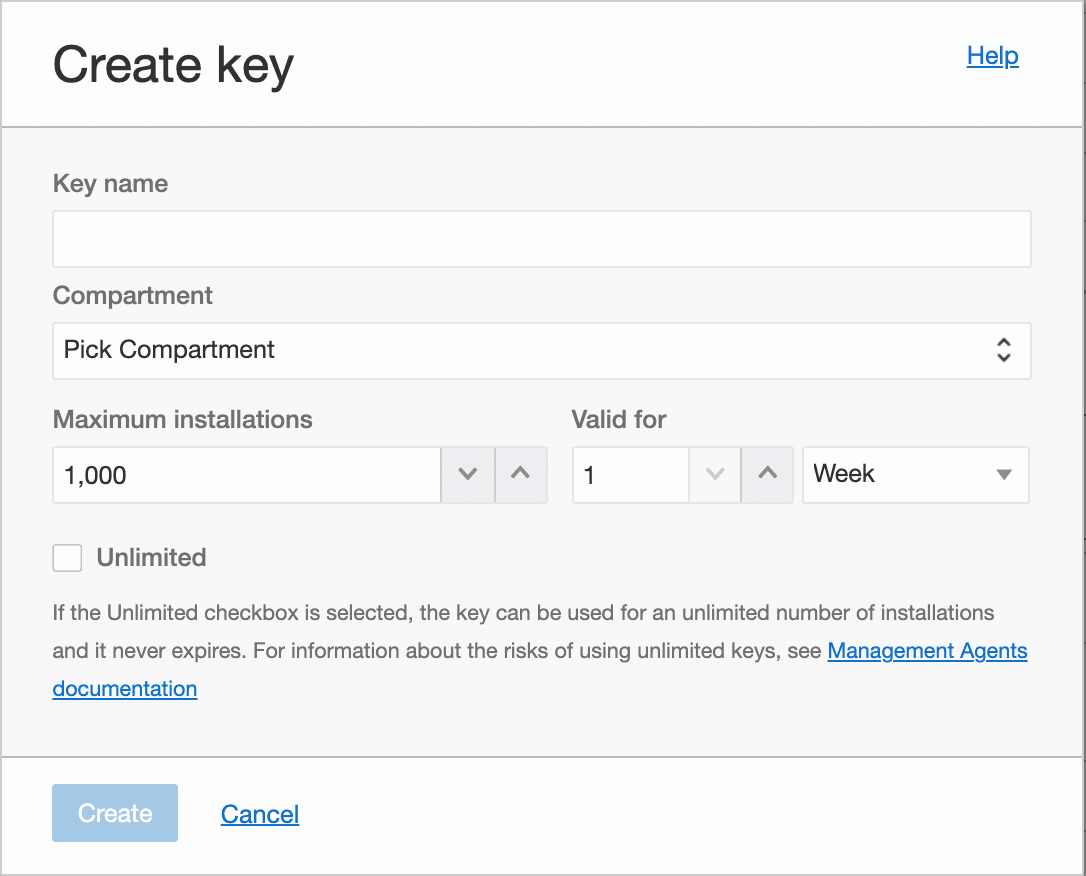

    Create Key dialog box.

    A new key is created.

The Install Keys pane offers different options available to manage the keys. During a later step, the Download Key to File option is useful to download a file that can be used as a response file template as described in Configure a Response File .

For more information about managing the install keys, see Manage Install Keys.

Note

If you are installing a Management Gateway, you can use the same install key to install Management Gateway and Management Agent. For information about Management Gateway, see Management Gateway.

Configure a Response File

The Management Agent installation script uses a response file to read the agent parameters specific to your environment.

Review Agent Parameters

A response file containing the agent parameters is required when executing the agent setup script.

The following section describes the parameters supported in the response file:

Table 3-1 Response File Parameters

Parameter Name Parameter Type Description
ManagementAgentInstallKey Mandatory Install key required to validate the identity of the domain and the authenticity of the installation.
CredentialWalletPassword Mandatory Password of the agent wallet when the user provides a custom password for the wallet to store sensitive information.
The password minimum length is 8 characters with the following specifications:
  • At least one lowercase character (a-z)
  • At least one uppercase character (A-Z)
  • At least one digit (0-9)
  • At least one special character from the following list: '!', '@', '#', '%', '^', '&', '*'

All characters from the password must be from the characters defined above. For example, if the password has the $ character as part of the password, it will fail the validity check since $ is not among the special characters listed above.

ProxyHost Optional Host name or address of the proxy server.

If using Management Gateway, this value is the host name or address of the Management Gateway.

If provided, ProxyPort also must be provided.
ProxyPort Optional Port number of the proxy server.

If using Management Gateway, this value is the port number of the Management Gateway.

If provided, ProxyHost also must be provided.
ProxyUser Optional User name, if the proxy server requires authentication.

If using Management Gateway, and the Management Gateway requires authentication then this value is the user name.

If provided, ProxyPassword also must be provided.
ProxyPassword Optional Password, if the proxy server requires authentication.

If using Management Gateway, and the Management Gateway requires authentication then this value is the password.

If provided, ProxyUser also must be provided.
ProxyRealm Optional The authentication realm for the proxy server.

If using Management Gateway, this value is not needed.

AgentDisplayName Optional The display name for your agent. If it's left empty, the default value will be set to "Agent (host-name)".
Service.plugin.<plugin_name>.download=true Optional The name of the plug-in that you want to deploy during the agent installation. <plugin_name> is a plug-in supported by the Management Agent service.

For example, if you want to deploy the DataSafe plug-in during the agent installation, it will be: Service.plugin.datasafe.download=true

FreeFormTags = [{"<key1>":"<value1>"}, {"<key2>":"<value2>"}] Optional The tag metadata association if using tags in OCI.

It consists of a key and a value. Key is any name you use to refer to the tag. Value is the value that the user applying the tag adds to the tag key.

DefinedTags = [{"namespace1":{"<key1>":"<value1>"}}, {"namespace2":{"<key2>":"<value2>"}}] Optional The tag metadata association if using tags in OCI. The tag administrator creates and manages all the tags that the users apply to resources. The users should have defined tag policies.

Tag namespace is a container for your tag keys. The tag key is a key within your namespace, you must create tag keys for defined tags in a namespace.

For defined tags, the tag value has a type which it can be either a string or a list of strings. While defining the tag value type, if the type defined was a string then any value can be entered. Whereas, if it was a list of strings, this value has to be one of the strings from that list.

Create a Response File

Before proceeding, ensure you have reviewed and understood the information provided in Review Agents Parameters.

To install and configure agents, you need to create a response file and execute a script using the newly created response file which will point the agent to the correct OCI region and allow a resource to be created for the agent.

To create a response file, use one of the following options:

Option 1: Download a response file template to create a response file

You can download a template file containing the agent parameters which can be saved and used as a response file during the agent installation.

To download a response file template, use the Download Key to File menu option from the Agent Install Keys list.
  • Click Download and Keys from the left menu to open the Agent Install Keys pane. From the list of agent install keys, select the key that you want to download.

  • On the right side of the selected key, click the action menu Action Menu and select Download Key to File.

    A file is downloaded. For more information, see Download Install Key.

When downloading the agent install key to a file, the downloaded file contains the agent parameters, including the value of the specific agent install key.

After downloading the file, you need to customize it according to your environment:
  • Open the file using a text editor, review it and edit the mandatory agent parameters. See Review Agents Parameters.
  • Comment out (add the # symbol at the start of the line) or remove the agent parameters that you don't require for your specific agent configuration.
  • Uncomment (remove the # symbol from the start of the line) the agent parameters that you require for your specific agent configuration and update the agent parameter value if needed.
  • Save the updated response file. For example, it can be saved as input.rsp response file.

Option 2: Create a response file using a text editor

You can create a response file manually using a text editor. For example, you can create a file using your preferred text editor, add the agent parameters required for your agent configuration to the response file and save it. For example, the response file can be saved as input.rsp.

Sample of input.rsp response file:
managementAgentInstallKey = MS4wLHVzLWFzaGJ1cm4tMSxvY2lkMS50ZW5hbmN5
CredentialWalletPassword = abcdefgh1#

After creating the response file using any of the above options, check the file permissions and ensure it has read permissions for mgmt_agent user.

Install Management Agent

After downloading the agent software and creating an install key, you can proceed with the installation of the management agent to collect data from sources that you want to manage and monitor from Oracle Cloud Infrastructure.

Install Management Agent on Linux (RPM file)

To install the management agent software on Linux using an RPM file, perform the following steps:
  1. Login as a user with sudo privileges.

  2. Install the management agent software.

    Navigate to the directory where you have downloaded the management agent software RPM file and run the following command to install the RPM file:
    sudo rpm -ivh <rpm_file_name.rpm>

    For example: sudo rpm -ivh oracle.mgmt_agent-<VERSION>.rpm

    The output will look similar to the following:
    Preparing... ################################# [100%]
    Checking pre-requisites

          Checking if any previous agent service exists
          Checking if OS has systemd or initd
          Checking available disk space for agent install
          Checking if /opt/oracle/mgmt_agent directory exists
          Checking if 'mgmt_agent' user exists
          'mgmt_agent' user already exists, the agent will proceed installation without creating a new one.
          Checking Java version
          JAVA_HOME is not set. Trying default path
          Java version: 1.8.0_281 found at /usr/bin/java

    Updating / installing...
          1:oracle.mgmt_agent-<VERSION>################################# [100%]
    Executing install
          Unpacking software zip
          Copying files to destination dir (/opt/oracle/mgmt_agent)
          Initializing software from template
          Creating 'mgmt_agent' daemon
          Agent Install Logs: /opt/oracle/mgmt_agent/installer-logs/installer-log-0
          Setup agent using input response file (run as any user with 'sudo' privileges)
          Usage:sudo
          /opt/oracle/mgmt_agent/agent_inst/bin/setup.sh opts=[RESPONSE_FILE]
    Agent install successful

    The agent installation process does the following:
    • A new user called mgmt_agent is created. This will be the management agent user. If mgmt_agent user already exists, the agent installation process will use it to install the agent software.
    • When mgmt_agent daemon is created, the hard and soft nofile ulimit are set to 5000.
    • All agent files are copied and installed by mgmt_agent user. The agent install base directory is the directory where the agent is installed. The directory is created as part of the agent installation process under /opt/oracle/mgmt_agent directory.
    • By default, the mgmt_agent service is enabled and started automatically after the agent installation.
    Log files from the agent installation are located under /opt/oracle/mgmt_agent/installer-logs directory. To view the log files or any other agent installation files, login as mgmt_agent user running the following:
    sudo -u mgmt_agent sh
  3. Configure the management agent by running the setup.sh script using a response file.
    sudo /opt/oracle/mgmt_agent/agent_inst/bin/setup.sh opts=<full_path_of_response_file>
    The output will look similar to the following:
    sudo /opt/oracle/mgmt_agent/agent_inst/bin/setup.sh opts=<user_home_directory>/input.rsp
    Executing configure
          Generating communication wallet
          Parsing input response file
          Validating install key
          Generating security artifacts
          Registering management agent
          Configuration Logs: /opt/oracle/mgmt_agent/configure-logs

    Agent configuration successful

    Starting agent...
    Agent started successfully
    In future agent can be started by directly running: sudo systemctl start mgmt_agent
    Please make sure that you delete input.rsp or store it in a secure location.

For more information about creating response files, see Create a Response File.

Install Management Agent on Linux (ZIP file)

To install the management agent software on Linux using a ZIP file, perform the following steps:
  1. Extract the management agent software.

    Navigate to the directory where you have downloaded the management agent software ZIP file and unzip it to any preferred location.

  2. Login as a user with sudo privileges.

  3. Install and set up the management agent by running the installer.sh script providing a response file. For information about how to create a response file, see Create a Response File.

    Navigate to the directory where you unzipped the management agent software ZIP file and run the following:
    sudo ./installer.sh <full_path_of_response_file>

    For example: sudo ./installer.sh /tmp/input.rsp

    The output will look similar to the following:
    sudo ./installer.sh <user_home_directory>/input.rsp
    Checking pre-requisites
        Checking if any previous agent service exists
        Checking if OS has systemd or initd
        Checking available disk space for agent install
        Checking if /opt/oracle/mgmt_agent directory exists
        Checking if 'mgmt_agent' user exists
        Checking Java version
            JAVA_HOME is not set or not readable to root
            Trying default path /usr/bin/java
            Java version: 1.8.0_282 found at /usr/bin/java
        Checking agent version

    Executing install
        Unpacking software zip
        Copying files to destination dir (/opt/oracle/mgmt_agent)
        Initializing software from template
        Creating 'mgmt_agent'daemon
        Agent Install Logs: /opt/oracle/mgmt_agent/installer-logs/installer.log.0

    Agent install successful

    Executing configure

        Parsing input response file
        Validating install key
        Generating communication wallet
        Generating security artifacts
        Registering Management Agent

    Starting agent...
    Agent started successfully


    Agent setup completed and the agent is running.
    In the future agent can be started by directly running: sudo systemctl start mgmt_agent

    Please make sure that you delete <user_home_directory>/input.rsp or store it in secure location.

    The agent installation process does the following:
    • A new user called mgmt_agent is created. This will be the management agent user. If mgmt_agent user already exists, the agent installation process will use it to install the agent software.
    • When mgmt_agent daemon is created, the hard and soft nofile ulimit are set to 5000.
    • All agent installation files are owned by mgmt_agent user. The agent install base directory is the directory where the agent is installed. The directory is created as part of the agent installation process under /opt/oracle/mgmt_agent directory.
    • By default, the mgmt_agent service is enabled and started automatically after the agent installation.

    Log files from the agent installation are located under /opt/oracle/mgmt_agent/installer-logs directory.

    Log files from the running agent are located under /opt/oracle/mgmt_agent/agent_inst/log.

    To view the log files or any other agent installation files, login as mgmt_agent user running the following:
    sudo -u mgmt_agent sh

Install Management Agent on Windows

To install the management agent software on Windows, perform the following steps:
  1. Extract the management agent software.

    Navigate to the directory where you have downloaded the management agent software ZIP file and unzip it to any preferred location.

  2. Login as an Administrator user and open a Command Prompt window.

  3. Install and configure the management agent by running the install.bat script using a response file.
    installer.bat <full_path_of_response_file>
    The output will look similar to the following:
    installer.bat C:\<user_home_directory>\input.rsp
    Checking pre-requisites

            Checking if previous agent service exists
            Checking if C:\Oracle\mgmt_agent\agent_inst directory exists
            Checking if C:\Oracle\mgmt_agent\200820.0751 directory exists
            Checking available disk space for agent install
            Checking Java version
                    Java version: 1.8.0_281 found at C:\Program Files\Java\jdk1.8.0_281

    Executing install
            Unpacking software zip
            Copying files to destination dir (C:\Oracle\mgmt_agent)
            Initializing software from template
            Creating mgmt_agent service

    Agent install successful

    Executing configure

            Parsing input response file
            Generating communication wallet
            Validating install key
            Generating security artifacts
            Registering Management Agent

    The mgmt_agent service is starting....
    The mgmt_agent service was started successfully.


    Agent setup completed and the agent is running
    In the future agent can be started by directly running: NET START mgmt_agent
    Please make sure that you delete C:\<user_home_directory>\input.rsp or store it in secure location.


For more information about creating response files, see Create a Response File.

The agent installation process does the following:
  • A new directory is created as part of the agent installation process: C:\Oracle\mgmt_agent.
  • The agent install base directory is the directory where the agent will be installed. By default, the agent is installed under C:\Oracle directory. This default directory can be changed by setting the AGENT_INSTALL_BASEDIR environment variable before running the install.bat script.
  • Log files from the agent installation are located under C:\Oracle\mgmt_agent\installer-logs directory.

Install Management Agent on Solaris

To install the management agent software on Solaris, perform the following steps:
  1. Extract the management agent software.

    Navigate to the directory where you have downloaded the management agent software ZIP file and unzip it to any preferred location.

  2. Set SUDO_PATH environment variable with the path to sudo. You may use sudo -E option to retain environment variables while running the command as sudo.

    Confirm useradd and groupadd are in your PATH environment variable. For example, if it is at location /sbin/useradd then confirm it's in your path.

    Confirm sudo is in your PATH environment variable. For example, if sudo is at location /usr/bin/sudo then confirm the PATH environment variable has "/usr/bin".

  3. Login as a user with sudo privileges.

  4. Install and configure the management agent by running the installer.sh script using a response file.

    For information about creating response files, see Create a Response File.

    Navigate to the directory where you unzipped the management agent software ZIP file and run the following:
    sudo ./installer.sh <full_path_of_response_file>
    The output will look similar to the following:
    sudo ./installer.sh <user_home_directory>/input.rsp
    Checking pre-requisites
        Checking if any previous agent service exists
        Checking if OS has systemd or initd
        Checking available disk space for agent install
        Checking if /opt/oracle/mgmt_agent directory exists
        Checking if 'mgmt_agent' user exists
        Checking Java version
            JAVA_HOME is not set or not readable to root
            Trying default path /usr/bin/java
            Java version: 1.8.0_282 found at /usr/bin/java
        Checking agent version

    Executing install
        Unpacking software zip
        Copying files to destination dir (/opt/oracle/mgmt_agent)
        Initializing software from template
        Creating 'mgmt_agent'daemon
        Agent Install Logs: /opt/oracle/mgmt_agent/installer-logs/installer.log.0

    Agent install successful

    Executing configure

        Parsing input response file
        Validating install key
        Generating communication wallet
        Generating security artifacts
        Registering Management Agent

    Starting agent...
    Agent started successfully


    Agent setup completed and the agent is running.
    In the future agent can be started by directly running: sudo systemctl start mgmt_agent

    Please make sure that you delete <user_home_directory>/input.rsp or store it in secure location.

    The agent installation process does the following:
    • A new user called mgmt_agent is created. This will be the management agent user. If mgmt_agent user already exists, the agent installation process will use it to install the agent software.
    • When mgmt_agent daemon is created, the hard and soft nofile ulimit are set to 5000.
    • All agent installation files are owned by mgmt_agent user. The agent install base directory is the directory where the agent is installed. The directory is created as part of the agent installation process under /opt/oracle/mgmt_agent directory.
    • By default, the mgmt_agent service is enabled and started automatically after the agent installation.

    Log files from the agent installation are located under /opt/oracle/mgmt_agent/installer-logs directory.

    Log files from the running agent are located under /opt/oracle/mgmt_agent/agent_inst/log.

    To view the log files or any other agent installation files, login as mgmt_agent user running the following:
    sudo -u mgmt_agent sh

Verify the Management Agent Installation

Verify the Agent Installation Using User Interface

To verify the agent installation using the user interface, perform the following steps:

  1. On the main Management Agents page, click Agents from the left menu.

    The Agents page is displayed with a list of all agents and gateway installed.

    To see only the agents, you can use the Filters section from the left menu:

    Go to Filters, use the Install Type dropdown list and select Agent.

    All the agents are displayed.

    Agents list page that shows all the management agents installed.

  2. From the Agents list, look for the agent that was recently installed using the Created column which displays the date of the agent installation or the Host column which displays the host name where the agent was installed.

Verify the Agent Installation Using Command Line Interface on Linux

  1. Login to the host using a user with sudo privileges.

  2. Run the following command:

    For Oracle Linux 6:
    sudo /sbin/initctl status mgmt_agent
    For Oracle Linux 7:
    sudo systemctl status mgmt_agent

    For more details, check log file: /opt/oracle/mgmt_agent/agent_inst/log/mgmt_agent.log.

Verify the Agent Installation Using Command Line Interface on Windows

  1. Login to the host using an Administrator account’s command shell.

  2. Run the following command:
    sc query mgmt_agent

    For more details, check the log file: C:\Oracle\mgmt_agent\agent_inst\log\mgmt_agent.log.

Verify the Agent Installation Using Command Line Interface on Solaris

  1. Login as a user that has sudo privilege to execute commands as root user.

  2. Run the following command:
    sudo /etc/init.d/mgmt_agent status

    For more details, check log file: /opt/oracle/mgmt_agent/agent_inst/log/mgmt_agent.log.

Troubleshoot Management Agent Installation Issues

Users may encounter various errors during Oracle Management Agent installation process. Causes and recommended actions for such errors are listed below.

Please uninstall the agent and remove the service file before installing the new agent!

Cause: There's an agent already installed on your host. A previous deinstall process did not remove the agent service file successfully.

Action:
  • Run rpm -e oracle.mgmt_agent to uninstall the agent. If command succeeds, try installing the new agent. If command doesn't work, try the next recommended action.
  • Execute ls /opt/oracle/mgmt_agent to check if you have residuals of the previous agent installation. If you find it, delete it by running: rm -rf /opt/oracle/mgmt_agent.
  • Check if you already have agent service file at the following location depending on your Linux version:
    • For OL7 (if you are using systemd): /etc/systemd/system/mgmt_agent.service
    • For OL6 (if you are using init): /etc/init/mgmt_agent.conf.

      If you find that you have this service file, remove it by running: rm -rf /etc/init/mgmt_agent.conf and then retry installing the new agent.

Java is not a 64-bit JVM! Please set path of a 64-bit JVM in the environment variable JAVA_HOME or Java not found please set your preferred path in JAVA_HOME.

Cause: The JAVA_HOME environment variable is not set or it's not pointing to a 64 bit JDK location.

Action: Set JAVA_HOME environment variable to the right JDK version and retry installing the agent. Currently, only 64 bit JDK is supported.

Agent installation failed, please check log file.

Cause: The installation script cannot add a user and group during the management agent installation process because the available group ids on your Linux system are already in use.

Executing install
    Unpacking software zip
    Copying files to destination dir (/opt/oracle/mgmt_agent)
useradd: Can't get unique GID (no more available GIDs)
useradd: can't create group
Agent installation failed, please check log file

Action: Consult with the system administrator before proceeding with the following:

  1. Edit the /etc/login.defs file. You require sudo privileges to edit the file.

    Look for the following entries:
    SYS_GID_MIN               nnnn
    SYS_GID_MAX               mmmm
    SYS_UID_MIN               pppp
    SYS_UID_MAX               qqqq
    Where nnnn and pppp are the minimum value and mmmm and qqqq are the maximum value.

    If the above entries don't exist in the file, add them.

  2. Update the value of SYS_GID_MAX entry based on the system administrator's recommendation, and save the file.

  3. Remove the failed agent installation by running: sudo rpm -e oracle.mgmt_agent.

  4. Logout of the shell followed by login.

  5. Retry the agent installation.

Management Agent status is "Not Available" in Console after the initial installation

Possible Causes:
  • (a) Missing policies

    Action: Verify that the policies are added to Management Agent as described in the set up instructions. For details, see Set Up Oracle Cloud Infrastructure for Management Agents.

    If the policies are missing, add them as described in Set Up Oracle Cloud Infrastructure for Management Agents.

  • (b) Typos in policies

    Action: Review the policies syntax for any errors by comparing them against the policies samples. For details, see Set Up Oracle Cloud Infrastructure for Management Agents.

    For example, ensure that the dynamic group definition is defined correctly as per the following syntax with right single quote characters around the compartment id and managementagent resource type:

    ALL {resource.type='managementagent', resource.compartment.id='ocid1.compartment.oc1.examplecompartmentid'}
  • (c) Incorrect compartment id in Dynamic Group definition

    Action: Verify that the install key compartment id is the same as the compartment id specified in the agent's dynamic group definition. By default the agent is created in the install key's compartment.

  • (d) Incorrect system timestamp

    Action: Verify the system time of agent host, and correct it if it is not accurate.

useradd: cannot create directory /usr/share/mgmt_agent

During the Management Agent installation, the mgmt_agent user is created with the default home directory location under /usr/share/mgmt_agent.

Cause: There's not enough file permissions under /usr/share or the file system is read-only.

Possible Actions:

  • Set file permissions to give mgmt_agent user access to the default user home directory location: /usr/share.

  • Set a different home directory location using the USER_HOME_DIR_ROOT environment variable if you want to use a different location.

    Set the USER_HOME_DIR_ROOT environment variable with the path that you prefer to use as a home directory for mgmt_agent user, and ensure the management agent user has the right file permissions on that preferred directory.

Windows: The system cannot find the path specified. Agent install failed.

ERRORLEVEL=9009

Possible Cause: Environment variables have not been set properly due to spaces in the directory/folder name.

Windows environments allow to use spaces within a directory/folder name which causes an issue with the Management Agent installation since quotes are added to the name automatically by Windows. For example, there's a directory/folder named: Program Files. In this case Windows auto-inserts quotes since there's a space within the folder name, and it will now say: "Program Files".

Extra quotes can cause an issue since Management Agent installer does not allow quotes for environment variables like JAVA_HOME and AGENT_INSTALL_BASEDIR.

Note

The Management Agent installer does not accept the following special characters in the path: [, ^^, ", ', &, or ].

Action:

The recommended way to set up environment variables in Windows is by using the Advanced System Settings.
  • On the Windows taskbar, right-click the Windows icon and select System.
  • In the Settings window, under Related Settings, click Advanced system settings.

    Windows Advanced Settings

  • On the Advanced tab, click Environment Variables.

    Windows Environment Variables

  • Click New to create a new environment variable. Click Edit to modify an existing environment variable.
  • After creating or modifying the environment variable, click Apply and then OK to have the change take effect.
    Note

    The graphical user interface for creating environment variables may vary slightly, depending on your version of Windows.
