Managing REST Resources

REST Services that are not defined with Open API will produce a WADL. For these services, you do not need to create a root resource.

To access the Service Operations – General page select PeopleTools, and then Integration Broker, and then Integration Setup, and then Service Operation Definitions.

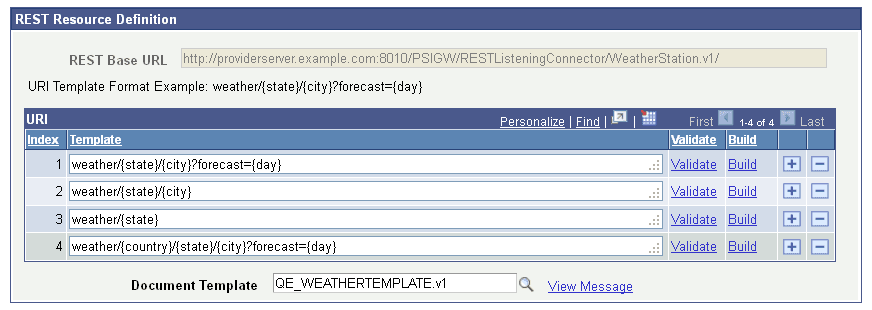

This example illustrates the REST Resource Definition section in the Service Operations – General page for a provider REST service operation.

Use this section to add one or more template URI strings to define one or more resources for the service operation definition.

A URI template format example appears just about the URI grid for you to use as a guide for building URI templates.

In the example the URI grid shows that there are four URI templates defined for the service operation. The QE_WEATHERTEMPLATE.v1 value defined in the Document Template field is a Document type message. The message contains the primitive elements to supply values for country, state, city and day indicated by the variables {country}, {state}, {city}, and {day} defined in the URI templates.

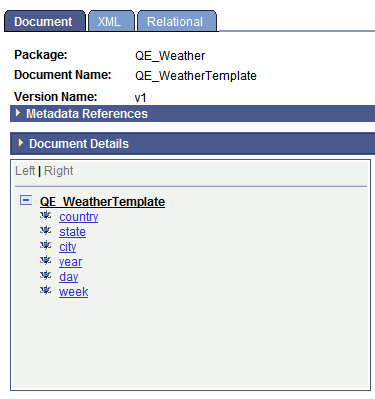

This example illustrates the primitive elements defined in a sample document called QE_WEATHERTEMPLATE.

You cannot save a URI template until you define a document template. Note, that when you save the resource definition, the system assigns a sequential URI index to each URI template.

You can build the manually enter the URI or use the URI Template Builder. To use the URI Template Build, see Using the URI Template Builder.
